TOYOTA 4RUNNER 2008 N210 / 4.G Owners Manual

249
NOTICE
Be sure that the positive side and
negative side of the controller bat-
tery should be faced correctly.
 Do not replace the battery with wet
hands. Water may cause rust.
 Do not touch or move any compo-
nents inside of the controller, or it
may interfere with proper operation.
 Be careful not to bend the electrode
of the controller battery insertion.
 Close the battery case securely.
After replacing the battery, check that the
controller operates properly. If the control-
ler still does not operate properly, contact
your Toyota dealer.
Z17453
To turn on the system, push the DVD"
button or VIDEO" button.
When the DVD" button is pushed, the
disc load screen changes to the DVD
player operation screen.
When the VIDEO" button is pushed, the
images and sounds from the personal au-
dio machine are output.
The DVD" button is effective only when
a disc is inserted.
Z17455
To turn off the system, push the OFF"
button.
When the front audio system is turned off,
the rear audio system and the DVD player
will be turned off simultaneously.
Turning the rear seat
entertainment system on and
off

250
Z18033
Vehicles with navigation systemThe rear
seat entertainment system can be
switched ON and OFF by pushing the
Rear" switch on the front audio system.The rear DVD player can be operated
through the front audio system.
The audio system controls in the instru-
ment panel allow the operation of the rear
seat entertainment system by rear seat
passengers to be disabled.
Turning on the rear system lock prevents
small children from using the remote con-
troller or operation panel of the DVD play-
er unit to operate the rear seat entertain-
ment system during driving.
Turn the audio system on. Push the
AUDIO CONTROL" knob repeatedly until
RSE" is displayed. Next, turn the AUDIO
CONTROL" knob until ON" is displayed,
and then push the AUDIO CONTROL"
knob.
Front audio system
operation
Rear system lock

251
Z18031E
Vehicles with navigation system
Push the INFO" button to change the
screen to Screen Setting".
Push the ON" switch on the Screen
Setting" screen to turn on the Rear
system lock". Then push OK".
Z17443
When the rear system lock is on and any
button is pushed on the remote controller
or the operation panel, the screen shown
above is displayed for approximately 6
seconds.
Even when the rear system lock is turned
on during play mode, the images and
sounds continue without interruption.
The condition of the rear system lock is
maintained, even when the engine switch
is turned off.The DVD player can play audio CDs/
MP3 CDs, DVD video discs, CD texts,
dts−CDs and video CDs.
For appropriate discs for this player, see
Audio/video system operating hints" on
page 280 in this Section.
The DVD player works when the engine
switch is in the ACC" or ON" position.
To turn on the DVD player, a disc must
be loaded in the player.
To turn off the player, eject the disc.
Error messages
If the player malfunctions, your audio sys-
tem will display following error messages.
If DISC CHECK" appears on the
screen:
It indicates that the disc is dirty,
damaged or it was inserted upside down.
Clean the disc or insert it correctly.
If REGION CODE ERROR" appears on
the screen: It indicates that the DVD re-
gion code is not set properly.
If DVD ERROR" appears on the
screen: There is a problem inside the
player. Eject the disc. Set the disc again.
If the malfunction still exists, take your
vehicle to your Toyota dealer.
DVD player

252
CY17062
INSERTING THE DISC
Insert a disc into the slot with the label
side up.
DISC" indicator light turns on while the
disc is loaded.
If the label faces down, the disc cannot
be played. In this case, DISC CHECK"
and disc number appear on the screen.If a disc which is not playable is inserted,
DISC CHECK" will also appear on the
screen. For appropriate discs for this play-
er, see Audio/video system operating
hints" on page 280 in this Section.
The player will play the track or chapter,
and it will play from the beginning of the
track or chapter again after it reaches the
end.
NOTICE
Never try to disassemble or oil any
part of the DVD player. Do not insert
anything other than a disc into the
slot.
8 cm (3 in.) compact disc singles
Your compact disc player needs an adap-
tor to play compact disc singles. Compact
disc singles are about 8 cm (3 in.) in
diameter−smaller than standard di
scs.

253
Z17485
EJECTING THE DISC
Push the
" button.
Z17461
The DVD player can be operated with the
controller buttons directly.1. DVD" button
2. SET UP" button
3. MENU" button
4. AUDIO" button
5. SUB TITLE" button
6. ANGLE" button
7. SIZE" button
8. SEARCH" button
9. TOP MENU" button
10.
", ",  " and  " buttons
Z17456
The player can also be operated with the
switches on the screen.
To operate the switches on the screen,
select the switch by the joystick and push
the ENT" button. You cannot select the
switches on the screen by touching them
directly.
When the switch is selected by the joys-
tick, the outline of the switch changes to
blue. Push the ENT" button, and the
switch will be highlighted in green.
DVD player operation
switches

254

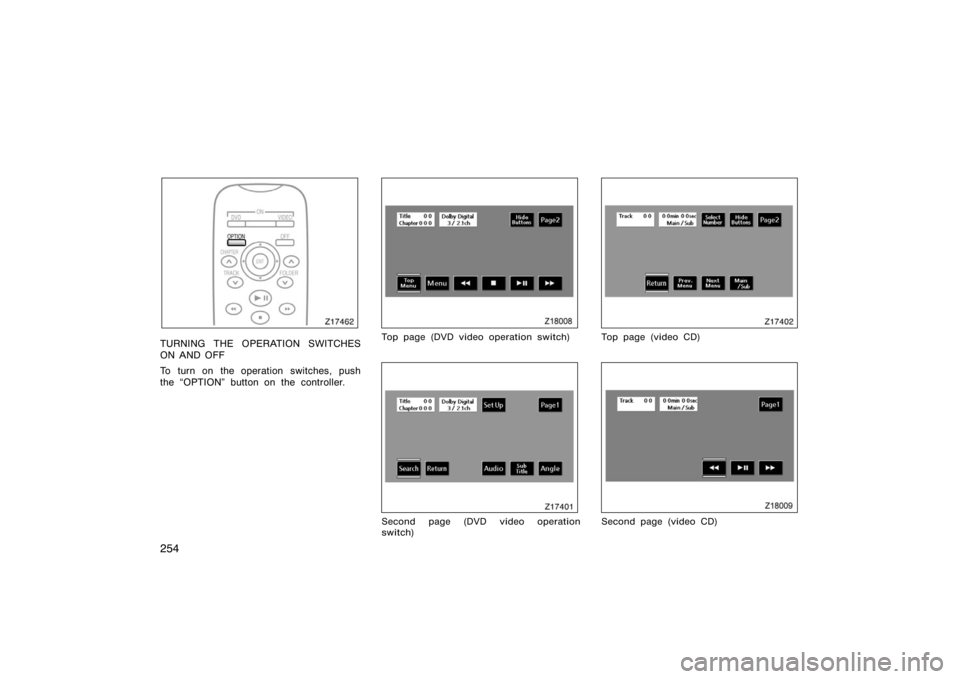

Z17462
TURNING THE OPERATION SWITCHES
ON AND OFF
To turn on the operation switches, push
the OPTION" button on the controller.
Z18008
Top page (DVD video operation switch)
Z17401
Second page (DVD video operation
switch)
Z17402
Top page (video CD)
Z18009
Second page (video CD)

255
There are operation switches on the Page
1" and Page 2" screens.
To change the screen, push the Page 1"
or Page 2" switch on the screen.

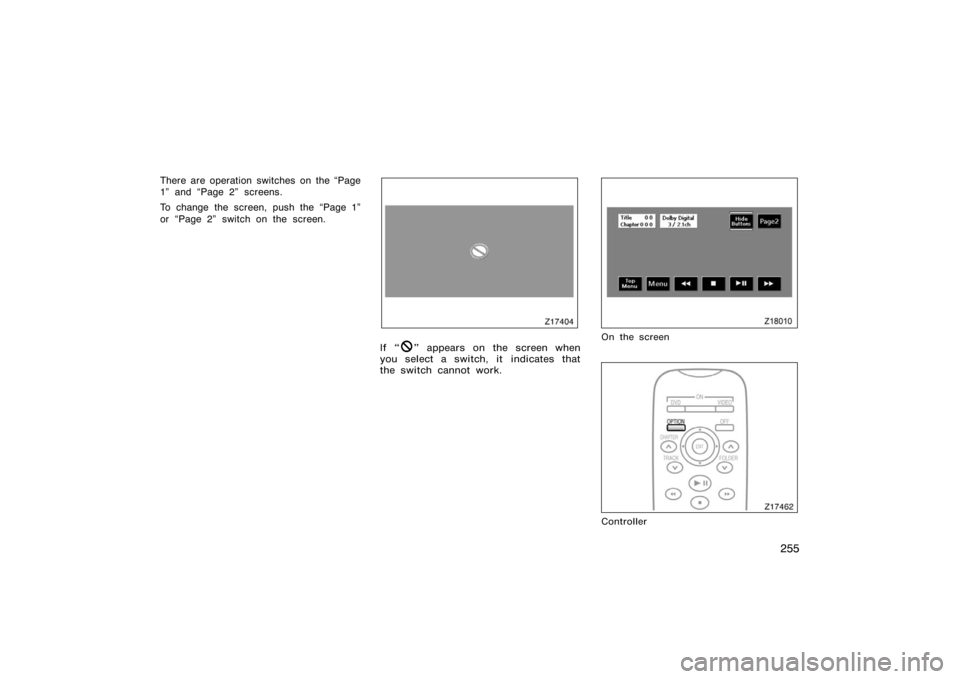

Z17404
If " appears on the screen when
you select a switch, it indicates that
the switch cannot work.
Z18010
On the screen
Z17462
Controller

256
To turn off the switches on the screen,
push the OPTION" button on the control-
ler once again or push the Hide Buttons"
on the screen.
DVD player operation
NOTE: The playback condition of some
DVD video discs may be determined by
the DVD video software producer. This
DVD player plays discs as the software
producer intended. Therefore, some
functions may not work properly. Be
sure to read the instruction manual for
the DVD video disc separately provided.
For detailed information about DVD
video discs, see DVD video disc
information" on page 276 in this
Section.
Precautions for DVD video discs
When recording on a DVD video, video
CD or audio tracks may not record in
some cases while the menu is displayed.
As audio will not play in this case, verify
that the video tracks are playing and then
activate playback.
The title/chapter number and playback
time display may not appear while playing

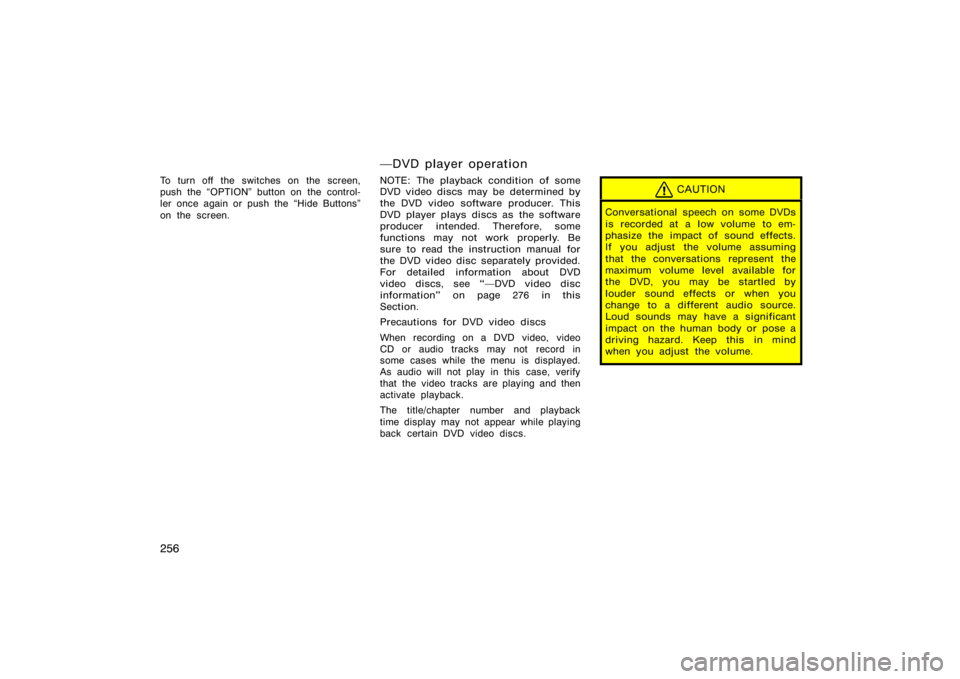

back certain DVD video discs.CAUTION
Conversational speech on some DVDs
is recorded at a low volume to em-
phasize the impact of sound effects.
If you adjust the volume assuming
that the conversations represent the
maximum volume level available for
the DVD, you may be startled by
louder sound effects or when you
change to a different audio source.
Loud sounds may have a significant
impact on the human body or pose a
driving hazard. Keep this in mind
when you adjust the volume.

257

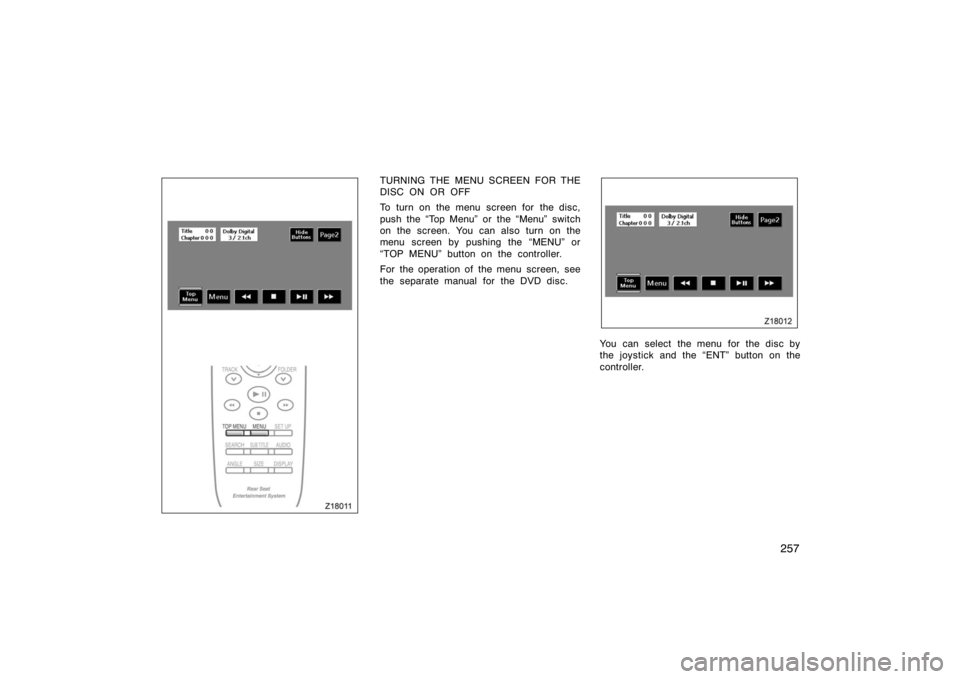

Z18011
TURNING THE MENU SCREEN FOR THE
DISC ON OR OFF
To turn on the menu screen for the disc,
push the Top Menu" or the Menu" switch
on the screen. You can also turn on the
menu screen by pushing the MENU" or
TOP MENU" button on the controller.
For the operation of the menu screen, see
the separate manual for the DVD disc.
Z18012
You can select the menu for the disc by
the joystick and the ENT" button on the
controller.

258

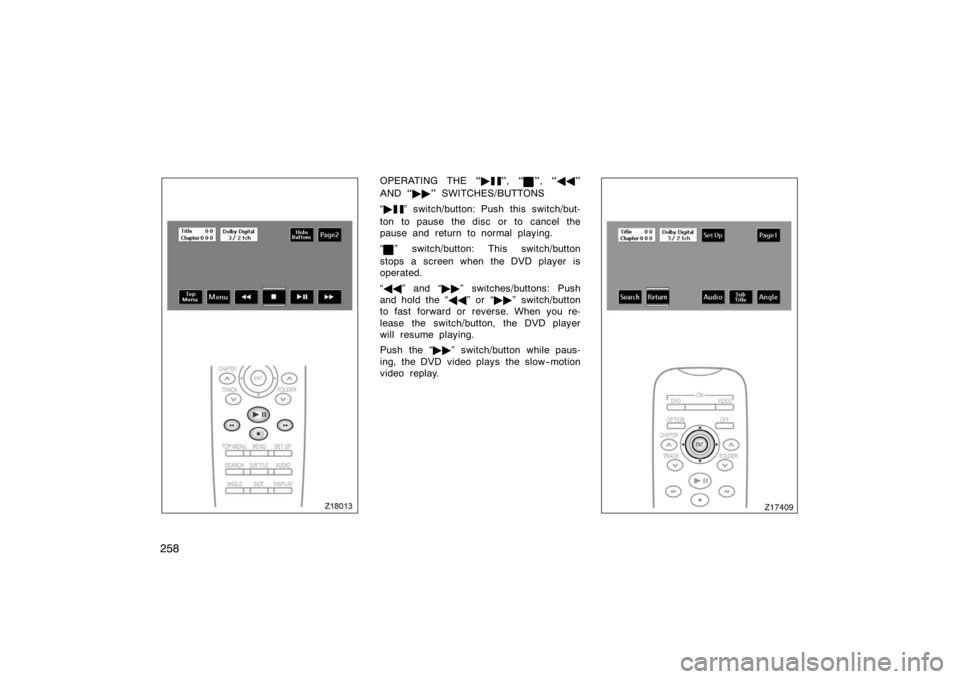

Z18013
OPERATING THE ", ", "
AND  " SWITCHES/BUTTONS

" switch/button: Push this switch/but-
ton to pause the disc or to cancel the
pause and return to normal playing.

" switch/button: This switch/button
stops a screen when the DVD player is
operated.
  " and  " switches/buttons: Push
and hold the  " or  " switch/button
to fast forward or reverse. When you re-
lease the switch/button, the DVD player
will resume playing.
Push the  " switch/button while paus-
ing, the DVD video plays the slow−motion
video replay.
