6-1. Specifications
6
Vehicle specifications

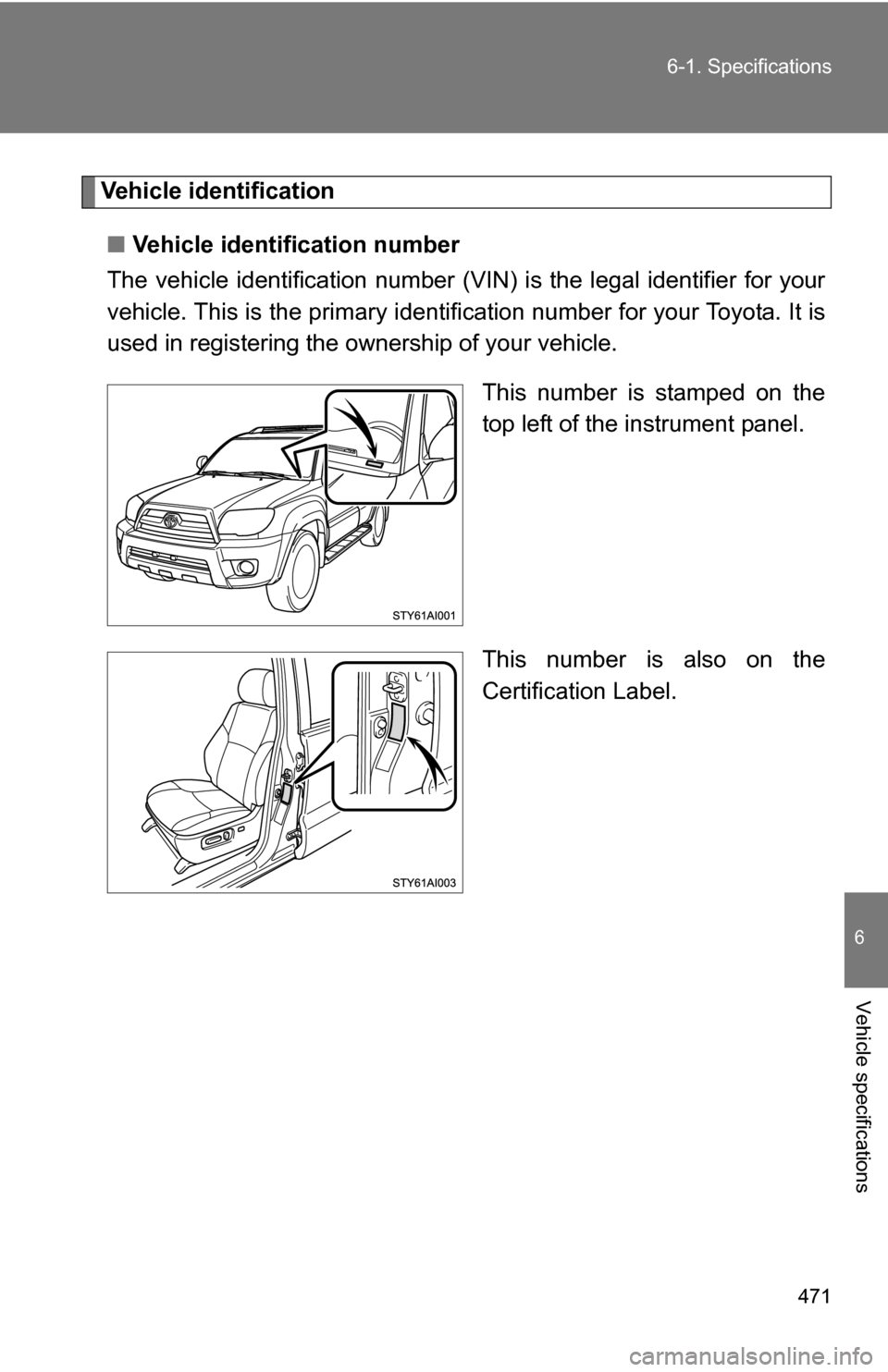

Vehicle identification
■ Vehicle identification number
The vehicle identificati on number (VIN) is the legal identifier for your
vehicle. This is the primary identification number for your Toyota. It is
used in registering the ownership of your vehicle.
This number is stamped on the
top left of the instrument panel.
This number is also on the
Certification Label.

472 6-1. Specifications

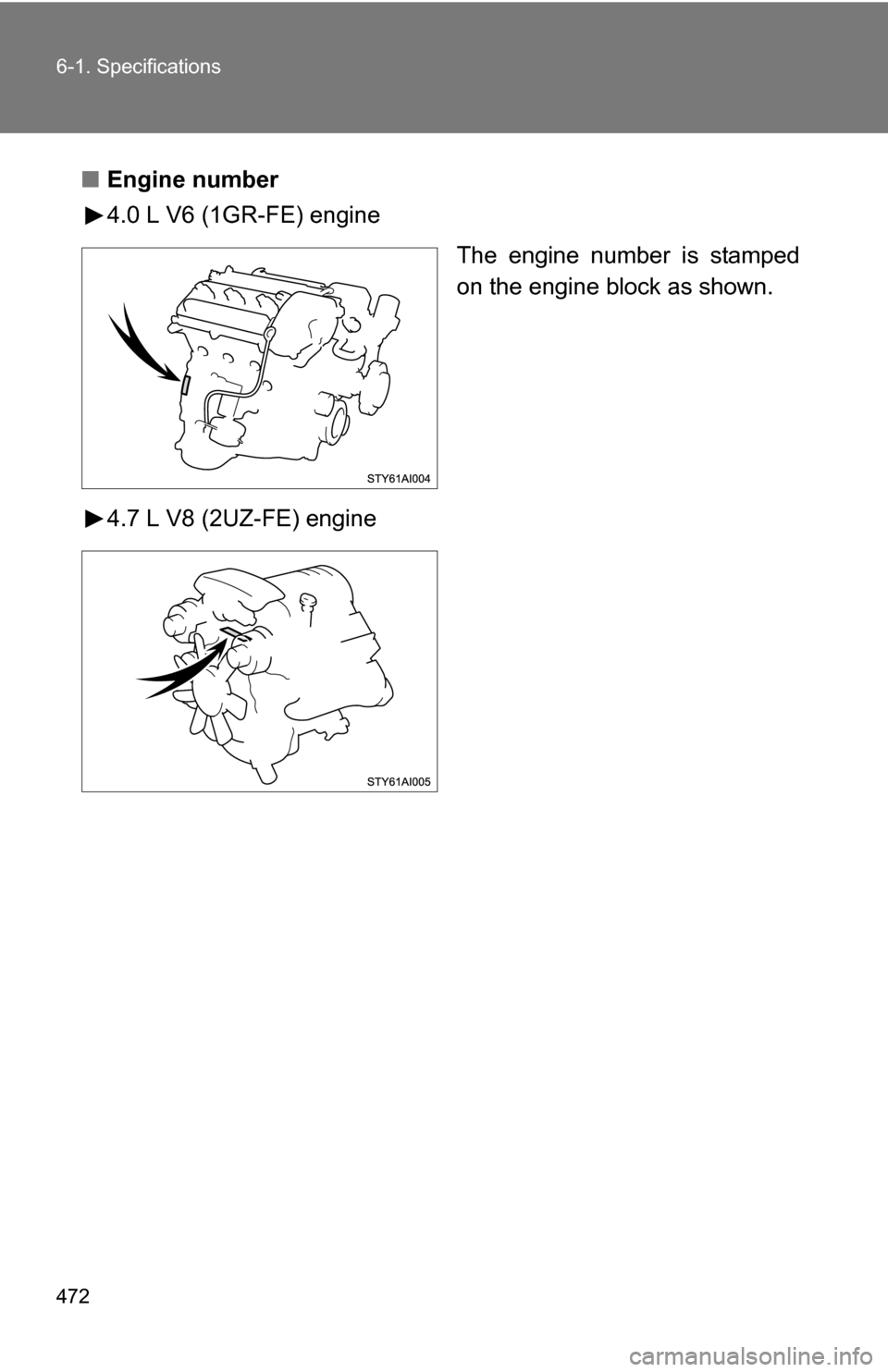

■Engine number
4.0 L V6 (1GR-FE) engine
The engine number is stamped
on the engine block as shown.
4.7 L V8 (2UZ-FE) engine

473
6-1. Specifications
6
Vehicle specifications

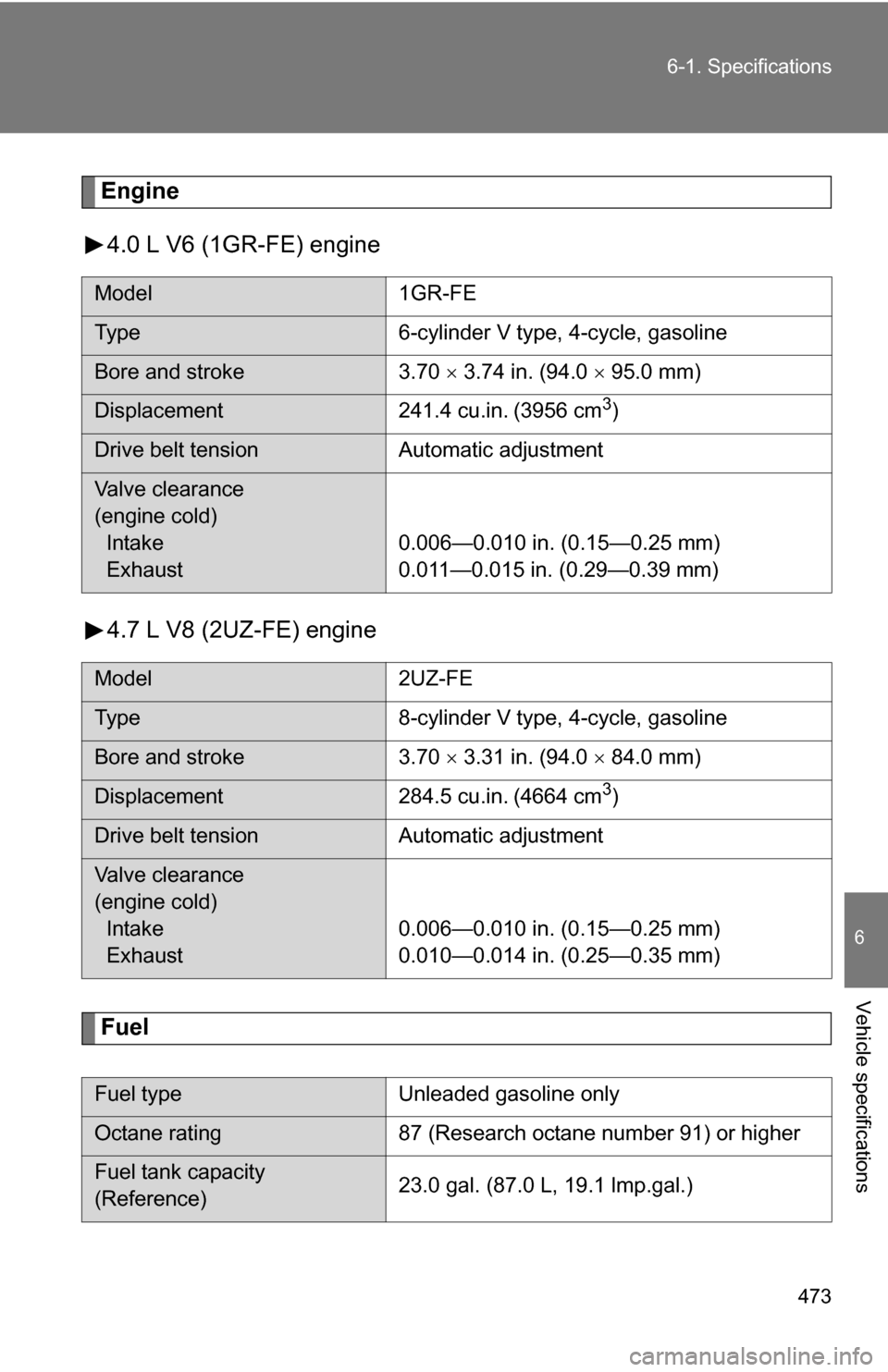

Engine
4.0 L V6 (1GR-FE) engine
4.7 L V8 (2UZ-FE) engine
Fuel
Model 1GR-FE
Type6-cylinder V type, 4-cycle, gasoline
Bore and stroke3.70  3.74 in. (94.0  95.0 mm)
Displacement 241.4 cu.in. (3956 cm3)
Drive belt tensionAutomatic adjustment
Valve clearance
(engine cold)
Intake
Exhaust 0.006—0.010 in. (0.15—0.25 mm)
0.011—0.015 in. (0.29—0.39 mm)
Model
2UZ-FE
Type 8-cylinder V type, 4-cycle, gasoline
Bore and stroke3.70  3.31 in. (94.0  84.0 mm)
Displacement 284.5 cu.in. (4664 cm3)
Drive belt tensionAutomatic adjustment
Valve clearance
(engine cold)
Intake
Exhaust 0.006—0.010 in. (0.15—0.25 mm)
0.010—0.014 in. (0.25—0.35 mm)
Fuel type
Unleaded gasoline only
Octane rating 87 (Research octane number 91) or higher
Fuel tank capacity
(Reference)23.0 gal. (87.0 L, 19.1 lmp.gal.)

474 6-1. Specifications

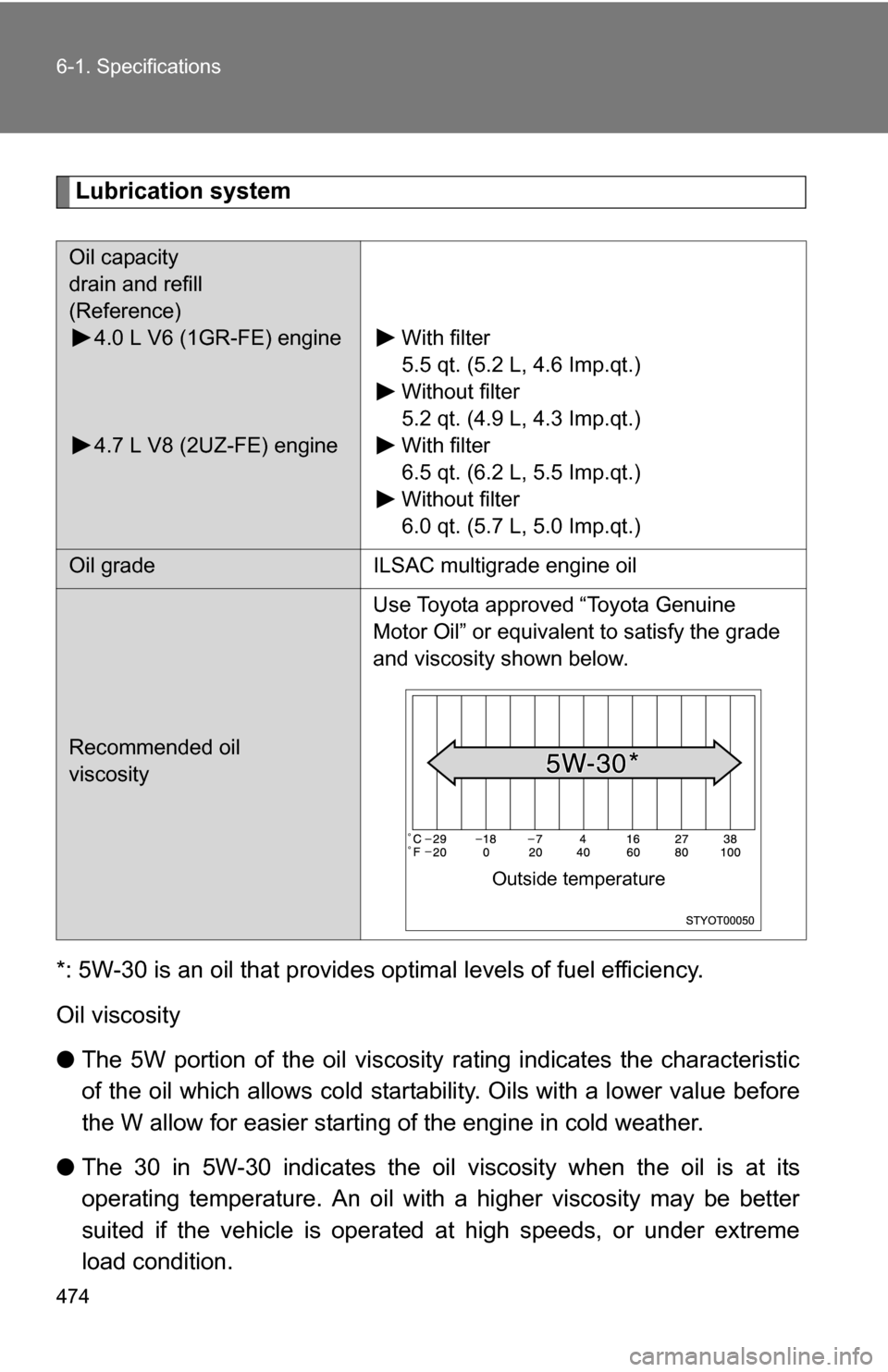

Lubrication system
*: 5W-30 is an oil that provides optimal levels of fuel efficiency.
Oil viscosity
● The 5W portion of the oil viscosity rating indicates the characteristic
of the oil which allows cold startab ility. Oils with a lower value before
the W allow for easier starting of the engine in cold weather.
● The 30 in 5W-30 indicates the oil viscosity when the oil is at its
operating temperature. An oil with a higher viscosity may be better
suited if the vehicle is operated at high speeds, or under extreme
load condition.
Oil capacity
drain and refill
(Reference)
4.0 L V6 (1GR-FE) engine
4.7 L V8 (2UZ-FE) engine With filter
5.5 qt. (5.2 L, 4.6 Imp.qt.)
Without filter 5.2 qt. (4.9 L, 4.3 Imp.qt.)
With filter 6.5 qt. (6.2 L, 5.5 Imp.qt.)
Without filter 6.0 qt. (5.7 L, 5.0 Imp.qt.)
Oil grade ILSAC multigrade engine oil
Recommended oil
viscosityUse Toyota approved “Toyota Genuine
Motor Oil” or equivalent to satisfy the grade
and viscosity shown below.
Outside temperature

475
6-1. Specifications
6
Vehicle specifications

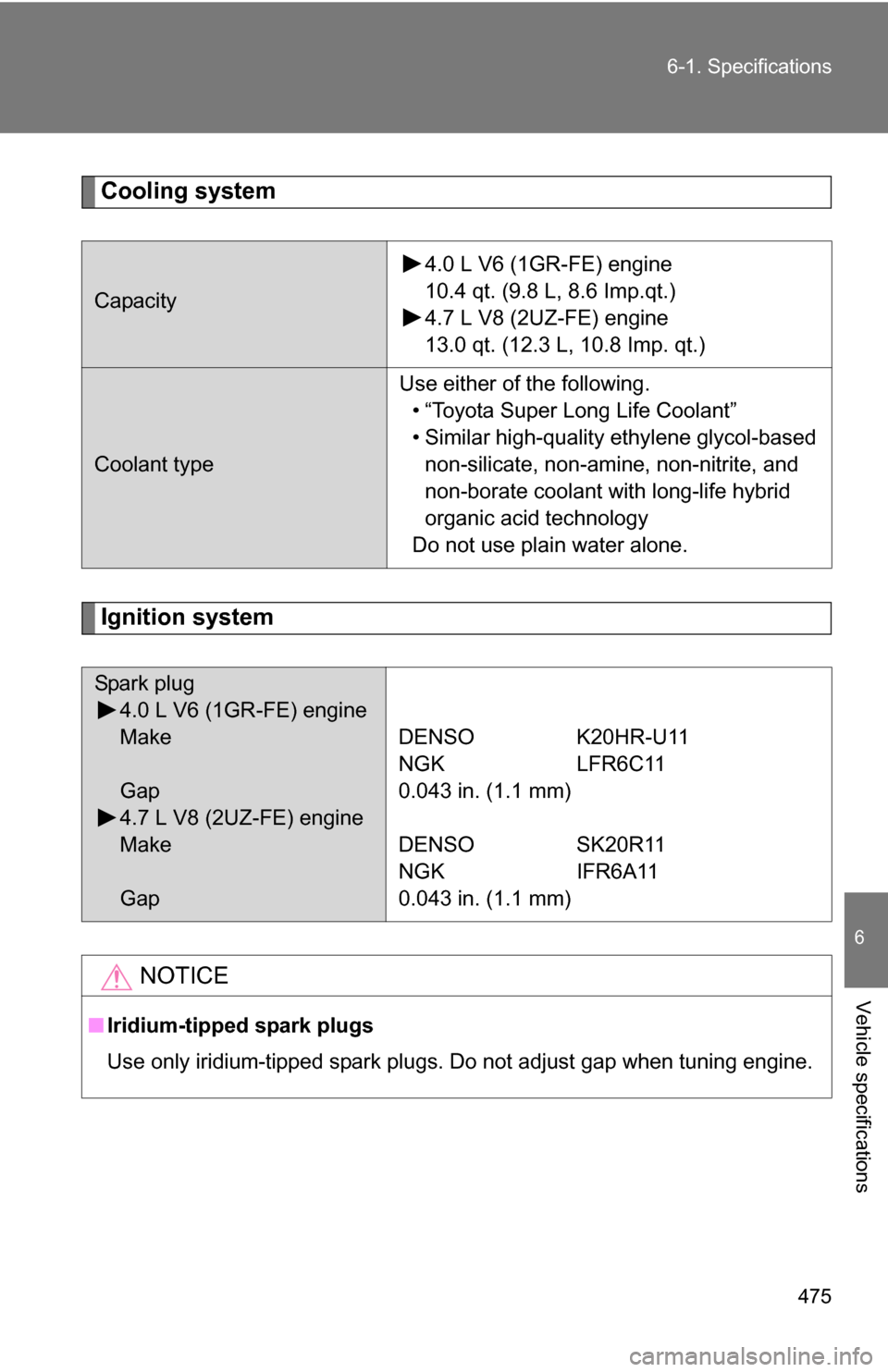

Cooling system
Ignition system
Capacity
4.0 L V6 (1GR-FE) engine
10.4 qt. (9.8 L, 8.6 Imp.qt.)
4.7 L V8 (2UZ-FE) engine
13.0 qt. (12.3 L, 10.8 Imp. qt.)
Coolant typeUse either of the following.
• “Toyota Super Long Life Coolant”
• Similar high-quality ethylene glycol-based non-silicate, non-amine, non-nitrite, and
non-borate coolant with long-life hybrid
organic acid technology
Do not use plain water alone.
Spark plug 4.0 L V6 (1GR-FE) engine
Make
Gap
4.7 L V8 (2UZ-FE) engine
Make
Gap DENSO K20HR-U11
NGK LFR6C11
0.043 in. (1.1 mm)
DENSO SK20R11
NGK IFR6A11
0.043 in. (1.1 mm)
NOTICE
■
Iridium-tipped spark plugs
Use only iridium-tipped spark plugs. Do not adjust gap when tuning engine.

476 6-1. Specifications
Electrical system
Differential
Battery
Open voltage at
68F (20 C):12.6  12.8 V Fully charged
12.2  12.4 V Half charged
11 . 8  12.0 V Discharged
(Voltage checked 20 minutes after the key is
removed with all the lights turned off)
Charging rates5 A max.
Oil capacity
Front
(4WD
models) Vehicles with an automatic disconnecting
differential
1.6 qt. (1.55 L, 1.4 Imp.qt.)
Vehicles without an automatic
disconnecting differential
1.5 qt. (1.4 L, 1.2 Imp.qt.)
Rear
Vehicles with a rear differential lock
3.1 qt. (2.95 L, 2.6 Imp.qt.)
Vehicles without a rear differential lock
3.2 qt. (3.05 L, 2.7 Imp.qt.)
Oil type and viscosity Toyota Genuine Differential Gear Oil LT
75W-85 GL-5 or equivalent
“Toyota Genuine Differential Gear Oil” is
filled in your Toyota vehicle at factory fill.
Use Toyota approved “Toyota Genuine
Differential Gear Oil” or an equivalent of
matching quality to satisfy the above
specification. Please contact your Toyota
dealer for further details.

477
6-1. Specifications
6
Vehicle specifications

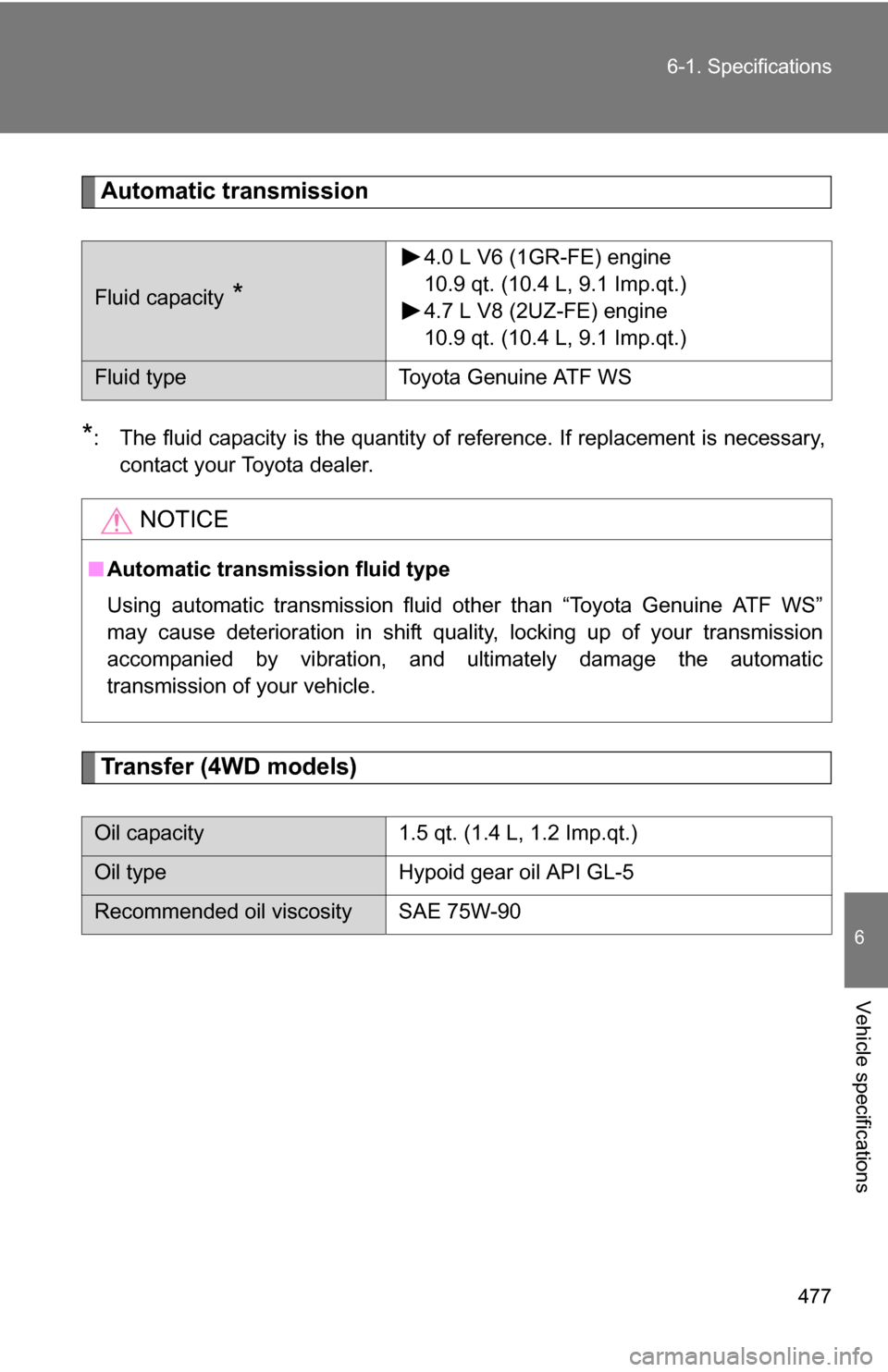

Automatic transmission
*: The fluid capacity is the quantity of reference. If replacement is necessary,
contact your Toyota dealer.
Transfer (4WD models)
Fluid capacity *
4.0 L V6 (1GR-FE) engine
10.9 qt. (10.4 L, 9.1 Imp.qt.)
4.7 L V8 (2UZ-FE) engine
10.9 qt. (10.4 L, 9.1 Imp.qt.)
Fluid type Toyota Genuine ATF WS
NOTICE
■Automatic transmission fluid type
Using automatic transmission fluid other than “Toyota Genuine ATF WS”
may cause deterioration in shift quality, locking up of your transmission
accompanied by vibration, and ultimately damage the automatic
transmission of your vehicle.
Oil capacity 1.5 qt. (1.4 L, 1.2 Imp.qt.)
Oil type Hypoid gear oil API GL-5
Recommended oil viscosity SAE 75W-90

478 6-1. Specifications

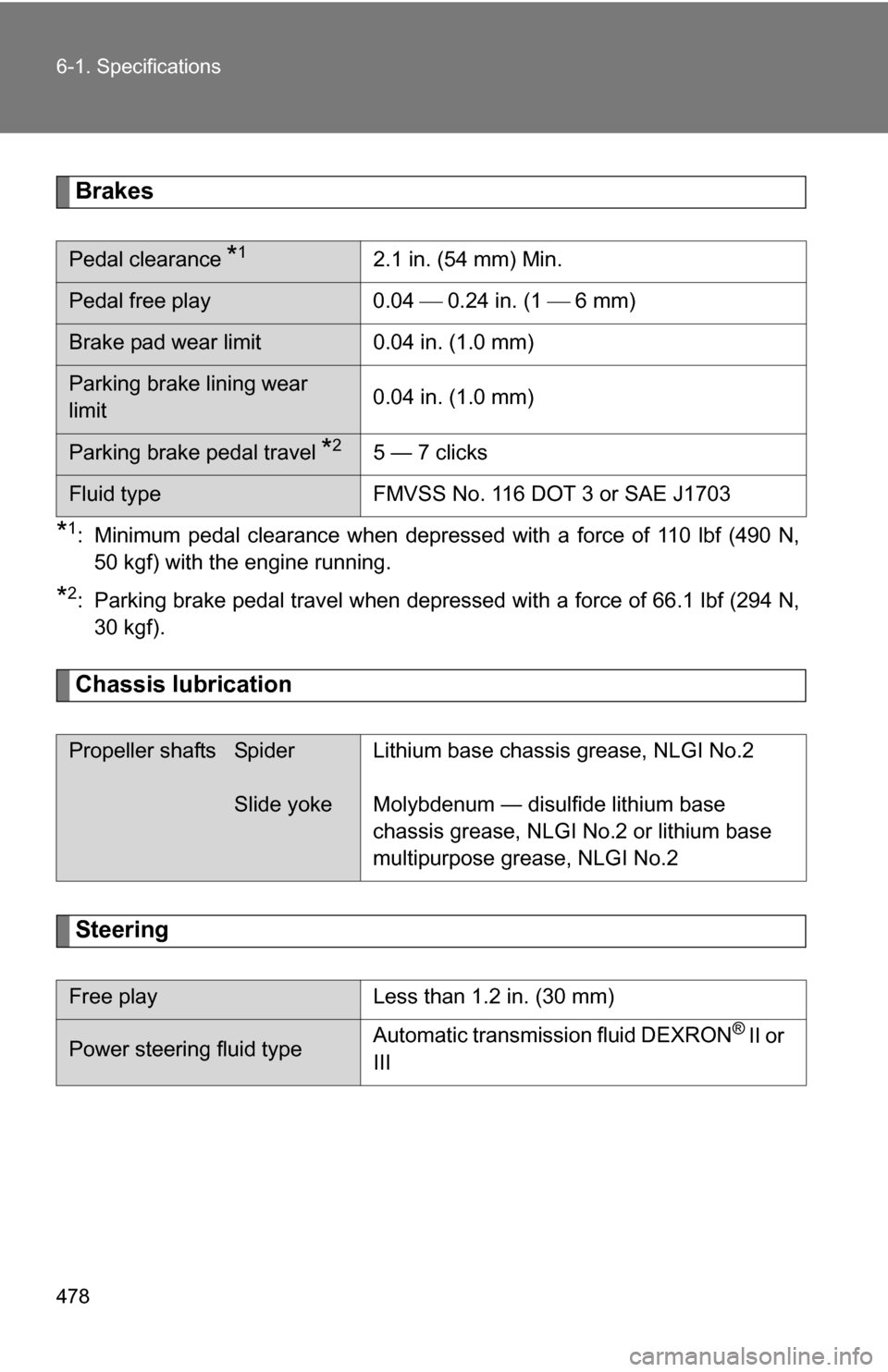

Brakes
*1: Minimum pedal clearance when depressed with a force of 110 lbf (490 N,50 kgf) with the engine running.
*2: Parking brake pedal travel when depressed with a force of 66.1 lbf (294 N,30 kgf).
Chassis lubrication
Steering
Pedal clearance *12.1 in. (54 mm) Min.
Pedal free play 0.04  0.24 in. (1  6 mm)
Brake pad wear limit 0.04 in. (1.0 mm)
Parking brake lining wear
limit 0.04 in. (1.0 mm)
Parking brake pedal travel *25 — 7 clicks
Fluid type
FMVSS No. 116 DOT 3 or SAE J1703
Propeller shafts Spider
Slide yokeLithium base chassis grease, NLGI No.2
Molybdenum — disulfide lithium base
chassis grease, NLGI No.2 or lithium base
multipurpose grease, NLGI No.2
Free playLess than 1.2 in. (30 mm)
Power steering fluid type
Automatic transmission fluid DEXRON® II or
III

479
6-1. Specifications
6
Vehicle specifications

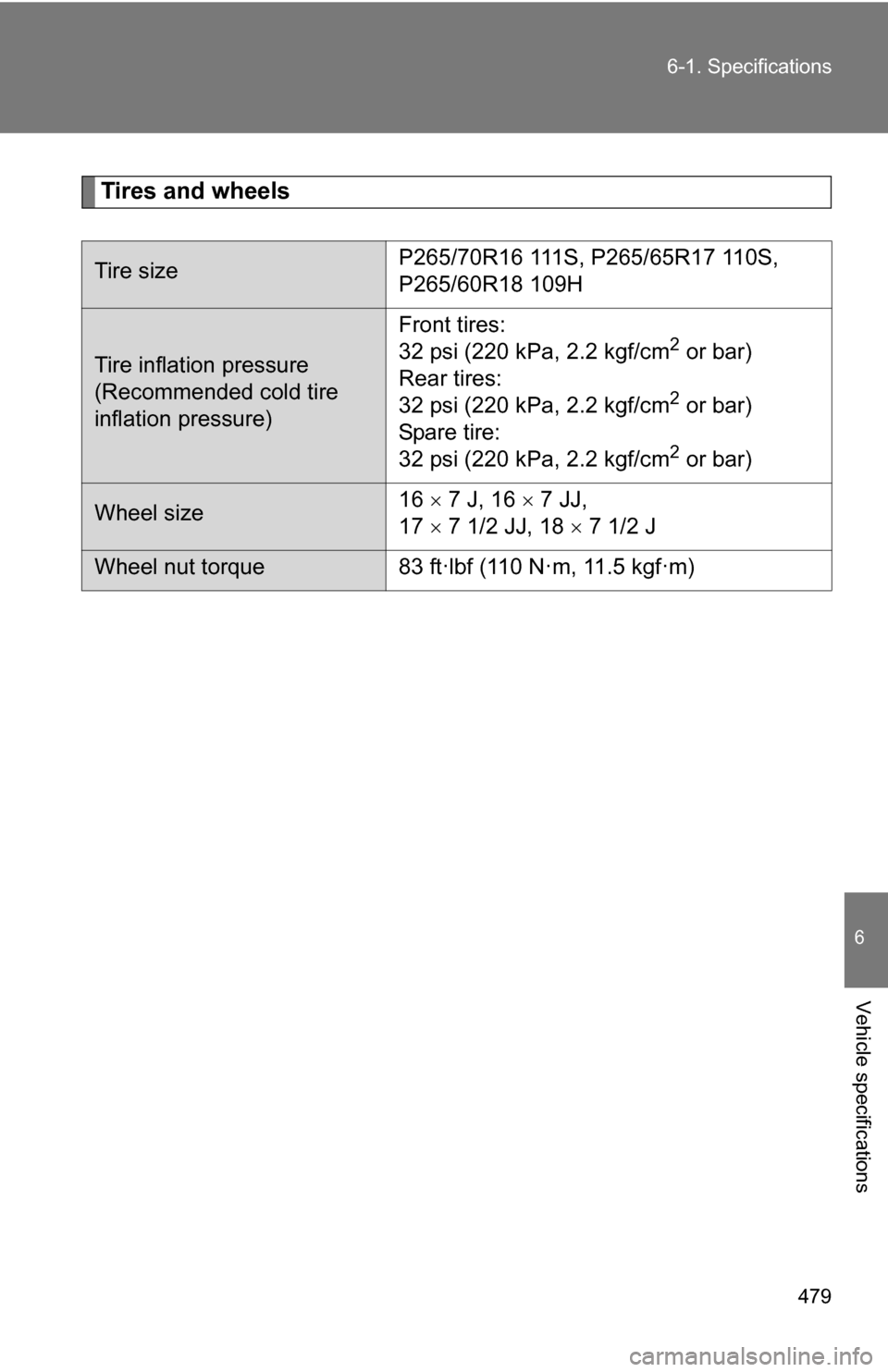

Tires and wheels
Tire size
P265/70R16 111S, P265/65R17 110S,
P265/60R18 109H
Tire inflation pressure
(Recommended cold tire
inflation pressure)Front tires:
32 psi (220 kPa, 2.2 kgf/cm
2 or bar)
Rear tires:
32 psi (220 kPa, 2.2 kgf/cm
2 or bar)
Spare tire:
32 psi (220 kPa, 2.2 kgf/cm
2 or bar)
Wheel size 16
 7 J, 16  7 JJ,
17  7 1/2 JJ, 18  7 1/2 J
Wheel nut torque 83 ft·lbf (110 N·m, 11.5 kgf·m)

480 6-1. Specifications

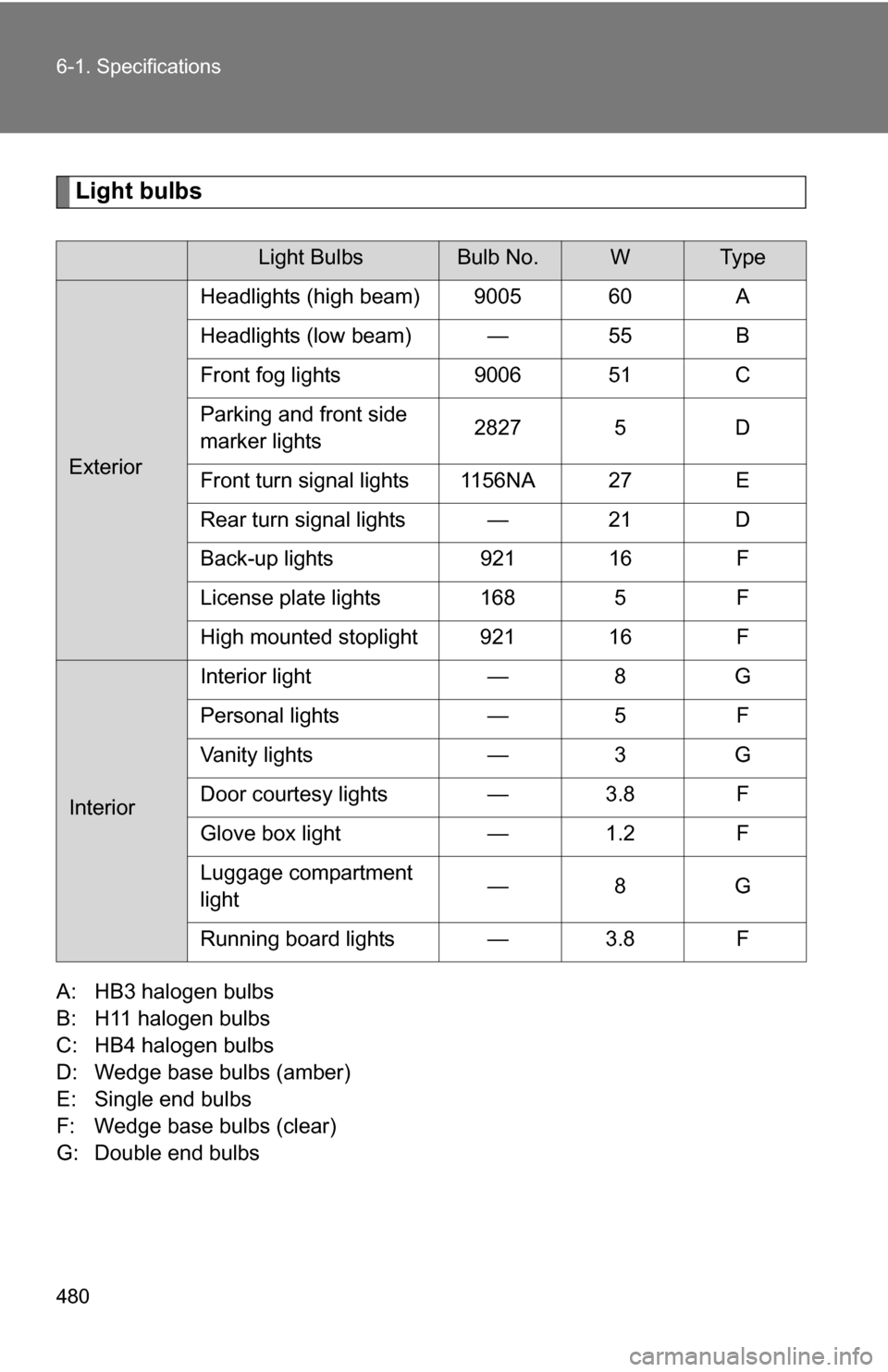

Light bulbs
A: HB3 halogen bulbs
B: H11 halogen bulbs
C: HB4 halogen bulbs
D: Wedge base bulbs (amber)
E: Single end bulbs
F: Wedge base bulbs (clear)
G: Double end bulbs
Light BulbsBulb No.WTy p e
ExteriorHeadlights (high beam) 9005 60 A
Headlights (low beam) — 55 B
Front fog lights 9006 51 C
Parking and front side
marker lights
2827 5 D
Front turn signal lights 1156NA 27 E
Rear turn signal lights — 21 D
Back-up lights 921 16 F
License plate lights 168 5 F
High mounted stoplight 921 16 F
Interior Interior light — 8 G
Personal lights — 5 F
Vanity lights — 3 G
Door courtesy lights — 3.8 F
Glove box light — 1.2 F
Luggage compartment
light
—8 G
Running board lights — 3.8 F
