TOYOTA 4RUNNER 2011 N280 / 5.G Owners Manual

431
3-7. Other interior features
3
Interior features
4RUNNER_U
Clock
Adjusts the hours
Adjusts the minutes

432 3-7. Other interior features
4RUNNER_U
■For quicker adjustment of the clock
To advance the minutes and hours quickly, press and hold the “M” or “H” but-
ton.
The time can be adjusted back or forth by following the procedure below:
■ The clock is displayed when
Vehicles without a smart key system
The engine switch is in the “ACC” or “ON” position.
Vehicles with a smart key system
The “ENGINE START STOP” switch is in ACCESSORY or IGNITION ON
mode.
■ When disconnecting and reco nnecting battery terminals
The clock data will be reset.
The hour or minute can be moved for-
ward or backward by pressing the
“MODE/ ” or “SET/ ” button while
pressing and holding the “H” or “M” but-
ton. If the “MODE/ ” or “SET/ ” but-
ton is also pressed and held in the above
operation, the hour or minute will move
faster.

433
3-7. Other interior features
3
Interior features
4RUNNER_U

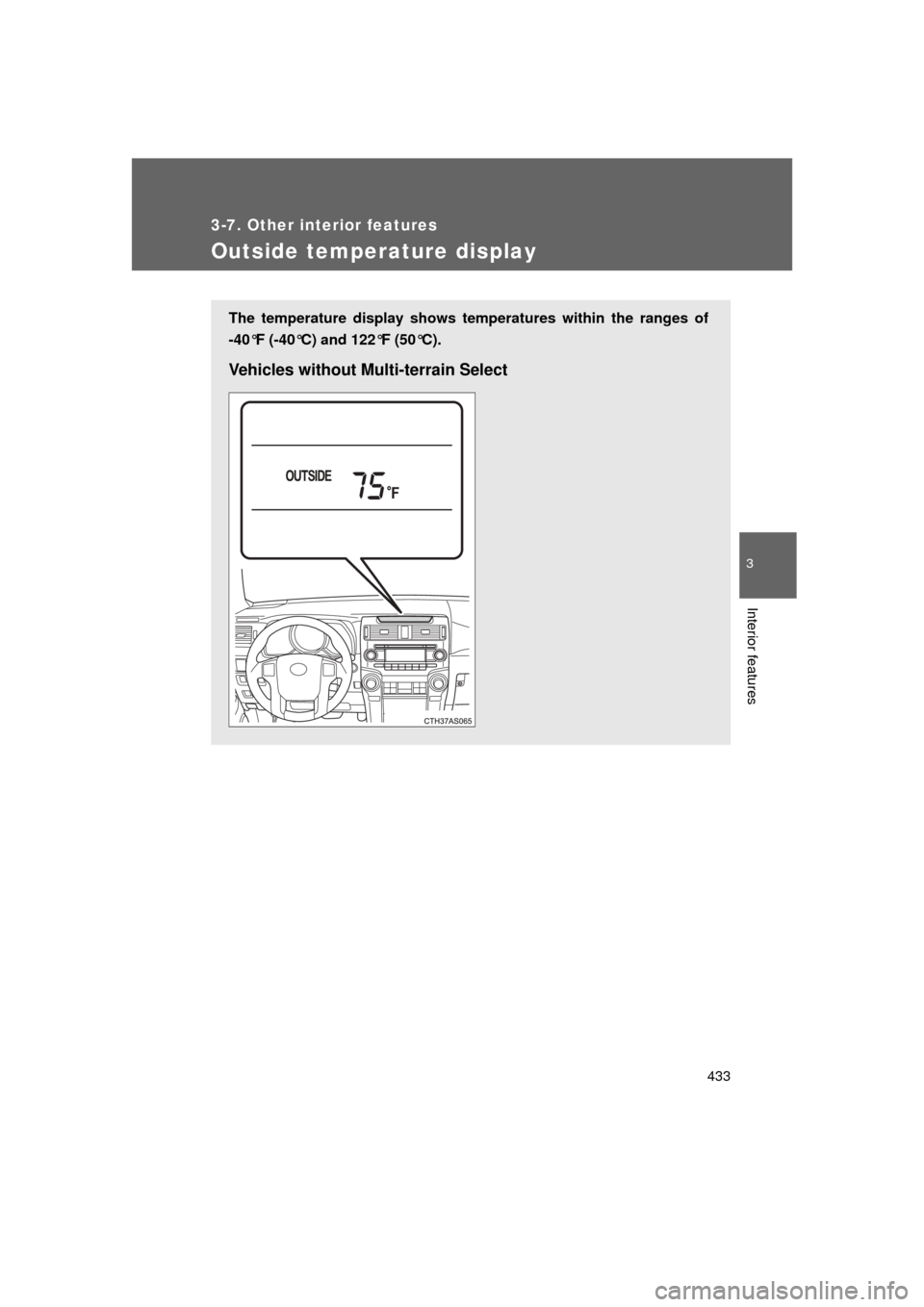

Outside temperature display
The temperature display shows temperatures within the ranges of
-40°F (-40°C) and 122°F (50°C).
Vehicles without Multi-terrain Select

434 3-7. Other interior features
4RUNNER_U
■The outside temperatur e is displayed when
Vehicles without a smart key system
The engine switch is in the “ON” position.
Vehicles with a smart key system
The “ENGINE START STOP” switch is in IGNITION ON mode.

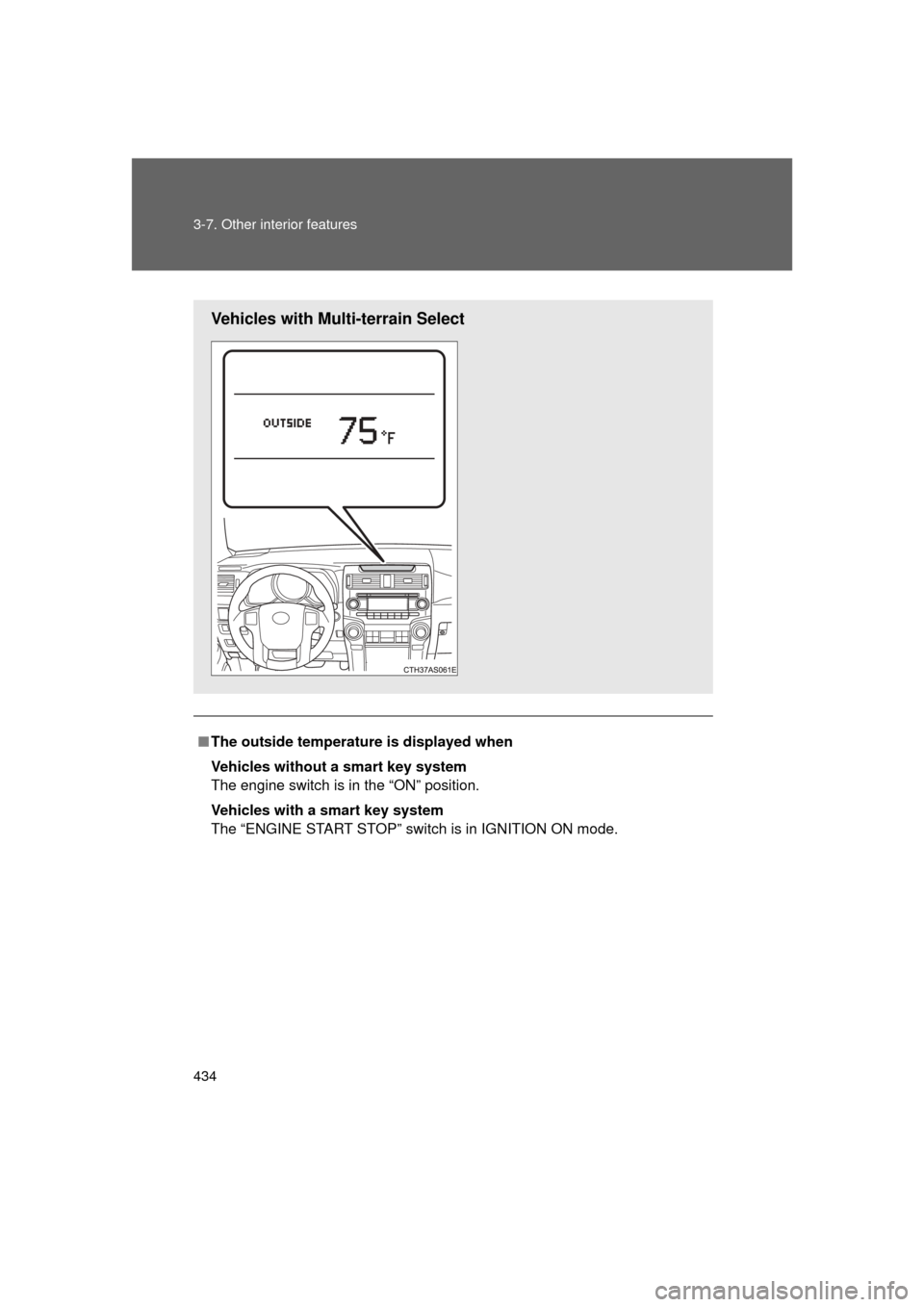

Vehicles with Multi-terrain Select

435
3-7. Other interior features
3
Interior features
4RUNNER_U
■
ICE indicator
Vehicles without Multi-terrain Select
Vehicles with Multi-terrain Select
■ Display
In the following situations, the correct outside temperature may not be dis-
played, or the display may take longer than normal to change:
● When the vehicle is stopped, or moving at low speeds (less than 14 mph
[24 km/h])
● When the outside temperature has changed suddenly (at the entrance/
exit of a garage, tunnel, etc.)
If the outside temperature lowers to 37 °F
(3 °C) or below when the engine switch is
in the “ON” position (vehicles without a
smart key system) or the “ENGINE
START STOP” switch is in IGNITION ON
mode (vehicles with a smart key system),
the “ICE” indicator will come on to warn
the driver that roads may be icy. Check
the road surface and drive carefully. (The
indicator will go off when the outside tem-
perature rises to 41 °F [5 °C].)
If the outside temperature lowers to 37 °F
(3 °C) or below when the engine switch is
in the “ON” position, the “ICE” indicator
will come on to warn the driver that roads
may be icy. Check the road surface and
drive carefully. (The indicator will go off
when the outside temperature rises to
41 °F [5 °C].)

436
3-7. Other interior features
4RUNNER_U

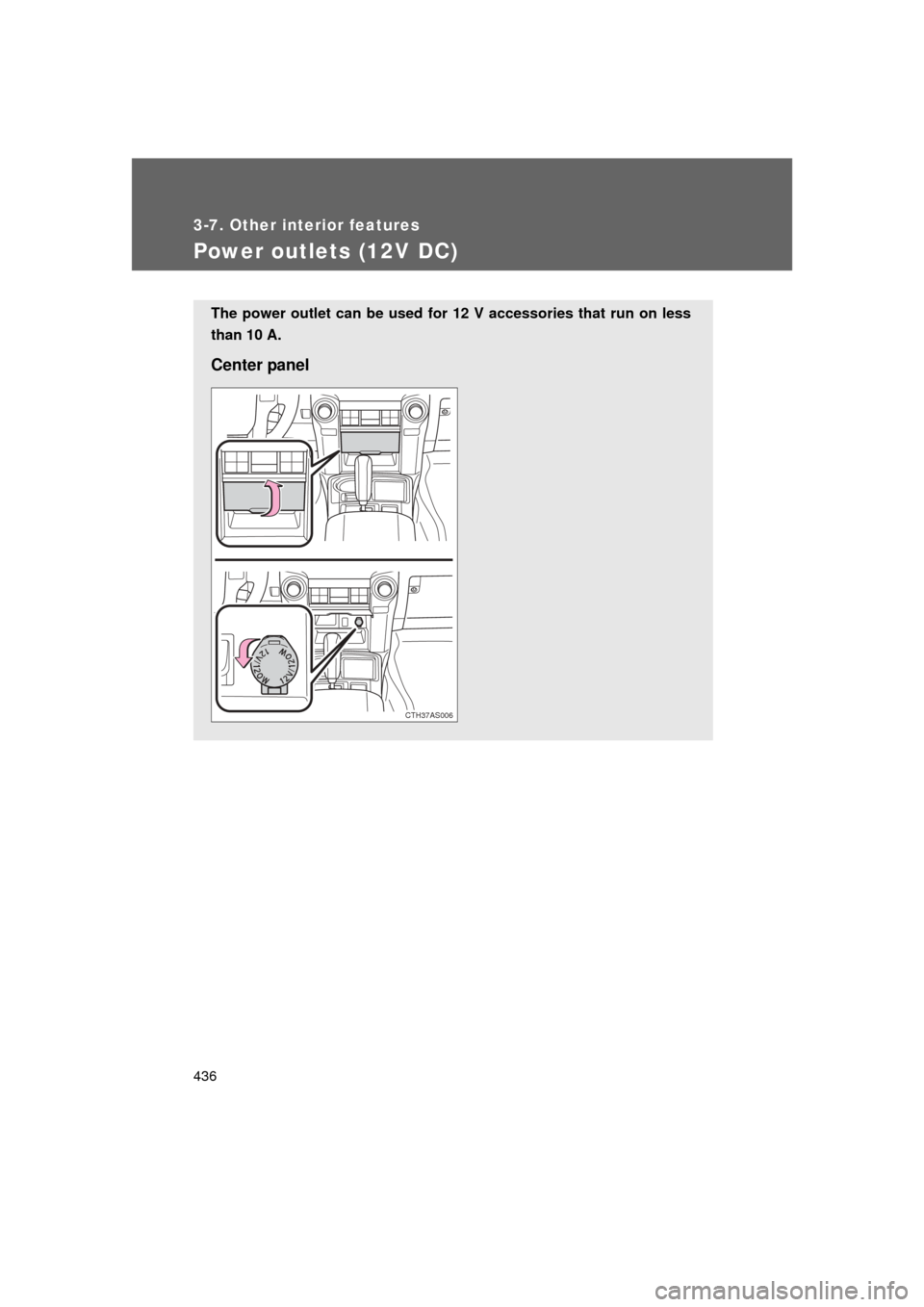

Power outlets (12V DC)
The power outlet can be used for 12 V accessories that run on less
than 10 A.
Center panel
CTH37AS006

437
3-7. Other interior features
3
Interior features
4RUNNER_U

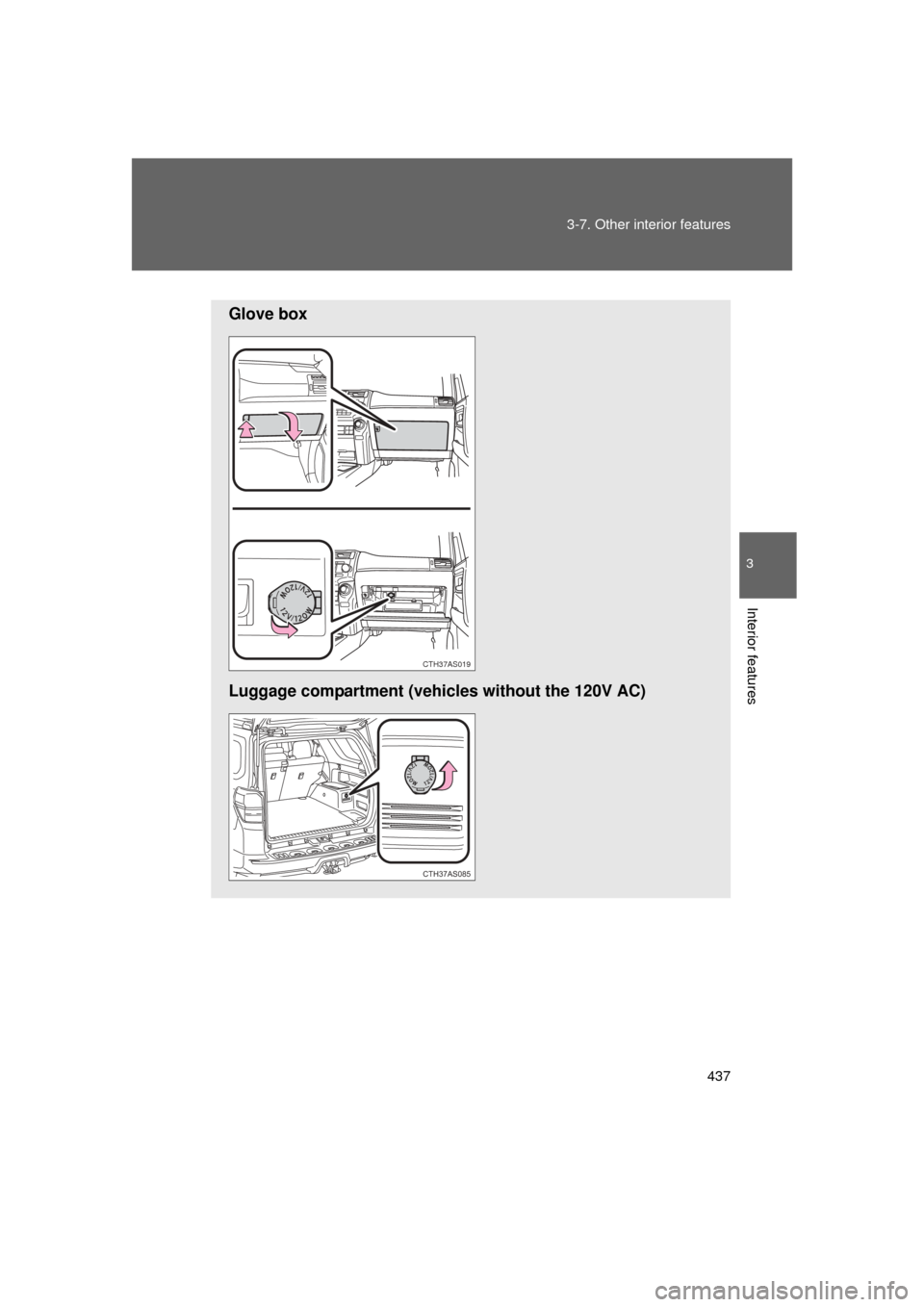

Glove box
Luggage compartment (vehic
les without the 120V AC)
CTH37AS019
CTH37AS085

438 3-7. Other interior features
4RUNNER_U
■The power outlet can be used when
Vehicles without a smart key system
The engine switch is in the “ACC” or “ON” position.
Vehicles with a smart key system
The “ENGINE START STOP” switch is in ACCESSORY or IGNITION ON
mode.
NOTICE
■ To avoid damaging the power outlet
Close the power outlet lid when the power outlet is not in use.
Foreign objects or liquids that enter the power outlet may cause a short cir-
cuit.
■ To prevent blown fuse
Do not use an accessory that uses more than 12 V 10 A.
■ To prevent battery discharge
Do not use the power outlet longer than necessary when the engine is not\
running.
Luggage compartment (vehicles with the 120V AC)
CTH37AS086

439
3-7. Other interior features
3
Interior features
4RUNNER_U

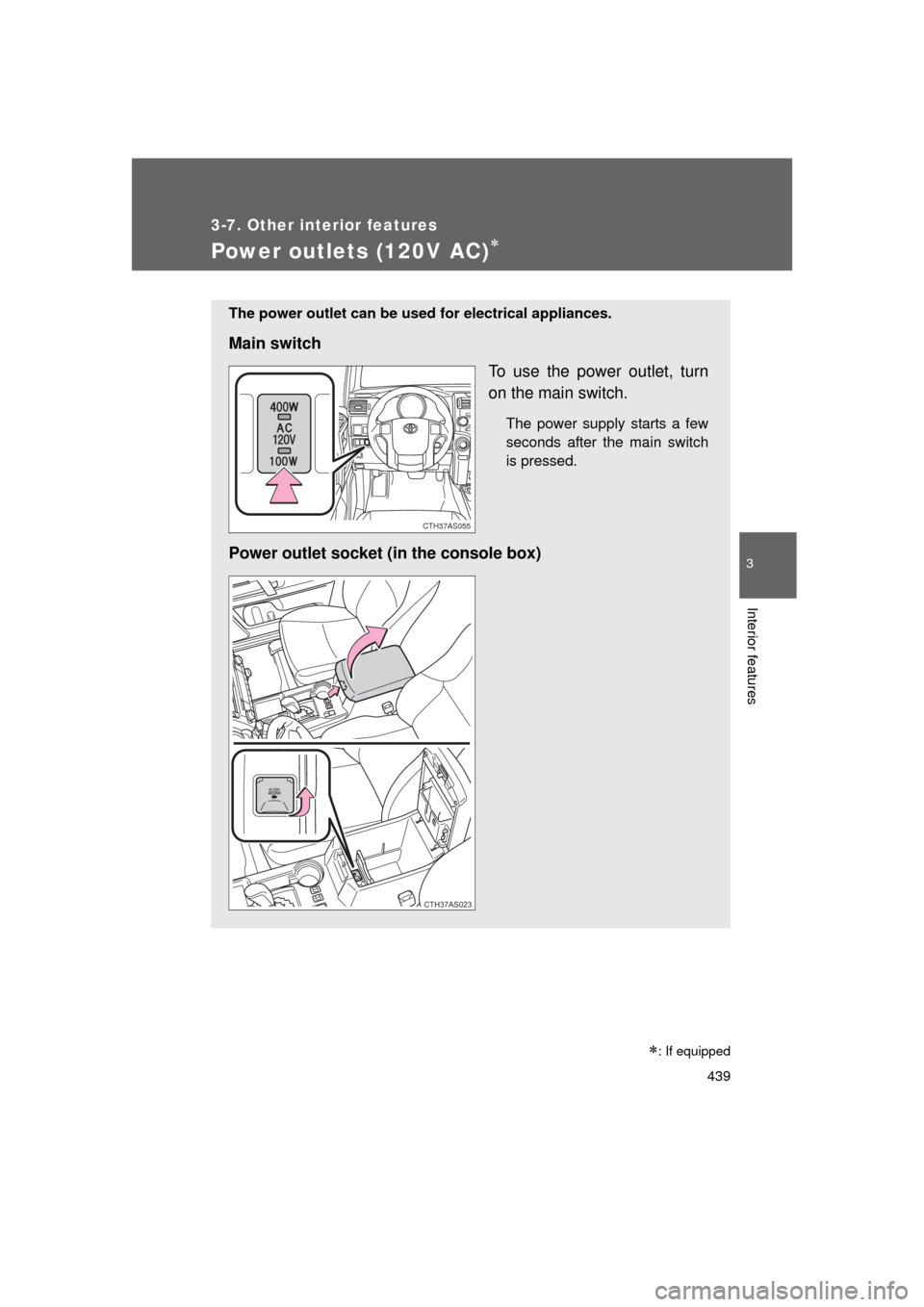

Power outlets (120V AC)
: If equipped
The power outlet can be used for electrical appliances.
Main switchTo use the power outlet, turn
on the main switch.
The power supply starts a few
seconds after the main switch
is pressed.
Power outlet socket (in the console box)
CTH37AS055
CTH37AS023

440 3-7. Other interior features
4RUNNER_U
Maximum available capacity of the power outlet■ While the vehicle is being driven
The maximum capacity of the power outlet is always 120V AC/
100W.
■ When the vehicle is stationary
The maximum capacity of the power outlet varies depending on
the position of the shift lever.
●The maximum capacity is 120V AC/100W when the shift lever is
in any position other than P or N.
● The maximum capacity is 120V AC/400W when the shift lever is
in P or N.
The maximum capacity of 400W can only be restored by turning
the power outlet main switch off and then on again with the shift
lever in P or N.
Power outlet socket (luggage compartment)
CTH37AS087
