TOYOTA 4RUNNER 2012 N280 / 5.G Owners Manual

191
2-2. Instrument cluster
2
When driving
4RUNNER_U
■

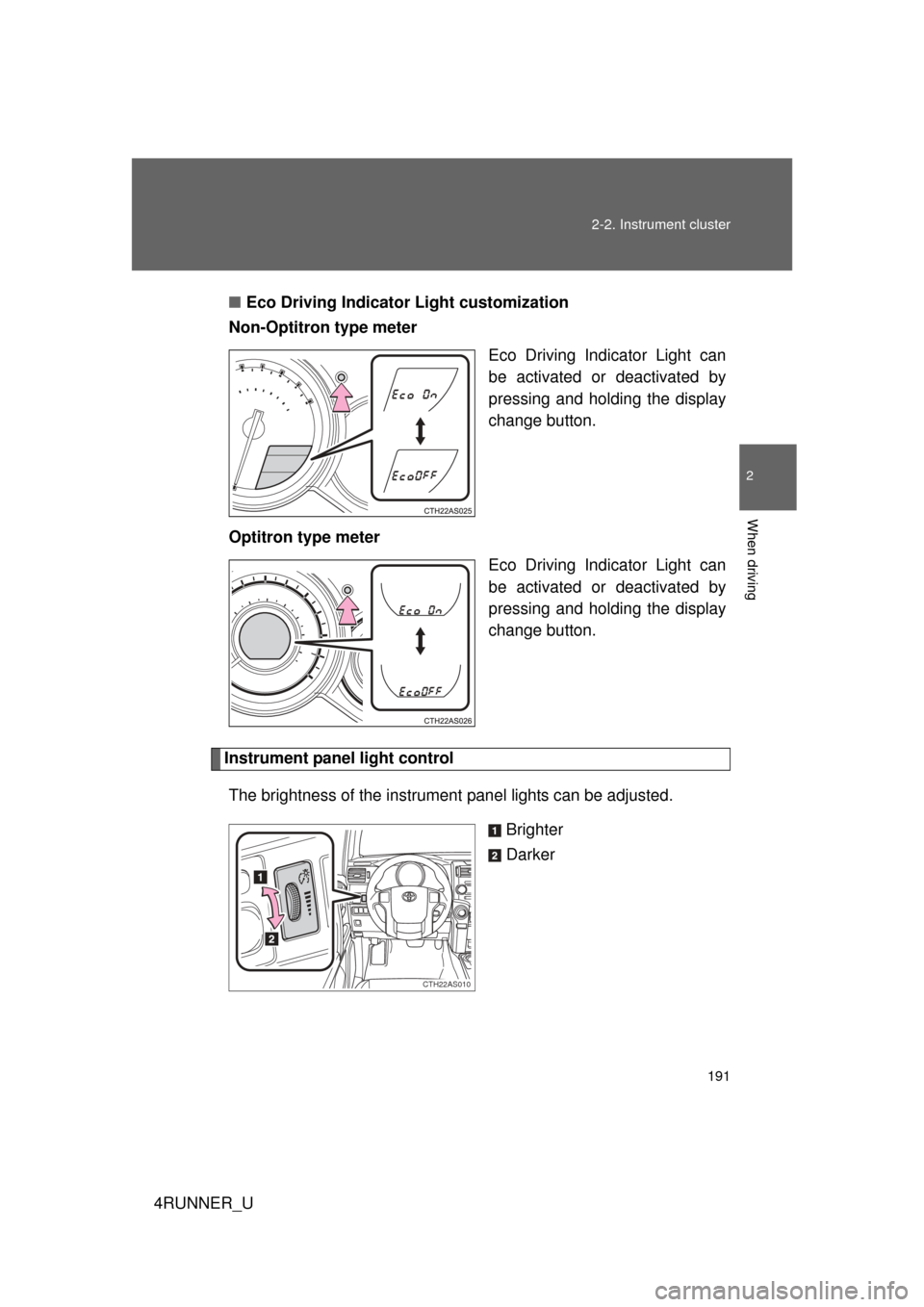

Eco Driving Indicator Light customization
Non-Optitron type meter
Eco Driving Indicator Light can
be activated or deactivated by
pressing and holding the display
change button.
Optitron type meter Eco Driving Indicator Light can
be activated or deactivated by
pressing and holding the display
change button.
Instrument panel light control
The brightness of the instrument panel lights can be adjusted.
Brighter
Darker
CTH22AS010

192 2-2. Instrument cluster
4RUNNER_U
■The meters and display illuminate when (Optitron type meter)
Vehicles without a smart key system:
The engine switch is in the “ON” position.
Vehicles with a smart key system:
The “ENGINE START STOP” switch is in IGNITION ON mode.
■ Eco Driving Indicator Light will not operate in the following conditions
● The shift lever is anything other than D.
● The vehicle speed is approximately 80 mph (130 km/h) or higher.
■ When the average fuel consumption is reset
The average fuel consumption displayed on the accessory meter and “Past
Record” screen of the Display Audio system (if equipped) or the navigation
system (if equipped) will be reset at the same time.
■ The brightness of the instrument panel lights (Optitron type meter)
When the headlight switch is turned to on, the brightness will be reduced
slightly unless the control dial is turned fully upward.
NOTICE
■ To prevent damage to the engine and its components
● Do not let the indicator needle of the tachometer enter the red zone, which
indicates the maximum engine speed.
● The engine may be overheating if the engine coolant temperature gauge is
in the red zone (H). In this case, immediately stop the vehicle in a safe
place, and check the engine after it has cooled completely. ( P. 627)
■ While driving (Optitron type meter)
When the voltmeter indicates more than 19 V or less than 9 V, the battery
may be malfunctioning. Have your vehicle checked at your Toyota dealer.

193
2-2. Instrument cluster
2
When driving
4RUNNER_U

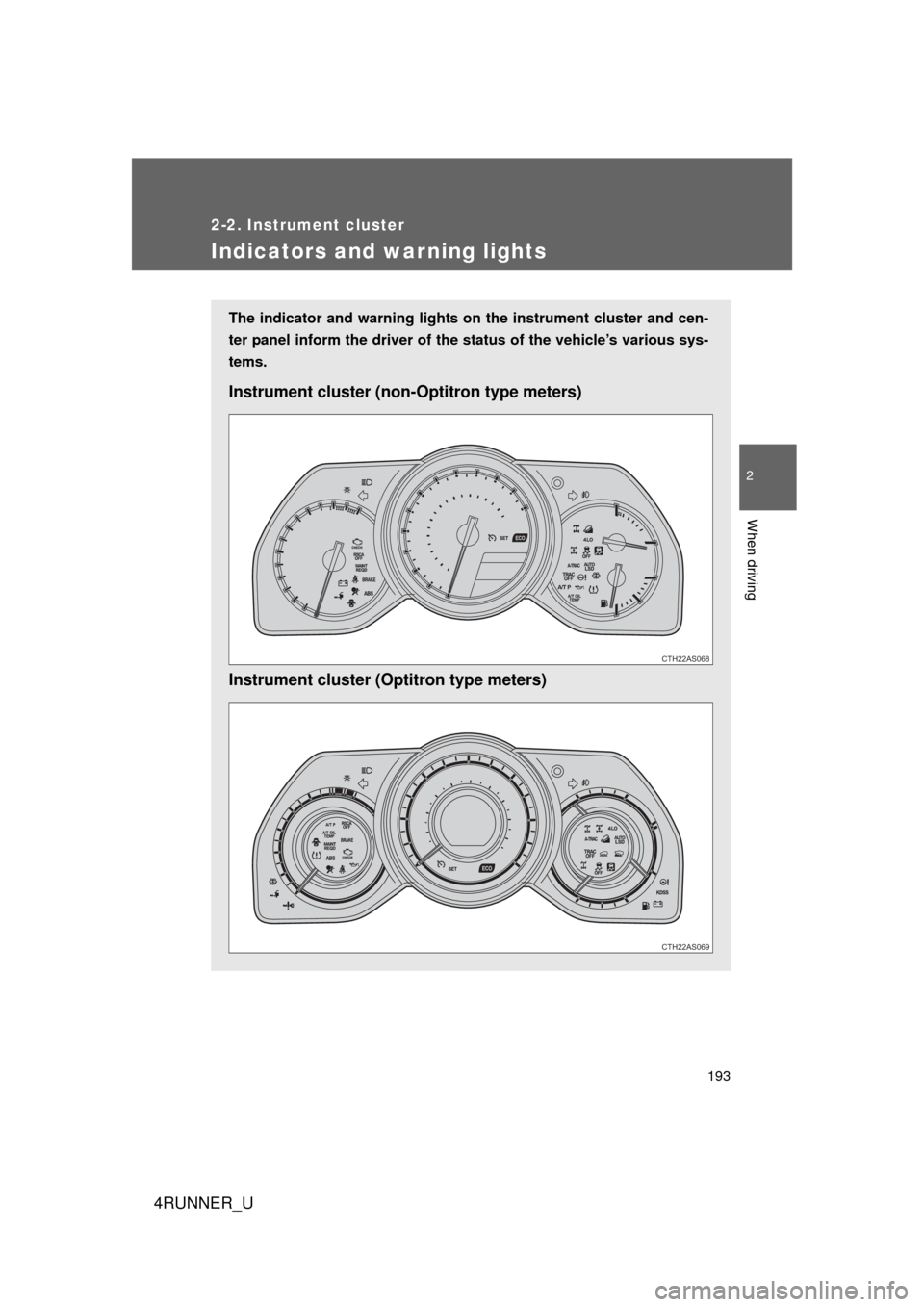

Indicators and warning lights
The indicator and warning lights on the instrument cluster and cen-
ter panel inform the driver of the status of the vehicle’s various sys-
tems.
Instrument cluster (non- Optitron type meters)
Instrument cluster (Optitron type meters)
CTH22AS068
CTH22AS069

194 2-2. Instrument cluster
4RUNNER_U

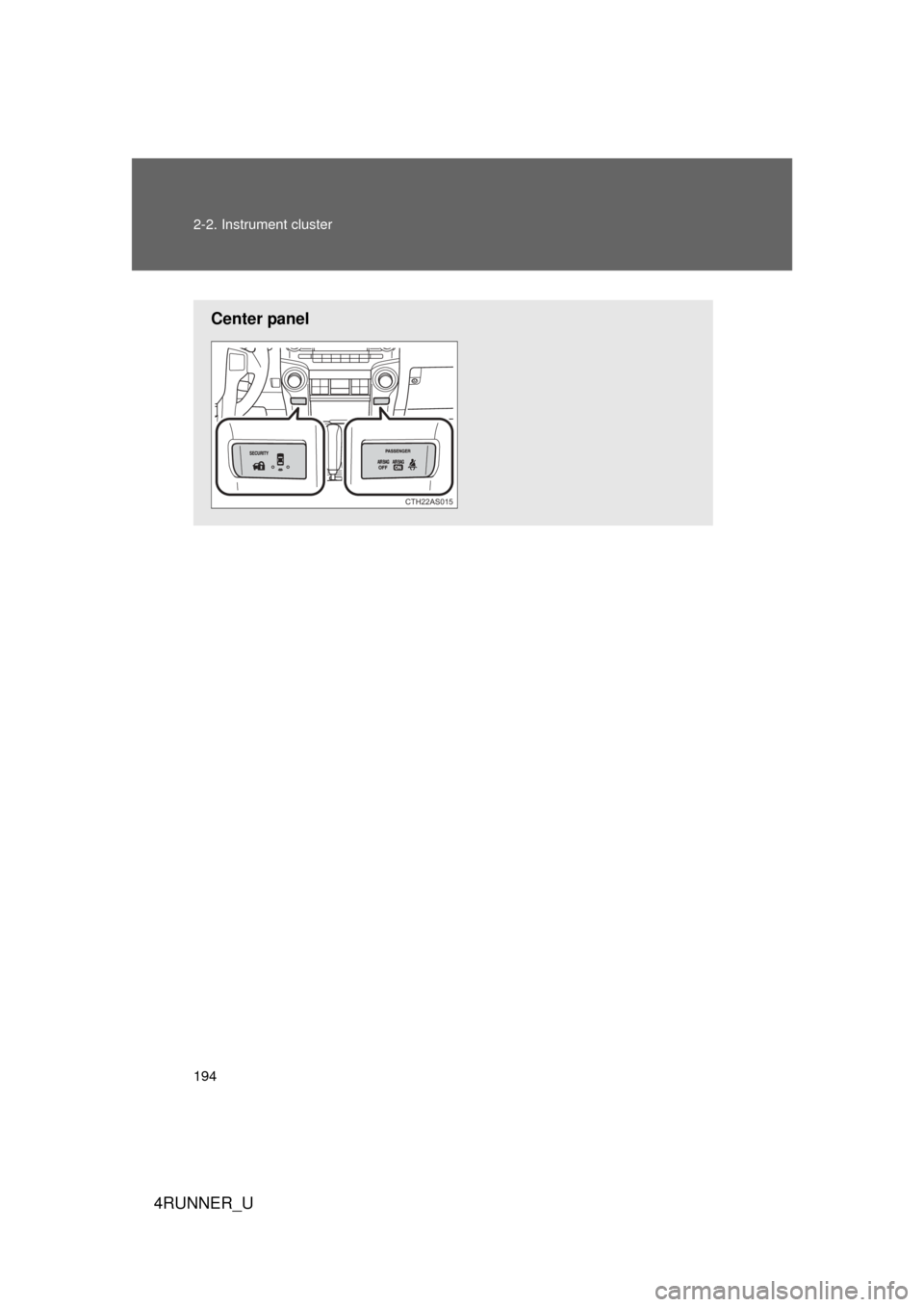

Center panel
CTH22AS015

195
2-2. Instrument cluster
2
When driving
4RUNNER_U
■

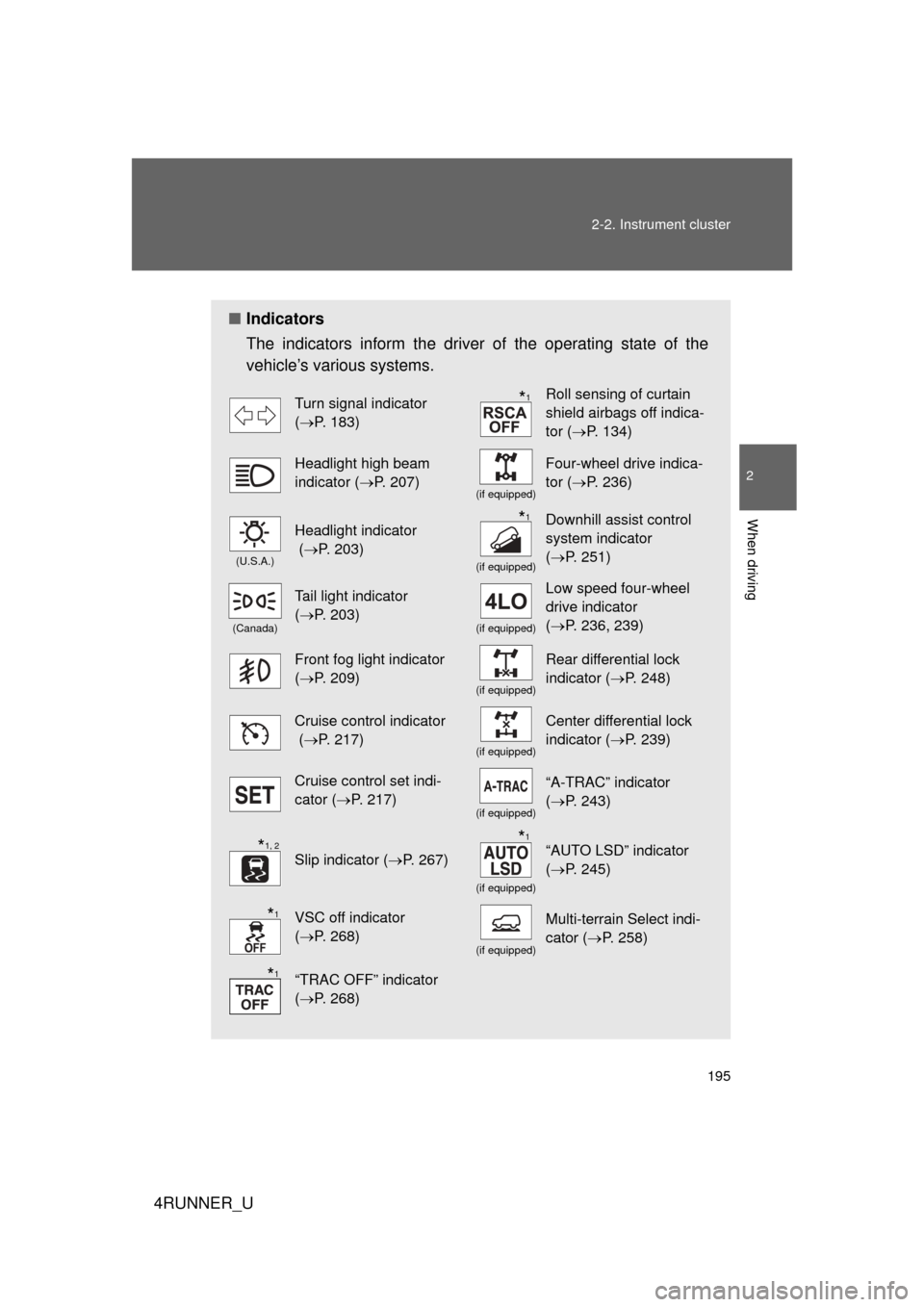

Indicators
The indicators inform the driver of the operating state of the
vehicle’s various systems.
Turn signal indicator
(P. 183)Roll sensing of curtain
shield airbags off indica-
tor ( P. 134)
Headlight high beam
indicator ( P. 207)
(if equipped)
Four-wheel drive indica-
tor (P. 236)
(U.S.A.)
Headlight indicator
(P. 203)
(if equipped)
Downhill assist control
system indicator
(P. 251)
(Canada)
Tail light indicator
(P. 203)
(if equipped)
Low speed four-wheel
drive indicator
(P. 236, 239)
Front fog light indicator
(P. 209)
(if equipped)
Rear differential lock
indicator ( P. 248)
Cruise control indicator
(P. 217)
(if equipped)
Center differential lock
indicator ( P. 239)
Cruise control set indi-
cator (P. 217)
(if equipped)
“A-TRAC” indicator
(P. 243)
Slip indicator ( P. 267)
(if equipped)
“AUTO LSD” indicator
(P. 245)
VSC off indicator
(P. 268)
(if equipped)
Multi-terrain Select indi-
cator ( P. 258)
“TRAC OFF” indicator
(P. 268)
*1
*1
*1, 2*1
*1
*1

196 2-2. Instrument cluster
4RUNNER_U
*1: These lights turn on when the “ENGINE START STOP” switch isturned to IGNITION ON mode (vehicles with a smart key system) or
the engine switch is turned to the “ON” position (vehicles without a
smart key system) to indicate that a system check is being per-
formed. They will turn off after the engine is started, or after a few
seconds. There may be a malfunction in a system if a light does not
come on, or if the lights do not turn off. Have the vehicle inspected
by your Toyota dealer.
*2: The light flashes to indicate that the system is operating.
(if equipped)

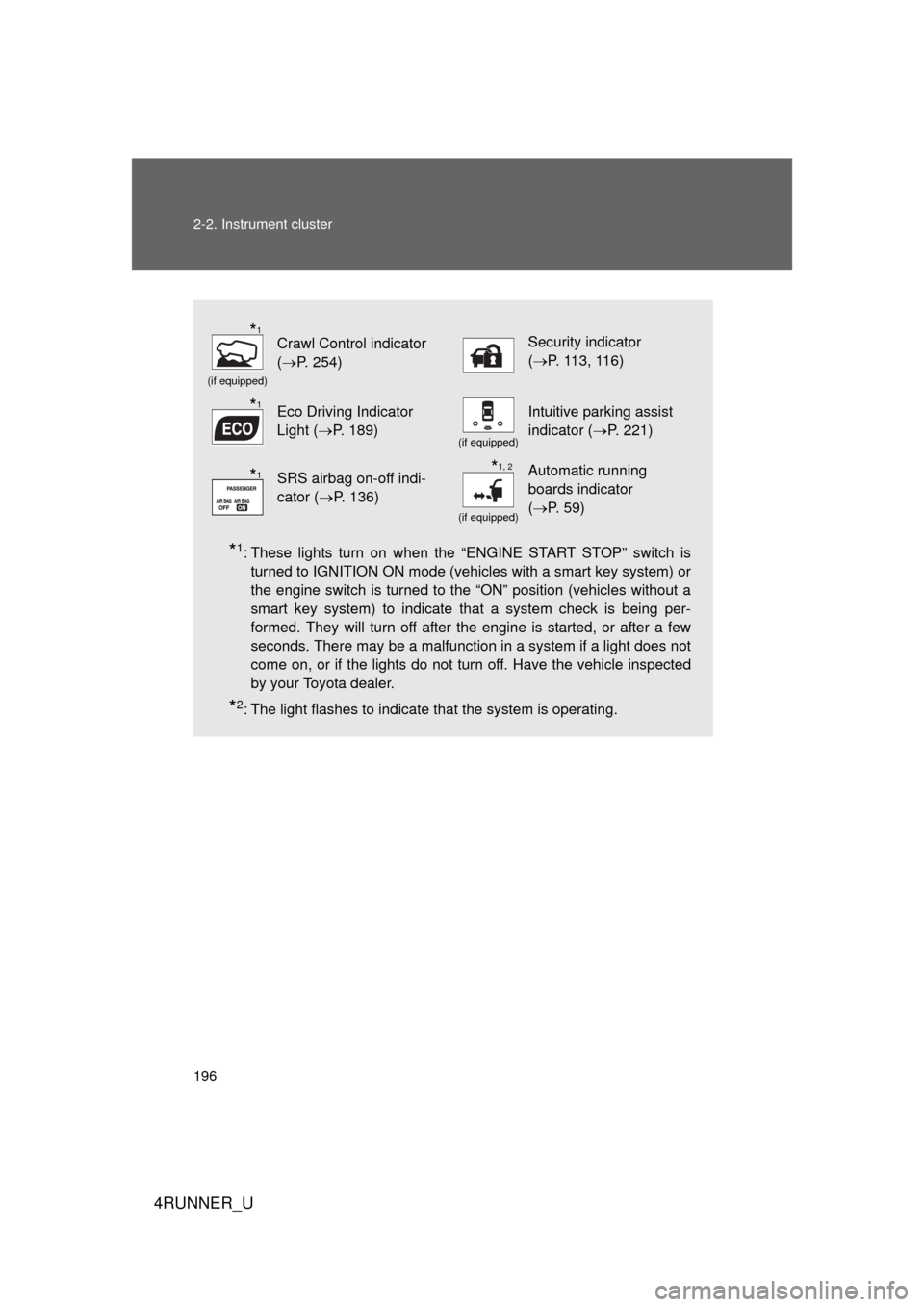

Crawl Control indicator
(P. 254) Security indicator
(P. 11 3 , 11 6 )
Eco Driving Indicator
Light ( P. 189)
(if equipped)
Intuitive parking assist
indicator ( P. 221)
SRS airbag on-off indi-
cator (P. 136)
(if equipped)
Automatic running
boards indicator
(P. 59)
*1
*1
*1*1, 2

197
2-2. Instrument cluster
2
When driving
4RUNNER_U
■

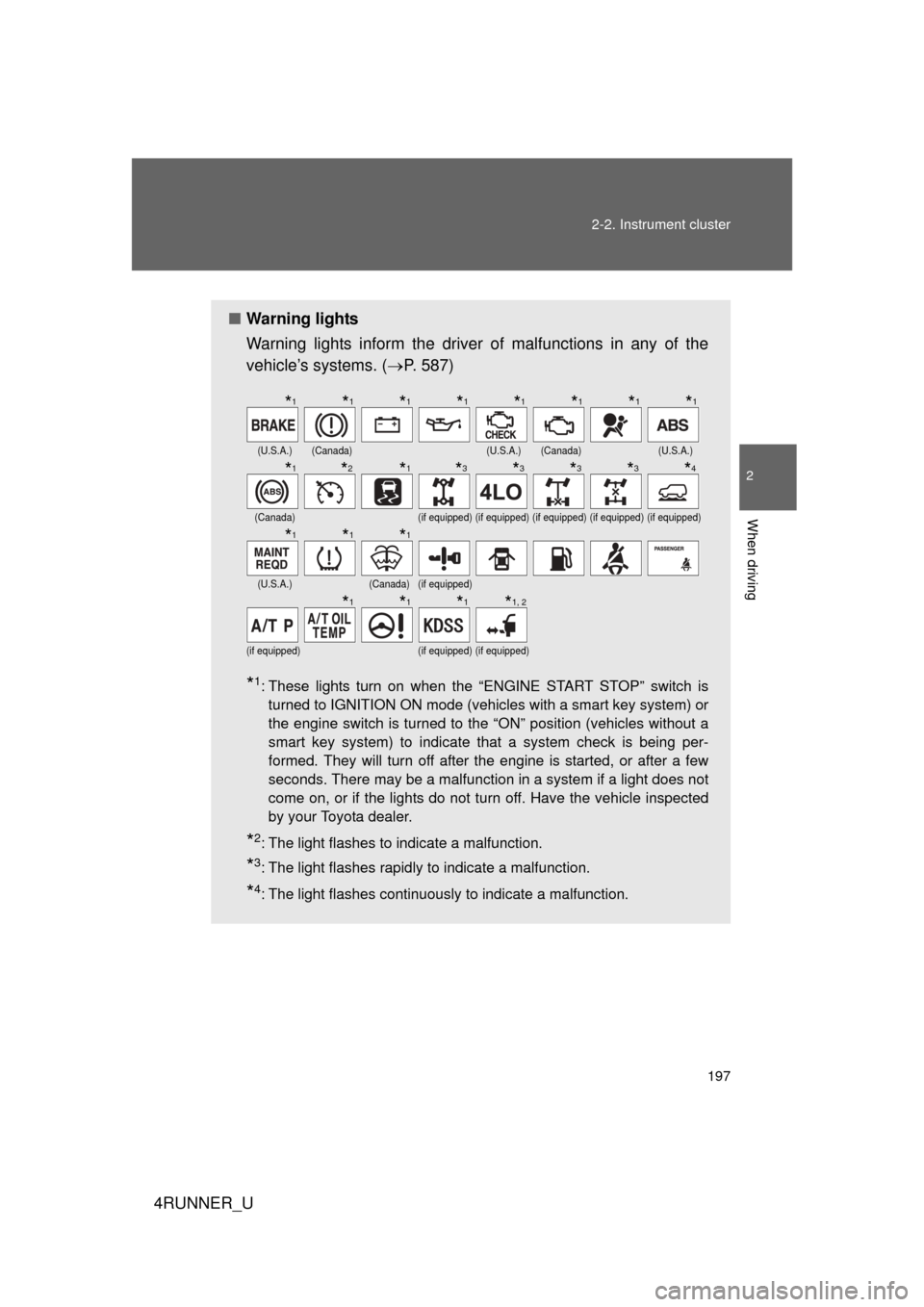

Warning lights
Warning lights inform the driver of malfunctions in any of the
vehicle’s systems. ( P. 587)
*1: These lights turn on when the “ENGINE START STOP” switch is
turned to IGNITION ON mode (vehicles with a smart key system) or
the engine switch is turned to the “ON” position (vehicles without a
smart key system) to indicate that a system check is being per-
formed. They will turn off after the engine is started, or after a few
seconds. There may be a malfunction in a system if a light does not
come on, or if the lights do not turn off. Have the vehicle inspected
by your Toyota dealer.
*2: The light flashes to indicate a malfunction.
*3: The light flashes rapidly to indicate a malfunction.
*4: The light flashes continuously to indicate a malfunction.
(U.S.A.)(Canada)(U.S.A.)(Canada)(U.S.A.)
(Canada)(if equipped)(if equipped)(if equipped)(if equipped)(if equipped)
(U.S.A.)(Canada)(if equipped)
(if equipped)(if equipped)(if equipped)
*1*1*1*1*1*1*1*1
*1*2*1*3*3*3*3*4
*1*1*1
*1*1*1*1, 2

198 2-2. Instrument cluster
4RUNNER_U
CAUTION
■If a safety system warning light does not come on
Should a safety system light such as the ABS or SRS warning light not come
on when you start the engine, this could mean that these systems are not
available to help protect you in an accident, which could result in death or
serious injury. Have the vehicle inspected by your Toyota dealer immediately
if this occurs.

199
2-2. Instrument cluster
2
When driving
4RUNNER_U

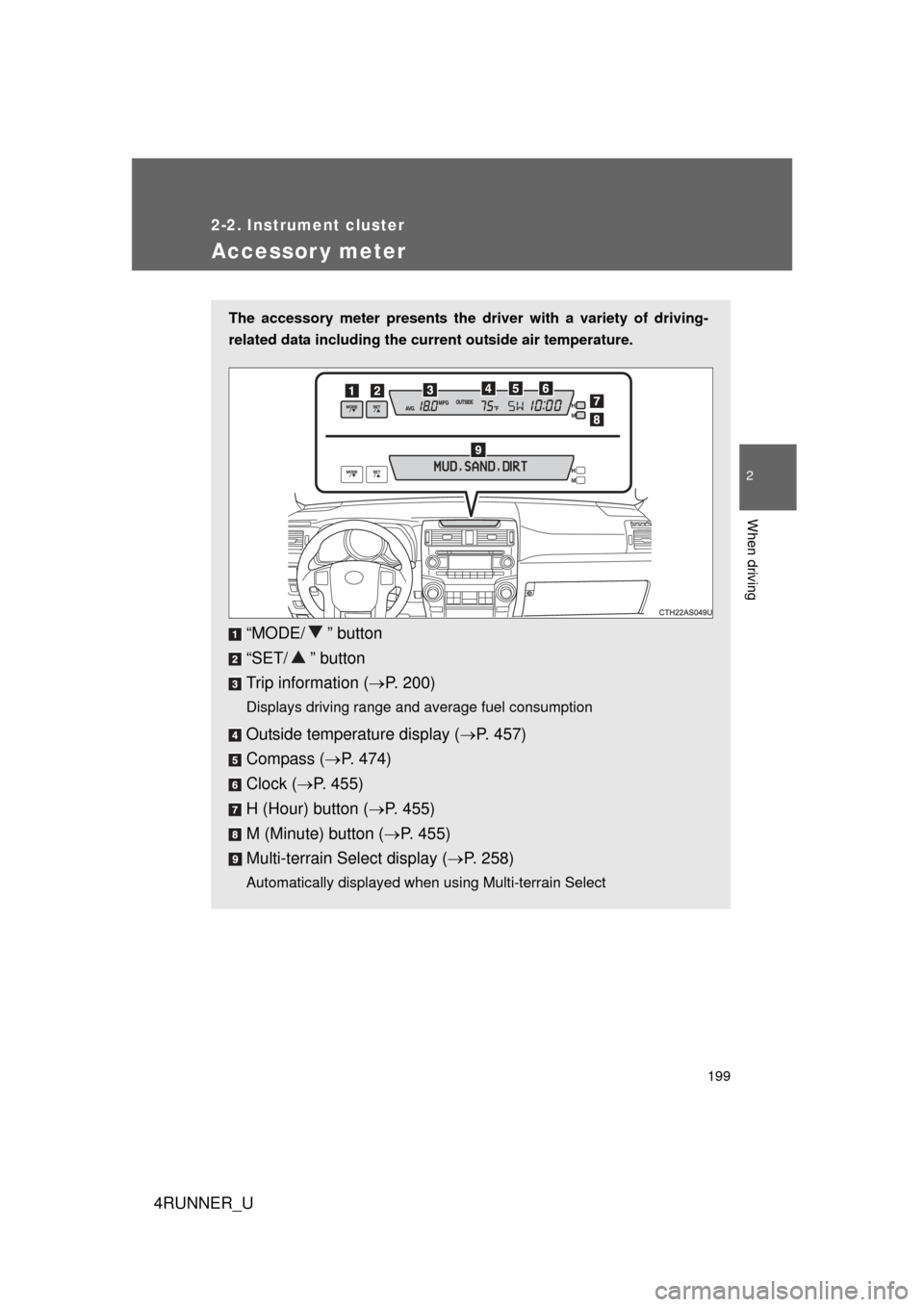

Accessor y meter
The accessory meter presents the driver with a variety of driving-
related data including the current outside air temperature.
“MODE/ ” button
“SET/ ” button
Trip information (P. 200)
Displays driving range and average fuel consumption
Outside temperature display ( P. 457)
Compass ( P. 474)
Clock ( P. 455)
H (Hour) button ( P. 455)
M (Minute) button ( P. 455)
Multi-terrain Select display ( P. 258)
Automatically displayed when using Multi-terrain Select

200 2-2. Instrument cluster
4RUNNER_U

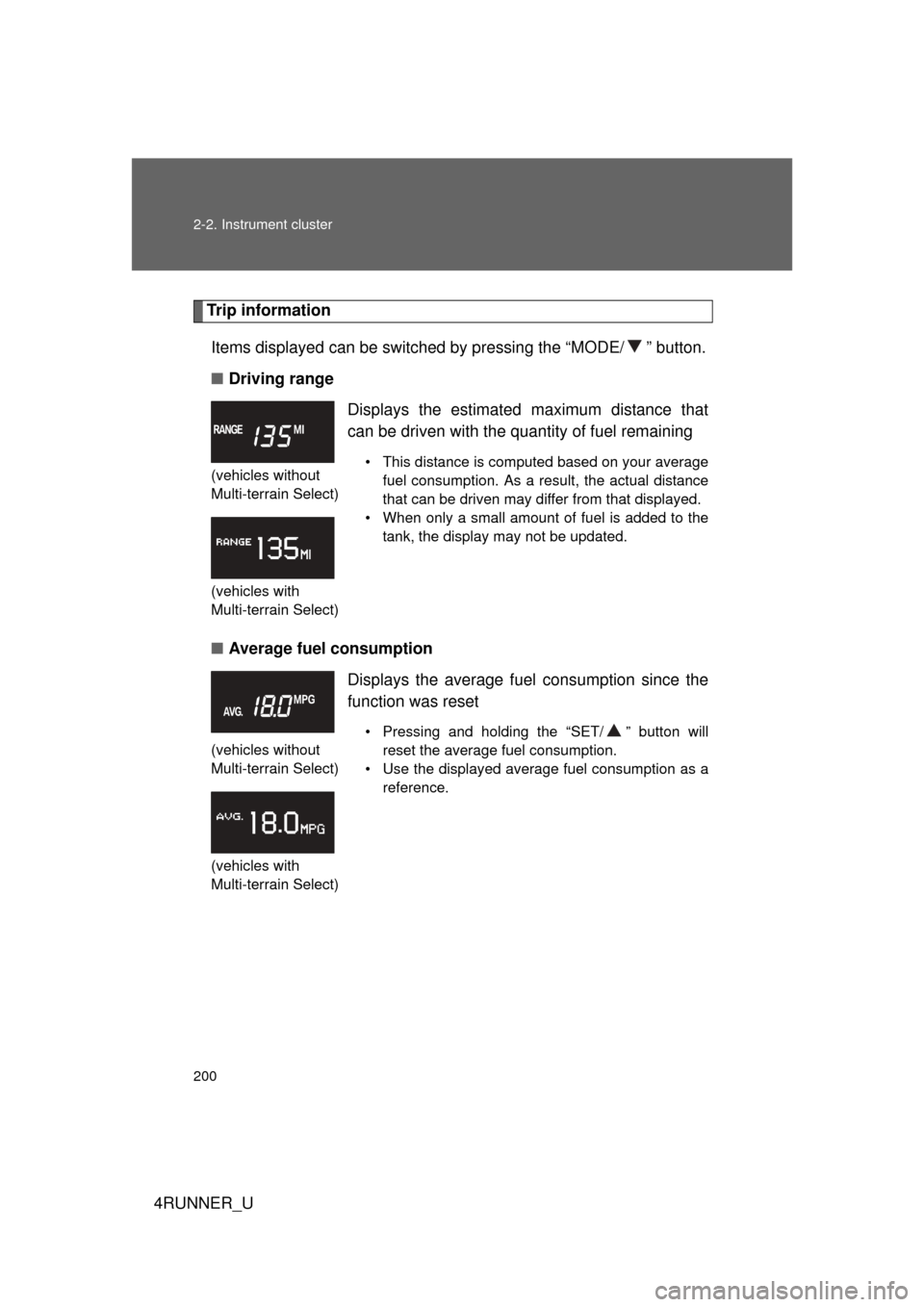

Trip informationItems displayed can be switched by pressing the “MODE/ ” button.
■ Driving range
■ Average fuel consumption
(vehicles without
Multi-terrain Select)
(vehicles with
Multi-terrain Select)
Displays the estimated maximum distance that
can be driven with the quantity of fuel remaining
• This distance is computed based on your average
fuel consumption. As a result, the actual distance
that can be driven may differ from that displayed.
• When only a small amount of fuel is added to the tank, the display may not be updated.
(vehicles without
Multi-terrain Select)
(vehicles with
Multi-terrain Select)
Displays the average fuel consumption since the
function was reset
• Pressing and holding the “SET/ ” button will reset the average fuel consumption.
• Use the displayed average fuel consumption as a reference.
