TOYOTA 4RUNNER 2012 N280 / 5.G Owners Manual

201
2-2. Instrument cluster
2
When driving
4RUNNER_U
Accessory meter light control
The daytime brightness of the ac cessory meter can be adjusted.
Turn the headlight switch off.
Press and hold the “MODE/ ” button.
Press the “MODE/ ” or “SET/ ” button.
Vehicles without Multi-terrain Select
Vehicles with Multi-terrain Select
Press and hold the “SET/ ” button.
STEP 1
STEP 2
STEP 3
STEP 4

202 2-2. Instrument cluster
4RUNNER_U
■When the average fuel consumption is reset
The average fuel consumption displayed on the instrument cluster and “Past
Record” screen of the Display Audio system (if equipped) or the navigation
system (if equipped) will be reset at the same time.
■ Adjusting the brightness of the accessory meter
● If left idle for approximately 6 seconds or more while adjusting, the dis-
play will revert to the trip information display.
● When the parking lights are on, the brightness of the accessory meter
can be adjusted only with the instrument panel light control.
● If the “MODE/ ” button is pressed and held when the accessory meter
light control is displayed, the display will switch to compass calibration.
(P. 474)
■ Liquid crystal display
Small spots or light spots may appear on the display. This phenomenon is
characteristic of liquid crystal displays, and there is no problem with continu-
ing to use the display.
NOTICE
■The accessory meter at low temperatures
Allow the interior of the vehicle to warm up before using the liquid crystal dis-
play. At extremely low temperatures, the display monitor may respond
slowly, and display changes may be delayed.

203
2
When driving
4RUNNER_U
2-3. Operating the lights and wipers

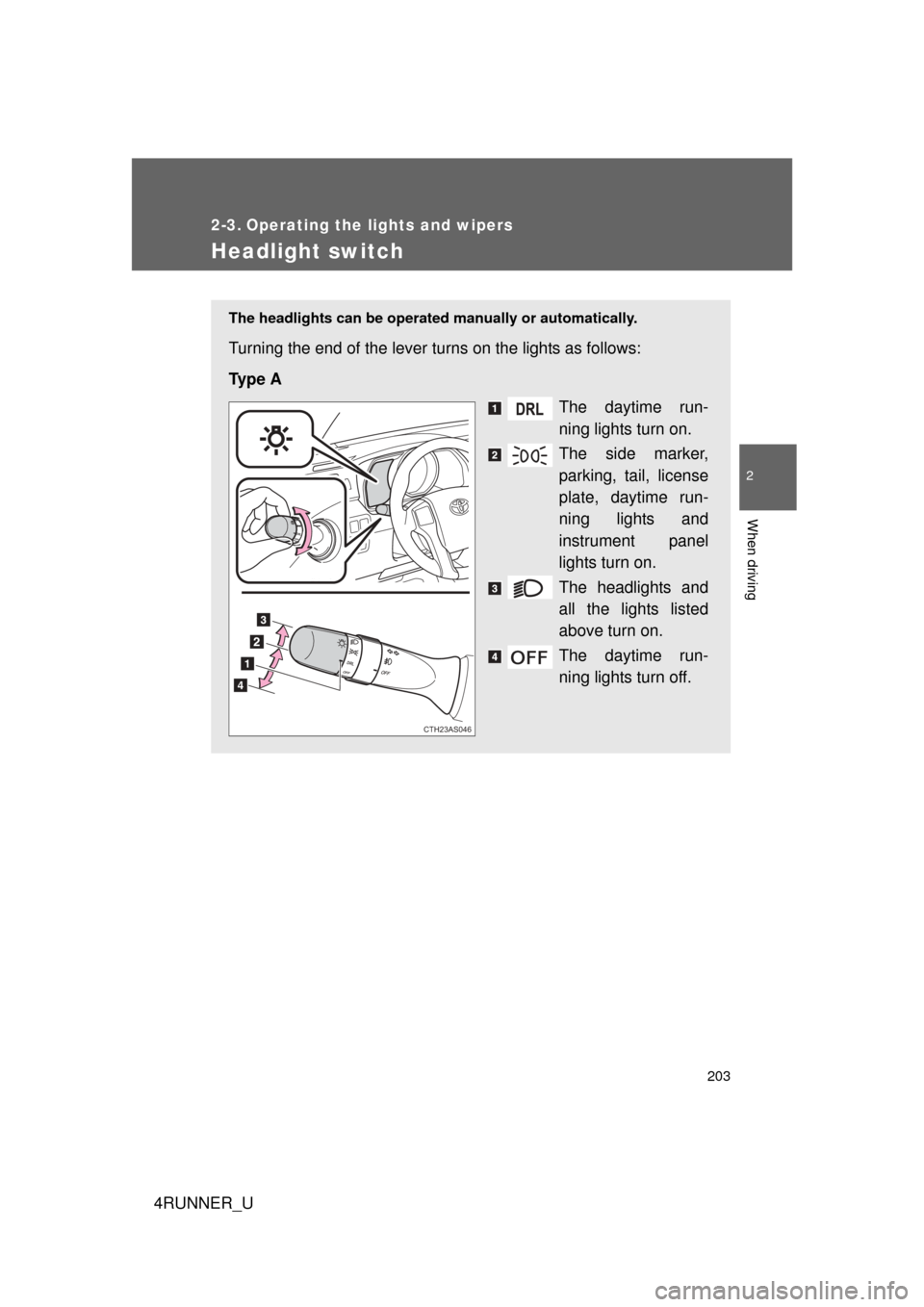

Headlight switch
The headlights can be operated manually or automatically.
Turning the end of the lever turns on the lights as follows:
Ty p e A
The daytime run-
ning lights turn on.
The side marker,
parking, tail, license
plate, daytime run-
ning lights and
instrument panel
lights turn on.
The headlights and
all the lights listed
above turn on.
The daytime run-
ning lights turn off.
CTH23AS046

204 2-3. Operating the lights and wipers
4RUNNER_U

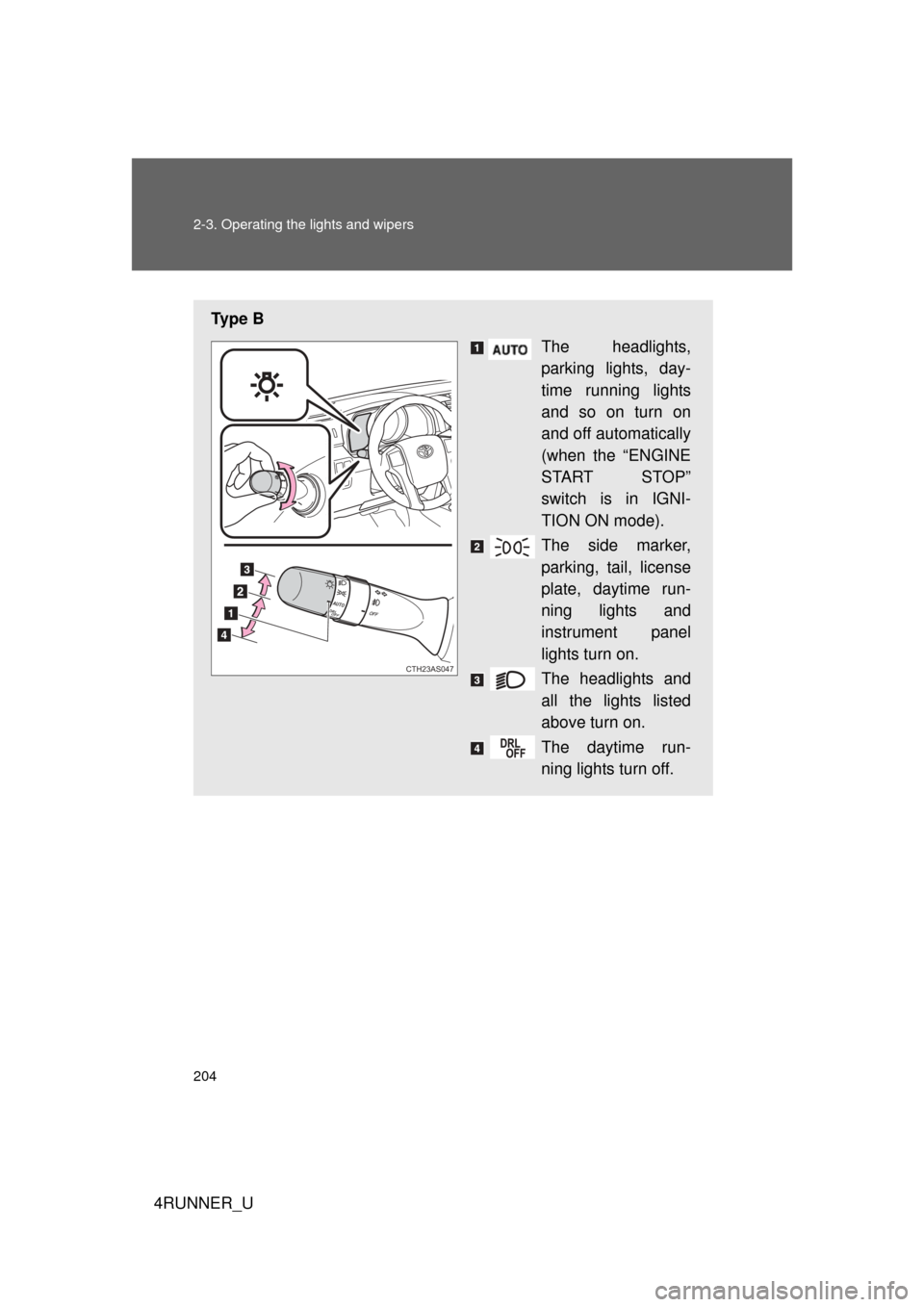

Ty p e BThe headlights,
parking lights, day-
time running lights
and so on turn on
and off automatically
(when the “ENGINE
START STOP”
switch is in IGNI-
TION ON mode).
The side marker,
parking, tail, license
plate, daytime run-
ning lights and
instrument panel
lights turn on.
The headlights and
all the lights listed
above turn on.
The daytime run-
ning lights turn off.
CTH23AS047

205
2-3. Operating the lights and wipers
2
When driving
4RUNNER_U

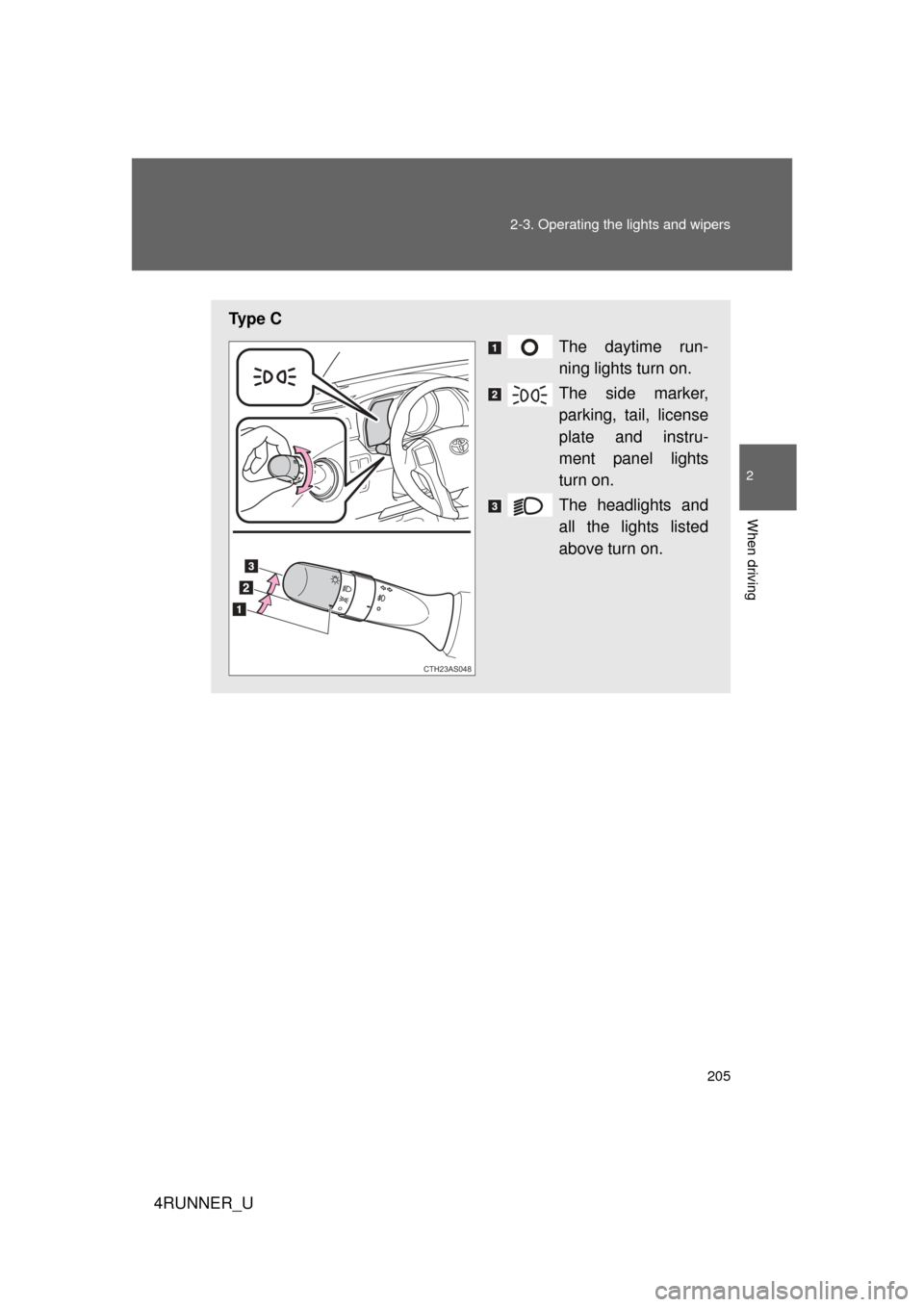

Ty p e C
The daytime run-
ning lights turn on.
The side marker,
parking, tail, license
plate and instru-
ment panel lights
turn on.
The headlights and
all the lights listed
above turn on.
CTH23AS048

206 2-3. Operating the lights and wipers
4RUNNER_U

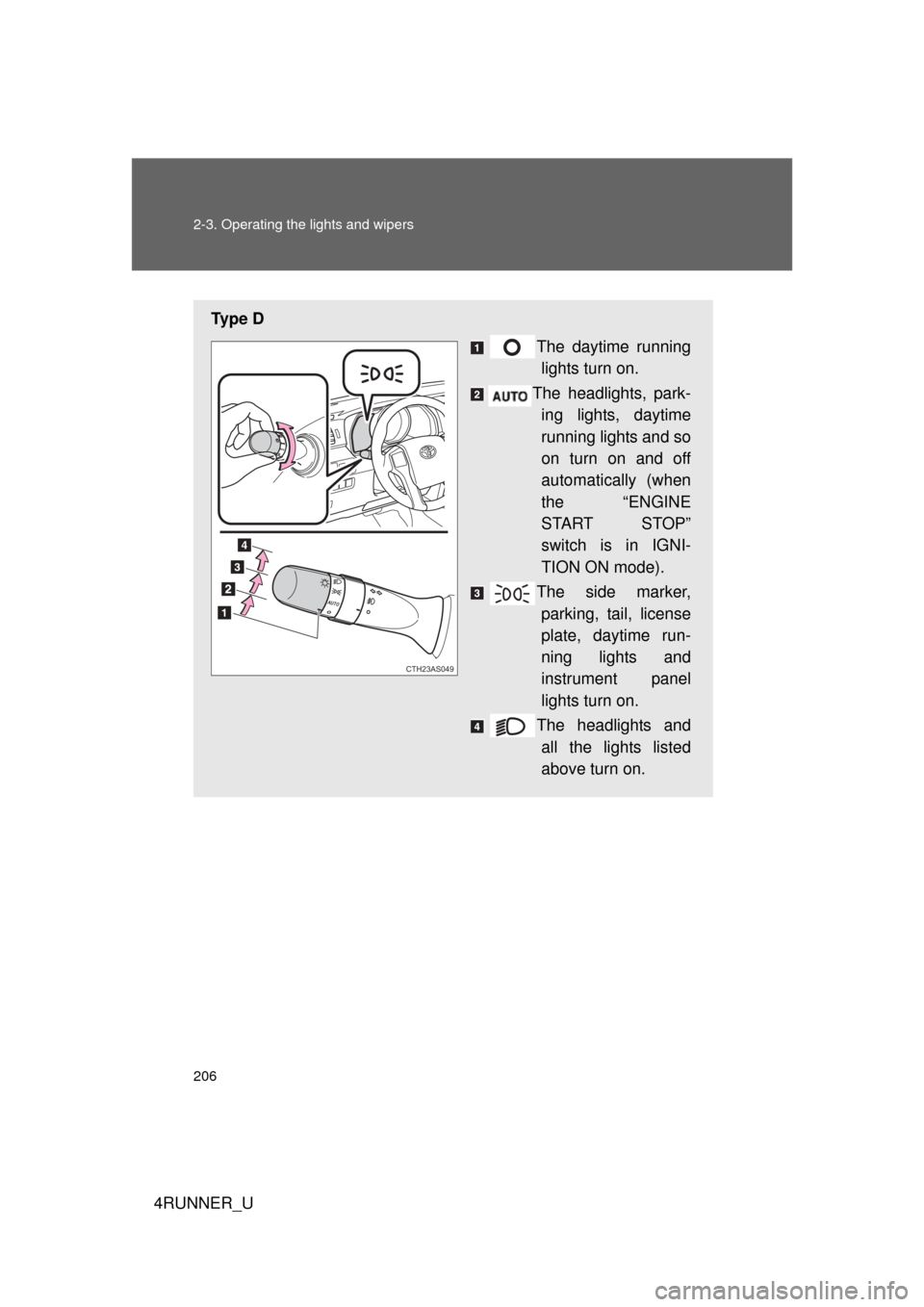

Ty p e DThe daytime runninglights turn on.
The headlights, park- ing lights, daytime
running lights and so
on turn on and off
automatically (when
the “ENGINE
START STOP”
switch is in IGNI-
TION ON mode).
The side marker, parking, tail, license
plate, daytime run-
ning lights and
instrument panel
lights turn on.
The headlights and all the lights listed
above turn on.
CTH23AS049

207
2-3. Operating the lights and wipers
2
When driving
4RUNNER_U
Turning on the high beam headlights
With the headlights on, push
the lever away from you to
turn on the high beams.
Pull the lever toward you to the
center position to turn the high
beams off.
Pull the lever toward you and
release it to flash the high
beams once.
You can flash the high beams
with the headlights on or off.
CTH23AS040
■Daytime running light system
● To make your vehicle more visible to other drivers, the daytime running
lights turn on automatically whenever the engine is started and the park-
ing brake is released. Daytime running lights are not designed for use at
night.
Type A and B: Daytime running lights can be turned off by operating the
switch.
● Compared to turning on the headlights, the daytime running light system
offers greater durability and consumes less electricity, so it can help
improve fuel economy.
■ Headlight control sensor (if equipped)
The sensor may not function properly if
an object is placed on the sensor, or any-
thing that blocks the sensor is affixed to
the windshield.
Doing so interferes with the sensor
detecting the level of ambient light and
may cause the automatic headlight sys-
tem to malfunction.
CTH23AS012

208 2-3. Operating the lights and wipers
4RUNNER_U
■Automatic light off system
Vehicles without a smart key system
● When the headlights come on: The headlights and tail lights turn off 30
seconds after a door is opened and closed if the engine switch is turned
to the “ACC” or “LOCK” position. (The lights turn off immediately if
on the key is pressed after all the doors are locked.)
● When only the tail lights come on: The tail lights turn off automatically if
the engine switch is turned to the “ACC” or “LOCK” position and the
driver’s door is opened.
To turn the lights on again, turn the engine switch to the “ON” position, or
turn the lights off and then back to or .
Vehicles with a smart key system
● When the headlights come on: The headlights and tail lights turn off 30
seconds after a door is opened and closed if the “ENGINE START
STOP” switch is turned to ACCESSORY mode or turned off. (The lights
turn off immediately if on the key is pressed after all the doors are
locked.)
● When only the tail lights come on: The tail lights turn off automatically if
the “ENGINE START STOP” switch is turned off and the driver’s door is
opened.
To turn the lights on again, turn the “ENGINE START STOP” switch to IGNI-
TION ON mode, or turn the light switch off and then back to or
.
■ Customization that can be co nfigured at Toyota dealer
Settings (e.g. light sensor sensitivity) can be changed.
(Customizable features P. 660)
NOTICE
■To prevent battery discharge
Do not leave the lights on longer than necessary when the engine is not run-
ning.

209
2-3. Operating the lights and wipers
2
When driving
4RUNNER_U

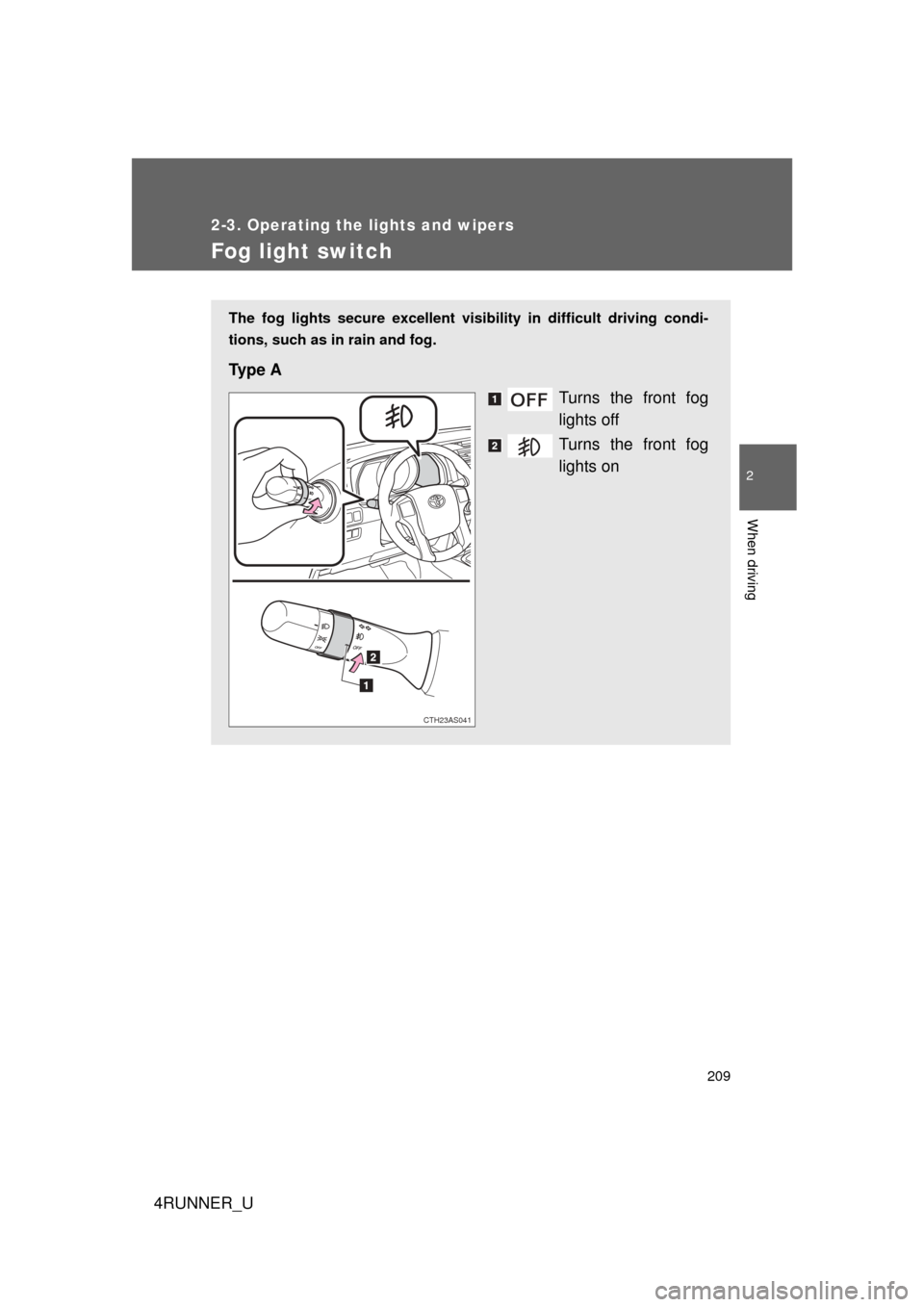

Fog light switch
The fog lights secure excellent visibility in difficult driving condi-
tions, such as in rain and fog.
Ty p e A
Turns the front fog
lights off
Turns the front fog
lights on
CTH23AS041

210 2-3. Operating the lights and wipers
4RUNNER_U
■Fog lights can be used when
The headlights are on in low beam.

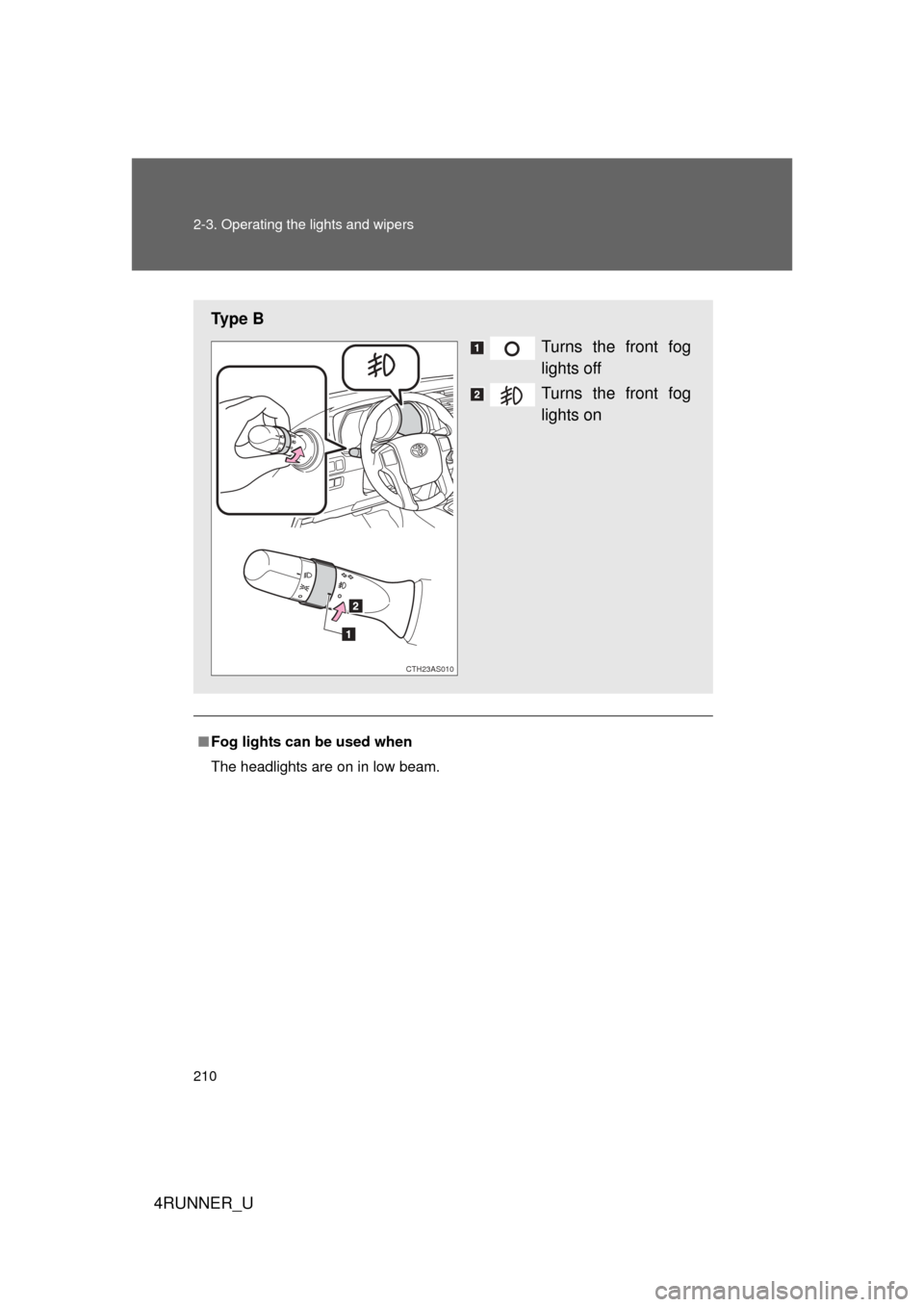

Ty p e B
Turns the front fog
lights off
Turns the front fog
lights on
CTH23AS010
