711-2. Theft deterrent system
1
For safety and security
4RUNNER (U)■
Certifications for the engine immobilizer system (vehicles with out a
smart key system)
For vehicles sold in the U.S.A.
For vehicles sold in Canada
■ Certifications for the engine immobilizer system (vehicles with a smart
key system)
For vehicles sold in the U.S.A.
FCC ID: NI4TMIMB-1
This device complies with part 15 of the FCC Rules. Operation is subject to
the following two conditions: (1) This device may not cause har mful interfer-
ence, and (2) this device must accept any interference received, including
interference that may cause undesired operation.
For vehicles sold in Canada
This device complies with Industry Canada's licence-exempt RSSs . Opera-
tion is subject to the following two conditions: (1) This devic e may not cause
interference; and (2) This device must accept any interference, including
interference that may cause undesired operation of the device.
CAUTION
■ Certifications for the engine immobilizer system
Changes or modifications not expressly approved by the party re sponsible
for compliance could void the user’s authority to operate the e quipment.

721-2. Theft deterrent system
4RUNNER (U)
NOTICE
■To ensure the system operates correctly
Do not modify or remove the system. If modified or removed, the proper
operation of the system cannot be guaranteed.

731-2. Theft deterrent system
1
For safety and security
4RUNNER (U)
The alarm uses light and sound to give an alert when an intrusion is
detected.
The alarm is triggered in the following situations when the ala rm is
set:
● A locked door is unlocked or opened in any way other than using
the entry function, wireless remote control or mechanical key. (The
doors will lock aga in automatically.)
● The hood is opened.
Close the doors and hood, and
lock all the doors. The system will
be set automatically after 30 sec-
onds.
The indicator light changes from
being on to flashing when the sys-
tem is set.
Do one of the following to d eactivate or stop the alarms:
● Unlock the doors.
● Start the engine. (The alarm w ill be deactivated or stopped aft er a
few seconds.)
Alar m
: If equipped
The alarm
Setting the alarm system
Deactivating or stopping the alarm

741-2. Theft deterrent system
4RUNNER (U)
■System maintenance
The vehicle has a maintenance-free type alarm system.
■ Items to check before locking the vehicle
To prevent unexpected triggering of the alarm and vehicle theft , make sure of
the following:
● Nobody is in the vehicle.
● The windows and moon roof are closed before the alarm is set.
● No valuables or other personal items are left in the vehicle.
■ Triggering of the alarm
The alarm may be triggered in the following situations:
(Stopping the alarm deactivates the alarm system.)
■ Alarm-operated door lock
●When the alarm is operating, the doors are locked automatically to prevent
intruders.
● Do not leave the key inside the vehicle when the alarm is operating, and
make sure the key is not inside the vehicle when recharging or replacing the
battery.
●
A person inside the vehicle opens a door
or the hood.
● The battery is recharged or replaced
when the vehicle is locked.
NOTICE
■To ensure the system operates correctly
Do not modify or remove the system. If modified or removed, the proper
operation of the system cannot be guaranteed.

75
Instrument cluster2
4RUNNER (U)2. Instrument cluster
Warning lights and indicators .......................... 76
Gauges and meters ............ 81
Multi-information display ..... 83

76
4RUNNER (U)
2. Instrument cluster
The units used on the speedometer and some indicators may differ
depending on where the vehicle is sold.

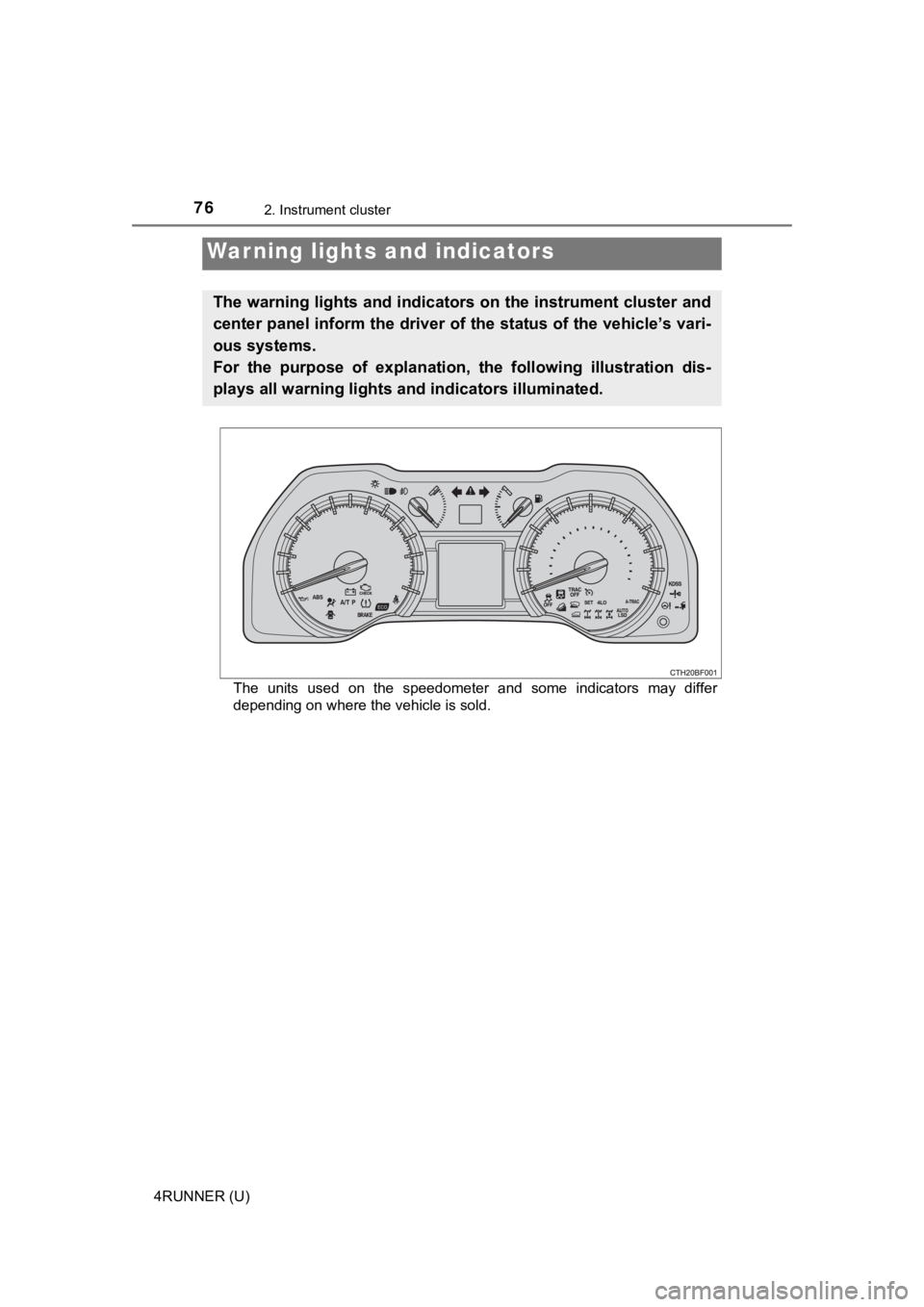

Warning lights and indicators
The warning lights and indicators on the instrument cluster and
center panel inform the driver of the status of the vehicle’s vari-
ous systems.
For the purpose of explanation, t he following illustration dis-
plays all warning lights a nd indicators illuminated.

772. Instrument cluster
2
Instrument cluster
4RUNNER (U)
Warning lights inform the driver of malfunctions in the indicated vehi-
cle’s systems.
Warning lights
*1
(U.S.A.)
Brake system warning
light ( P. 417)*2
Cruise control indicator
light (P. 418)
*1
(Canada)
Brake system warning
light (P. 417)*1
Slip indicator ( P. 418)
*1
Charging system warn-
ing light (P. 417)*3
(if equipped)
Four-wheel drive indica-
tor light (P. 418)
*1
(U.S.A.)
Malfunction indicator
lamp (P. 417)*3
(if equipped)
Low speed four-wheel
drive indicator light
(P. 419)
*1
(Canada)
Malfunction indicator
lamp ( P. 417)*3
(if equipped)
Rear differential lock
indicator light ( P. 418)
*1
SRS warning light
(P. 418)*3
(if equipped)
Center differential lock
indicator light ( P. 419)
*1
(U.S.A.)
ABS warning light
(P. 418)*4
(if equipped)
Multi-terrain Select indi-
cator light ( P. 419)
*1
(Canada)
ABS warning light
(P. 418)
(if equipped)
Smart key system warn-
ing light ( P. 420)

782. Instrument cluster
4RUNNER (U)
*1: These lights turn on when the engine switch is turned to IGNITION ON
mode (vehicles with a smart key system) or the engine switch is turned to
the “ON” position (vehicles without a smart key system) to indi cate that a
system check is being performed. They will turn off after the engine is
started, or after a few seconds. There may be a malfunction in a system if
the lights do not come on, or do not turn off. Have the vehicle inspected by
your Toyota dealer.
*2: The light flashes to indicate a malfunction.
*3: The light flashes rapidly to indicate a malfunction.
*4: The light flashes continuously to indicate a malfunction.
Open door warning light
( P. 419)*1Master warning light
(P. 426)
Low fuel level warning
light ( P. 419)*1Tire pressure warning
light (P. 420)
Seat belt reminder light
(P. 420)
(if equipped)
Unengaged “Park” warn-
ing light ( P. 419)
*1
Low engine oil pressure
warning light ( P. 417)*1
(if equipped)
KDSS warning light
(P. 419)
*1
Power steering warning
light ( P. 419)*1, 2
(if equipped)
Automatic running
boards indicator light
(P. 419)

792. Instrument cluster
2
Instrument cluster
4RUNNER (U)
The indicators inform the driver of the operating state of the vehicle’s
various systems.
Indicators
Turn signal indicator
( P. 206)*1, 2 Slip indicator ( P. 264)
(U.S.A.)
Headlight indicator
(P. 208)*1VSC OFF indicator
(P. 265)
(Canada)
Tail light indicator
(P. 208)
Headlight high beam
indicator ( P. 2 1 1 )
Front fog light indicator
( P. 214) Cruise control set indica-
tor (
P. 225)
*4Security indicator
(P. 70, 73)
(if equipped)
Four-wheel drive indica-
tor ( P. 235)
*1, 3
Eco Driving Indicator
Light ( P. 87)*1
(if equipped)
Downhill assist control
system indicator
(P. 250)
*1“TRAC OFF” indicator
(P. 265)
(if equipped)
Low speed four-wheel
drive indicator
(P. 235, 239)
Cruise control indicator
( P. 225)
“AIR BAG ON/
OFF” indicator
(P. 46)*1, 4
(U.S.A.)
“AIR BAG ON/
OFF” indicator
(P. 46)*1, 4
(Canada)

802. Instrument cluster
4RUNNER (U)
*1: These lights turn on when the engine switch is turned to the “ON” position
(vehicles without a smart key system) or the engine switch is turned to
IGNITION ON mode (vehicles with a smart key system) to indicate that a
system check is being performed. They will turn off after the engine is
started, or after a few seconds. There may be a malfunction in a system if
the lights do not come on, or do not turn off. Have the vehicle inspected by
your Toyota dealer.
*2: The light flashes to indicate that the system is operating.
*3: The light does not turn on when the system is disabled.
*4: This light illuminates on the center panel.
(if equipped)
Rear differential lock
indicator ( P. 247)
(if equipped)
Multi-terrain Select indi-
cator (P. 256)
(if equipped)
Center differential lock
indicator ( P. 239)*1
(if equipped)
Crawl Control indicator
(P. 253)
(if equipped)
“A-TRAC” indicator
(P. 243)*1, 2
(if equipped)
Automatic running
boards indicator
(P. 112)
*1
(if equipped)
“AUTO LSD” indicator
(P. 245)
CAUTION
■ If a safety system warning light does not come on
Should a safety system light such as the ABS and SRS warning li ght not
come on when you start the engine, this could mean that these s ystems are
not available to help protect you in an accident, which could r esult in death
or serious injury. Have the vehicle inspected by your Toyota de aler immedi-
ately if this occurs.
