TOYOTA 4RUNNER 2020 (in English) User Guide

9

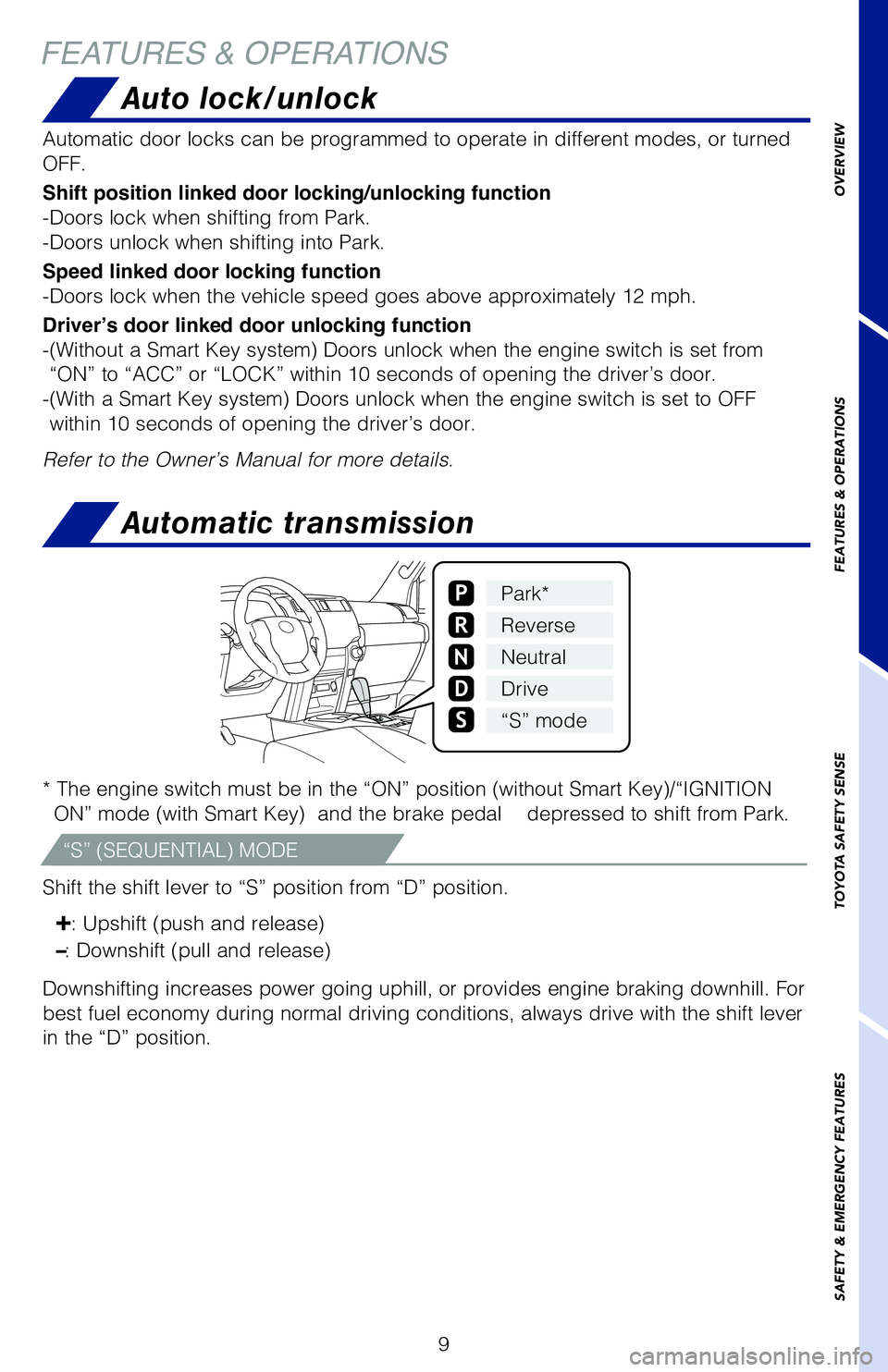

* The engine switch must be in the “ON” position (without Smart Key)/“IGNITION
ON” mode (with Smart Key) and the brake pedal depressed to shift from Park.
Shift the shift lever to “S” position from “D” position.
+: Upshift (push and release)
--: Downshift (pull and release)
Downshifting increases power going uphill, or provides engine braking downhill. For
best fuel economy during normal driving conditions, always drive with the shift lever
in the “D” position.
Park*
Reverse
Neutral
Drive
P
R
N
D
i4wNPEF
"VUPNBUJDEPPSMPDLTDBOCFQSPHSBNNFEUPPQFSBUFJOEJGGFSFOUNPEFT
PSUVSOFE
0''
Shift position linked door locking/unlocking function
-Doors lock when shifting from Park.
-Doors unlock when shifting into Park.
Speed linked door locking function
-Doors lock when the vehicle speed goes above approximately 12 mph.
Driver’s door linked door unlocking function
-(Without a Smart Key system) Doors unlock when the engine switch is set from
“ON” to “ACC” or “LOCK” within 10 seconds of opening the driver’s door.
-(With a Smart Key system) Doors unlock when the engine switch is set to OFF within 10 seconds of opening the driver’s door.
Refer to the Owner’s Manual for more details.
OVERVIEW
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE
SAFETY & EMERGENCY FEATURES
Auto lock/unlock
Automatic transmission
“S” (SEQUENTIAL) MODE
FEATURES & OPERATIONS
62444_4Runner_Text.indd 97/19/19 8:54 PM

10

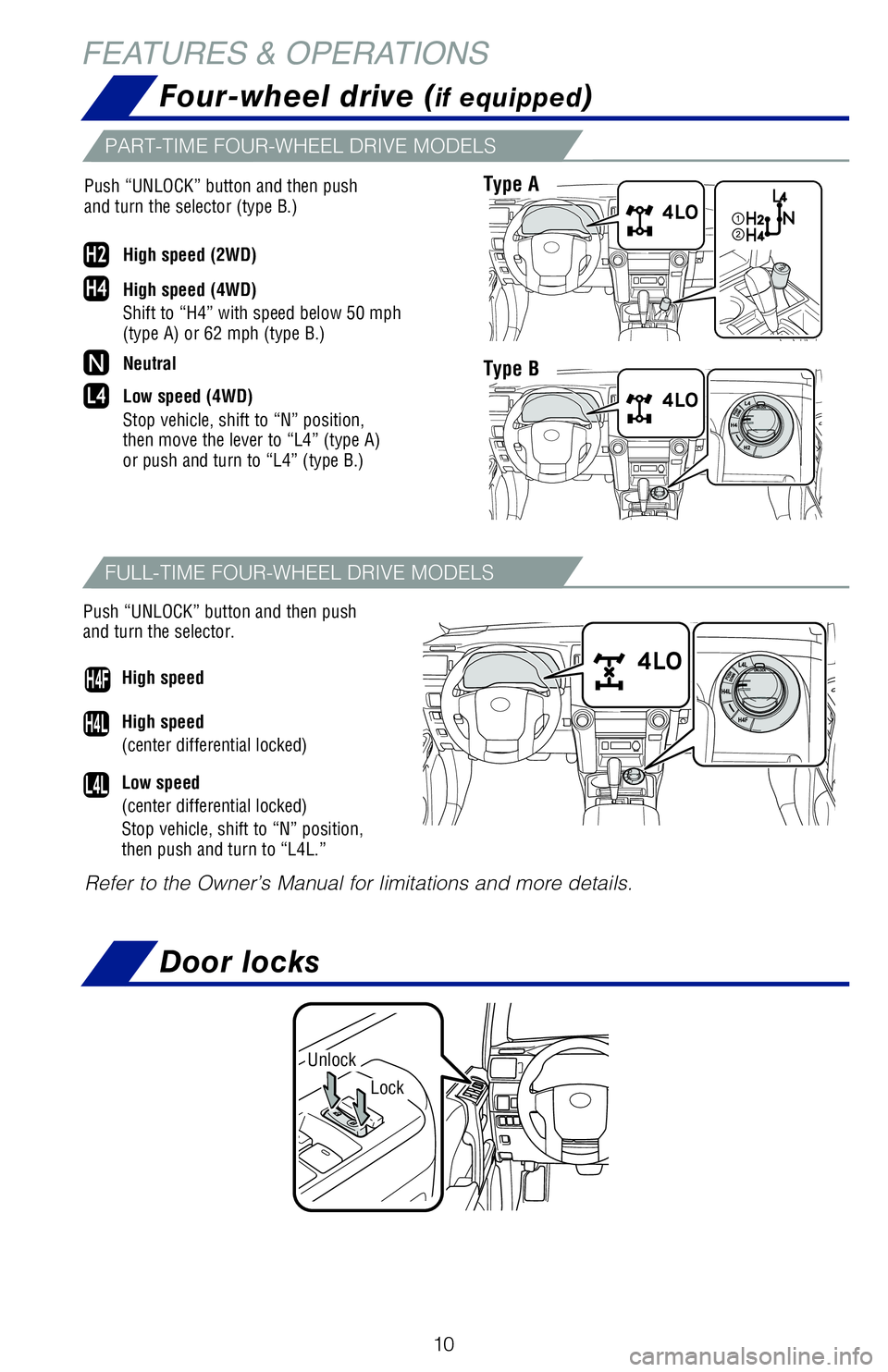

Door locks
Unlock
Lock
FEATURES & OPERATIONS
High speed
(center differential locked)
Low speed
(center differential locked)
Stop vehicle, shift to “N” position,
then push and turn to “L4L.”
Push “UNLOCK” button and then push
and turn the selector. Push “UNLOCK” button and then push
and turn the selector (type B.)H4L
L4L
H2High speed (2WD)
High speed (4WD)
Shift to “H4” with speed below 50 mph
(type A) or 62 mph (type B.)
Low speed (4WD)
Stop vehicle, shift to “N” position,
then move the lever to “L4” (type A)
or push and turn to “L4” (type B.)
Neutral
High speed
H4F
Refer to the Owner’s Manual for limitations and more details.
Type B
Type A
Four-wheel drive (if equipped)
PART-TIME FOUR-WHEEL DRIVE MODELS
FULL-TIME FOUR-WHEEL DRIVE MODELS
62444_4Runner_Text.indd 107/19/19 8:54 PM

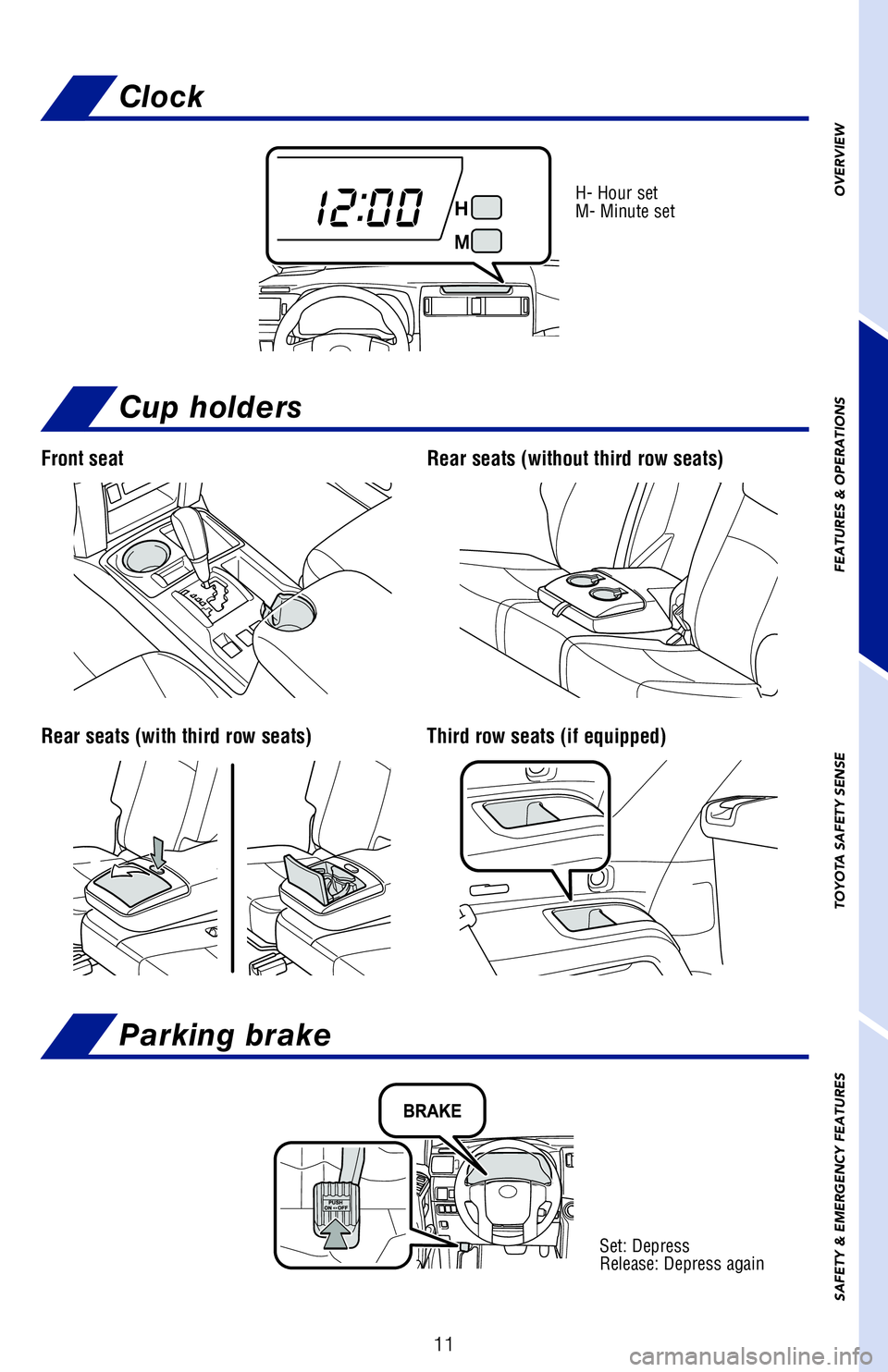

11
Set: Depress
Release: Depress again
Parking brake
H- Hour set
M- Minute set
Clock
Cup holders
Front seat
Rear seats (with third row seats)
Rear seats (without third row seats)
Third row seats (if equipped)
OVERVIEW
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE
SAFETY & EMERGENCY FEATURES
62444_4Runner_Text.indd 117/19/19 8:54 PM

12
Hold wheel, push lever down, set angle and length, and return lever.
NOTE: Do not attempt to adjust while the vehicle is in motion.
AngleLock release leverLength
Steering lock release
When starting the engine, the engine
switch may seem stuck in the “LOCK”
position. To free it, turn the key while
turning the steering wheel slightly left
and right. When the steering lock cannot be
released, “Push the engine switch while
turning the steering wheel in either
direction” will be displayed on the multi-
information display. Press the engine
switch shortly and firmly while turning the
steering wheel left and right.
With Smart Key system
Without Smart Key system
Push
Turn
Turn
Turn
Automatic running boards (if equipped)
The automatic running boards are linked to side door operation. When a side door
is opened or closed, the board on the same side extends or retracts.
ON/OFF switch
ON
OFF
Tilt & telescopic steering wheel
FEATURES & OPERATIONS
62444_4Runner_Text.indd 127/19/19 8:54 PM

13

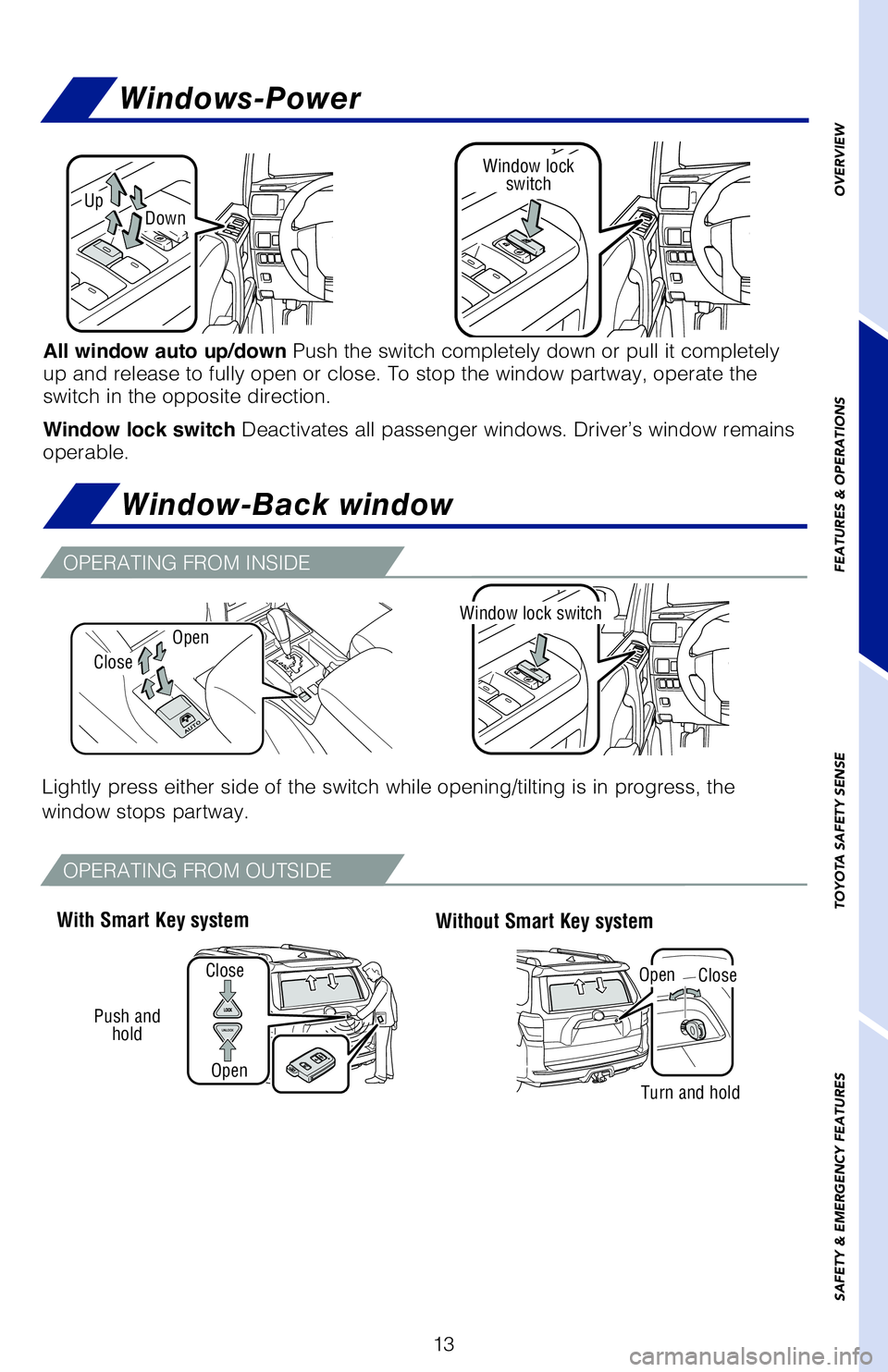

All window auto up/down Push the switch completely down or pull it completely
up and release to fully open or close. To stop the window partway, operate the
switch in the opposite direction.
Window lock switch Deactivates all passenger windows. Driver’s window remains
operable.
UpDown
Window lock switch
Window lock switch
Open
Close
Turn and hold
CloseOpen
With Smart Key systemWithout Smart Key system
Close
Open
Push and hold
Windows-Power
Window-Back window
Lightly press either side of the switch while opening/tilting is in progress, the
window stops partway.
OVERVIEW
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE
SAFETY & EMERGENCY FEATURES
OPERATING FROM INSIDE
OPERATING FROM OUTSIDE
62444_4Runner_Text.indd 137/19/19 8:54 PM

14
FEATURES & OPERATIONS

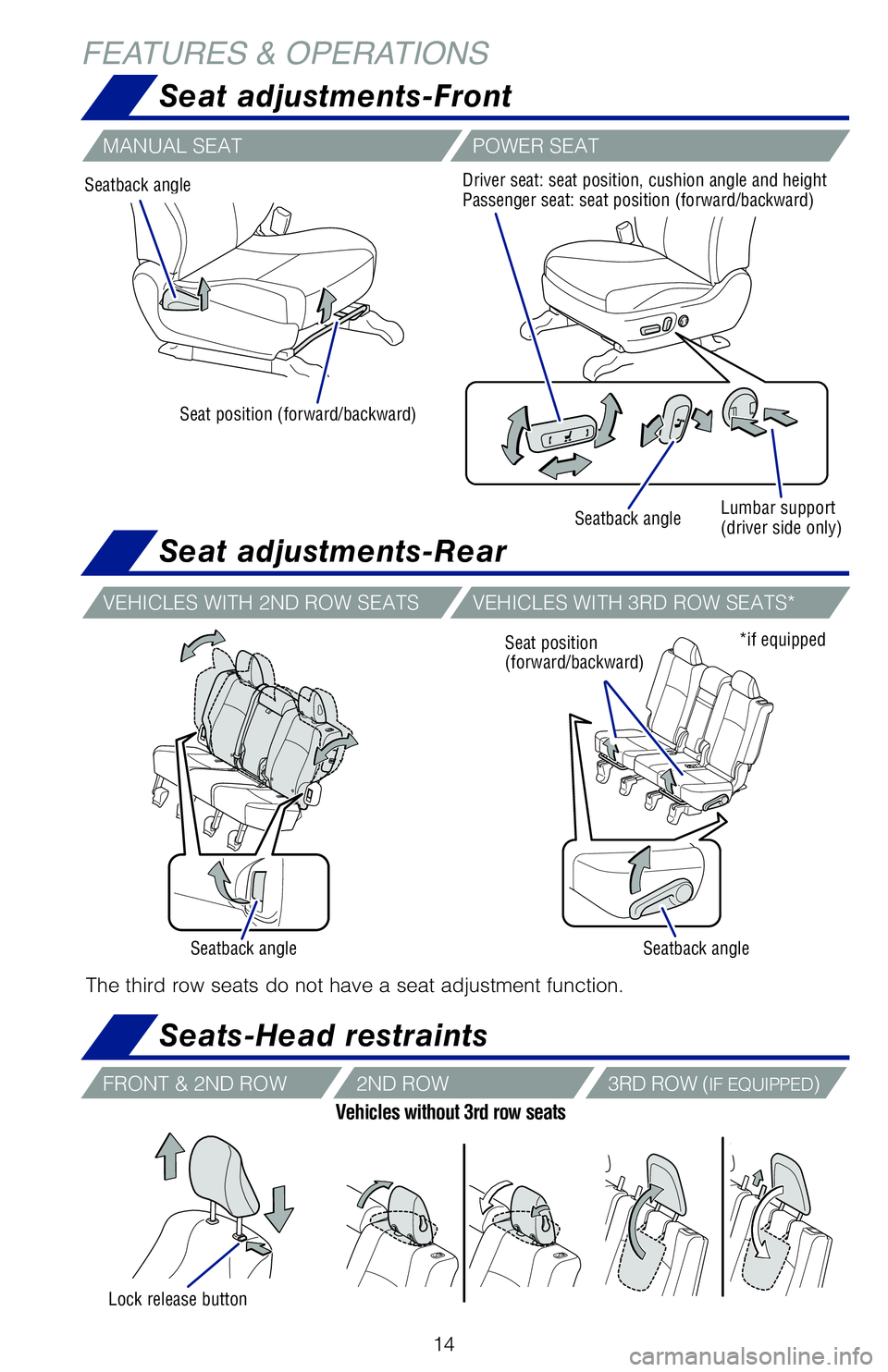

Seatback angle Seat position (forward/backward) Driver seat: seat position, cushion angle and height
Passenger seat: seat position (forward/backward)
Seatback angle Lumbar support
(driver side only)

VEHICLES WITH 2ND ROW SEATS
VEHICLES WITH 3RD ROW SEATS*
The third row seats do not have a seat adjustment function.
Seatback angleSeatback angle
*if equippedSeat position
(forward/backward)
Seat adjustments-Front
Seat adjustments-Rear
MANUAL SEATPOWER SEAT
Seats-Head restraints
Lock release button
Vehicles without 3rd row seats
FRONT & 2ND ROW2ND ROW3RD ROW (IF EQUIPPED)
62444_4Runner_Text.indd 147/19/19 8:54 PM

15
OVERVIEW
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE
SAFETY & EMERGENCY FEATURES

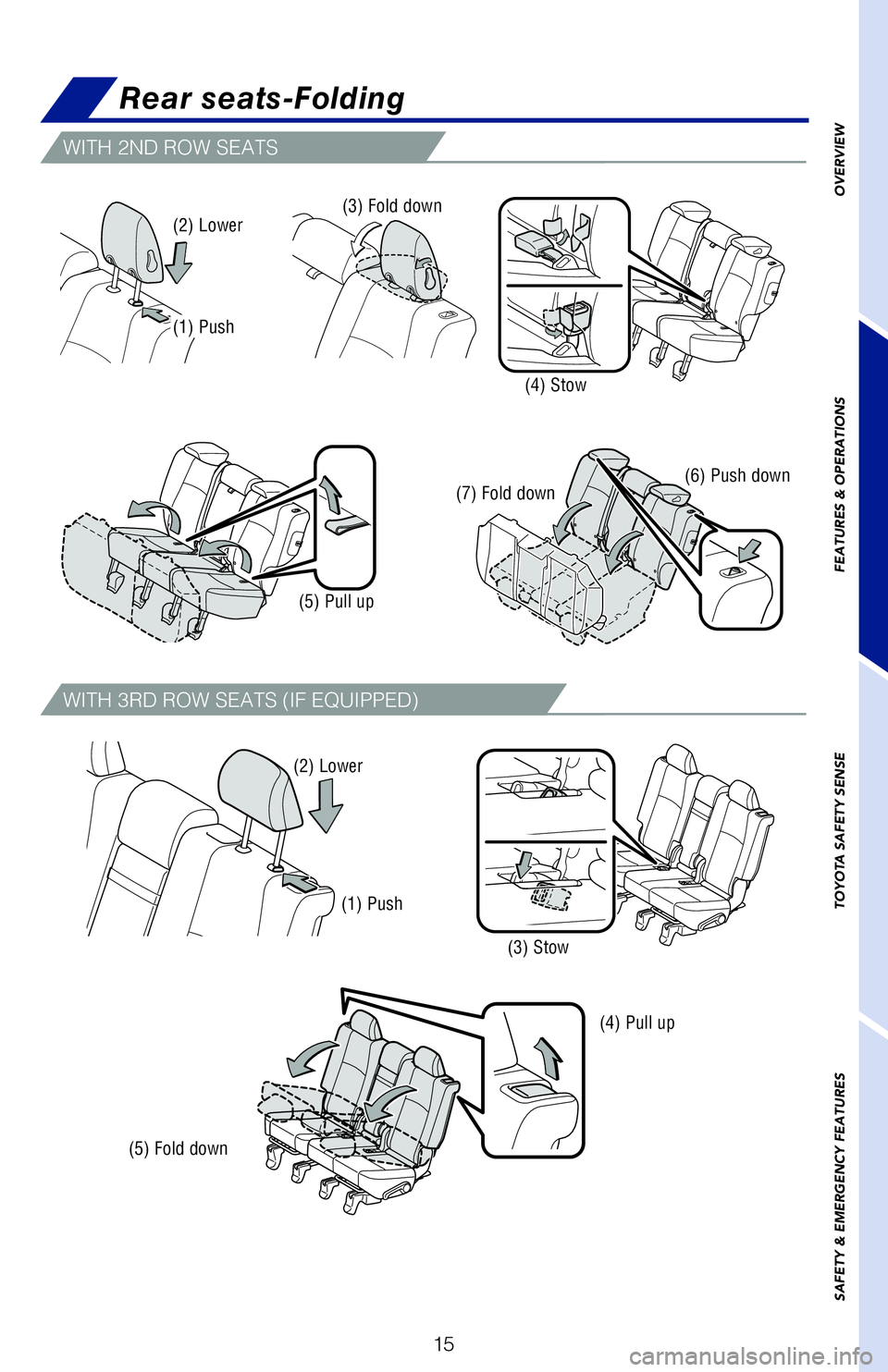

Rear seats-Folding
WITH 2ND ROW SEATS
WITH 3RD ROW SEATS (IF EQUIPPED)
(1) Push
(2) Lower
(3) Stow
(5) Fold down
(4) Pull up
(1) Push (2) Lower
(5) Pull up
(3) Fold down
(7) Fold down (6) Push down
(4) Stow
62444_4Runner_Text.indd 157/19/19 8:54 PM

16

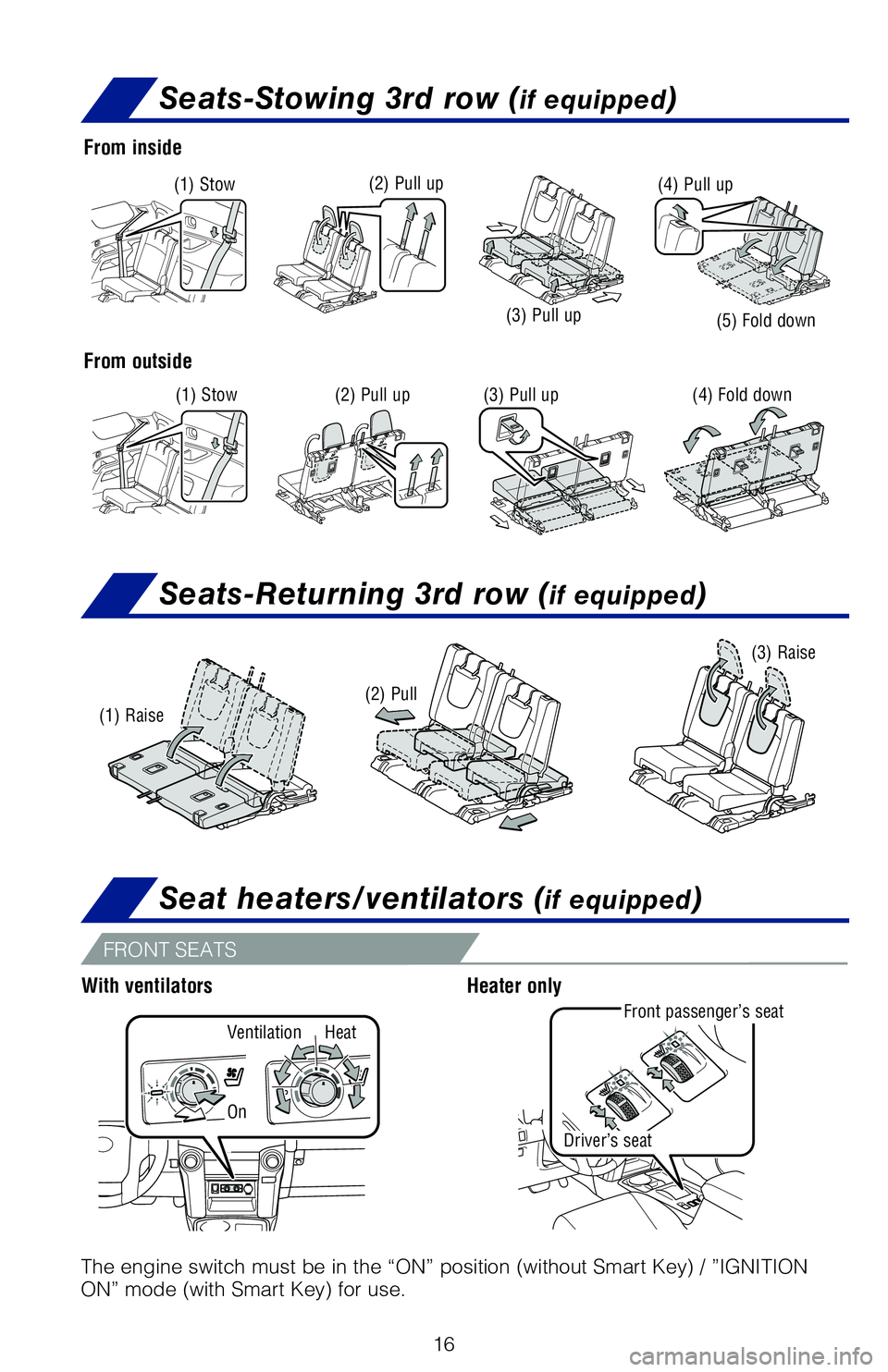

Front passenger’s seat
Heater onlyWith ventilators
Driver’s seat
Ventilation Heat
On
Seat heaters/ventilators (if equipped)
FRONT SEATS
The engine switch must be in the “ON” position (without Smart Key) / ”IGNITION
ON” mode (with Smart Key) for use.
Seats-Stowing 3rd row (if equipped)
Seats-Returning 3rd row (if equipped)
(1) Stow(2) Pull up
(3) Pull up (4) Pull up
(5) Fold down
(1) Stow(2) Pull up(3) Pull up (4) Fold down
From inside
From outside
(1) Raise (2) Pull (3) Raise
62444_4Runner_Text.indd 167/19/19 8:54 PM

17
OVERVIEW
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE

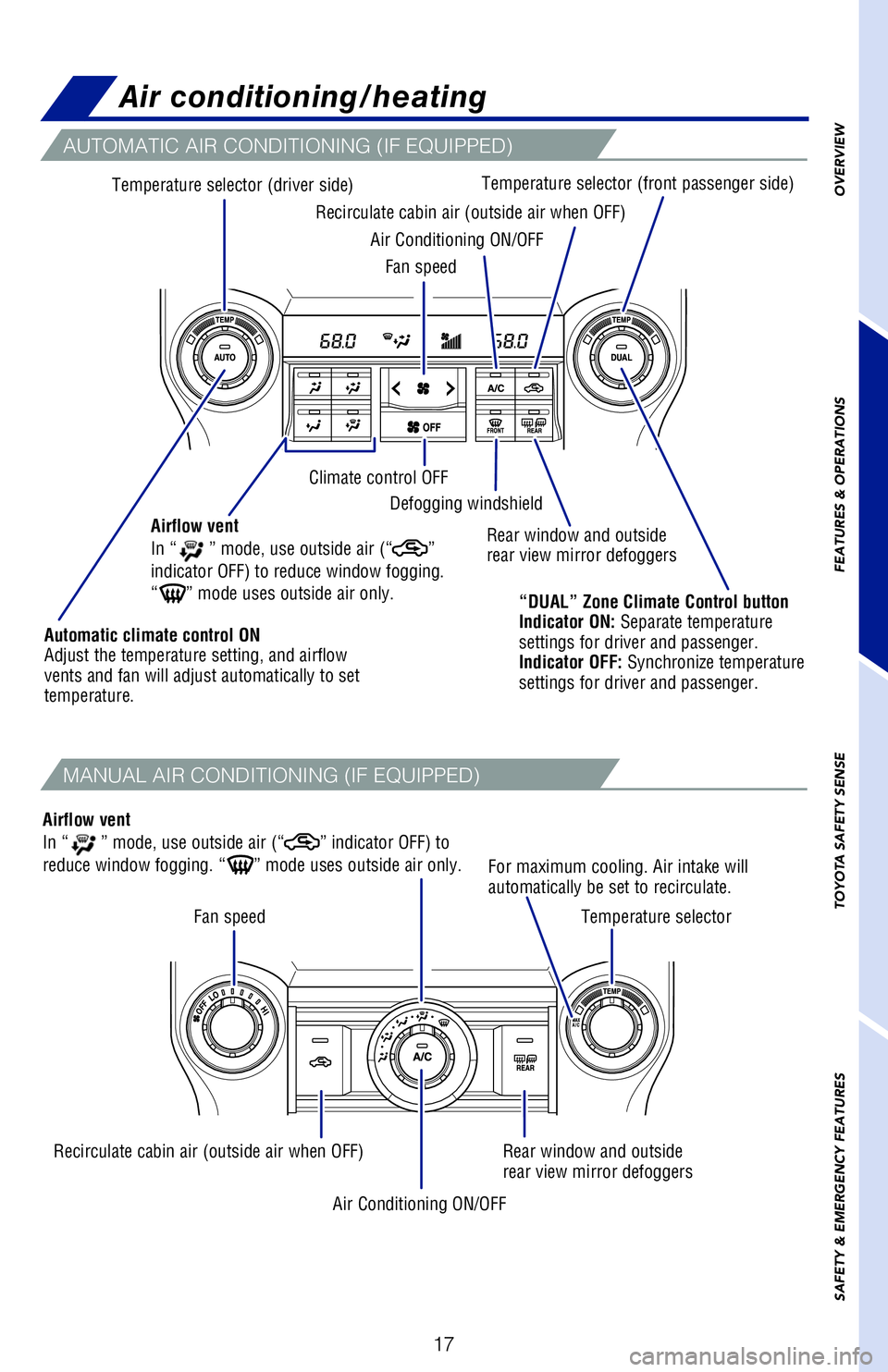

SAFETY & EMERGENCY FEATURESTemperature selector (driver side)
Fan speed
Fan speed Air Conditioning ON/OFF
Air Conditioning ON/OFF Defogging windshield
Recirculate cabin air (outside air when OFF)
Recirculate cabin air (outside air when OFF) Temperature selector (front passenger side)
Temperature selector
“DUAL” Zone Climate Control button
Indicator ON: Separate temperature
settings for driver and passenger.
Indicator OFF: Synchronize temperature
settings for driver and passenger.
Airflow vent
In “
” mode, use outside air (“”
indicator OFF) to reduce window fogging.
“
” mode uses outside air only.
Airflow vent
In “
” mode, use outside air (“” indicator OFF) to
reduce window fogging. “” mode uses outside air only. Rear window and outside
rear view mirror defoggers
Rear window and outside
rear view mirror defoggers
For maximum cooling. Air intake will
automatically be set to recirculate.
Climate control OFF
Automatic climate control ON
Adjust the temperature setting, and airflow
vents and fan will adjust automatically to set
temperature.
Air conditioning/heating
AUTOMATIC AIR CONDITIONING (IF EQUIPPED)
MANUAL AIR CONDITIONING (IF EQUIPPED)
62444_4Runner_Text.indd 177/19/19 8:55 PM

18

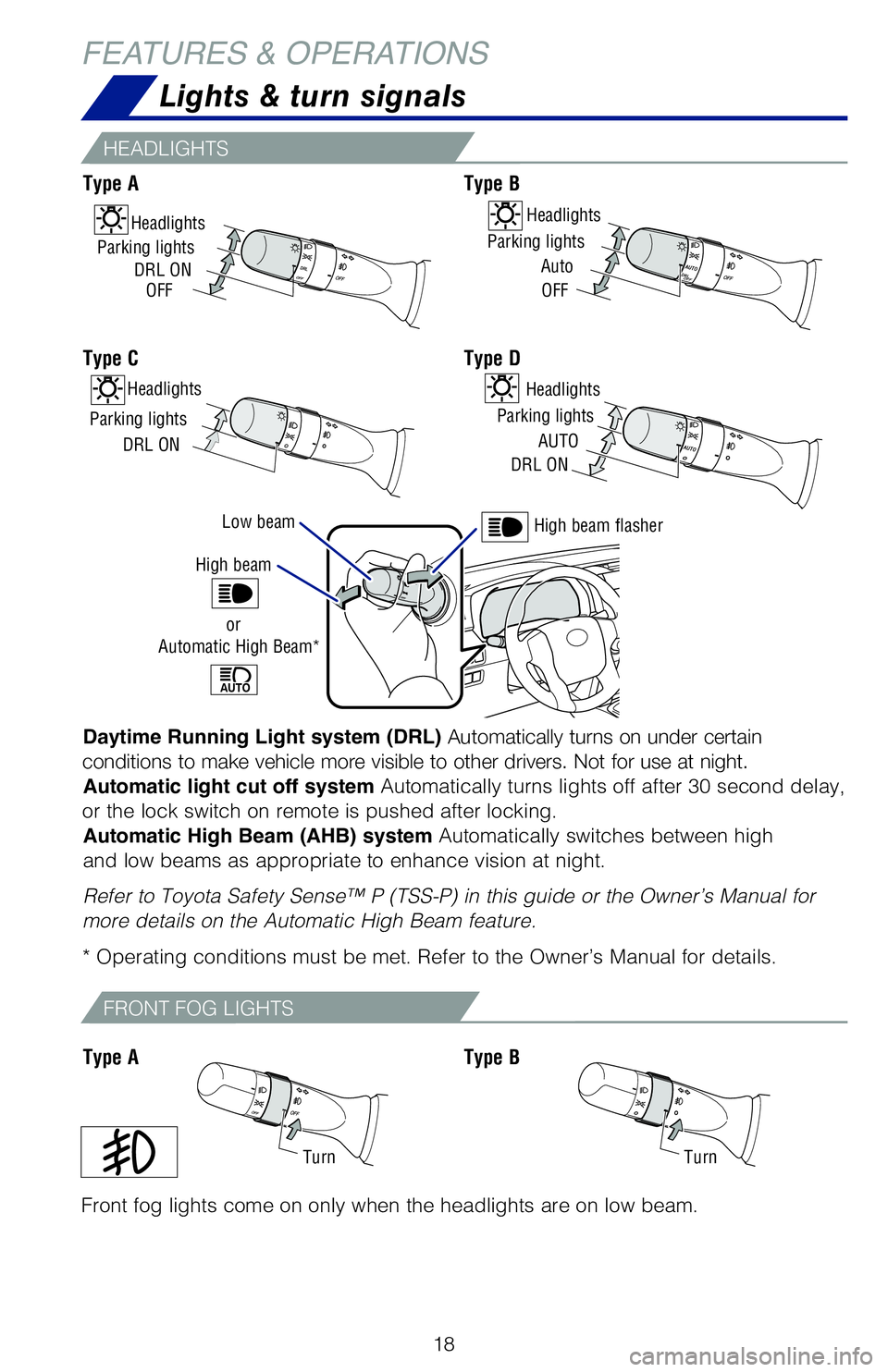

Low beam
Lights & turn signals
HEADLIGHTS
FRONT FOG LIGHTS
Front fog lights come on only when the headlights are on low beam.
TurnTurn
High beam flasher
Type AType B
Type C
Type AType B
Type D
Parking lights
Auto
OFF
HeadlightsHeadlights
Parking lights DRL ON
OFF
Headlights
Parking lights DRL ON
Headlights
Parking lights AUTO
DRL ON
High beam
orAutomatic High Beam*
Daytime Running Light system (DRL) Automatically turns on under certain
conditions to make vehicle more visible to other drivers. Not for use at night. Automatic light cut off system Automatically turns lights off after 30 second delay,
or the lock switch on remote is pushed after locking. Automatic High Beam (AHB) system Automatically switches between high
and low beams as appropriate to enhance vision at night.
Refer to Toyota Safety Sense™ P (TSS-P) in this guide or the Owner’s Manual for
more details on the Automatic High Beam feature.
* Operating conditions must be met. Refer to the Owner’s Manual for details.
FEATURES & OPERATIONS
