TOYOTA 86 2017 Owner's Manual

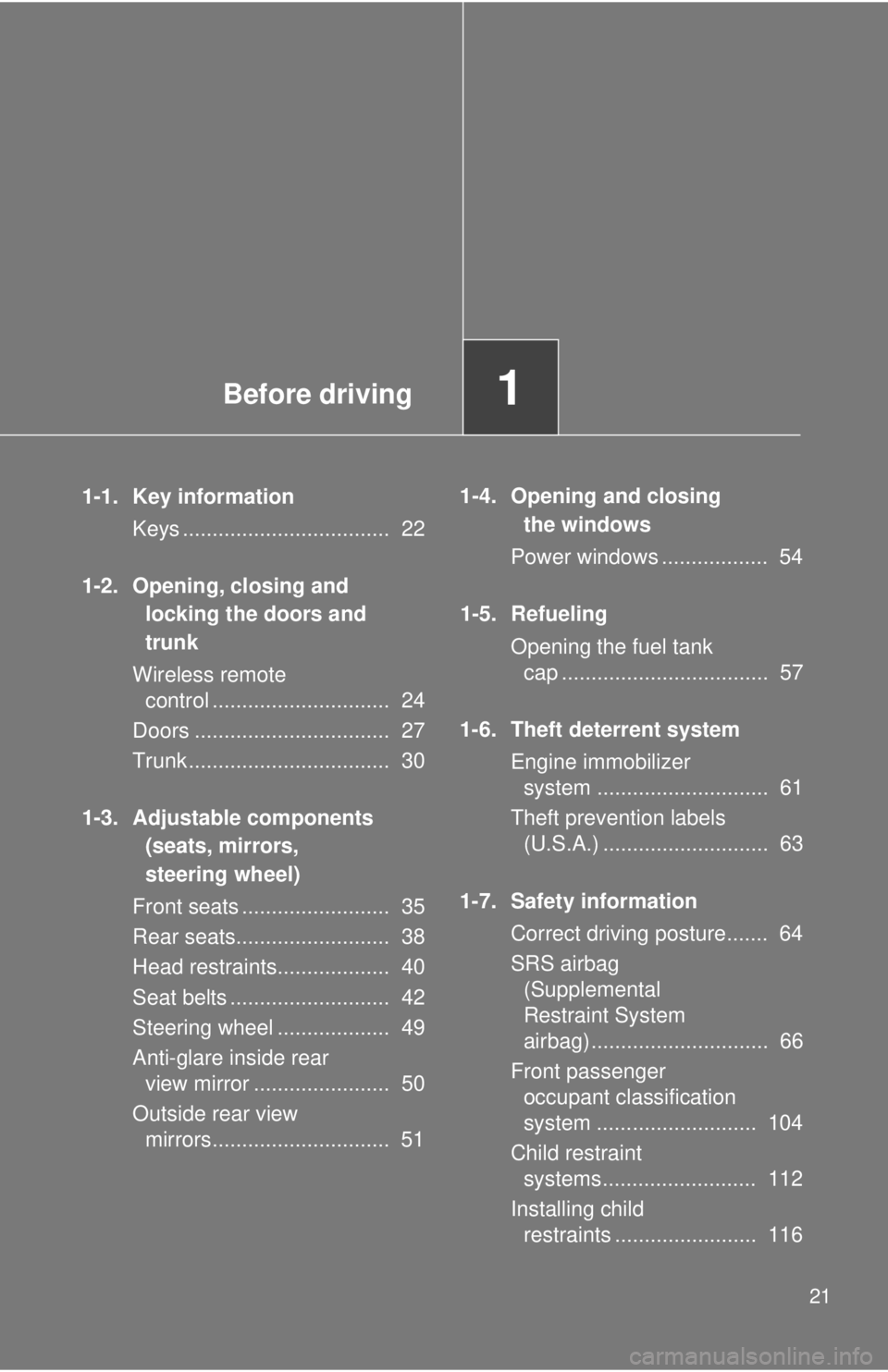

Before driving
1
211-1. Key information
Keys ................................... 22
1-2. Opening, closing and
locking the doors and
trunk
Wireless remote
control .............................. 24
Doors ................................. 27
Trunk .................................. 30
1-3. Adjustable components
(seats, mirrors,
steering wheel)
Front seats ......................... 35
Rear seats.......................... 38
Head restraints................... 40
Seat belts ........................... 42
Steering wheel ................... 49
Anti-glare inside rear
view mirror ....................... 50
Outside rear view
mirrors.............................. 51 1-4. Opening and closing
the windows
Power windows .................. 54
1-5. Refueling
Opening the fuel tank
cap ................................... 57
1-6. Theft deterrent system
Engine immobilizer
system ............................. 61
Theft prevention labels
(U.S.A.) ............................ 63
1-7. Safety information
Correct driving posture....... 64
SRS airbag
(Supplemental
Restraint System
airbag).............................. 66
Front passenger
occupant classification
system ........................... 104
Child restraint
systems.......................... 112
Installing child
restraints ........................ 116

221-1. Key information
Keys
■ When required to leave the vehicle’s key with a parking attendant
Turn the trunk opener main switch off as circumstances demand. ( → P. 31)
Provide the attendant with the valet key.
■ Key number plate
Keep the plate in a safe place, not in the vehicle. In the event that a key is
lost, a new key can be made at your Toyota dealer using the key number
plate. ( → P. 340)
■ When riding in an aircraft
When bringing a key with wireless remote control function onto an aircraft,
make sure you do not press any buttons on the key while inside the aircraft
cabin. If you are carrying the key in your bag etc., ensure that the buttons
are not likely to be pressed accidentally. Pressing a button may cause the
key to emit radio waves that could interfere with the operation of the aircraft. The following keys are provid ed with the vehicle.
Master keys Operating the wireless remote
control function ( → P. 24)
Va l e t k e y
Key number plate

231-1. Key information
1
Before driving NOTICE■ To prevent key damage
Observe the following:
● Do not drop the keys, subject them to strong shocks or bend them.
● Do not expose the keys to high temperatures for a long period of time.
● Do not get the keys wet or wash them in an ultrasonic washer etc.
● Do not attach metallic or magnetic materials to the keys or place the keys
close to such materials.
● Do not disassemble the keys.
● Do not attach a sticker or anything else to the surface of the key.
■ When a vehicle key is lost
If the key remains lost, the risk of vehicle theft increases significantly. Visit
your Toyota dealer immediately with all remaining keys that were provided
with your vehicle.

241-2. Opening, closing and locking the doors and trunk
Wireless remote control
■ Operation signals
Doors: A buzzer sounds and the emergency flashers flash to indicate that
the doors have been locked/unlocked. (Locked: once; Unlocked:
twice)
Trunk: A buzzer sounds to indicate that the trunk has been unlocked.
■ Panic modeThe wireless remote control can be used to lock and unlock the vehi-
cle.
Locks both side doors Check that the door is securely
locked.
Unlocks both side doors
Sounds the alarm
(press and hold) Pressing the button unlocks
the driver’s door. Pressing the
button again within 3 seconds
unlocks the other doors.
Unlocks the trunk
(press and hold)
When is pressed for longer than
about one second, an alarm will sound
intermittently and the vehicle lights will
flash to deter any person from trying to
break into or damage your vehicle.
To stop the alarm, press any button on
the wireless remote control.

251-2. Opening, closing and locking the doors and trunk
1
Before driving ■ Vehicle finder function
■ Security feature
If a door is not opened within approximately 60 seconds after the vehicle is
unlocked, the security feature automatically locks the vehicle again.
■ Conditions affecting operation
The wireless remote control function may not operate normally in the follow-
ing situations:
● When the wireless key battery is depleted
● Near a TV tower, electric power plant, gas station, radio station, large dis-
play, airport or other facility that generates strong radio waves or electri-
cal noise
● When carrying a portable radio, cellular phone or other wireless commu-
nication devices
● When the wireless key is in contact with, or is covered by a metallic
object
● When other wireless key (that emit radio waves) is being used nearby
● If window tint with a metallic content or metallic objects are attached to
the rear window When the function is set, a buzzer
(sounds once) and the emergency flash-
ers (flash 3 times) are used to inform the
driver of the vehicle’s location.
Press 3 times within 5 seconds
while within a circumference of approxi-
mately 30 ft. (10 m) from of the vehicle.
However, if the interval between the 3
presses is short, the system may not be
activated. This setting must be custom-
ized at your Toyota dealer.

261-2. Opening, closing and locking the doors and trunk
■ Key battery depletion
If the wireless remote control function does not operate, the battery may be
depleted. Replace the battery when necessary. ( → P. 287)
■ When the wireless remote control battery is fully depleted
→ P. 287
■ Customization that can be conf igured at your Toyota dealer
Settings (e.g. wireless remote control system) can be changed.
(Customizable features → P. 383)
■ Certification for wireless remote control
For vehicles sold in the U.S.A.
FCC ID: HYQ23AAC FCC ID: HYQ12BEL
NOTE:
This device complies with part 15 of the FCC Rules. Operation is subject to
the following two conditions: (1) This device may not cause harmful interfer-
ence, and (2) this device must accept any interference received, including
interference that may cause undesired operation.
FCC WARNING:
Changes or modifications not expressly approved by the party responsible
for compliance could void the user's authority to operate the equipment.
For vehicles sold in Canada
NOTE:
This device complies with Industry Canada’s licence-exempt RSSs. Opera-
tion is subject to the following two conditions: (1) This device may not cause
interference; and (2) This device must accept any interference, including
interference that may cause undesired operation of the device.
NOTE:
Le présent appareil est conforme aux CNR d’Industrie Canada applicables
aux appareils radio exempts de licence. L’exploitation est autorisée aux
deux conditions suivantes: (1) l’appareil ne doit pas produire de brouillage;
(2) l’utilisateur de l’appareil doit accept er tout brouillage radioélectrique subi,
même si le brouillage est susceptible d’en compromettre le fonctionnement.

27 11-2. Opening, closing and locking the doors and trunk
Before driving

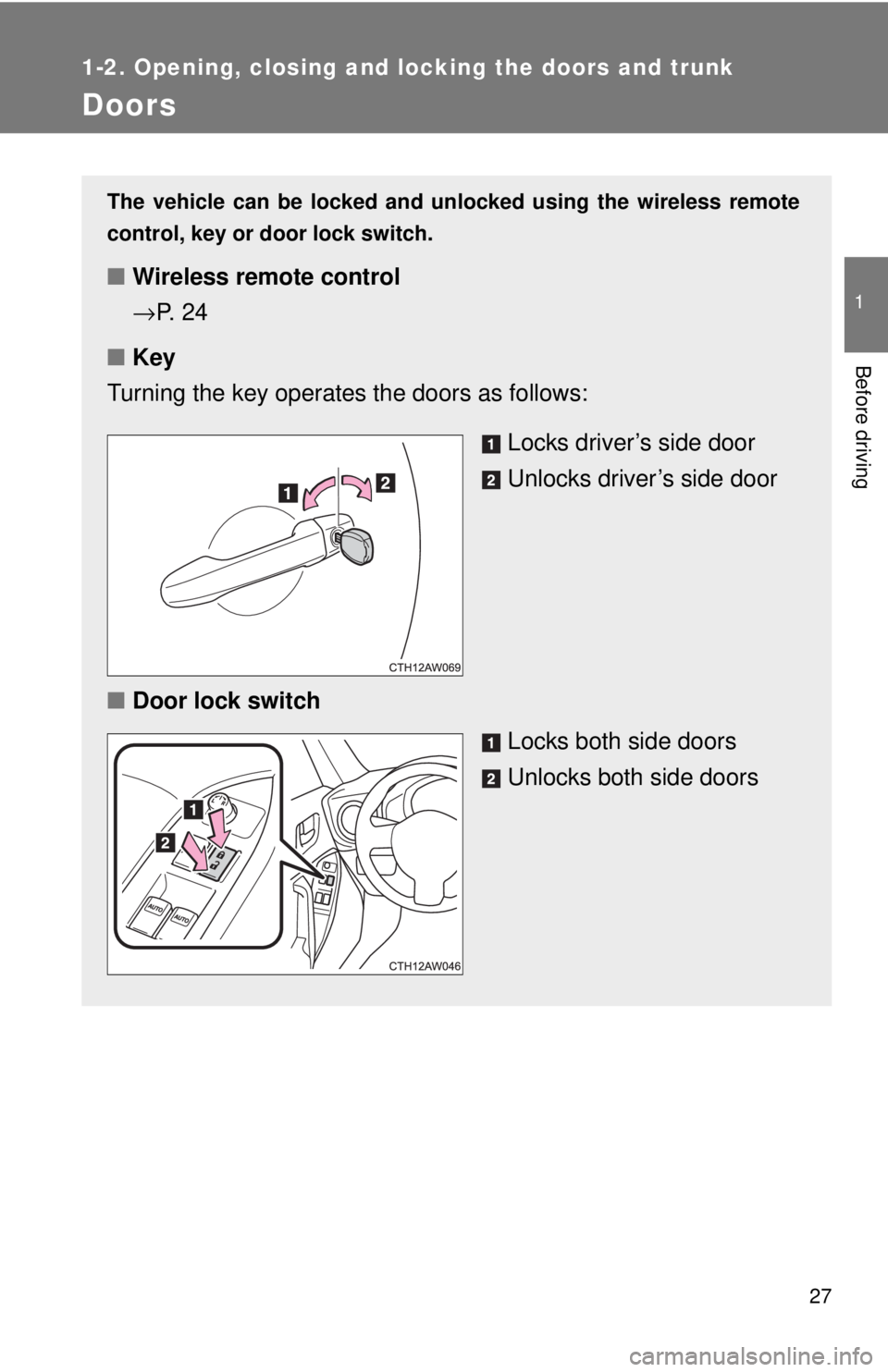

Doors The vehicle can be locked and unlocked using the wireless remote
control, key or door lock switch.
■ Wireless remote control
→ P. 2 4
■ Key
Turning the key operates the doors as follows:
Locks driver’s side door
Unlocks driver’s side door
■ Door lock switch
Locks both side doors
Unlocks both side doors

281-2. Opening, closing and locking the doors and trunk
Locking the doors from the outside without a key
Move the inside lock button to the lock position.
Close the door.■ Inside lock button
Locks the door
Unlocks the door
STEP 1
STEP 2

291-2. Opening, closing and locking the doors and trunk
1
Before driving ■ Window open/close function linked to door operation
In order to make opening and closing the doors easier, completely closed
windows are linked to door operations. Therefore, when a door is opened, its
window opens slightly. When a door is closed, its window closes completely.
However, if the battery has discharged or is disconnected, this function will
not operate. ( → P. 344)
WARNING■ To prevent an accident
Observe the following precautions while driving the vehicle.
Failure to do so may result in a door opening and an occupant falling out,
resulting in death or serious injury.
● Always use a seat belt.
● Always lock both side doors.
● Ensure that both side doors are properly closed.
● Do not pull the inside handle of the doors while driving.
The doors may be opened and the passengers are thrown out of the vehi-
cle and it may result in serious injury or death.

301-2. Opening, closing and locking the doors and trunk

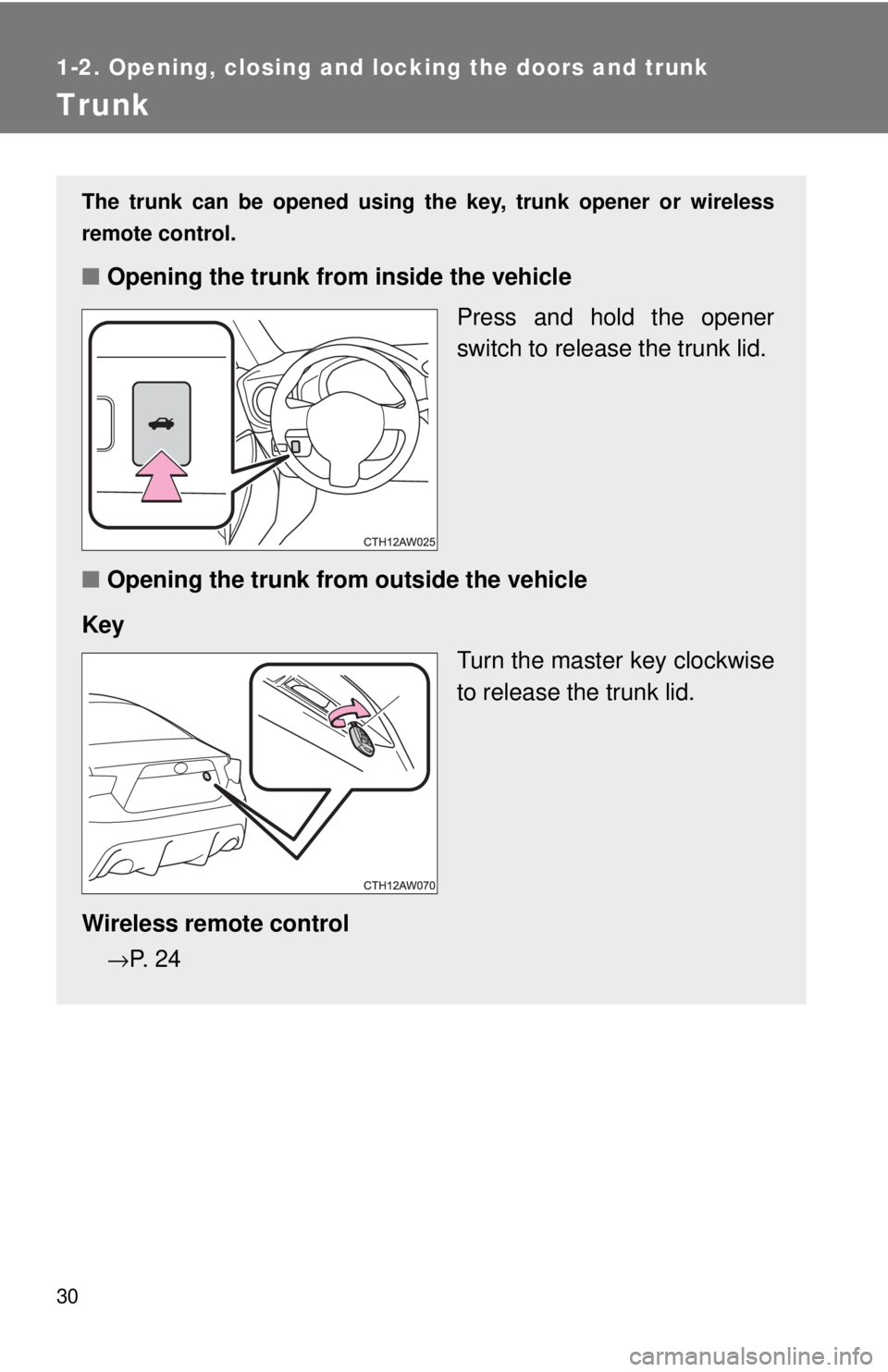

Trunk The trunk can be opened using the key, trunk opener or wireless
remote control.
■ Opening the trunk from inside the vehicle
Press and hold the opener
switch to release the trunk lid.
■ Opening the trunk from outside the vehicle
Key
Turn the master key clockwise
to release the trunk lid.
Wireless remote control
→
P. 2 4
