When driving 2-2. Instrument cluster

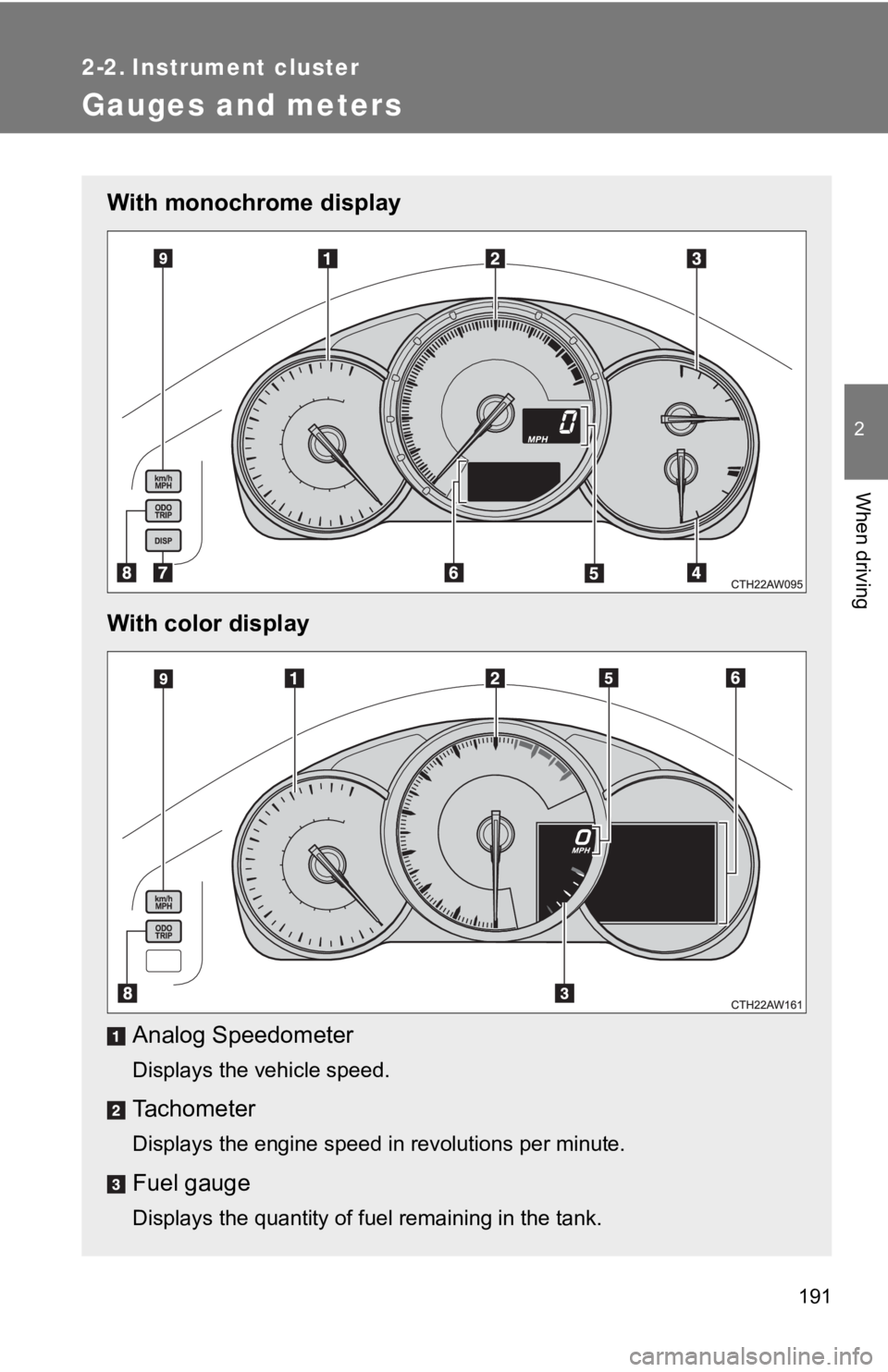

Gauges and meters With monochrome display
With color display
Analog Speedometer
Displays the vehicle speed.
Tachometer
Displays the engine speed in revolutions per minute.
Fuel gauge
Displays the quantity of fuel remaining in the tank.

1922-2. Instrument cluster

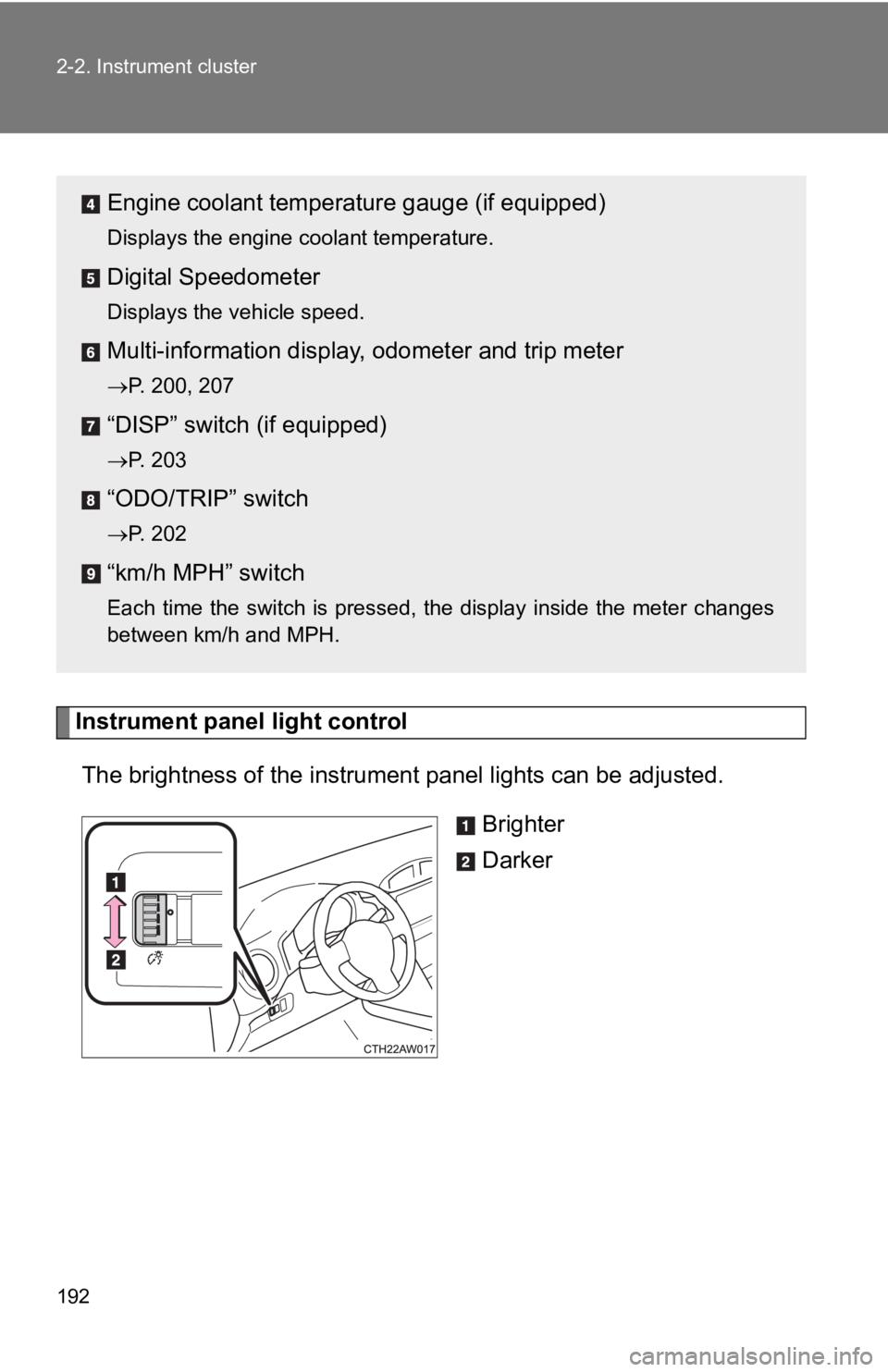

Instrument panel light control
The brightness of the instrument panel lights can be adjusted.
Brighter
DarkerEngine coolant temperat ure gauge (if equipped)Displays the engine coolant temperature.
Digital Speedometer Displays the vehicle speed.
Multi-information display, odometer and trip meter P. 200, 207
“DISP” switch (if equipped)  P. 203
“ODO/TRIP” switch  P. 202
“km/h MPH” switch Each time the switch is pressed, the display inside the meter c hanges
between km/h and MPH.

1932-2. Instrument cluster
2
When driving ■ The meters and display illuminate when
Vehicles without a smart key system
The engine switch is in the “ON” position.
Vehicles with a smart key system
The “ENGINE START STOP” switch is in IGNITION ON mode.
■ The brightness of the i nstrument panel lights
When the parking lights or the headlights turn on, the instrume nt panel lights
will dim. However, when the instrument panel brightness control dial is
turned to the up most position, the instrument panel lights wil l not dim even
when the parking lights or headlights turn on.
NOTICE■ To prevent damage to the engine and its components
● Do not let the indicator needle of the tachometer enter the red zone, which
indicates the maximum engine speed.
● In the following situations, the engine may be overheating. In this case,
immediately stop the vehicle in a safe place, and check the eng ine after it
has cooled completely. (
 P. 449)
• Vehicles with a monochrome multi-information display: The engi ne
coolant temperature gauge enters the red zone
• Vehicles with a color multi-information display: The high engine coolant
temperature warning light flashes or illuminates

1942-2. Instrument cluster

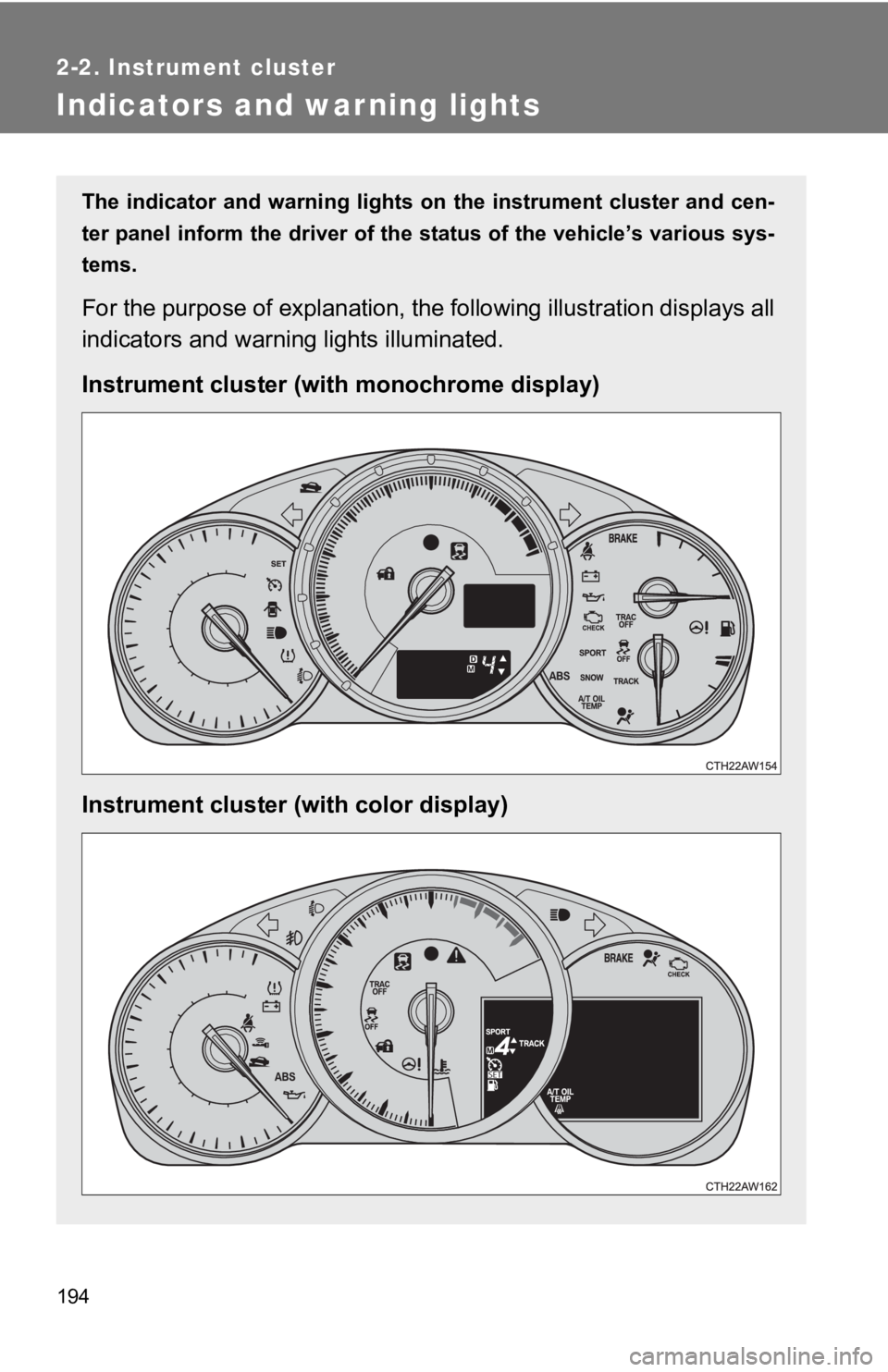

Indicators and warning lights The indicator and warning lights on the instrument cluster and cen-
ter panel inform the driver of the status of the vehicle’s vari ous sys-
tems.
For the purpose of explanation, the following illustration disp lays all
indicators and warning lights illuminated.
Instrument cluster (with monochrome display)
Instrument cluster (with color display)

1952-2. Instrument cluster
2
When driving Center panel

1962-2. Instrument cluster

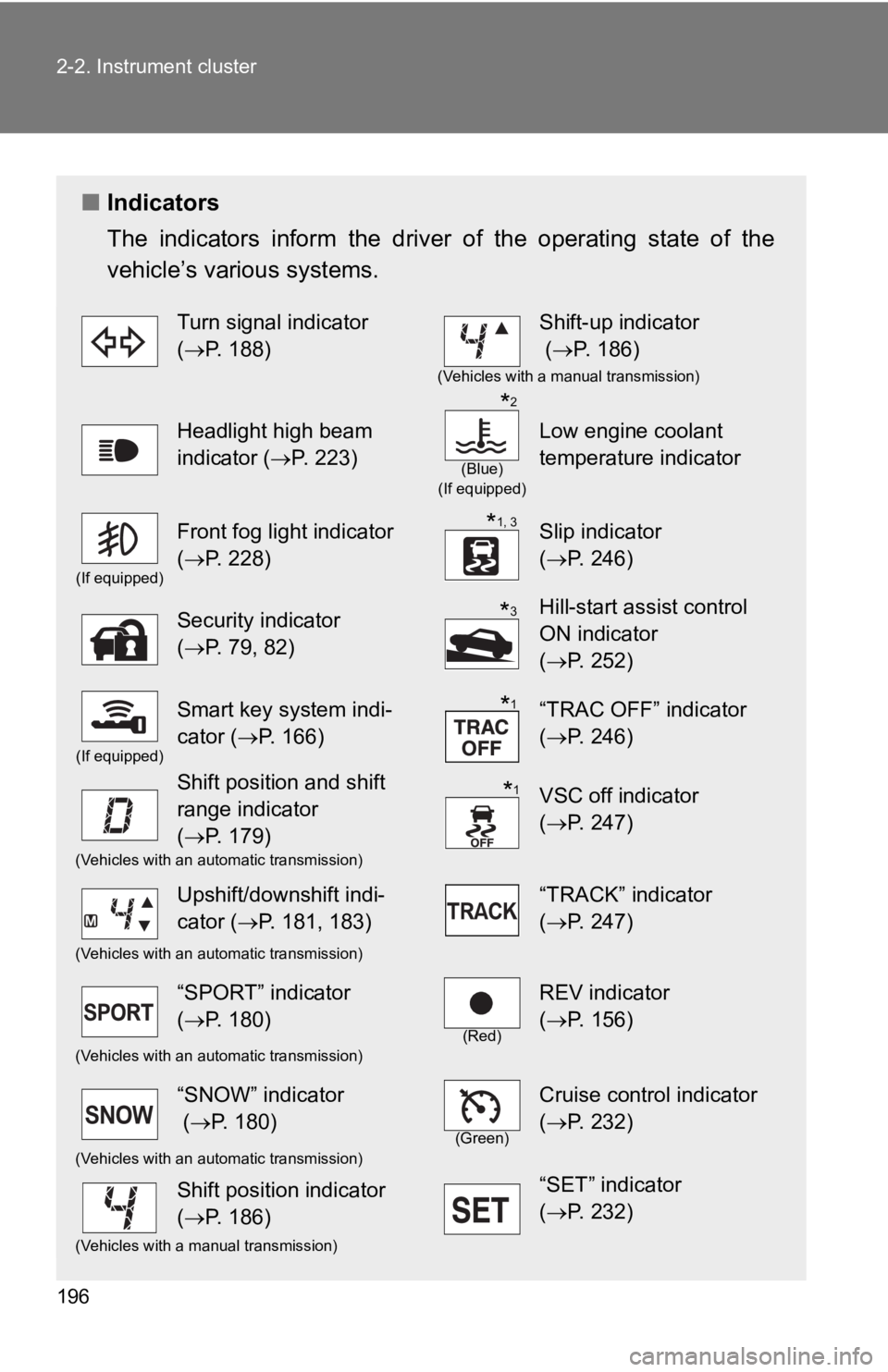

■ Indicators
The indicators inform the driv er of the operating state of the
vehicle’s various systems. Turn signal indicator
(  P. 188) Shift-up indicator
(  P. 186) (Vehicles with a manual transmission)
Headlight high beam
indicator (  P. 223) (Blue)
(If equipped)
Low engine coolant
temperature indicator(If equipped)
Front fog light indicator
(  P. 228) Slip indicator
(  P. 246)
Security indicator
(  P. 79, 82) Hill-start assist control
ON indicator
(  P. 252)(If equipped)
Smart key system indi-
cator (  P. 166) “TRAC OFF” indicator
(  P. 246)
Shift position and shift
range indicator
(  P. 179) VSC off indicator
(  P. 247)(Vehicles with an automatic transmission)
Upshift/downshift indi-
cator (  P. 181, 183) “TRACK” indicator
(  P. 247)(Vehicles with an automatic transmission)
“SPORT” indicator
(  P. 180) (Red)
REV indicator
(  P. 156)(Vehicles with an automatic transmission)
“SNOW” indicator
(  P. 180) (Green)
Cruise control indicator
(  P. 232)(Vehicles with an automatic transmission)
Shift position indicator
(  P. 186) “SET” indicator
(  P. 232)(Vehicles with a manual transmission) * 2
* 1, 3
* 3
* 1
* 1

1972-2. Instrument cluster
2
When driving
* 1
: Vehicles without a smart key system
These lights turn on when the engine switch is turned to the “O N”
position to indicate that a system check is being performed. Th ey
will turn off after the engine is started, or after a few secon ds. There
may be a malfunction in a system if a light does not come on, o r if
the lights do not turn off. Have the vehicle inspected by your To y o t a
dealer.
Vehicles with a smart key system
These lights turn on when the “ENGINE START STOP” switch is
turned to IGNITION ON mode to indicate that a system check is
being performed. They will turn off after the engine is started , or
after a few seconds. There may be a malfunction in a system if a
light does not come on, or if the lights do not turn off. Have the vehi-
cle inspected by your Toyota dealer for details.
* 2
: This indicator turns on when the engine coolant temperature is low.
* 3
: The light flashes to indicate that the system is operating.
* 4
: When the outside temperature is approximately 37°F (3°C) or lo wer,
the indicator will illuminate.(If equipped)

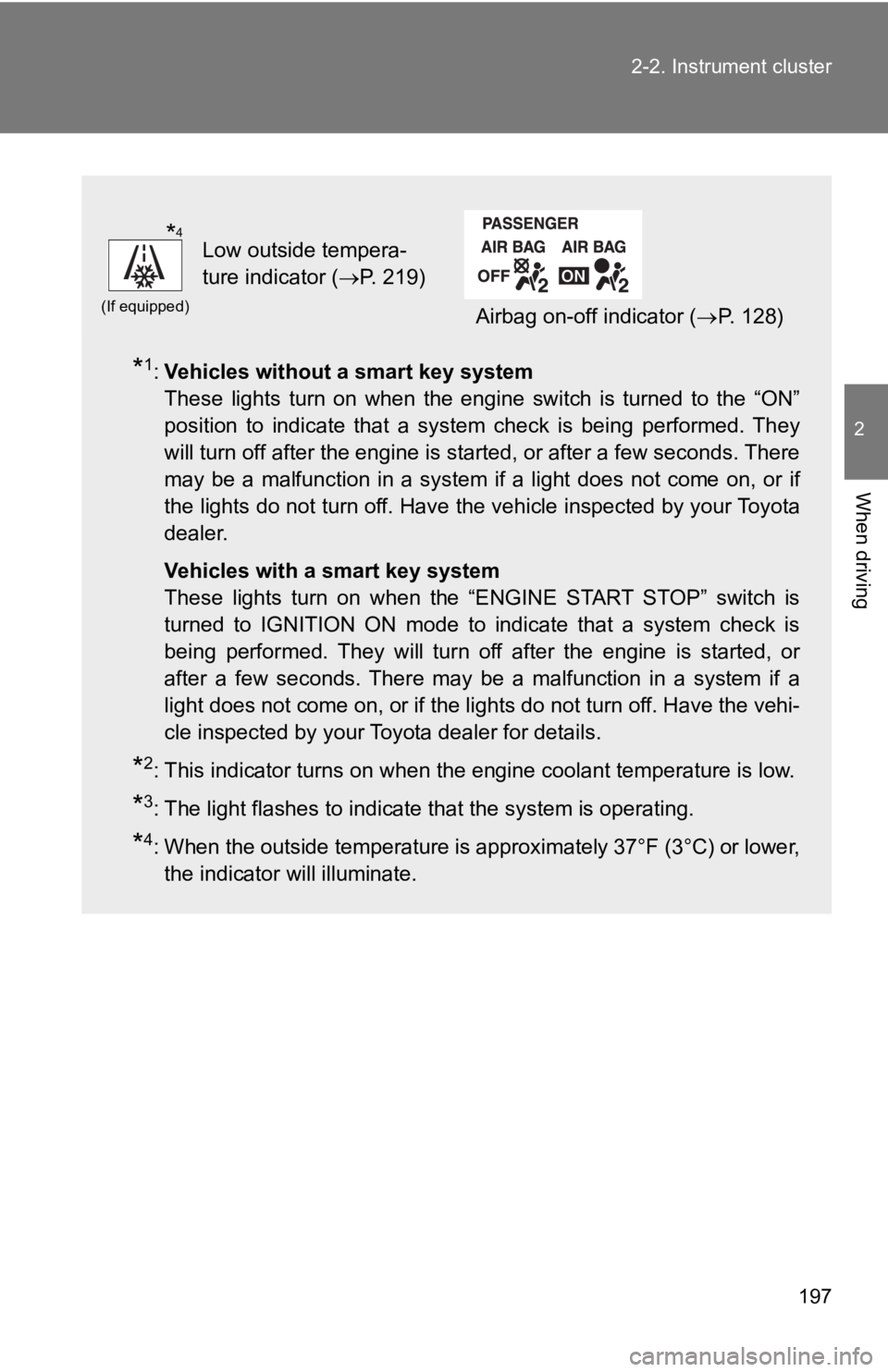

Low outside tempera-
ture indicator (  P. 219)
Airbag on-off indicator (  P. 128)
* 4

1982-2. Instrument cluster

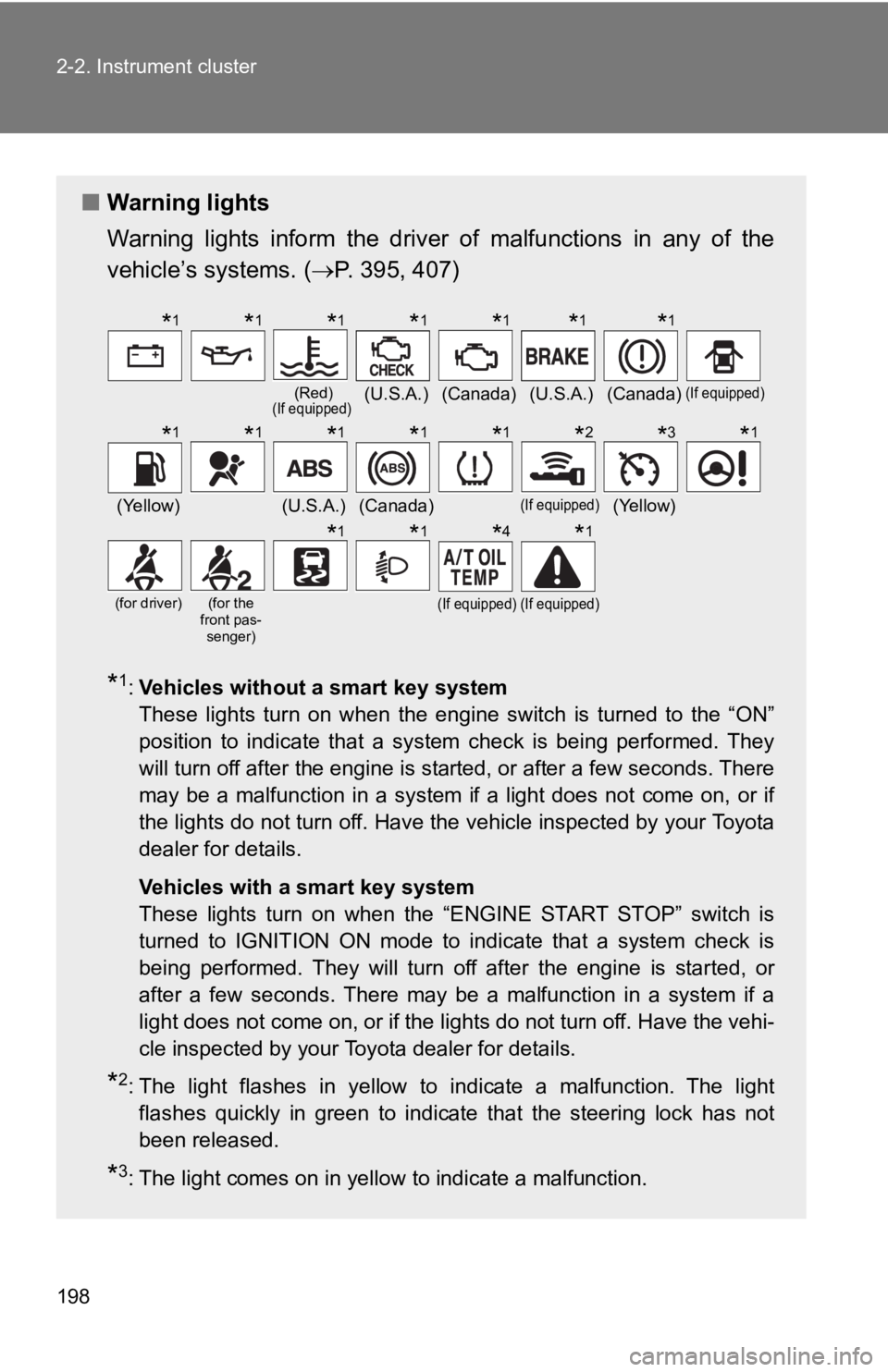

■ Warning lights
Warning lights inform the driver of malfunctions in any of the
vehicle’s systems. (  P. 395, 407)
* 1
: Vehicles without a smart key system
These lights turn on when the engine switch is turned to the “O N”
position to indicate that a system check is being performed. Th ey
will turn off after the engine is started, or after a few secon ds. There
may be a malfunction in a system if a light does not come on, o r if
the lights do not turn off. Have the vehicle inspected by your To y o t a
dealer for details.
Vehicles with a smart key system
These lights turn on when the “ENGINE START STOP” switch is
turned to IGNITION ON mode to indicate that a system check is
being performed. They will turn off after the engine is started , or
after a few seconds. There may be a malfunction in a system if a
light does not come on, or if the lights do not turn off. Have the vehi-
cle inspected by your Toyota dealer for details.
* 2
: The light flashes in yellow to indicate a malfunction. The light
flashes quickly in green to indicate that the steering lock has not
been released.
* 3
: The light comes on in yellow to indicate a malfunction. (Red)
(If equipped)
(U.S.A.) (Canada) (U.S.A.) (Canada) (If equipped)
(Yellow) (U.S.A.) (Canada) (If equipped)
(Yellow)(for driver) (for the
front pas-
senger)
(If equipped) (If equipped)
* 1
* 1
* 1
* 1
* 1
* 1
* 1
* 1
* 1
* 1
* 1
* 1
* 2
* 3
* 1
* 1
* 1
* 4
* 1

1992-2. Instrument cluster
2
When driving
WARNING■ If a safety system warning light does not come on
Should a safety system light such as the ABS and SRS warning li ght not
come on when you start the engine, this could mean that these s ystems are
not available to help protect you in an accident, which could r esult in death
or serious injury. Have the vehicle inspected by your Toyota de aler immedi-
ately if this occurs.* 4
: Vehicles with a monochrome multi-information display only: Thi s
light turns on when the engine switch is turned to the “ON” pos ition
to indicate that a system check is being performed. It will tur n off
after the engine is started, or after a few seconds. There may be a
malfunction in a system if the light does not come on or turn o ff.
Have the vehicle inspected by your Toyota dealer for details.

2002-2. Instrument cluster

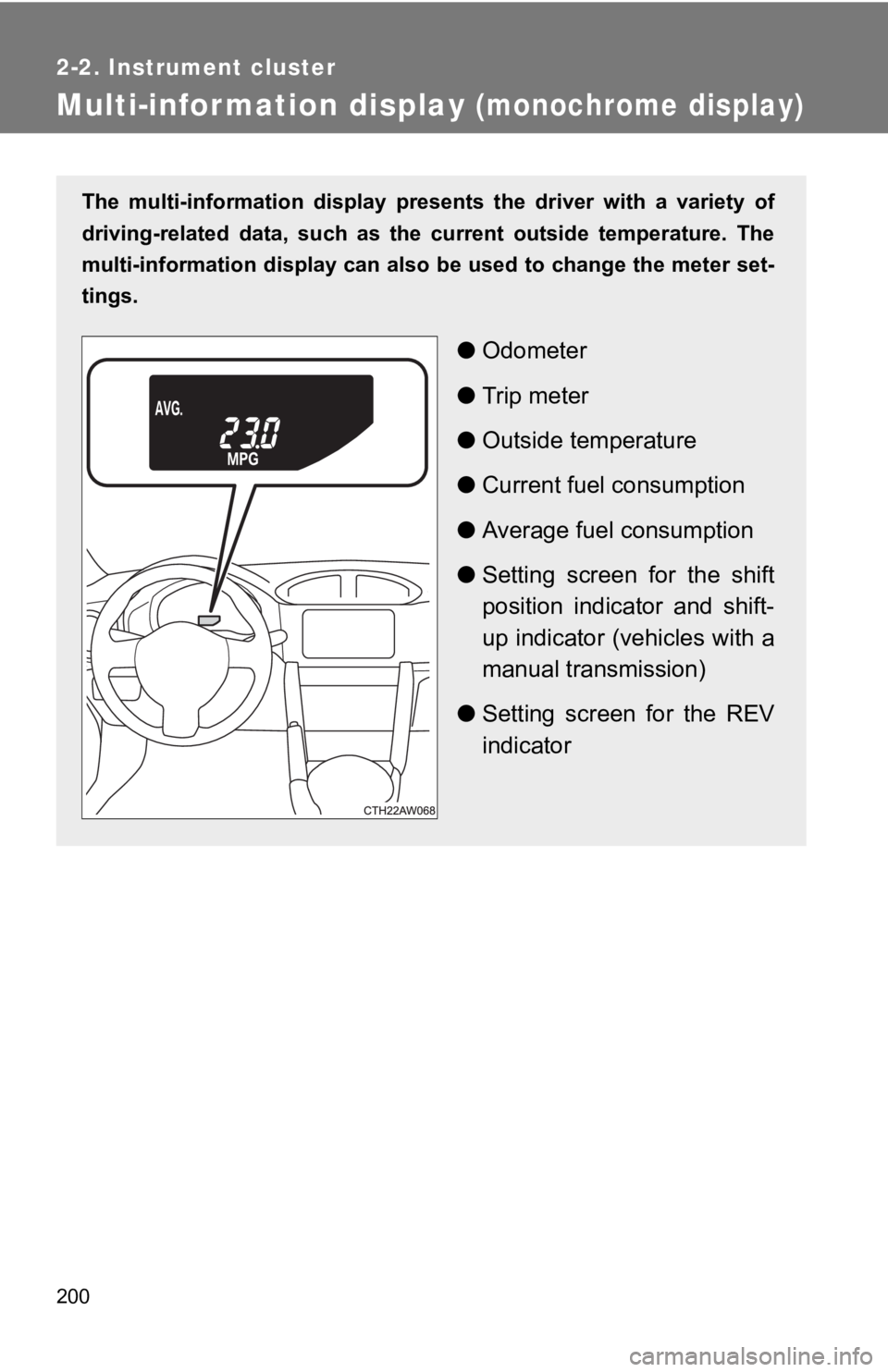

Multi-information display (monochrome display)The multi-information display pr esents the driver with a variet y of
driving-related data, such as th e current outside temperature. The
multi-information display can als o be used to change the meter set-
tings.
● Odometer
● Trip meter
● Outside temperature
● Current fuel consumption
● Average fuel consumption
● Setting screen for the shift
position indicator and shift-
up indicator (vehicles with a
manual transmission)
● Setting screen for the REV
indicator
