TOYOTA 86 2019 Owners Manual

2112-2. Instrument cluster
2
When driving ■ Drive information (page 2)
Average vehicle speed Displays the average vehicle
speed since display was reset.
Driving time Displays the cumulative time the
vehicle has been driven since dis-
play was reset.
Driving distance Displays the cumulative distance
the vehicle has been driven since
display was reset.
● Pressing and holding will reset the average vehicle speed/
driving time/driving distance.
■ Drive information (page 3)
Engine coolant temperature
gauge Displays the engine coolant tem-
perature.
If the engine coolant temperature
gauge needle/indicator enters the
red zone, a buzzer will sound and
a warning message will be dis-
played.
Engine oil temperature gauge
Displays the engine oil tempera-
ture.
Vol tm et er
Displays the charging voltage.
As voltage displayed may
be different from the actual
battery voltage, use the volt-
meter as a guideline.

2122-2. Instrument cluster
● Pressing and holding will turn the range value display on the
engine coolant temperatu re gauge display on/off.
Exclusive content for 86 ( )
■ G-force
Displays lateral G-forces on the vehicle
Also displays, around the periphery of the G-force display, the left and
right steering amount, accelerator pedal input, and brake fluid pres-
sure
The following 2 screens are available for displaying G-force • Normal display screen: Suitable for confirming current lateral G-forces
on the vehicle
• Peak-hold display screen: Suitable for confirming the size and direction
of the maximum lateral G-forces on the vehicle

2132-2. Instrument cluster
2
When driving ● Reading the display
Record of the maximum G-
forces • Displayed on the peak-hold
display screen only
• To reset the record of maxi-
mum G-forces, press and hold
while the peak-hold display
screen is displayed.
Current G-force value (ana-
lyzed value of front/rear and
left/right G-forces) G-force values that can be dis-
played
Front/Rear: Up to 1.3 G
Left/Right: Up to 2.5 G
G-force ball trace The maximum number of ball
trace segments for the normal
display screen is 20 and 10 for
the peak-hold display screen.
G-force ball (acceleration G-
forces on the vehicle)

2142-2. Instrument cluster
Scale of the G-force display The scale of the record of the
maximum G-forces and G-force
ball trace can be changed
between 1.0 G and 0.5 G by
pressing and holding while
the normal display screen is dis-
played.
Accelerator pedal input
Brake fluid pressure
Steering amount If the steering wheel is turned
completely to the left or right, the
bottom side of the gauge on the
corresponding side will be illumi-
nated in red.
This display is intended for use as a guideline. Depending on f actors such as
the road surface condition, temperature and vehicle speed, the display may
not show the actual condition of the vehicle.
■ Power and torque curve
Power output
To r q u e
Current engine speed The vertical bar will slide laterally
according to the current engine
speed.
This chart is intended for reference only and does not show the actual
engine torque or output.

2152-2. Instrument cluster
2
When driving ■ Stopwatch
Measures and displays current l ap time and previous lap times
Fastest lap time (top screen) When the timer is reset, “  ’  ”  ” will be displayed.
Fastest lap time (measurement screen)
Current lap time
To t a l l a p t i m e
Past lap times Records of the 50 most recent lap times will be displayed.
Meter control swit ch operation guide
● Changing between the stopwatch screens
To change to the measurement screen: Press .
To change to the top screen: Press . Top screen Measurement screen

2162-2. Instrument cluster
● Operating the me asurement screen
: Start/stop measure-
ment
: Mark off one lap
: Reset measured lap
times
: Scroll through the
lap times
● Resetting measured lap times
After stopping the measurement, press .
● To display other content wh ile the stopwatch is operating
If the measurement screen is d isplayed, press to display the
top screen. Then operate the meter control switches to display
other content. While other items are displayed, the measurement
will continue but the stopwatch c annot be operated.

2172-2. Instrument cluster
2
When driving Settings display ( )
Use the meter control switches on the steering wheel to change set-
tings.
Press or to select .
Operate the switches to s elect a desired item.
Press / or / to change the setting and then
press to confirm the change. Item Settings Details
Welcome screen On Select to enable/disable the welcome
screen when the “ENGINE START
STOP” switch is turned to IGNITION
ON mode.Off
REV. RPM --00 rpm
(OFF) ~
7400 rpm Select to enable/disable the REV indi-
cator and set the engine speed at
which the REV indicator will be illumi-
nated.
To disable, select “--” for the engine
speed (--00 rpm)
Selectable engine speed range: 2000
to 7400 rpm
Buzzer On Select to enable/disable the sounding
of a buzzer when the REV indicator is
illuminated. This setting can be
changed only when the REV indicator
is enabled.Off
GSI (vehicles with a
manual transmis-
sion) On Select to enable/disable the shift posi-
tion indicator and shift-up indicator.
(  P. 186)Off
Language English
Select to change the language dis-
played.French
SpanishSTEP 1
STEP 2
STEP 3

2182-2. Instrument cluster

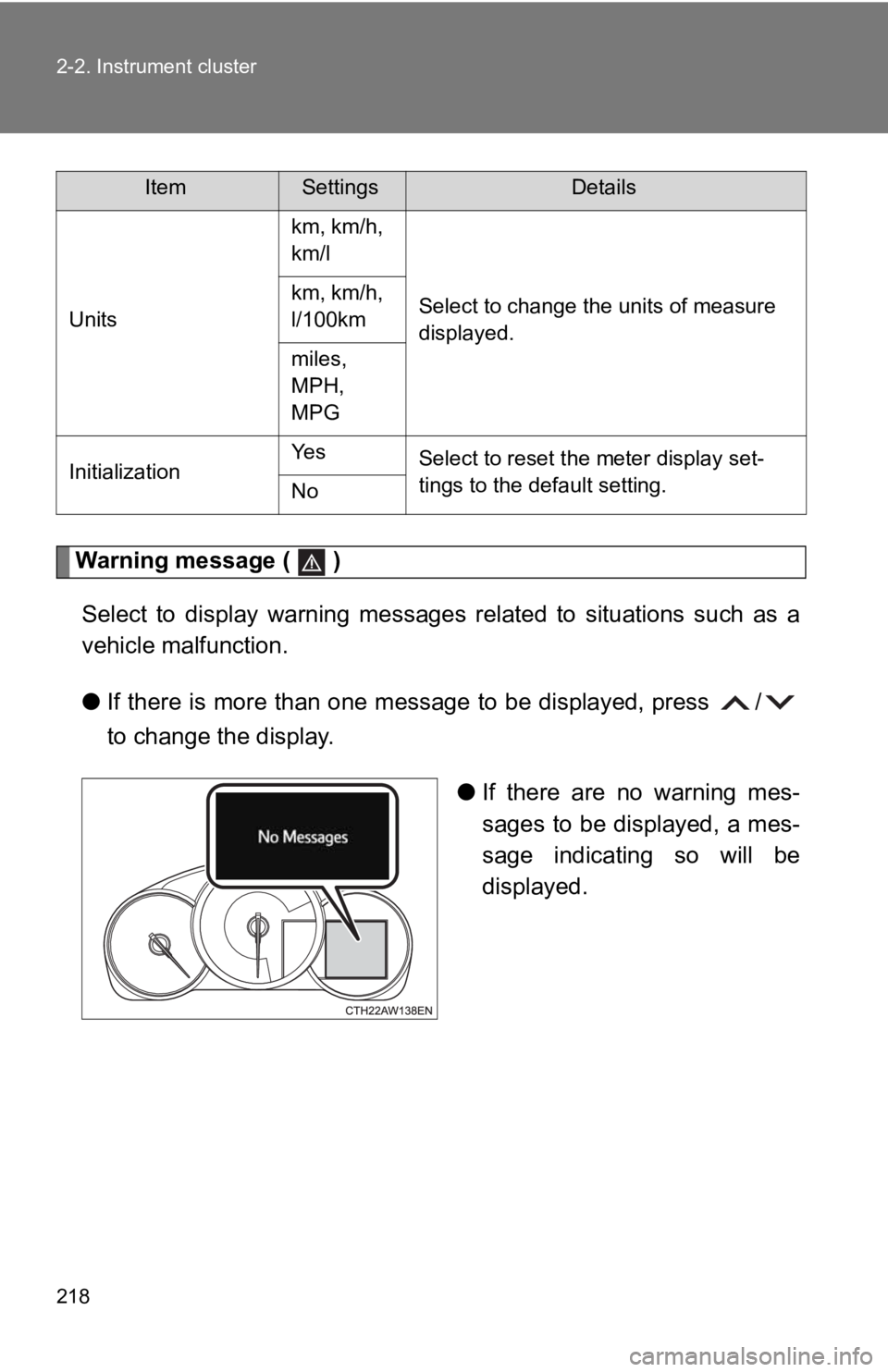

Warning message ( )
Select to display warning messages related to situations such a s a
vehicle malfunction.
● If there is more than one message to be displayed, press /
to change the display.
● If there are no warning mes-
sages to be displayed, a mes-
sage indicating so will be
displayed.Units km, km/h,
km/l
Select to change the units of measure
displayed.km, km/h,
l/100km
miles,
MPH,
MPG
Initialization Ye s
Select to reset the meter display set-
tings to the default setting.
NoItem Settings Details

2192-2. Instrument cluster
2
When driving Odometer/trip meter display area
■ Odometer
Displays the total distance the vehicle has been driven.
■ Trip meter A/trip meter B
Displays the distance the vehicle has been driven since the met er
was last reset. Trip meters A and B can be used to record and d isplay
different distances independently. To reset, display the desired trip meter and press and hold the “ODO/
TRIP” switch.
■ Outside temperature
Displays the outside temperature within the range of -40°F (-40 °C) to
122°F (50°C). Low outside temperature indicator comes on when t he
ambient temperature is 37°F (3°C) or lower.

2202-2. Instrument cluster
■ G-force display
● Depending on the vehicle usage conditions, the brake fluid pres sure dis-
play may not reach its maximum reading even though the brake pe dal is
fully depressed.
● If a battery terminal is disconnected and reconnected, the stee ring
amount display may be disabled te mporarily. After driving the v ehicle for
a while, the display will be enabled.
■ Suspension of the settings display
● The settings cannot be changed while driving. When changing set tings,
park the vehicle in a safe place.
● If a warning message is displayed, operation of the settings di splay will
be suspended.
■ Using the stopwatch
If the engine is stopped while the stopwatch is operating, the stopwatch will
stop and the time up to that point will be recorded.
■ Outside temperature display
● In the following situations, the correct outside temperature ma y not be
displayed.
• When the vehicle is very hot, such as when under the sun.
• When the vehicle is idling or being driven at low speeds such as in a
traffic jam or when the engine is stopped and then restarted immedi-
ately afterward.
• When the actual outside temperature is outside of the indicato r range.
● If “   ” is displayed for approximately 1 minute or more or if the out side
temperature is not displayed, the system may be malfunctioning. Have
the vehicle inspected by your Toyota dealer.
■ Liquid crystal display
Small spots or light spots may appear on the display. This phenomenon is
characteristic of liquid crystal displays, and there is no prob lem continuing to
use the display.
