TOYOTA 86 2019 Owners Manual

1812-1. Driving procedures
2
When driving Manual mode driving
To enter manual mode, shift the s hift lever to the M position.
While the upshift/downshift indicator light is illuminated, gea rs can be
selected by operating the shift l ever or paddle shift switches, allowing
you to drive in the gea r of your choosing. Even if upshifting operations are performed, if vehicle speed i s too low for
the requested gear, the gear will not change.
Upshift indicator
Downshift indicator
Upshifting (+)
Downshifting (-)
Each time the shift lever or pad-
dle shift switches are operated,
the gear changes up or down
one gear and the selected gear,
“1” through “6 ”, will be set.The selected gear, from “1” to “6”,
and “M” will be displayed on the
shift position and shift range indi-
cator.
* 1
: Vehicles with a monochrome multi-information display
* 2
: Vehicles with a color multi-information display
When in manual mode, the gear will not change unless the shift lever
or paddle shift switches are operated.
However, even when in manual m ode, the gears will be automatica lly
changed in the following situations:
● When vehicle speed drops (downshift only).* 1
* 2

1822-1. Driving procedures
● When engine oil temperature is high and engine speed rises clos e
to the red zone.■ When moving the shift lever out of P
If the shift lever is pushed sideways before the brake pedal is depressed,
shift lever operation may not be possible. Depress the brake pe dal before
shifting the shift lever out of P.
■ Downshifting restrictions warning buzzer
If downshifting operations are performed at a vehicle speed by which down-
shifting is not possible (when downshifting will cause the engi ne speed to
enter the red zone), a buzzer will sound to warn the driver that downshifting
cannot be performed.
■ When driving with cruise control activated
Downshifting can be performed even when using cruise control. A fter down-
shifting, the set speed continues. (  P. 181, 183)
■ Sport mode
● In sport mode, lower gears are used and gears change at a highe r
engine speed.
● If sport mode is changed to while the shift lever is in the M p osition, the
“SPORT” indicator will come on but sport mode controls will not be car-
ried out. Shift the shift lever to the D position.
● Sport mode cannot be changed to when driving with cruise contro l acti-
vated.
■ Snow mode
To prevent slipping, 1 st
gear cannot be selected when in snow mode.
■ Sport mode and snow mode automatic deactivation
In the following situations, the driving mode is automatically deactivated:
● When the engine is turned off after driving in sport mode or sn ow mode.
● When cruise control is activated while driving in sport mode.
■ If the shift lever cannot be shifted from P
 P. 438

1832-1. Driving procedures
2
When driving ■ Automatic gear selection when the vehicle is stopped
When the vehicle is idling at high rpm in order to warm up, and the vehicle is
on a slippery road, the transmission may automatically shift to 2 nd
gear for
stopping and starting off.
■ Temporary manual mode driving
* 1
: Vehicles with a monochrome multi-information display
* 2
: Vehicles with a color multi-information display
Temporary manual mode driving will be deactivated and normal D position
driving will be returned to in the following situations:
● When driving for longer than the set time (the set time differs according
to driving conditions).
● When the vehicle comes to a stop.
● When the accelerator pedal is continually depressed for longer than the
set time.
● When the accelerator pedal is fully, or near-fully, depressed. Temporary manual mode driving can be
changed to by operating the paddle shift
switches while the shift lever is in the D
position.
When this occurs, the selected gear and
“D” are displayed on the shift position and
shift range indicator.
(When engine speed rises close to the
red zone, upshifting will be automatically
performed.)
* 1
* 2

1842-1. Driving procedures
■ AI-SHIFT
The AI-SHIFT automatically shifts the gear to the suitable posi tion according
to the driver performance and driving conditions.
The AI-SHIFT automatically operates when the shift lever is in the D posi-
tion. (Operating the paddle shift switches or shifting the shif t lever to the M
position cancels the function.)
WARNING■ When driving on slippery road surfaces
Be careful of downshifting and sudden acceleration, as this cou ld result in
the vehicle skidding to the side or spinning.
■ To prevent incorrect operation
Do not attach items such as accessories to the paddle shift swi tches.
Doing so may unintentionally move the paddle shift switches.

1852-1. Driving procedures
2
When driving

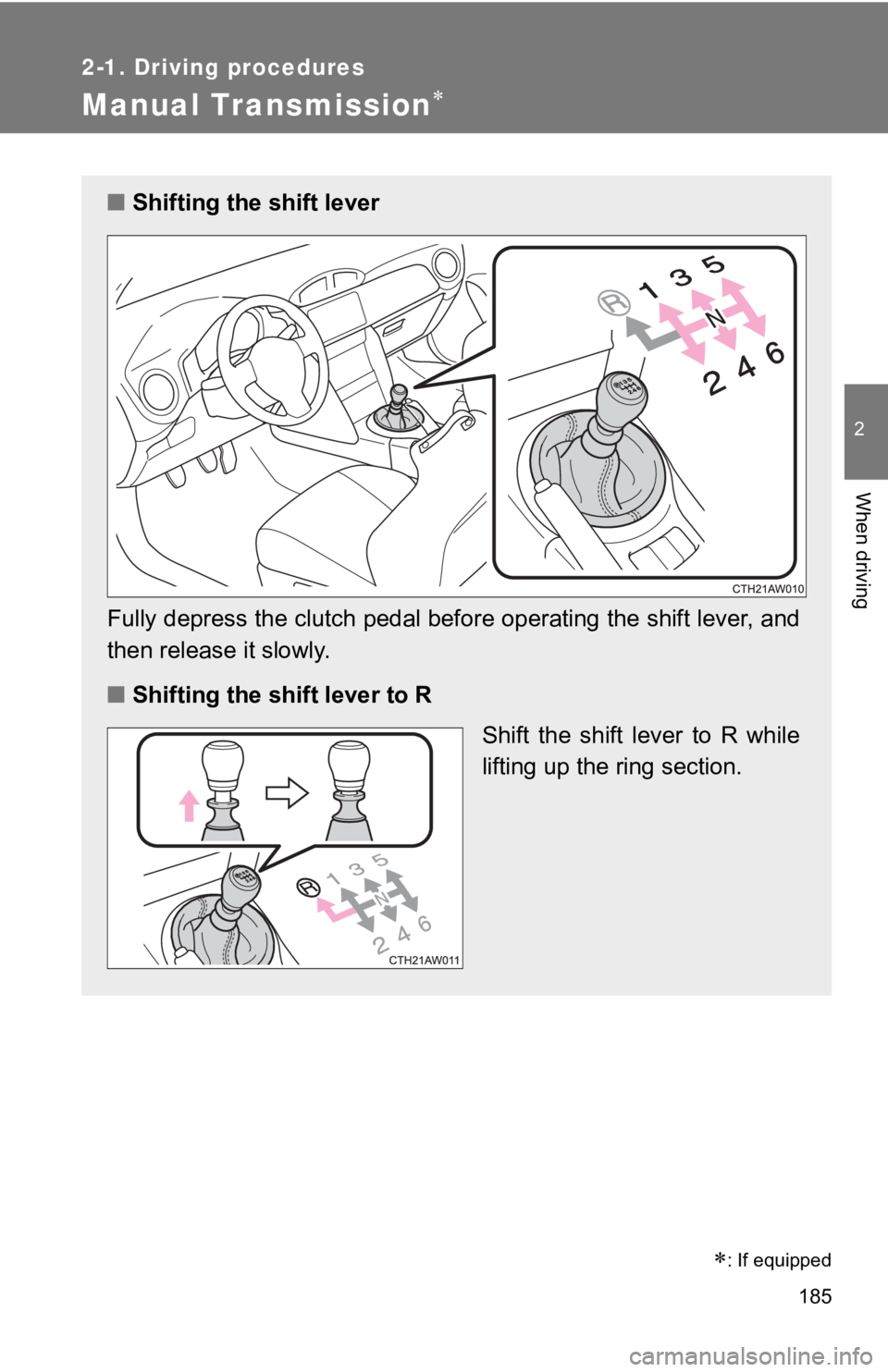

Manual Transmission 
 : If equipped■ Shifting the shift lever
Fully depress the clutch pedal before operating the shift lever , and
then release it slowly.
■ Shifting the shift lever to R
Shift the shift lever to R while
lifting up the ring section.

1862-1. Driving procedures
Shift position indicator
The selected shift position will be
displayed on the multi-informa-
tion display. The selected shift position will not
appear in the following situations:
• When the shift lever is in N.
• When the vehicle speed is 6
mph (10 km/h) or less (except
when the shift lever is in R)
• When the clutch pedal is
depressed.
The default setting of the indicator
is off. The indicator can be turned
on/off. ( P. 204, 217)
* 1
: Vehicles with a monochrome multi-information display
* 2
: Vehicles with a color multi-information display
Shift-up indicator
To help enable fuel-efficient driv-
ing, the shift-up indicator flashes
3 times to indicate upshift timing.
The default setting of the indicator
is off. The indicator can be turned
on/off. ( P. 204, 217)
* 1
: Vehicles with a monochrome multi-information display
* 2
: Vehicles with a color multi-information display * 1
* 2
* 1
* 2

1872-1. Driving procedures
2
When driving NOTICE■ To prevent damage t o the transmission
● Do not lift up the ring section except when shifting the lever to R.
● Shift the shift lever to R only when the vehicle is stationary and the clutch
pedal is fully depressed. ● Do not shift the shift lever without
depressing the clutch pedal.

1882-1. Driving procedures

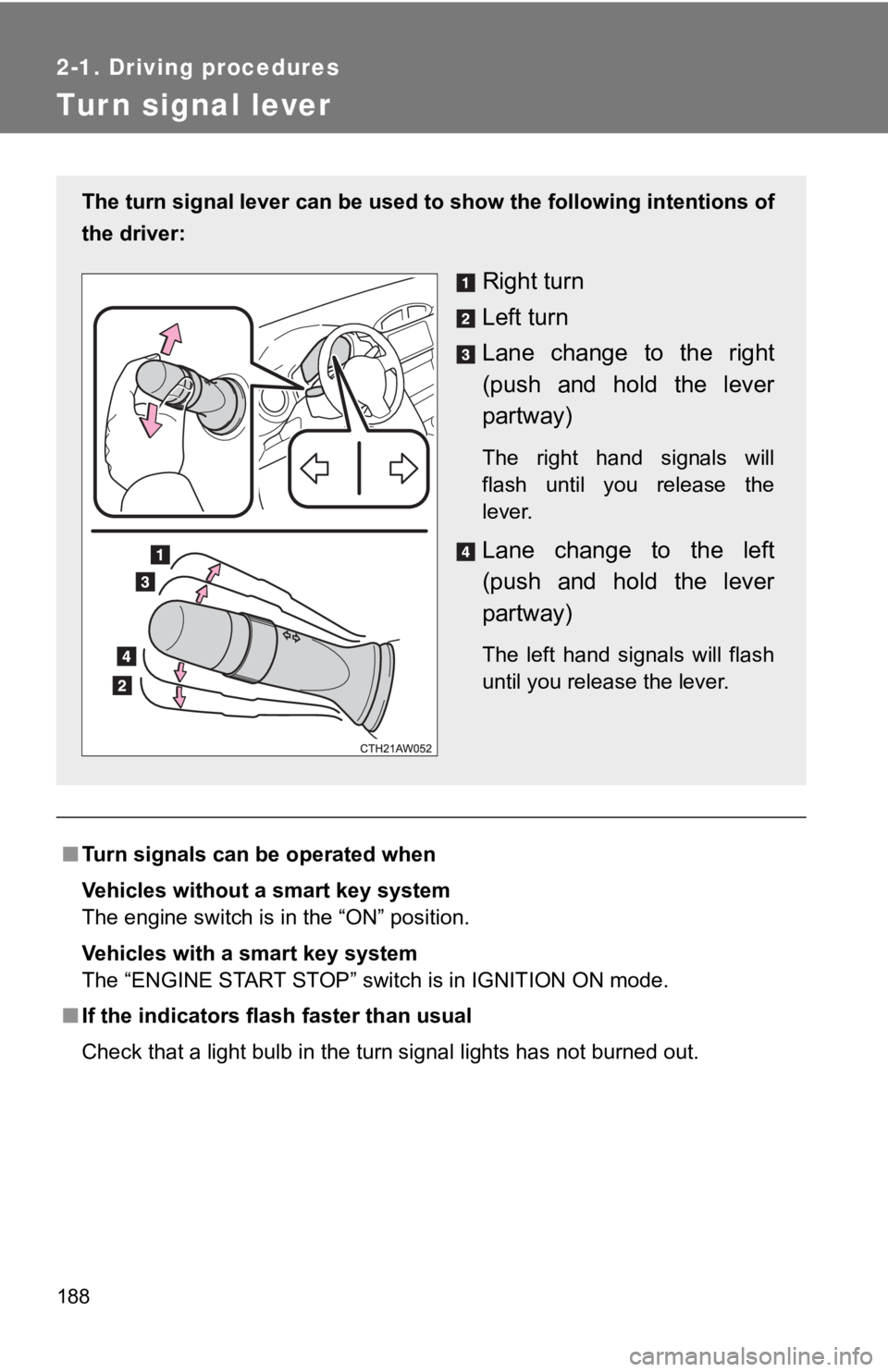

Tur n signal lever
■ Turn signals can be operated when
Vehicles without a smart key system
The engine switch is in the “ON” position.
Vehicles with a smart key system
The “ENGINE START STOP” switch is in IGNITION ON mode.
■ If the indicators flash faster than usual
Check that a light bulb in the turn signal lights has not burne d out.The turn signal lever can be used to show the following intenti ons of
the driver:
Right turn
Left turn
Lane change to the right
(push and hold the lever
partway) The right hand signals will
flash until you release the
lever.
Lane change to the left
(push and hold the lever
partway) The left hand signals will flash
until you release the lever.

1892-1. Driving procedures
2
When driving

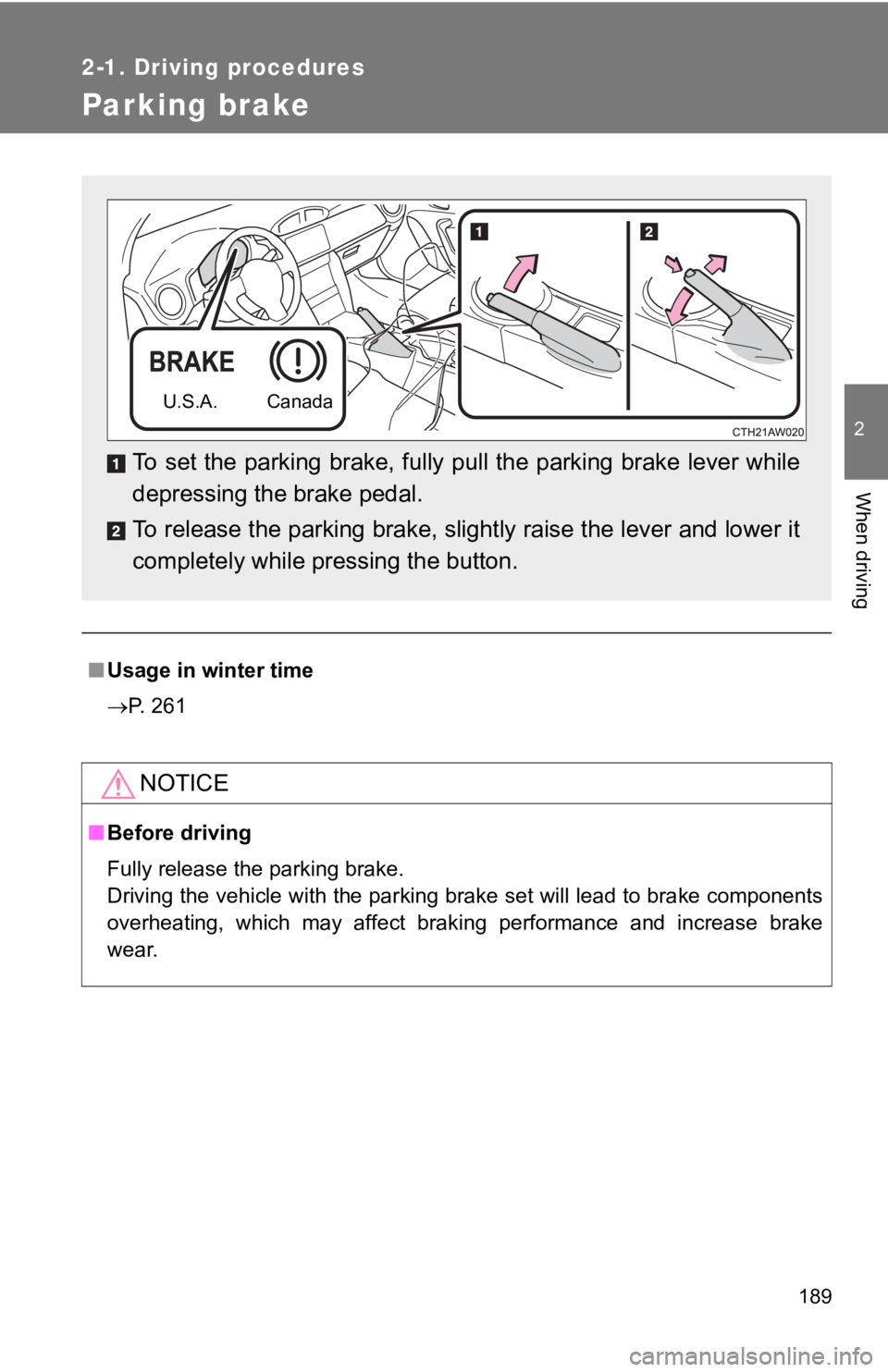

Parking brake
■ Usage in winter time
 P. 261
NOTICE■ Before driving
Fully release the parking brake.
Driving the vehicle with the parking brake set will lead to bra ke components
overheating, which may affect braking performance and increase brake
wear. To set the parking brake, fully pull the parking brake lever wh ile
depressing the brake pedal.
To release the parking brake, slightly raise the lever and lowe r it
completely while pressing the button. U.S.A. Canada

1902-1. Driving procedures

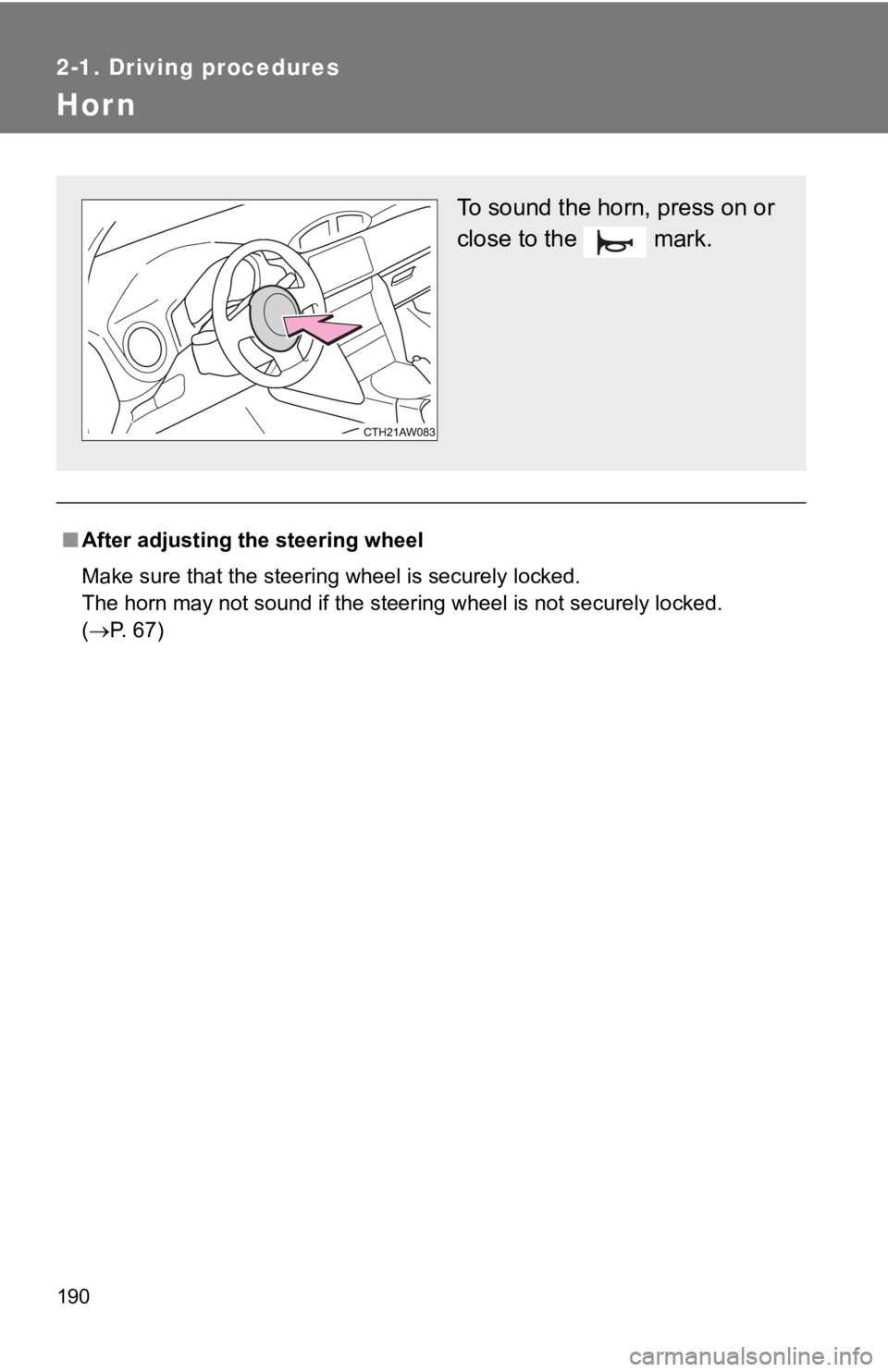

Hor n
■ After adjusting the steering wheel
Make sure that the steering wheel is securely locked.
The horn may not sound if the steering wheel is not securely lo cked.
(  P. 67) To sound the horn, press on or
close to the mark.
