Vehicle specifications
This number is also on the Certi-
fication Label.
The vehicle model type, vehicle
identification number, etc. are on
the manufacturer’s label.
■Engine number
The engine number is stamped
on the engine block as shown.
*: If unleaded gasoline with an octane rating of 93 (98 RON) is not available,
Engine
ModelFA 2 4
Ty p eHorizontally opposed, liquid cooled 4
cylinder, 4-stroke gasoline
Bore and stroke3.70  3.39 in. (94.0  86.0 mm)
Displacement146 cu. in. (2387 cm3)
Drive belt tensionAutomatic adjustment
Fuel
Fuel typeUnleaded gasoline only
Octane Rating93 (Research octane number 98) or
higher
*
Fuel tank capacity (Reference)13.2 gal. (50.0 L, 11.0 Imp. gal.)

3828-1. Specifications
unleaded gasoline with an octane rating of 91 (95 RON) may be used
with no detri ment to engine durab ility or driveability.
■Oil capacity (Drain and refill [Reference*])
*: The engine oil capacity is a reference quantity to be used whe n changing
the engine oil. Warm up and turn off the engine, wait more than 5 min-
utes, and check the oil level on the dipstick.
■Engine oil selection
“Toyota Genuine Motor Oil” is
used in your Toyota vehicle. Use
Toyota approved “Toyota Genu-
ine Motor Oil” or equivalent to
satisfy the following grade and
viscosity.
Oil grade: ILSAC GF-6A multi-
grade engine oil
Recommended viscosity: SAE
0W-20
SAE 0W-20 is the best choice
for good fuel economy and good
starting in cold weather.
If SAE 0W-20 is not available,
SAE 5W-20 oil may be used.
However, it must be replaced
with SAE 0W-20 at the next oil
change. Outside temperature
Oil viscosity (0W-20 is explained
here as an example):
• The 0W in 0W-20 indicates the characteristic of the oil
which allows cold startability.
Oils with a lower value before
the W allow for easier starting
of the engine in cold weather.
• The 20 in 0W-20 indicates the viscosity characteristic of the
oil when the oil is at high tem-
perature. An oil with a higher
viscosity (one with a higher
value) may be better suited if
the vehicle is operated at high
speeds, or under extreme
load conditions.

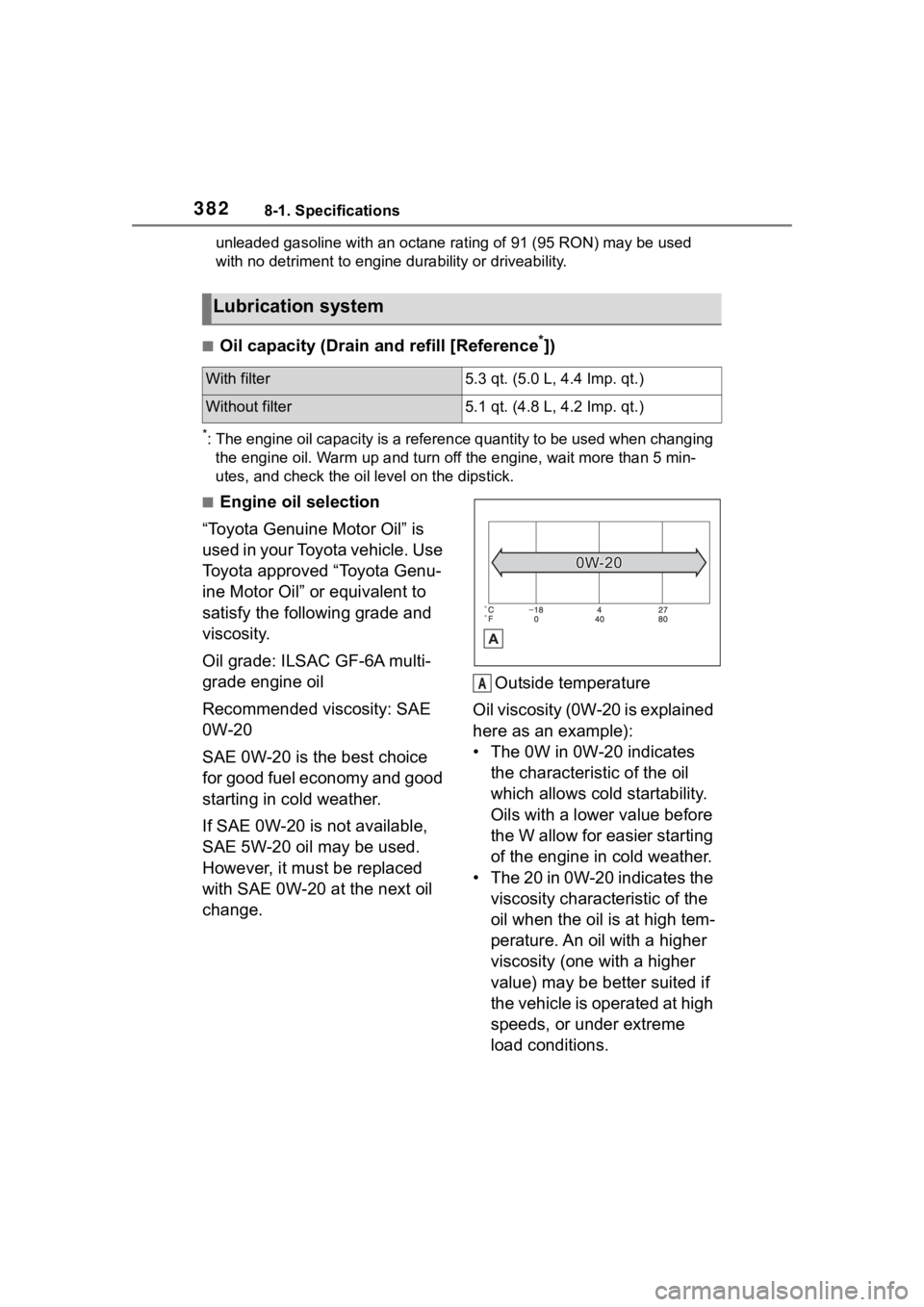

Lubrication system
With filter5.3 qt. (5.0 L , 4.4 Imp. qt.)
Without filter5.1 qt. (4.8 L, 4.2 Imp. qt.)
A

3838-1. Specifications
8
Vehicle specifications
How to read oil container label:
The International Lubricant
Specification Advisory Commit-
tee (ILSAC) Certification Mark is
added to some oil containers to
help you select the oil you
should use.

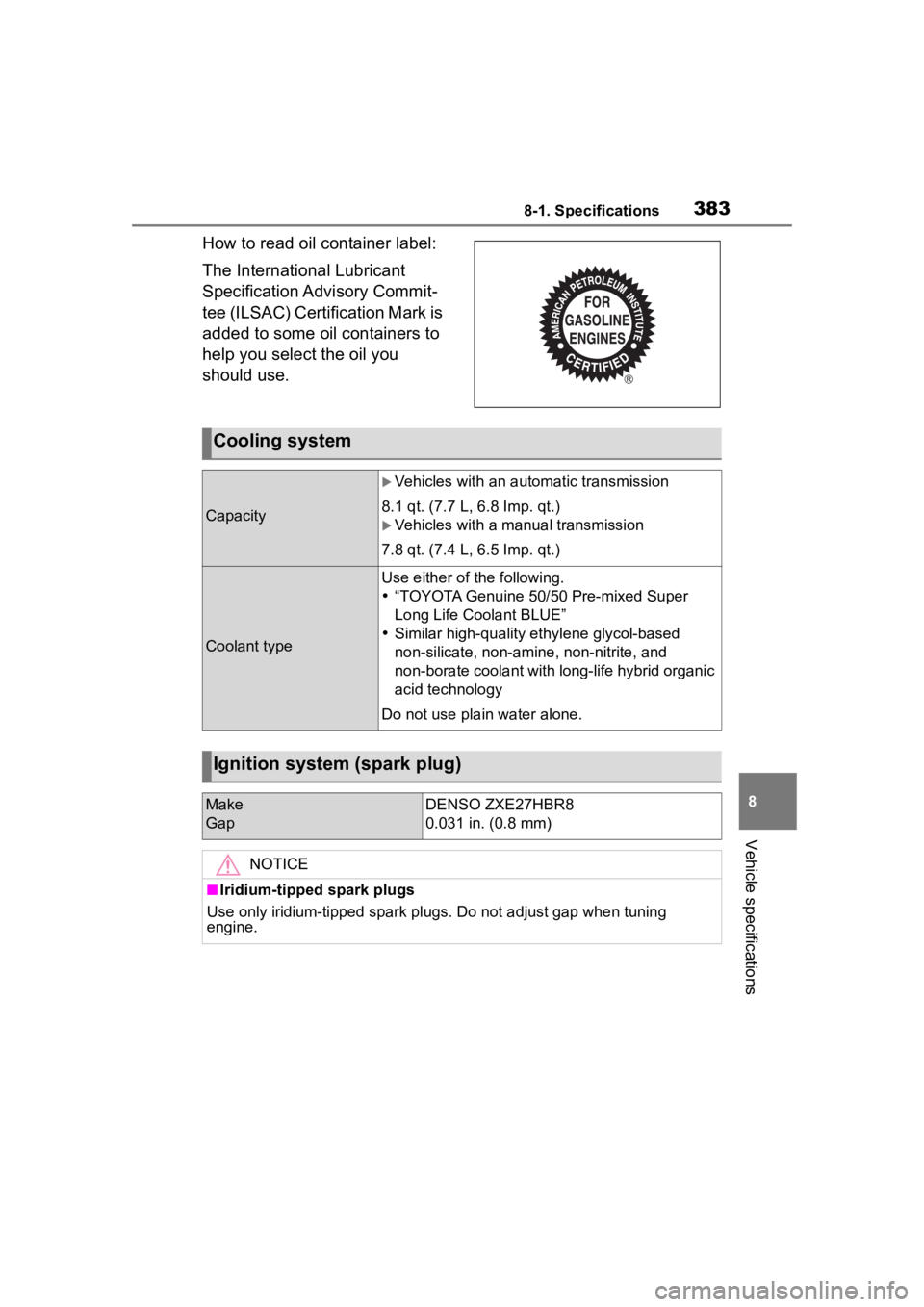

Cooling system
Capacity
Vehicles with an automatic transmission
8.1 qt. (7.7 L, 6.8 Imp. qt.)
Vehicles with a manual transmission
7.8 qt. (7.4 L, 6.5 Imp. qt.)
Coolant type
Use either o f the following.
 “TOYOTA Genuine 50/50 Pre-mixed Super
Long Life Coolant BLUE”
 Similar high-quality et hylene glycol-based
non-silicate, non -amine, non-nitrite, and
non-borate coolant with long-life hybrid organic
acid technology
Do not use pla in water alone.
Ignition system (spark plug)
Make
GapDENSO ZXE27HBR8
0.031 in. (0.8 mm)
NOTICE
■Iridium-tipped spark plugs
Use only iridium-tipped spark pl ugs. Do not adjust gap when tun ing
engine.

3848-1. Specifications
*: Your Toyota vehicle is filled with “Toyota Genuine Differential Gear Oil LX”
at the factory. Use Toyota approved “Toyota Genuine Differentia l Gear Oil
LX” or an equivalent of matching quality to satisfy the above s pecification.
Please contact your Toyota dealer for further details.
*: The fluid capacity is p rovided as a reference.
If replacement is necessary, contact your Toyota dealer.
Electrical system
Battery
Specific gravity reading at 68°F
(20°C):1.2501.290 Fully charged
1.1601.200 Half charged
1.0601.100 Discharged
Charging rates
Quick charge
Slow charge
15 A max.
5 A max.
Differential
Oil capacity (Reference)1.22 qt. (1.15 L, 1.01 Imp. qt.)
Oil type and viscosity* Toyota Genuine Differential Gear Oil LX
 Other LSD gear oil that meets API GL-5
and SAE 75W-85
NOTICE
■Differential gear oil type
Using a differential gear oil ot her than “Toyota Genuine Differ ential Gear
Oil LX” may cause occurrences of noises, vibrations and poor fuel con-
sumption. Never use different brands together.
Automatic transmission
Fluid capacity*7.9 qt. (7.5 L, 6.6 Imp. qt.)
Fluid typeToyota Genuine ATF WS

3858-1. Specifications
8
Vehicle specifications
*: The recommended oil grade is API GL-4. However, API GL-3 can also be
used.
NOTICE
■Transmission fluid type
Using automatic transmission fluid other than “TOYOTA Genuine A TF
WS” may cause deterioration in shift quality, locking up of your transmis-
sion accompanied by vibration, a nd ultimately damage the automatic
transmission of your vehicle.
Manual transmission
Fluid capacity*2.3 qt. (2.2 L, 1.9 Imp. qt.)
Fluid type
Use either of the following:
 “MT GEAR OIL LV 75W”
 Other gear oil that meets API GL-4
* and
SAE 75W specifications
NOTICE
■Transmission fluid type
If oil other than “MT GEAR OIL LV 75W” is used, the following m ay be
experienced:
●The overall performance and function of the transmission may be
adversely affected.
●Rattling noises may occur during idling and fuel consumption may
increase.
Never use different brands together.
Clutch
Pedal free play0.17 0.65 in. (4.3 16.4 mm)
Fluid typeSAE J1703 or FMVSS No.116 DOT 3
Brakes
Pedal clearance*12.91 in. (74 mm) Min.
Pedal free play0.0200.059 in. (0.51.5 mm)

3868-1. Specifications
*1: Minimum pedal clearance when depressed with a force of 67 lbf (300 N,
30 kgf) while the engine is running.

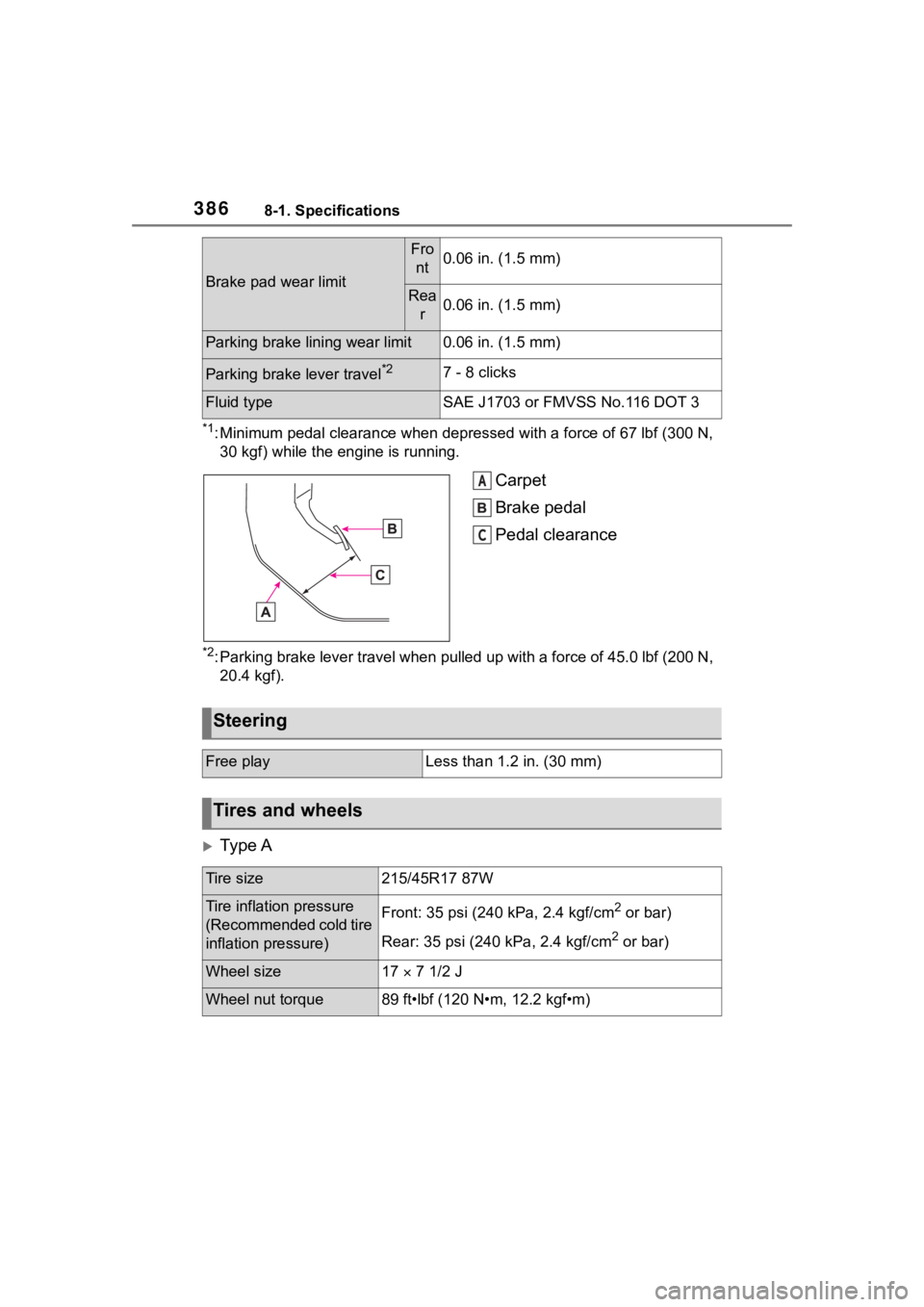

Carpet
Brake pedal
Pedal clearance
*2: Parking brake lever travel when pulled up with a force of 45.0 lbf (200 N,
20.4 kgf).
Ty p e A
Brake pad wear limit
Fro nt0.06 in. (1.5 mm)
Rea r0.06 in. (1.5 mm)
Parking brake lining wear limit0.06 in. (1.5 mm)
Parking brake lever travel*27 - 8 clicks
Fluid typeSAE J1703 or FMVSS No.116 DOT 3
A
C
Steering
Free playLess than 1.2 in. (30 mm)
Tires and wheels
Tire size215/45R17 87W
Tire inflation pressure
(Recommended cold tire
inflation pressure)Front: 35 psi (240 kPa, 2.4 kgf/cm2 or bar)
Rear: 35 psi (240 kPa, 2.4 kgf/cm
2 or bar)
Wheel size17  7 1/2 J
Wheel nut torque89 ft•lbf (120 N•m, 12.2 kgf•m)

3878-1. Specifications
8
Vehicle specifications
Ty p e B
A: Wedge base bulbs (clear)
B: Double end bulbs
Tire size215/40R18 85Y
Tire inflation pressure
(Recommended cold tire
inflation pressure)Driving under nor mal conditions
Front: 35 psi (240 kPa, 2.4 kgf/cm
2 or bar)
Rear: 35 psi (240 kPa, 2.4 kgf/cm
2 or bar)
Wheel size18  7 1/2 J
Wheel nut torque89 ft•lbf (120 N•m, 12.2 kgf•m)

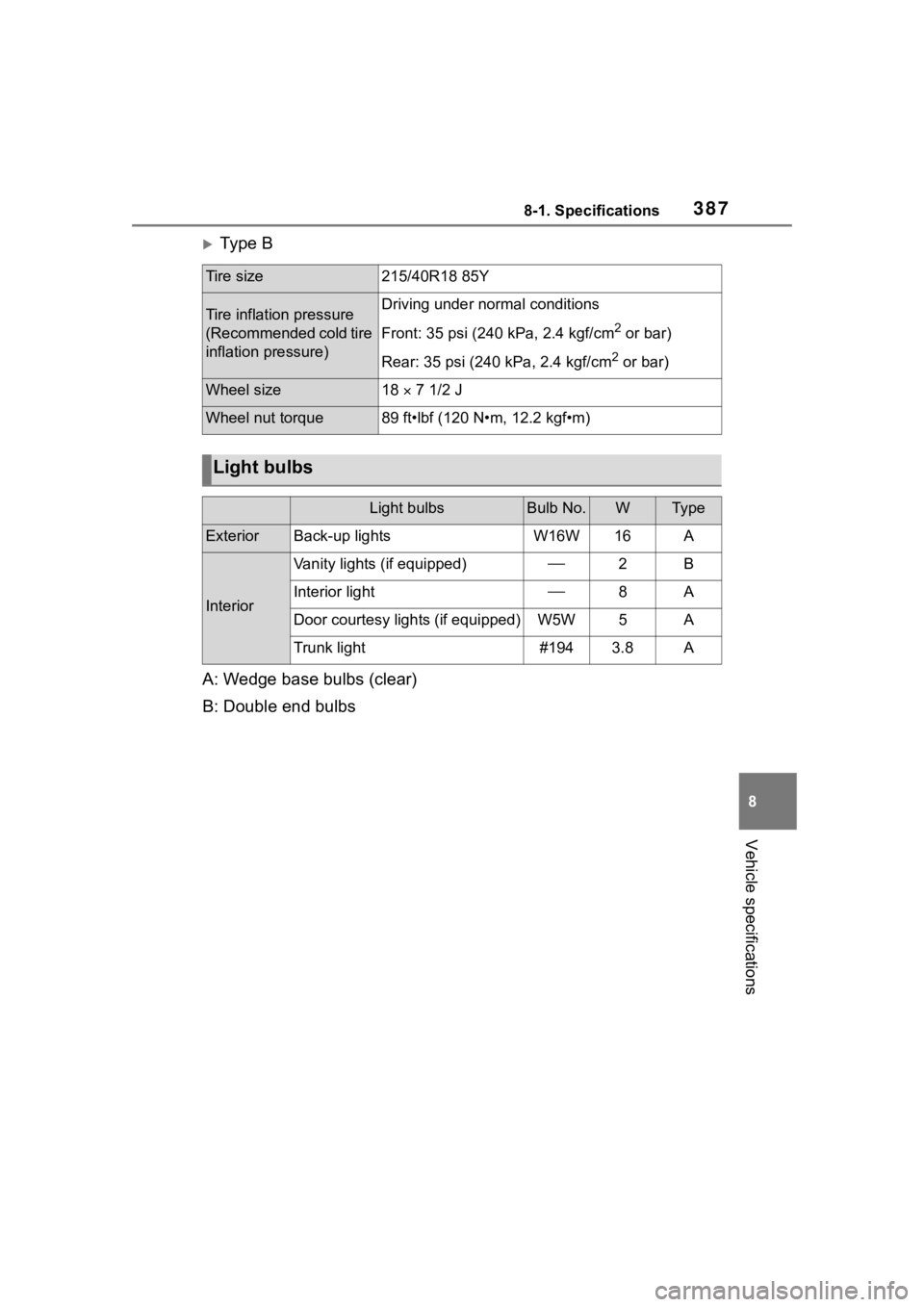

Light bulbs
Light bulbsBulb No.WTy p e
ExteriorBack-up lightsW16W16A
Interior
Vanity lights (if equipped)2B
Interior light8A
Door courtesy lights (if equipped)W5W5A
Trunk light#1943.8A

3888-1. Specifications
■Gasoline quality
In very few cases, driveability prob-
lems may be caused by the brand of
gasoline you are using. If driveability
problems persist, try changing the
brand of gasoline. If this does not
correct the problem, consult your Toyota dealer.
■Recommendation of the use of
gasoline containing detergent
additives
●Toyota recommends the use of
gasoline that contains detergent
additives to avoid the build-up of
engine deposits.
●All gasoline sold in the U.S.A. con-
tains minimum detergent additives
to clean and/or keep clean intake
systems, per EPA’s lowest addi-
tives concentration program.
●Toyota strongly recommends the
use of Top Tier Detergent Gaso-
line. For more information on Top
Tier Detergent Gas
oline and a list
of marketers, pleas e go to the offi-
cial website www.toptiergas.com.
■Recommendation of the use of
low emissions gasoline
Gasolines containing oxygenates
such as ethers and ethanol, as well
as reformulated gasolines, are avail-
able in some cities. These fuels are
typically acceptable for use, provid-
ing they meet other fuel require-
ments.
Toyota recommends these fuels,
since the formulations allow for
reduced vehicle emissions.
■Non-recommendation of the
use of blended gasoline
●Use only gasoline containing up to
15% ethanol.
DO NOT use any flex-fuel or gas-
oline that could contain more than
15% ethanol, including from any
pump labeled E30 (30% ethanol
[ ]), E50 (50% ethanol [ ]), E85
(85% ethanol [ ]) (which are only
some examples of f uel containing
more than 15% ethanol).

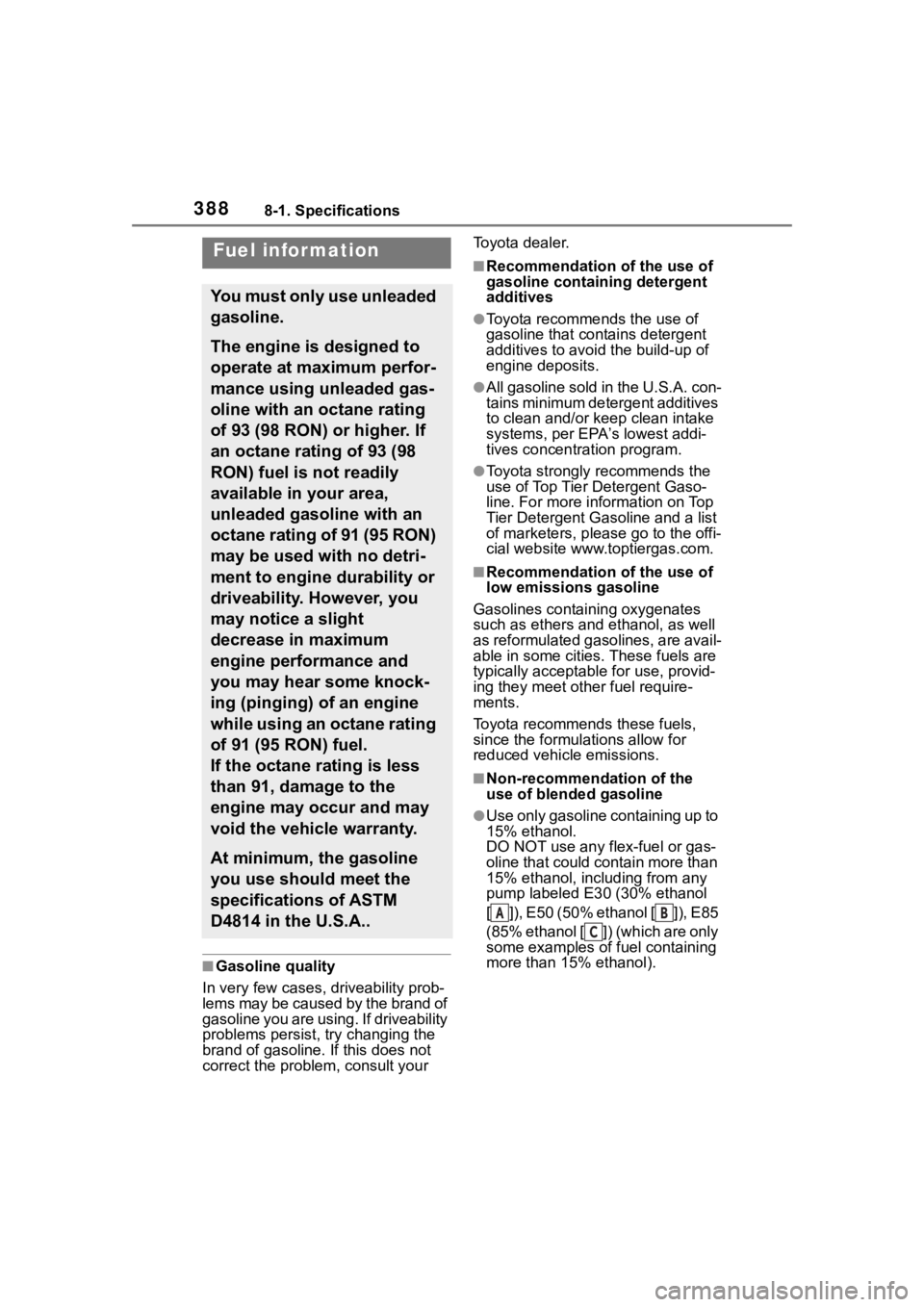

Fuel infor mation
You must only use unleaded
gasoline.
The engine is designed to
operate at maximum perfor-
mance using unleaded gas-
oline with an octane rating
of 93 (98 RON) or higher. If
an octane rating of 93 (98
RON) fuel is not readily
available in your area,
unleaded gasoline with an
octane rating of 91 (95 RON)
may be used with no detri-
ment to engine durability or
driveability. However, you
may notice a slight
decrease in maximum
engine performance and
you may hear some knock-
ing (pinging) of an engine
while using an octane rating
of 91 (95 RON) fuel.
If the octane rating is less
than 91, damage to the
engine may occur and may
void the vehicle warranty.
At minimum, the gasoline
you use should meet the
specifications of ASTM
D4814 in the U.S.A..
AB
C

3898-1. Specifications
8
Vehicle specifications
●If you use gasohol in your vehicle,
be sure that it has an octane rat-
ing no lower than 91.
●Toyota does not recommend the
use of gasoline co ntaining metha-
nol.
■Non-recommendation of the
use of gasoline containing MMT
Some gasoline contains an octane
enhancing additive called MMT
(Methylcyclopentadienyl Manga-
nese Tricarbonyl).
Toyota does not recommend the use
of gasoline that contains MMT. If
fuel containing MMT is used, your
emission control system may be
adversely affected.
The malfunction indicator lamp on
the instrument cluster may come on.
If this happens, contact your Toyota
dealer for service.
■If your engine knocks
●Consult your Toyota dealer.
●You may occasionally notice light
knocking for a short time while
accelerating or dr iving uphill. This
is normal and there is no need for
concern.
NOTICE
■Notice on fuel quality
●Do not use impro per fuels. If
improper fuels are used, the
engine will be damaged.
●Do not use leaded gasoline.
Leaded gasoline can cause
damage to your vehicle’s
three-way catalytic converters
causing the emission control
system to malfunction.
●Do not use gasoho l other than
the type previously stated.
Other gasohol may cause fuel
system damage or vehicle per-
formance problems.
●Using unleaded gasoline with
an octane number or rating
lower than the level previously
stated may cause persistent
heavy knocking.
At worst, this may lead to
engine damage and will void the
vehicle warranty.
■When refueling with gasohol
Take care not to spill gasohol. It
can damage your vehicle’s paint.
■Fuel-related poor driveability
If poor driveability (poor hot start-
ing, vaporization, engine knock-
ing, etc.) is encountered after
using a different type of fuel, dis-
continue the use of that type of
fuel.

3908-1. Specifications
Tire size (P.391)
DOT and Tire Identification Number (TIN) ( P.391)
Uniform tire quality grading
For details, see “Uniform Tire Quality Grading” that follows.
Location of treadwear indicators ( P.312)
Tire ply composition and materials
Plies are layers of rubber-coat ed parallel cords. Cords are the strands
which form the pl ies in a tire.
Radial tires or bias-ply tires
A radial tire has “RADIAL” on th e sidewall. A tire not marked “RADIAL” is a
bias-ply tire.
TUBELESS or TUBE TYPE
A tubeless tire does not have a tube and air is directly put into the tire. A
tube type tire has a tube inside t he tire and the tube maintains the air pres-
sure.
Load limit at maximum cold tire inflation pressure (P.393)
Maximum cold tire inflation pressure ( P.393)
This means the pressure to w hich a tire may be inflated.
Summer tires or all season tires ( P.313)
An all season tire has “M+S” on the sidewal l. A tire not marked “M+S” is a
summer tire.
Tire information

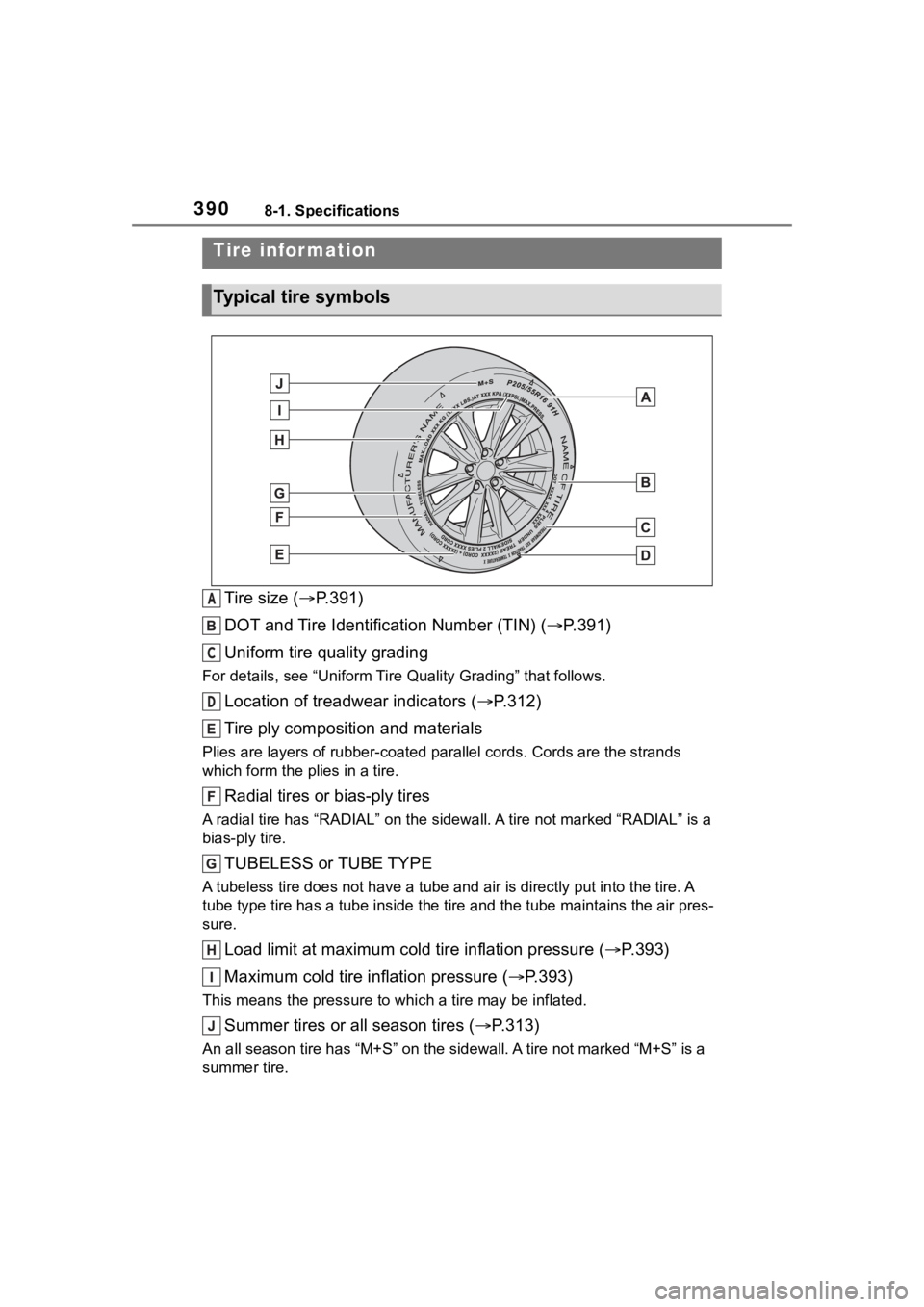

Typical tire symbols
A
C
D
