TOYOTA AURIS 2017 Owners Manual (in English)

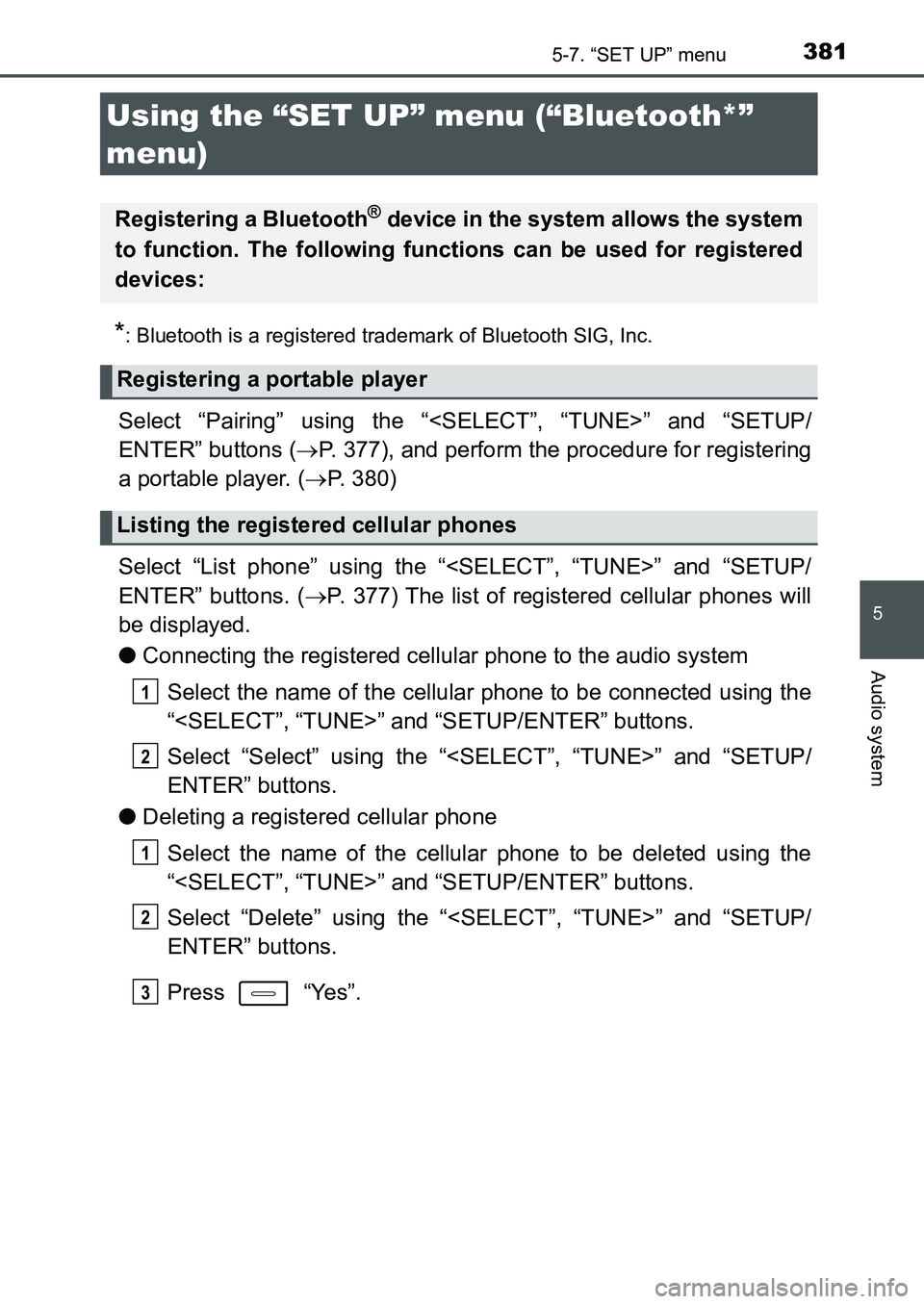

381
UK AURIS_HB_EE (OM12K97E)
5
Audio system
5-7. “SET UP” menu
*: Bluetooth is a registered trademark of Bluetooth SIG, Inc.
Select “Pairing” using the “” and “SETUP/
ENTER” buttons (P. 377), and perform the procedure for registering
a portable player. (P. 380)
Select “List phone” using the “” and “SETUP/
ENTER” buttons. (P. 377) The list of registered cellular phones will
be displayed.
●Connecting the registered cellular phone to the audio system
Select the name of the cellular phone to be connected using the
“” and “SETUP/ENTER” buttons.
Select “Select” using the “” and “SETUP/
ENTER” buttons.
●Deleting a registered cellular phone
Select the name of the cellular phone to be deleted using the
“” and “SETUP/ENTER” buttons.
Select “Delete” using the “” and “SETUP/
ENTER” buttons.
Press “Yes”.
Using the “SET UP” menu (“Bluetooth*”
menu)
Registering a Bluetooth® device in the system allows the system
to function. The following functions can be used for registered
devices:
Registering a portable player
Listing the registered cellular phones
1
2
1
2
3
UK AURIS_HB_OM_Europe_OM12K97E.book 381 ページ ２０１６年６月２７日　月曜日　午後５時４２分

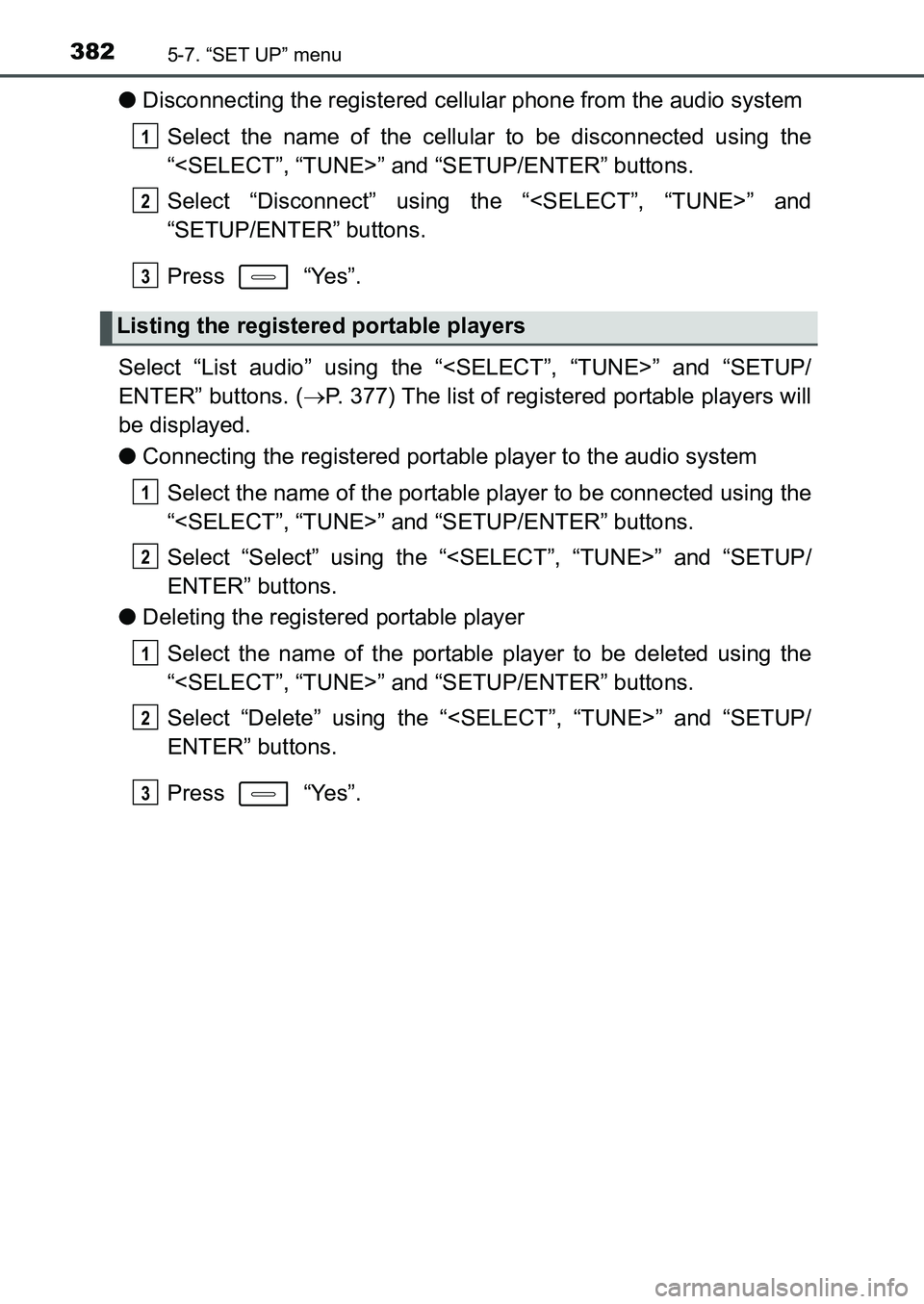

3825-7. “SET UP” menu
UK AURIS_HB_EE (OM12K97E)
●Disconnecting the registered cellular phone from the audio system
Select the name of the cellular to be disconnected using the
“” and “SETUP/ENTER” buttons.
Select “Disconnect” using the “” and
“SETUP/ENTER” buttons.
Press “Yes”.
Select “List audio” using the “” and “SETUP/
ENTER” buttons. (P. 377) The list of registered portable players will
be displayed.
●Connecting the registered portable player to the audio system
Select the name of the portable player to be connected using the
“” and “SETUP/ENTER” buttons.
Select “Select” using the “” and “SETUP/
ENTER” buttons.
●Deleting the registered portable player
Select the name of the portable player to be deleted using the
“” and “SETUP/ENTER” buttons.
Select “Delete” using the “” and “SETUP/
ENTER” buttons.
Press “Yes”.
Listing the registered portable players
1
2
3
1
2
1
2
3
UK AURIS_HB_OM_Europe_OM12K97E.book 382 ページ ２０１６年６月２７日　月曜日　午後５時４２分

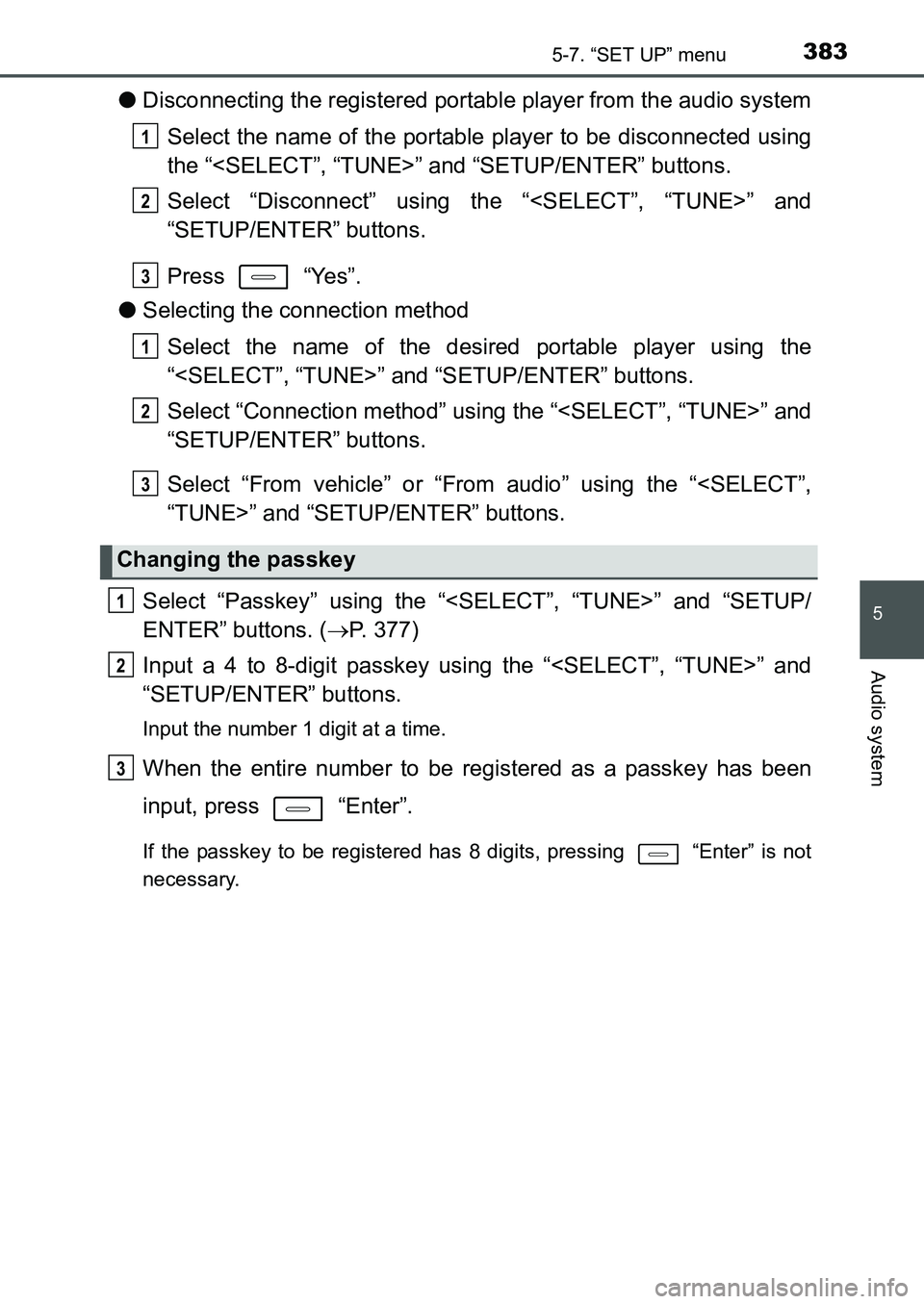

3835-7. “SET UP” menu
UK AURIS_HB_EE (OM12K97E)
5
Audio system
●Disconnecting the registered portable player from the audio system
Select the name of the portable player to be disconnected using
the “” and “SETUP/ENTER” buttons.
Select “Disconnect” using the “” and
“SETUP/ENTER” buttons.
Press “Yes”.
●Selecting the connection method
Select the name of the desired portable player using the
“” and “SETUP/ENTER” buttons.
Select “Connection method” using the “” and
“SETUP/ENTER” buttons.
Select “From vehicle” or “From audio” using the “ “TUNE>” and “SETUP/ENTER” buttons.
Select “Passkey” using the “” and “SETUP/
ENTER” buttons. (P. 377)
Input a 4 to 8-digit passkey using the “” and
“SETUP/ENTER” buttons.
Input the number 1 digit at a time.
When the entire number to be registered as a passkey has been
input, press “Enter”.
If the passkey to be registered has 8 digits, pressing “Enter” is not
necessary.
Changing the passkey
1
2
3
1
2
3
1
2
3
UK AURIS_HB_OM_Europe_OM12K97E.book 383 ページ ２０１６年６月２７日　月曜日　午後５時４２分

3845-7. “SET UP” menu
UK AURIS_HB_EE (OM12K97E)

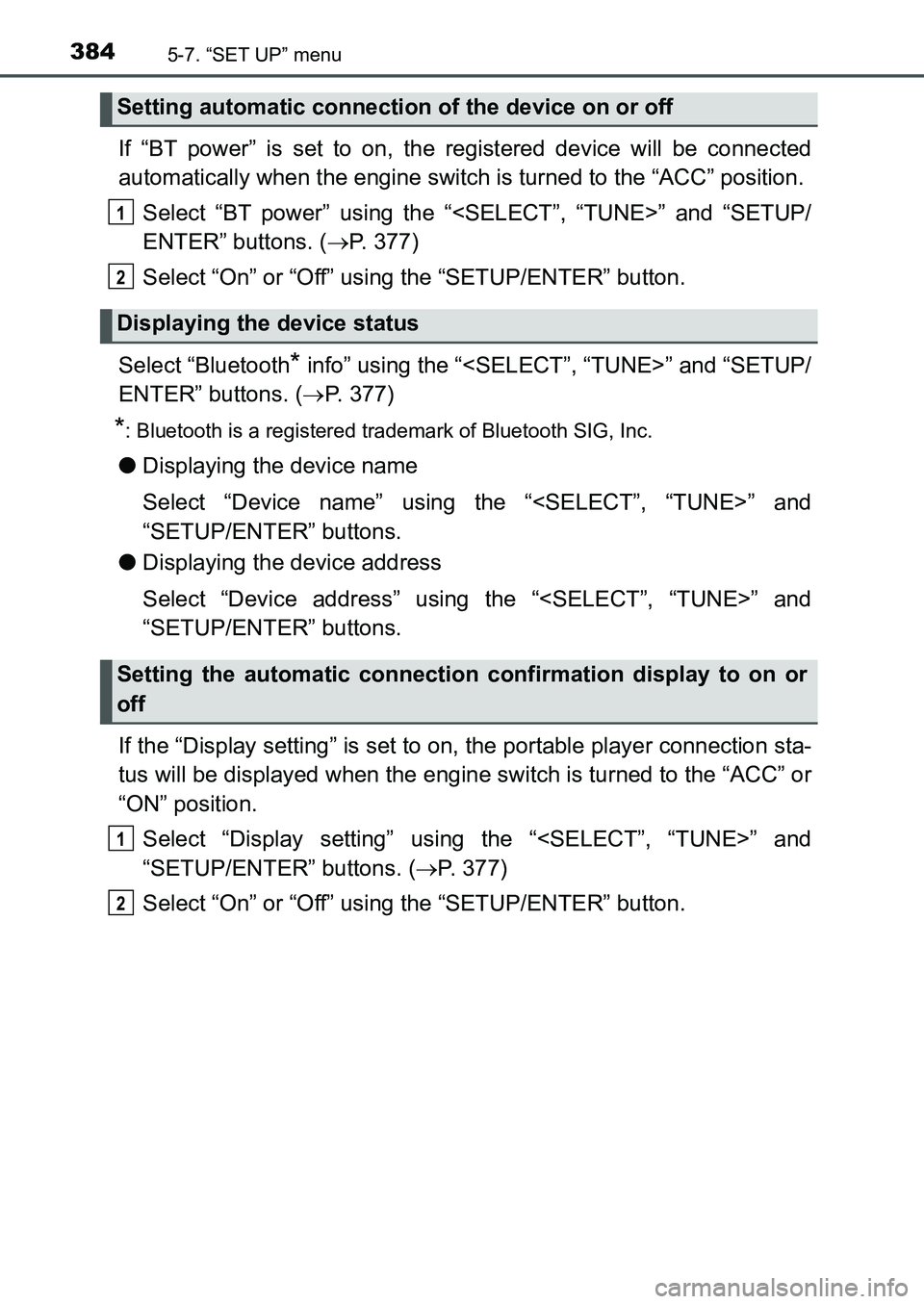

If “BT power” is set to on, the registered device will be connected
automatically when the engine switch is turned to the “ACC” position.
Select “BT power” using the “” and “SETUP/
ENTER” buttons. (P. 377)
Select “On” or “Off” using the “SETUP/ENTER” button.
Select “Bluetooth
* info” using the “” and “SETUP/
ENTER” buttons. (P. 377)
*: Bluetooth is a registered trademark of Bluetooth SIG, Inc.
●Displaying the device name
Select “Device name” using the “” and
“SETUP/ENTER” buttons.
●Displaying the device address
Select “Device address” using the “” and
“SETUP/ENTER” buttons.
If the “Display setting” is set to on, the portable player connection sta-
tus will be displayed when the engine switch is turned to the “ACC” or
“ON” position.
Select “Display setting” using the “” and
“SETUP/ENTER” buttons. (P. 377)
Select “On” or “Off” using the “SETUP/ENTER” button.
Setting automatic connection of the device on or off
Displaying the device status
Setting the automatic connection confirmation display to on or
off
1
2
1
2
UK AURIS_HB_OM_Europe_OM12K97E.book 384 ページ ２０１６年６月２７日　月曜日　午後５時４２分

3855-7. “SET UP” menu
UK AURIS_HB_EE (OM12K97E)
5
Audio system

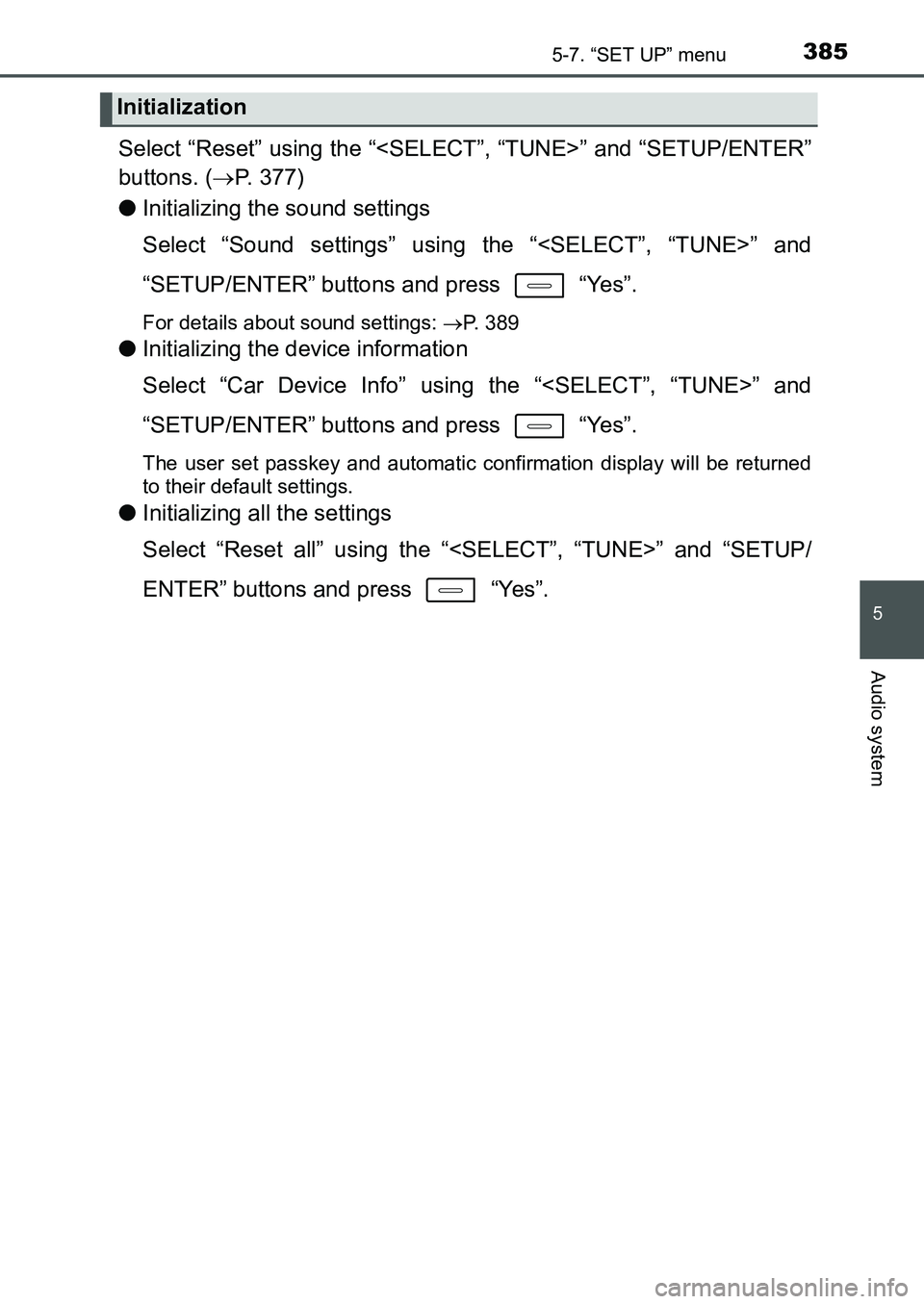

Select “Reset” using the “” and “SETUP/ENTER”
buttons. (P. 377)
●Initializing the sound settings
Select “Sound settings” using the “” and
“SETUP/ENTER” buttons and press “Yes”.
For details about sound settings: P. 389
●Initializing the device information
Select “Car Device Info” using the “” and
“SETUP/ENTER” buttons and press “Yes”.
The user set passkey and automatic confirmation display will be returned
to their default settings.
●Initializing all the settings
Select “Reset all” using the “” and “SETUP/
ENTER” buttons and press “Yes”.
Initialization
UK AURIS_HB_OM_Europe_OM12K97E.book 385 ページ ２０１６年６月２７日　月曜日　午後５時４２分

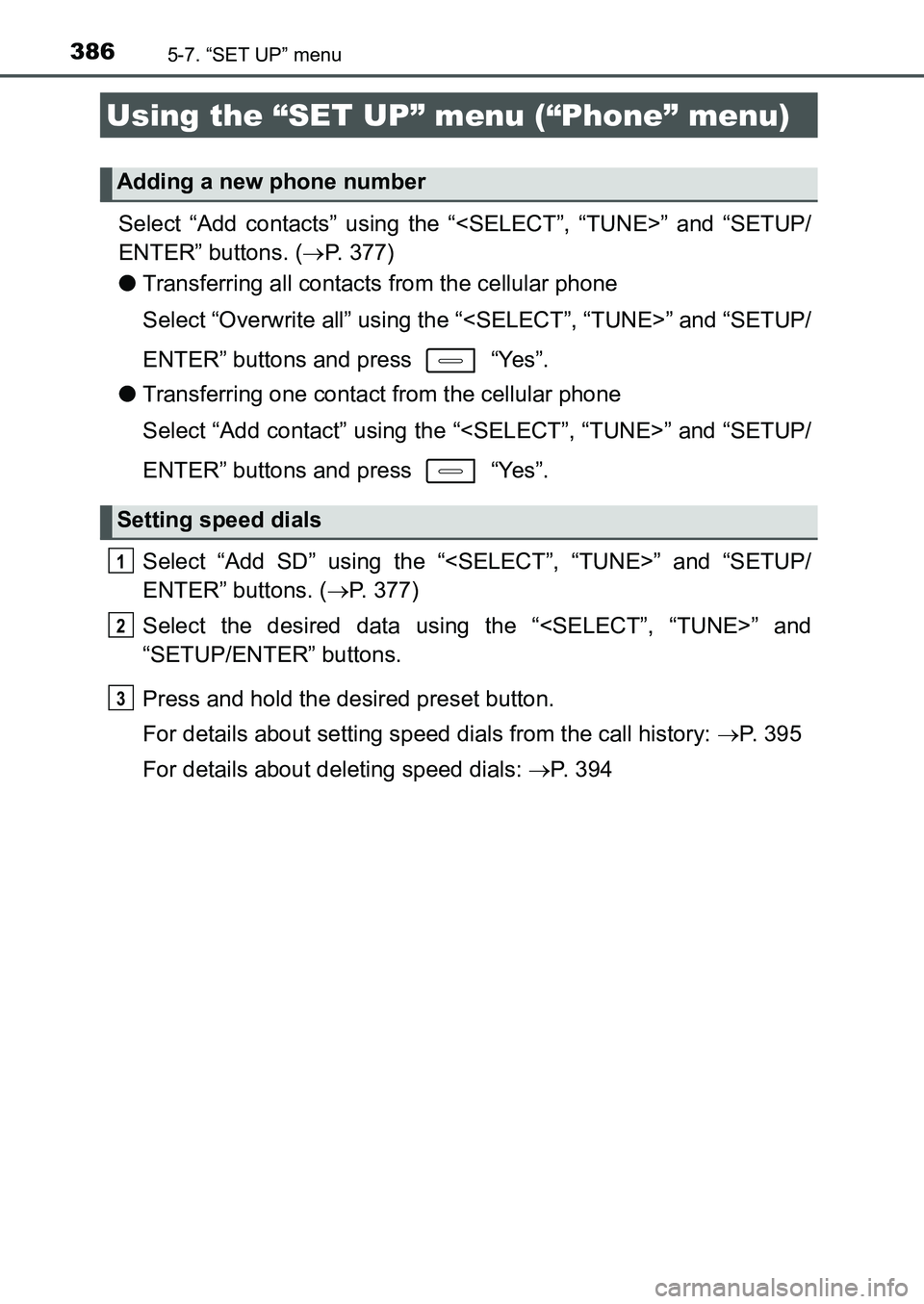

3865-7. “SET UP” menu
UK AURIS_HB_EE (OM12K97E)
Select “Add contacts” using the “” and “SETUP/
ENTER” buttons. (P. 377)
●Transferring all contacts from the cellular phone
Select “Overwrite all” using the “” and “SETUP/
ENTER” buttons and press “Yes”.
●Transferring one contact from the cellular phone
Select “Add contact” using the “” and “SETUP/
ENTER” buttons and press “Yes”.
Select “Add SD” using the “” and “SETUP/
ENTER” buttons. (P. 377)
Select the desired data using the “” and
“SETUP/ENTER” buttons.
Press and hold the desired preset button.
For details about setting speed dials from the call history: P. 3 9 5
For details about deleting speed dials: P. 394
Using the “SET UP” menu (“Phone” menu)
Adding a new phone number
Setting speed dials
1
2
3
UK AURIS_HB_OM_Europe_OM12K97E.book 386 ページ ２０１６年６月２７日　月曜日　午後５時４２分

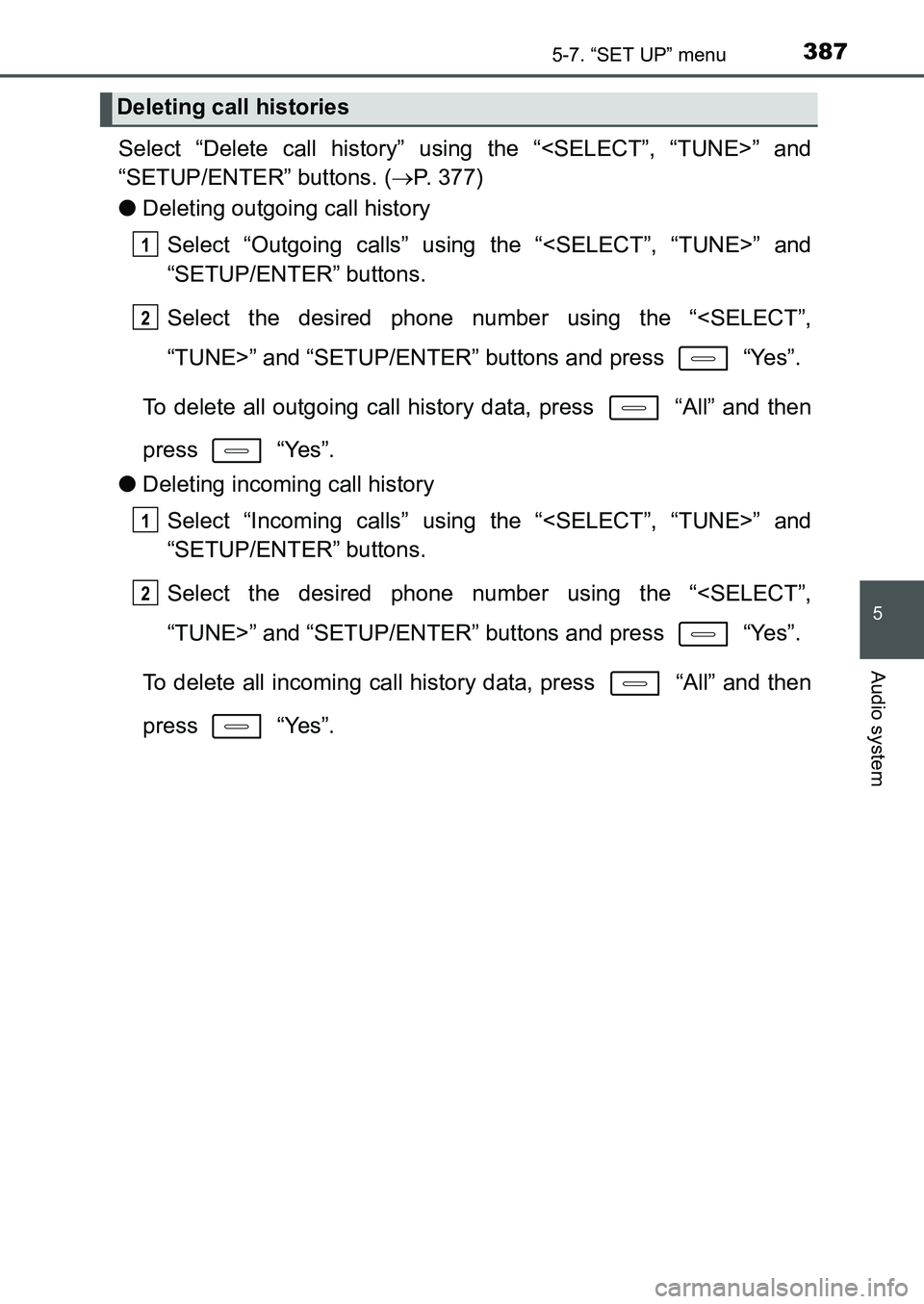

3875-7. “SET UP” menu
UK AURIS_HB_EE (OM12K97E)
5
Audio system
Select “Delete call history” using the “” and
“SETUP/ENTER” buttons. (P. 377)
●Deleting outgoing call history
Select “Outgoing calls” using the “” and
“SETUP/ENTER” buttons.
Select the desired phone number using the “ “TUNE>” and “SETUP/ENTER” buttons and press “Yes”.
To delete all outgoing call history data, press “All” and then
press “Yes”.
●Deleting incoming call history
Select “Incoming calls” using the “” and
“SETUP/ENTER” buttons.
Select the desired phone number using the “ “TUNE>” and “SETUP/ENTER” buttons and press “Yes”.
To delete all incoming call history data, press “All” and then
press “Yes”.
Deleting call histories
1
2
1
2
UK AURIS_HB_OM_Europe_OM12K97E.book 387 ページ ２０１６年６月２７日　月曜日　午後５時４２分

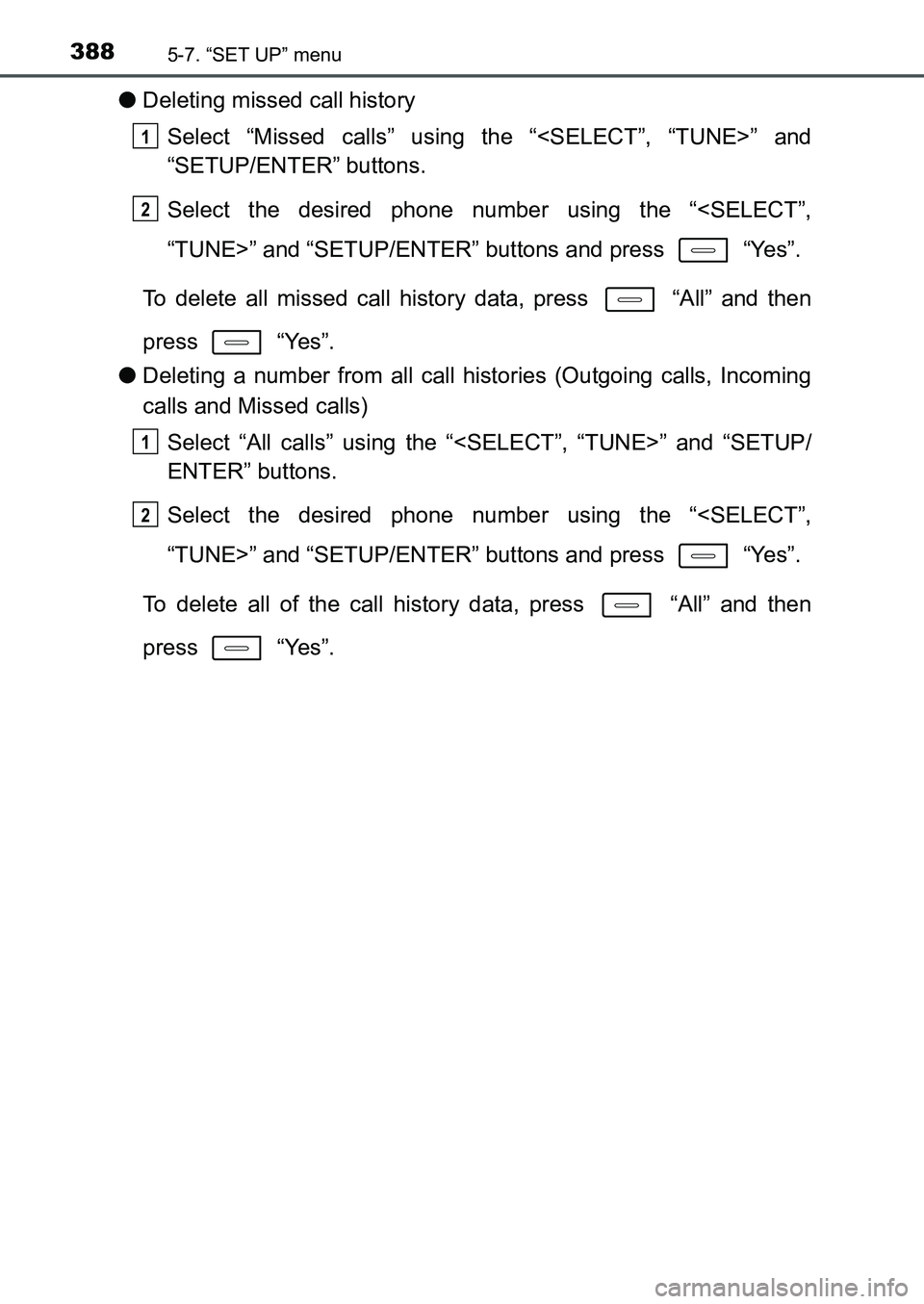

3885-7. “SET UP” menu
UK AURIS_HB_EE (OM12K97E)
●Deleting missed call history
Select “Missed calls” using the “” and
“SETUP/ENTER” buttons.
Select the desired phone number using the “ “TUNE>” and “SETUP/ENTER” buttons and press “Yes”.
To delete all missed call history data, press “All” and then
press “Yes”.
●Deleting a number from all call histories (Outgoing calls, Incoming
calls and Missed calls)
Select “All calls” using the “” and “SETUP/
ENTER” buttons.
Select the desired phone number using the “ “TUNE>” and “SETUP/ENTER” buttons and press “Yes”.
To delete all of the call history data, press “All” and then
press “Yes”.
1
2
1
2
UK AURIS_HB_OM_Europe_OM12K97E.book 388 ページ ２０１６年６月２７日　月曜日　午後５時４２分

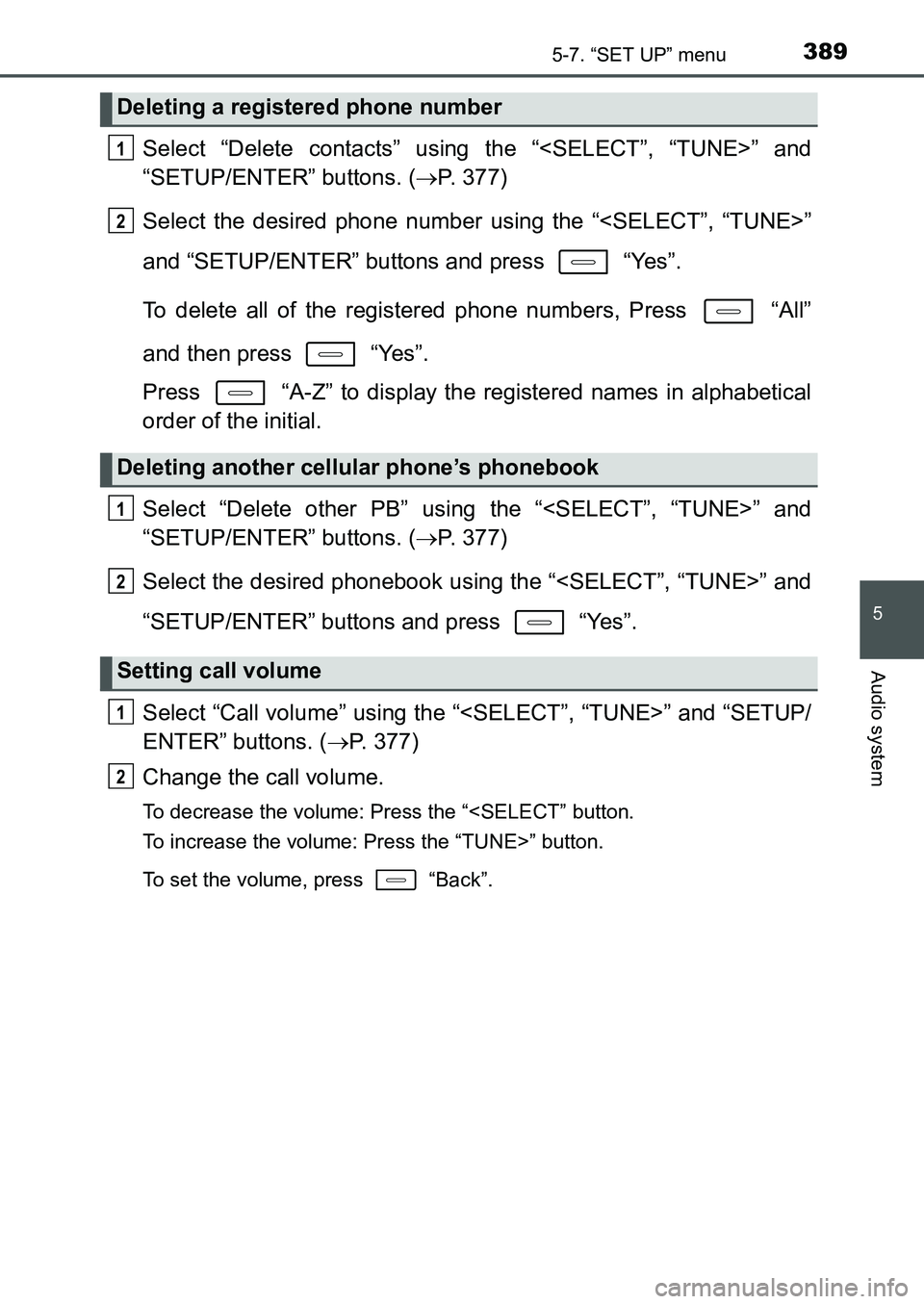

3895-7. “SET UP” menu
UK AURIS_HB_EE (OM12K97E)
5
Audio system
Select “Delete contacts” using the “” and
“SETUP/ENTER” buttons. (P. 377)
Select the desired phone number using the “”
and “SETUP/ENTER” buttons and press “Yes”.
To delete all of the registered phone numbers, Press “All”
and then press “Yes”.
Press “A-Z” to display the registered names in alphabetical
order of the initial.
Select “Delete other PB” using the “” and
“SETUP/ENTER” buttons. (P. 377)
Select the desired phonebook using the “” and
“SETUP/ENTER” buttons and press “Yes”.
Select “Call volume” using the “” and “SETUP/
ENTER” buttons. (P. 377)
Change the call volume.
To decrease the volume: Press the “ To increase the volume: Press the “TUNE>” button.
To set the volume, press “Back”.
Deleting a registered phone number
Deleting another cellular phone’s phonebook
Setting call volume
1
2
1
2
1
2
UK AURIS_HB_OM_Europe_OM12K97E.book 389 ページ ２０１６年６月２７日　月曜日　午後５時４２分

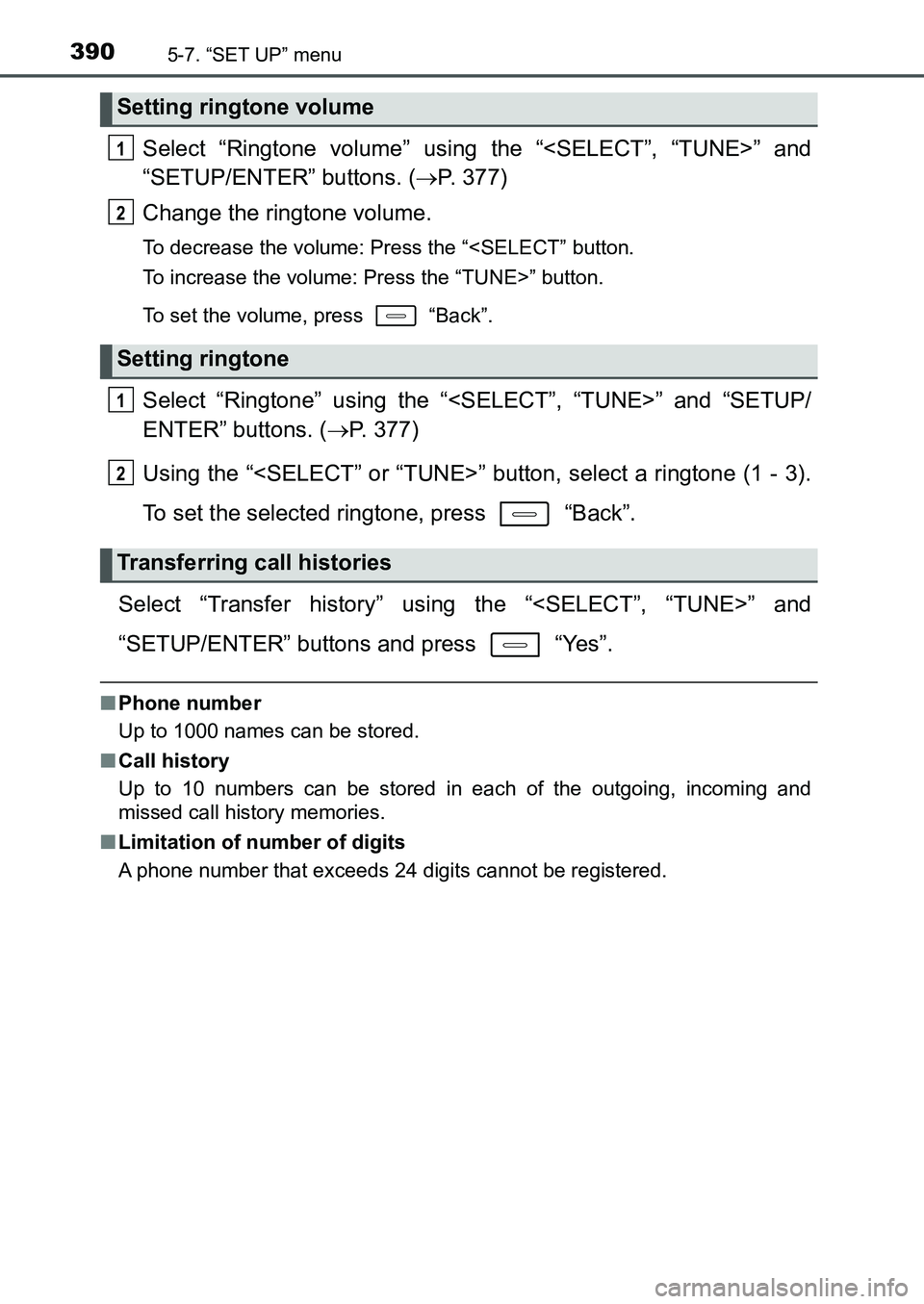

3905-7. “SET UP” menu
UK AURIS_HB_EE (OM12K97E)
Select “Ringtone volume” using the “” and
“SETUP/ENTER” buttons. (P. 377)
Change the ringtone volume.
To decrease the volume: Press the “ To increase the volume: Press the “TUNE>” button.
To set the volume, press “Back”.
Select “Ringtone” using the “” and “SETUP/
ENTER” buttons. (P. 377)
Using the “” button, select a ringtone (1 - 3).
To set the selected ringtone, press “Back”.
Select “Transfer history” using the “” and
“SETUP/ENTER” buttons and press “Yes”.
■Phone number
Up to 1000 names can be stored.
■Call history
Up to 10 numbers can be stored in each of the outgoing, incoming and
missed call history memories.
■Limitation of number of digits
A phone number that exceeds 24 digits cannot be registered.
Setting ringtone volume
Setting ringtone
Transferring call histories
1
2
1
2
