TOYOTA AURIS 2017 Owners Manual (in English)

5217-3. Do-it-yourself maintenance
UK AURIS_HB_EE (OM12K97E)
7
Maintenance and care

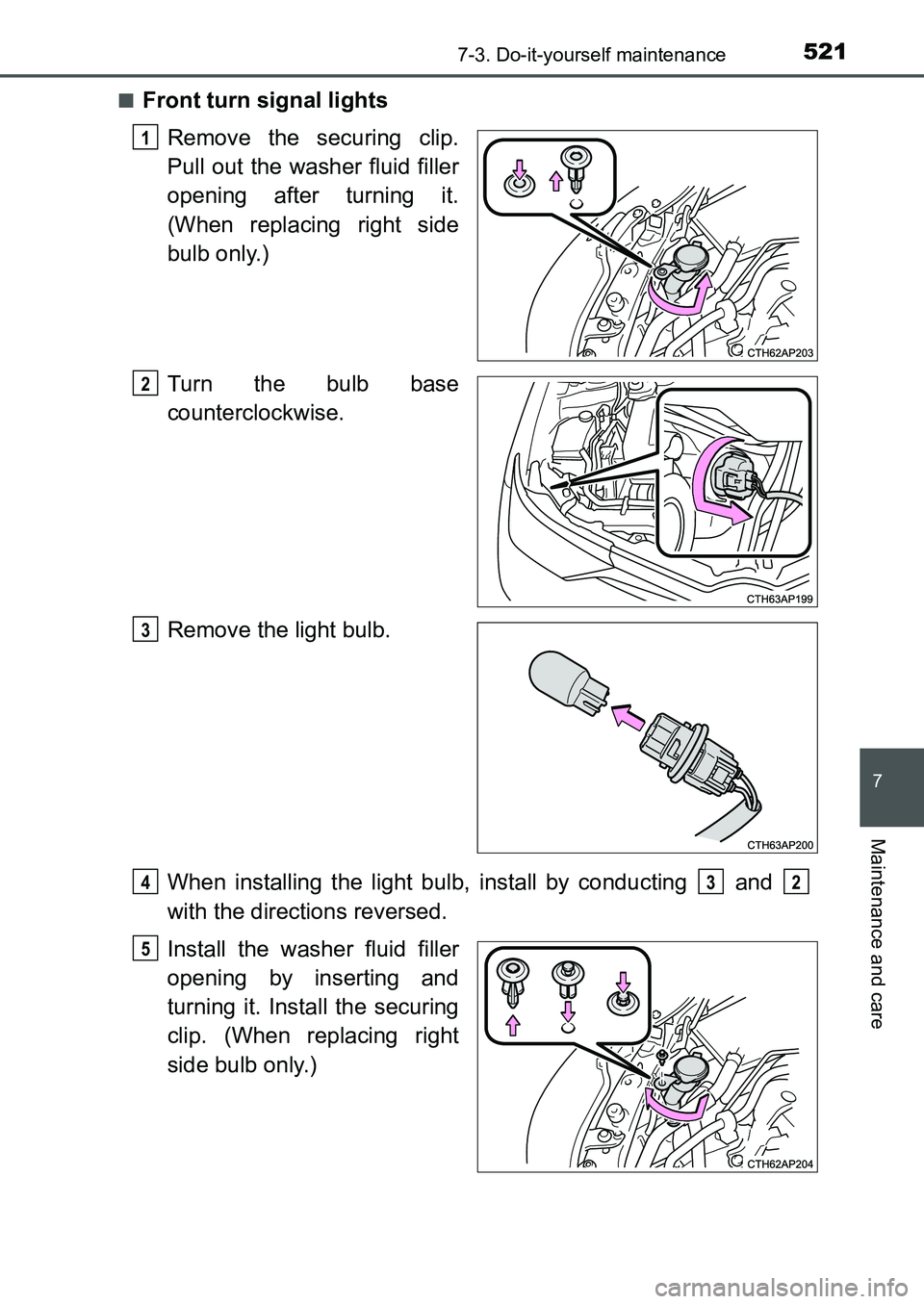

■Front turn signal lights
Remove the securing clip.
Pull out the washer fluid filler
opening after turning it.
(When replacing right side
bulb only.)
Turn the bulb base
counterclockwise.
Remove the light bulb.
When installing the light bulb, install by conducting and
with the directions reversed.
Install the washer fluid filler
opening by inserting and
turning it. Install the securing
clip. (When replacing right
side bulb only.)
1
2
3
432
5
UK AURIS_HB_OM_Europe_OM12K97E.book 521 ページ ２０１６年６月２７日　月曜日　午後５時４２分

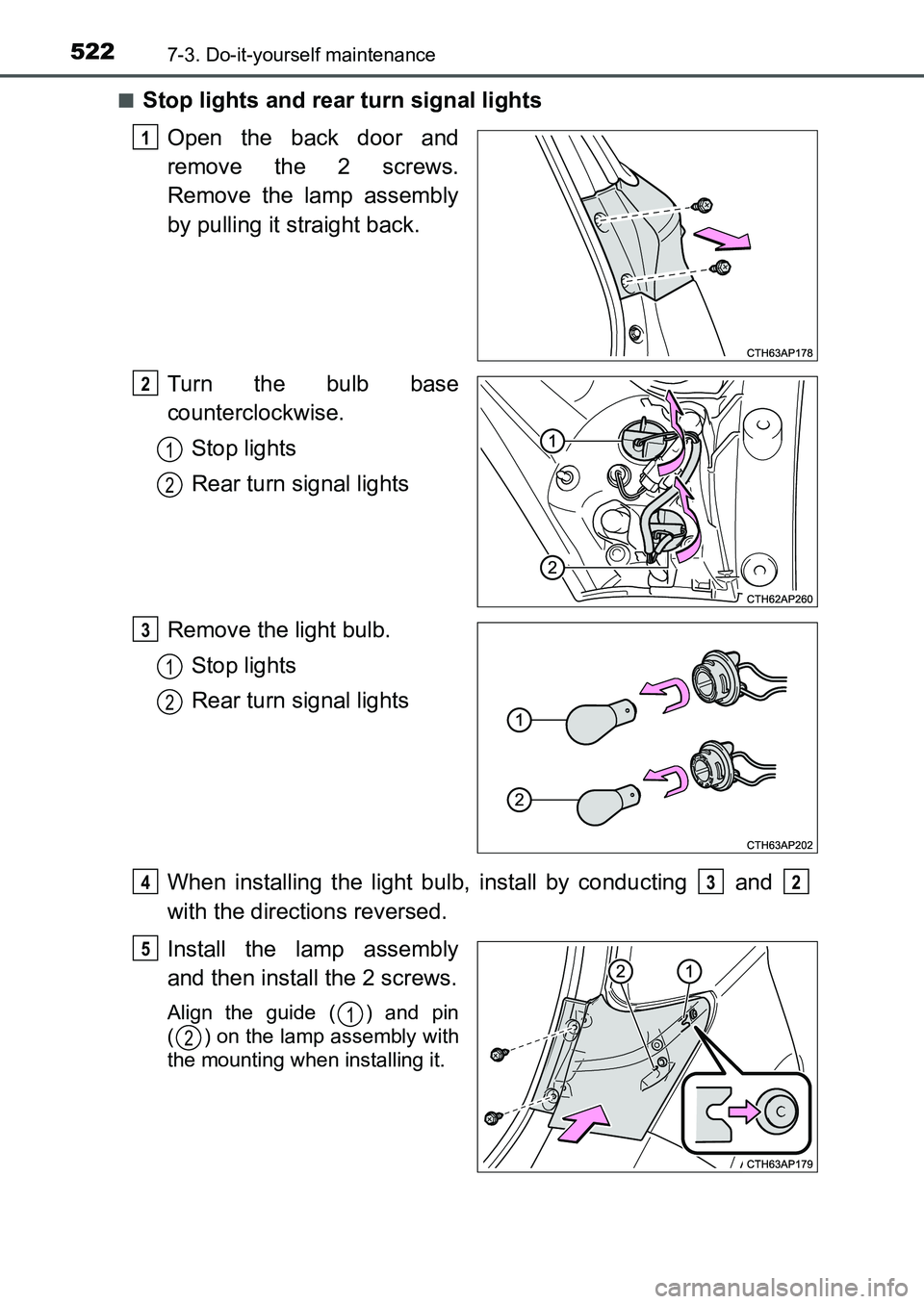

5227-3. Do-it-yourself maintenance
UK AURIS_HB_EE (OM12K97E)■
Stop lights and rear turn signal lights
Open the back door and
remove the 2 screws.
Remove the lamp assembly
by pulling it straight back.
Turn the bulb base
counterclockwise.
Stop lights
Rear turn signal lights
Remove the light bulb.
Stop lights
Rear turn signal lights
When installing the light bulb, install by conducting and
with the directions reversed.
Install the lamp assembly
and then install the 2 screws.
Align the guide ( ) and pin
( ) on the lamp assembly with
the mounting when installing it.
1
2
1
2
3
1
2
432
5
1
2
UK AURIS_HB_OM_Europe_OM12K97E.book 522 ページ ２０１６年６月２７日　月曜日　午後５時４２分

5237-3. Do-it-yourself maintenance
UK AURIS_HB_EE (OM12K97E)
7
Maintenance and care

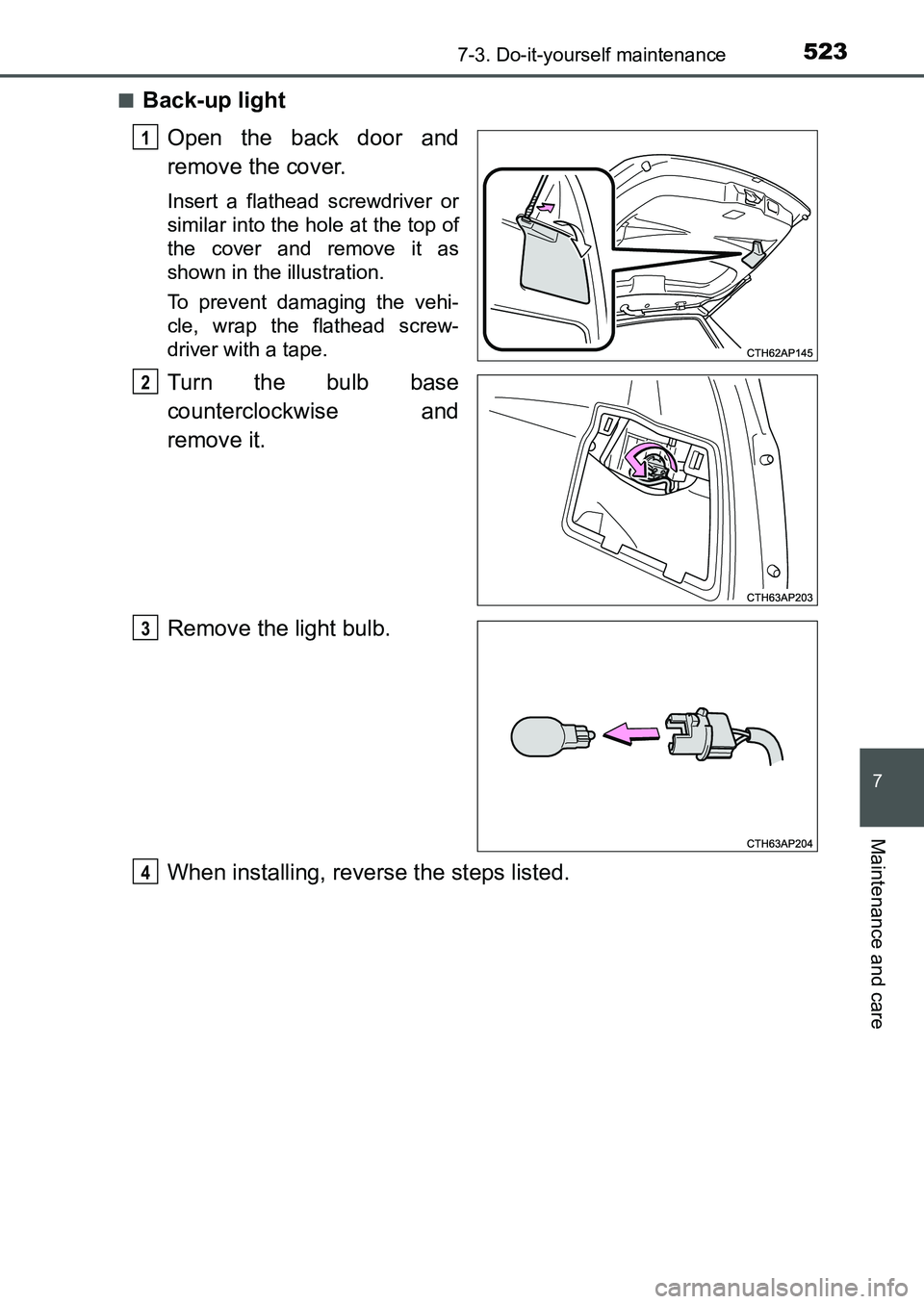

■Back-up light
Open the back door and
remove the cover.
Insert a flathead screwdriver or
similar into the hole at the top of
the cover and remove it as
shown in the illustration.
To prevent damaging the vehi-
cle, wrap the flathead screw-
driver with a tape.
Turn the bulb base
counterclockwise and
remove it.
Remove the light bulb.
When installing, reverse the steps listed.
1
2
3
4
UK AURIS_HB_OM_Europe_OM12K97E.book 523 ページ ２０１６年６月２７日　月曜日　午後５時４２分

5247-3. Do-it-yourself maintenance
UK AURIS_HB_EE (OM12K97E)■

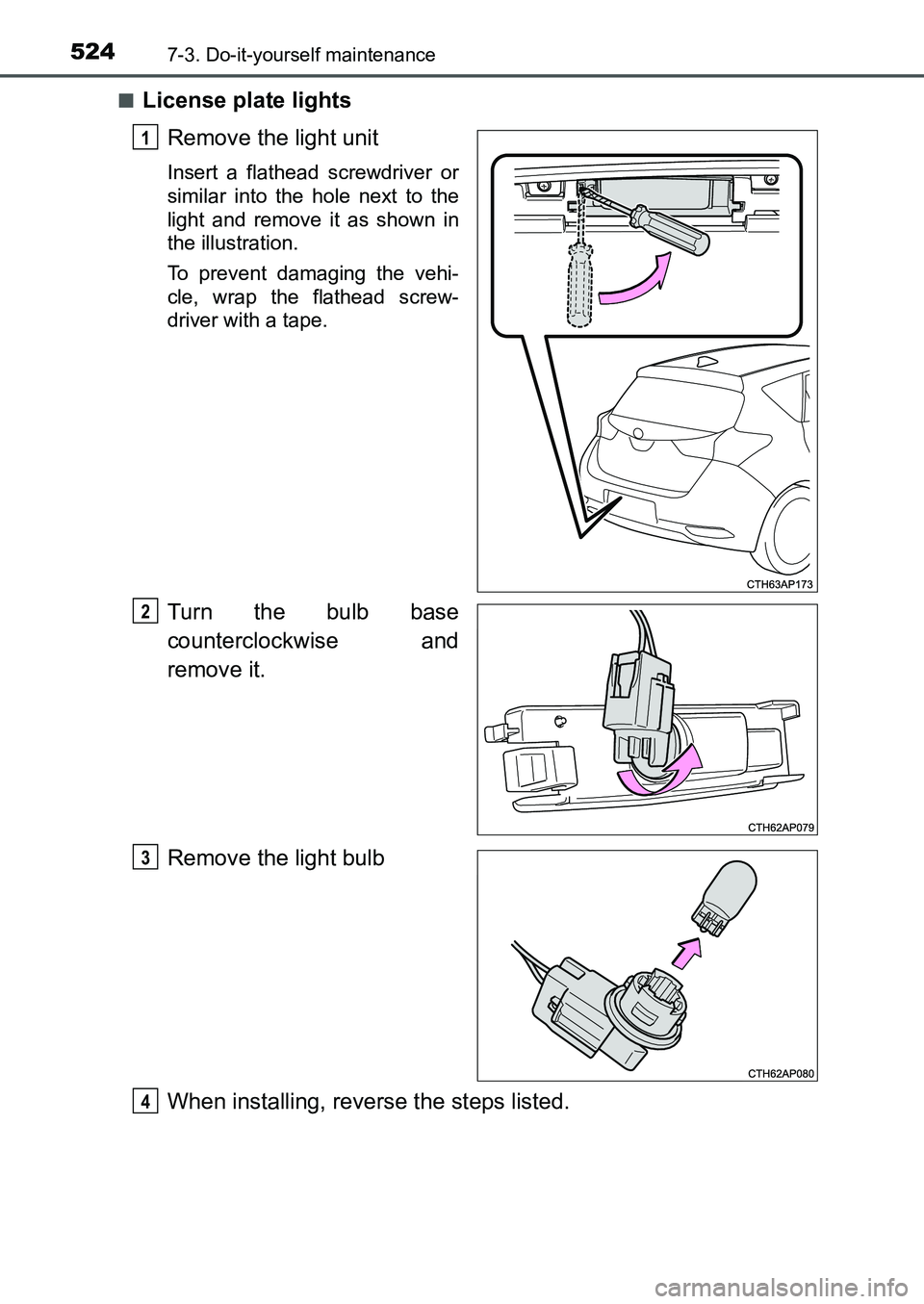

License plate lights
Remove the light unit
Insert a flathead screwdriver or
similar into the hole next to the
light and remove it as shown in
the illustration.
To prevent damaging the vehi-
cle, wrap the flathead screw-
driver with a tape.
Turn the bulb base
counterclockwise and
remove it.
Remove the light bulb
When installing, reverse the steps listed.
1
2
3
4
UK AURIS_HB_OM_Europe_OM12K97E.book 524 ページ ２０１６年６月２７日　月曜日　午後５時４２分

5257-3. Do-it-yourself maintenance
UK AURIS_HB_EE (OM12K97E)
7
Maintenance and care

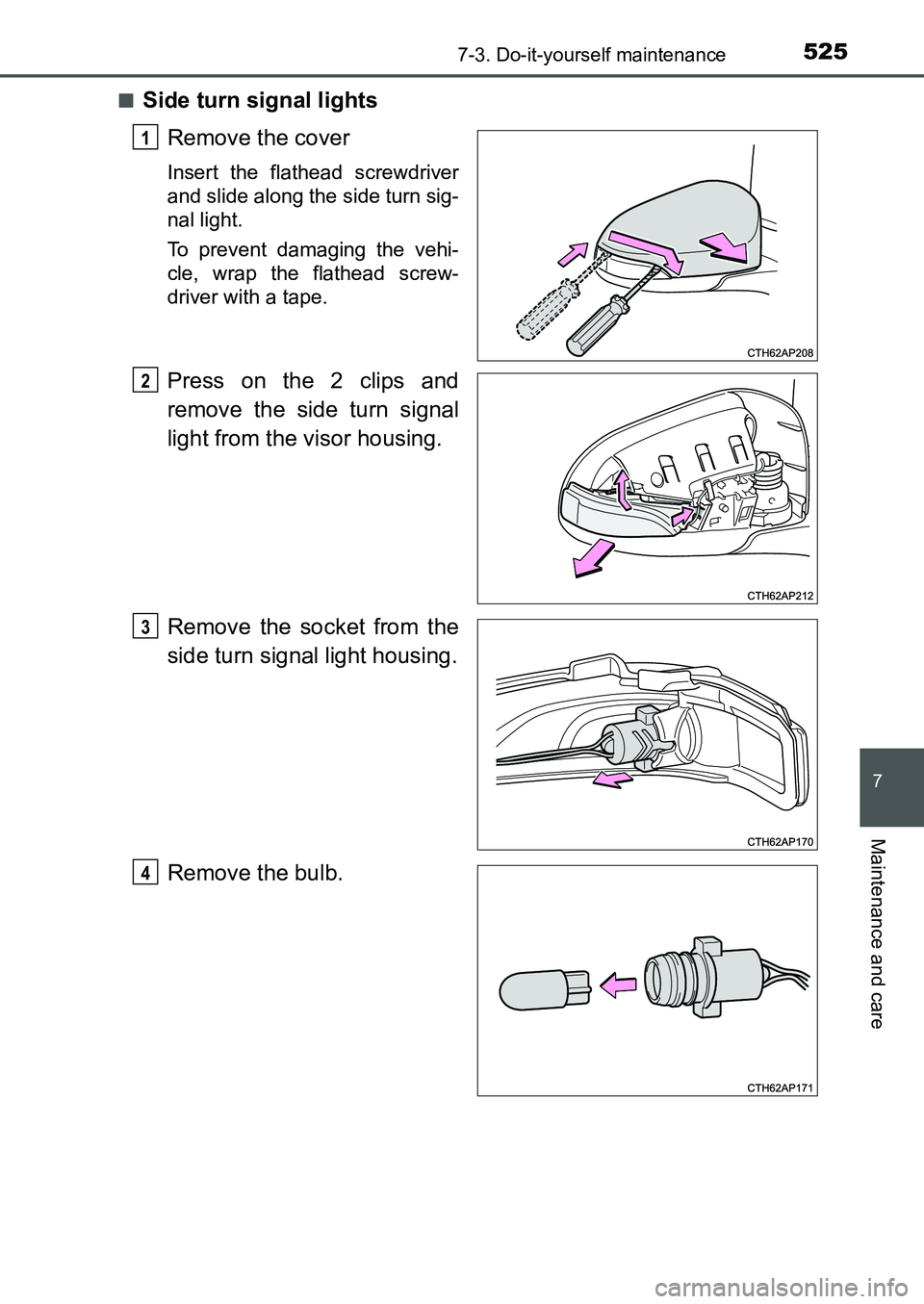

■Side turn signal lights
Remove the cover
Insert the flathead screwdriver
and slide along the side turn sig-
nal light.
To prevent damaging the vehi-
cle, wrap the flathead screw-
driver with a tape.
Press on the 2 clips and
remove the side turn signal
light from the visor housing.
Remove the socket from the
side turn signal light housing.
Remove the bulb.
1
2
3
4
UK AURIS_HB_OM_Europe_OM12K97E.book 525 ページ ２０１６年６月２７日　月曜日　午後５時４２分

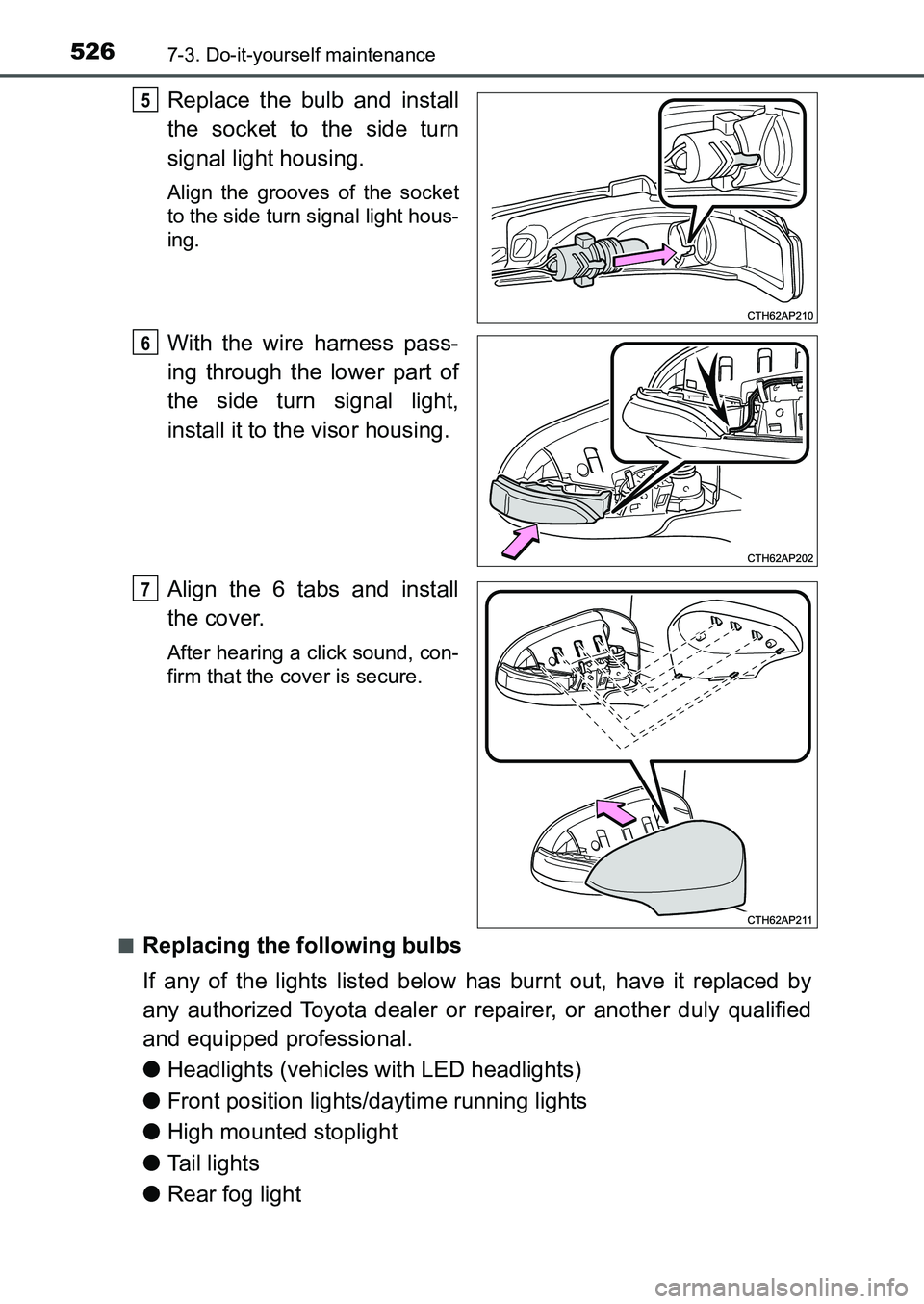

5267-3. Do-it-yourself maintenance
UK AURIS_HB_EE (OM12K97E)
Replace the bulb and install
the socket to the side turn
signal light housing.
Align the grooves of the socket
to the side turn signal light hous-
ing.
With the wire harness pass-
ing through the lower part of
the side turn signal light,
install it to the visor housing.
Align the 6 tabs and install
the cover.
After hearing a click sound, con-
firm that the cover is secure.
■
Replacing the following bulbs
If any of the lights listed below has burnt out, have it replaced by
any authorized Toyota dealer or repairer, or another duly qualified
and equipped professional.
●Headlights (vehicles with LED headlights)
●Front position lights/daytime running lights
●High mounted stoplight
●Tail lights
●Rear fog light
5
6
7
UK AURIS_HB_OM_Europe_OM12K97E.book 526 ページ ２０１６年６月２７日　月曜日　午後５時４２分

5277-3. Do-it-yourself maintenance
UK AURIS_HB_EE (OM12K97E)
7
Maintenance and care

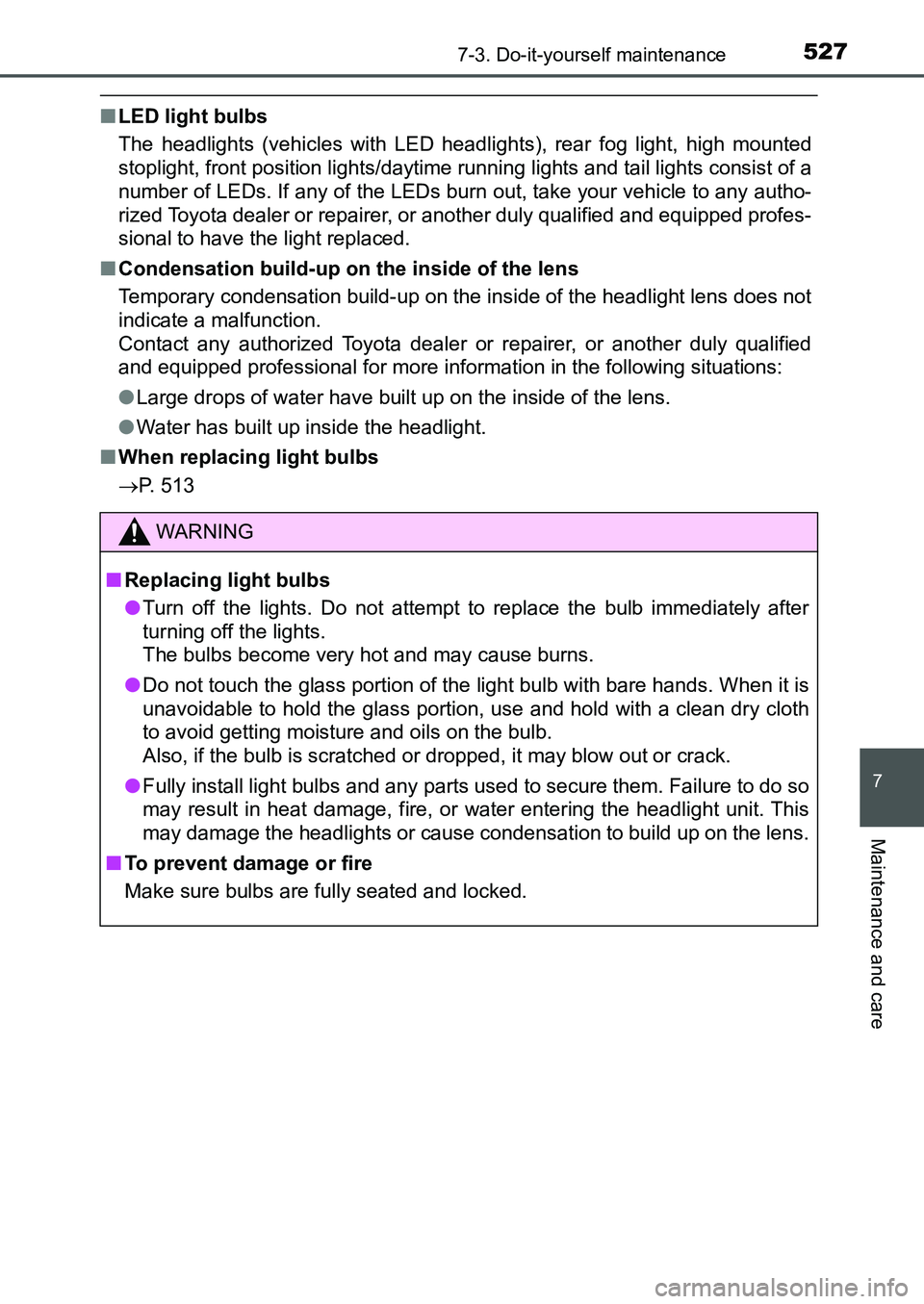

■LED light bulbs
The headlights (vehicles with LED headlights), rear fog light, high mounted
stoplight, front position lights/daytime running lights and tail lights consist of a
number of LEDs. If any of the LEDs burn out, take your vehicle to any autho-
rized Toyota dealer or repairer, or another duly qualified and equipped profes-
sional to have the light replaced.
■Condensation build-up on the inside of the lens
Temporary condensation build-up on the inside of the headlight lens does not
indicate a malfunction.
Contact any authorized Toyota dealer or repairer, or another duly qualified
and equipped professional for more information in the following situations:
●Large drops of water have built up on the inside of the lens.
●Water has built up inside the headlight.
■When replacing light bulbs
P. 513
WARNING
■Replacing light bulbs
●Turn off the lights. Do not attempt to replace the bulb immediately after
turning off the lights.
The bulbs become very hot and may cause burns.
●Do not touch the glass portion of the light bulb with bare hands. When it is
unavoidable to hold the glass portion, use and hold with a clean dry cloth
to avoid getting moisture and oils on the bulb.
Also, if the bulb is scratched or dropped, it may blow out or crack.
●Fully install light bulbs and any parts used to secure them. Failure to do so
may result in heat damage, fire, or water entering the headlight unit. This
may damage the headlights or cause condensation to build up on the lens.
■To prevent damage or fire
Make sure bulbs are fully seated and locked.
UK AURIS_HB_OM_Europe_OM12K97E.book 527 ページ ２０１６年６月２７日　月曜日　午後５時４２分

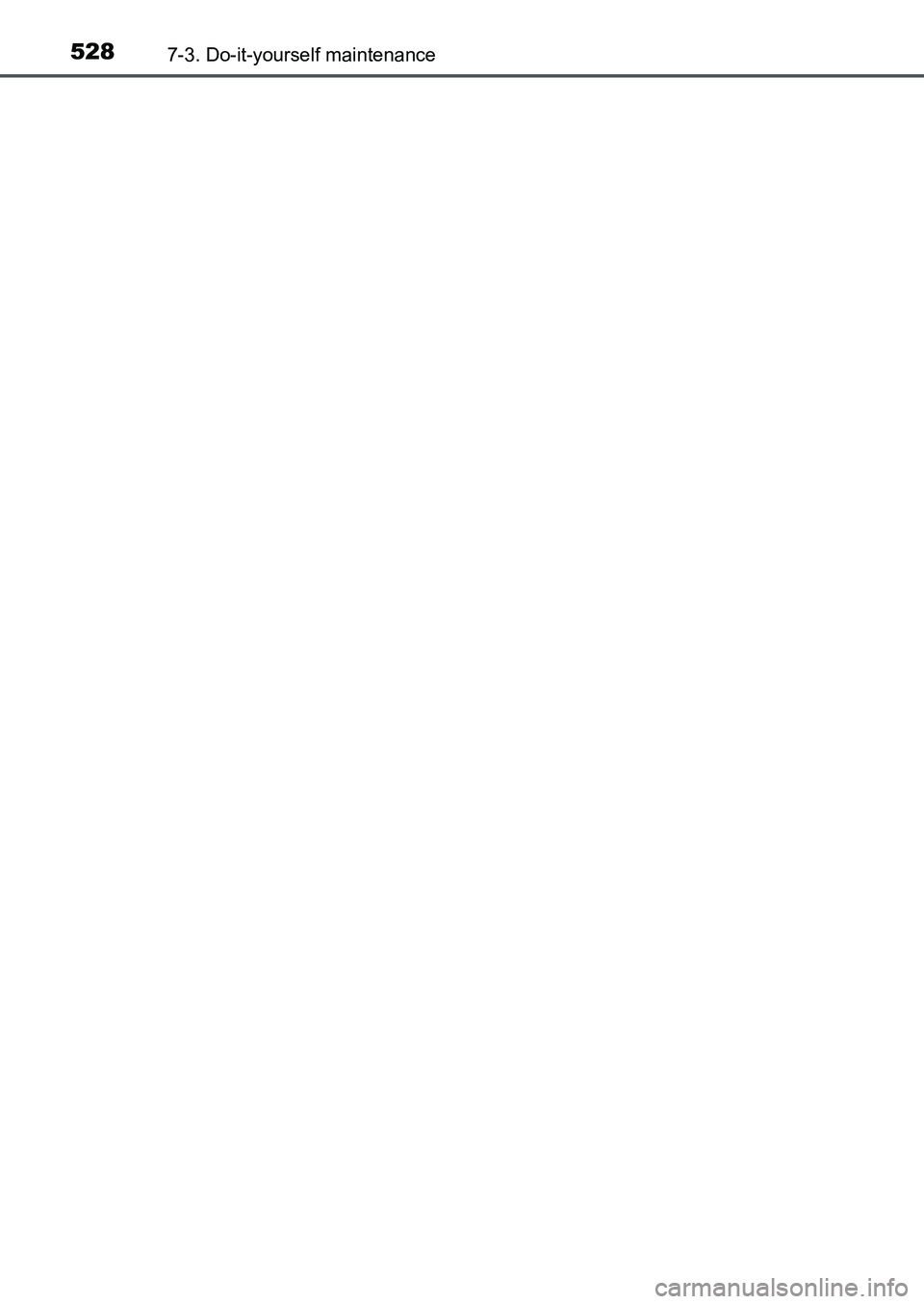

5287-3. Do-it-yourself maintenance
UK AURIS_HB_EE (OM12K97E)
UK AURIS_HB_OM_Europe_OM12K97E.book 528 ページ ２０１６年６月２７日　月曜日　午後５時４２分

529

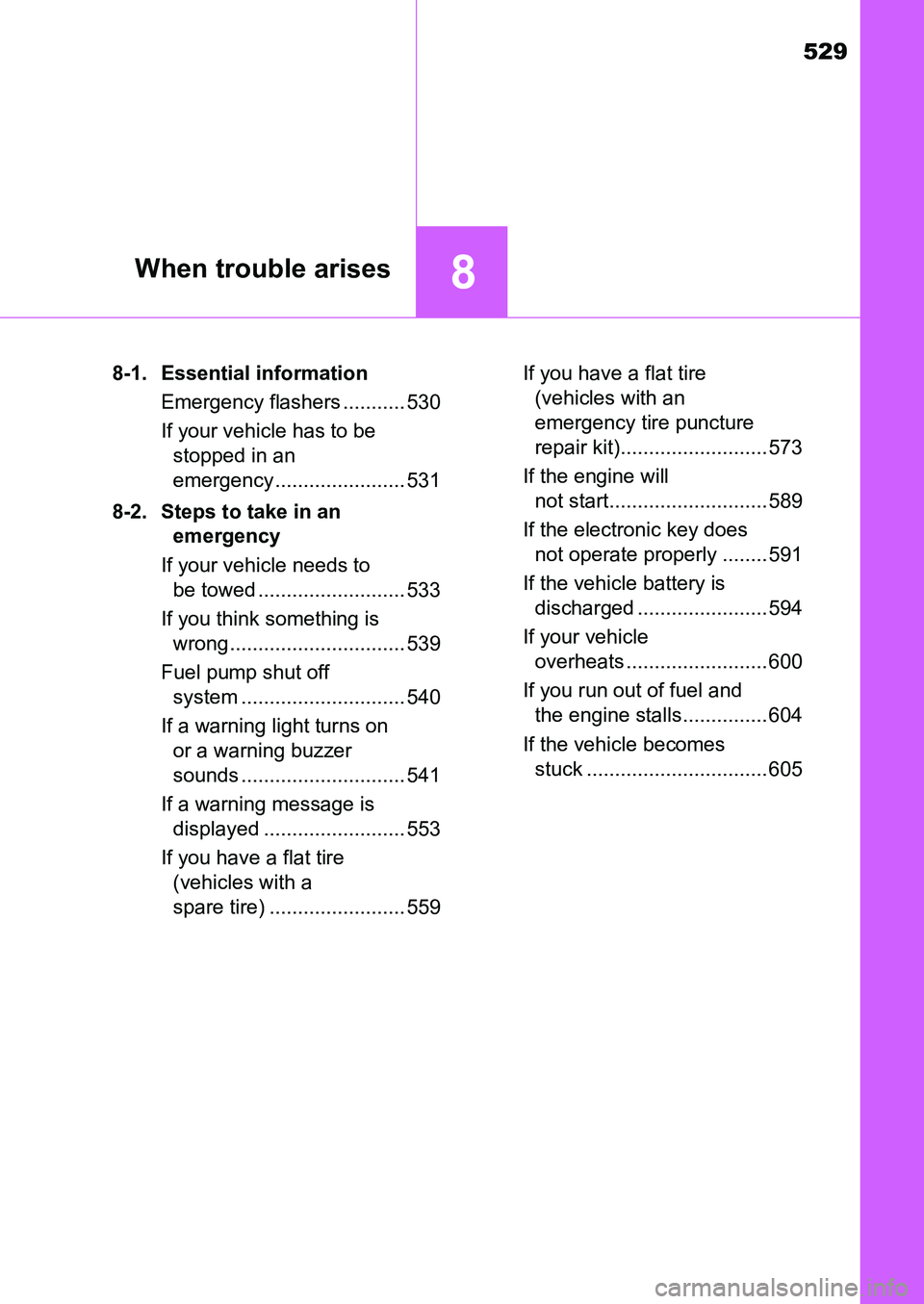

8When trouble arises
UK AURIS_HB_EE (OM12K97E)8-1. Essential information
Emergency flashers ........... 530
If your vehicle has to be
stopped in an
emergency....................... 531
8-2. Steps to take in an
emergency
If your vehicle needs to
be towed .......................... 533
If you think something is
wrong ............................... 539
Fuel pump shut off
system ............................. 540
If a warning light turns on
or a warning buzzer
sounds ............................. 541
If a warning message is
displayed ......................... 553
If you have a flat tire
(vehicles with a
spare tire) ........................ 559If you have a flat tire
(vehicles with an
emergency tire puncture
repair kit).......................... 573
If the engine will
not start............................ 589
If the electronic key does
not operate properly ........ 591
If the vehicle battery is
discharged ....................... 594
If your vehicle
overheats ......................... 600
If you run out of fuel and
the engine stalls............... 604
If the vehicle becomes
stuck ................................ 605
UK AURIS_HB_OM_Europe_OM12K97E.book 529 ページ ２０１６年６月２７日　月曜日　午後５時４２分

530
UK AURIS_HB_EE (OM12K97E)
8-1. Essential information

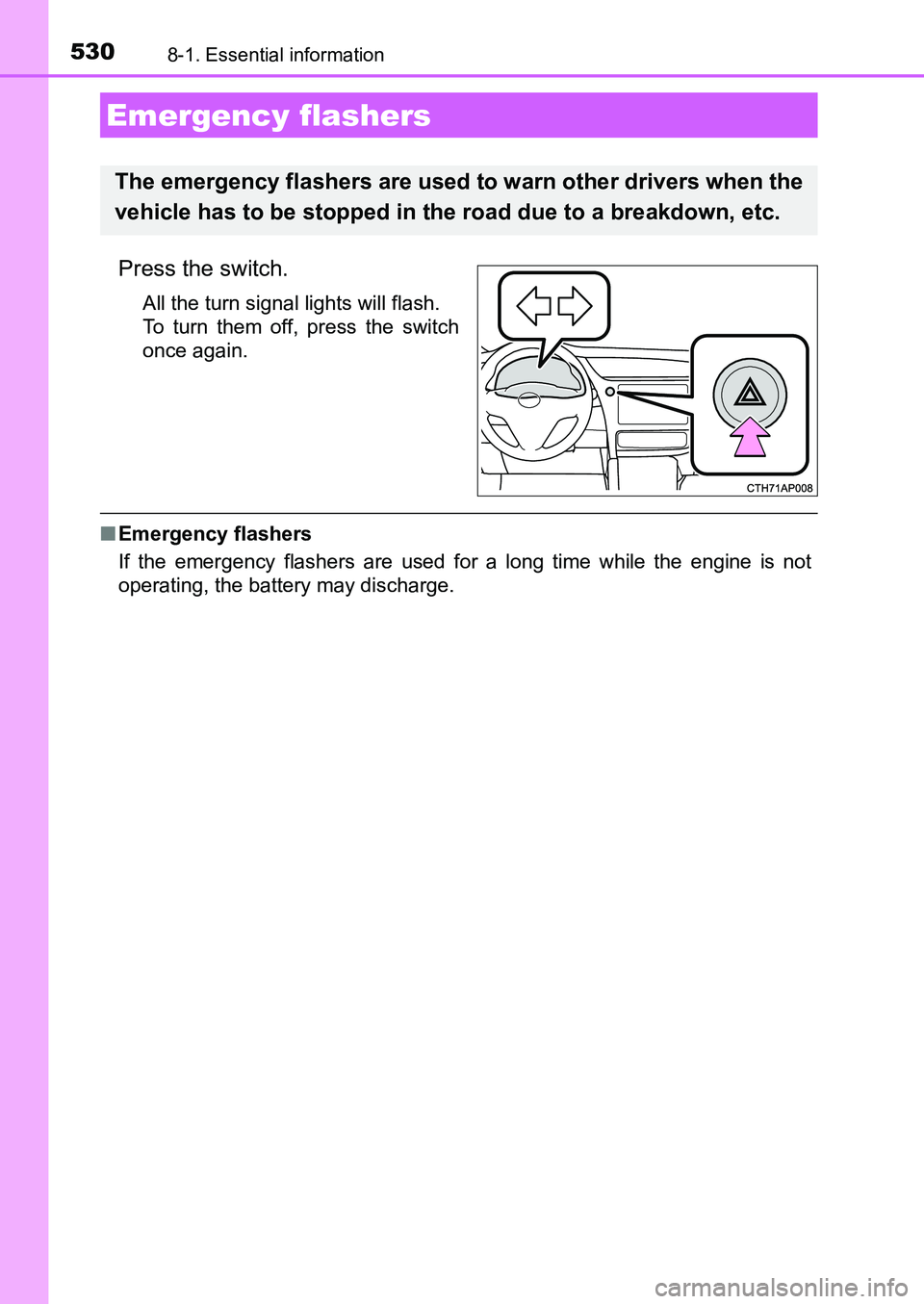

Press the switch.
All the turn signal lights will flash.
To turn them off, press the switch
once again.
■Emergency flashers
If the emergency flashers are used for a long time while the engine is not
operating, the battery may discharge.
Emergency flashers
The emergency flashers are used to warn other drivers when the
vehicle has to be stopped in the road due to a breakdown, etc.
