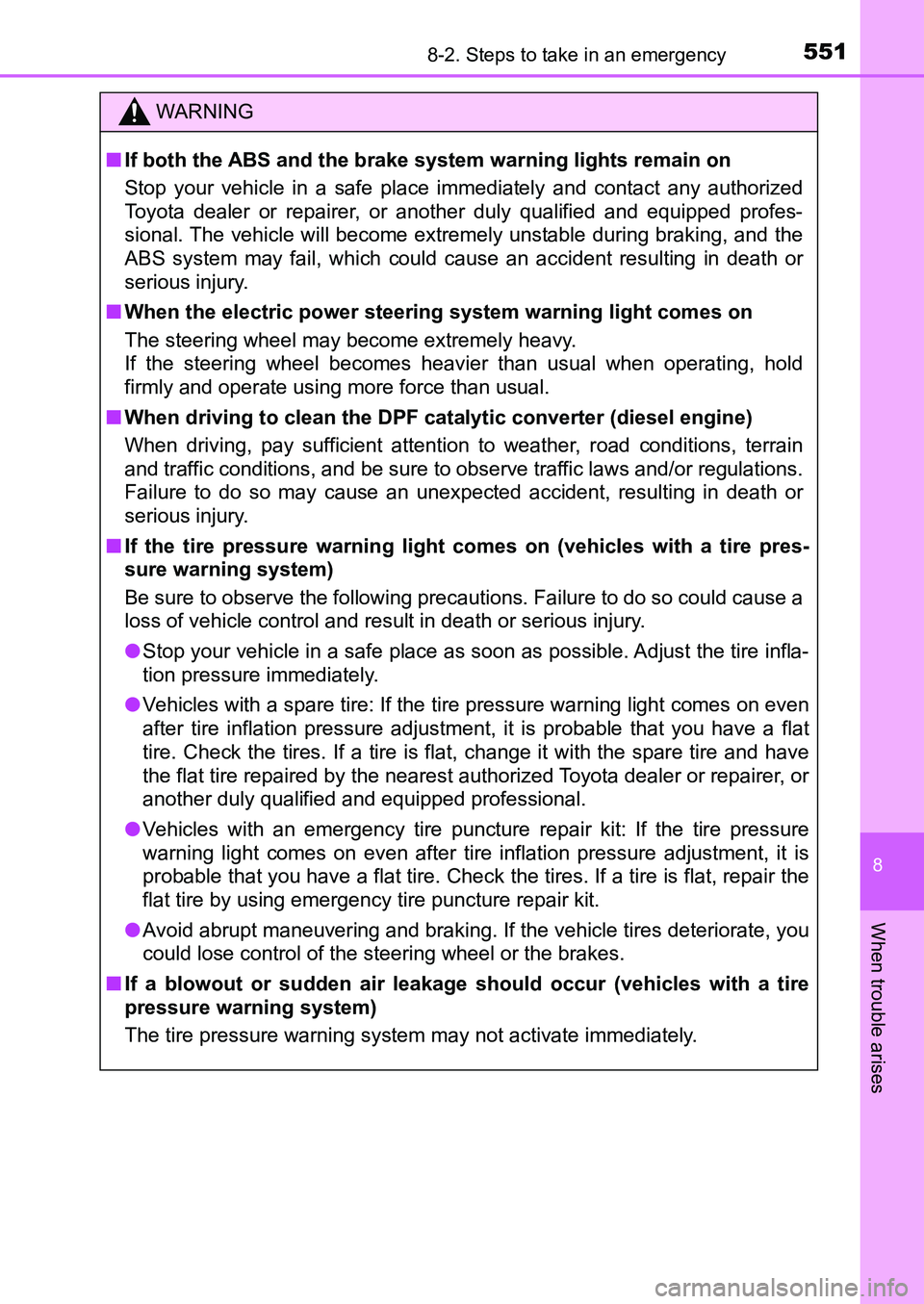

5518-2. Steps to take in an emergency
UK AURIS_HB_EE (OM12K97E)
8
When trouble arises
WARNING
■If both the ABS and the brake system warning lights remain on
Stop your vehicle in a safe place immediately and contact any authorized
Toyota dealer or repairer, or another duly qualified and equipped profes-
sional. The vehicle will become extremely unstable during braking, and the
ABS system may fail, which could cause an accident resulting in death or
serious injury.
■When the electric power steering system warning light comes on
The steering wheel may become extremely heavy.
If the steering wheel becomes heavier than usual when operating, hold
firmly and operate using more force than usual.
■When driving to clean the DPF catalytic converter (diesel engine)
When driving, pay sufficient attention to weather, road conditions, terrain
and traffic conditions, and be sure to observe traffic laws and/or regulations.
Failure to do so may cause an unexpected accident, resulting in death or
serious injury.
■If the tire pressure warning light comes on (vehicles with a tire pres-
sure warning system)
Be sure to observe the following precautions. Failure to do so could cause a
loss of vehicle control and result in death or serious injury.
●Stop your vehicle in a safe place as soon as possible. Adjust the tire infla-
tion pressure immediately.
●Vehicles with a spare tire: If the tire pressure warning light comes on even
after tire inflation pressure adjustment, it is probable that you have a flat
tire. Check the tires. If a tire is flat, change it with the spare tire and have
the flat tire repaired by the nearest authorized Toyota dealer or repairer, or
another duly qualified and equipped professional.
●Vehicles with an emergency tire puncture repair kit: If the tire pressure
warning light comes on even after tire inflation pressure adjustment, it is
probable that you have a flat tire. Check the tires. If a tire is flat, repair the
flat tire by using emergency tire puncture repair kit.
●Avoid abrupt maneuvering and braking. If the vehicle tires deteriorate, you
could lose control of the steering wheel or the brakes.
■If a blowout or sudden air leakage should occur (vehicles with a tire
pressure warning system)
The tire pressure warning system may not activate immediately.
UK AURIS_HB_OM_Europe_OM12K97E.book 551 ページ ２０１６年６月２７日　月曜日　午後５時４２分

5528-2. Steps to take in an emergency
UK AURIS_HB_EE (OM12K97E)

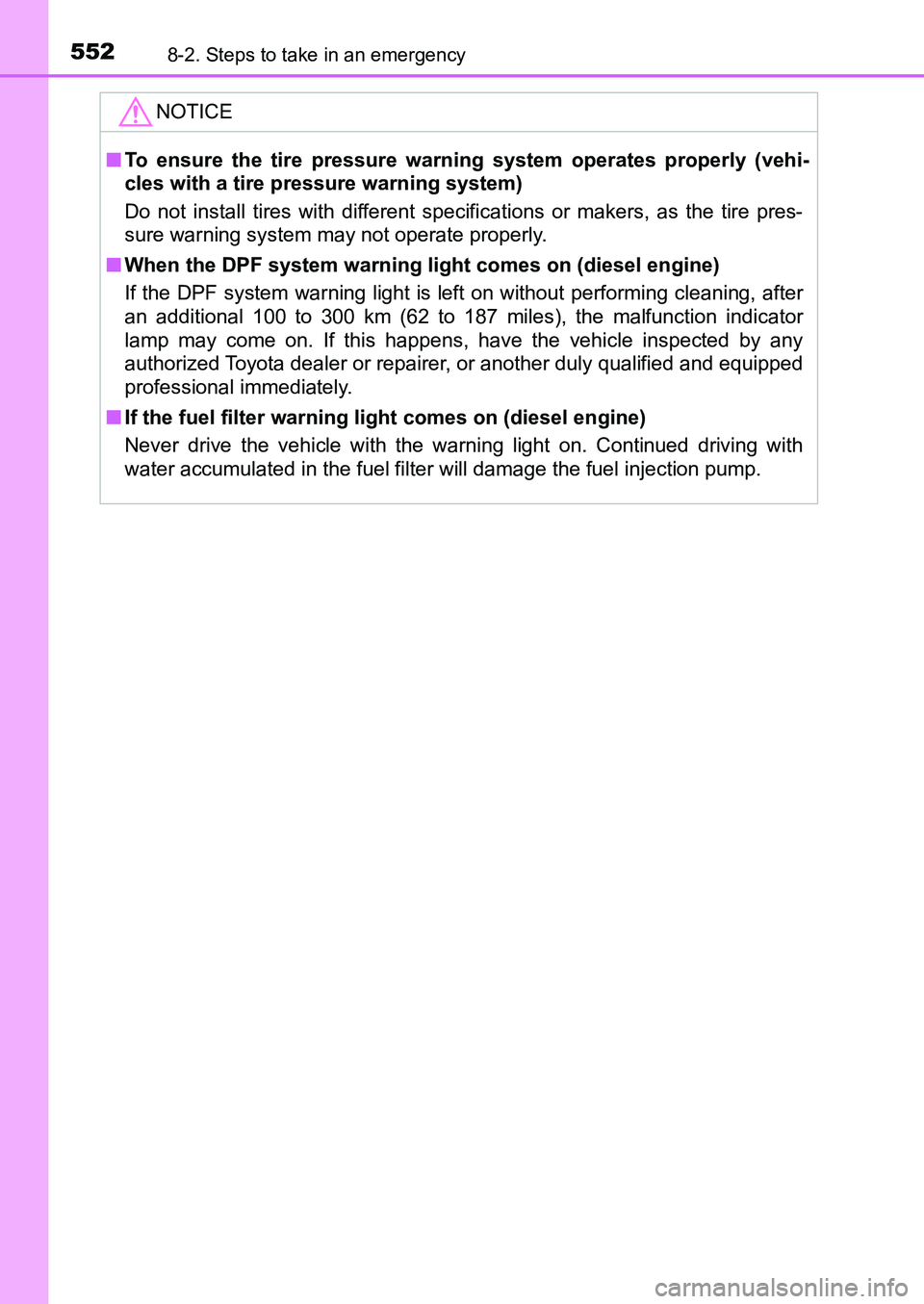

NOTICE
■To ensure the tire pressure warning system operates properly (vehi-
cles with a tire pressure warning system)
Do not install tires with different specifications or makers, as the tire pres-
sure warning system may not operate properly.
■When the DPF system warning light comes on (diesel engine)
If the DPF system warning light is left on without performing cleaning, after
an additional 100 to 300 km (62 to 187 miles), the malfunction indicator
lamp may come on. If this happens, have the vehicle inspected by any
authorized Toyota dealer or repairer, or another duly qualified and equipped
professional immediately.
■If the fuel filter warning light comes on (diesel engine)
Never drive the vehicle with the warning light on. Continued driving with
water accumulated in the fuel filter will damage the fuel injection pump.
UK AURIS_HB_OM_Europe_OM12K97E.book 552 ページ ２０１６年６月２７日　月曜日　午後５時４２分

5538-2. Steps to take in an emergency
UK AURIS_HB_EE (OM12K97E)
8
When trouble arises
Master warning light
The master warning light also
comes on or flashes in order to
indicate that a message is cur-
rently being displayed on the multi-
information display.
Multi-information display
If any of the message or indicator comes on again after the following
actions have been performed, contact any authorized Toyota dealer or
repairer, or another duly qualified and equipped professional.
The warning lights and warning buzzers operate as follows depending
on the content of the message. If a message indicates the need for
inspection by a dealer, have the vehicle inspected by any authorized
Toyota dealer or repairer, or another duly qualified and equipped pro-
fessional immediately.

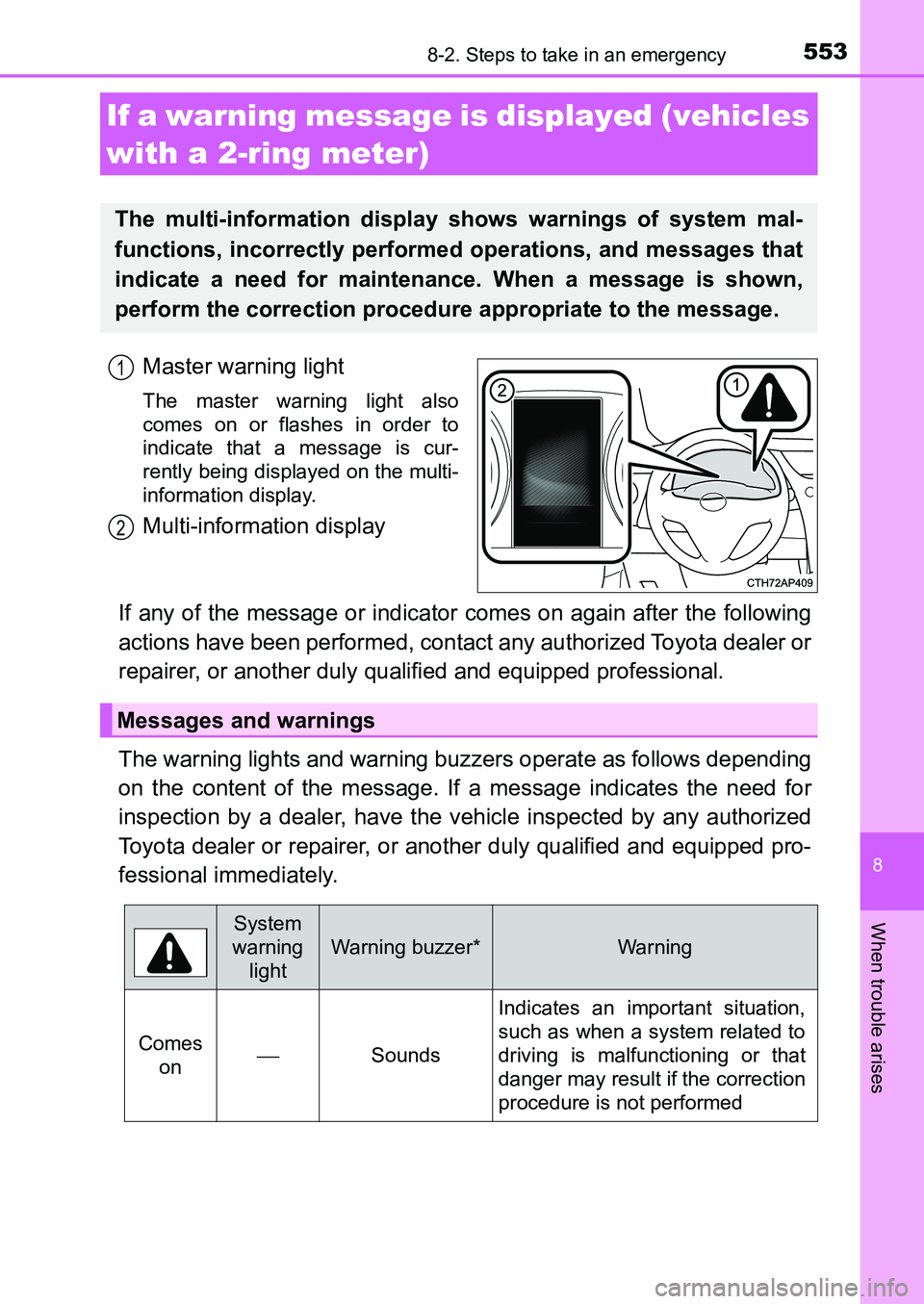

If a warning message is displayed (vehicles
with a 2-ring meter)
The multi-information display shows warnings of system mal-
functions, incorrectly performed operations, and messages that
indicate a need for maintenance. When a message is shown,
perform the correction procedure appropriate to the message.
1
2
Messages and warnings
System
warning
light
Warning buzzer*Warning
Comes
onSoundsIndicates an important situation,
such as when a system related to
driving is malfunctioning or that
danger may result if the correction
procedure is not performed
UK AURIS_HB_OM_Europe_OM12K97E.book 553 ページ ２０１６年６月２７日　月曜日　午後５時４２分

5548-2. Steps to take in an emergency
UK AURIS_HB_EE (OM12K97E)

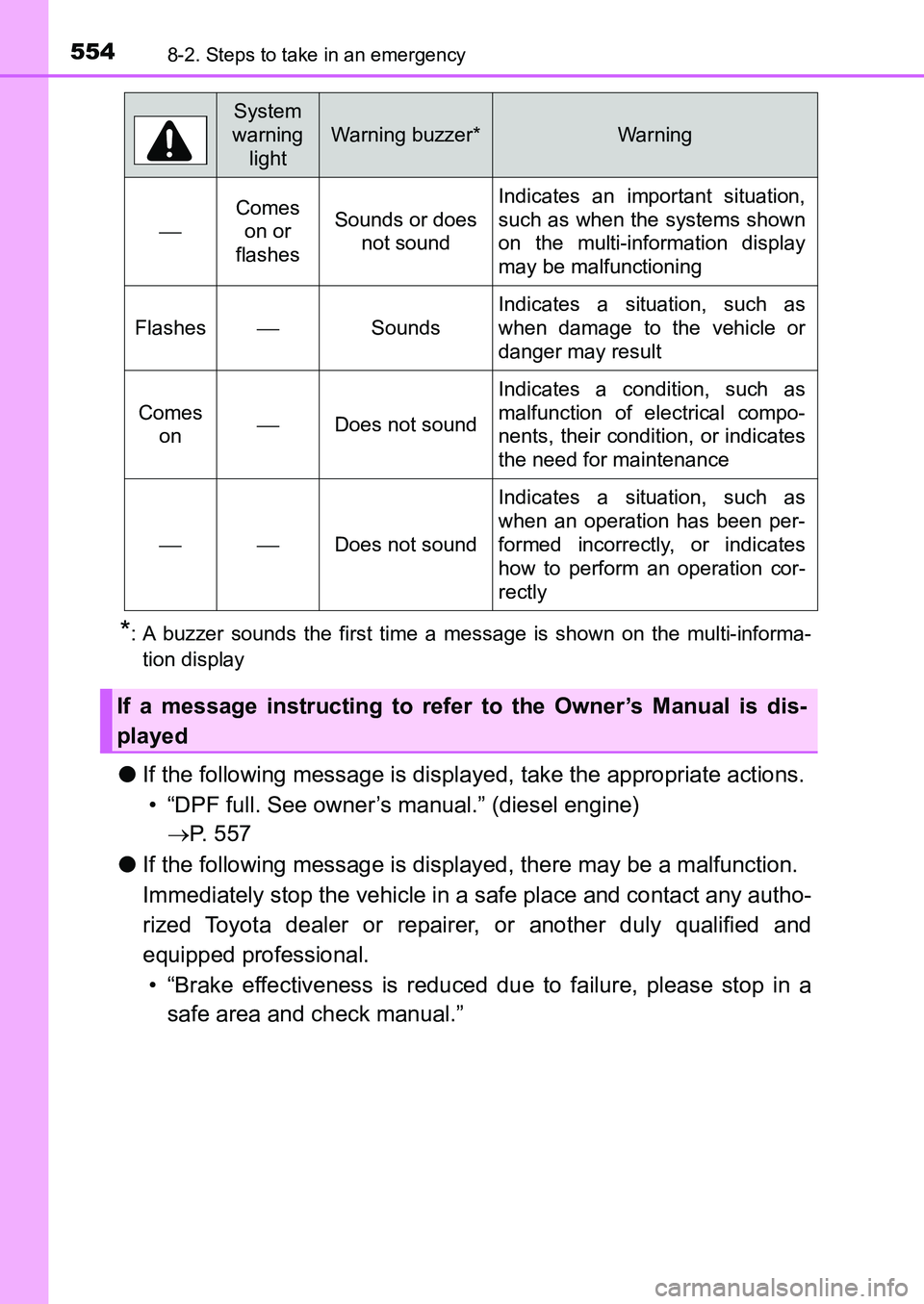

*: A buzzer sounds the first time a message is shown on the multi-informa-
tion display
●If the following message is displayed, take the appropriate actions.
• “DPF full. See owner’s manual.” (diesel engine)
P. 5 5 7
●If the following message is displayed, there may be a malfunction.
Immediately stop the vehicle in a safe place and contact any autho-
rized Toyota dealer or repairer, or another duly qualified and
equipped professional.
• “Brake effectiveness is reduced due to failure, please stop in a
safe area and check manual.”

Comes
on or
flashesSounds or does
not sound
Indicates an important situation,
such as when the systems shown
on the multi-information display
may be malfunctioning
FlashesSounds
Indicates a situation, such as
when damage to the vehicle or
danger may result
Comes
onDoes not sound
Indicates a condition, such as
malfunction of electrical compo-
nents, their condition, or indicates
the need for maintenance
Does not sound
Indicates a situation, such as
when an operation has been per-
formed incorrectly, or indicates
how to perform an operation cor-
rectly
If a message instructing to refer to the Owner’s Manual is dis-
played
System
warning
light
Warning buzzer*Warning
UK AURIS_HB_OM_Europe_OM12K97E.book 554 ページ ２０１６年６月２７日　月曜日　午後５時４２分

5558-2. Steps to take in an emergency
UK AURIS_HB_EE (OM12K97E)
8
When trouble arises

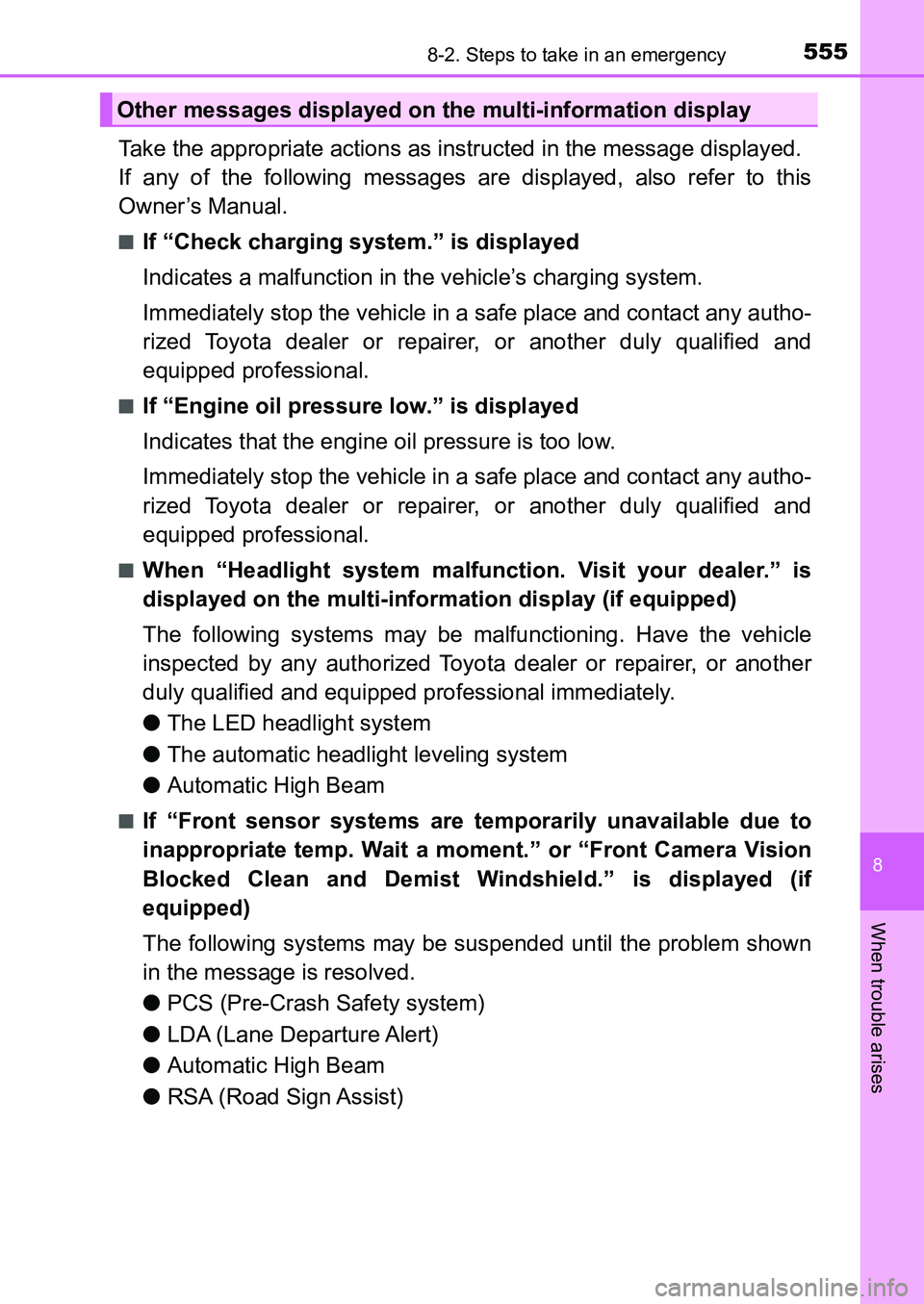

Take the appropriate actions as instructed in the message displayed.
If any of the following messages are displayed, also refer to this
Owner’s Manual.
■If “Check charging system.” is displayed
Indicates a malfunction in the vehicle’s charging system.
Immediately stop the vehicle in a safe place and contact any autho-
rized Toyota dealer or repairer, or another duly qualified and
equipped professional.
■If “Engine oil pressure low.” is displayed
Indicates that the engine oil pressure is too low.
Immediately stop the vehicle in a safe place and contact any autho-
rized Toyota dealer or repairer, or another duly qualified and
equipped professional.
■When “Headlight system malfunction. Visit your dealer.” is
displayed on the multi-information display (if equipped)
The following systems may be malfunctioning. Have the vehicle
inspected by any authorized Toyota dealer or repairer, or another
duly qualified and equipped professional immediately.
●The LED headlight system
●The automatic headlight leveling system
●Automatic High Beam
■If “Front sensor systems are temporarily unavailable due to
inappropriate temp. Wait a moment.” or “Front Camera Vision
Blocked Clean and Demist Windshield.” is displayed (if
equipped)
The following systems may be suspended until the problem shown
in the message is resolved.
●PCS (Pre-Crash Safety system)
●LDA (Lane Departure Alert)
●Automatic High Beam
●RSA (Road Sign Assist)
Other messages displayed on the multi-information display
UK AURIS_HB_OM_Europe_OM12K97E.book 555 ページ ２０１６年６月２７日　月曜日　午後５時４２分

5568-2. Steps to take in an emergency
UK AURIS_HB_EE (OM12K97E)■

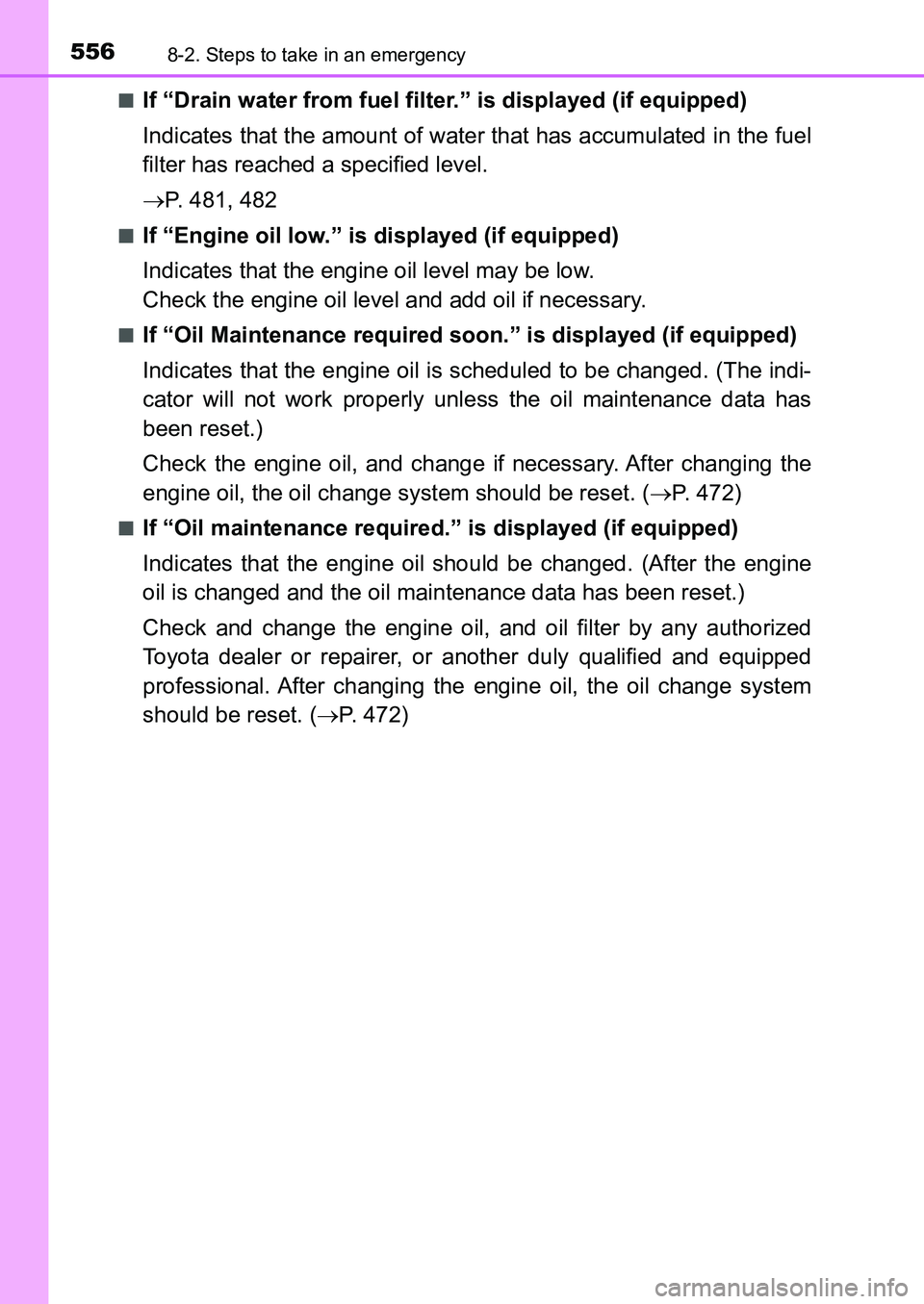

If “Drain water from fuel filter.” is displayed (if equipped)
Indicates that the amount of water that has accumulated in the fuel
filter has reached a specified level.
P. 481, 482
■If “Engine oil low.” is displayed (if equipped)
Indicates that the engine oil level may be low.
Check the engine oil level and add oil if necessary.
■If “Oil Maintenance required soon.” is displayed (if equipped)
Indicates that the engine oil is scheduled to be changed. (The indi-
cator will not work properly unless the oil maintenance data has
been reset.)
Check the engine oil, and change if necessary. After changing the
engine oil, the oil change system should be reset. (P. 472)
■If “Oil maintenance required.” is displayed (if equipped)
Indicates that the engine oil should be changed. (After the engine
oil is changed and the oil maintenance data has been reset.)
Check and change the engine oil, and oil filter by any authorized
Toyota dealer or repairer, or another duly qualified and equipped
professional. After changing the engine oil, the oil change system
should be reset. (P. 472)
UK AURIS_HB_OM_Europe_OM12K97E.book 556 ページ ２０１６年６月２７日　月曜日　午後５時４２分

5578-2. Steps to take in an emergency
UK AURIS_HB_EE (OM12K97E)
8
When trouble arises

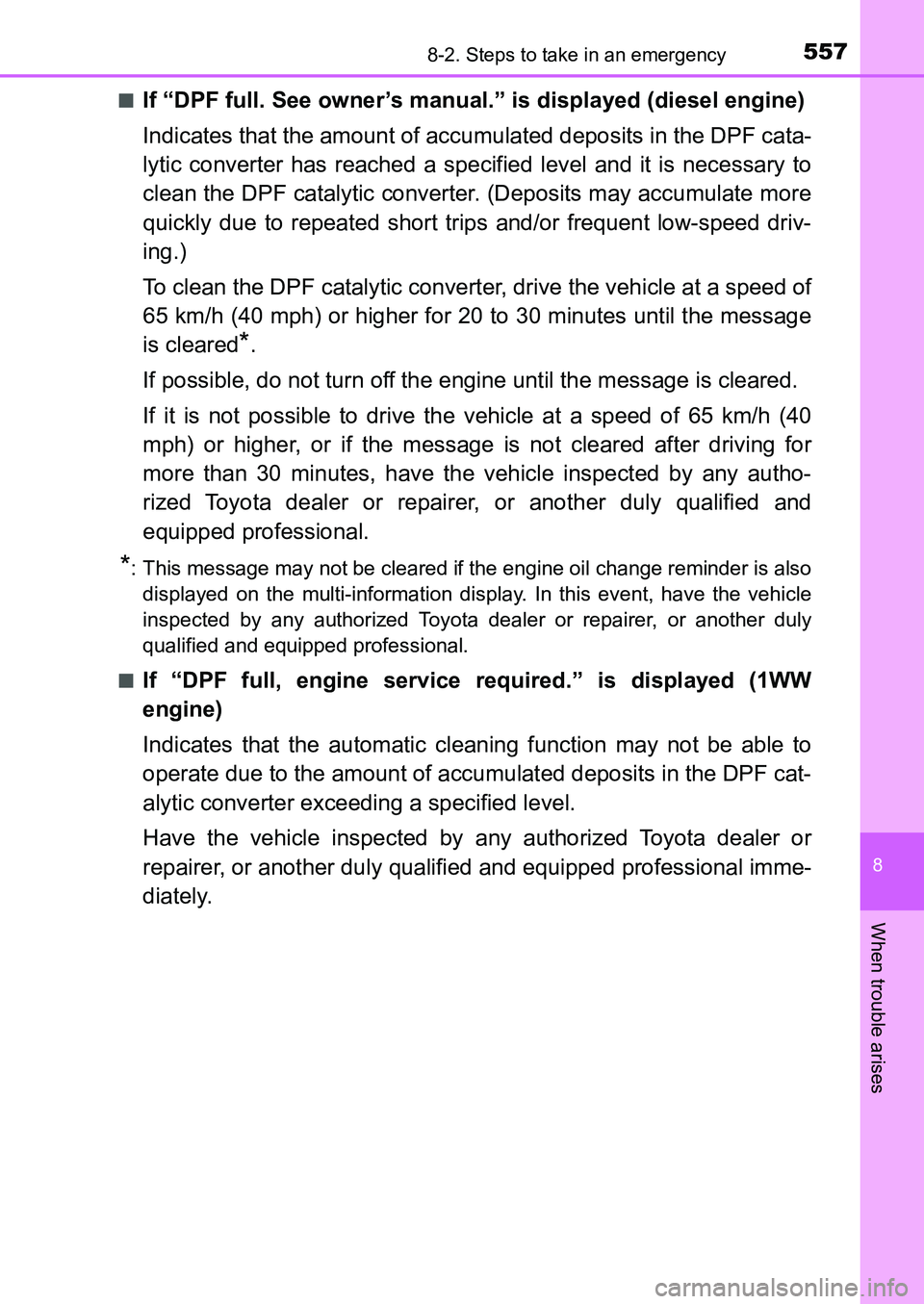

■If “DPF full. See owner’s manual.” is displayed (diesel engine)
Indicates that the amount of accumulated deposits in the DPF cata-
lytic converter has reached a specified level and it is necessary to
clean the DPF catalytic converter. (Deposits may accumulate more
quickly due to repeated short trips and/or frequent low-speed driv-
ing.)
To clean the DPF catalytic converter, drive the vehicle at a speed of
65 km/h (40 mph) or higher for 20 to 30 minutes until the message
is cleared
*.
If possible, do not turn off the engine until the message is cleared.
If it is not possible to drive the vehicle at a speed of 65 km/h (40
mph) or higher, or if the message is not cleared after driving for
more than 30 minutes, have the vehicle inspected by any autho-
rized Toyota dealer or repairer, or another duly qualified and
equipped professional.
*: This message may not be cleared if the engine oil change reminder is also
displayed on the multi-information display. In this event, have the vehicle
inspected by any authorized Toyota dealer or repairer, or another duly
qualified and equipped professional.
■
If “DPF full, engine service required.” is displayed (1WW
engine)
Indicates that the automatic cleaning function may not be able to
operate due to the amount of accumulated deposits in the DPF cat-
alytic converter exceeding a specified level.
Have the vehicle inspected by any authorized Toyota dealer or
repairer, or another duly qualified and equipped professional imme-
diately.
UK AURIS_HB_OM_Europe_OM12K97E.book 557 ページ ２０１６年６月２７日　月曜日　午後５時４２分

5588-2. Steps to take in an emergency
UK AURIS_HB_EE (OM12K97E)

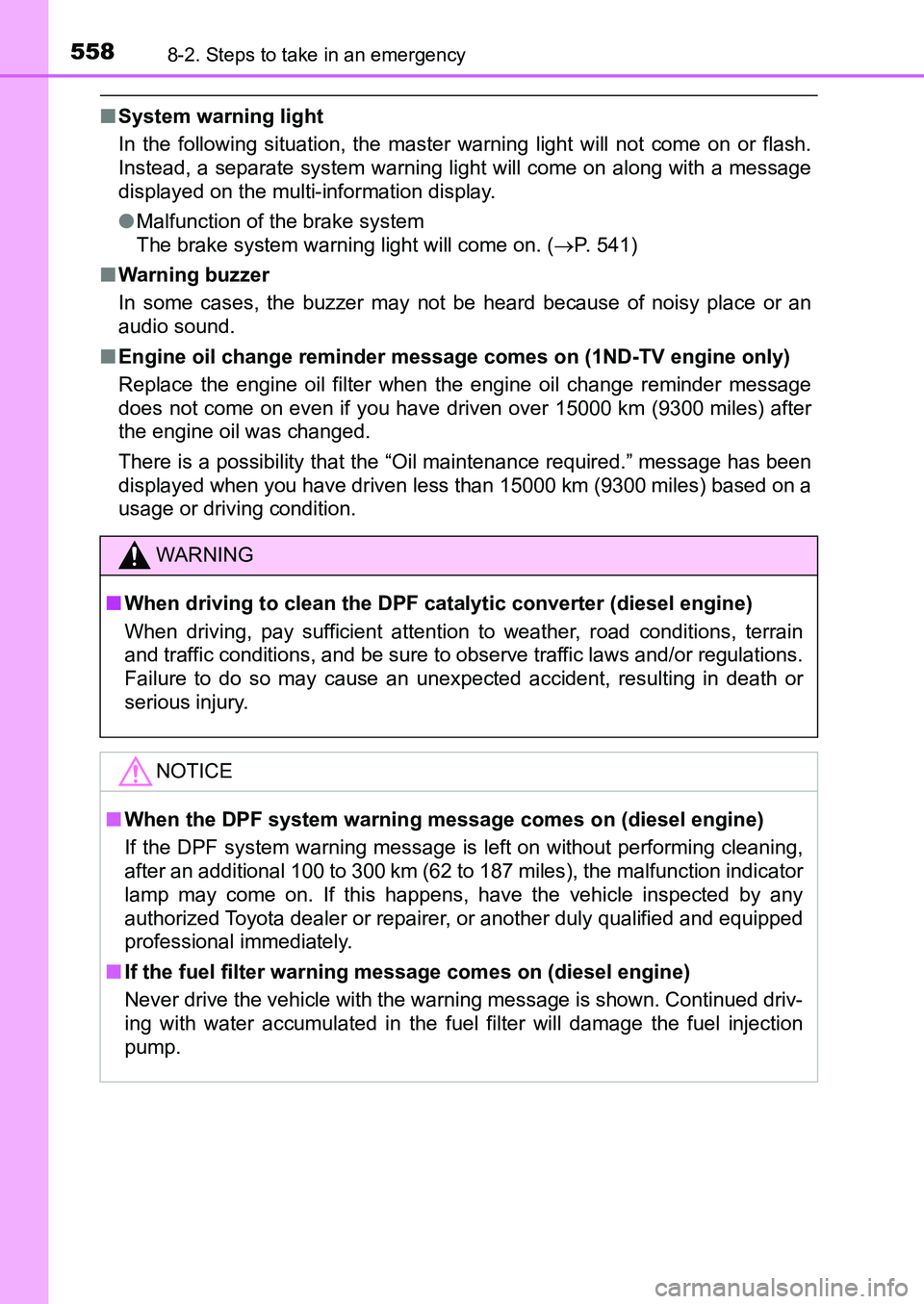

■System warning light
In the following situation, the master warning light will not come on or flash.
Instead, a separate system warning light will come on along with a message
displayed on the multi-information display.
●Malfunction of the brake system
The brake system warning light will come on. (P. 541)
■Warning buzzer
In some cases, the buzzer may not be heard because of noisy place or an
audio sound.
■Engine oil change reminder message comes on (1ND-TV engine only)
Replace the engine oil filter when the engine oil change reminder message
does not come on even if you have driven over 15000 km (9300 miles) after
the engine oil was changed.
There is a possibility that the “Oil maintenance required.” message has been
displayed when you have driven less than 15000 km (9300 miles) based on a
usage or driving condition.
WARNING
■When driving to clean the DPF catalytic converter (diesel engine)
When driving, pay sufficient attention to weather, road conditions, terrain
and traffic conditions, and be sure to observe traffic laws and/or regulations.
Failure to do so may cause an unexpected accident, resulting in death or
serious injury.
NOTICE
■When the DPF system warning message comes on (diesel engine)
If the DPF system warning message is left on without performing cleaning,
after an additional 100 to 300 km (62 to 187 miles), the malfunction indicator
lamp may come on. If this happens, have the vehicle inspected by any
authorized Toyota dealer or repairer, or another duly qualified and equipped
professional immediately.
■If the fuel filter warning message comes on (diesel engine)
Never drive the vehicle with the warning message is shown. Continued driv-
ing with water accumulated in the fuel filter will damage the fuel injection
pump.
UK AURIS_HB_OM_Europe_OM12K97E.book 558 ページ ２０１６年６月２７日　月曜日　午後５時４２分

5598-2. Steps to take in an emergency
UK AURIS_HB_EE (OM12K97E)
8
When trouble arises
●Stop the vehicle in a safe place on a hard, flat surface.
●Set the parking brake.
●Shift the shift lever to P (Multidrive) or R (manual transmission).
●Stop the engine.
●Turn on the emergency flashers. (P. 530)

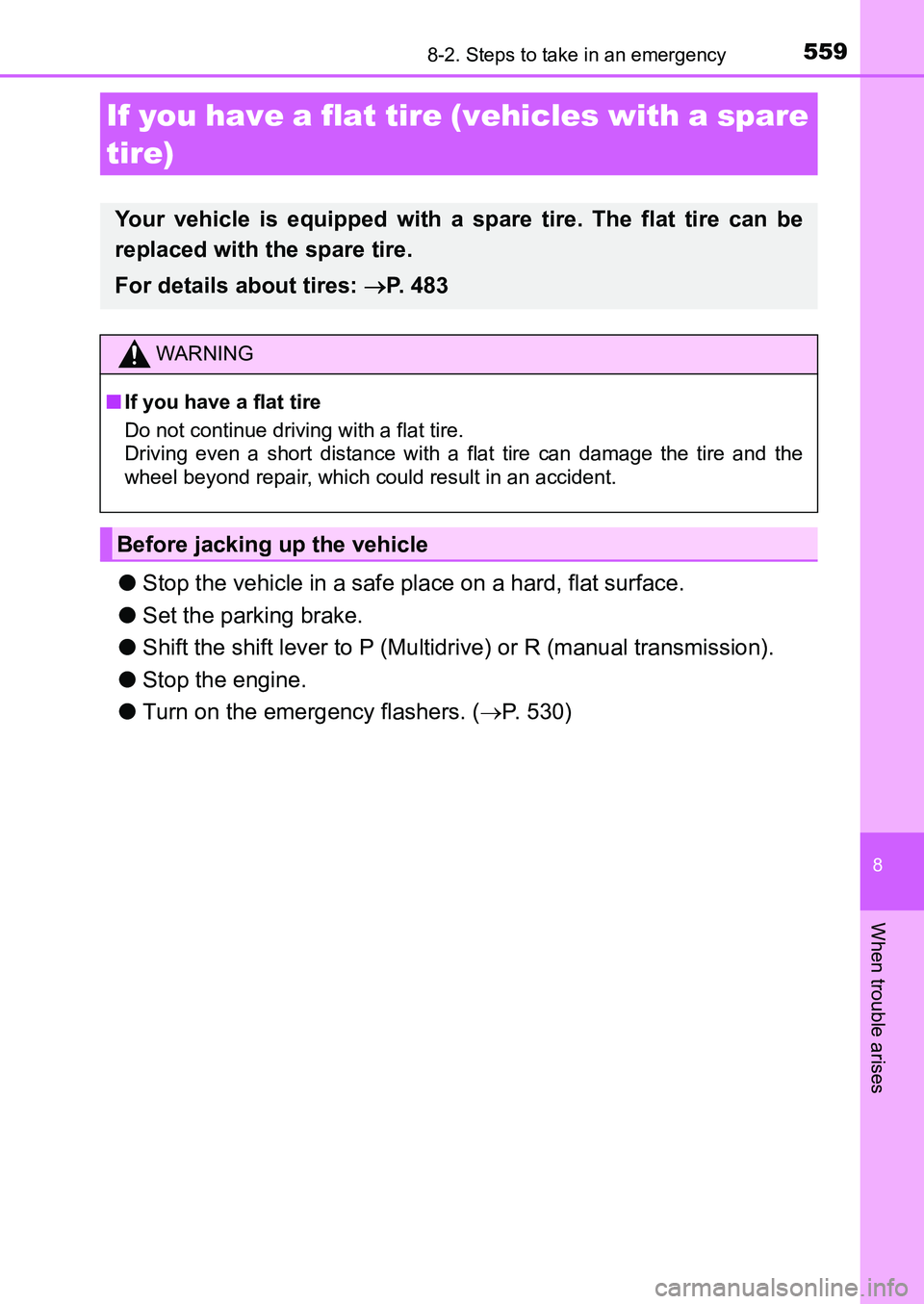

If you have a flat tire (vehicles with a spare
tire)
Your vehicle is equipped with a spare tire. The flat tire can be
replaced with the spare tire.
For details about tires: P. 483
WARNING
■If you have a flat tire
Do not continue driving with a flat tire.
Driving even a short distance with a flat tire can damage the tire and the
wheel beyond repair, which could result in an accident.
Before jacking up the vehicle
UK AURIS_HB_OM_Europe_OM12K97E.book 559 ページ ２０１６年６月２７日　月曜日　午後５時４２分

5608-2. Steps to take in an emergency
UK AURIS_HB_EE (OM12K97E)
Vehicles with a compact spare tire
Location of the spare tire, jack and tools
Tool bag
Wheel nut wrench
Jack handleTowing eyelet
Jack
Spare tire1
2
3
4
5
6
UK AURIS_HB_OM_Europe_OM12K97E.book 560 ページ ２０１６年６月２７日　月曜日　午後５時４２分
