When trouble arises

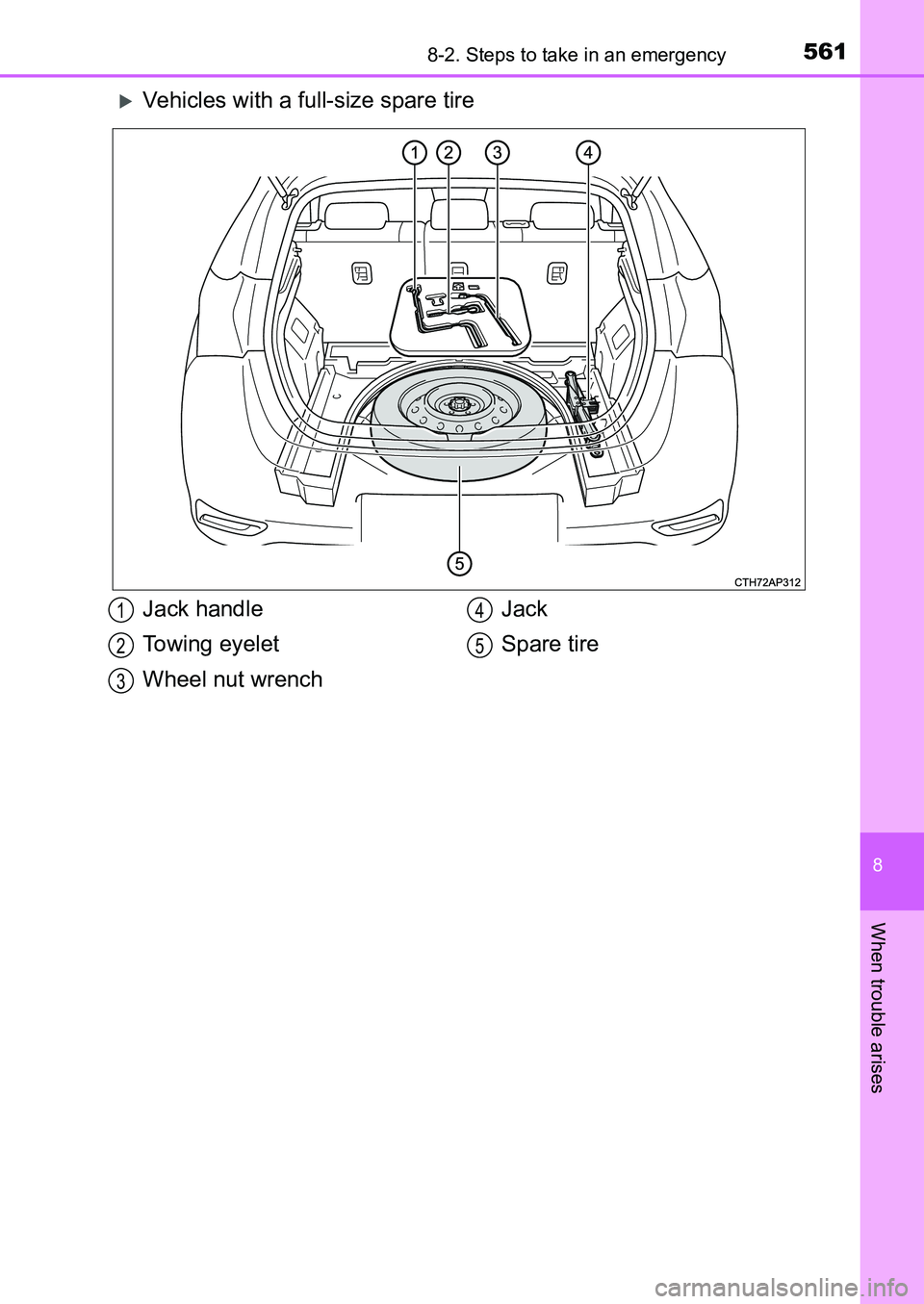

Vehicles with a full-size spare tire
Jack handle
Towing eyelet
Wheel nut wrenchJack
Spare tire1
2
3
4
5
UK AURIS_HB_OM_Europe_OM12K97E.book 561 ページ ２０１６年６月２７日　月曜日　午後５時４２分

5628-2. Steps to take in an emergency
UK AURIS_HB_EE (OM12K97E)
Remove the deck mat. (P. 433)
Take out the jack.
For tightening
For loosening
WARNING
■Using the tire jack
Observe the following precautions.
Improper use of the tire jack may cause the vehicle to suddenly fall off the
jack, leading to death or serious injury.
●Do not use the tire jack for any purpose other than replacing tires or install-
ing and removing tire chains.
●Only use the tire jack that comes with this vehicle for replacing a flat tire.
Do not use it on other vehicles, and do not use other tire jacks for replac-
ing tires on this vehicle.
●Put the jack properly in its jack point.
●Do not put any part of your body under the vehicle while it is supported by
the jack.
●Do not start the engine or drive the vehicle while the vehicle is supported
by the jack.
●Do not raise the vehicle while someone is inside.
●When raising the vehicle, do not put an object on or under the jack.
●Do not raise the vehicle to a height greater than that required to replace
the tire.
●Use a jack stand if it is necessary to get under the vehicle.
●When lowering the vehicle, make sure that there is no-one near the vehi-
cle. If there are people nearby, warn them vocally before lowering.

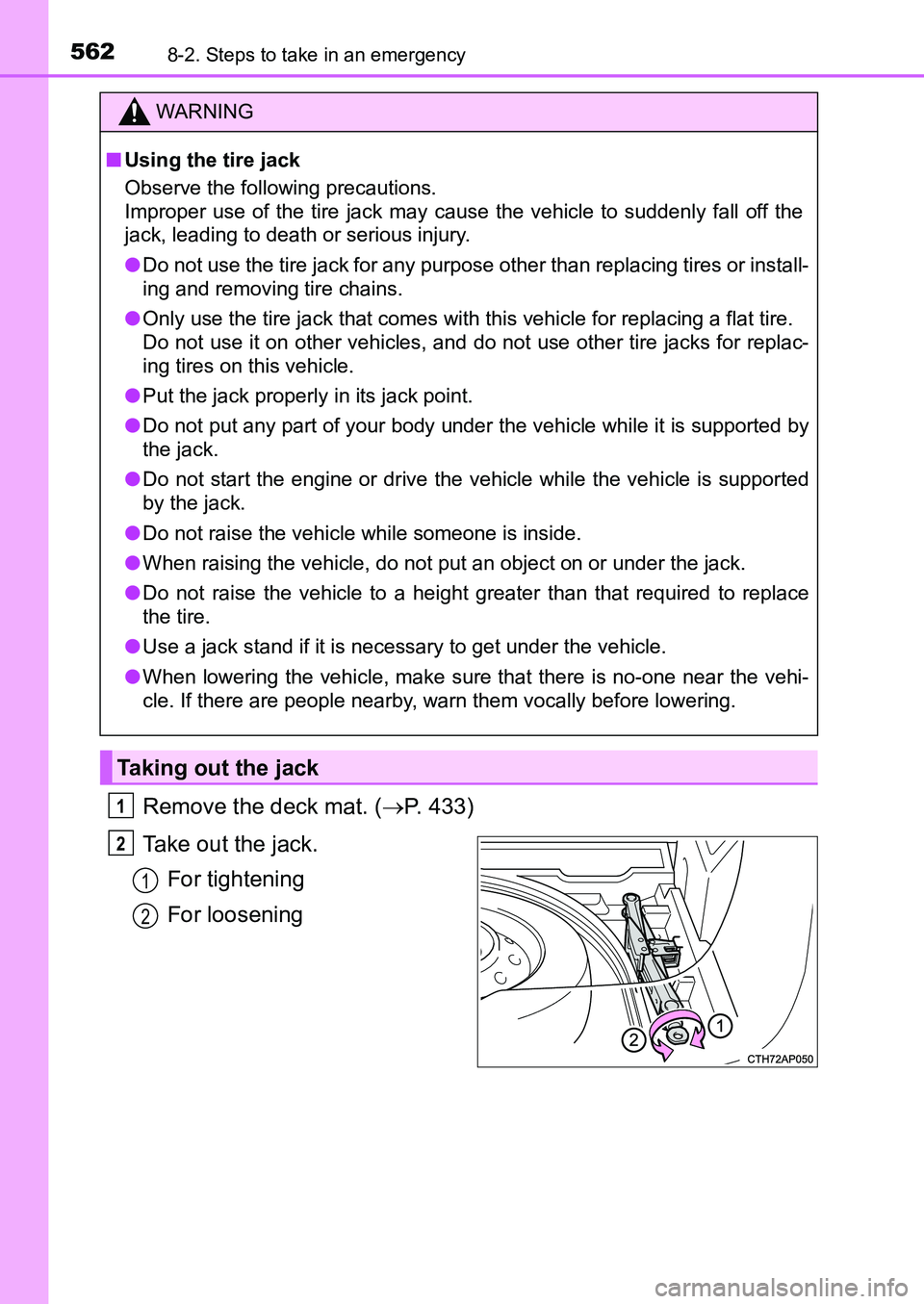

Taking out the jack
1
2
1
2
UK AURIS_HB_OM_Europe_OM12K97E.book 562 ページ ２０１６年６月２７日　月曜日　午後５時４２分

5638-2. Steps to take in an emergency
UK AURIS_HB_EE (OM12K97E)
8
When trouble arises
Remove the deck mat and tray. (P. 433)
Loosen the center fastener that
secures the spare tire.

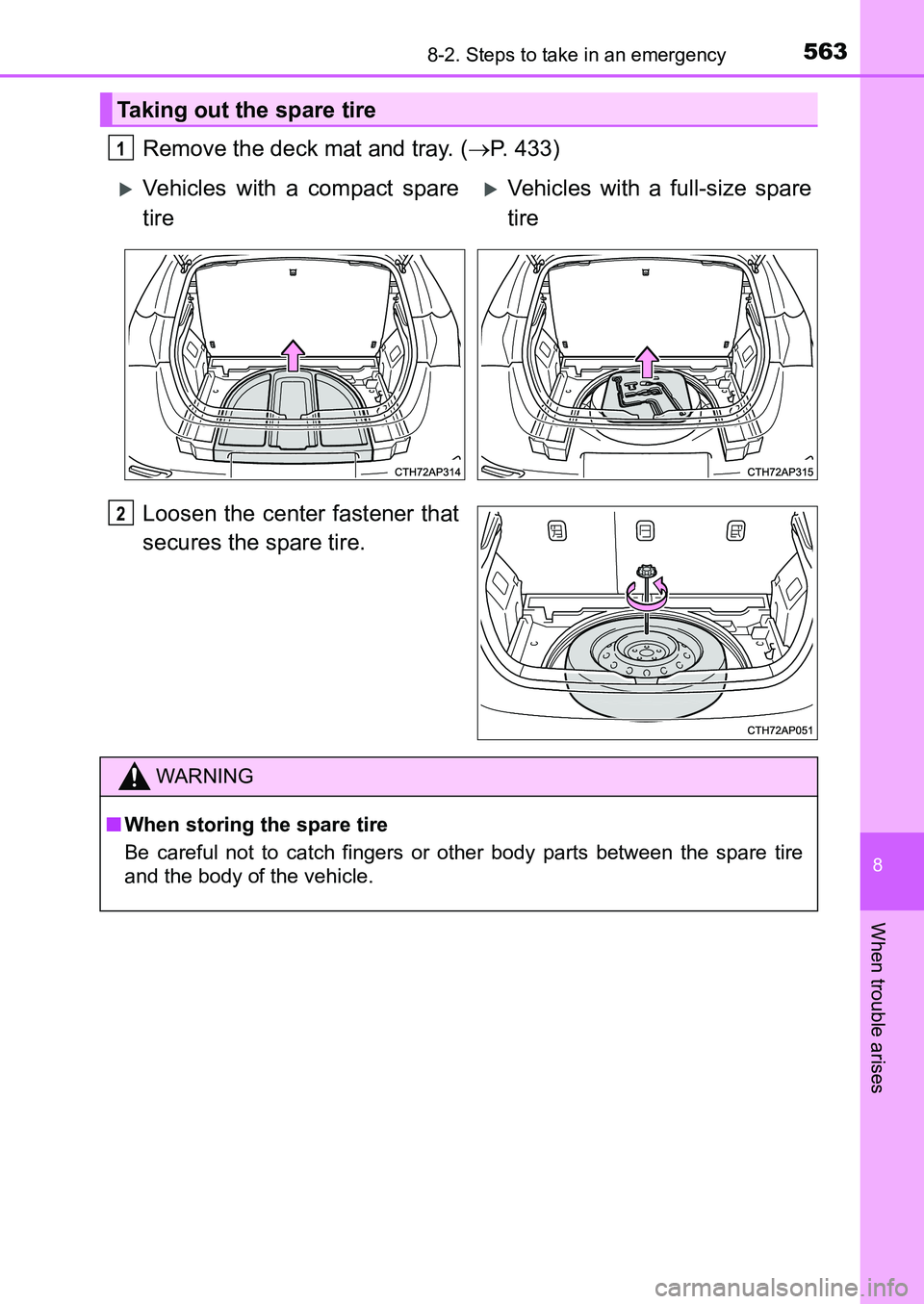

Taking out the spare tire
1
Vehicles with a compact spare
tireVehicles with a full-size spare
tire
2
WARNING
■When storing the spare tire
Be careful not to catch fingers or other body parts between the spare tire
and the body of the vehicle.
UK AURIS_HB_OM_Europe_OM12K97E.book 563 ページ ２０１６年６月２７日　月曜日　午後５時４２分

5648-2. Steps to take in an emergency
UK AURIS_HB_EE (OM12K97E)
Chock the tires.
For vehicles with steel wheels,
remove the wheel ornament
using the wrench.
To protect the wheel ornament,
place a rag between the wrench
and the wheel ornament.
Slightly loosen the wheel nuts
(one turn).

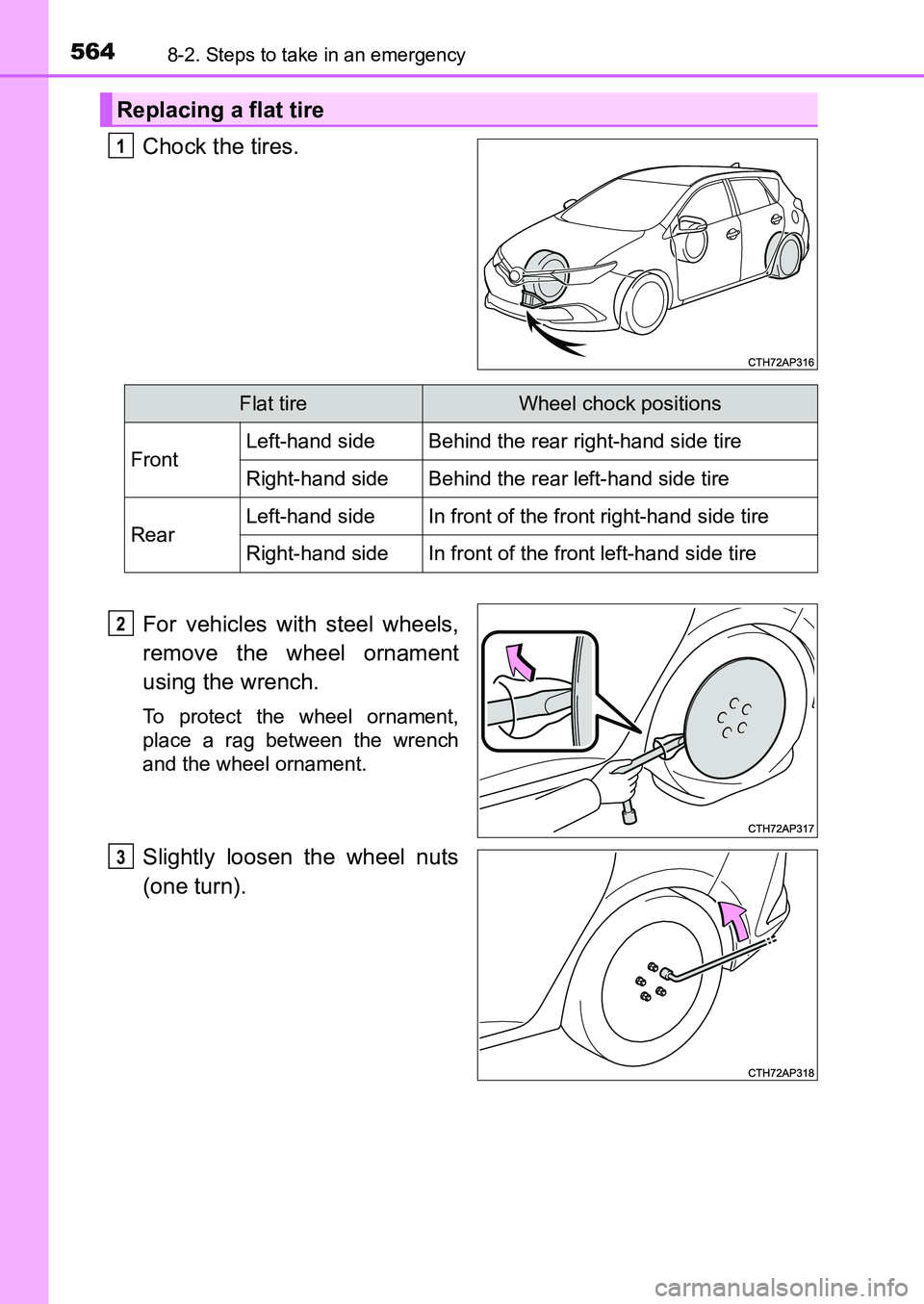

Replacing a flat tire
1
Flat tireWheel chock positions
FrontLeft-hand sideBehind the rear right-hand side tire
Right-hand sideBehind the rear left-hand side tire
RearLeft-hand sideIn front of the front right-hand side tire
Right-hand sideIn front of the front left-hand side tire
2
3
UK AURIS_HB_OM_Europe_OM12K97E.book 564 ページ ２０１６年６月２７日　月曜日　午後５時４２分

5658-2. Steps to take in an emergency
UK AURIS_HB_EE (OM12K97E)
8
When trouble arises

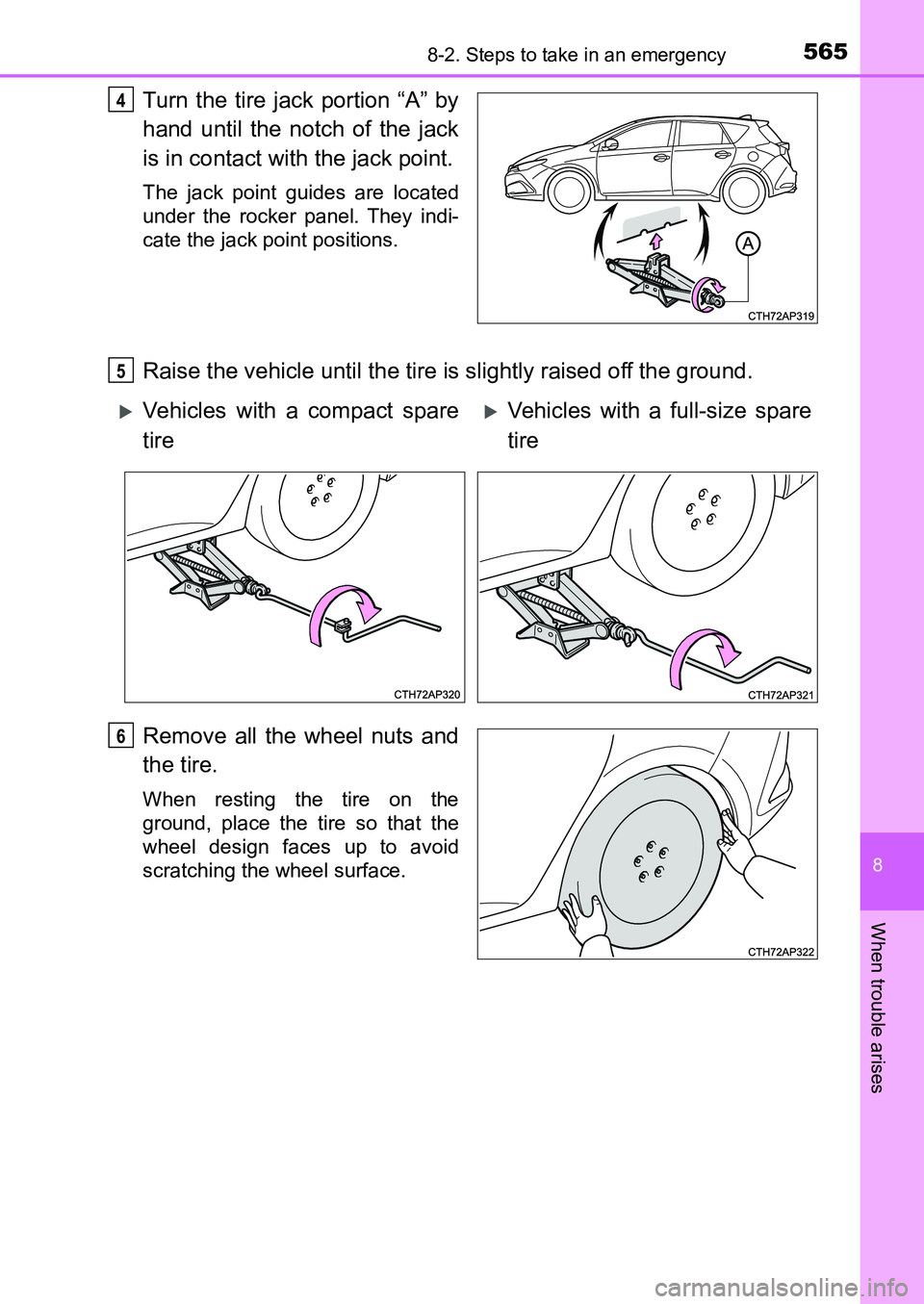

Turn the tire jack portion “A” by
hand until the notch of the jack
is in contact with the jack point.
The jack point guides are located
under the rocker panel. They indi-
cate the jack point positions.
Raise the vehicle until the tire is slightly raised off the ground.
Remove all the wheel nuts and
the tire.
When resting the tire on the
ground, place the tire so that the
wheel design faces up to avoid
scratching the wheel surface.
4
5
Vehicles with a compact spare
tireVehicles with a full-size spare
tire
6
UK AURIS_HB_OM_Europe_OM12K97E.book 565 ページ ２０１６年６月２７日　月曜日　午後５時４２分

5668-2. Steps to take in an emergency
UK AURIS_HB_EE (OM12K97E)
Remove any dirt or foreign mat-
ter from the wheel contact sur-
face.
If foreign matter is on the wheel
contact surface, the wheel nuts
may loosen while the vehicle is in
motion, causing the tire to come
off.
WARNING
■Replacing a flat tire
●Do not touch the disc wheels or the area around the brakes immediately
after the vehicle has been driven.
After the vehicle has been driven the disc wheels and the area around the
brakes will be extremely hot. Touching these areas with hands, feet or
other body parts while changing a tire, etc. may result in burns.
●Failure to follow these precautions could cause the wheel nuts to loosen
and the tire to fall off, resulting in death or serious injury.
• Never use oil or grease on the wheel bolts or wheel nuts.
Oil and grease may cause the wheel nuts to be excessively tightened,
leading to bolt or disc wheel damage. In addition, the oil or grease can
cause the wheel nuts to loosen and the wheel may fall off, causing a
serious accident. Remove any oil or grease from the wheel bolts or
wheel nuts.
• Have the wheel nuts tightened with a torque wrench to 103 N•m
(10.5 kgf•m, 76 ft•lbf) as soon as possible after changing wheels.
• Do not attach a heavily damaged wheel ornament, as it may fly off the
wheel while the vehicle is moving.
• When installing a tire, only use wheel nuts that have been specifically
designed for that wheel.
• If there are any cracks or deformations in the bolt screws, nut threads or
bolt holes of the wheel, have the vehicle inspected by any authorized
Toyota dealer or repairer, or another duly qualified and equipped profes-
sional.
• When installing the wheel nuts, be sure to install them with the tapered
ends facing inward. (P. 501)

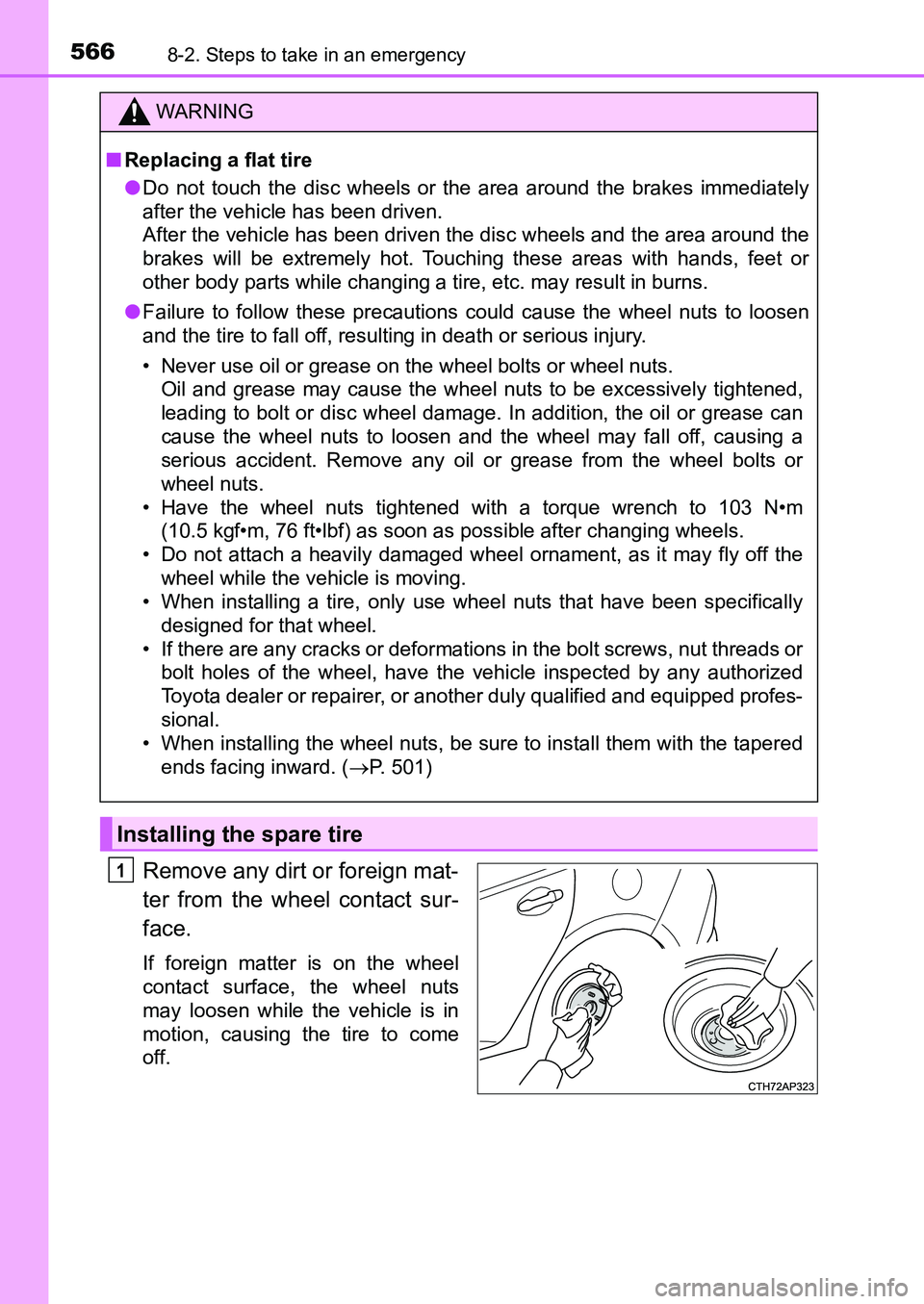

Installing the spare tire
1
UK AURIS_HB_OM_Europe_OM12K97E.book 566 ページ ２０１６年６月２７日　月曜日　午後５時４２分

5678-2. Steps to take in an emergency
UK AURIS_HB_EE (OM12K97E)
8
When trouble arises

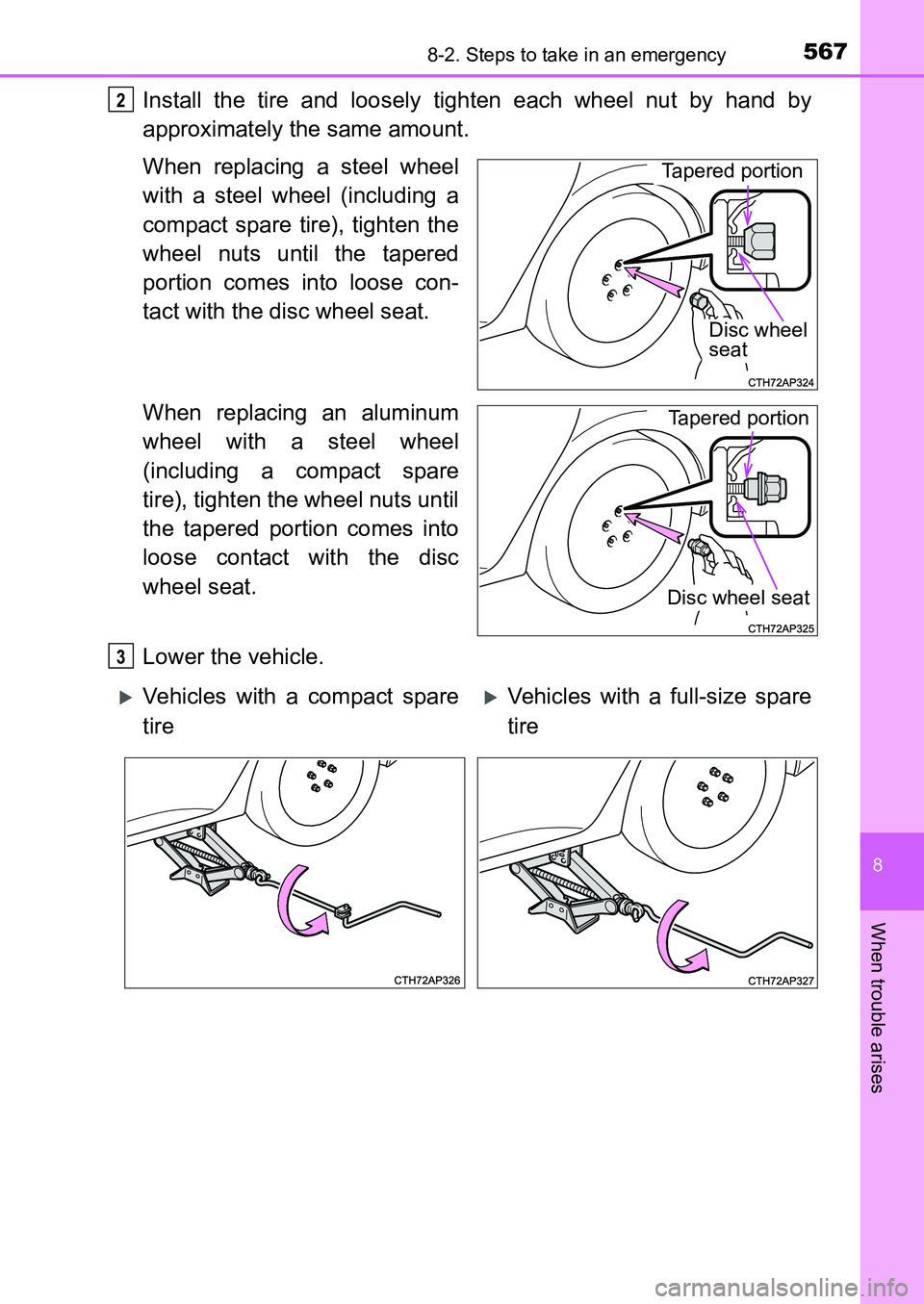

Install the tire and loosely tighten each wheel nut by hand by
approximately the same amount.
When replacing a steel wheel
with a steel wheel (including a
compact spare tire), tighten the
wheel nuts until the tapered
portion comes into loose con-
tact with the disc wheel seat.
When replacing an aluminum
wheel with a steel wheel
(including a compact spare
tire), tighten the wheel nuts until
the tapered portion comes into
loose contact with the disc
wheel seat.
Lower the vehicle.2
Tapered portion
Disc wheel
seat
Tapered portion
Disc wheel seat
3
Vehicles with a compact spare
tireVehicles with a full-size spare
tire
UK AURIS_HB_OM_Europe_OM12K97E.book 567 ページ ２０１６年６月２７日　月曜日　午後５時４２分

5688-2. Steps to take in an emergency
UK AURIS_HB_EE (OM12K97E)

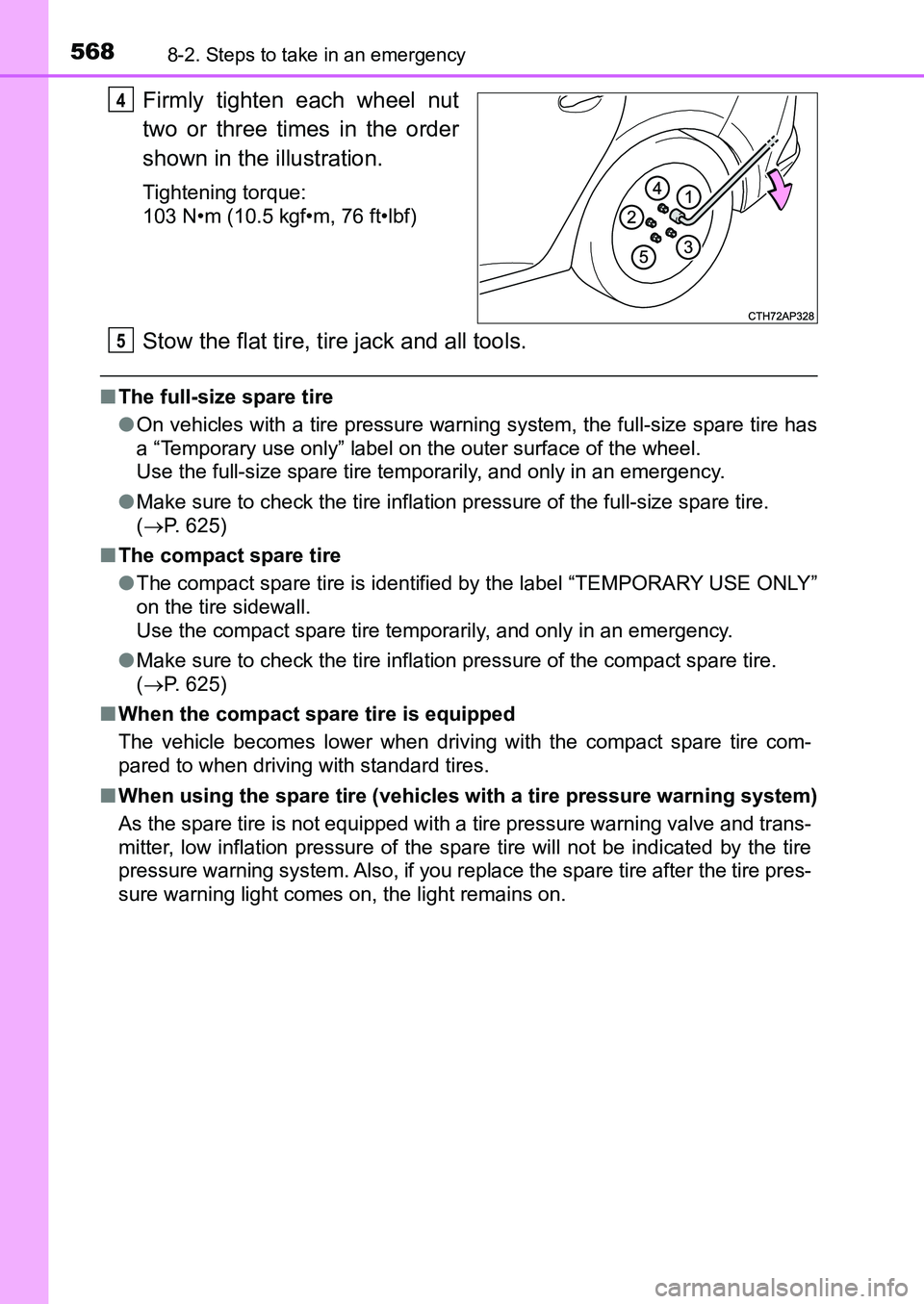

Firmly tighten each wheel nut
two or three times in the order
shown in the illustration.
Tightening torque:
103 N•m (10.5 kgf•m, 76 ft•lbf)
Stow the flat tire, tire jack and all tools.
■The full-size spare tire
●On vehicles with a tire pressure warning system, the full-size spare tire has
a “Temporary use only” label on the outer surface of the wheel.
Use the full-size spare tire temporarily, and only in an emergency.
●Make sure to check the tire inflation pressure of the full-size spare tire.
(P. 625)
■The compact spare tire
●The compact spare tire is identified by the label “TEMPORARY USE ONLY”
on the tire sidewall.
Use the compact spare tire temporarily, and only in an emergency.
●Make sure to check the tire inflation pressure of the compact spare tire.
(P. 625)
■When the compact spare tire is equipped
The vehicle becomes lower when driving with the compact spare tire com-
pared to when driving with standard tires.
■When using the spare tire (vehicles with a tire pressure warning system)
As the spare tire is not equipped with a tire pressure warning valve and trans-
mitter, low inflation pressure of the spare tire will not be indicated by the tire
pressure warning system. Also, if you replace the spare tire after the tire pres-
sure warning light comes on, the light remains on.
4
5
UK AURIS_HB_OM_Europe_OM12K97E.book 568 ページ ２０１６年６月２７日　月曜日　午後５時４２分

5698-2. Steps to take in an emergency
UK AURIS_HB_EE (OM12K97E)
8
When trouble arises

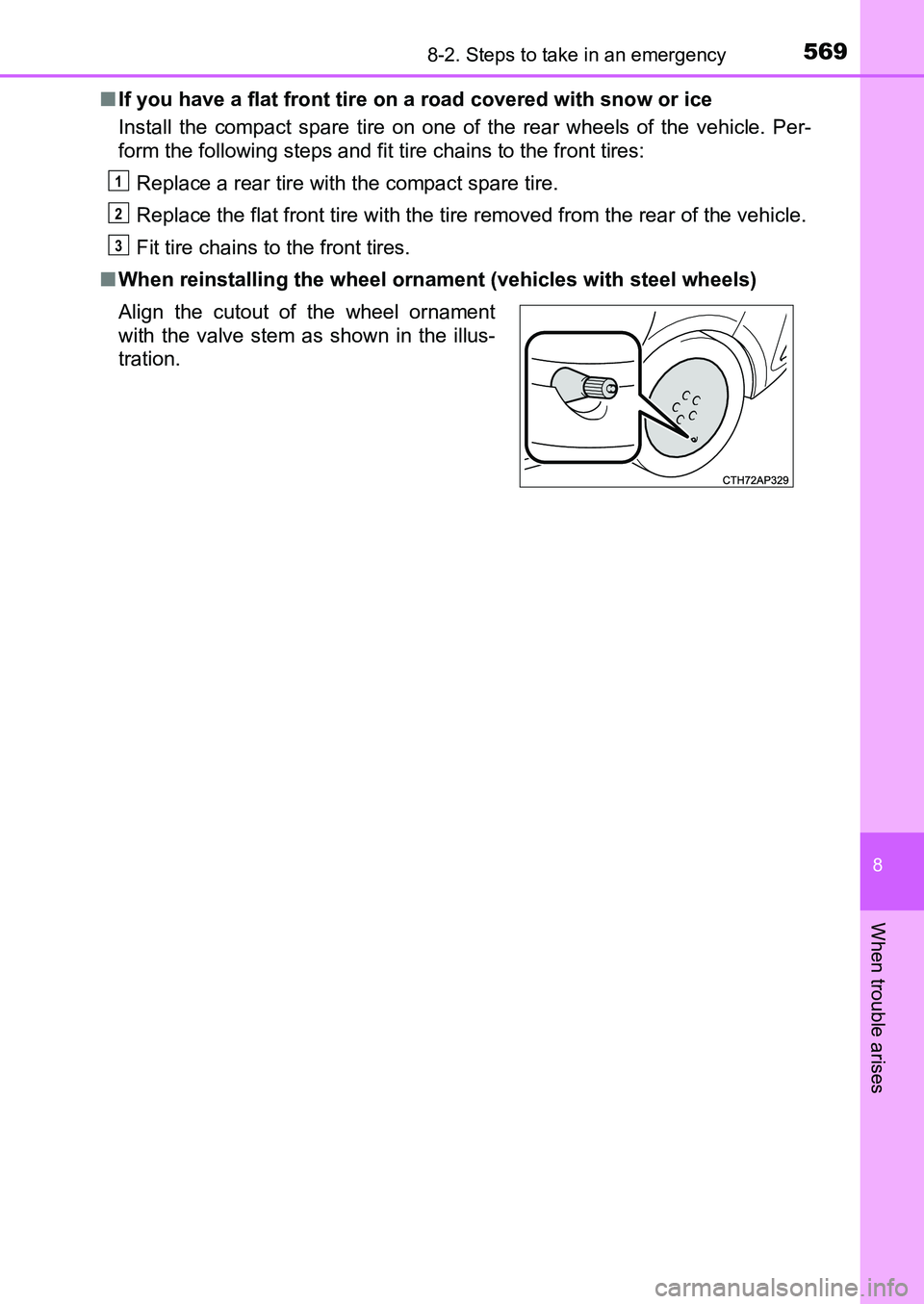

■If you have a flat front tire on a road covered with snow or ice
Install the compact spare tire on one of the rear wheels of the vehicle. Per-
form the following steps and fit tire chains to the front tires:
Replace a rear tire with the compact spare tire.
Replace the flat front tire with the tire removed from the rear of the vehicle.
Fit tire chains to the front tires.
■When reinstalling the wheel ornament (vehicles with steel wheels)
Align the cutout of the wheel ornament
with the valve stem as shown in the illus-
tration.
1
2
3
UK AURIS_HB_OM_Europe_OM12K97E.book 569 ページ ２０１６年６月２７日　月曜日　午後５時４２分

5708-2. Steps to take in an emergency

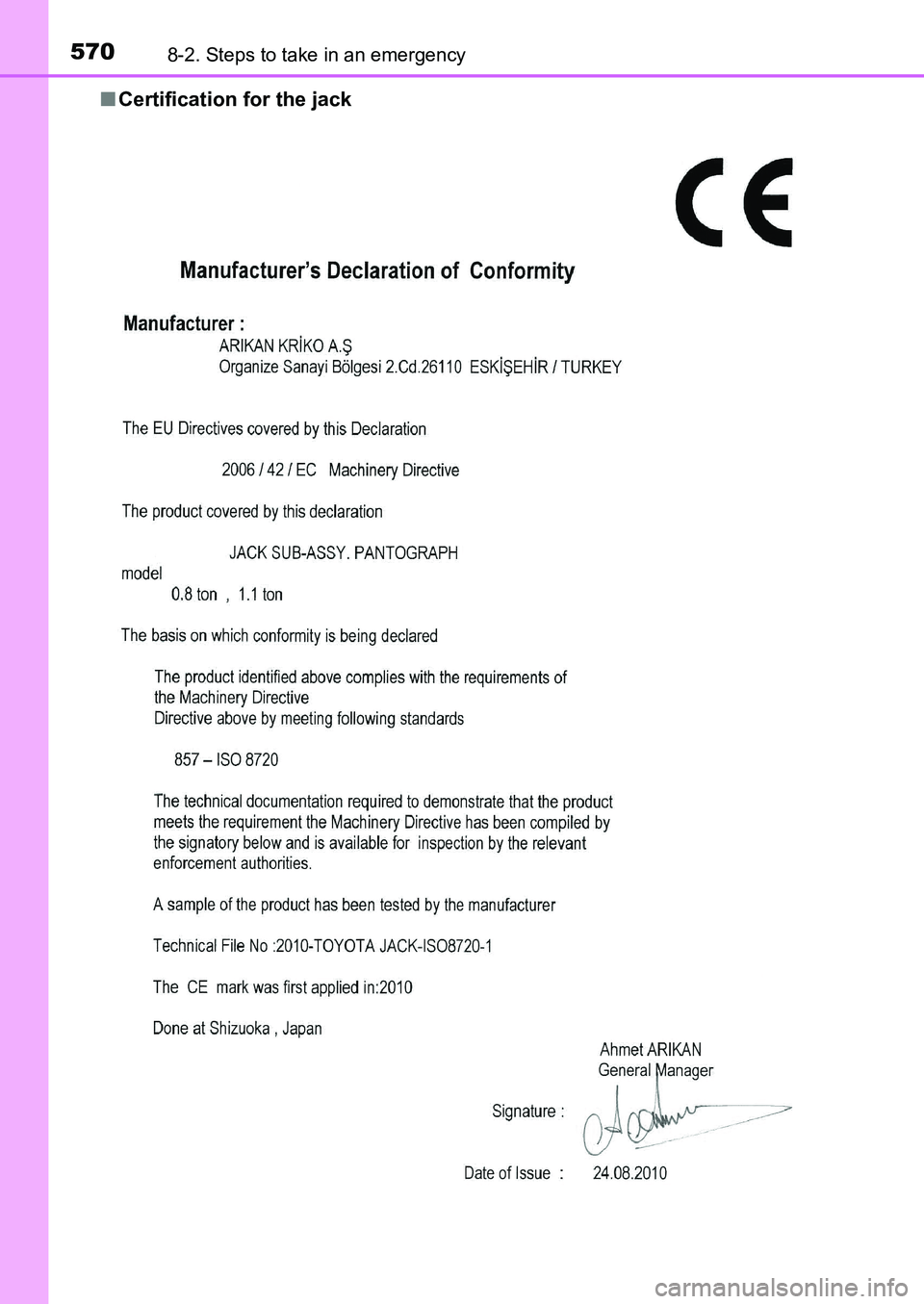

UK AURIS_HB_EE (OM12K97E)■Certification for the jack
