3-2. Using the audio system
3
Interior features
UK_AURIS_HV_EE

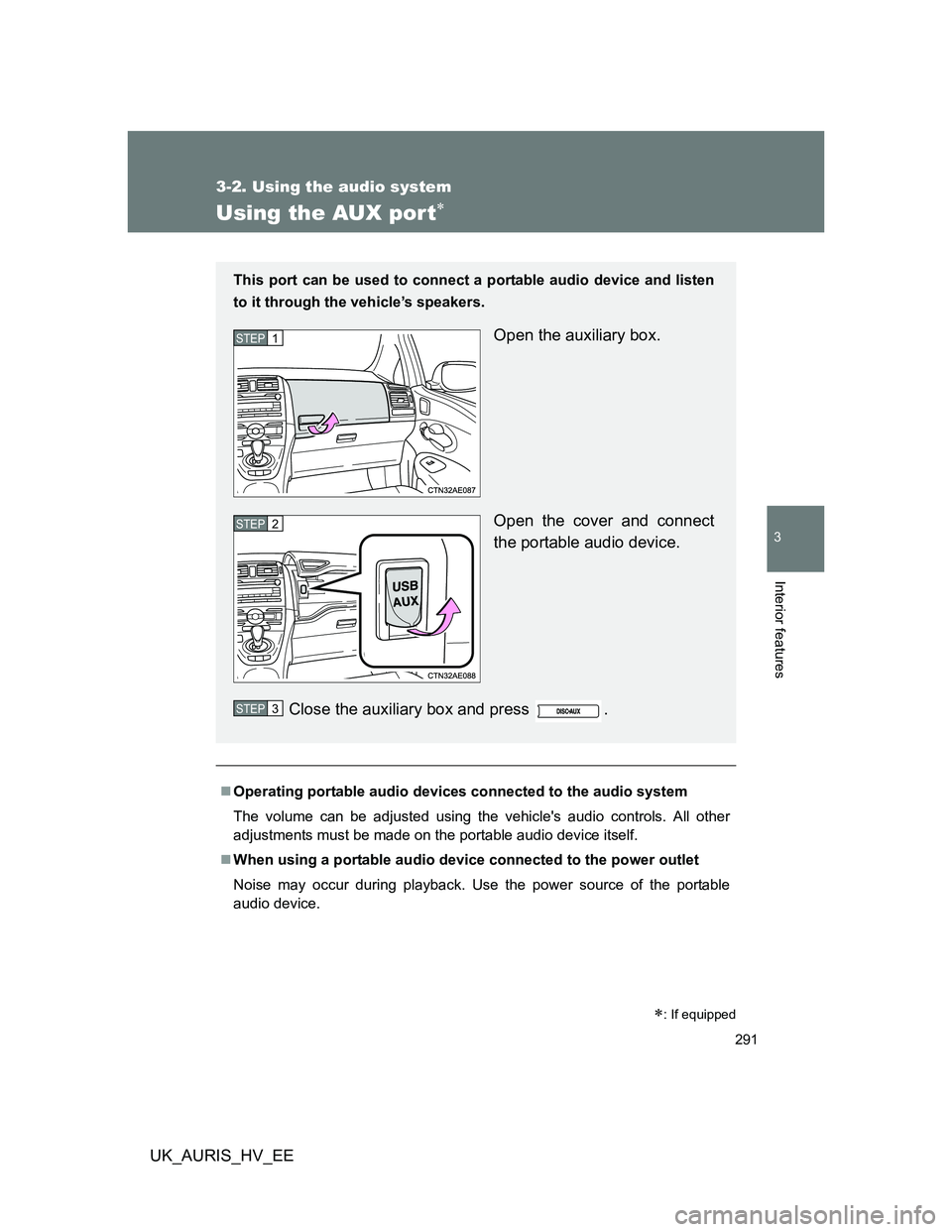

Using the AUX por t
Operating portable audio devices connected to the audio system
The volume can be adjusted using the vehicle's audio controls. All other
adjustments must be made on the portable audio device itself.
When using a portable audio device connected to the power outlet
Noise may occur during playback. Use the power source of the portable
audio device.
: If equipped
This port can be used to connect a portable audio device and listen
to it through the vehicle’s speakers.
Open the auxiliary box.
Open the cover and connect
the portable audio device.
Close the auxiliary box and press .STEP1
STEP2
STEP3

292
3-2. Using the audio system
UK_AURIS_HV_EE

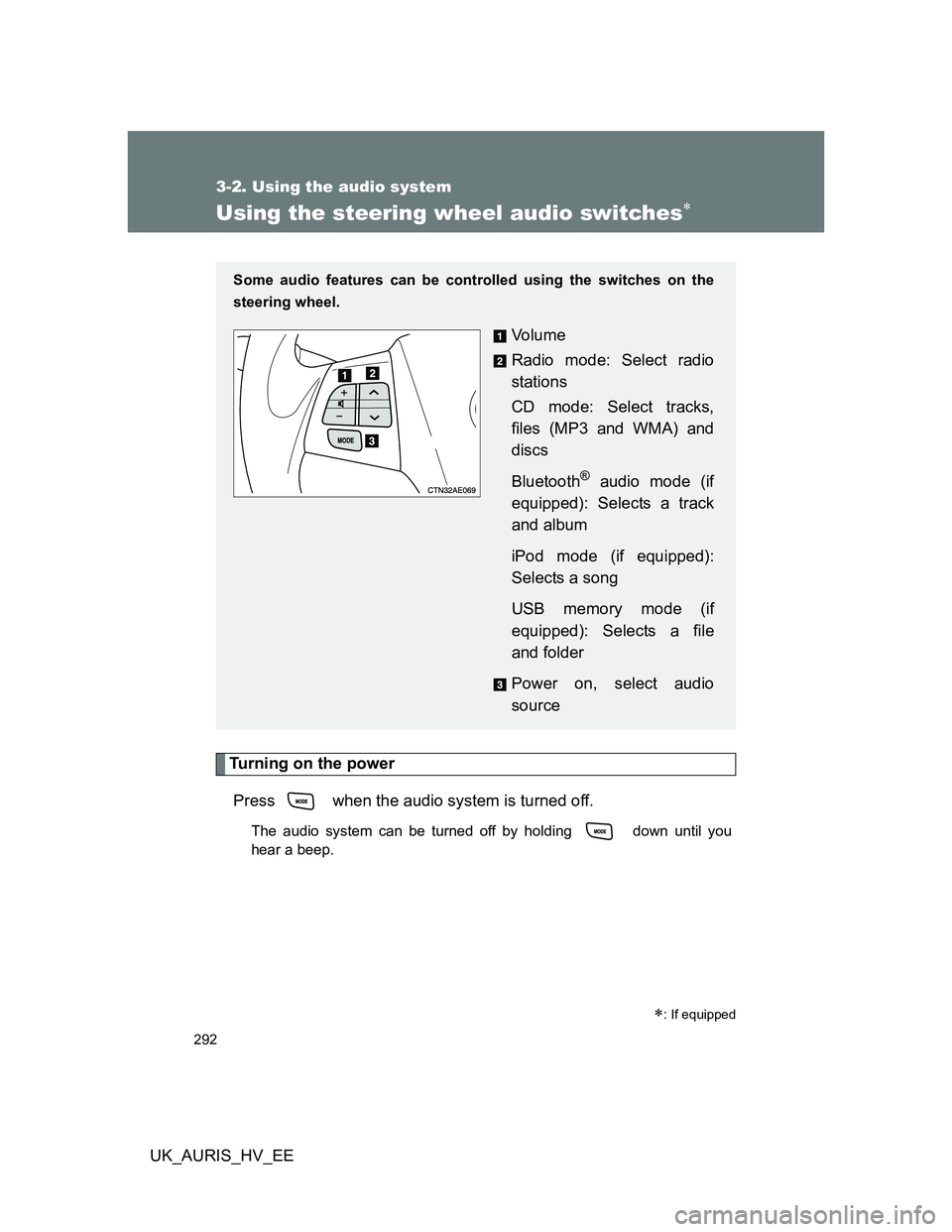

Using the steering wheel audio switches
Turning on the power
Press when the audio system is turned off.
The audio system can be turned off by holding down until you
hear a beep.
: If equipped
Some audio features can be controlled using the switches on the
steering wheel.
Vo l u m e
Radio mode: Select radio
stations
CD mode: Select tracks,
files (MP3 and WMA) and
discs
Bluetooth
® audio mode (if
equipped): Selects a track
and album
iPod mode (if equipped):
Selects a song
USB memory mode (if
equipped): Selects a file
and folder
Power on, select audio
source

293 3-2. Using the audio system
3
Interior features
UK_AURIS_HV_EE

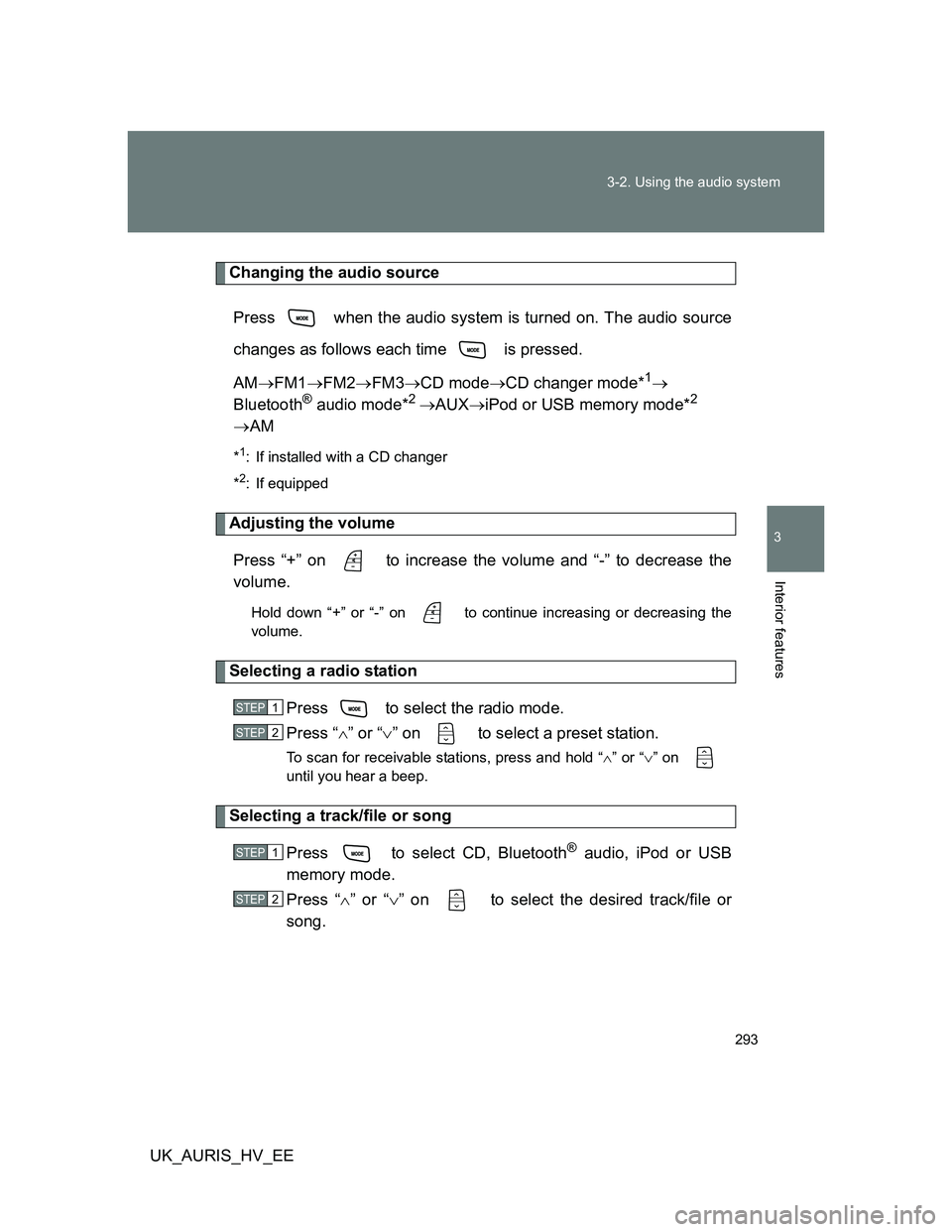

Changing the audio source
Press when the audio system is turned on. The audio source
changes as follows each time is pressed.
AMFM1FM2FM3CD modeCD changer mode*
1
Bluetooth® audio mode*2 AUXiPod or USB memory mode*2
AM
*1: If installed with a CD changer
*
2: If equipped
Adjusting the volume
Press “+” on to increase the volume and “-” to decrease the
volume.
Hold down “+” or “-” on to continue increasing or decreasing the
volume.
Selecting a radio station
Press to select the radio mode.
Press “” or “” on to select a preset station.
To scan for receivable stations, press and hold “” or “” on
until you hear a beep.
Selecting a track/file or song
Press to select CD, Bluetooth
® audio, iPod or USB
memory mode.
Press “” or “” on to select the desired track/file or
song.
STEP1
STEP2
STEP1
STEP2

294 3-2. Using the audio system
UK_AURIS_HV_EE

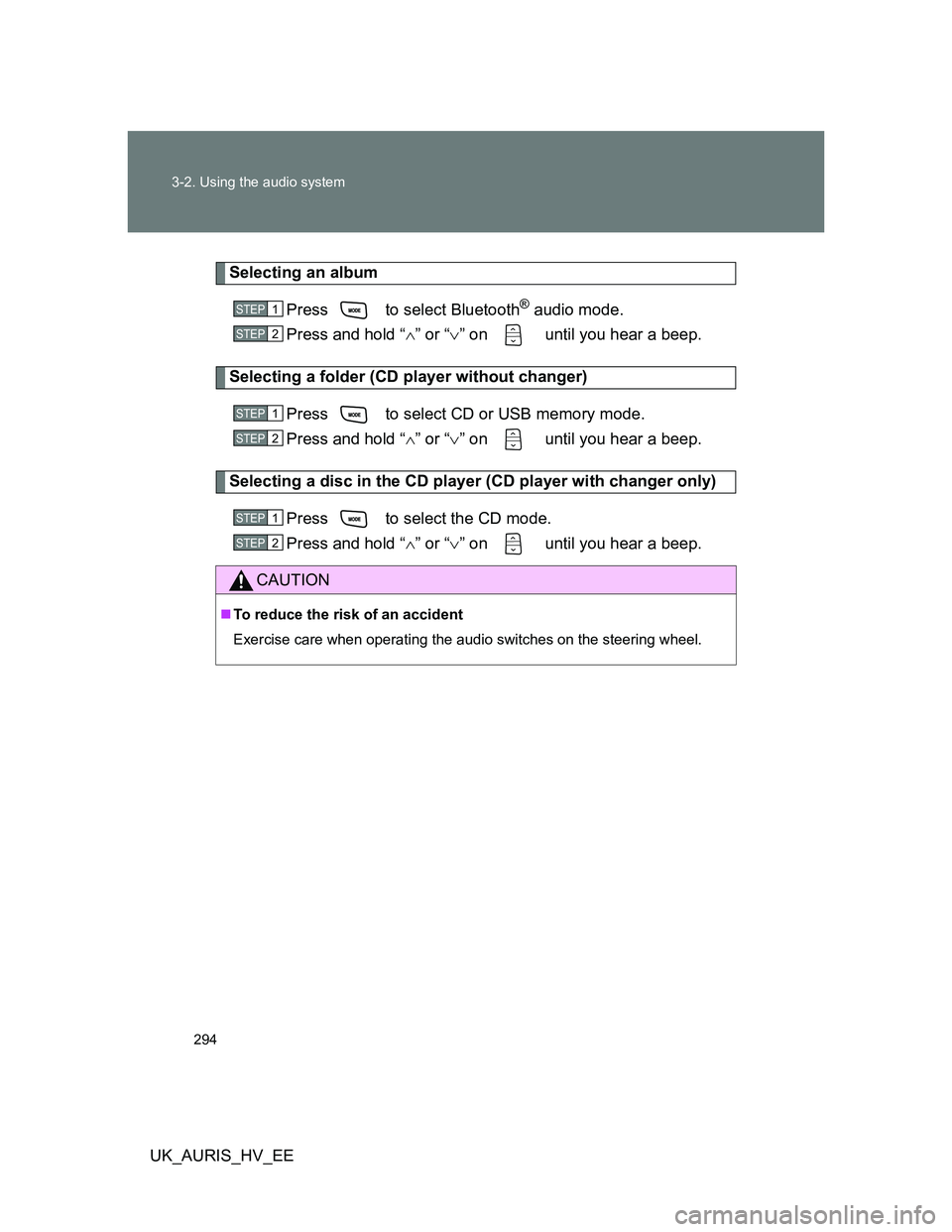

Selecting an album
Press to select Bluetooth
® audio mode.
Press and hold “” or “” on until you hear a beep.
Selecting a folder (CD player without changer)
Press to select CD or USB memory mode.
Press and hold “” or “” on until you hear a beep.
Selecting a disc in the CD player (CD player with changer only)
Press to select the CD mode.
Press and hold “” or “” on until you hear a beep.
CAUTION
To reduce the risk of an accident
Exercise care when operating the audio switches on the steering wheel.
STEP1
STEP2
STEP1
STEP2
STEP1
STEP2

295
3
Interior features
UK_AURIS_HV_EE

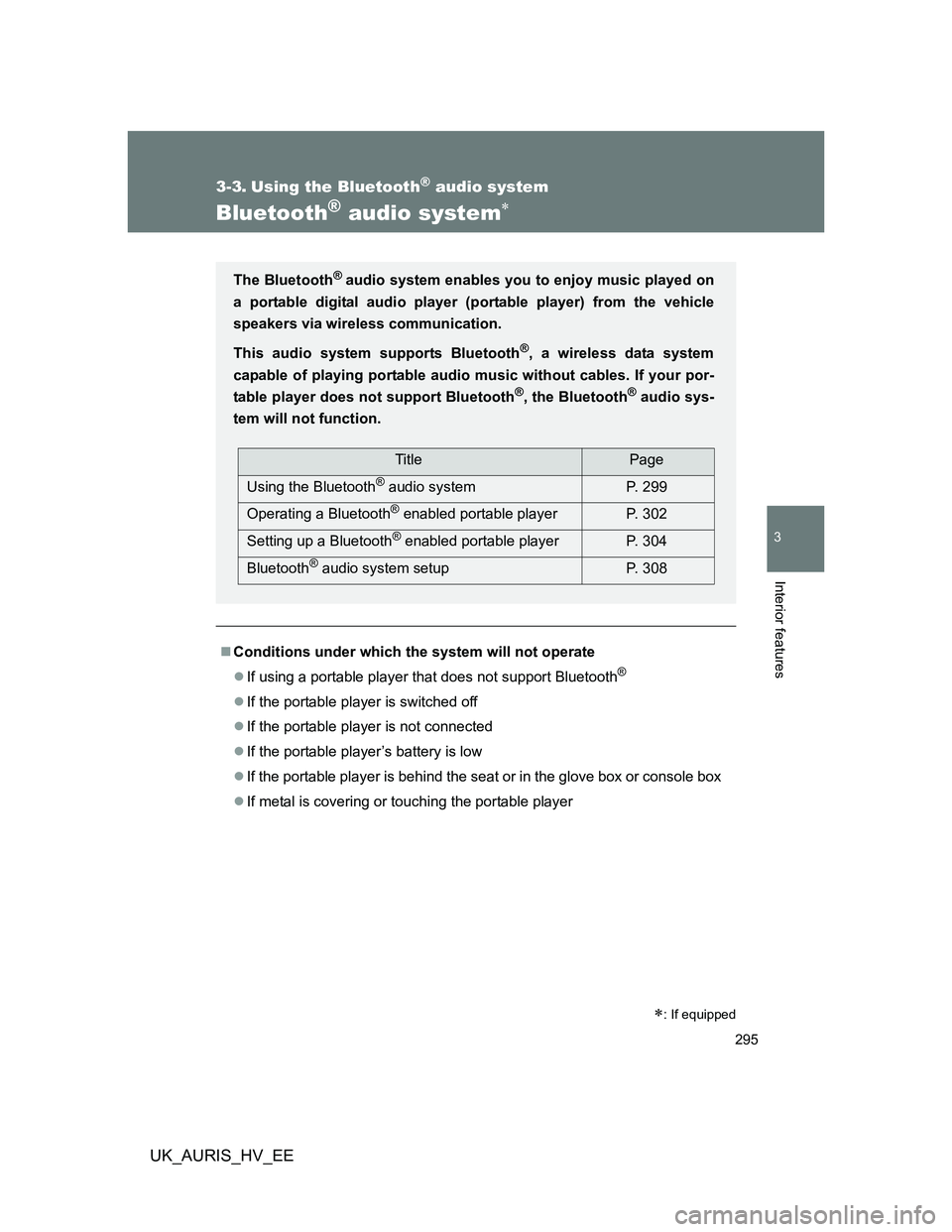

3-3. Using the Bluetooth® audio system
Bluetooth® audio system
Conditions under which the system will not operate
If using a portable player that does not support Bluetooth
®
If the portable player is switched off
If the portable player is not connected
If the portable player’s battery is low
If the portable player is behind the seat or in the glove box or console box
If metal is covering or touching the portable player
The Bluetooth® audio system enables you to enjoy music played on
a portable digital audio player (portable player) from the vehicle
speakers via wireless communication.
This audio system supports Bluetooth
®, a wireless data system
capable of playing portable audio music without cables. If your por-
table player does not support Bluetooth
®, the Bluetooth® audio sys-
tem will not function.
TitlePage
Using the Bluetooth
® audio system P. 299
Operating a Bluetooth
® enabled portable player P. 302
Setting up a Bluetooth
® enabled portable player P. 304
Bluetooth
® audio system setup P. 308
: If equipped

296 3-3. Using the Bluetooth
® audio system
UK_AURIS_HV_EE

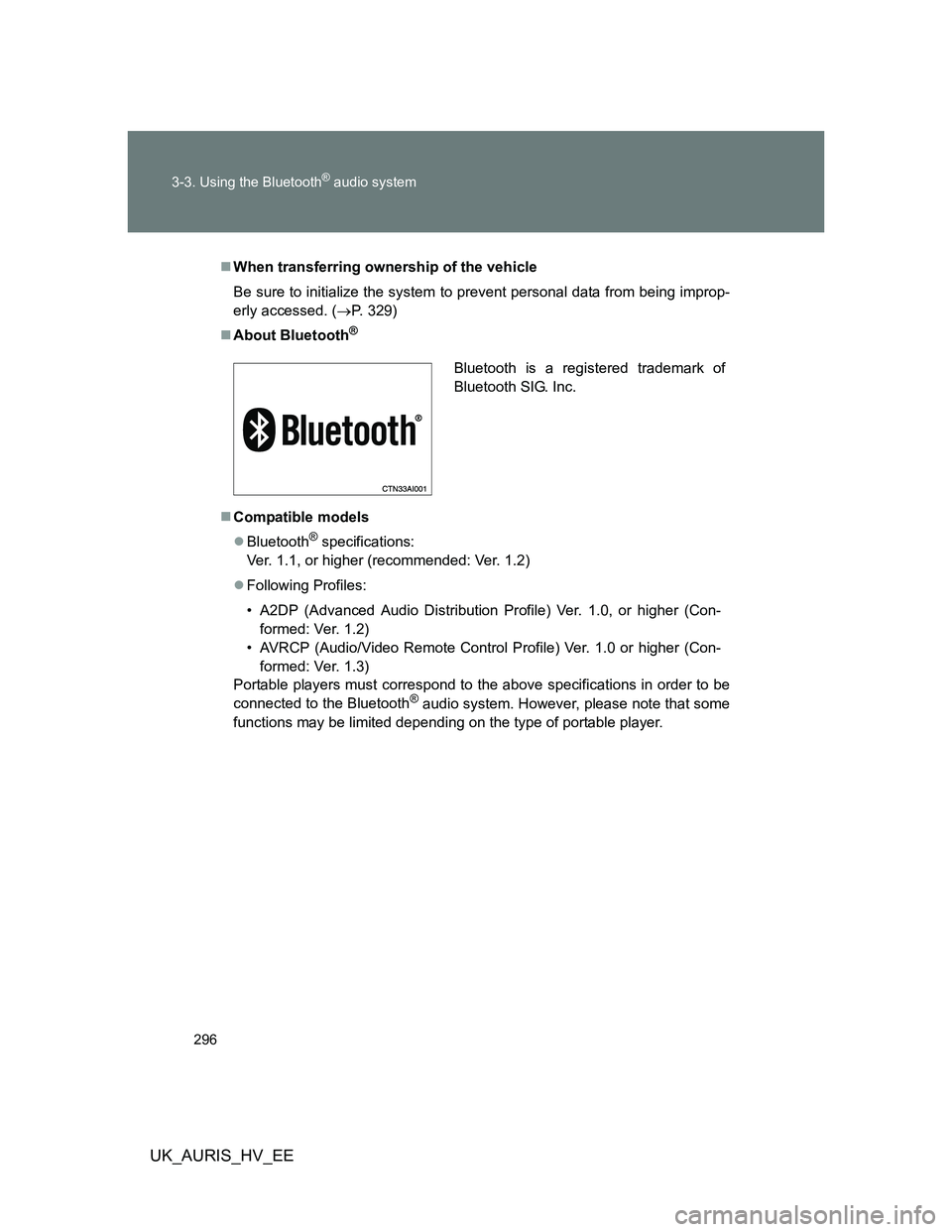

When transferring ownership of the vehicle
Be sure to initialize the system to prevent personal data from being improp-
erly accessed. (P. 329)
About Bluetooth
®
Compatible models
Bluetooth
® specifications:
Ver. 1.1, or higher (recommended: Ver. 1.2)
Following Profiles:
• A2DP (Advanced Audio Distribution Profile) Ver. 1.0, or higher (Con-
formed: Ver. 1.2)
• AVRCP (Audio/Video Remote Control Profile) Ver. 1.0 or higher (Con-
formed: Ver. 1.3)
Portable players must correspond to the above specifications in order to be
connected to the Bluetooth
® audio system. However, please note that some
functions may be limited depending on the type of portable player.
Bluetooth is a registered trademark of
Bluetooth SIG. Inc.

297 3-3. Using the Bluetooth
® audio system
3
Interior features
UK_AURIS_HV_EE

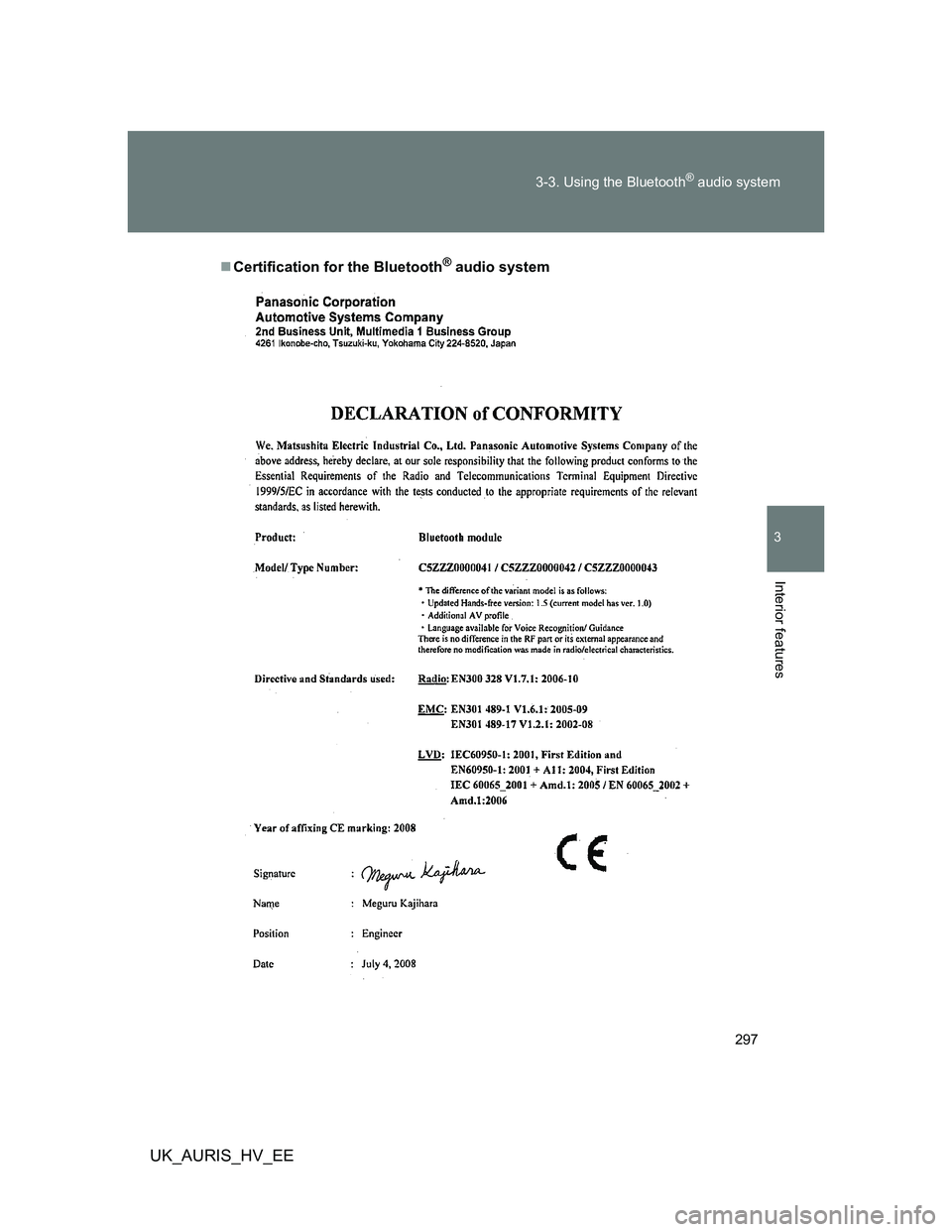

Certification for the Bluetooth® audio system

298 3-3. Using the Bluetooth
® audio system
UK_AURIS_HV_EE

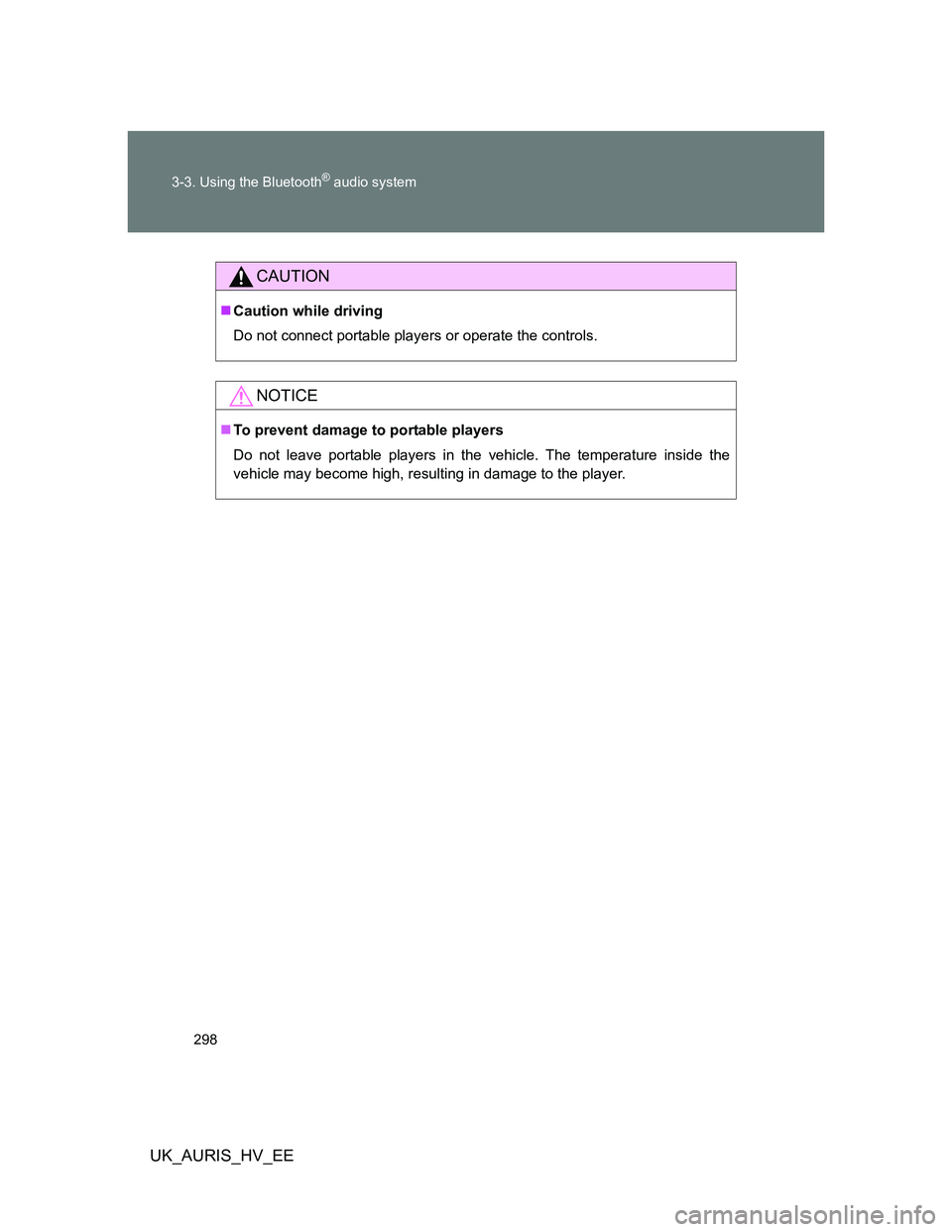

CAUTION
Caution while driving
Do not connect portable players or operate the controls.
NOTICE
To prevent damage to portable players
Do not leave portable players in the vehicle. The temperature inside the
vehicle may become high, resulting in damage to the player.

299
3-3. Using the Bluetooth® audio system
3
Interior features
UK_AURIS_HV_EE

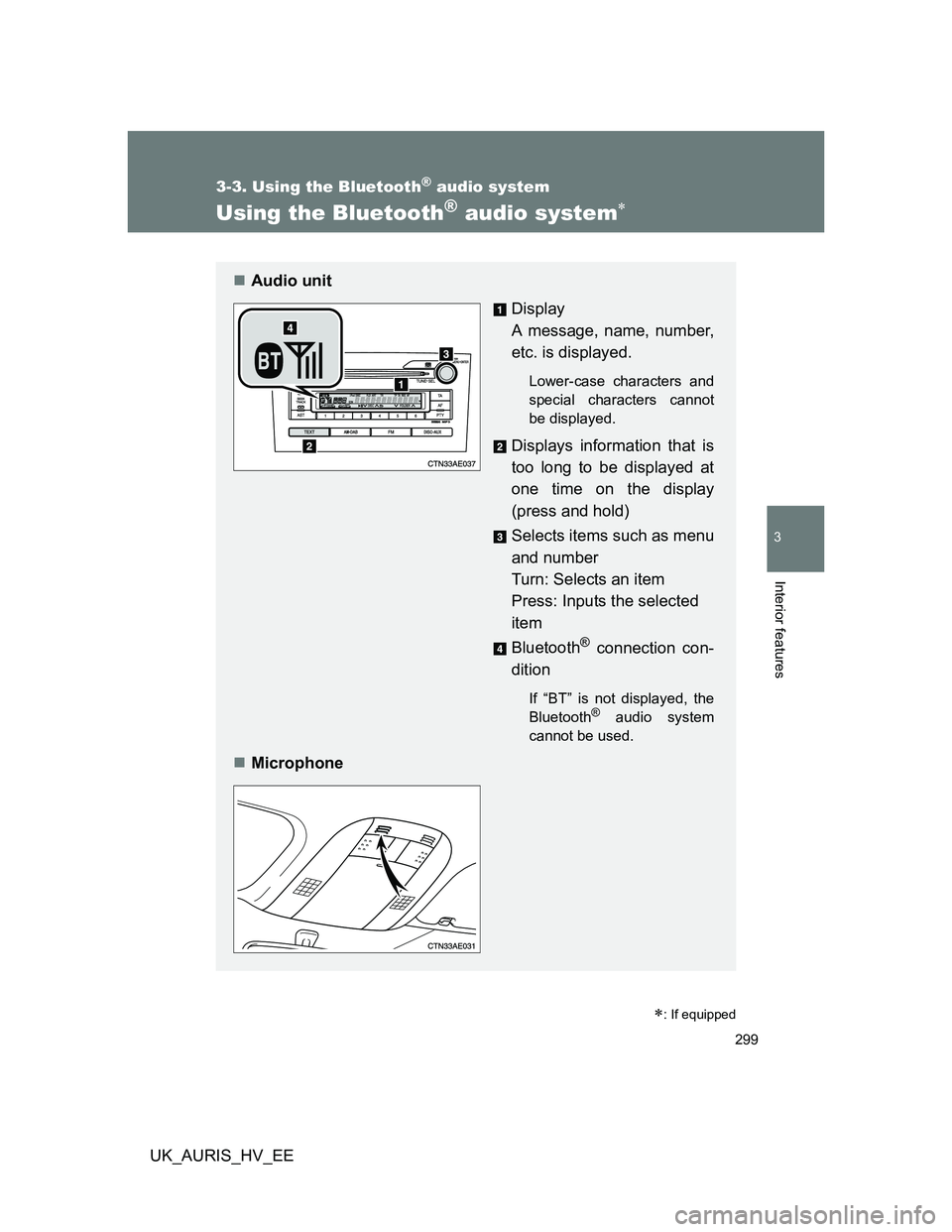

Using the Bluetooth® audio system
: If equipped
Audio unit
Display
A message, name, number,
etc. is displayed.
Lower-case characters and
special characters cannot
be displayed.
Displays information that is
too long to be displayed at
one time on the display
(press and hold)
Selects items such as menu
and number
Turn: Selects an item
Press: Inputs the selected
item
Bluetooth
® connection con-
dition
If “BT” is not displayed, the
Bluetooth® audio system
cannot be used.
Microphone

300 3-3. Using the Bluetooth
® audio system
UK_AURIS_HV_EE

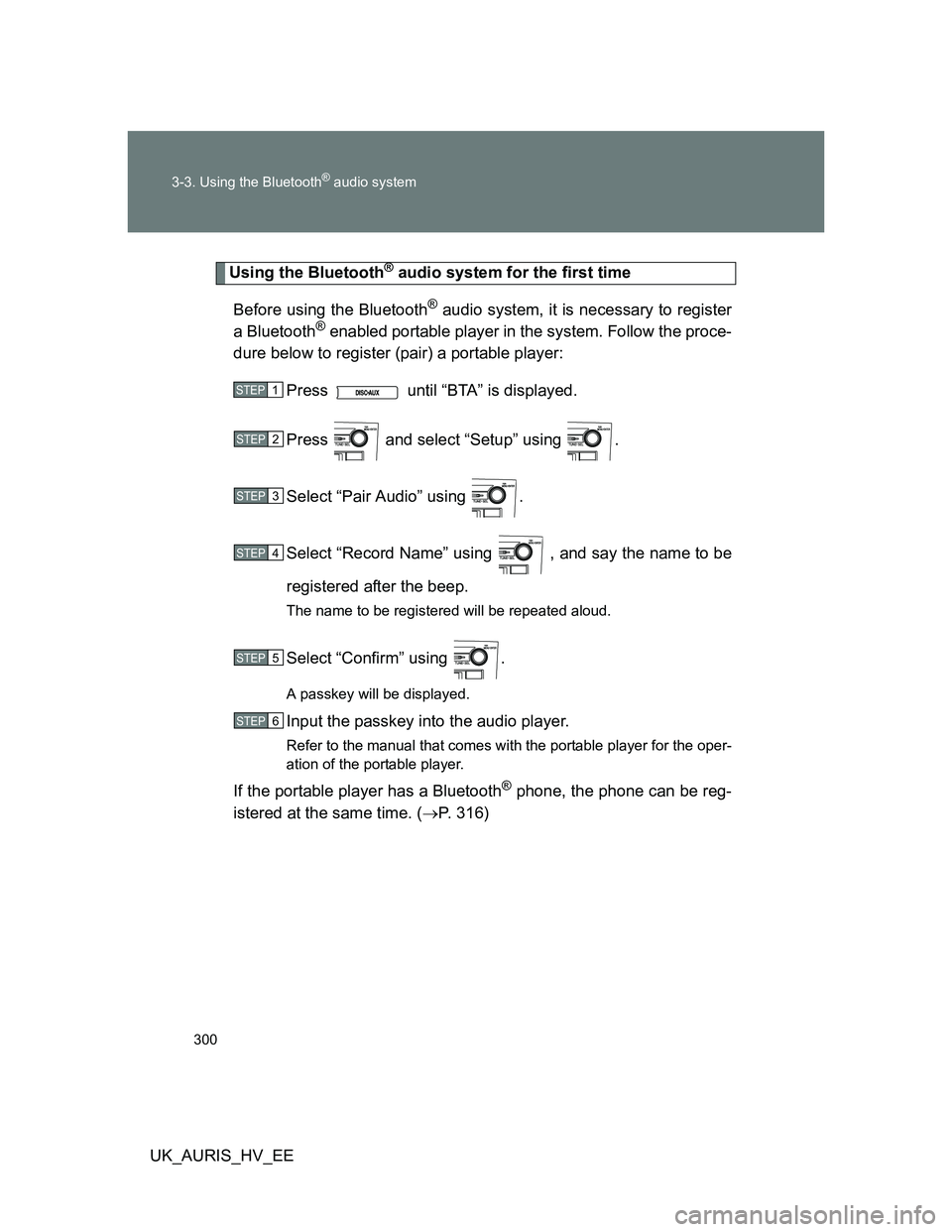

Using the Bluetooth® audio system for the first time
Before using the Bluetooth
® audio system, it is necessary to register
a Bluetooth® enabled portable player in the system. Follow the proce-
dure below to register (pair) a portable player:
Press until “BTA” is displayed.
Press and select “Setup” using .
Select “Pair Audio” using .
Select “Record Name” using , and say the name to be
registered after the beep.
The name to be registered will be repeated aloud.
Select “Confirm” using .
A passkey will be displayed.
Input the passkey into the audio player.
Refer to the manual that comes with the portable player for the oper-
ation of the portable player.
If the portable player has a Bluetooth® phone, the phone can be reg-
istered at the same time. (P. 316)
STEP1
STEP2
STEP3
STEP4
STEP5
STEP6
