TOYOTA AURIS HYBRID 2012 Owners Manual

301 3-3. Using the Bluetooth
® audio system
3
Interior features
UK_AURIS_HV_EE

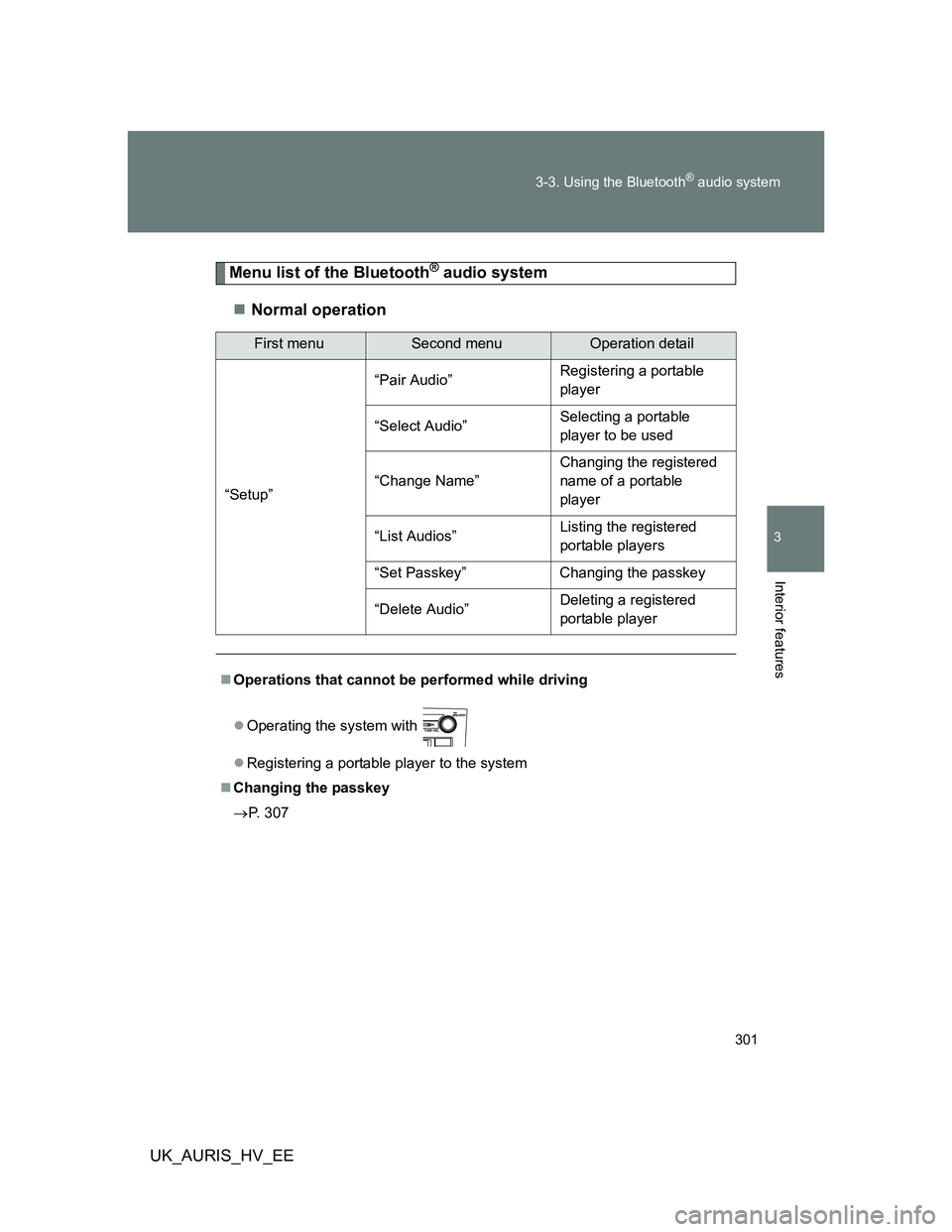

Menu list of the Bluetooth® audio system
Normal operation
First menuSecond menuOperation detail
“Setup”“Pair Audio”Registering a portable
player
“Select Audio”Selecting a portable
player to be used
“Change Name”Changing the registered
name of a portable
player
“List Audios”Listing the registered
portable players
“Set Passkey” Changing the passkey
“Delete Audio”Deleting a registered
portable player
Operations that cannot be performed while driving
Operating the system with
Registering a portable player to the system
Changing the passkey
P. 307

302
3-3. Using the Bluetooth® audio system
UK_AURIS_HV_EE

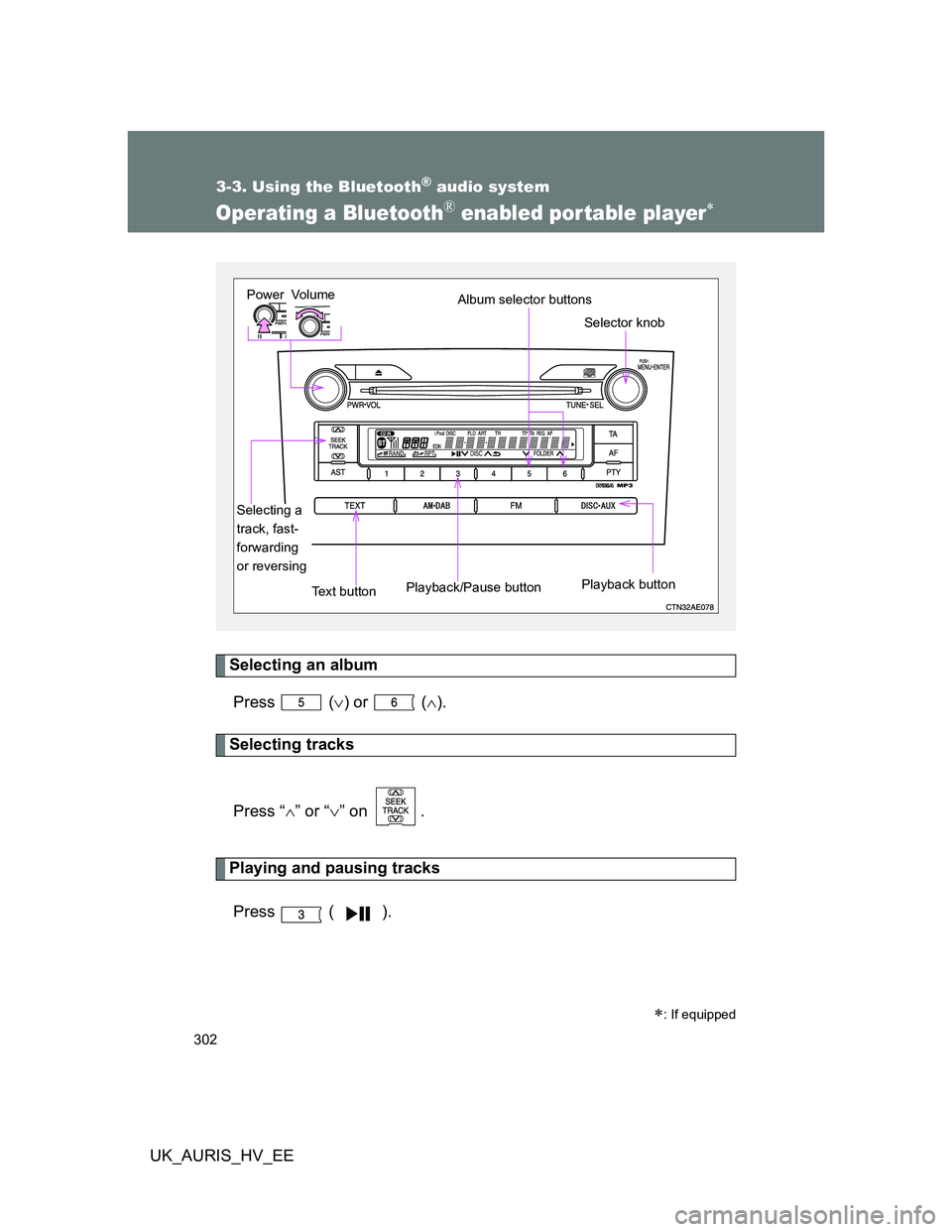

Operating a Bluetooth® enabled por table player
Selecting an album
Press () or ().
Selecting tracks
Press “” or “” on .
Playing and pausing tracks
Press ( ).
: If equipped
Power Volume
Playback/Pause buttonPlayback button
Text buttonSelector knob
Selecting a
track, fast-
forwarding
or reversingAlbum selector buttons

303 3-3. Using the Bluetooth
® audio system
3
Interior features
UK_AURIS_HV_EE

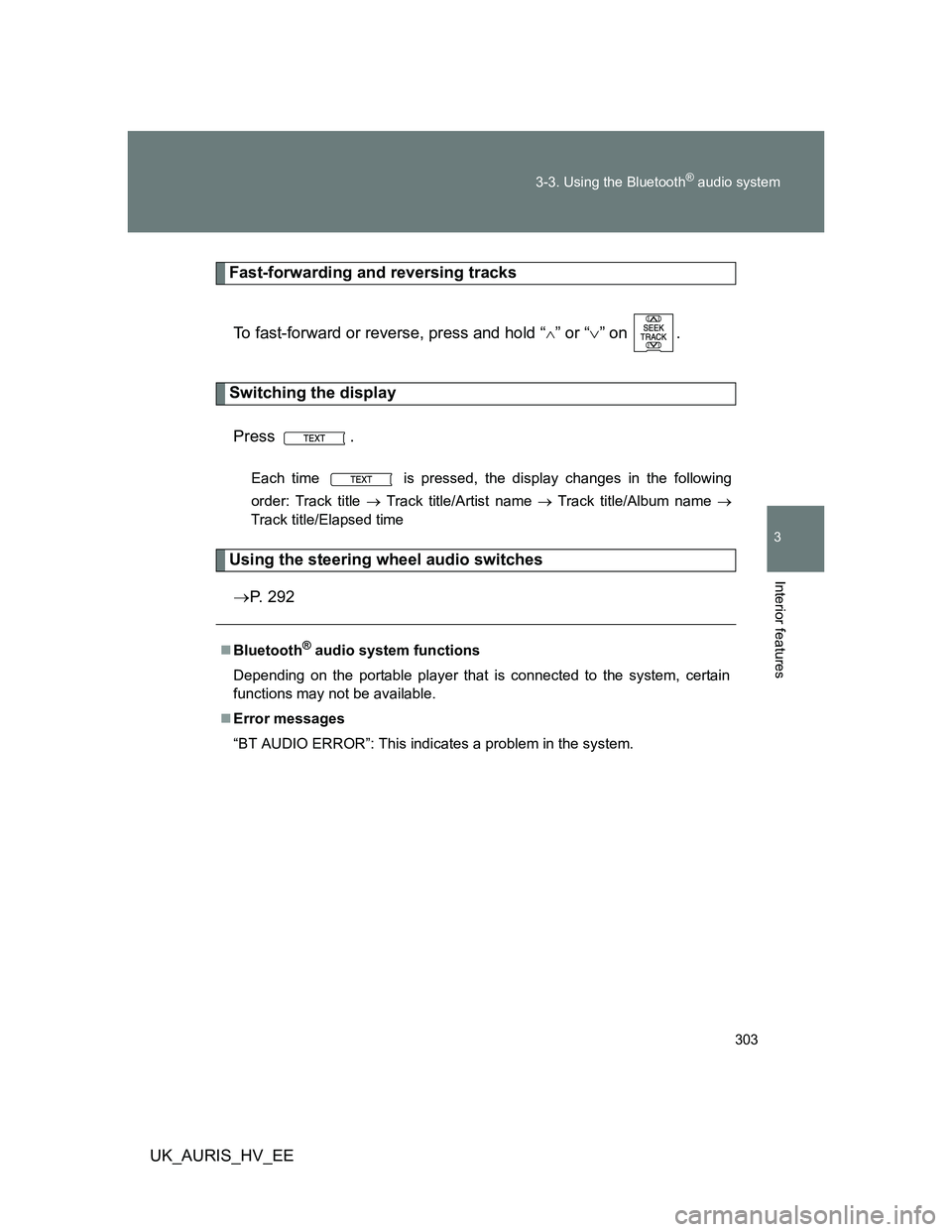

Fast-forwarding and reversing tracks
To fast-forward or reverse, press and hold “
” or “” on .
Switching the display
Press .
Each time is pressed, the display changes in the following
order: Track title  Track title/Artist name  Track title/Album name 
Track title/Elapsed time
Using the steering wheel audio switches
P. 292
Bluetooth® audio system functions
Depending on the portable player that is connected to the system, certain
functions may not be available.
Error messages
“BT AUDIO ERROR”: This indicates a problem in the system.

304
3-3. Using the Bluetooth® audio system
UK_AURIS_HV_EE

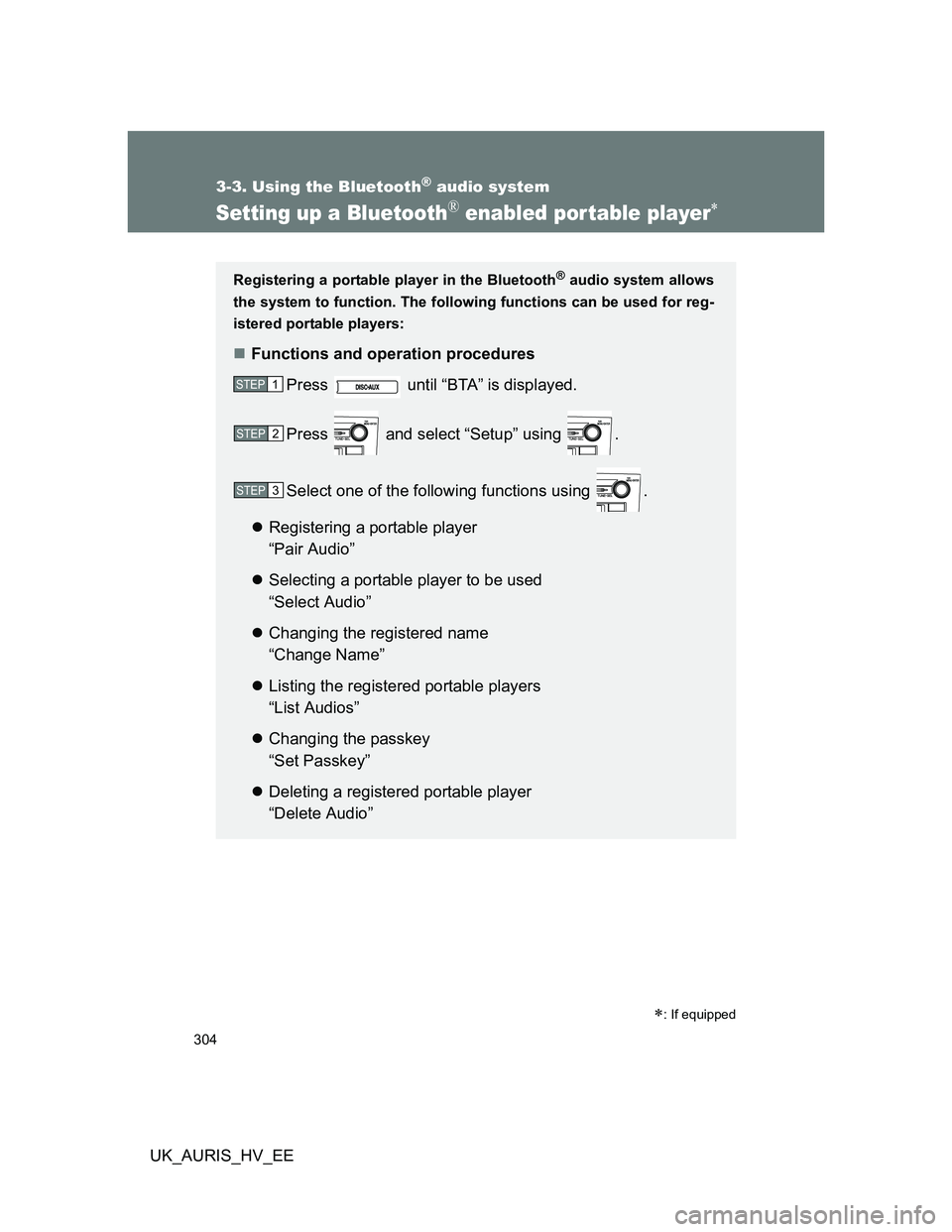

Setting up a Bluetooth® enabled por table player
: If equipped
Registering a portable player in the Bluetooth® audio system allows
the system to function. The following functions can be used for reg-
istered portable players:
Functions and operation procedures
Press until “BTA” is displayed.
Press and select “Setup” using .
Select one of the following functions using .
Registering a portable player
“Pair Audio”
Selecting a portable player to be used
“Select Audio”
Changing the registered name
“Change Name”
Listing the registered portable players
“List Audios”
Changing the passkey
“Set Passkey”
Deleting a registered portable player
“Delete Audio”
STEP1
STEP2
STEP3

305 3-3. Using the Bluetooth
® audio system
3
Interior features
UK_AURIS_HV_EE
Registering a portable player
Select “Pair Audio” using , and perform the procedure for reg-
istering a portable player. (P. 300)
Selecting a portable player to be used
Select “Select Audio” using .
Select the portable player to be used, and select “Confirm”
using .
Select “From Car” or “From Audio”, and select “Confirm” using
.
If “From Car” is selected, the portable player will be automatically
connected whenever the “POWER” switch is in the ACCESSORY or
ON mode.
STEP1
STEP2
STEP3

306 3-3. Using the Bluetooth
® audio system
UK_AURIS_HV_EE

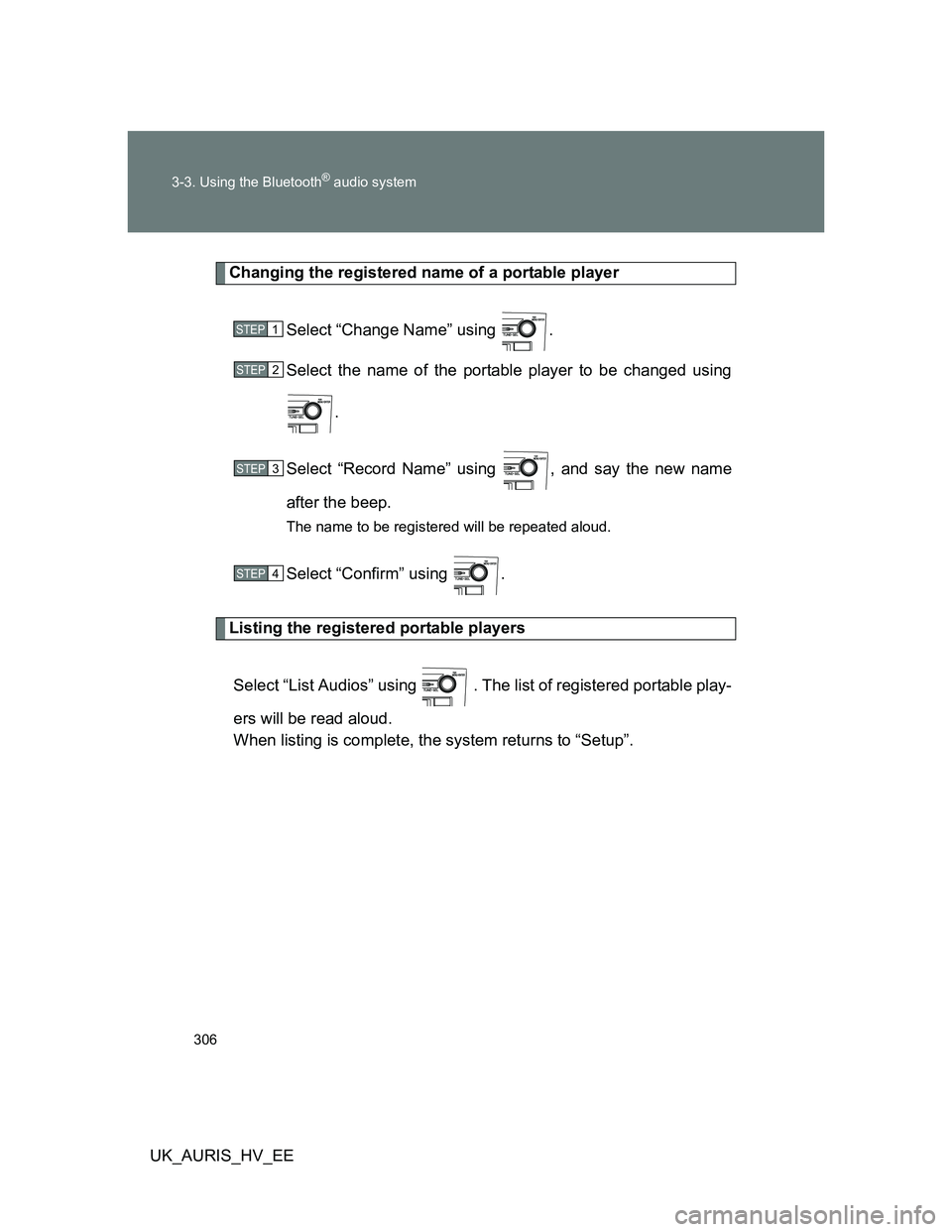

Changing the registered name of a portable player
Select “Change Name” using .
Select the name of the portable player to be changed using
.
Select “Record Name” using , and say the new name
after the beep.
The name to be registered will be repeated aloud.
Select “Confirm” using .
Listing the registered portable players
Select “List Audios” using . The list of registered portable play-
ers will be read aloud.
When listing is complete, the system returns to “Setup”.
STEP1
STEP2
STEP3
STEP4

307 3-3. Using the Bluetooth
® audio system
3
Interior features
UK_AURIS_HV_EE

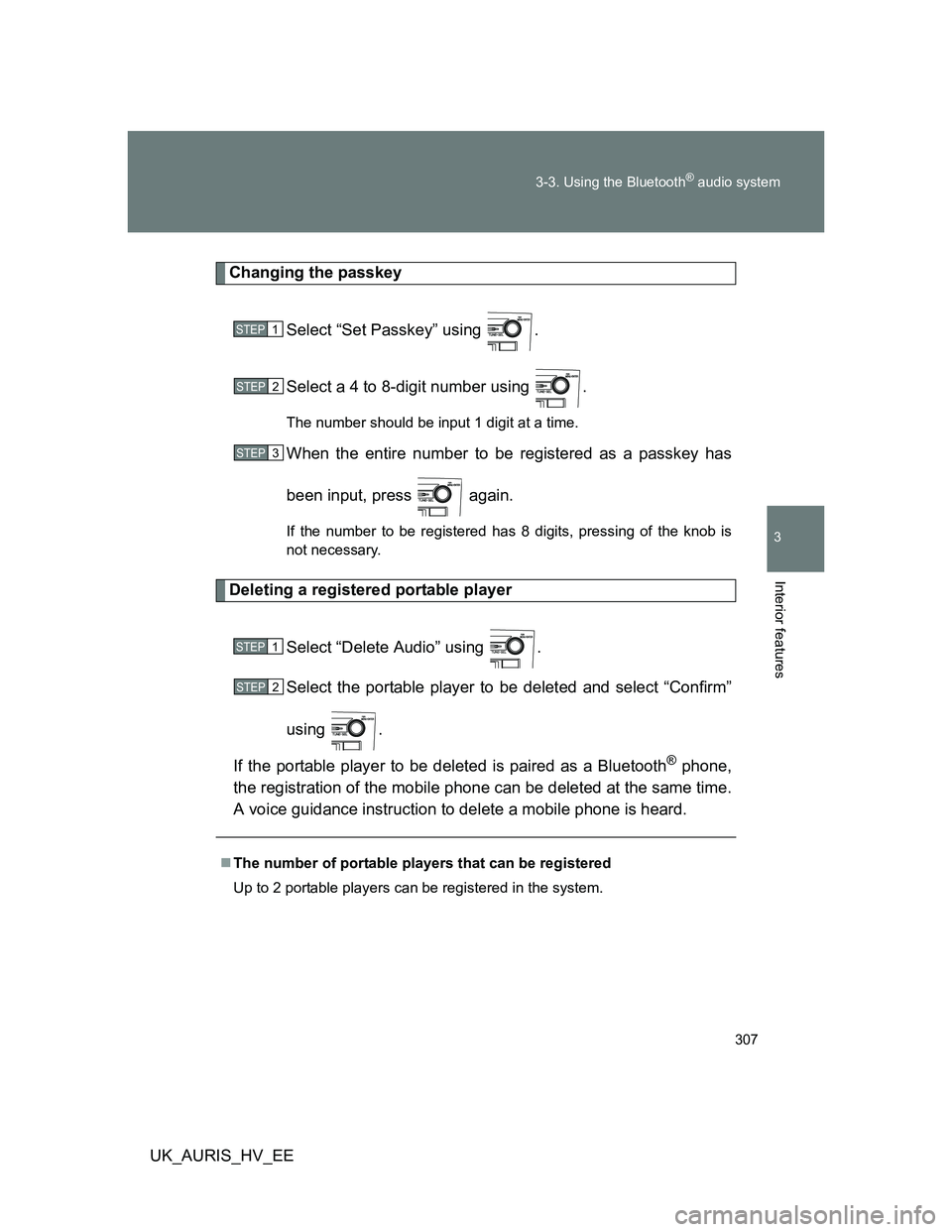

Changing the passkey
Select “Set Passkey” using .
Select a 4 to 8-digit number using .
The number should be input 1 digit at a time.
When the entire number to be registered as a passkey has
been input, press again.
If the number to be registered has 8 digits, pressing of the knob is
not necessary.
Deleting a registered portable player
Select “Delete Audio” using .
Select the portable player to be deleted and select “Confirm”
using .
If the portable player to be deleted is paired as a Bluetooth
® phone,
the registration of the mobile phone can be deleted at the same time.
A voice guidance instruction to delete a mobile phone is heard.
The number of portable players that can be registered
Up to 2 portable players can be registered in the system.
STEP1
STEP2
STEP3
STEP1
STEP2

308
3-3. Using the Bluetooth® audio system
UK_AURIS_HV_EE

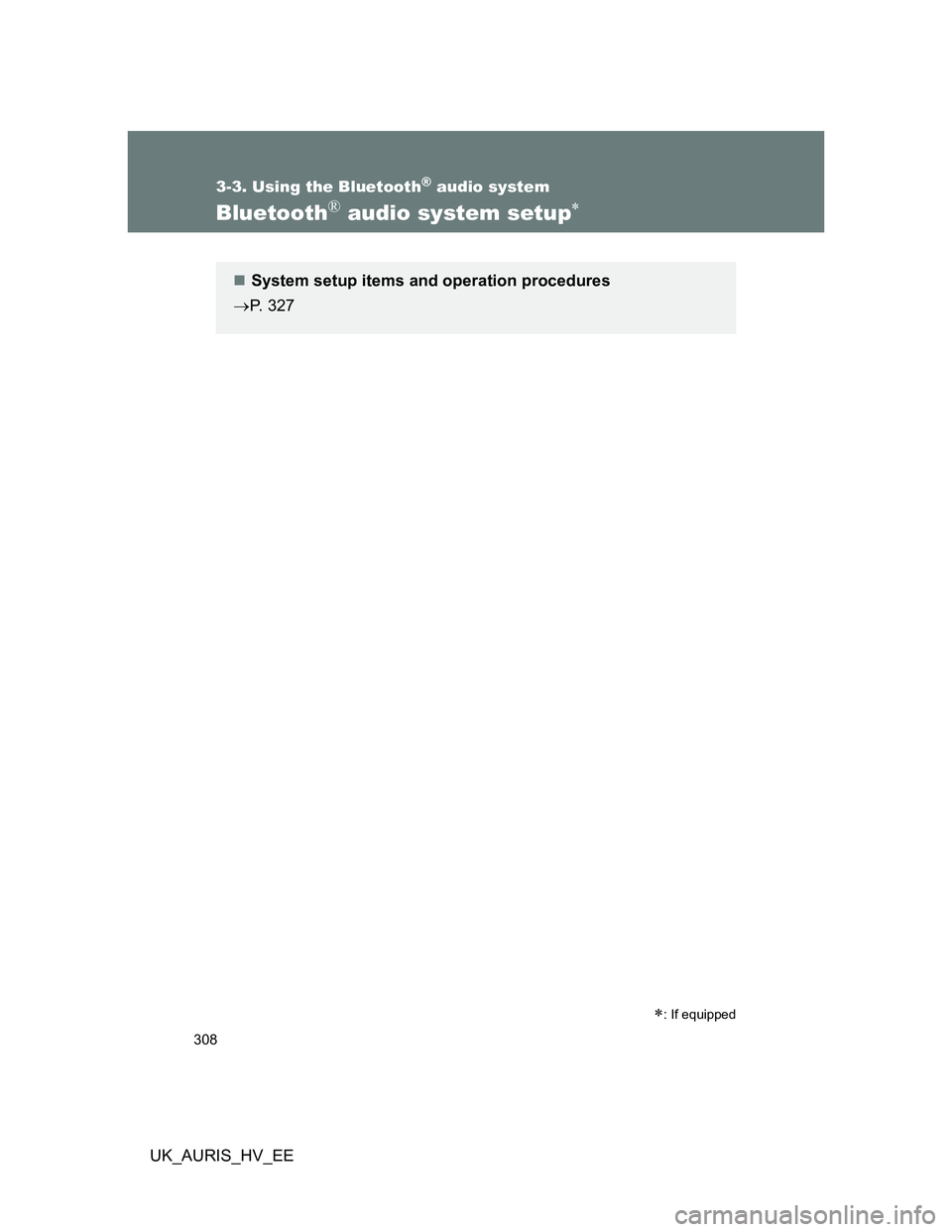

Bluetooth® audio system setup
: If equipped
System setup items and operation procedures
P. 327

309
3
Interior features
UK_AURIS_HV_EE

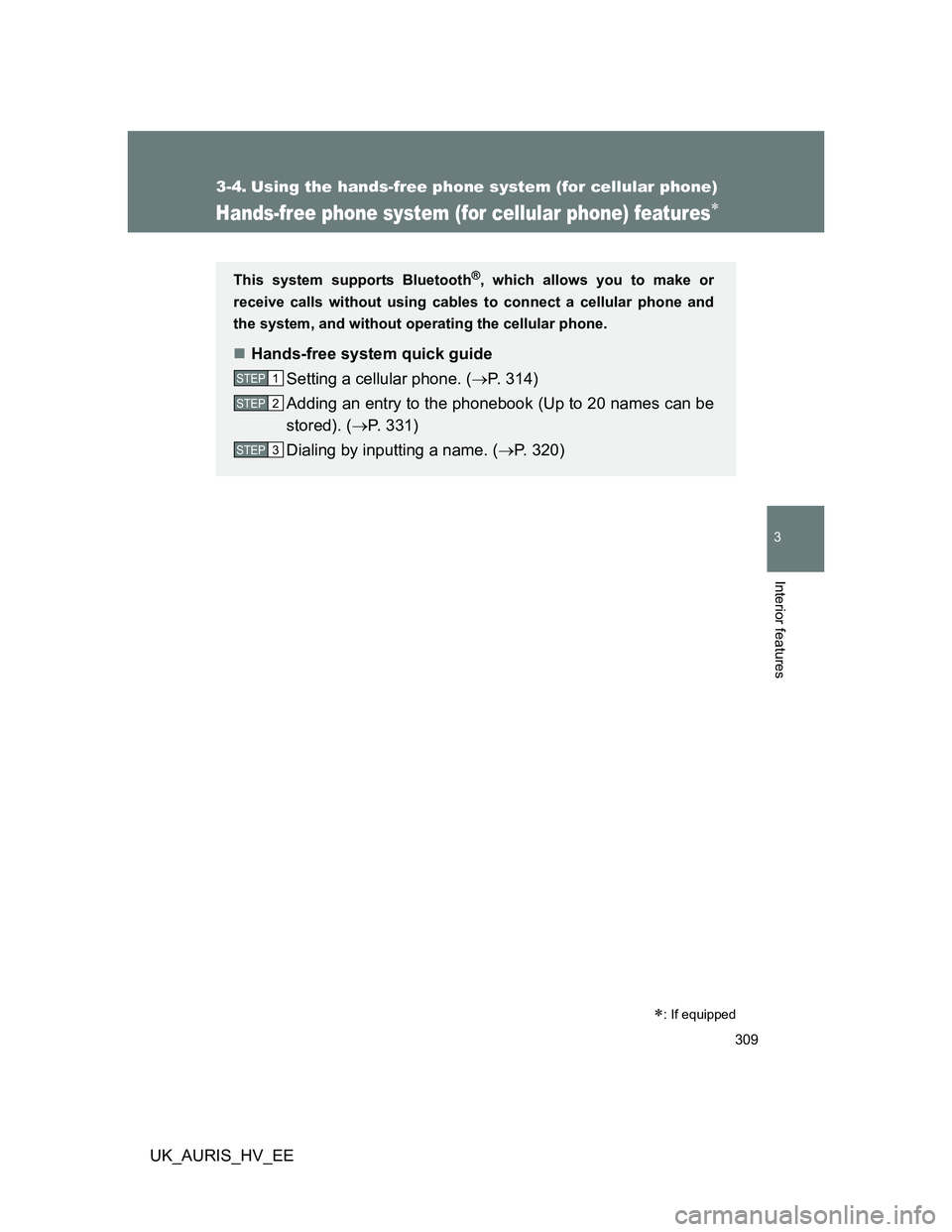

3-4. Using the hands-free phone system (for cellular phone)
Hands-free phone system (for cellular phone) features
This system supports Bluetooth®, which allows you to make or
receive calls without using cables to connect a cellular phone and
the system, and without operating the cellular phone.
Hands-free system quick guide
Setting a cellular phone. (P. 314)
Adding an entry to the phonebook (Up to 20 names can be
stored). (P. 331)
Dialing by inputting a name. (P. 320)
STEP1
STEP2
STEP3

: If equipped

310 3-4. Using the hands-free phone system (for cellular phone)
UK_AURIS_HV_EE

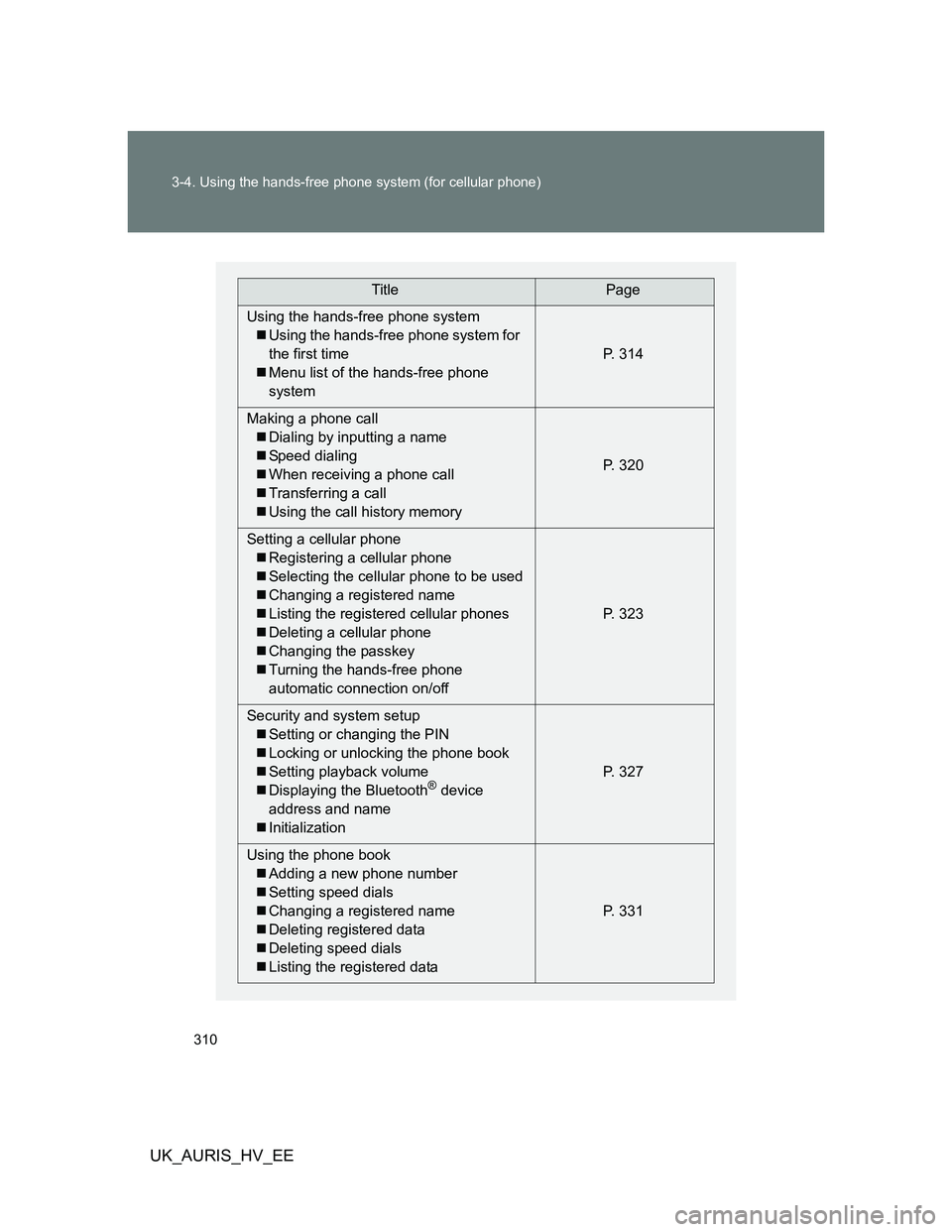

TitlePage
Using the hands-free phone system
Using the hands-free phone system for
the first time
Menu list of the hands-free phone
systemP. 314
Making a phone call
Dialing by inputting a name
Speed dialing
When receiving a phone call
Transferring a call
Using the call history memoryP. 320
Setting a cellular phone
Registering a cellular phone
Selecting the cellular phone to be used
Changing a registered name
Listing the registered cellular phones
Deleting a cellular phone
Changing the passkey
Turning the hands-free phone
automatic connection on/offP. 323
Security and system setup
Setting or changing the PIN
Locking or unlocking the phone book
Setting playback volume
Displaying the Bluetooth
® device
address and name
InitializationP. 327
Using the phone book
Adding a new phone number
Setting speed dials
Changing a registered name
Deleting registered data
Deleting speed dials
Listing the registered dataP. 331
