TOYOTA AURIS HYBRID 2013 Owners Manual

1011-3. Theft deterrent system
1
For safety and security
UK_AURIS/AURIS_HV_EE (OM12F76E)

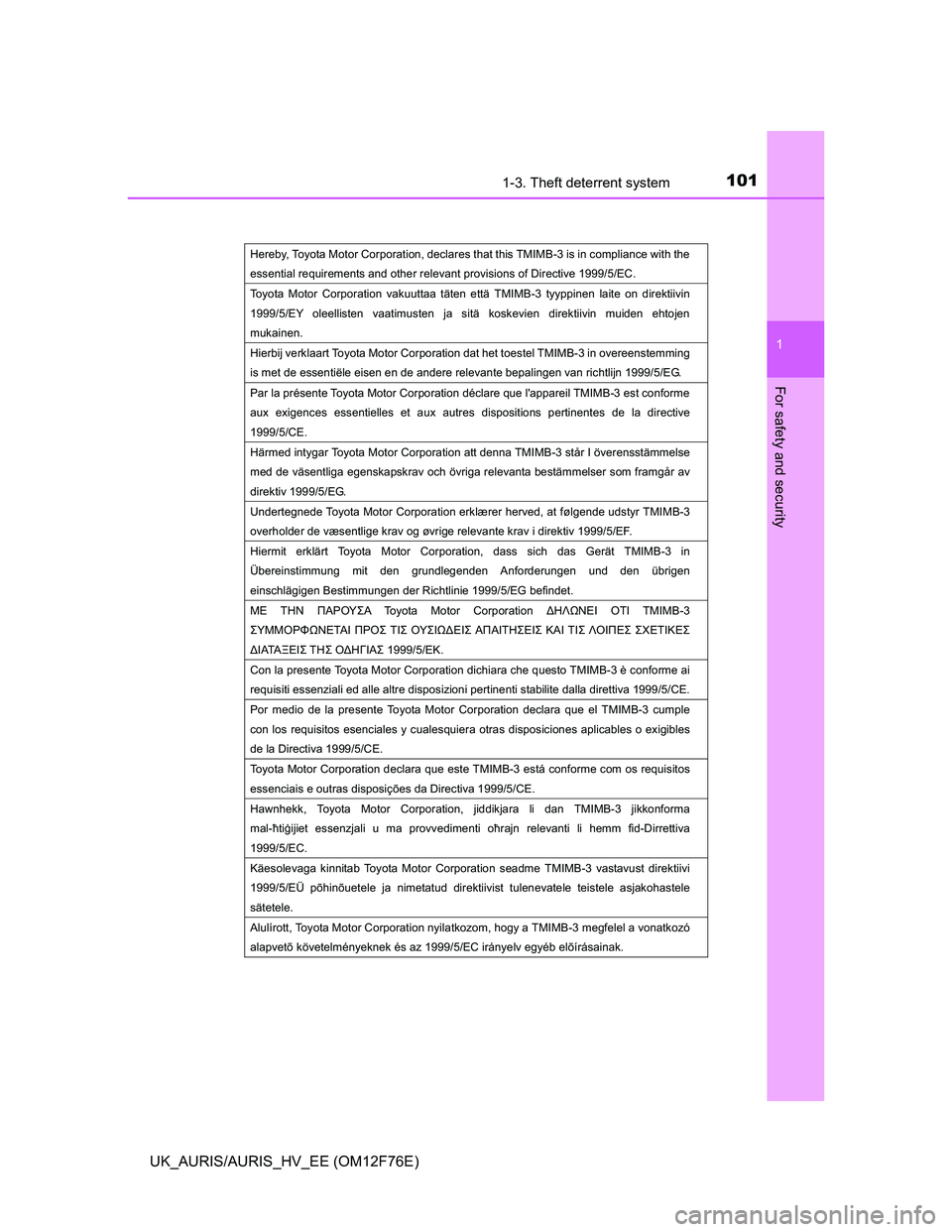

Hereby, Toyota Motor Corporation, declares that this TMIMB-3 is in compliance with the
essential requirements and other relevant provisions of Directive 1999/5/EC.:w
Toyota Motor Corporation vakuuttaa täten että TMIMB-3 tyyppinen laite on direktiivin
1999/5/EY oleellisten vaatimusten ja sitä koskevien direktiivin muiden ehtojen
mukainen.:w
Hierbij verklaart Toyota Motor Corporation dat het toestel TMIMB-3 in overeenstemming
is met de essentiële eisen en de andere relevante bepalingen van richtlijn 1999/5/EG.:w
Par la présente Toyota Motor Corporation déclare que l'appareil TMIMB-3 est conforme
aux exigences essentielles et aux autres dispositions pertinentes de la directive
1999/5/CE.:w
Härmed intygar Toyota Motor Corporation att denna TMIMB-3 står I överensstämmelse
med de väsentliga egenskapskrav och övriga relevanta bestämmelser som framgår av
direktiv 1999/5/EG.
Undertegnede Toyota Motor Corporation erklærer herved, at følgende udstyr TMIMB-3
overholder de væsentlige krav og øvrige relevante krav i direktiv 1999/5/EF.
Hiermit erklärt Toyota Motor Corporation, dass sich das Gerät TMIMB-3 in
Übereinstimmung mit den grundlegenden Anforderungen und den übrigen
einschlägigen Bestimmungen der Richtlinie 1999/5/EG befindet.:w

ü

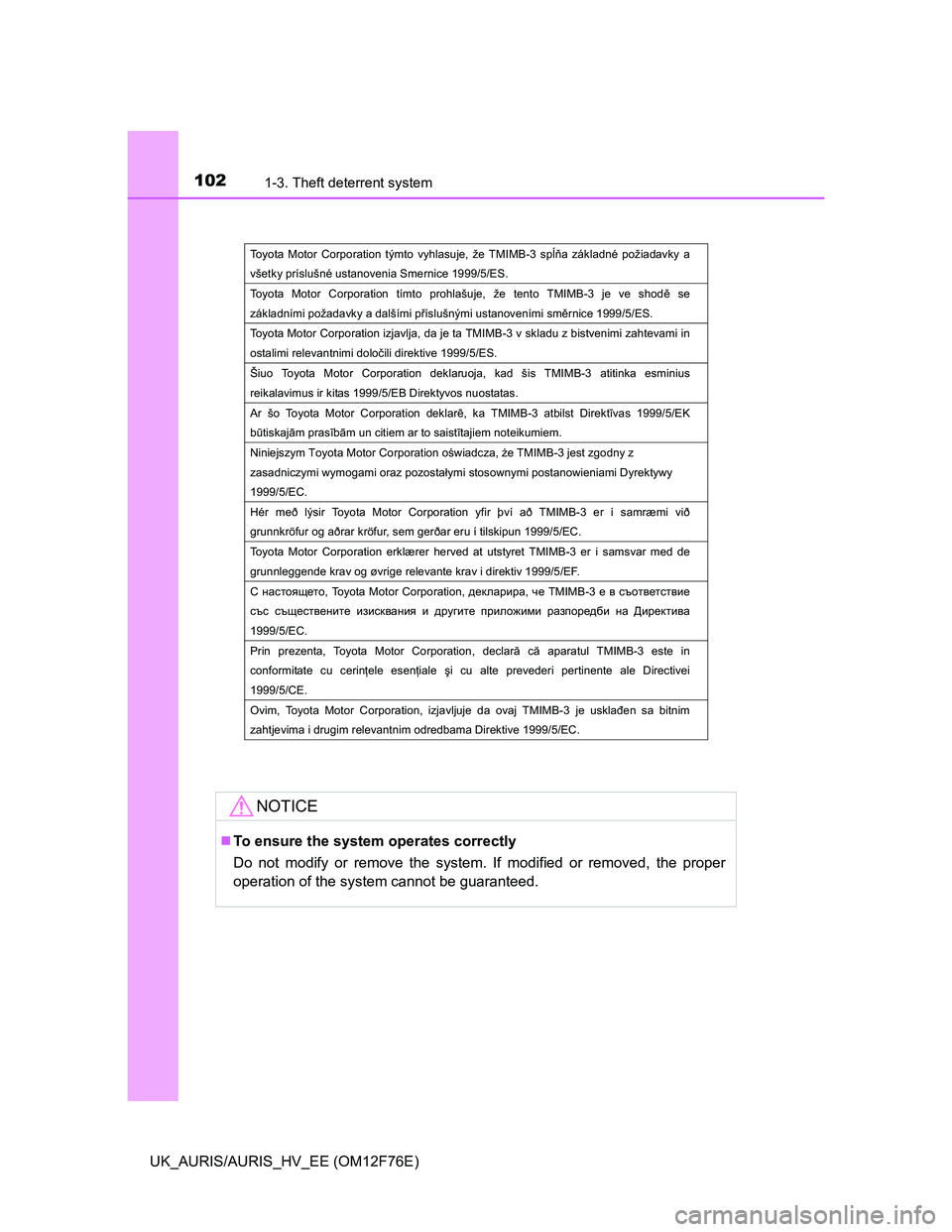

1021-3. Theft deterrent system
UK_AURIS/AURIS_HV_EE (OM12F76E)
NOTICE
To ensure the system operates correctly
Do not modify or remove the system. If modified or removed, the proper
operation of the system cannot be guaranteed.
Toyota Motor Corporation týmto vyhlasuje, že TMIMB-3 sp

a základné požiadavky a
všetky príslušné ustanovenia Smernice 1999/5/ES.
Toyota Motor Corporation tímto prohlašuje, že tento TMIMB-3 je ve shod
 se
základními požadavky a dalšími p
íslušnými ustanoveními sm
rnice 1999/5/ES.
Toyota Motor Corporation izjavlja, da je ta TMIMB-3 v skladu z bistvenimi zahtevami in
ostalimi relevantnimi doloþili direktive 1999/5/ES.
Šiuo Toyota Motor Corporation deklaruoja, kad šis TMIMB-3 atitinka esminius
reikalavimus ir kitas 1999/5/EB Direktyvos nuostatas.
Ar šo Toyota Motor Corporation deklar, ka TMIMB-3 atbilst Direkt
¯vas 1999/5/EK
b
Ìtiskaj
—m pras
¯b
—m un citiem ar to saist
¯tajiem noteikumiem.:w
Niniejszym Toyota Motor Corporation o
wiadcza,
*e TMIMB-3 jest zgodny z
zasadniczymi wymogami oraz pozostaáymi stosownymi postanowieniami Dyrektywy
1999/5/EC.
Hér með lýsir Toyota Motor Corporation yfir því að TMIMB-3 er í samræmi við
grunnkröfur og aðrar kröfur, sem gerðar eru í tilskipun 1999/5/EC.
Toyota Motor Corporation erklærer herved at utstyret TMIMB-3 er i samsvar med de
grunnleggende krav og øvrige relevante krav i direktiv 1999/5/EF.
C gZklhys_lh, Toyota Motor Corporation, ^_deZjbjZ, q_ TMIMB-3 _ \ kthl\_lkl\b_
ktk kts_kl\_gbl_ babkd\Zgby b ^jm]bl_ ijbeh`bfb jZaihj_^[b gZ >bj_dlb\Z
1999/5/?K.
Prin prezenta, Toyota Motor Corporation, declar
 c
 aparatul TMIMB-3 este in
conformitate cu cerin
ele esen
iale úi cu alte prevederi pertinente ale Directivei
1999/5/CE.
Ovim, Toyota Motor Corporation, izjavljuje da ovaj TMIMB-3 je usklaÿen sa bitnim
zahtjevima i drugim relevantnim odredbama Direktive 1999/5/EC.

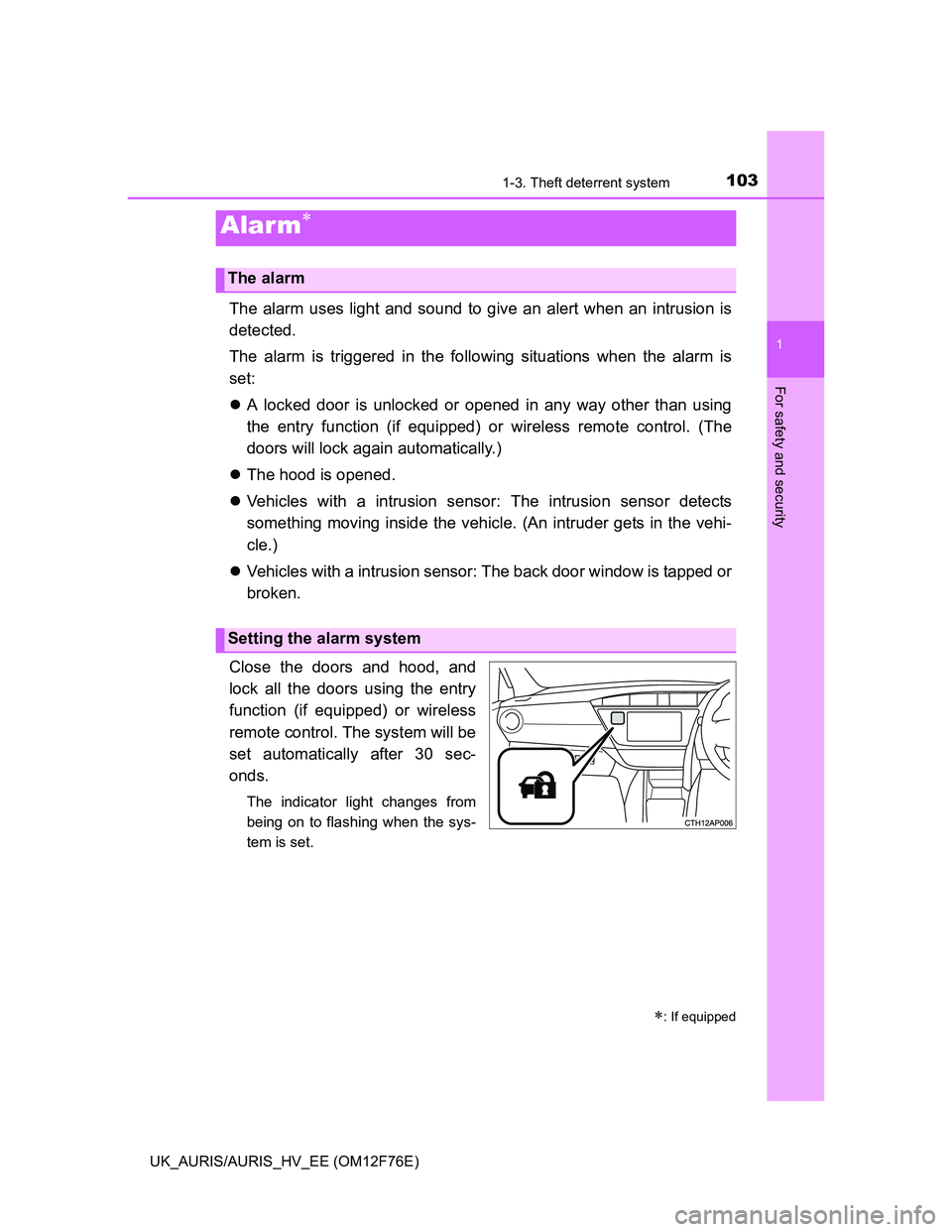

1031-3. Theft deterrent system
1
For safety and security
UK_AURIS/AURIS_HV_EE (OM12F76E)
The alarm uses light and sound to give an alert when an intrusion is
detected.
The alarm is triggered in the following situations when the alarm is
set:
A locked door is unlocked or opened in any way other than using
the entry function (if equipped) or wireless remote control. (The
doors will lock again automatically.)
The hood is opened.
Vehicles with a intrusion sensor: The intrusion sensor detects
something moving inside the vehicle. (An intruder gets in the vehi-
cle.)
Vehicles with a intrusion sensor: The back door window is tapped or
broken.
Close the doors and hood, and
lock all the doors using the entry
function (if equipped) or wireless
remote control. The system will be
set automatically after 30 sec-
onds.
The indicator light changes from
being on to flashing when the sys-
tem is set.
Alarm
: If equipped
The alarm
Setting the alarm system

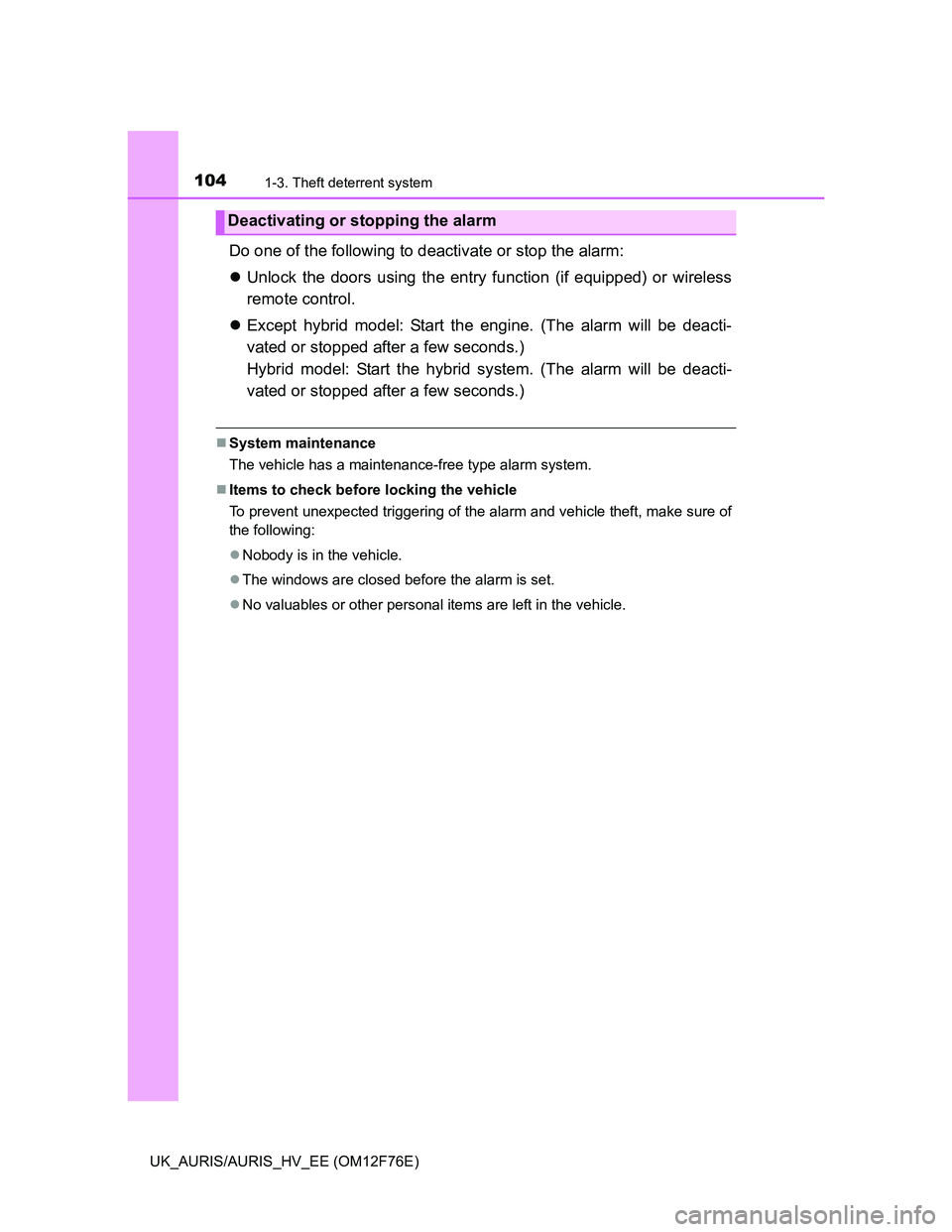

1041-3. Theft deterrent system
UK_AURIS/AURIS_HV_EE (OM12F76E)
Do one of the following to deactivate or stop the alarm:
Unlock the doors using the entry function (if equipped) or wireless
remote control.
Except hybrid model: Start the engine. (The alarm will be deacti-
vated or stopped after a few seconds.)
Hybrid model: Start the hybrid system. (The alarm will be deacti-
vated or stopped after a few seconds.)
System maintenance
The vehicle has a maintenance-free type alarm system.
Items to check before locking the vehicle
To prevent unexpected triggering of the alarm and vehicle theft, make sure of
the following:
Nobody is in the vehicle.
The windows are closed before the alarm is set.
No valuables or other personal items are left in the vehicle.
Deactivating or stopping the alarm

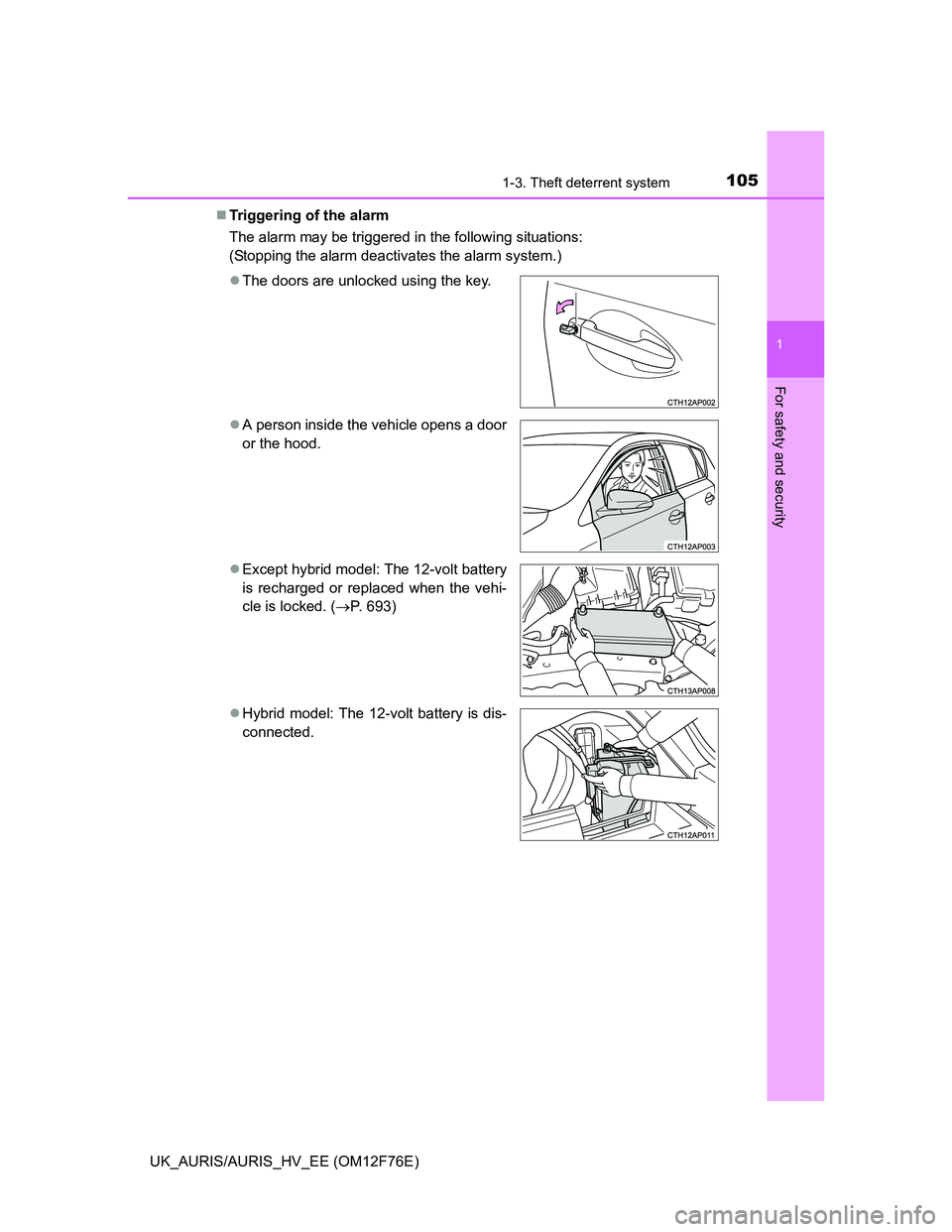

1051-3. Theft deterrent system
1
For safety and security
UK_AURIS/AURIS_HV_EE (OM12F76E)Triggering of the alarm
The alarm may be triggered in the following situations:
(Stopping the alarm deactivates the alarm system.)
The doors are unlocked using the key.
A person inside the vehicle opens a door
or the hood.
Except hybrid model: The 12-volt battery
is recharged or replaced when the vehi-
cle is locked. (P. 693)
Hybrid model: The 12-volt battery is dis-
connected.

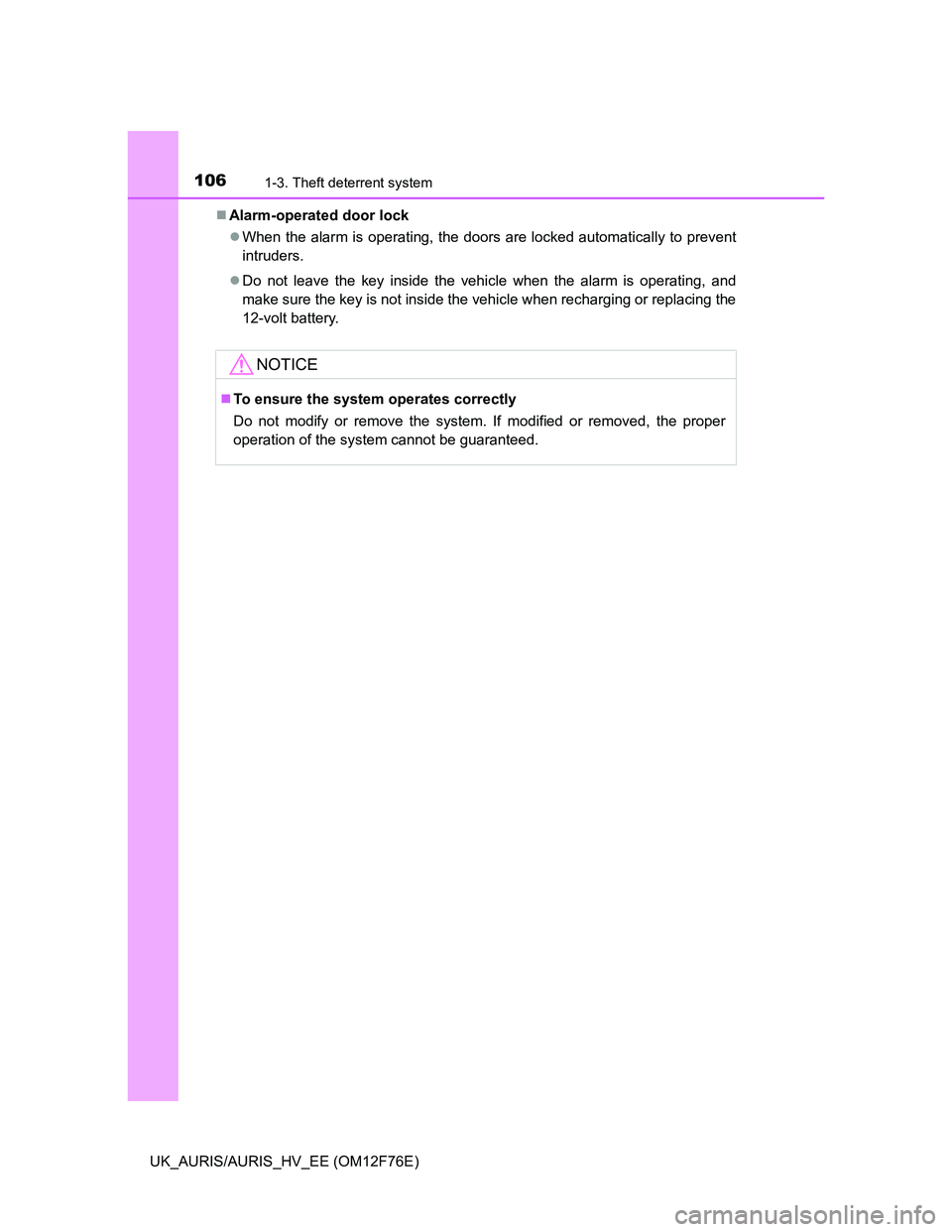

1061-3. Theft deterrent system
UK_AURIS/AURIS_HV_EE (OM12F76E)Alarm-operated door lock
When the alarm is operating, the doors are locked automatically to prevent
intruders.
Do not leave the key inside the vehicle when the alarm is operating, and
make sure the key is not inside the vehicle when recharging or replacing the
12-volt battery.
NOTICE
To ensure the system operates correctly
Do not modify or remove the system. If modified or removed, the proper
operation of the system cannot be guaranteed.

1071-3. Theft deterrent system
1
For safety and security
UK_AURIS/AURIS_HV_EE (OM12F76E)

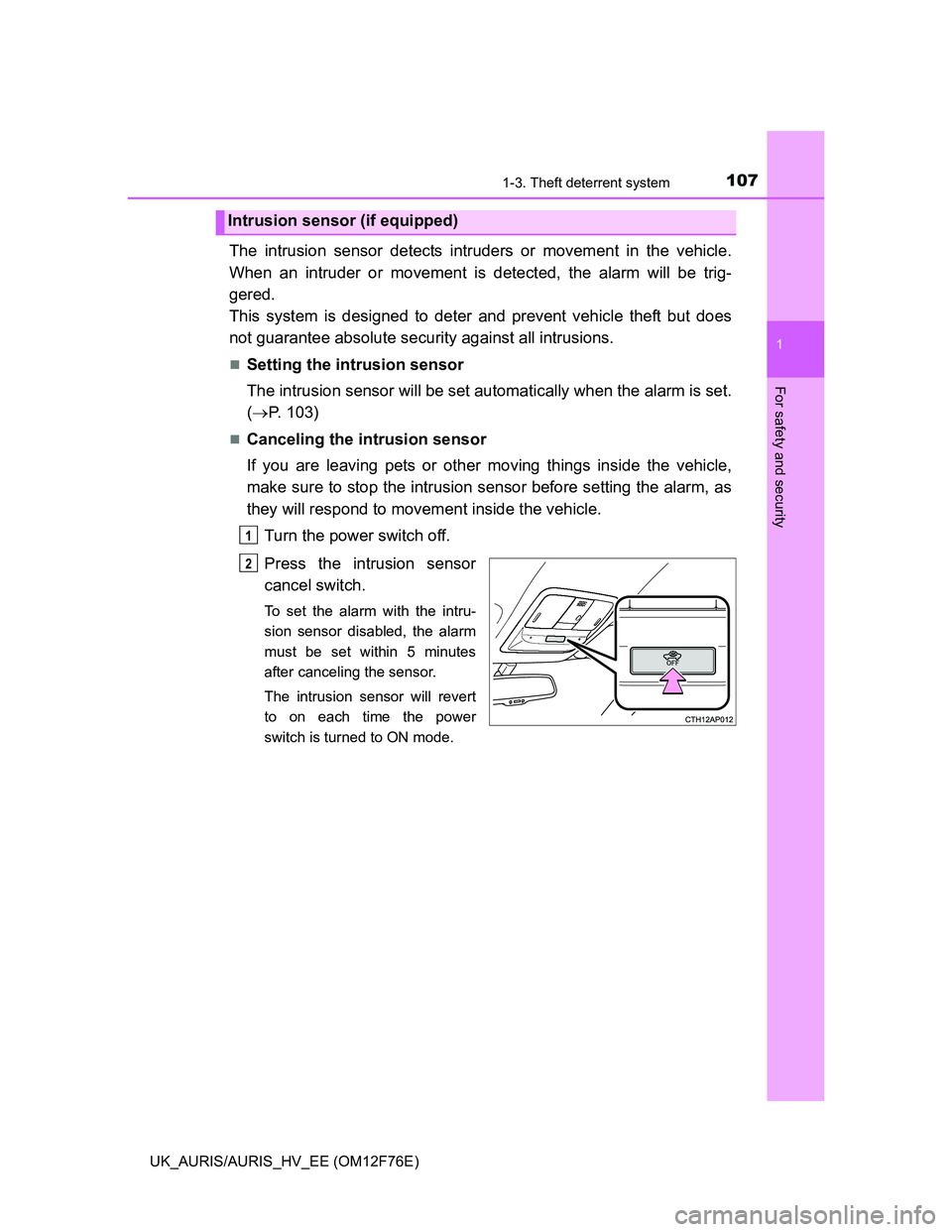

The intrusion sensor detects intruders or movement in the vehicle.
When an intruder or movement is detected, the alarm will be trig-
gered.
This system is designed to deter and prevent vehicle theft but does
not guarantee absolute security against all intrusions.
Setting the intrusion sensor
The intrusion sensor will be set automatically when the alarm is set.
(P. 103)
Canceling the intrusion sensor
If you are leaving pets or other moving things inside the vehicle,
make sure to stop the intrusion sensor before setting the alarm, as
they will respond to movement inside the vehicle.
Turn the power switch off.
Press the intrusion sensor
cancel switch.
To set the alarm with the intru-
sion sensor disabled, the alarm
must be set within 5 minutes
after canceling the sensor.
The intrusion sensor will revert
to on each time the power
switch is turned to ON mode.
Intrusion sensor (if equipped)
1
2

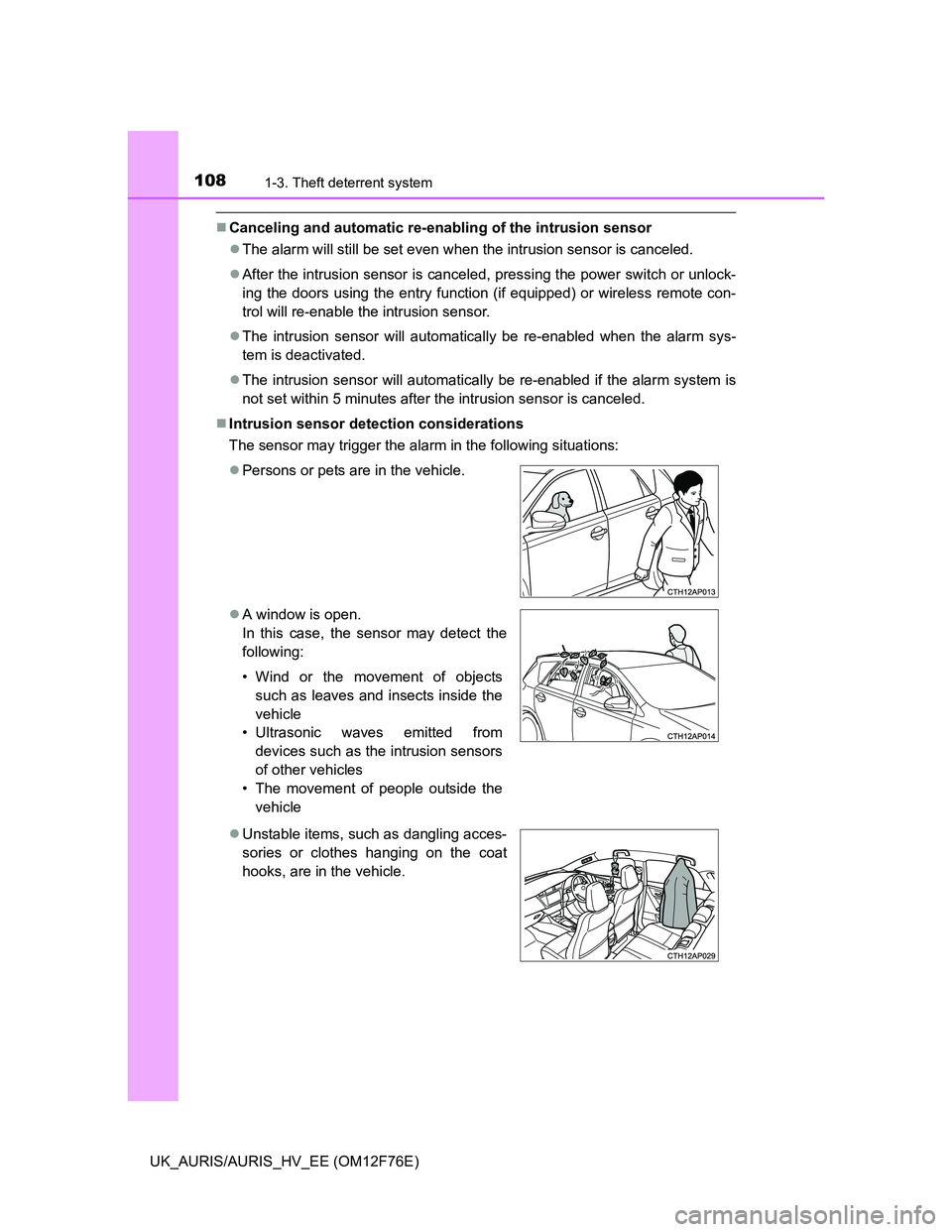

1081-3. Theft deterrent system
UK_AURIS/AURIS_HV_EE (OM12F76E)
Canceling and automatic re-enabling of the intrusion sensor
The alarm will still be set even when the intrusion sensor is canceled.
After the intrusion sensor is canceled, pressing the power switch or unlock-
ing the doors using the entry function (if equipped) or wireless remote con-
trol will re-enable the intrusion sensor.
The intrusion sensor will automatically be re-enabled when the alarm sys-
tem is deactivated.
The intrusion sensor will automatically be re-enabled if the alarm system is
not set within 5 minutes after the intrusion sensor is canceled.
Intrusion sensor detection considerations
The sensor may trigger the alarm in the following situations:
Persons or pets are in the vehicle.
A window is open.
In this case, the sensor may detect the
following:
• Wind or the movement of objects
such as leaves and insects inside the
vehicle
• Ultrasonic waves emitted from
devices such as the intrusion sensors
of other vehicles
• The movement of people outside the
vehicle
Unstable items, such as dangling acces-
sories or clothes hanging on the coat
hooks, are in the vehicle.

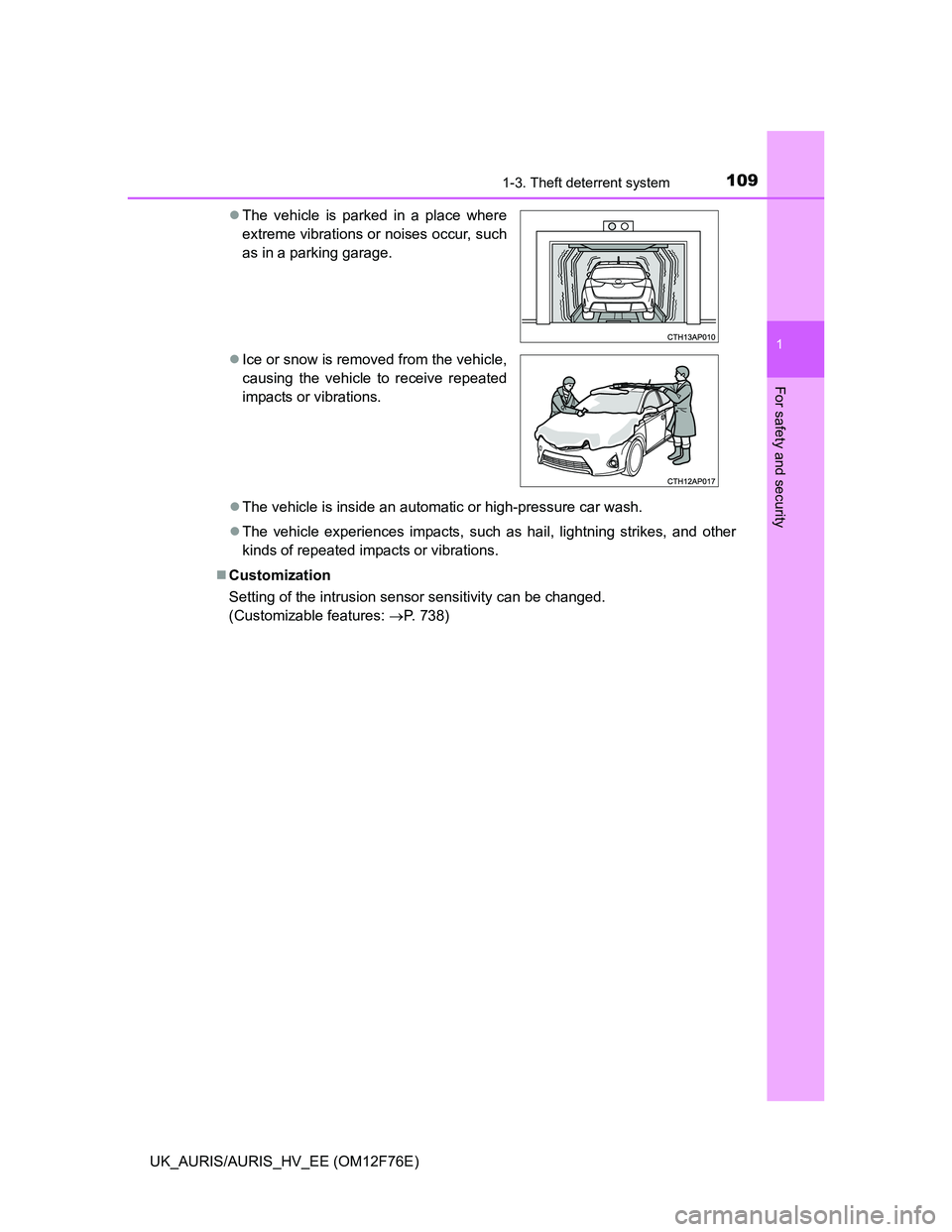

1091-3. Theft deterrent system
1
For safety and security
UK_AURIS/AURIS_HV_EE (OM12F76E)The vehicle is inside an automatic or high-pressure car wash.
The vehicle experiences impacts, such as hail, lightning strikes, and other
kinds of repeated impacts or vibrations.
Customization
Setting of the intrusion sensor sensitivity can be changed.
(Customizable features: P. 738) The vehicle is parked in a place where
extreme vibrations or noises occur, such
as in a parking garage.
Ice or snow is removed from the vehicle,
causing the vehicle to receive repeated
impacts or vibrations.

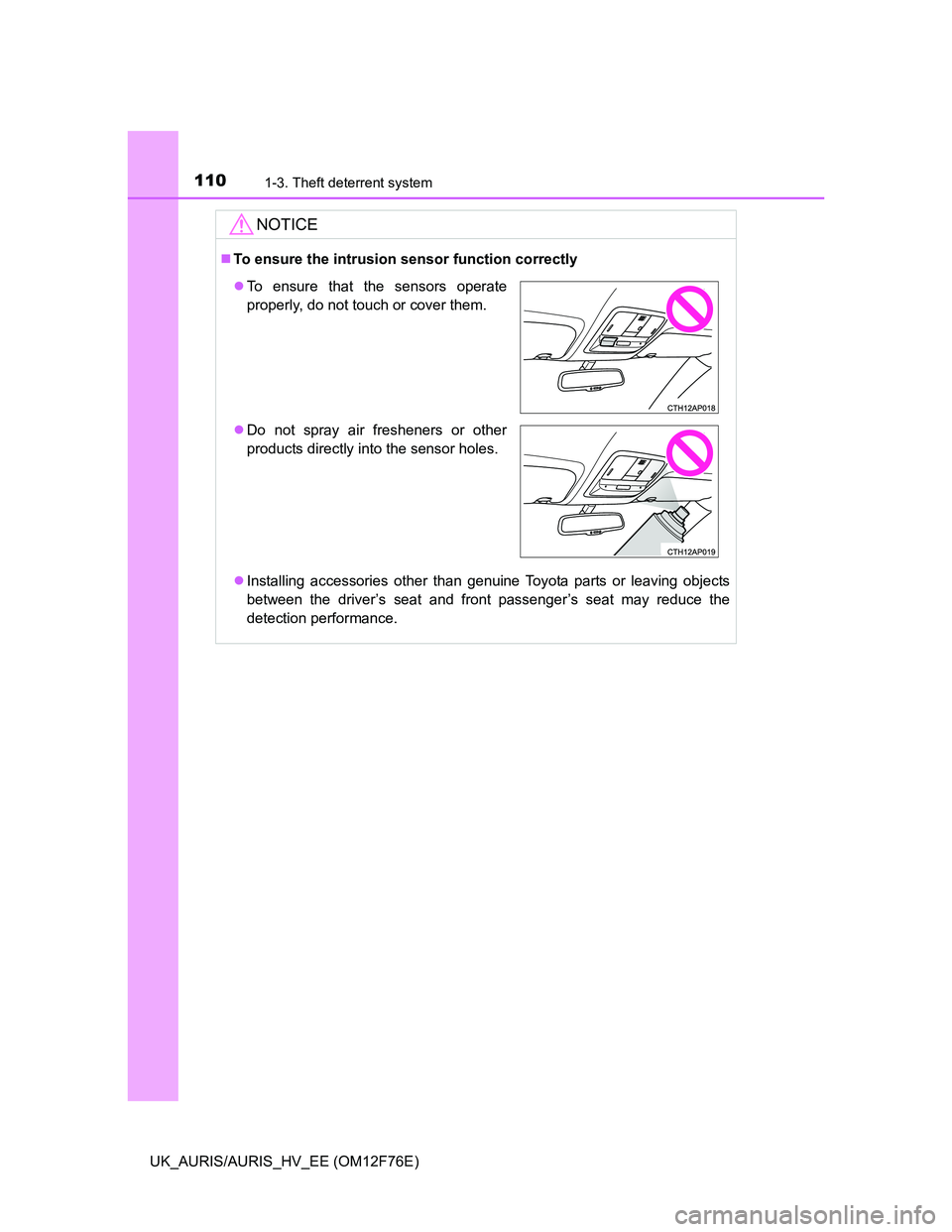

1101-3. Theft deterrent system
UK_AURIS/AURIS_HV_EE (OM12F76E)
NOTICE
To ensure the intrusion sensor function correctly
Installing accessories other than genuine Toyota parts or leaving objects
between the driver’s seat and front passenger’s seat may reduce the
detection performance.
To ensure that the sensors operate
properly, do not touch or cover them.
Do not spray air fresheners or other
products directly into the sensor holes.
