Instrument cluster
Tachometer
Displays the engine speed in revolutions per minute.
Speedometer
Displays the vehicle speed.
Fuel gauge
Displays the quantity of fuel remaining in the tank.

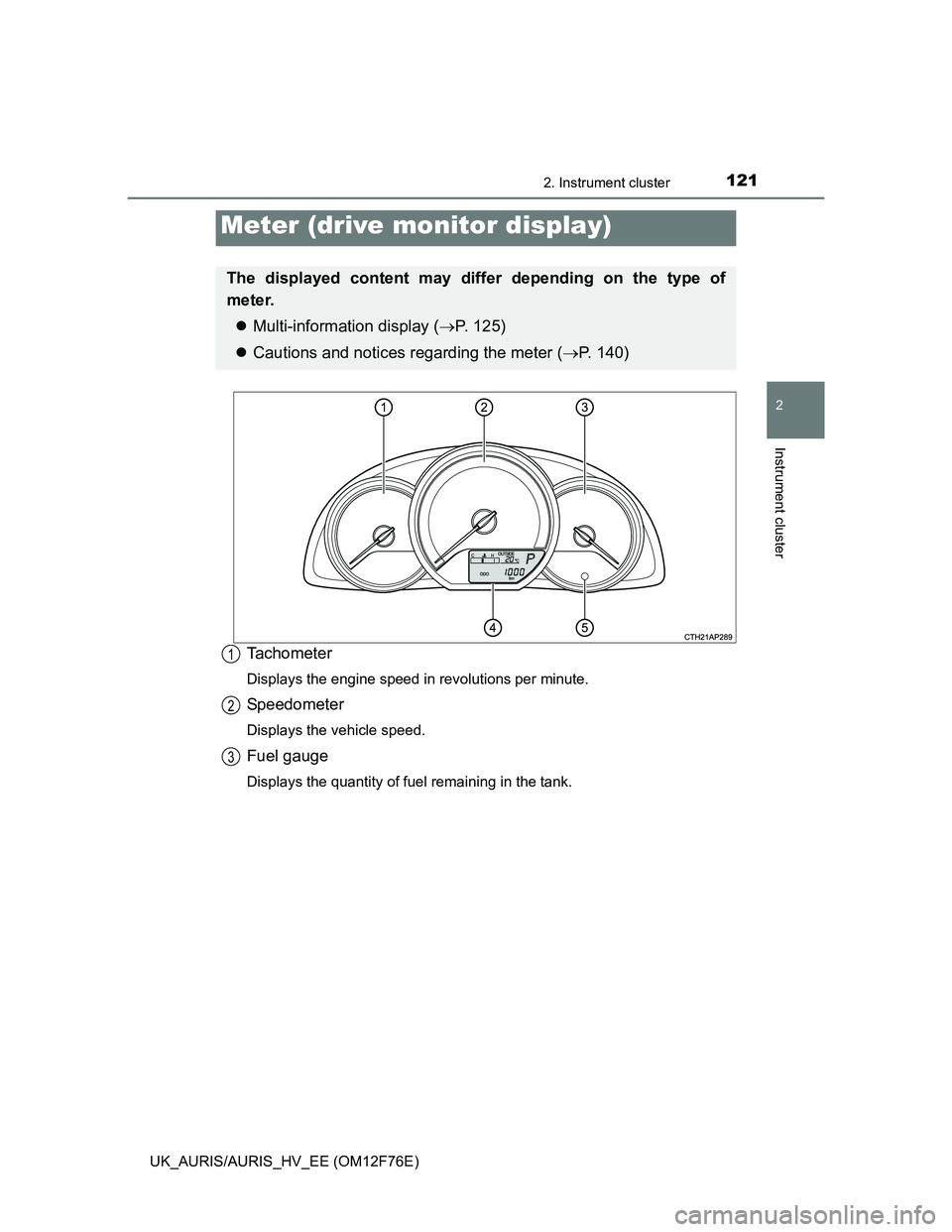

Meter (drive monitor display)
The displayed content may differ depending on the type of
meter.
Multi-information display (P. 125)
Cautions and notices regarding the meter (P. 140)
1
2
3

1222. Instrument cluster
UK_AURIS/AURIS_HV_EE (OM12F76E)

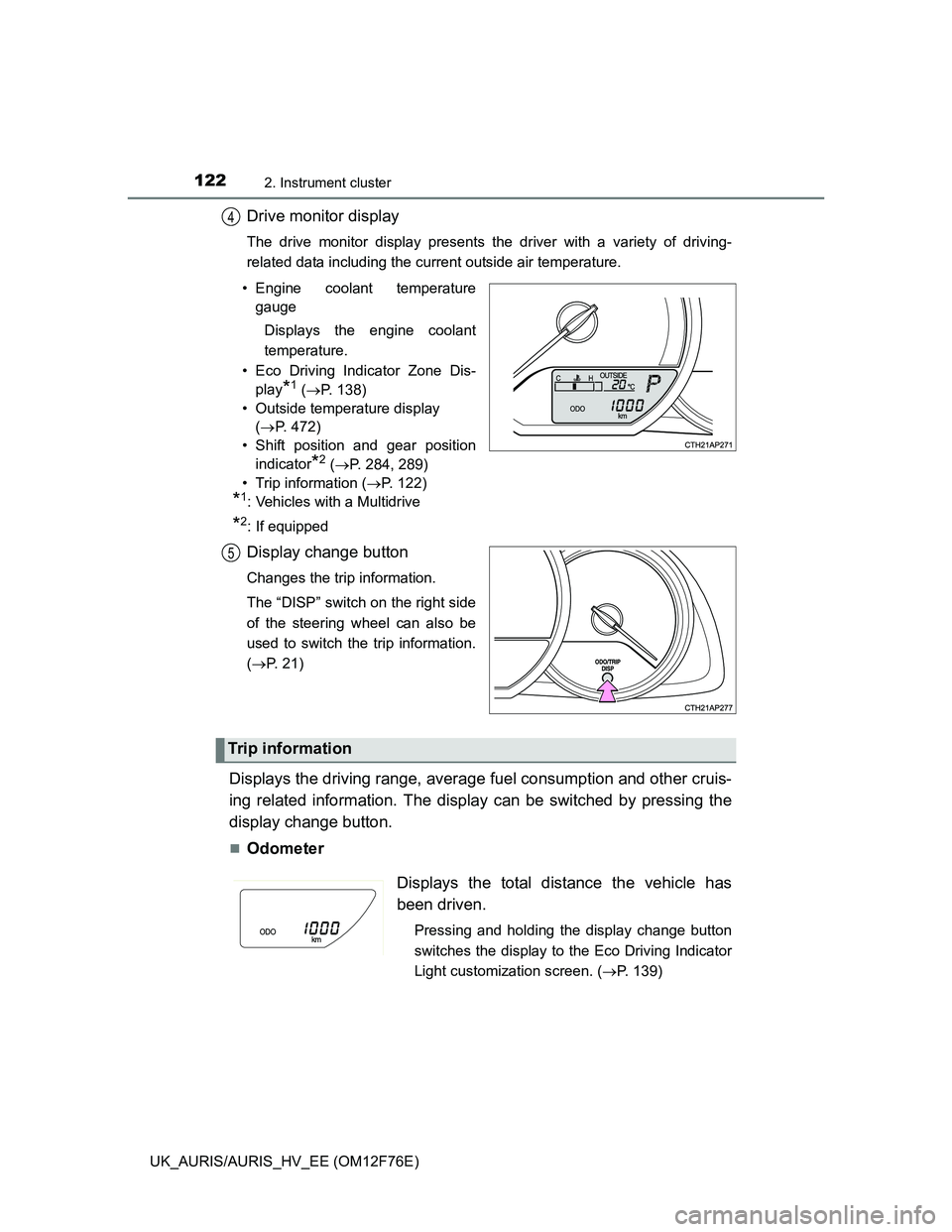

Drive monitor display
The drive monitor display presents the driver with a variety of driving-
related data including the current outside air temperature.
• Engine coolant temperature
gauge
Displays the engine coolant
temperature.
• Eco Driving Indicator Zone Dis-
play
*1 (P. 138)
• Outside temperature display
(P. 472)
• Shift position and gear position
indicator
*2 (P. 284, 289)
• Trip information (P. 122)
*1: Vehicles with a Multidrive
*2: If equipped
Display change button
Changes the trip information.
The “DISP” switch on the right side
of the steering wheel can also be
used to switch the trip information.
(P. 21)
Displays the driving range, average fuel consumption and other cruis-
ing related information. The display can be switched by pressing the
display change button.
Odometer
4
5
Trip information
Displays the total distance the vehicle has
been driven.
Pressing and holding the display change button
switches the display to the Eco Driving Indicator
Light customization screen. (P. 139)

1232. Instrument cluster
UK_AURIS/AURIS_HV_EE (OM12F76E)
2
Instrument cluster

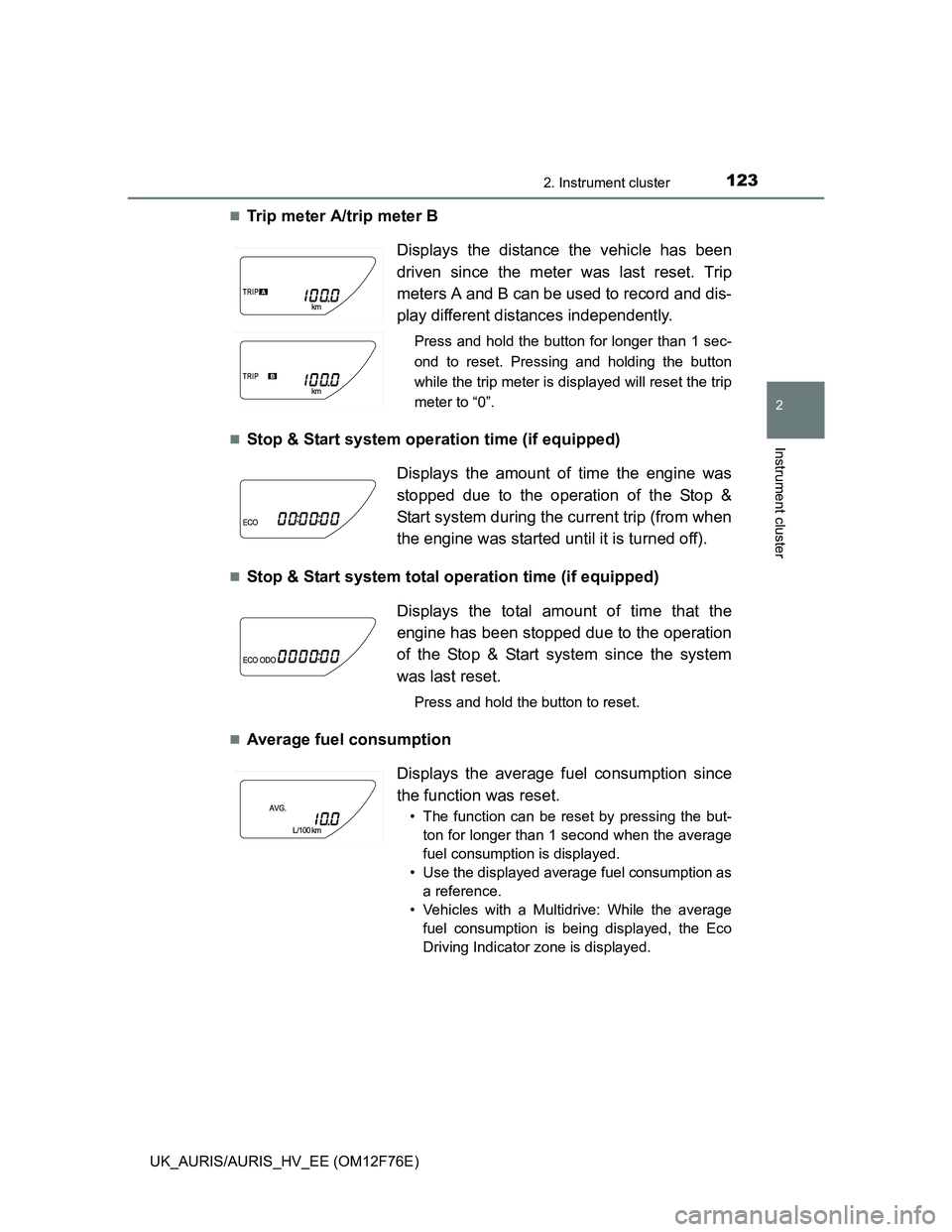

Trip meter A/trip meter B
Stop & Start system operation time (if equipped)
Stop & Start system total operation time (if equipped)
Average fuel consumption Displays the distance the vehicle has been
driven since the meter was last reset. Trip
meters A and B can be used to record and dis-
play different distances independently.
Press and hold the button for longer than 1 sec-
ond to reset. Pressing and holding the button
while the trip meter is displayed will reset the trip
meter to “0”.
Displays the amount of time the engine was
stopped due to the operation of the Stop &
Start system during the current trip (from when
the engine was started until it is turned off).
Displays the total amount of time that the
engine has been stopped due to the operation
of the Stop & Start system since the system
was last reset.
Press and hold the button to reset.
Displays the average fuel consumption since
the function was reset.
• The function can be reset by pressing the but-
ton for longer than 1 second when the average
fuel consumption is displayed.
• Use the displayed average fuel consumption as
a reference.
• Vehicles with a Multidrive: While the average
fuel consumption is being displayed, the Eco
Driving Indicator zone is displayed.

1242. Instrument cluster
UK_AURIS/AURIS_HV_EE (OM12F76E)

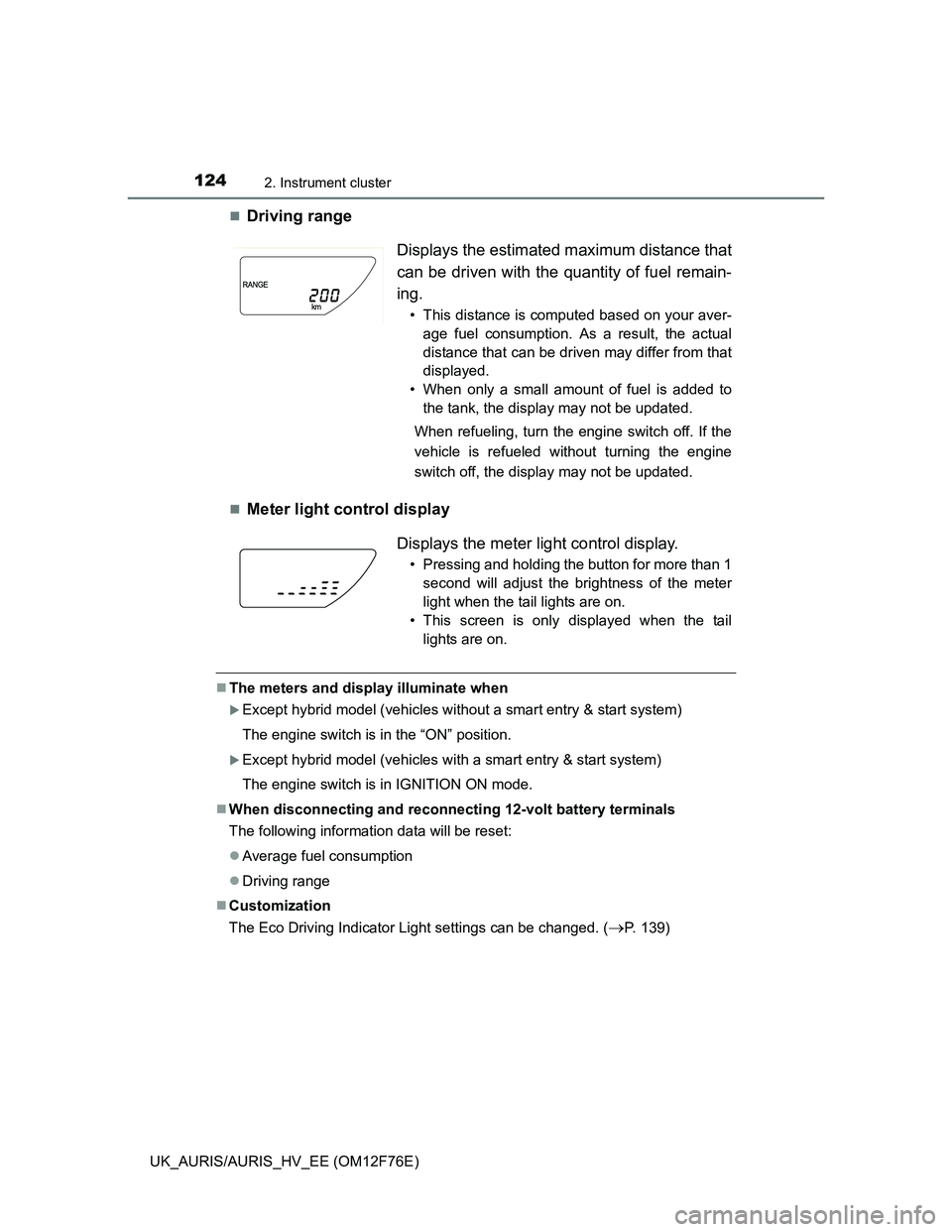

Driving range
Meter light control display
The meters and display illuminate when
Except hybrid model (vehicles without a smart entry & start system)
The engine switch is in the “ON” position.
Except hybrid model (vehicles with a smart entry & start system)
The engine switch is in IGNITION ON mode.
When disconnecting and reconnecting 12-volt battery terminals
The following information data will be reset:
Average fuel consumption
Driving range
Customization
The Eco Driving Indicator Light settings can be changed. (
P. 139)
Displays the estimated maximum distance that
can be driven with the quantity of fuel remain-
ing.
• This distance is computed based on your aver-
age fuel consumption. As a result, the actual
distance that can be driven may differ from that
displayed.
• When only a small amount of fuel is added to
the tank, the display may not be updated.
When refueling, turn the engine switch off. If the
vehicle is refueled without turning the engine
switch off, the display may not be updated.
Displays the meter light control display.
• Pressing and holding the button for more than 1
second will adjust the brightness of the meter
light when the tail lights are on.
• This screen is only displayed when the tail
lights are on.

1252. Instrument cluster
UK_AURIS/AURIS_HV_EE (OM12F76E)
2
Instrument cluster

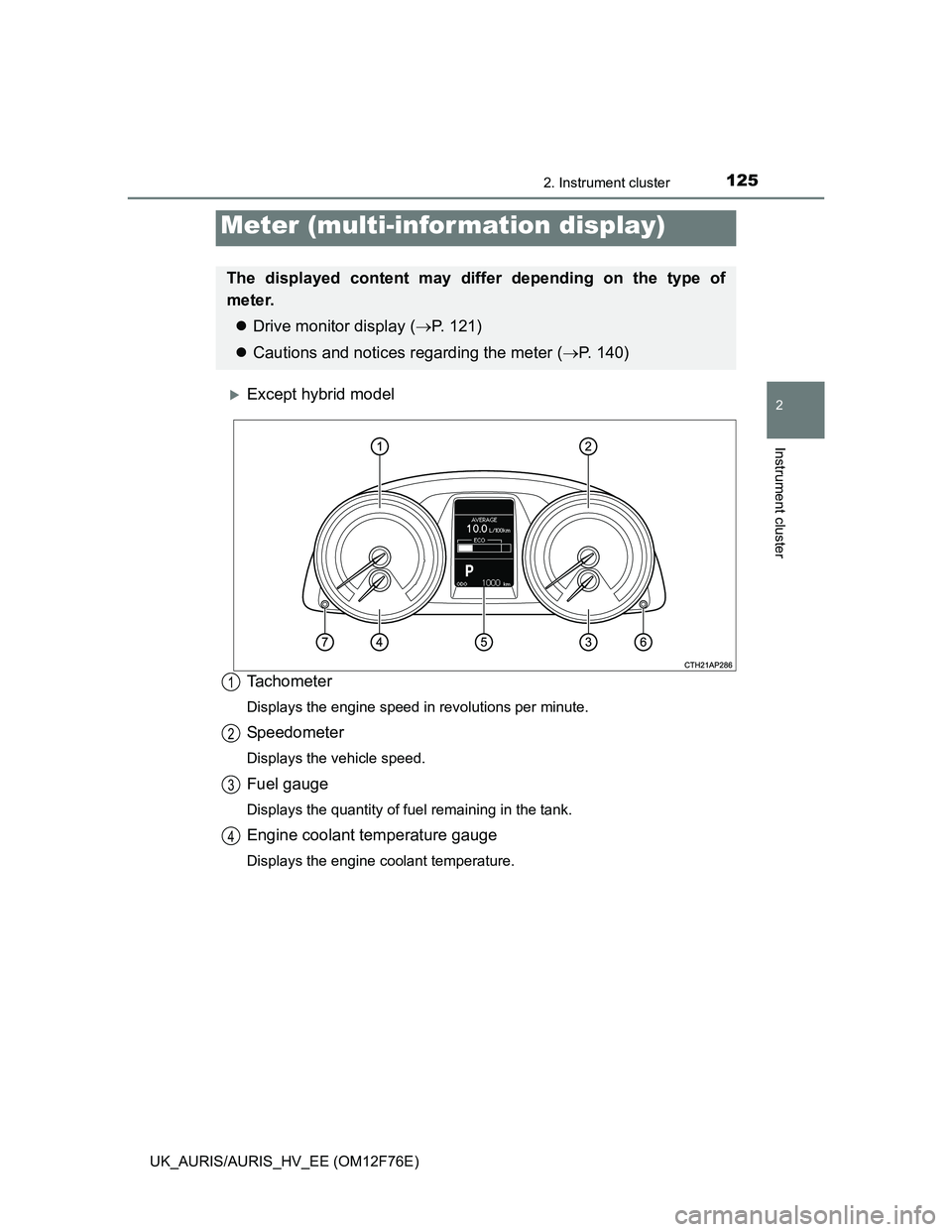

Except hybrid model
Tachometer
Displays the engine speed in revolutions per minute.
Speedometer
Displays the vehicle speed.
Fuel gauge
Displays the quantity of fuel remaining in the tank.
Engine coolant temperature gauge
Displays the engine coolant temperature.
Meter (multi-infor mation display)
The displayed content may differ depending on the type of
meter.
Drive monitor display (P. 121)
Cautions and notices regarding the meter (P. 140)
1
2
3
4

1262. Instrument cluster
UK_AURIS/AURIS_HV_EE (OM12F76E)

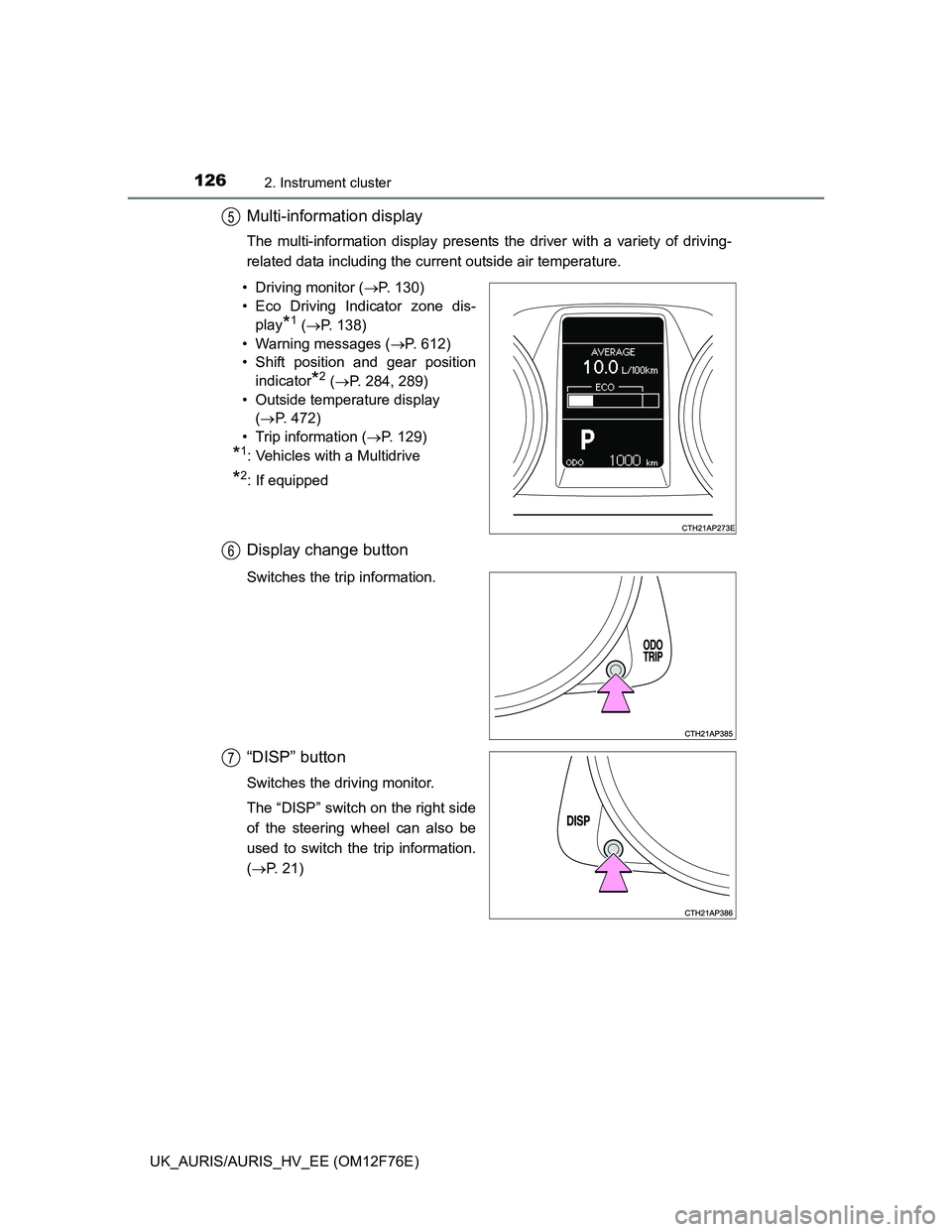

Multi-information display
The multi-information display presents the driver with a variety of driving-
related data including the current outside air temperature.
• Driving monitor (P. 130)
• Eco Driving Indicator zone dis-
play
*1 (P. 138)
• Warning messages (P. 612)
• Shift position and gear position
indicator
*2 (P. 284, 289)
• Outside temperature display
(P. 472)
• Trip information (P. 129)
*1: Vehicles with a Multidrive
*2: If equipped
Display change button
Switches the trip information.
“DISP” button
Switches the driving monitor.
The “DISP” switch on the right side
of the steering wheel can also be
used to switch the trip information.
(P. 21)
5
6
7

1272. Instrument cluster
UK_AURIS/AURIS_HV_EE (OM12F76E)
2
Instrument cluster

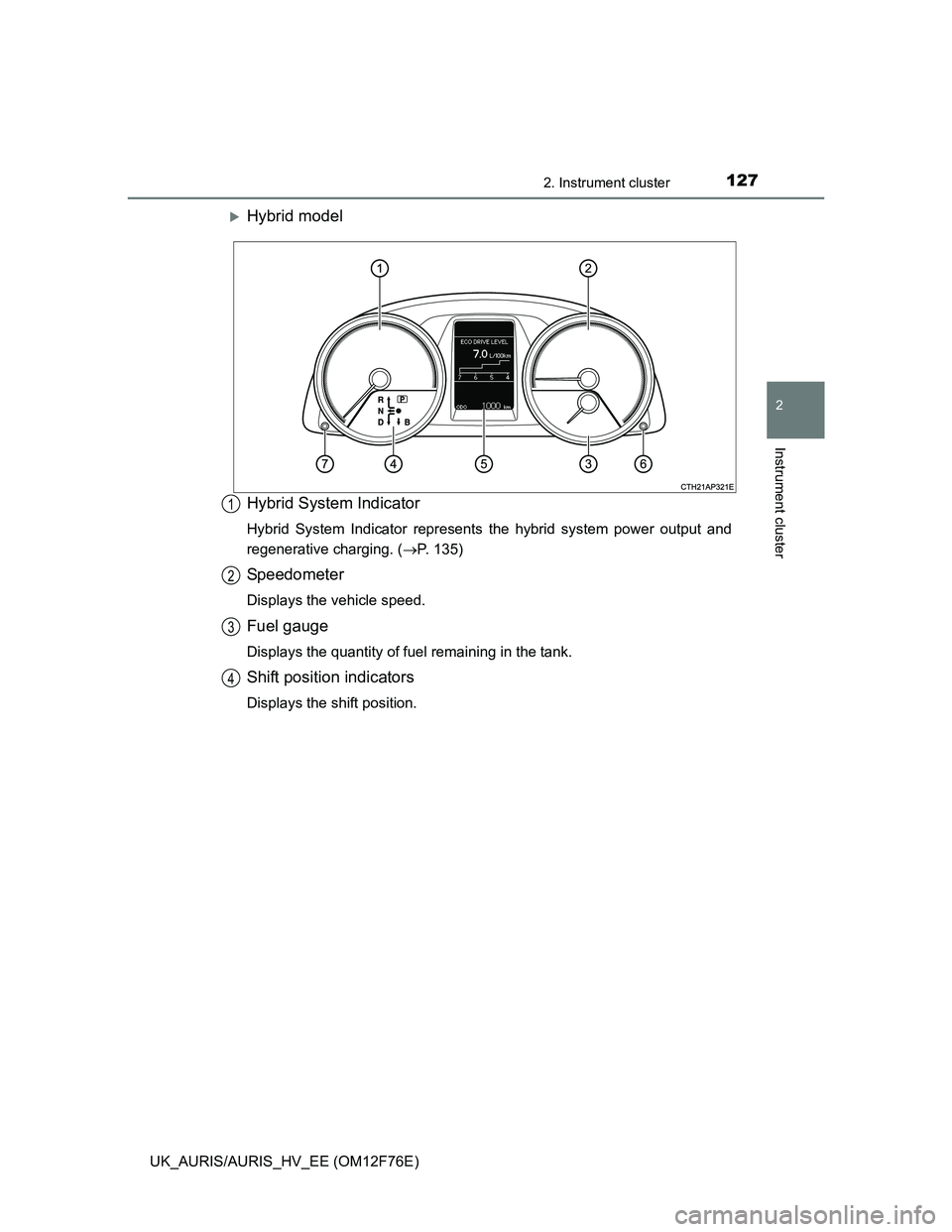

Hybrid model
Hybrid System Indicator
Hybrid System Indicator represents the hybrid system power output and
regenerative charging. (P. 135)
Speedometer
Displays the vehicle speed.
Fuel gauge
Displays the quantity of fuel remaining in the tank.
Shift position indicators
Displays the shift position.
1
2
3
4

1282. Instrument cluster
UK_AURIS/AURIS_HV_EE (OM12F76E)

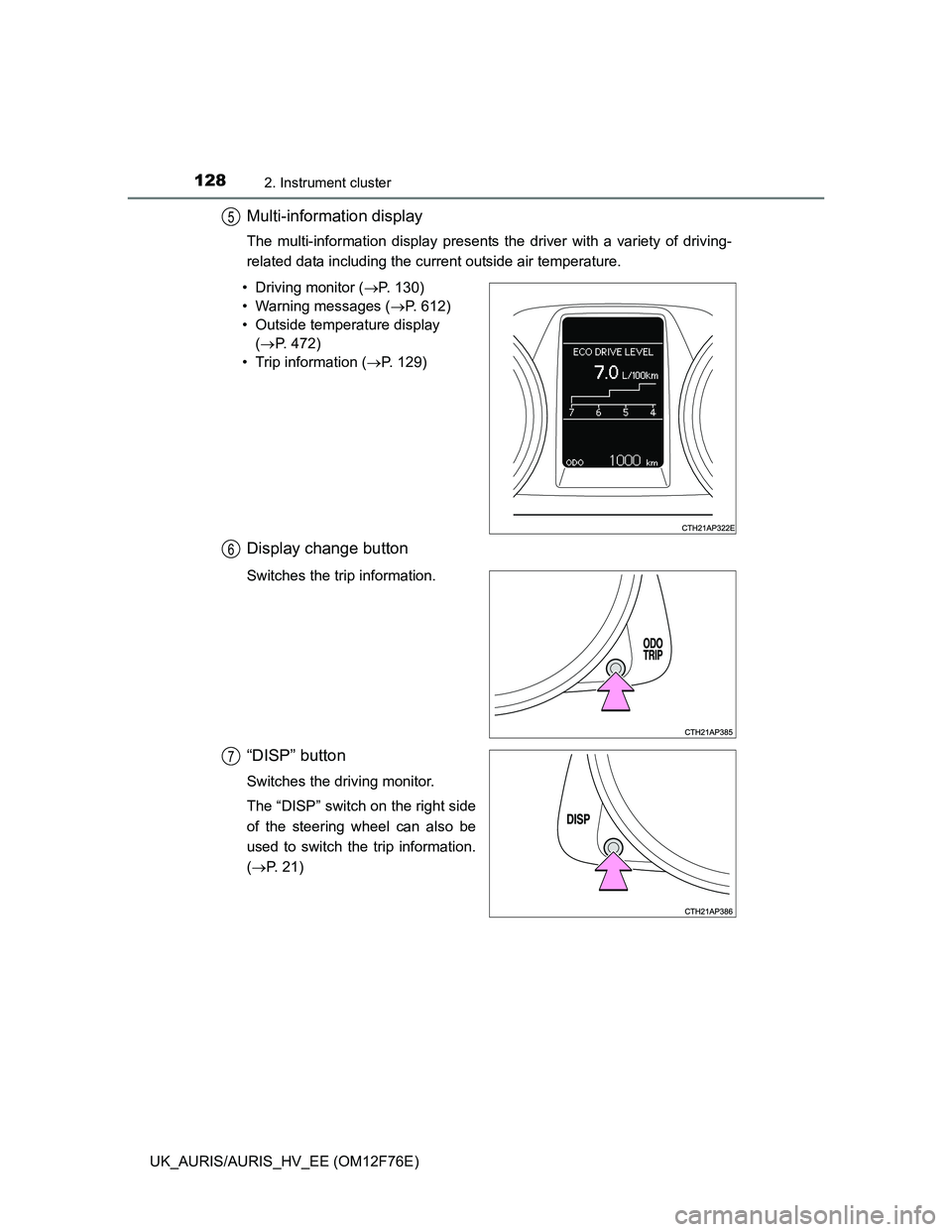

Multi-information display
The multi-information display presents the driver with a variety of driving-
related data including the current outside air temperature.
• Driving monitor (P. 130)
• Warning messages (P. 612)
• Outside temperature display
(P. 472)
• Trip information (P. 129)
Display change button
Switches the trip information.
“DISP” button
Switches the driving monitor.
The “DISP” switch on the right side
of the steering wheel can also be
used to switch the trip information.
(P. 21)
5
6
7

1292. Instrument cluster
UK_AURIS/AURIS_HV_EE (OM12F76E)
2
Instrument cluster

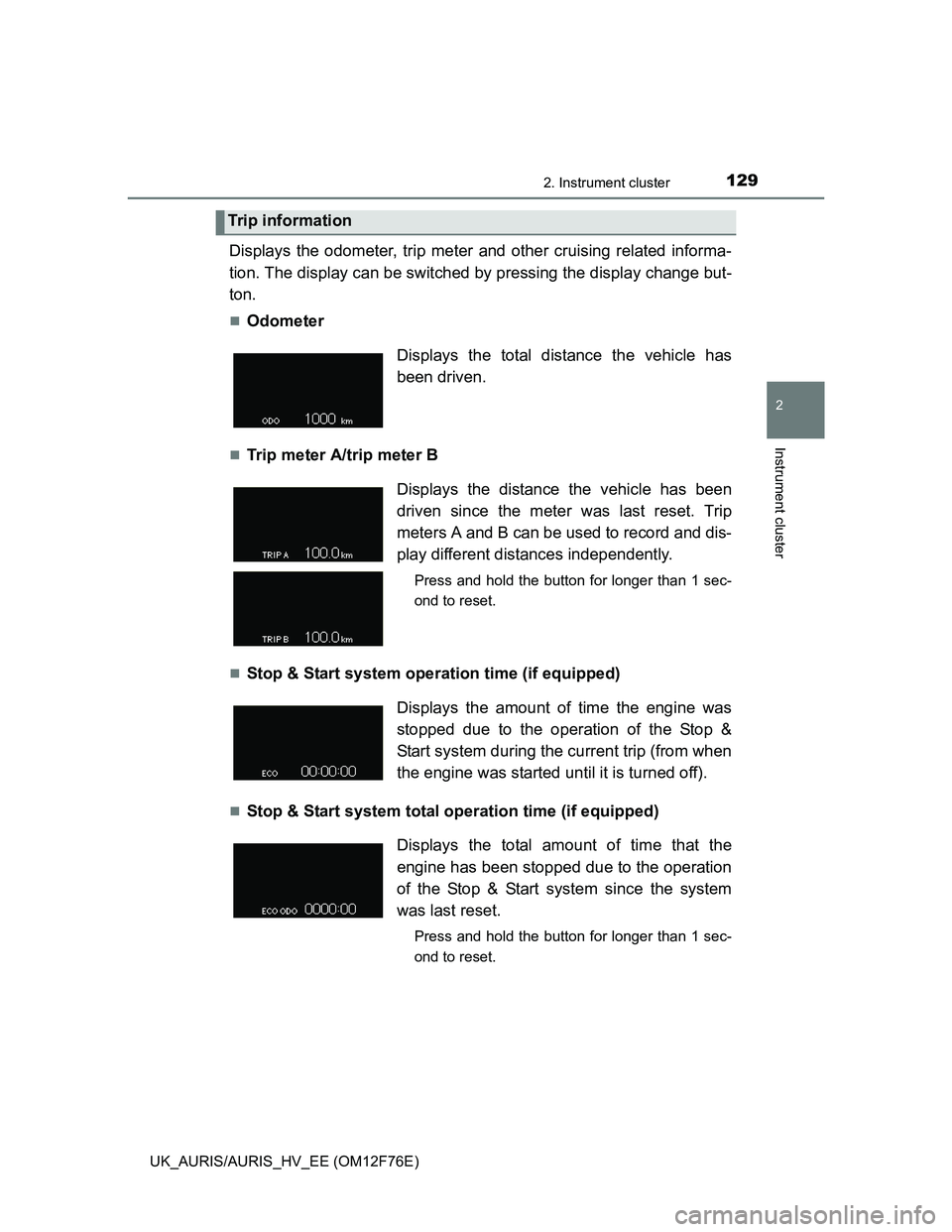

Displays the odometer, trip meter and other cruising related informa-
tion. The display can be switched by pressing the display change but-
ton.
Odometer
Trip meter A/trip meter B
Stop & Start system operation time (if equipped)
Stop & Start system total operation time (if equipped)
Trip information
Displays the total distance the vehicle has
been driven.
Displays the distance the vehicle has been
driven since the meter was last reset. Trip
meters A and B can be used to record and dis-
play different distances independently.
Press and hold the button for longer than 1 sec-
ond to reset.
Displays the amount of time the engine was
stopped due to the operation of the Stop &
Start system during the current trip (from when
the engine was started until it is turned off).
Displays the total amount of time that the
engine has been stopped due to the operation
of the Stop & Start system since the system
was last reset.
Press and hold the button for longer than 1 sec-
ond to reset.

1302. Instrument cluster
UK_AURIS/AURIS_HV_EE (OM12F76E)

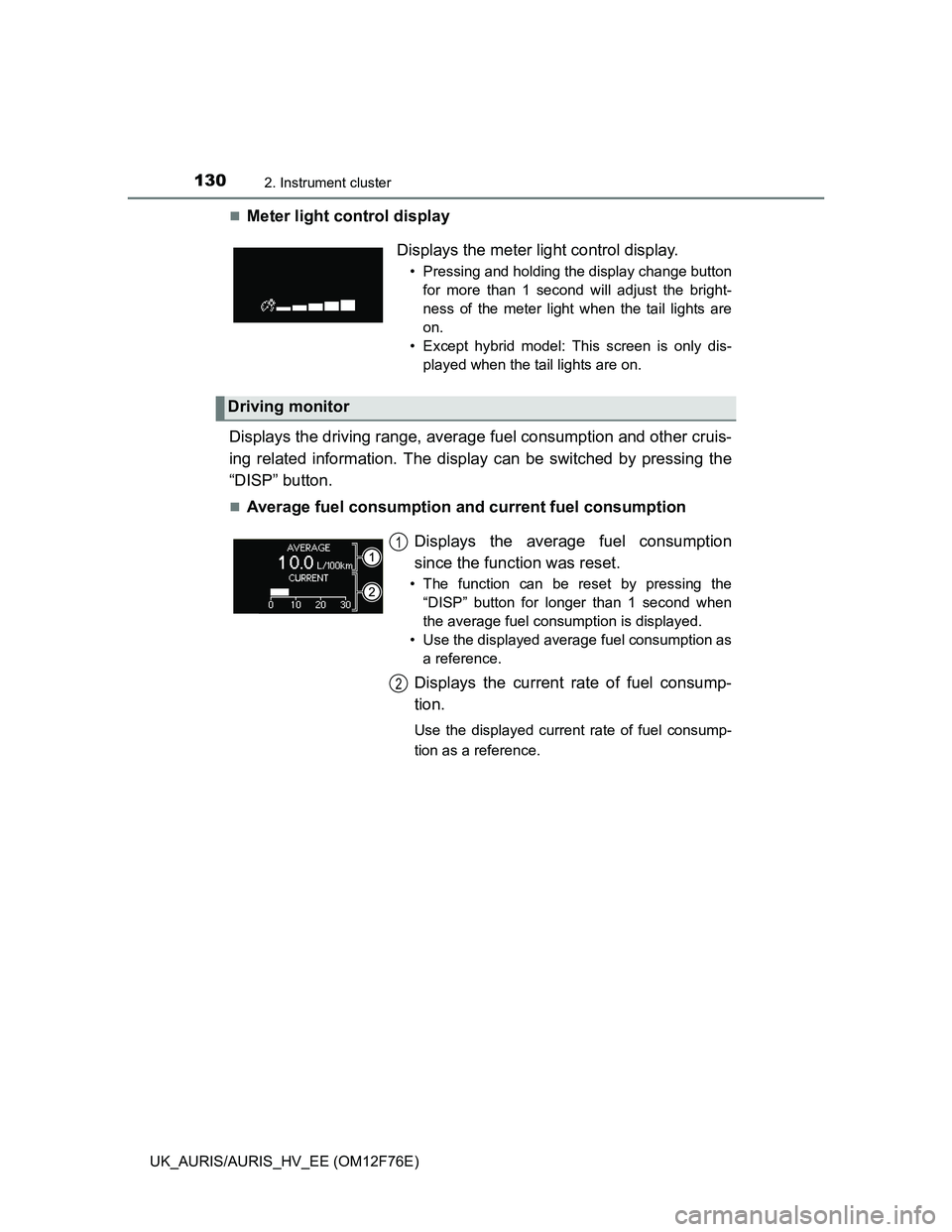

Meter light control display
Displays the driving range, average fuel consumption and other cruis-
ing related information. The display can be switched by pressing the
“DISP” button.
Average fuel consumption and current fuel consumption Displays the meter light control display.
• Pressing and holding the display change button
for more than 1 second will adjust the bright-
ness of the meter light when the tail lights are
on.
• Except hybrid model: This screen is only dis-
played when the tail lights are on.
Driving monitor
Displays the average fuel consumption
since the function was reset.
• The function can be reset by pressing the
“DISP” button for longer than 1 second when
the average fuel consumption is displayed.
• Use the displayed average fuel consumption as
a reference.
Displays the current rate of fuel consump-
tion.
Use the displayed current rate of fuel consump-
tion as a reference.
1
2
