1111-3. Theft deterrent system
1
For safety and security
UK_AURIS/AURIS_HV_EE (OM12F76E)
Vehicles employing this system
have labels on the window glass
of both front doors.
Except hybrid model: Turn the engine switch off, have all the pas-
sengers exit the vehicle and ensure that all the doors are closed.
Hybrid model: Turn the power switch off, have all the passengers
exit the vehicle and ensure that all the doors are closed.
Using the entry function (if equipped):
Touch the sensor area on the outside door handle twice within 5
seconds.
Using the wireless remote control:
Press twice within 5 seconds.
Using the entry function (if equipped): Hold the outside door handle.
Using the wireless remote control: Press .

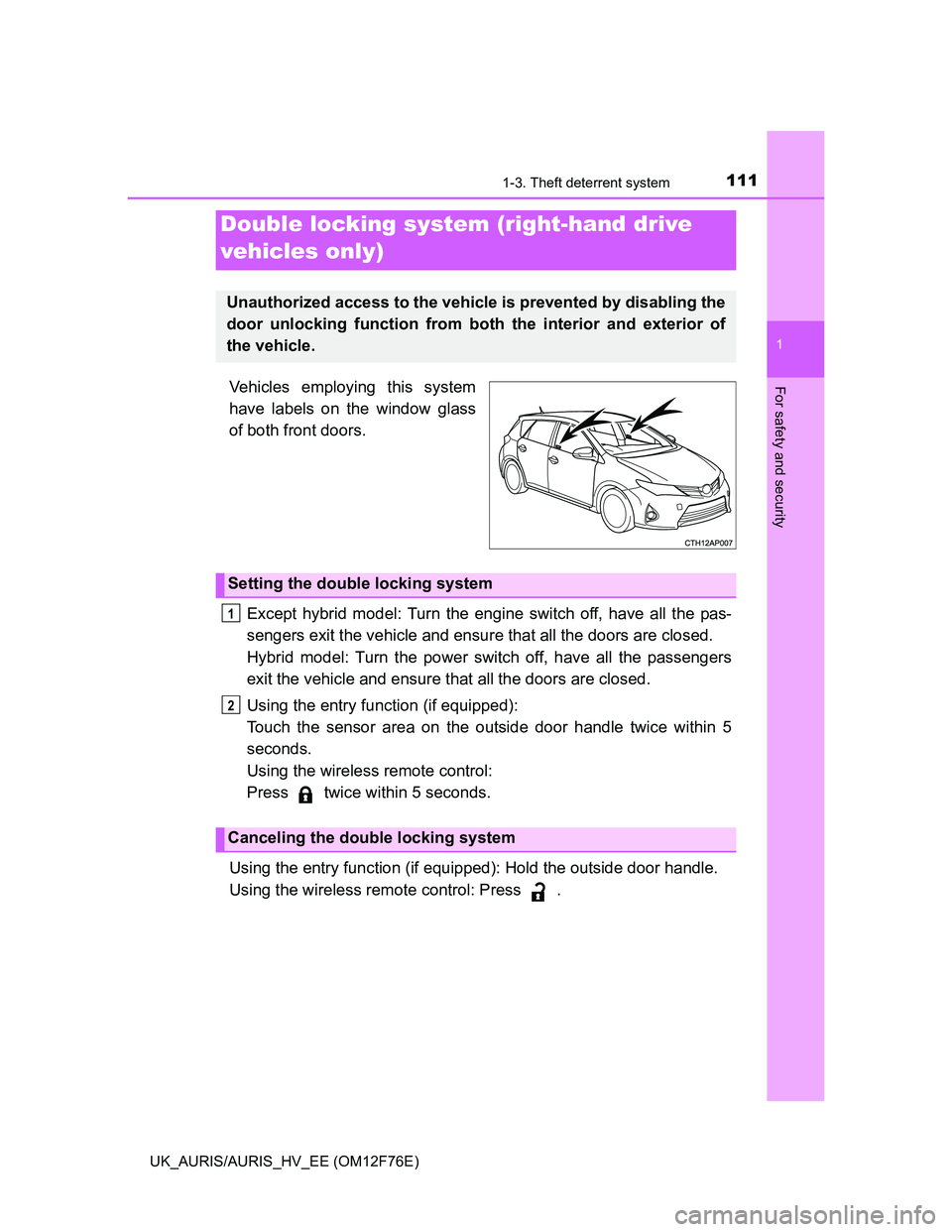

Double locking system (right-hand drive
vehicles only)
Unauthorized access to the vehicle is prevented by disabling the
door unlocking function from both the interior and exterior of
the vehicle.
Setting the double locking system
Canceling the double locking system
1
2

1121-3. Theft deterrent system
UK_AURIS/AURIS_HV_EE (OM12F76E)

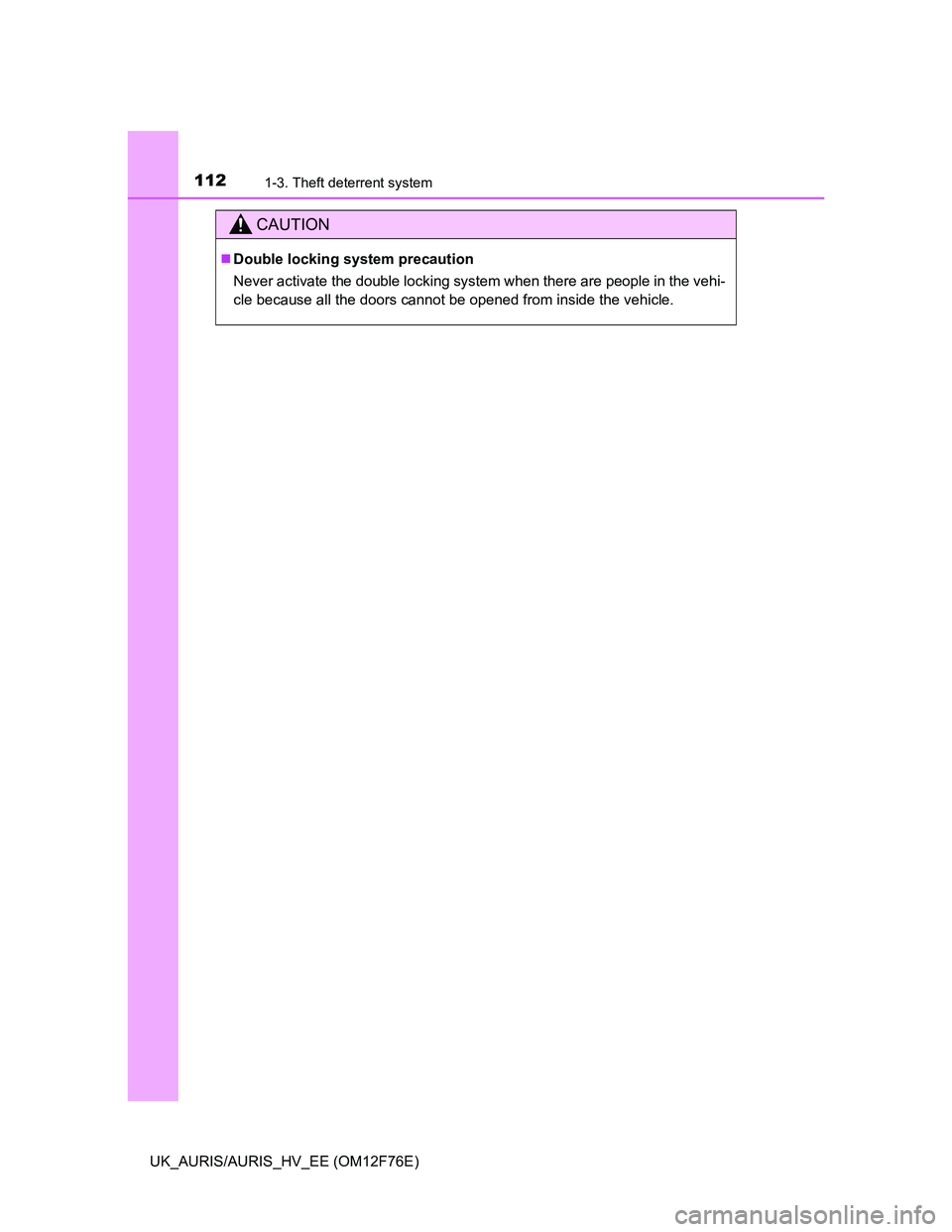

CAUTION
Double locking system precaution
Never activate the double locking system when there are people in the vehi-
cle because all the doors cannot be opened from inside the vehicle.

113

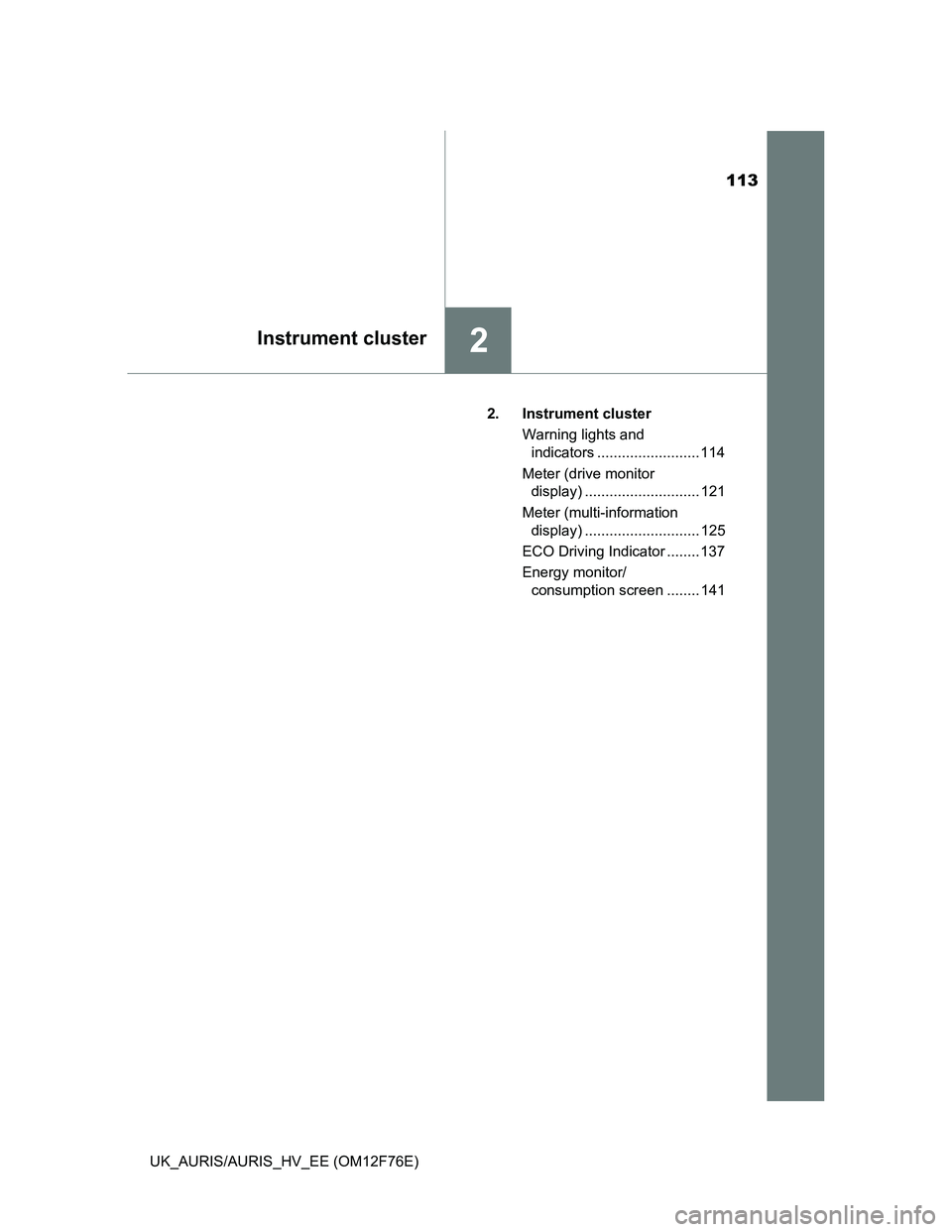

2Instrument cluster
UK_AURIS/AURIS_HV_EE (OM12F76E)2. Instrument cluster
Warning lights and
indicators ......................... 114
Meter (drive monitor
display) ............................ 121
Meter (multi-information
display) ............................ 125
ECO Driving Indicator ........ 137
Energy monitor/
consumption screen ........ 141

114
UK_AURIS/AURIS_HV_EE (OM12F76E)
2. Instrument cluster

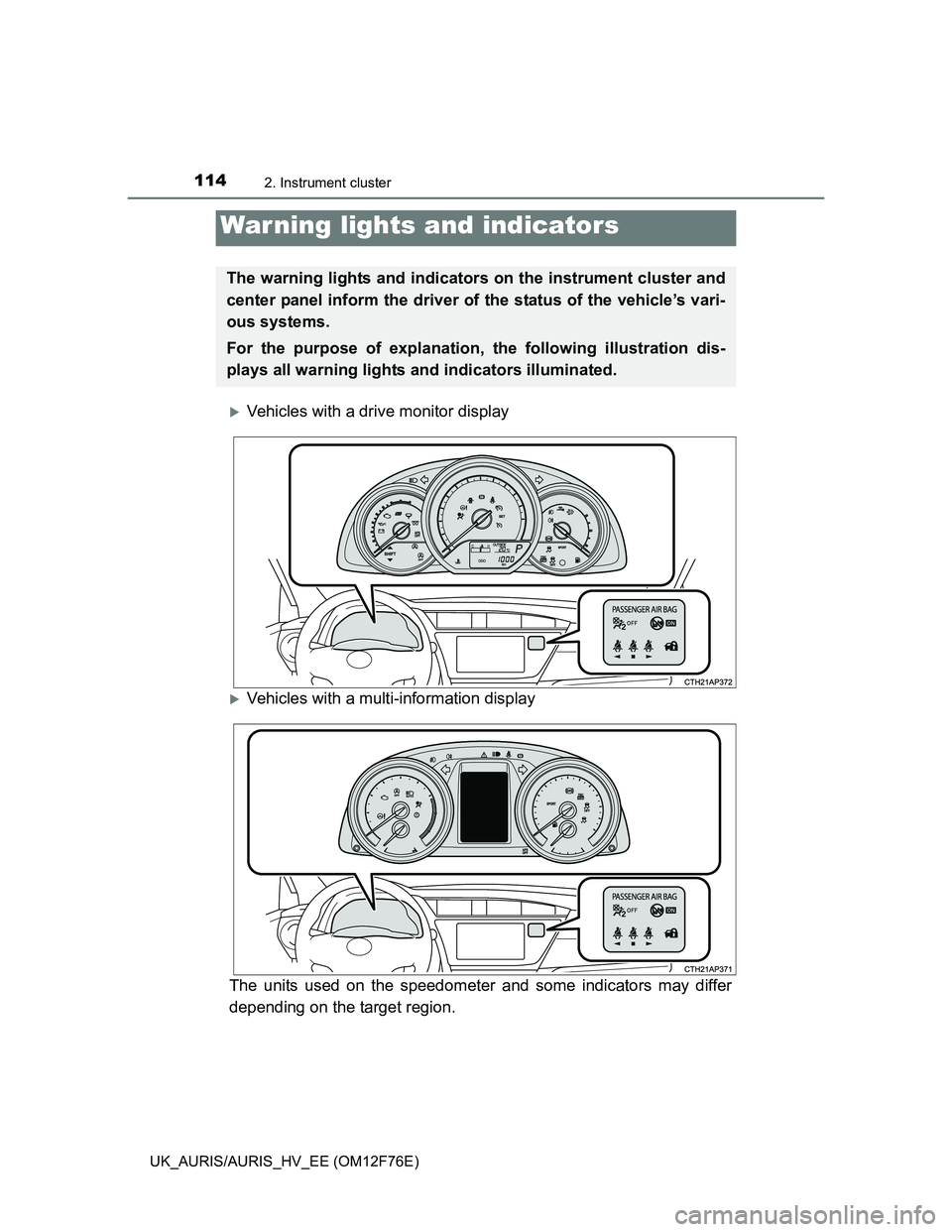

Vehicles with a drive monitor display
Vehicles with a multi-information display
The units used on the speedometer and some indicators may differ
depending on the target region.
War ning lights and indicators
The warning lights and indicators on the instrument cluster and
center panel inform the driver of the status of the vehicle’s vari-
ous systems.
For the purpose of explanation, the following illustration dis-
plays all warning lights and indicators illuminated.

1152. Instrument cluster
UK_AURIS/AURIS_HV_EE (OM12F76E)
2
Instrument cluster

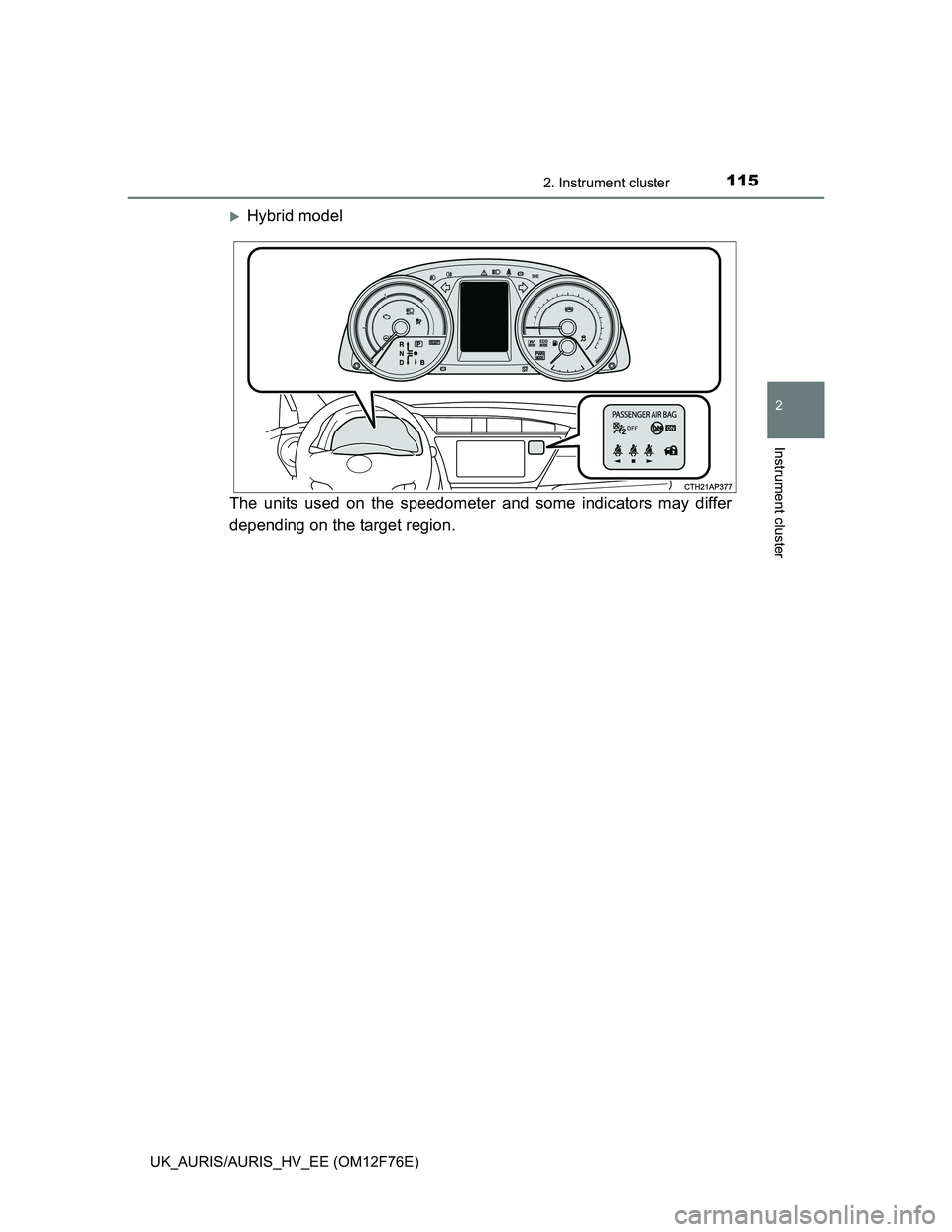

Hybrid model
The units used on the speedometer and some indicators may differ
depending on the target region.

1162. Instrument cluster
UK_AURIS/AURIS_HV_EE (OM12F76E)

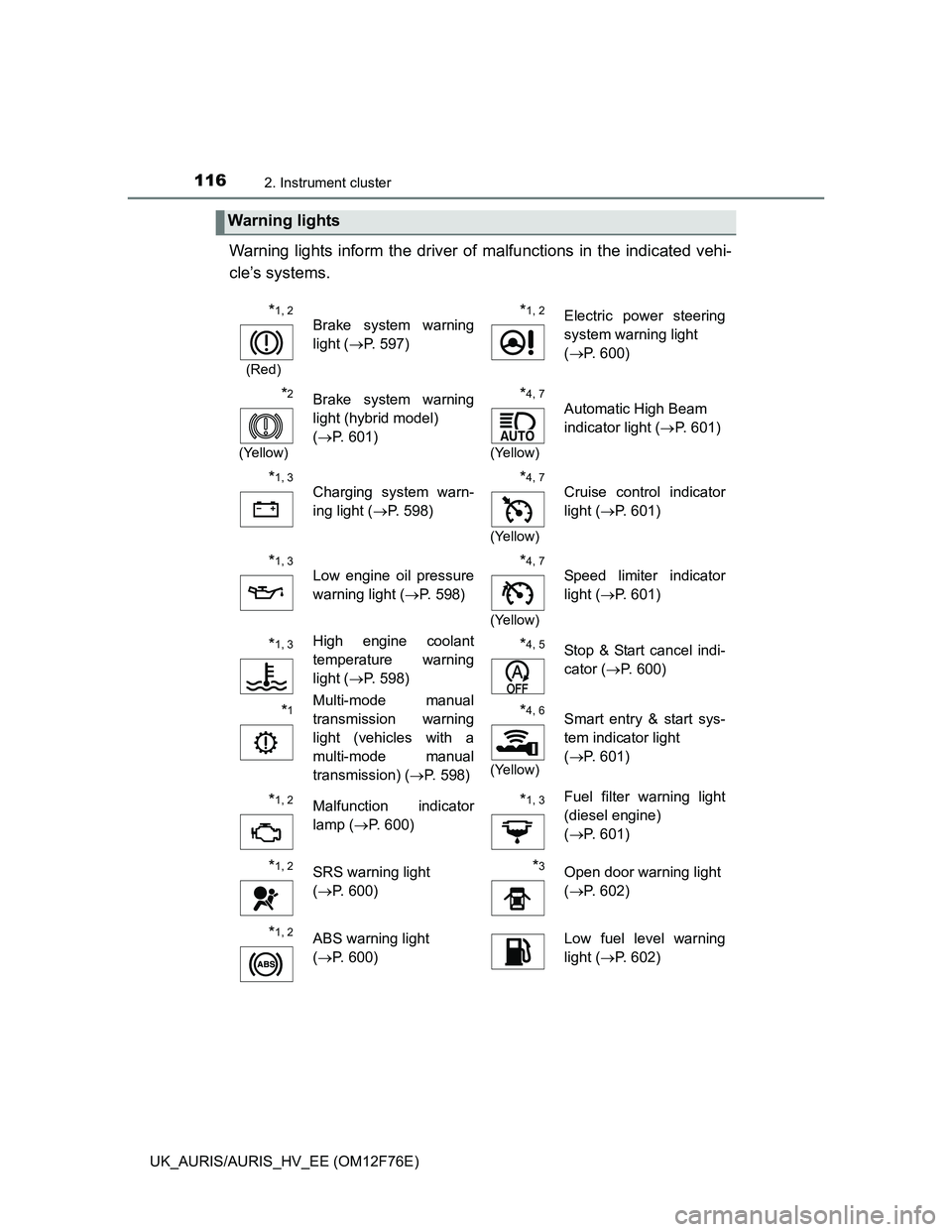

Warning lights inform the driver of malfunctions in the indicated vehi-
cle’s systems.
Warning lights
*1, 2
(Red)
Brake system warning
light (P. 597)*1, 2Electric power steering
system warning light
(P. 600)
*2
(Yellow)
Brake system warning
light (hybrid model)
(P. 601)*4, 7
(Yellow)
Automatic High Beam
indicator light (P. 601)
*1, 3
Charging system warn-
ing light (P. 598)*4, 7
(Yellow)
Cruise control indicator
light (P. 601)
*1, 3
Low engine oil pressure
warning light (P. 598)*4, 7
(Yellow)
Speed limiter indicator
light (P. 601)
*1, 3High engine coolant
temperature warning
light (P. 598)*4, 5Stop & Start cancel indi-
cator (P. 600)
*1Multi-mode manual
transmission warning
light (vehicles with a
multi-mode manual
transmission) (P. 598)*4, 6
(Yellow)
Smart entry & start sys-
tem indicator light
(P. 601)
*1, 2Malfunction indicator
lamp (P. 600)*1, 3Fuel filter warning light
(diesel engine)
(P. 601)
*1, 2SRS warning light
(P. 600)*3Open door warning light
(P. 602)
*1, 2ABS warning light
(P. 600)Low fuel level warning
light (P. 602)

1172. Instrument cluster
UK_AURIS/AURIS_HV_EE (OM12F76E)
2
Instrument cluster

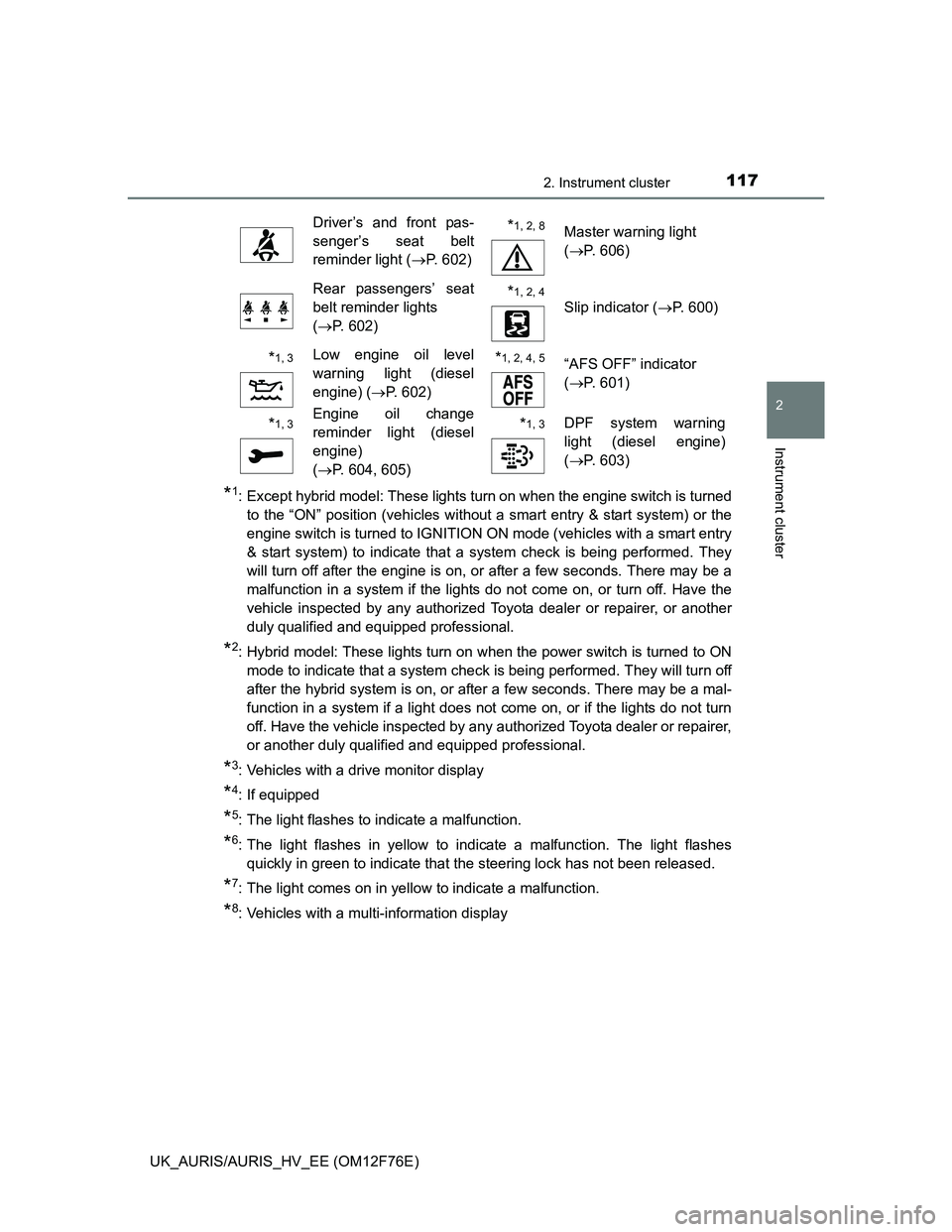

*1: Except hybrid model: These lights turn on when the engine switch is turned
to the “ON” position (vehicles without a smart entry & start system) or the
engine switch is turned to IGNITION ON mode (vehicles with a smart entry
& start system) to indicate that a system check is being performed. They
will turn off after the engine is on, or after a few seconds. There may be a
malfunction in a system if the lights do not come on, or turn off. Have the
vehicle inspected by any authorized Toyota dealer or repairer, or another
duly qualified and equipped professional.
*2: Hybrid model: These lights turn on when the power switch is turned to ON
mode to indicate that a system check is being performed. They will turn off
after the hybrid system is on, or after a few seconds. There may be a mal-
function in a system if a light does not come on, or if the lights do not turn
off. Have the vehicle inspected by any authorized Toyota dealer or repairer,
or another duly qualified and equipped professional.
*3: Vehicles with a drive monitor display
*4: If equipped
*5: The light flashes to indicate a malfunction.
*6: The light flashes in yellow to indicate a malfunction. The light flashes
quickly in green to indicate that the steering lock has not been released.
*7: The light comes on in yellow to indicate a malfunction.
*8: Vehicles with a multi-information display
Driver’s and front pas-
senger’s seat belt
reminder light (P. 602)*1, 2, 8Master warning light
(P. 606)
Rear passengers’ seat
belt reminder lights
(P. 602)*1, 2, 4
Slip indicator (P. 600)
*1, 3Low engine oil level
warning light (diesel
engine) (P. 602)*1, 2, 4, 5 “AFS OFF” indicator
(P. 601)
*1, 3Engine oil change
reminder light (diesel
engine)
(P. 604, 605)*1, 3DPF system warning
light (diesel engine)
(P. 603)

1182. Instrument cluster
UK_AURIS/AURIS_HV_EE (OM12F76E)

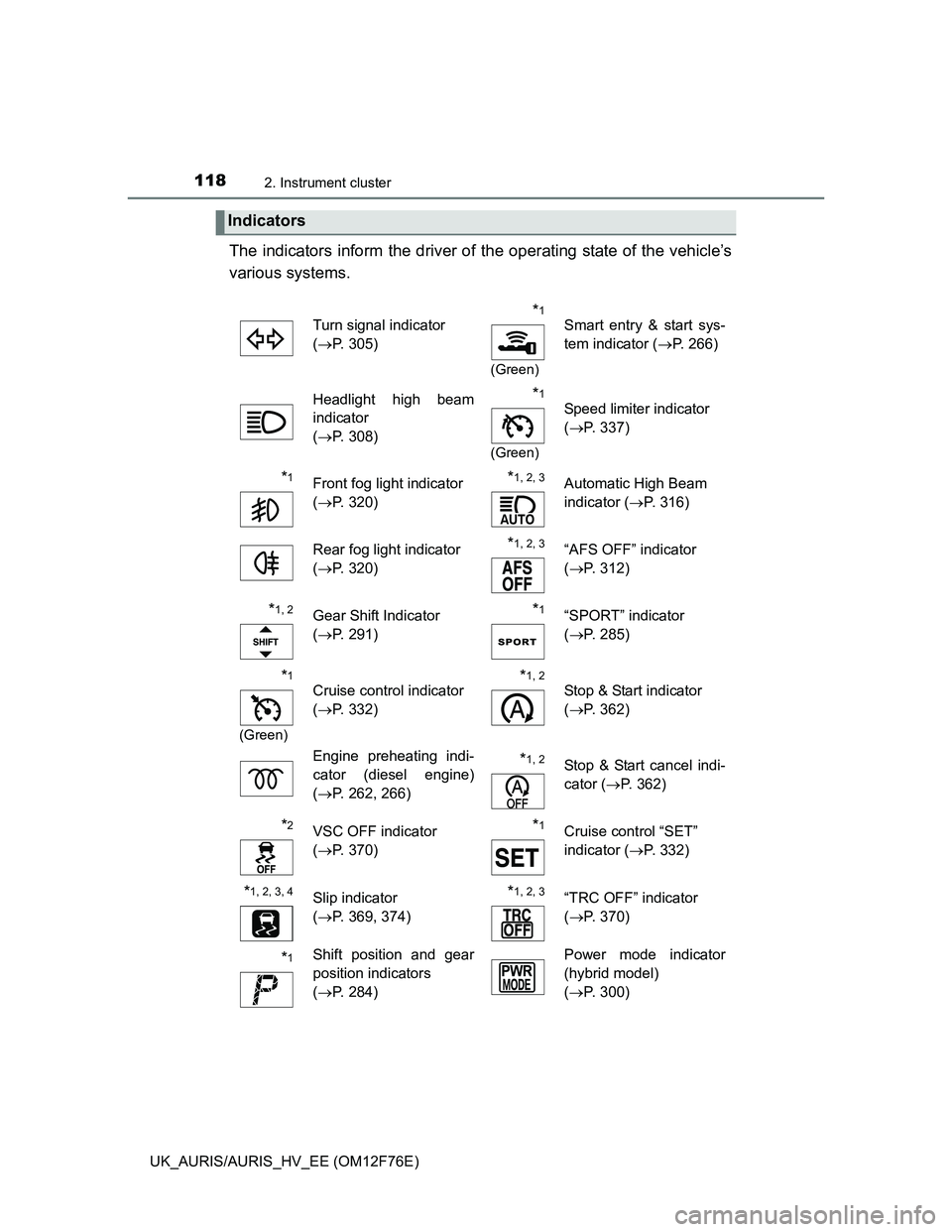

The indicators inform the driver of the operating state of the vehicle’s
various systems.
Indicators
Turn signal indicator
(P. 305)*1
(Green)
Smart entry & start sys-
tem indicator (P. 266)
Headlight high beam
indicator
(P. 308)
*1
(Green)
Speed limiter indicator
(P. 337)
*1Front fog light indicator
(P. 320)*1, 2, 3Automatic High Beam
indicator (P. 316)
Rear fog light indicator
(P. 320)
*1, 2, 3“AFS OFF” indicator
(P. 312)
*1, 2Gear Shift Indicator
(P. 291)*1“SPORT” indicator
(P. 285)
*1
(Green)
Cruise control indicator
(P. 332)*1, 2
Stop & Start indicator
(P. 362)
Engine preheating indi-
cator (diesel engine)
(P. 262, 266)
*1, 2Stop & Start cancel indi-
cator (P. 362)
*2VSC OFF indicator
(P. 370)*1Cruise control “SET”
indicator (P. 332)
*1, 2, 3, 4 Slip indicator
(P. 369, 374)*1, 2, 3 “TRC OFF” indicator
(P. 370)
*1Shift position and gear
position indicators
(P. 284)Power mode indicator
(hybrid model)
(P. 300)

1192. Instrument cluster
UK_AURIS/AURIS_HV_EE (OM12F76E)
2
Instrument cluster

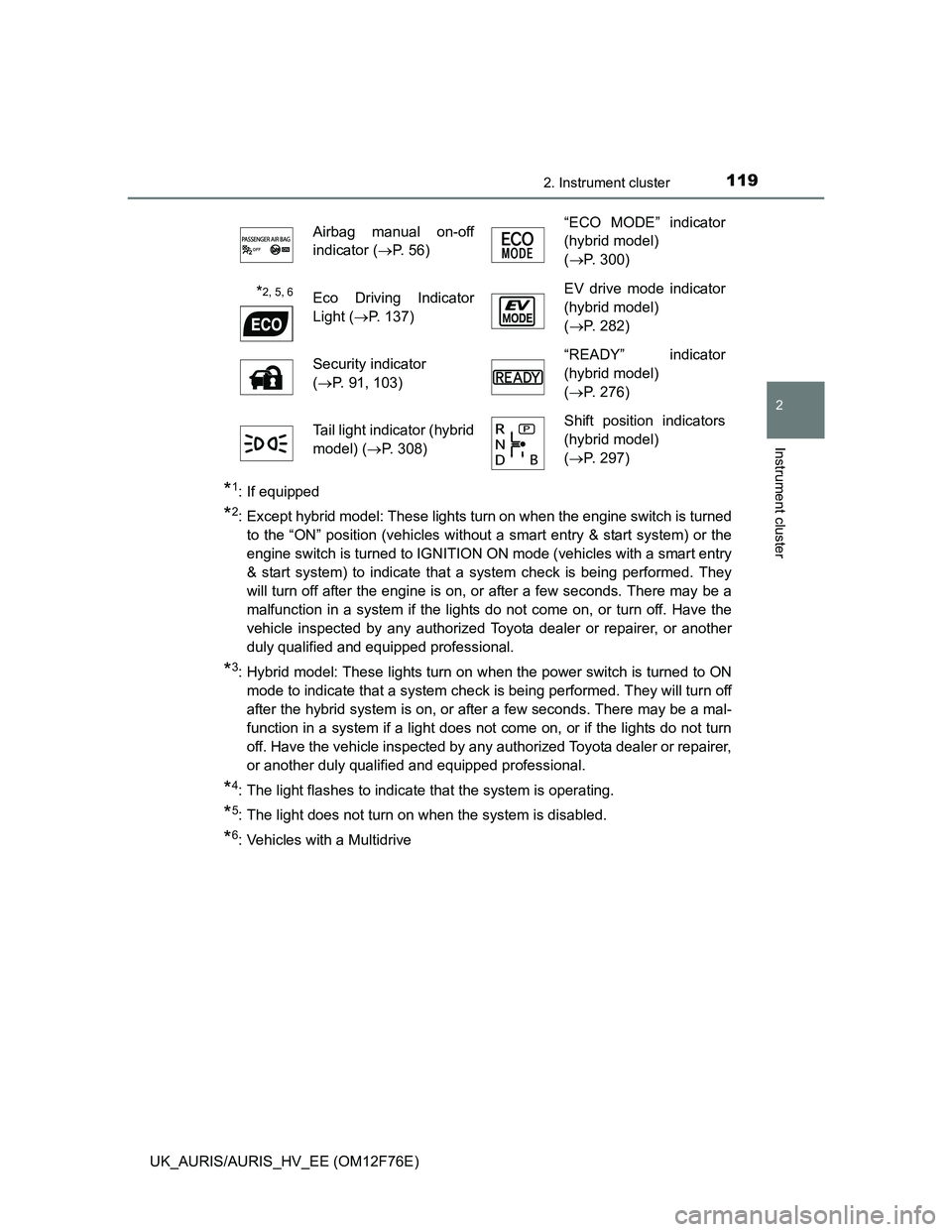

*1: If equipped
*2: Except hybrid model: These lights turn on when the engine switch is turned
to the “ON” position (vehicles without a smart entry & start system) or the
engine switch is turned to IGNITION ON mode (vehicles with a smart entry
& start system) to indicate that a system check is being performed. They
will turn off after the engine is on, or after a few seconds. There may be a
malfunction in a system if the lights do not come on, or turn off. Have the
vehicle inspected by any authorized Toyota dealer or repairer, or another
duly qualified and equipped professional.
*3: Hybrid model: These lights turn on when the power switch is turned to ON
mode to indicate that a system check is being performed. They will turn off
after the hybrid system is on, or after a few seconds. There may be a mal-
function in a system if a light does not come on, or if the lights do not turn
off. Have the vehicle inspected by any authorized Toyota dealer or repairer,
or another duly qualified and equipped professional.
*4: The light flashes to indicate that the system is operating.
*5: The light does not turn on when the system is disabled.
*6: Vehicles with a MultidriveAirbag manual on-off
indicator (P. 56)“ECO MODE” indicator
(hybrid model)
(P. 300)
*2, 5, 6Eco Driving Indicator
Light (P. 137)EV drive mode indicator
(hybrid model)
(P. 282)
Security indicator
(P. 91, 103)“READY” indicator
(hybrid model)
(P. 276)
Tail light indicator (hybrid
model) (P. 308)Shift position indicators
(hybrid model)
(P. 297)

1202. Instrument cluster
UK_AURIS/AURIS_HV_EE (OM12F76E)

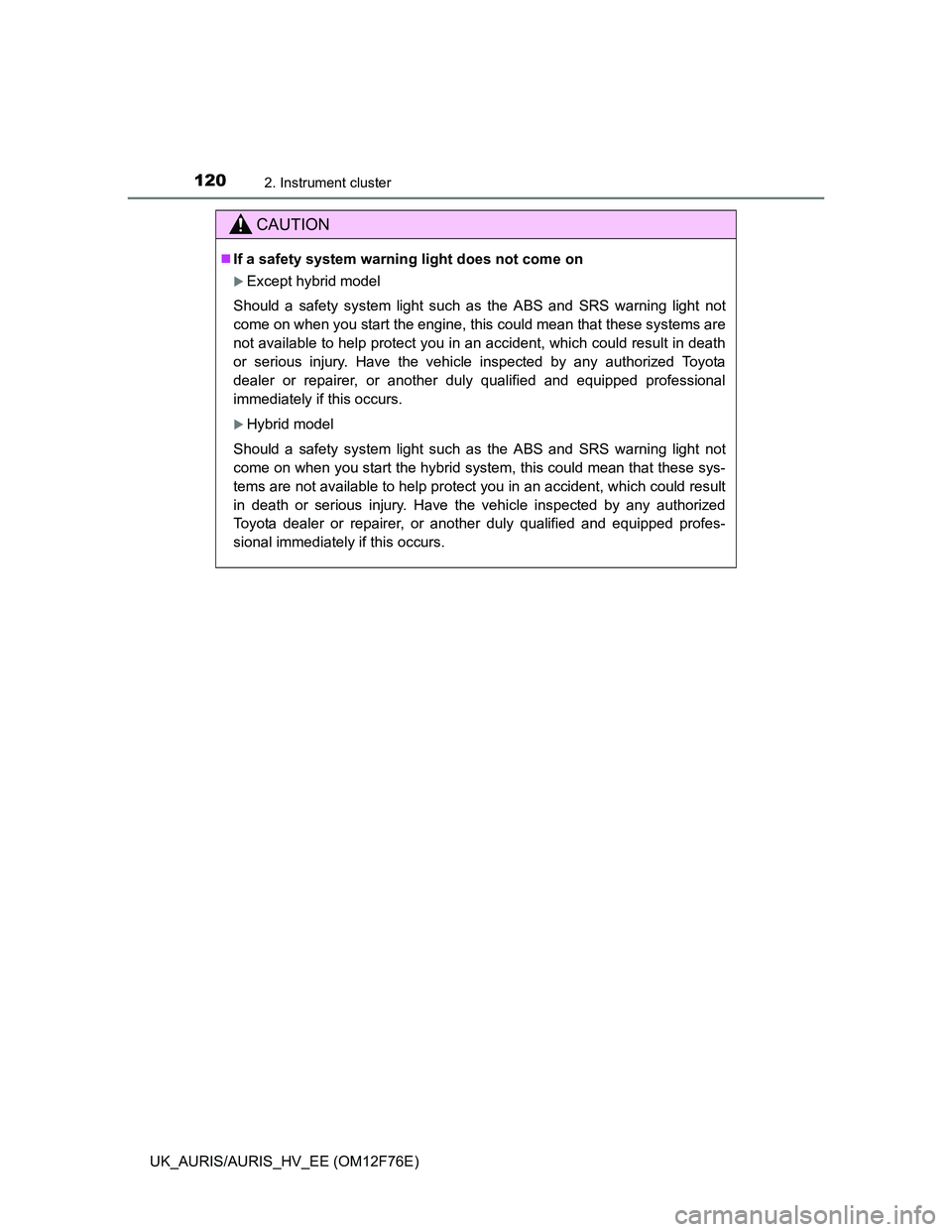

CAUTION
If a safety system warning light does not come on
Except hybrid model
Should a safety system light such as the ABS and SRS warning light not
come on when you start the engine, this could mean that these systems are
not available to help protect you in an accident, which could result in death
or serious injury. Have the vehicle inspected by any authorized Toyota
dealer or repairer, or another duly qualified and equipped professional
immediately if this occurs.
Hybrid model
Should a safety system light such as the ABS and SRS warning light not
come on when you start the hybrid system, this could mean that these sys-
tems are not available to help protect you in an accident, which could result
in death or serious injury. Have the vehicle inspected by any authorized
Toyota dealer or repairer, or another duly qualified and equipped profes-
sional immediately if this occurs.
