TOYOTA AURIS HYBRID 2013 Owners Manual

1412. Instrument cluster
UK_AURIS/AURIS_HV_EE (OM12F76E)
2
Instrument cluster
“touch screen”
Multi-information display
“touch screen”
Press “CAR”.
If the “Trip information” or “Past
record” screen is displayed, touch
“Energy”.
Multi-information display
Push the “DISP” switch on the
steering wheel several times to
select the energy monitor display.
(P. 21)

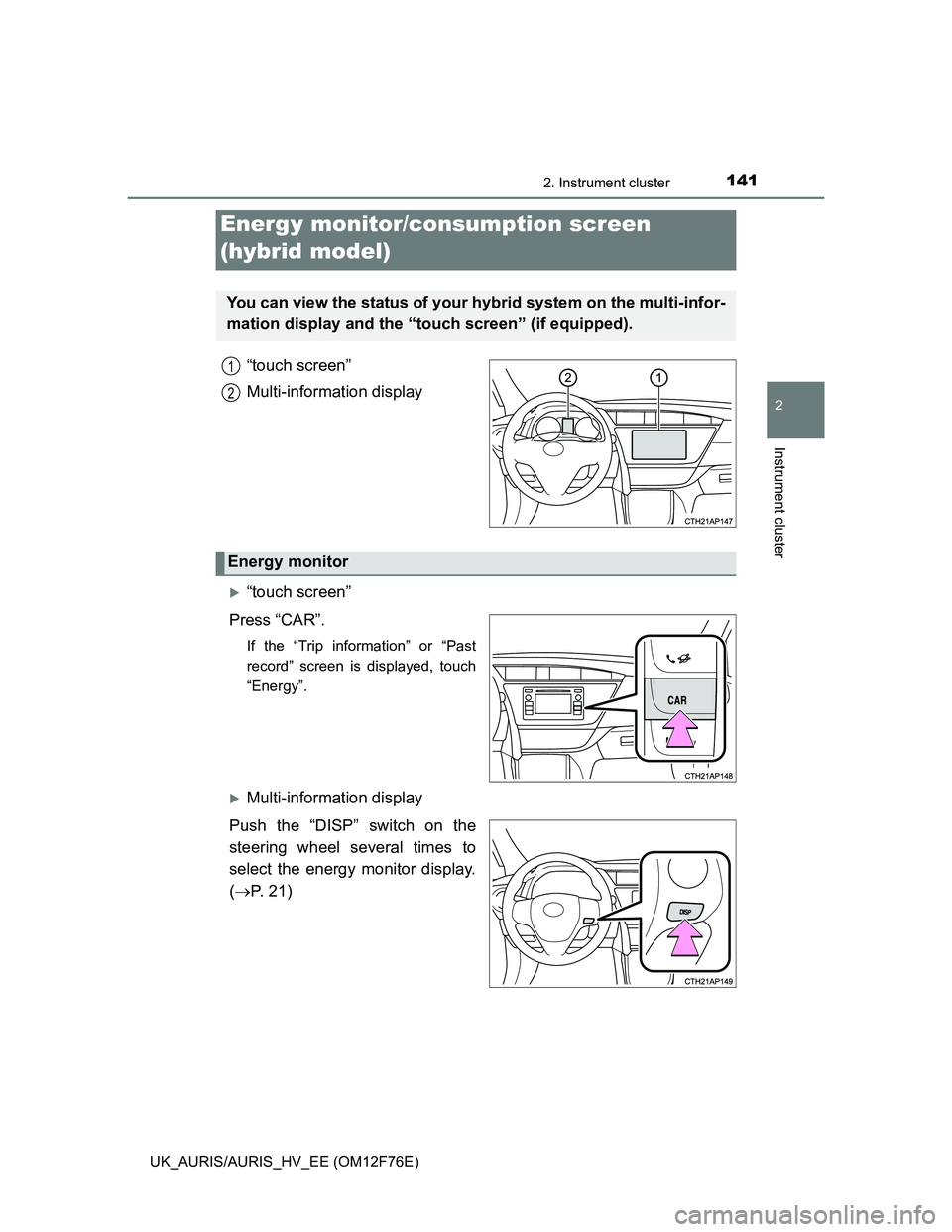

Energy monitor/consumption screen
(hybrid model)
You can view the status of your hybrid system on the multi-infor-
mation display and the “touch screen” (if equipped).
1
2
Energy monitor

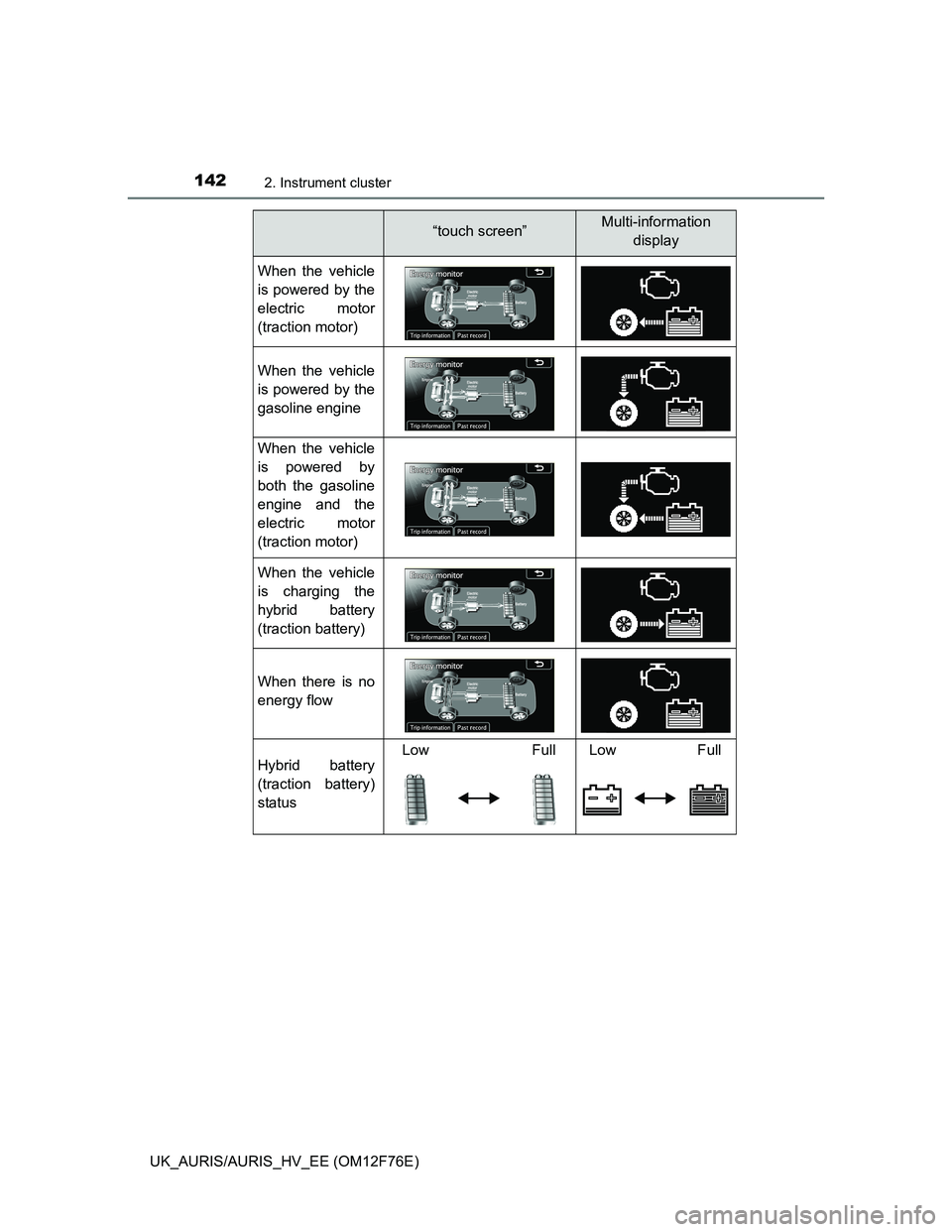

1422. Instrument cluster
UK_AURIS/AURIS_HV_EE (OM12F76E)
“touch screen”Multi-information
display
When the vehicle
is powered by the
electric motor
(traction motor)
When the vehicle
is powered by the
gasoline engine
When the vehicle
is powered by
both the gasoline
engine and the
electric motor
(traction motor)
When the vehicle
is charging the
hybrid battery
(traction battery)
When there is no
energy flow
Hybrid battery
(traction battery)
statusLow Full Low Full

1432. Instrument cluster
UK_AURIS/AURIS_HV_EE (OM12F76E)
2
Instrument cluster
Press “CAR”. (P. 141)
If the “Energy monitor” or “Past record” screen is displayed, touch “Trip
information”.
Fuel consumption in the past 15
minutes
Displays the average vehicle
speed since the hybrid system
was started.
Displays the elapsed time since
the hybrid system was started.
Cruising range
Regenerated energy in the past
15 minutes
One symbol indicates 30 Wh.
Up to 5 symbols are shown.
The image is example only, and may vary slightly from actual conditions.

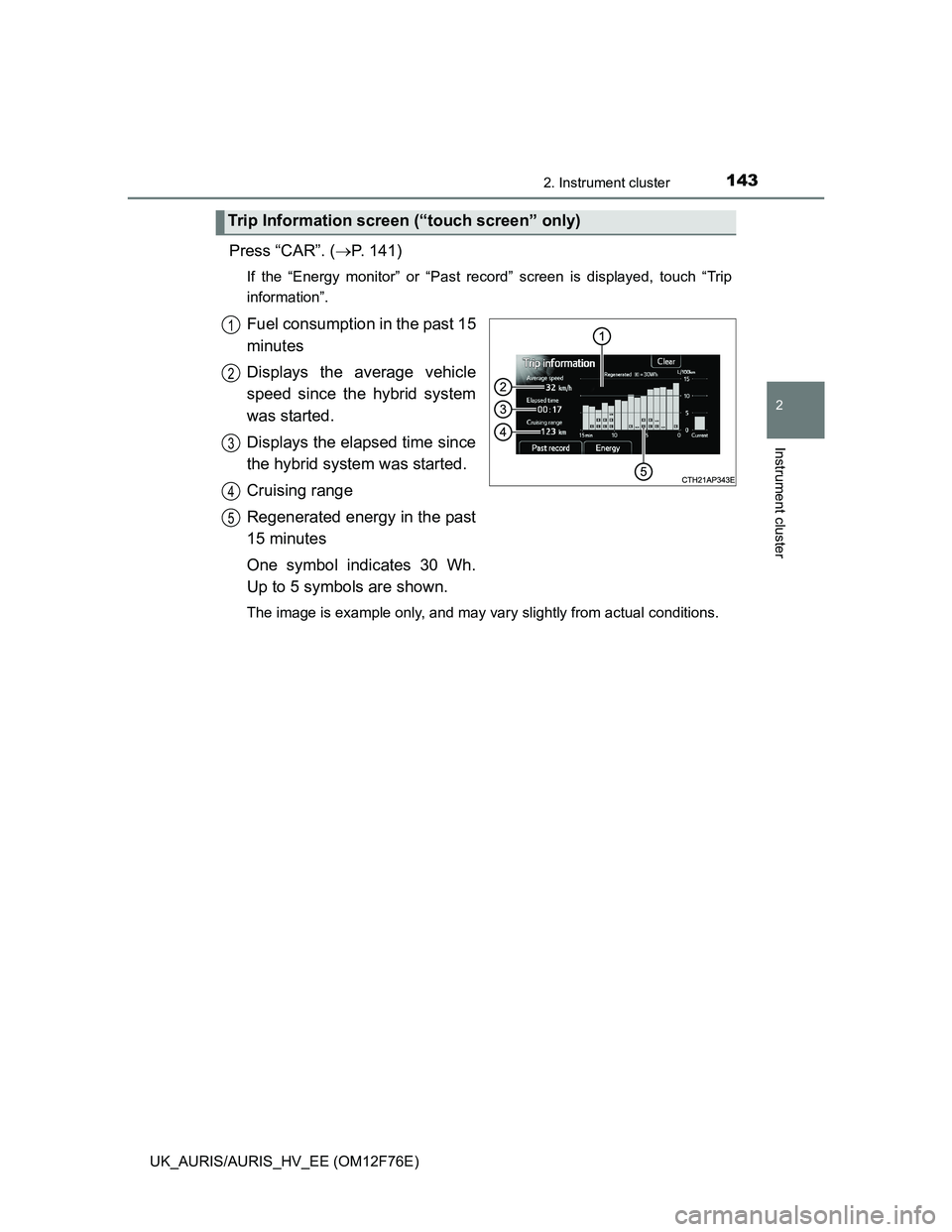

Trip Information screen (“touch screen” only)
1
2
3
4
5

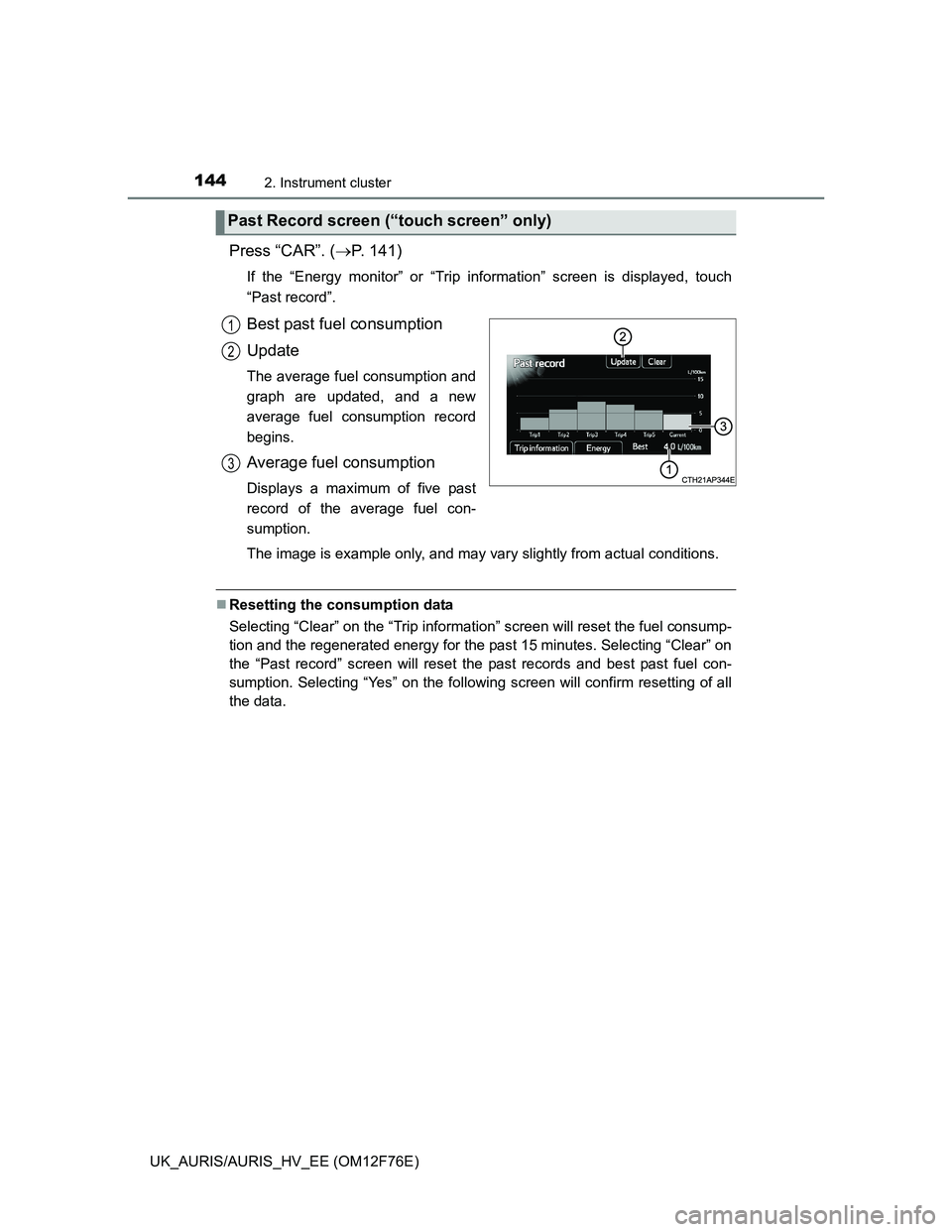

1442. Instrument cluster
UK_AURIS/AURIS_HV_EE (OM12F76E)
Press “CAR”. (P. 141)
If the “Energy monitor” or “Trip information” screen is displayed, touch
“Past record”.
Best past fuel consumption
Update
The average fuel consumption and
graph are updated, and a new
average fuel consumption record
begins.
Average fuel consumption
Displays a maximum of five past
record of the average fuel con-
sumption.
The image is example only, and may vary slightly from actual conditions.
Resetting the consumption data
Selecting “Clear” on the “Trip information” screen will reset the fuel consump-
tion and the regenerated energy for the past 15 minutes. Selecting “Clear” on
the “Past record” screen will reset the past records and best past fuel con-
sumption. Selecting “Yes” on the following screen will confirm resetting of all
the data.
Past Record screen (“touch screen” only)
1
2
3

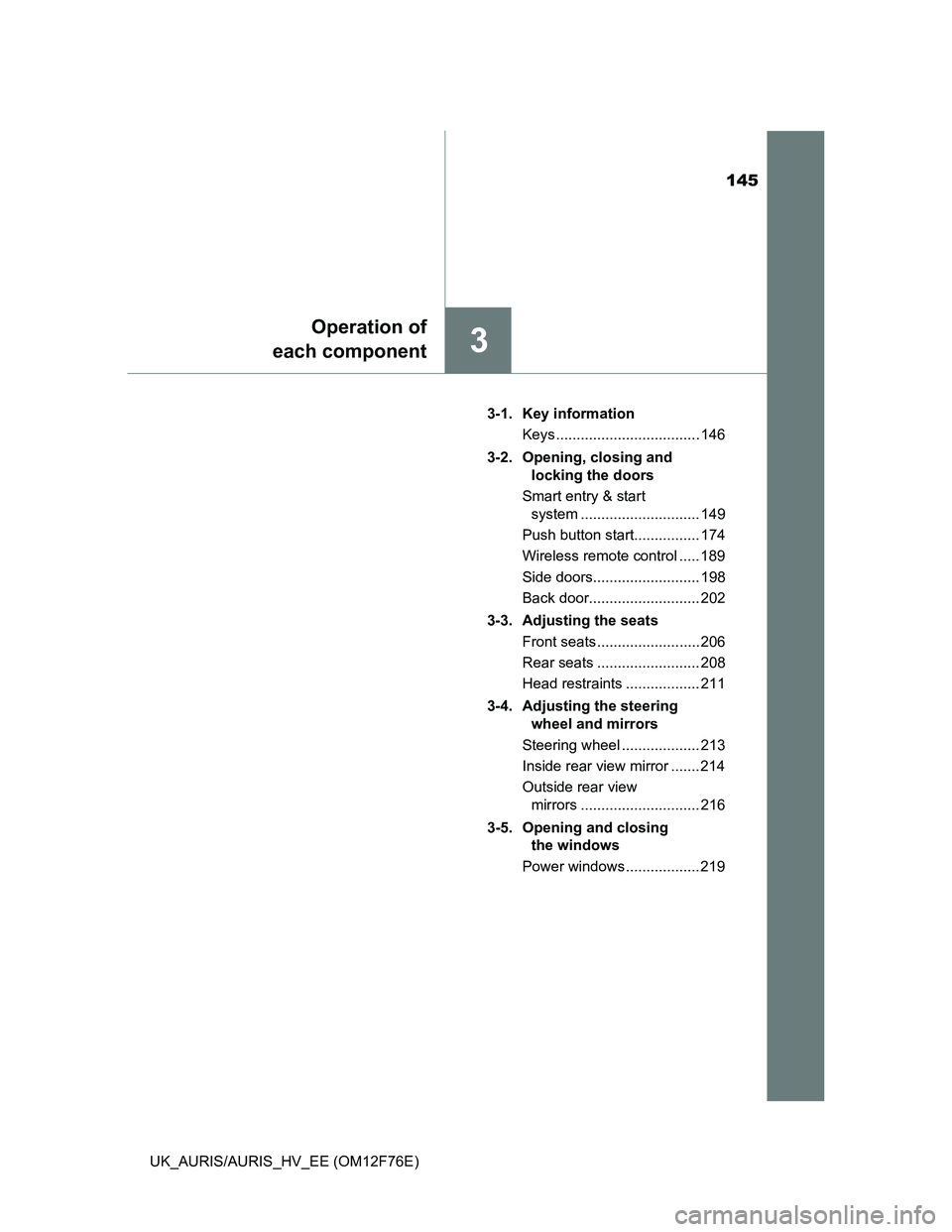

145
3
Operation of
each component
UK_AURIS/AURIS_HV_EE (OM12F76E)3-1. Key information
Keys ................................... 146
3-2. Opening, closing and
locking the doors
Smart entry & start
system ............................. 149
Push button start................ 174
Wireless remote control ..... 189
Side doors.......................... 198
Back door........................... 202
3-3. Adjusting the seats
Front seats ......................... 206
Rear seats ......................... 208
Head restraints .................. 211
3-4. Adjusting the steering
wheel and mirrors
Steering wheel ................... 213
Inside rear view mirror ....... 214
Outside rear view
mirrors ............................. 216
3-5. Opening and closing
the windows
Power windows .................. 219

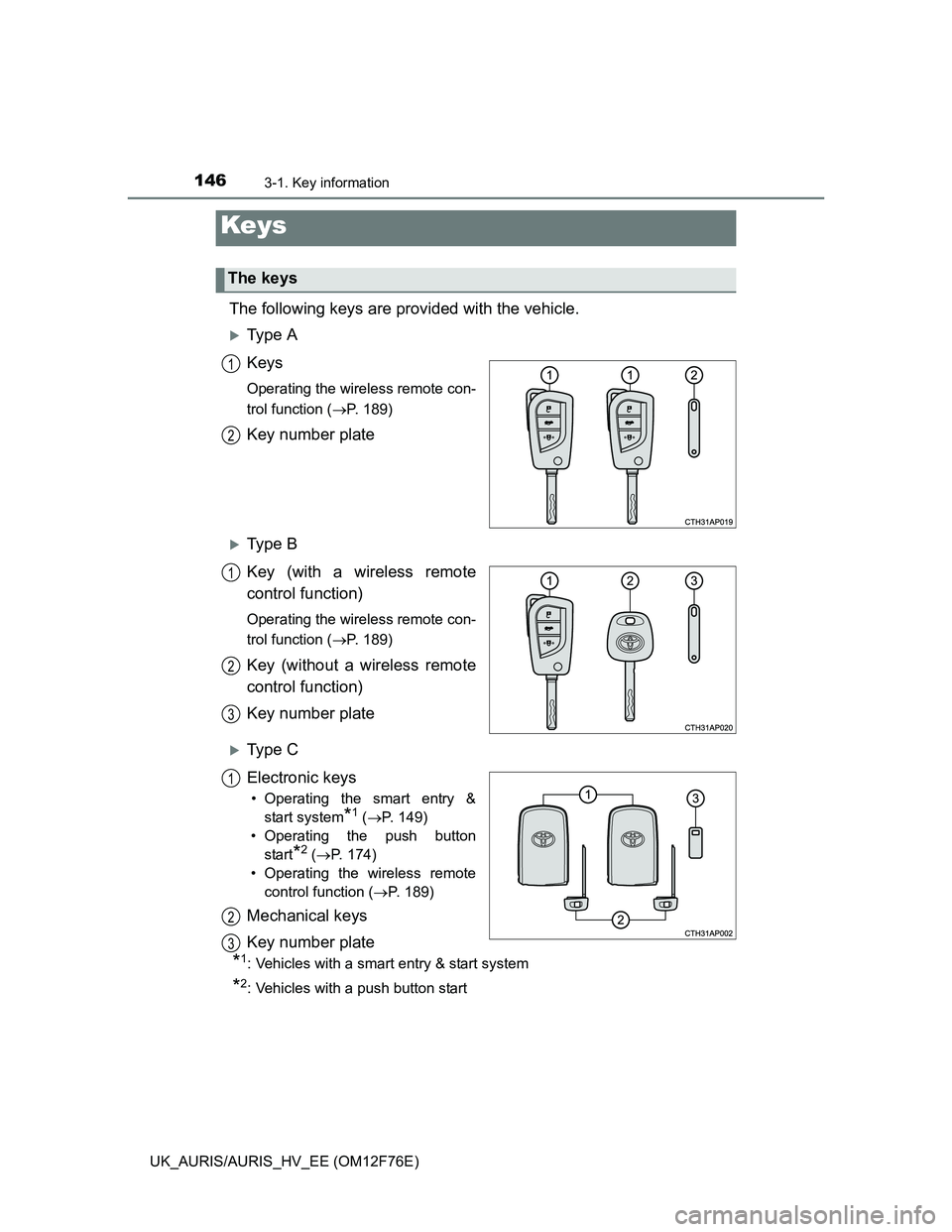

146
UK_AURIS/AURIS_HV_EE (OM12F76E)
3-1. Key information
The following keys are provided with the vehicle.
Ty p e A
Keys
Operating the wireless remote con-
trol function (P. 189)
Key number plate
Ty p e B
Key (with a wireless remote
control function)
Operating the wireless remote con-
trol function (P. 189)
Key (without a wireless remote
control function)
Key number plate
Ty p e C
Electronic keys
• Operating the smart entry &
start system
*1 (P. 149)
• Operating the push button
start
*2 (P. 174)
• Operating the wireless remote
control function (P. 189)
Mechanical keys
Key number plate
*1: Vehicles with a smart entry & start system
*2: Vehicles with a push button start
Keys
The keys
1
2
1
2
3
1
2
3

1473-1. Key information
UK_AURIS/AURIS_HV_EE (OM12F76E)
3
Operation of each component

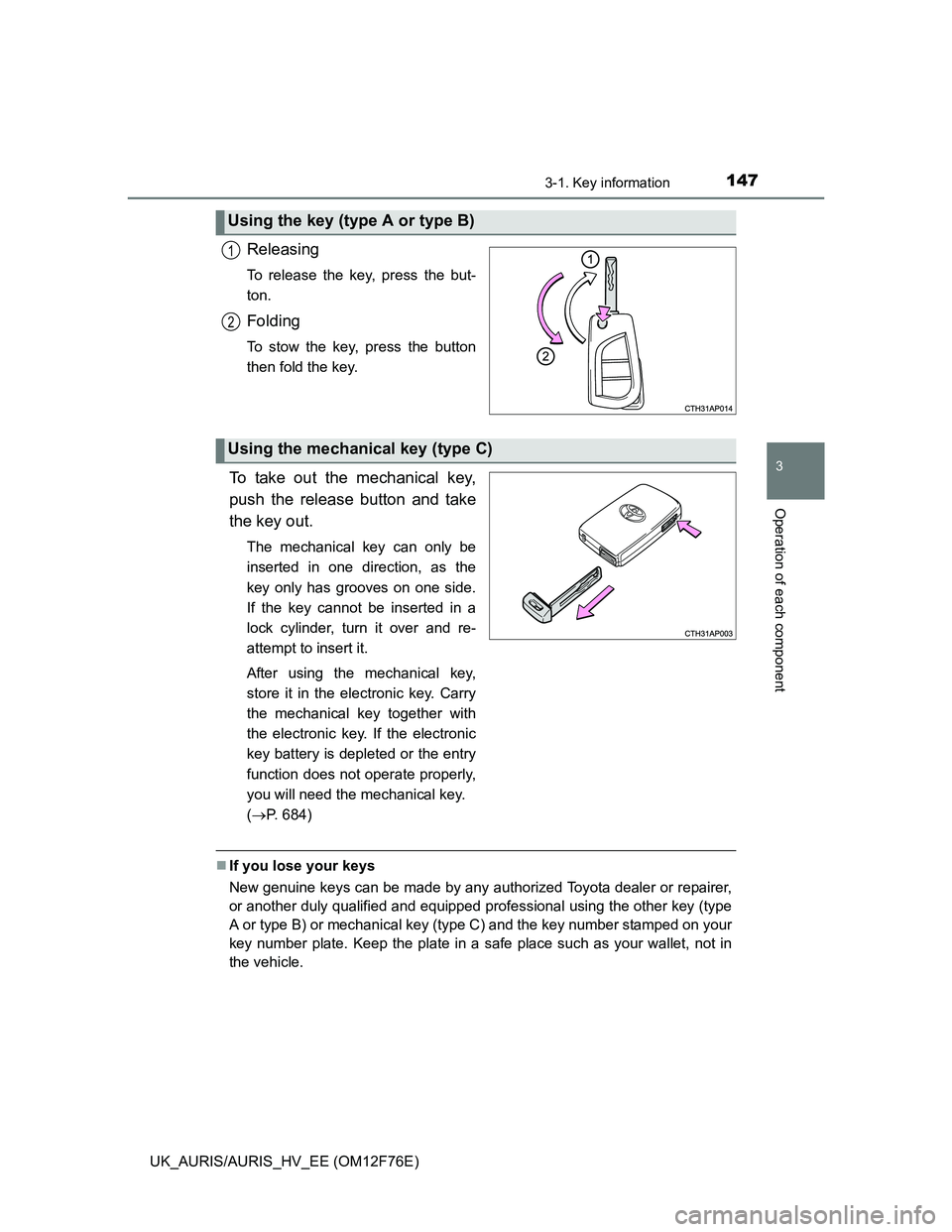

Releasing
To release the key, press the but-
ton.
Folding
To stow the key, press the button
then fold the key.
To take out the mechanical key,
push the release button and take
the key out.
The mechanical key can only be
inserted in one direction, as the
key only has grooves on one side.
If the key cannot be inserted in a
lock cylinder, turn it over and re-
attempt to insert it.
After using the mechanical key,
store it in the electronic key. Carry
the mechanical key together with
the electronic key. If the electronic
key battery is depleted or the entry
function does not operate properly,
you will need the mechanical key.
(P. 684)
If you lose your keys
New genuine keys can be made by any authorized Toyota dealer or repairer,
or another duly qualified and equipped professional using the other key (type
A or type B) or mechanical key (type C) and the key number stamped on your
key number plate. Keep the plate in a safe place such as your wallet, not in
the vehicle.
Using the key (type A or type B)
1
2
Using the mechanical key (type C)

1483-1. Key information

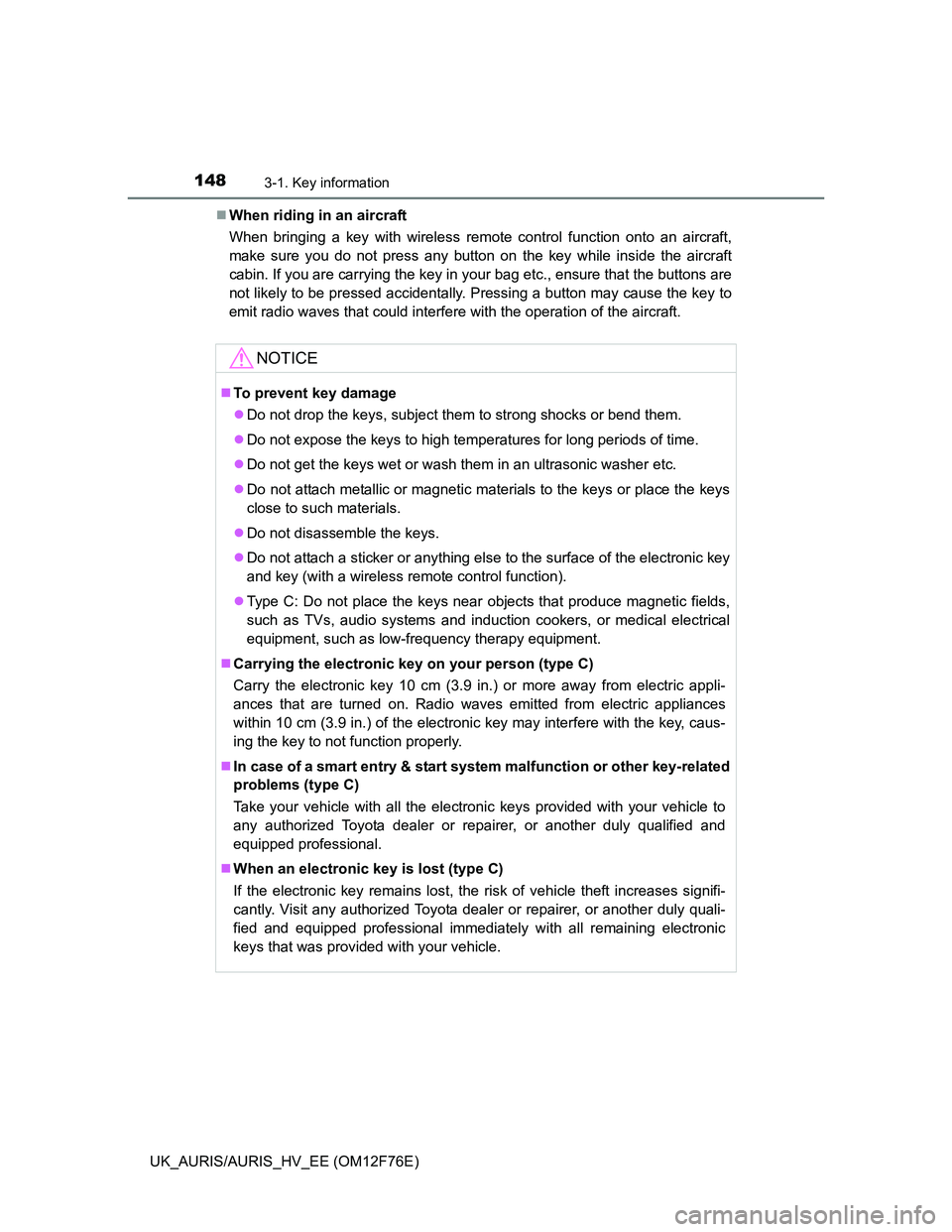

UK_AURIS/AURIS_HV_EE (OM12F76E)When riding in an aircraft
When bringing a key with wireless remote control function onto an aircraft,
make sure you do not press any button on the key while inside the aircraft
cabin. If you are carrying the key in your bag etc., ensure that the buttons are
not likely to be pressed accidentally. Pressing a button may cause the key to
emit radio waves that could interfere with the operation of the aircraft.
NOTICE
To prevent key damage
Do not drop the keys, subject them to strong shocks or bend them.
Do not expose the keys to high temperatures for long periods of time.
Do not get the keys wet or wash them in an ultrasonic washer etc.
Do not attach metallic or magnetic materials to the keys or place the keys
close to such materials.
Do not disassemble the keys.
Do not attach a sticker or anything else to the surface of the electronic key
and key (with a wireless remote control function).
Type C: Do not place the keys near objects that produce magnetic fields,
such as TVs, audio systems and induction cookers, or medical electrical
equipment, such as low-frequency therapy equipment.
Carrying the electronic key on your person (type C)
Carry the electronic key 10 cm (3.9 in.) or more away from electric appli-
ances that are turned on. Radio waves emitted from electric appliances
within 10 cm (3.9 in.) of the electronic key may interfere with the key, caus-
ing the key to not function properly.
In case of a smart entry & start system malfunction or other key-related
problems (type C)
Take your vehicle with all the electronic keys provided with your vehicle to
any authorized Toyota dealer or repairer, or another duly qualified and
equipped professional.
When an electronic key is lost (type C)
If the electronic key remains lost, the risk of vehicle theft increases signifi-
cantly. Visit any authorized Toyota dealer or repairer, or another duly quali-
fied and equipped professional immediately with all remaining electronic
keys that was provided with your vehicle.

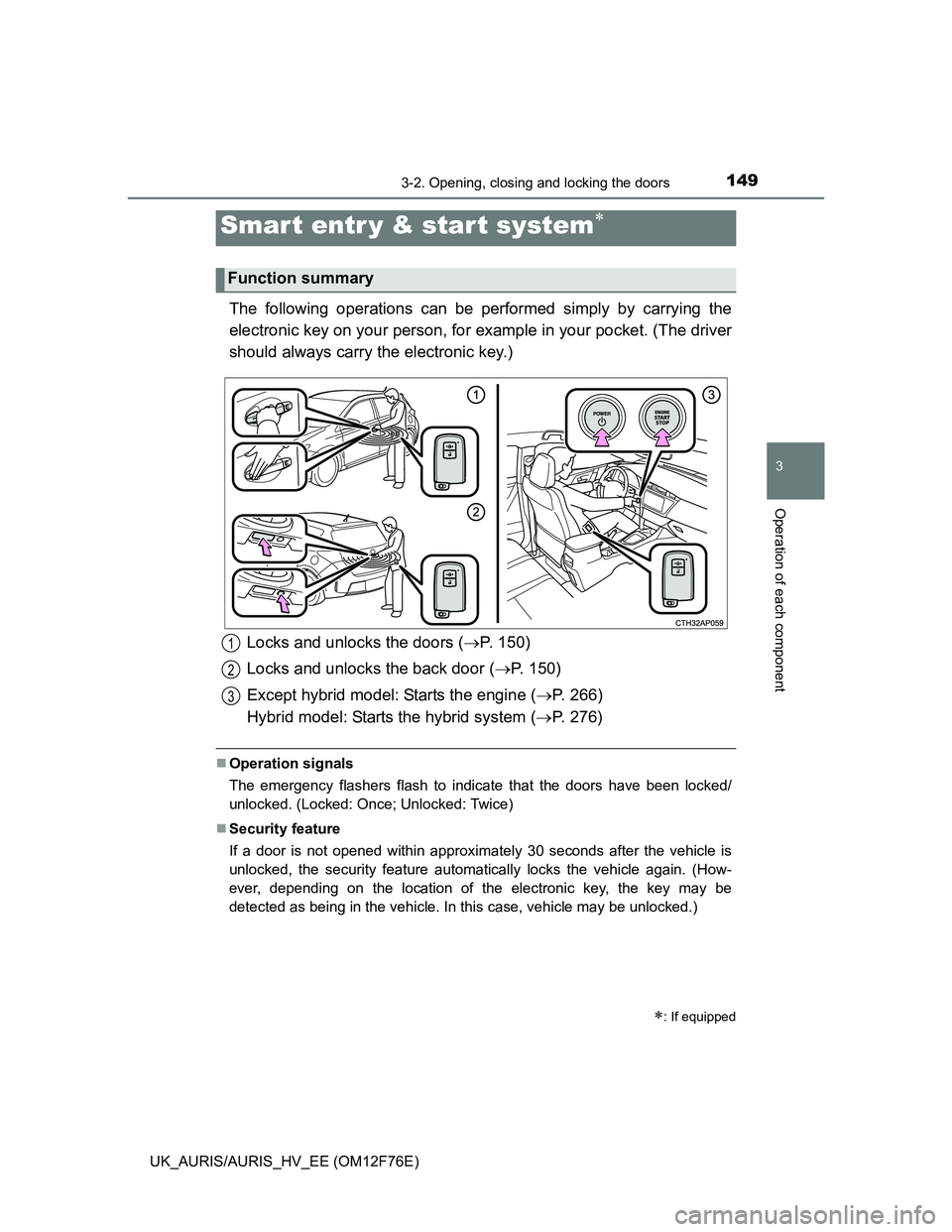

149
UK_AURIS/AURIS_HV_EE (OM12F76E)
3
Operation of each component
3-2. Opening, closing and locking the doors
The following operations can be performed simply by carrying the
electronic key on your person, for example in your pocket. (The driver
should always carry the electronic key.)
Operation signals
The emergency flashers flash to indicate that the doors have been locked/
unlocked. (Locked: Once; Unlocked: Twice)
Security feature
If a door is not opened within approximately 30 seconds after the vehicle is
unlocked, the security feature automatically locks the vehicle again. (How-
ever, depending on the location of the electronic key, the key may be
detected as being in the vehicle. In this case, vehicle may be unlocked.)
Smar t entr y & star t system
: If equipped
Function summary
Locks and unlocks the doors (P. 150)
Locks and unlocks the back door (P. 150)
Except hybrid model: Starts the engine (P. 266)
Hybrid model: Starts the hybrid system (P. 276)1
2
3

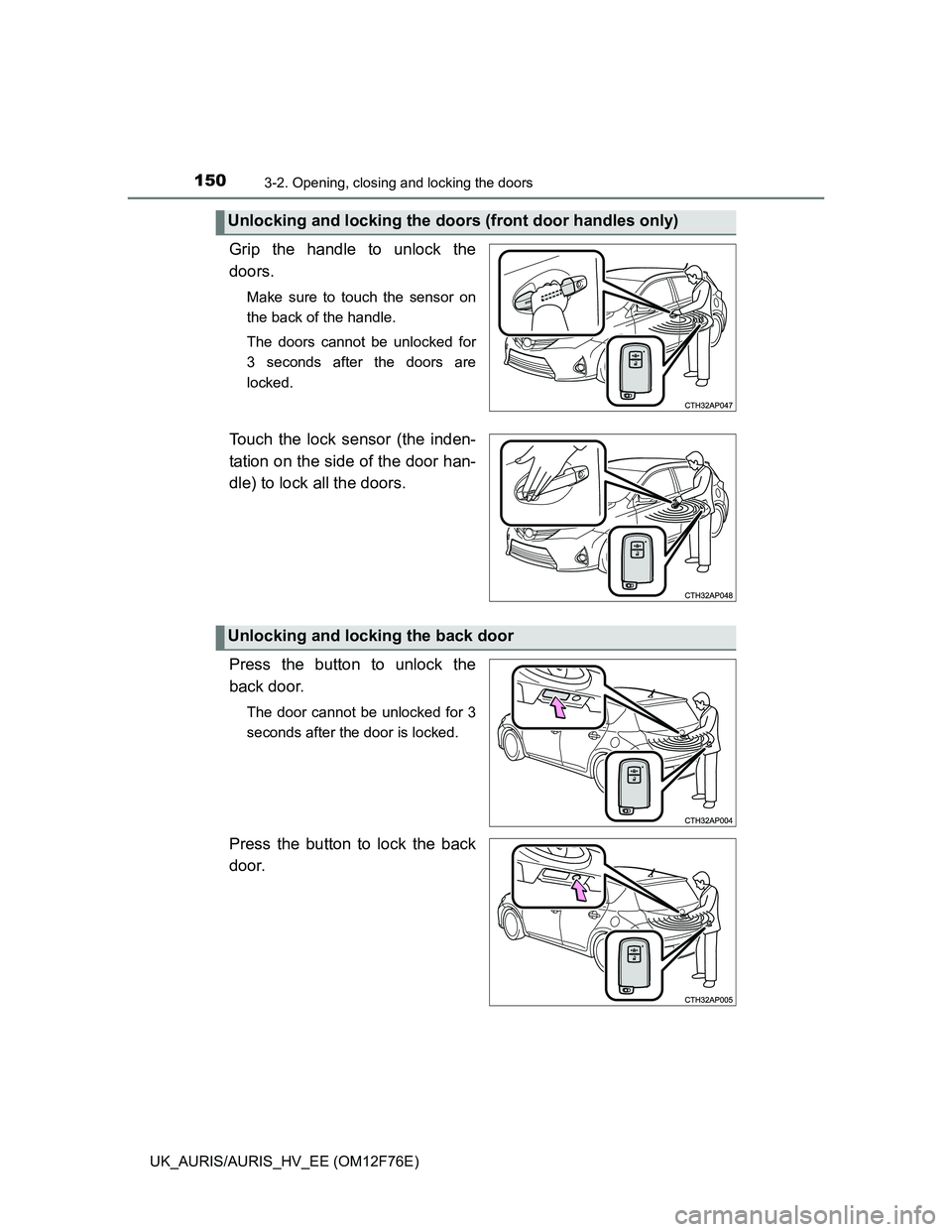

1503-2. Opening, closing and locking the doors
UK_AURIS/AURIS_HV_EE (OM12F76E)
Grip the handle to unlock the
doors.
Make sure to touch the sensor on
the back of the handle.
The doors cannot be unlocked for
3 seconds after the doors are
locked.
Touch the lock sensor (the inden-
tation on the side of the door han-
dle) to lock all the doors.
Press the button to unlock the
back door.
The door cannot be unlocked for 3
seconds after the door is locked.
Press the button to lock the back
door.
Unlocking and locking the doors (front door handles only)
Unlocking and locking the back door
