TOYOTA AURIS HYBRID 2016 Owners Manual

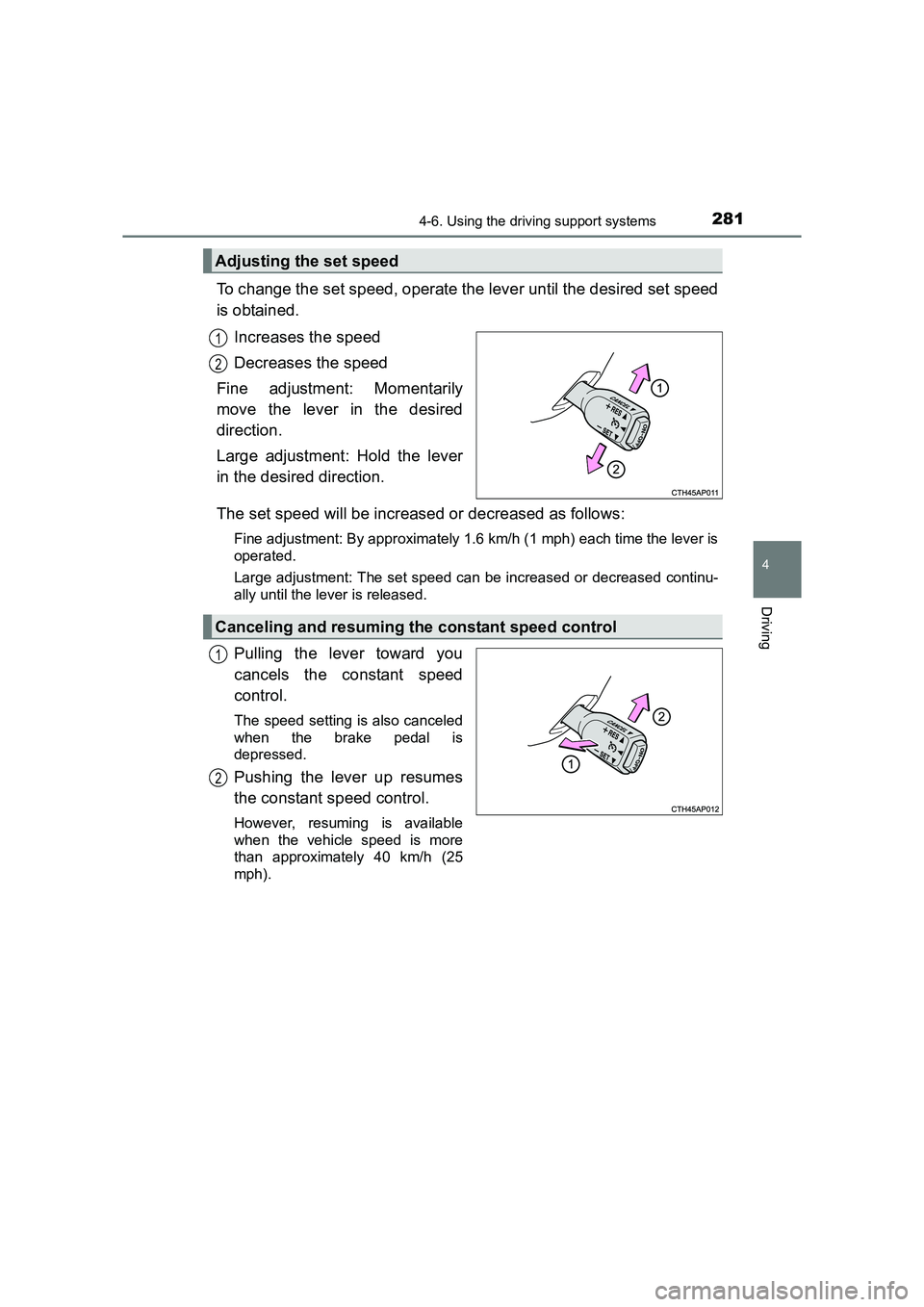

2814-6. Using the driving support systems
UK AURIS_HV_HB_EE (OM12K47E)
4
Driving
To change the set speed, operate the lever until the desired set speed
is obtained.Increases the speed
Decreases the speed
Fine adjustment: Momentarily
move the lever in the desired
direction.
Large adjustment: Hold the lever
in the desired direction.
The set speed will be increased or decreased as follows:
Fine adjustment: By approximately 1.6 km/h (1 mph) each time the lever is
operated.
Large adjustment: The set speed can be increased or decreased continu-
ally until the lever is released.
Pulling the lever toward you
cancels the constant speed
control.
The speed setting is also canceled
when the brake pedal is
depressed.
Pushing the lever up resumes
the constant speed control.
However, resuming is available
when the vehicle speed is more
than approximately 40 km/h (25
mph).
Adjusting the set speed
1
2
Canceling and resuming the constant speed control
1
2

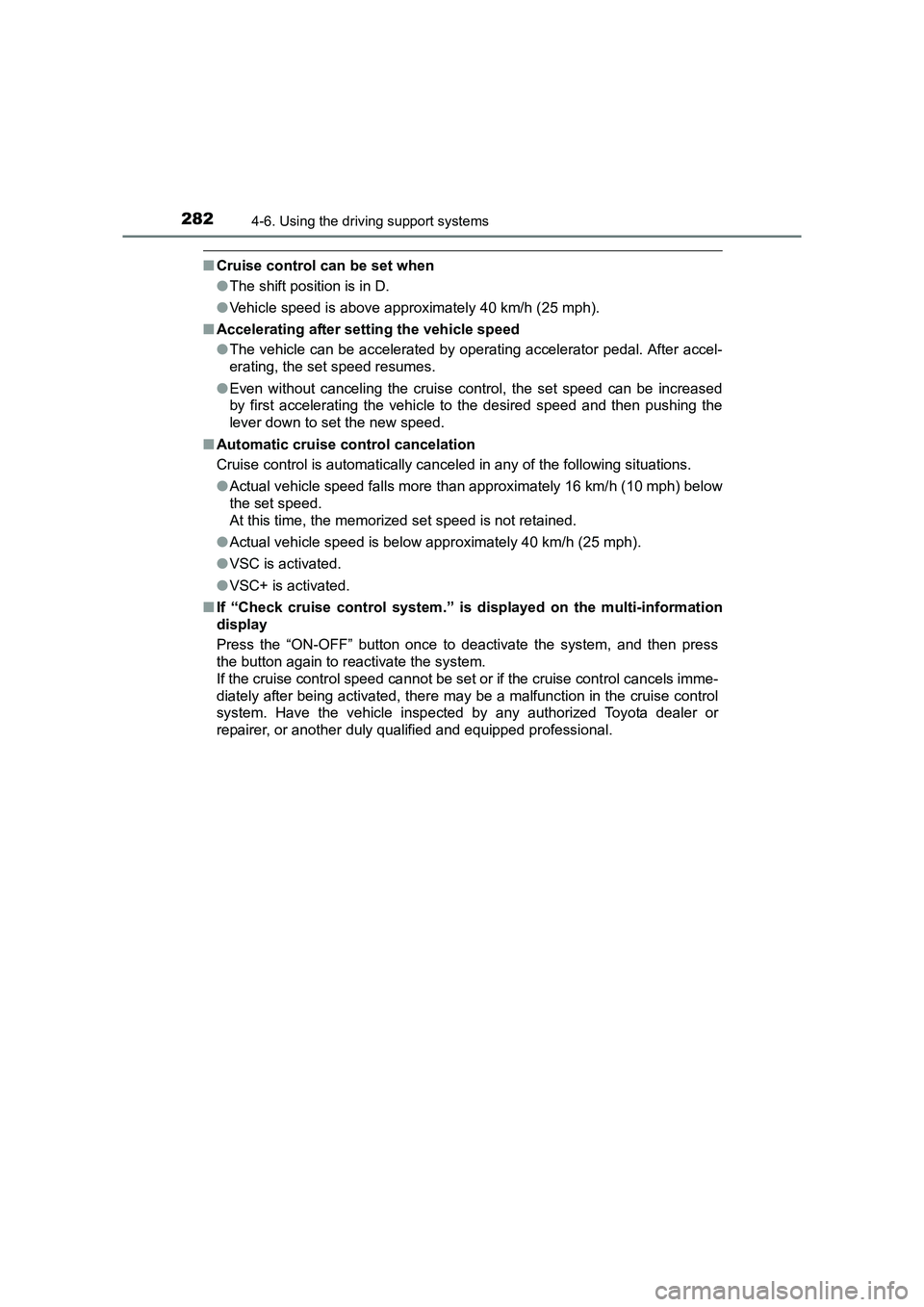

2824-6. Using the driving support systems
UK AURIS_HV_HB_EE (OM12K47E)
■Cruise control can be set when
●The shift position is in D.
● Vehicle speed is above approximately 40 km/h (25 mph).
■ Accelerating after setting the vehicle speed
●The vehicle can be accelerated by operating accelerator pedal. After accel-
erating, the set speed resumes.
● Even without canceling the cruise control, the set speed can be increased
by first accelerating the vehicle to the desired speed and then pushing the
lever down to set the new speed.
■ Automatic cruise control cancelation
Cruise control is automatically canceled in any of the following situations.
●Actual vehicle speed falls more than approximately 16 km/h (10 mph) below
the set speed.
At this time, the memorized set speed is not retained.
● Actual vehicle speed is below approximately 40 km/h (25 mph).
● VSC is activated.
● VSC+ is activated.
■ If “Check cruise control system.” is displayed on the multi-information
display
Press the “ON-OFF” button once to deactivate the system, and then press
the button again to reactivate the system.
If the cruise control speed cannot be set or if the cruise control cancels imme-
diately after being activated, there may be a malfunction in the cruise control
system. Have the vehicle inspected by any authorized Toyota dealer or
repairer, or another duly qualified and equipped professional.

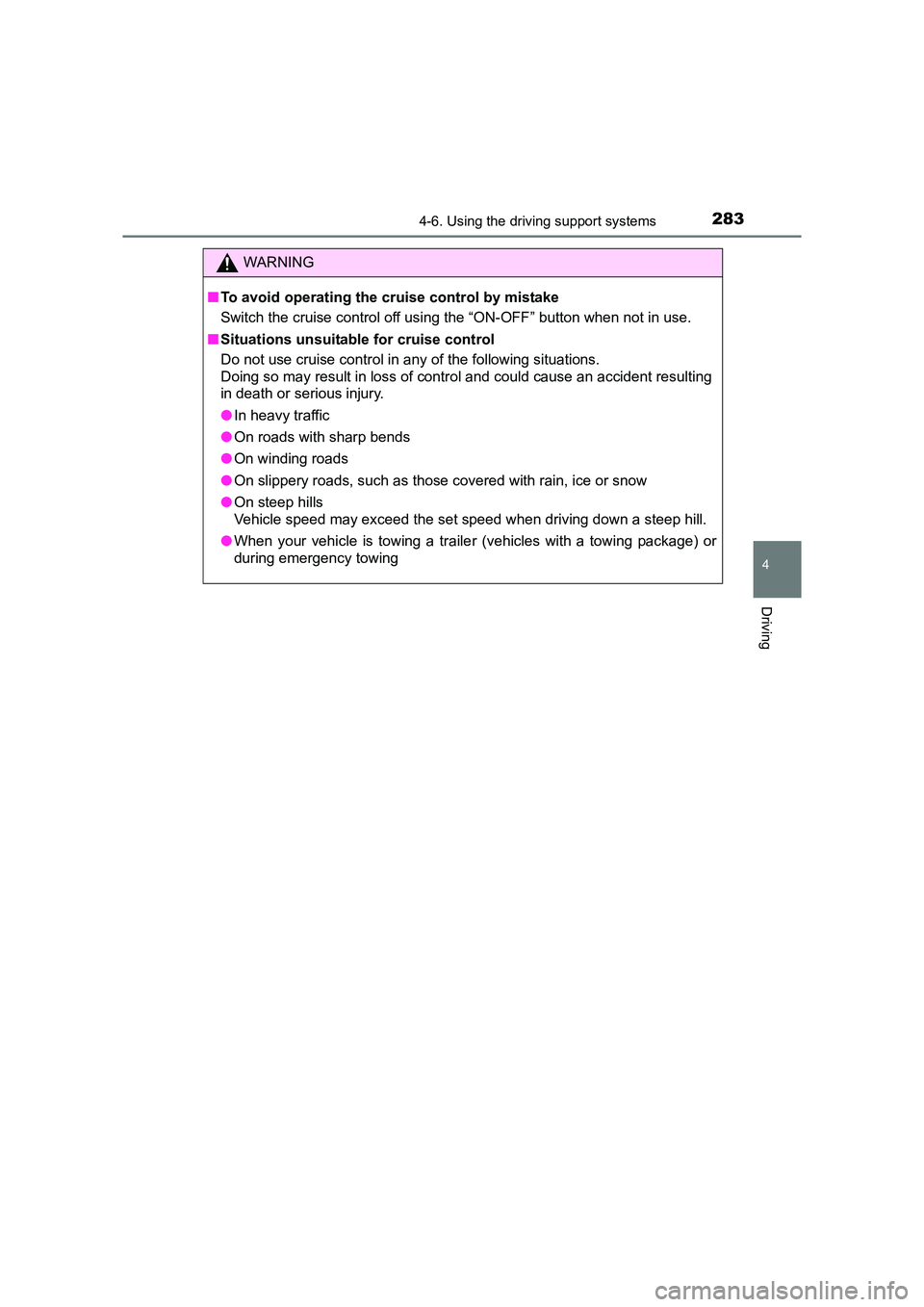

2834-6. Using the driving support systems
UK AURIS_HV_HB_EE (OM12K47E)
4
Driving
WARNING
■ To avoid operating the cruise control by mistake
Switch the cruise control off using the “ON-OFF” button when not in use.
■ Situations unsuitable for cruise control
Do not use cruise control in any of the following situations.
Doing so may result in loss of control and could cause an accident resulting
in death or serious injury.
●In heavy traffic
● On roads with sharp bends
● On winding roads
● On slippery roads, such as those covered with rain, ice or snow
● On steep hills
Vehicle speed may exceed the set speed when driving down a steep hill.
● When your vehicle is towing a traile r (vehicles with a towing package) or
during emergency towing

2844-6. Using the driving support systems
UK AURIS_HV_HB_EE (OM12K47E)■
Types of sensors
Toyota parking assist-sensor∗
∗: If equipped
Vehicles without a navigation/multimedia system:
The distance from your vehicle to nearby obstacles when paral-
lel parking or maneuvering into a garage is measured by the
sensors and communicated via the multi-information display
and a buzzer. Always check the surrounding area when using
this system.
Vehicles with a navigation/multimedia system:
Refer to the “Navigation and multimedia system Owner’s man-
ual”.
Front center sensors
Front corner sensors
Front side sensors
Rear corner sensors
Rear center sensors1
2
3
4
5

2854-6. Using the driving support systems
UK AURIS_HV_HB_EE (OM12K47E)
4
Driving
■Enabling/disabling the Toyota parking assist-sensor system
This system can be enabled/disabled on the multi-information dis-
play.Display the settings display ( →P. 106), and then press /
on the meter control switches to select .
Press on the meter con-
trol switches to enable/dis-
able the system.
When enabled, the Toyota
parking assist-sensor indica-
tor will illuminate.
When the sensors detect an obstacle, a graphic is shown on the multi
information display depending on the position and distance to the
obstacle. Front center sensor operation
Front corner sensor and front
side sensor operation
Rear corner sensor operation
Rear center sensor operation
1
2
Display
1
2
3
4

2864-6. Using the driving support systems
UK AURIS_HV_HB_EE (OM12K47E)
When a sensor detects an obstacle, the direction of and the approxi-
mate distance to the obstacle are displayed and the buzzer sounds.
■Corner sensors
The distance display and buzzer
Approximate distance to obstacleMulti-information displayBuzzer
50 to 37.5 cm (1.6 to 1.2 ft.) Medium
37.5 to 25 cm (1.2 to 0.8 ft.) Fast
Less than 25 cm (0.8 ft.) Continuous

2874-6. Using the driving support systems
UK AURIS_HV_HB_EE (OM12K47E)
4
Driving
■Front side sensors
■Center sensors
Approximate distance to obstacleMulti-information displayBuzzer
Less than 25 cm (0.8 ft.) Continuous
Approximate distance to
obstacleMulti-information displayBuzzer
Front: 100 to 55 cm (3.3 to 1.8 ft.)
Rear: 150 to 55 cm
(4.9 to 1.8 ft.) Slow
55 to 42.5 cm (1.8 to 1.4 ft.) Medium
42.5 to 30 cm (1.4 to 1.0 ft.) Fast
Less than 30 cm (1.0 ft.) Continuous

2884-6. Using the driving support systems
UK AURIS_HV_HB_EE (OM12K47E)
Approximately 100 cm (3.3 ft.)
Approximately 150 cm (4.9 ft.)
Approximately 25 cm (0.8 ft.)
Approximately 50 cm (1.6 ft.)
Approximately 50 cm (1.6 ft.)
The diagram shows the detection
range of the sensors. Note that the
sensors cannot detect obstacles
that are extremely close to the
vehicle.
The range of the sensors may
change depending on the shape of
the object etc.
Detection range of the sensors
1
2
3
4
5

2894-6. Using the driving support systems
UK AURIS_HV_HB_EE (OM12K47E)
4
Driving
■The Toyota parking assist-sensor can be operated when
The power switch is in ON mode.
●Front sensors:
• The shift position is shifted to a position other than P.
• The vehicle speed is less than about 10 km/h (6 mph).
(At any speed when the shift position is in R)
● Rear sensors:
The shift position is in R.
■ Sensor detection information
●Certain vehicle conditions and the su rrounding environment may affect the
ability of the sensor to correctly detect obstacles. Particular instances where
this may occur are listed below.
• There is dirt, snow or ice on the sensor.
• A sensor is frozen.
• A sensor is covered in any way.
• The vehicle is leaning considerably to one side.
• On an extremely bumpy road, on an incline, on gravel, or on grass.
• The vicinity of the vehicle is noisy due to vehicle horns, motorcycle engines, air brakes of large vehicles, or other loud noises producing ultra-
sonic waves.
• There is another vehicle equipped with parking assist sensors in the
vicinity.
• A sensor is coated with a sheet of spray or heavy rain.
• The vehicle is equipped with a fender pole or wireless antenna.
• Towing eyelet is installed.
• A bumper or sensor receives a strong impact.
• The vehicle is approaching a tall or curved curb.
• In harsh sunlight or intense cold weather.
• A non-genuine Toyota suspension (lowered suspension etc.) is installed.
In addition to the examples above, there are instances in which, because of
their shapes, signs and other objects may be judged by the sensor to be
closer than they are.
● The shape of the obstacle may prevent the sensor from detecting it. Pay
particular attention to the following obstacles:
• Wires, fences, ropes, etc.
• Cotton, snow and other materials that absorb sound waves
• Sharply-angled objects
• Low obstacles
• Tall obstacles with upper sections projecting outwards in the direction of
your vehicle

2904-6. Using the driving support systems
UK AURIS_HV_HB_EE (OM12K47E)■
If “Clean sonar.” is displayed on the multi-information display
A sensor may be dirty or covered with snow or ice. In this case, clean the
sensor and the system should return to normal.
If a sensor is frozen due to low temperatures, a warning message may be dis-
played or an obstacle may not be detected. When the sensor thaws out, the
system should return to normal.
■ If “Check sonar system.” is displayed on the multi-information display
The system may not operate due to the malfunction of a sensor.
Have the vehicle inspected by any authorized Toyota dealer or repairer, or
another duly qualified and equipped professional.
WARNING
■ Caution when using the Toyota parking assist-sensor
Observe the following precautions.
Failing to do so may result in the vehicle being unable to be driven safely
and possibly cause an accident.
●Do not use the sensor at speeds in excess of 10 km/h (6 mph).
● Do not attach any accessories within the sensor range.
NOTICE
■ Notes on the Toyota parking assist-sensor
●Do not apply intensive bursts of water or steam to the sensor area.
Doing so may result in the sensor malfunctioning.
● If your vehicle is involved in an accident, it will affect the sensors and may
result in a system failure.
Contact any authorized Toyota dealer or repairer, or another duly qualified
and equipped professional.
