TOYOTA AURIS TOURING SPORTS 2014 Owners Manual

912. Instrument cluster
Auris Touring Sports_EE (OM12G98E)
2
Instrument cluster
Engine coolant temperature
gauge
Displays the engine coolant tem-
perature.
Outside temperature display
(P. 379)
Shift position and gear position
indicator (P. 209)
Trip information (P. 9 2 )
Eco Driving Indicator Zone Dis-
play
* (P. 107)
*: Vehicles with a Multidrive

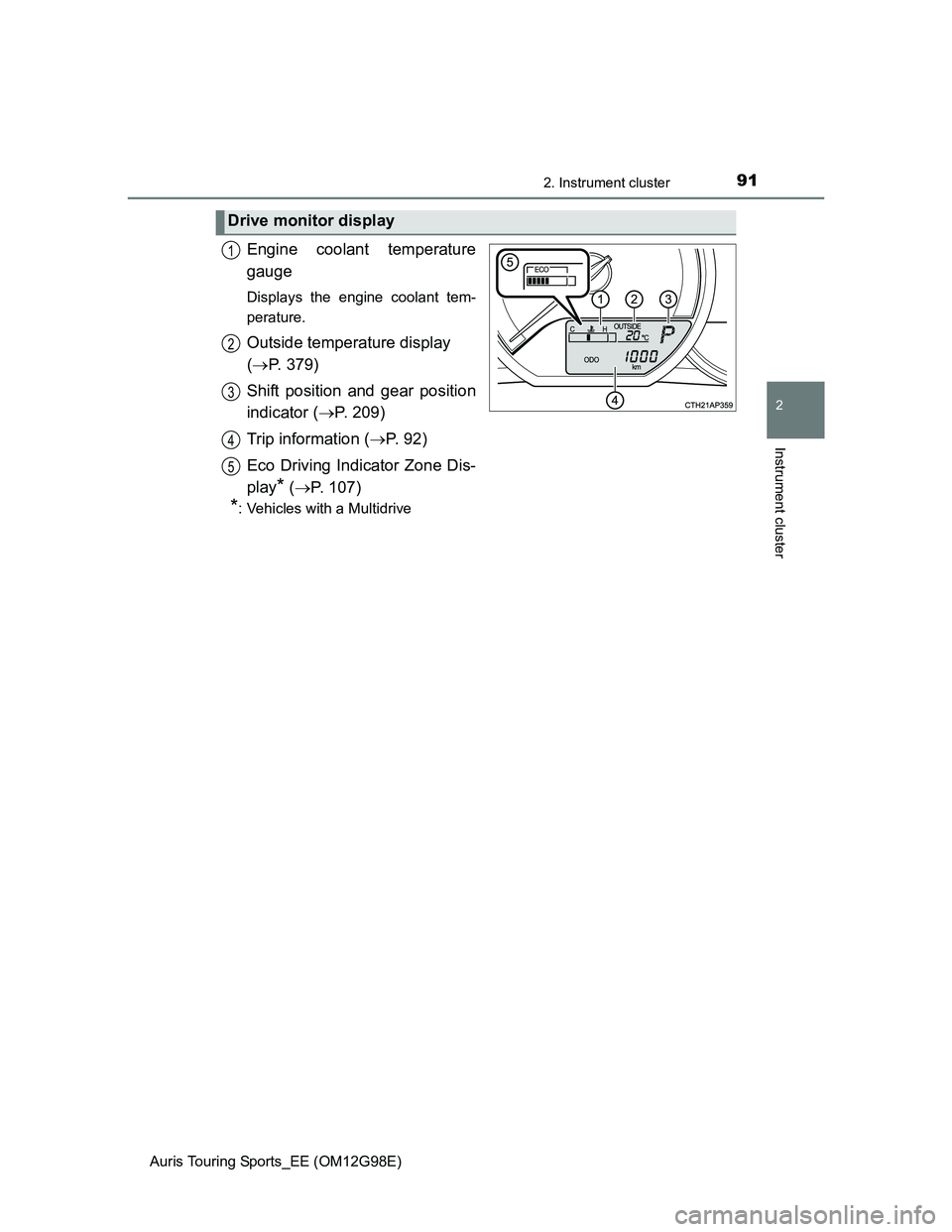

Drive monitor display
1
2
3
4
5

922. Instrument cluster
Auris Touring Sports_EE (OM12G98E)
Displays the driving range, average fuel consumption and other cruis-
ing related information. The display can be switched by pressing the
display change button/“DISP” switch.
Odometer
Trip meter A/trip meter B
Stop & Start system operation time (if equipped)
Stop & Start system total operation time (if equipped)

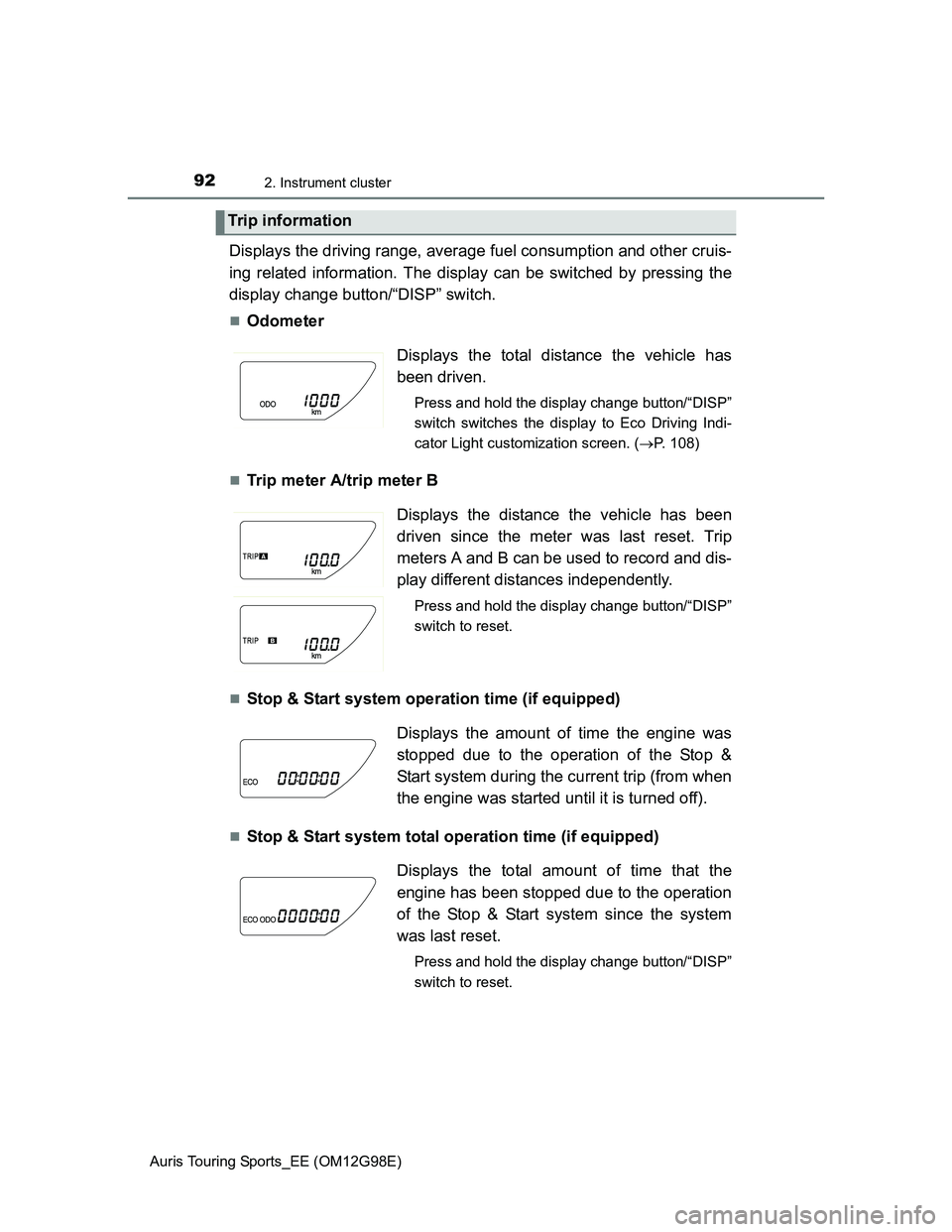

Trip information
Displays the total distance the vehicle has
been driven.
Press and hold the display change button/“DISP”
switch switches the display to Eco Driving Indi-
cator Light customization screen. (P. 108)
Displays the distance the vehicle has been
driven since the meter was last reset. Trip
meters A and B can be used to record and dis-
play different distances independently.
Press and hold the display change button/“DISP”
switch to reset.
Displays the amount of time the engine was
stopped due to the operation of the Stop &
Start system during the current trip (from when
the engine was started until it is turned off).
Displays the total amount of time that the
engine has been stopped due to the operation
of the Stop & Start system since the system
was last reset.
Press and hold the display change button/“DISP”
switch to reset.

932. Instrument cluster
Auris Touring Sports_EE (OM12G98E)
2
Instrument cluster

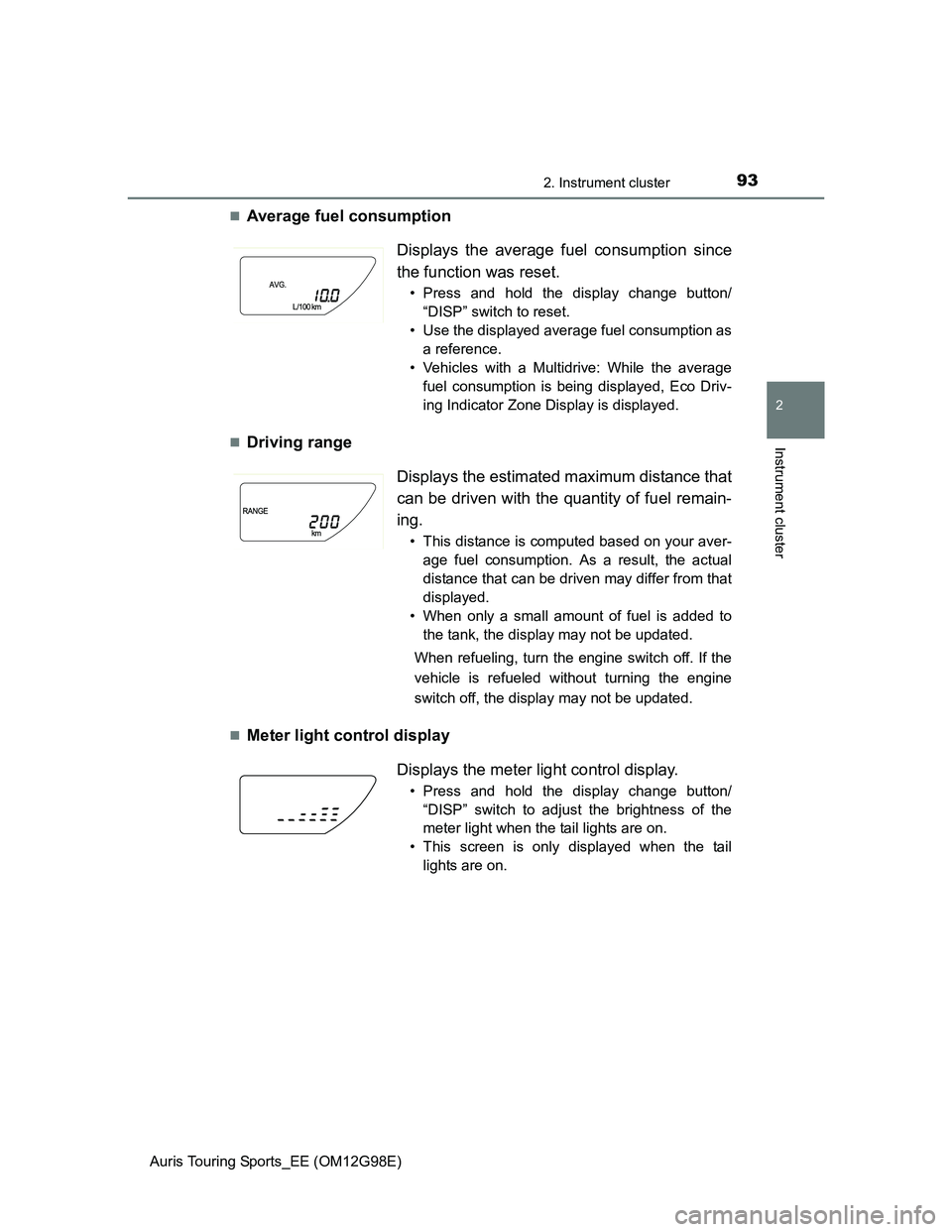

Average fuel consumption
Driving range
Meter light control displayDisplays the average fuel consumption since
the function was reset.
• Press and hold the display change button/
“DISP” switch to reset.
• Use the displayed average fuel consumption as
a reference.
• Vehicles with a Multidrive: While the average
fuel consumption is being displayed, Eco Driv-
ing Indicator Zone Display is displayed.
Displays the estimated maximum distance that
can be driven with the quantity of fuel remain-
ing.
• This distance is computed based on your aver-
age fuel consumption. As a result, the actual
distance that can be driven may differ from that
displayed.
• When only a small amount of fuel is added to
the tank, the display may not be updated.
When refueling, turn the engine switch off. If the
vehicle is refueled without turning the engine
switch off, the display may not be updated.
Displays the meter light control display.
• Press and hold the display change button/
“DISP” switch to adjust the brightness of the
meter light when the tail lights are on.
• This screen is only displayed when the tail
lights are on.

942. Instrument cluster
Auris Touring Sports_EE (OM12G98E)
The meters and display illuminate when
Vehicles without a smart entry & start system
The engine switch is in the “ON” position.
Vehicles with a smart entry & start system
The engine switch is in IGNITION ON mode.
When disconnecting and reconnecting battery terminals
The following information data will be reset:
Average fuel consumption
Driving range
CAUTION
The information display at low temperatures
Allow the interior of the vehicle to warm up before using the liquid crystal
information display. At extremely low temperatures, the display monitor may
respond slowly, and display changes may be delayed.
For example, there is a lag between the driver’s shifting and the new gear
number appearing on the display. This lag could cause the driver to down-
shift again, causing rapid and excessive engine braking and possibly an
accident resulting in death or injury.
Cautions during setting up the display
As the engine needs to be running during setting up the display, ensure that
the vehicle is parked in a place with adequate ventilation. In a closed area
such as a garage, exhaust gases including harmful carbon monoxide (CO)
may collect and enter the vehicle. This may lead to death or a serious
health hazard.
NOTICE
To prevent damage to the engine and its components
Do not let the indicator needle of the tachometer enter the red zone, which
indicates the maximum engine speed.
The engine may be overheating if the high engine coolant temperature
warning light comes on. In this case, immediately stop the vehicle in a safe
place, and check the engine after it has cooled completely. (P. 577)

952. Instrument cluster
Auris Touring Sports_EE (OM12G98E)
2
Instrument cluster

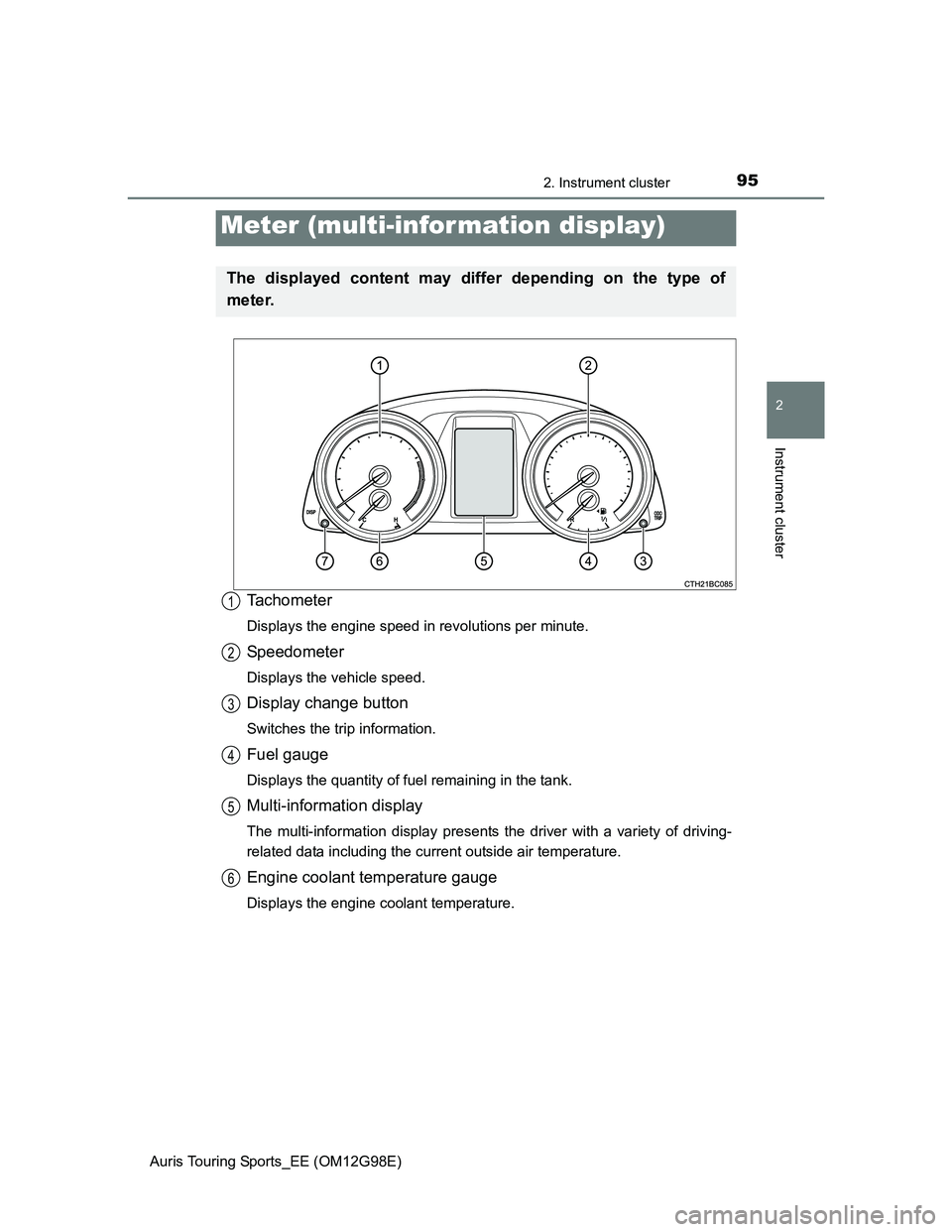

Tachometer
Displays the engine speed in revolutions per minute.
Speedometer
Displays the vehicle speed.
Display change button
Switches the trip information.
Fuel gauge
Displays the quantity of fuel remaining in the tank.
Multi-information display
The multi-information display presents the driver with a variety of driving-
related data including the current outside air temperature.
Engine coolant temperature gauge
Displays the engine coolant temperature.
Meter (multi-infor mation display)
The displayed content may differ depending on the type of
meter.
1
2
3
4
5
6

962. Instrument cluster
Auris Touring Sports_EE (OM12G98E)

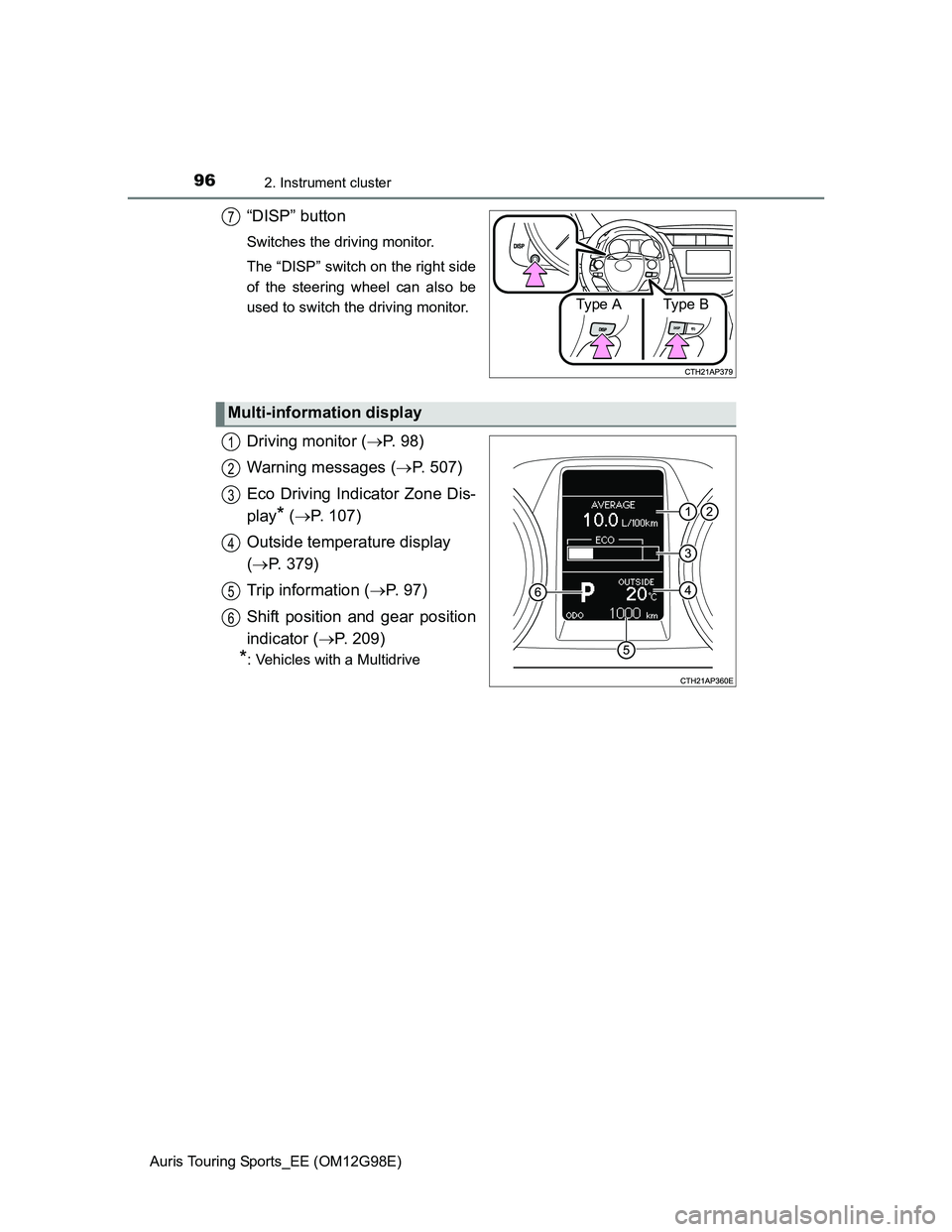

“DISP” button
Switches the driving monitor.
The “DISP” switch on the right side
of the steering wheel can also be
used to switch the driving monitor.
Driving monitor (P. 98)
Warning messages (P. 507)
Eco Driving Indicator Zone Dis-
play
* (P. 107)
Outside temperature display
(P. 379)
Trip information (P. 9 7 )
Shift position and gear position
indicator (P. 209)
*: Vehicles with a Multidrive
Type AType B
7
Multi-information display
1
2
3
4
5
6

972. Instrument cluster
Auris Touring Sports_EE (OM12G98E)
2
Instrument cluster
Displays the odometer, trip meter and other cruising related informa-
tion. The display can be switched by pressing the display change but-
ton.
Odometer
Trip meter A/trip meter B
Stop & Start system operation time (if equipped)
Stop & Start system total operation time (if equipped)

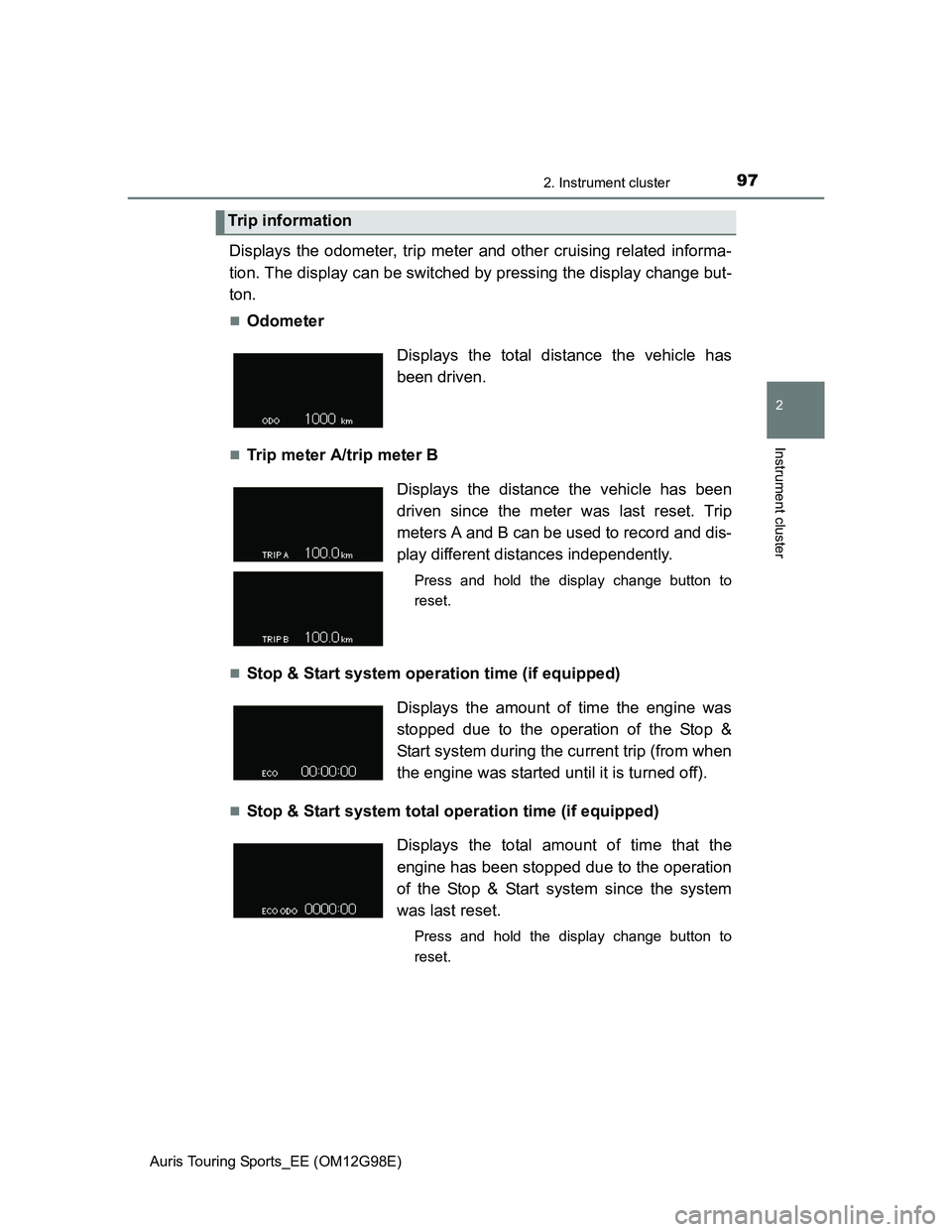

Trip information
Displays the total distance the vehicle has
been driven.
Displays the distance the vehicle has been
driven since the meter was last reset. Trip
meters A and B can be used to record and dis-
play different distances independently.
Press and hold the display change button to
reset.
Displays the amount of time the engine was
stopped due to the operation of the Stop &
Start system during the current trip (from when
the engine was started until it is turned off).
Displays the total amount of time that the
engine has been stopped due to the operation
of the Stop & Start system since the system
was last reset.
Press and hold the display change button to
reset.

982. Instrument cluster
Auris Touring Sports_EE (OM12G98E)

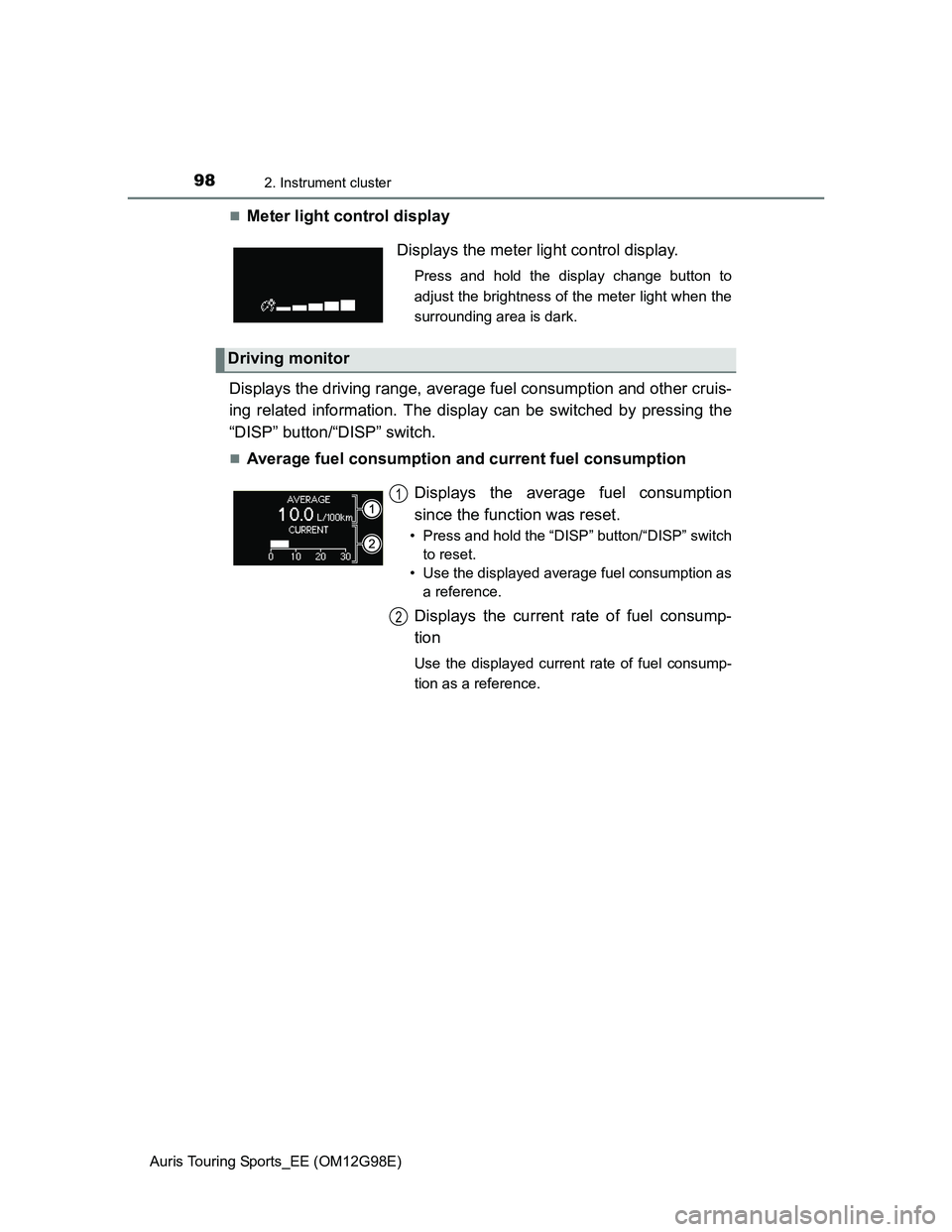

Meter light control display
Displays the driving range, average fuel consumption and other cruis-
ing related information. The display can be switched by pressing the
“DISP” button/“DISP” switch.
Average fuel consumption and current fuel consumption Displays the meter light control display.
Press and hold the display change button to
adjust the brightness of the meter light when the
surrounding area is dark.
Driving monitor
Displays the average fuel consumption
since the function was reset.
• Press and hold the “DISP” button/“DISP” switch
to reset.
• Use the displayed average fuel consumption as
a reference.
Displays the current rate of fuel consump-
tion
Use the displayed current rate of fuel consump-
tion as a reference.
1
2

992. Instrument cluster
Auris Touring Sports_EE (OM12G98E)
2
Instrument cluster

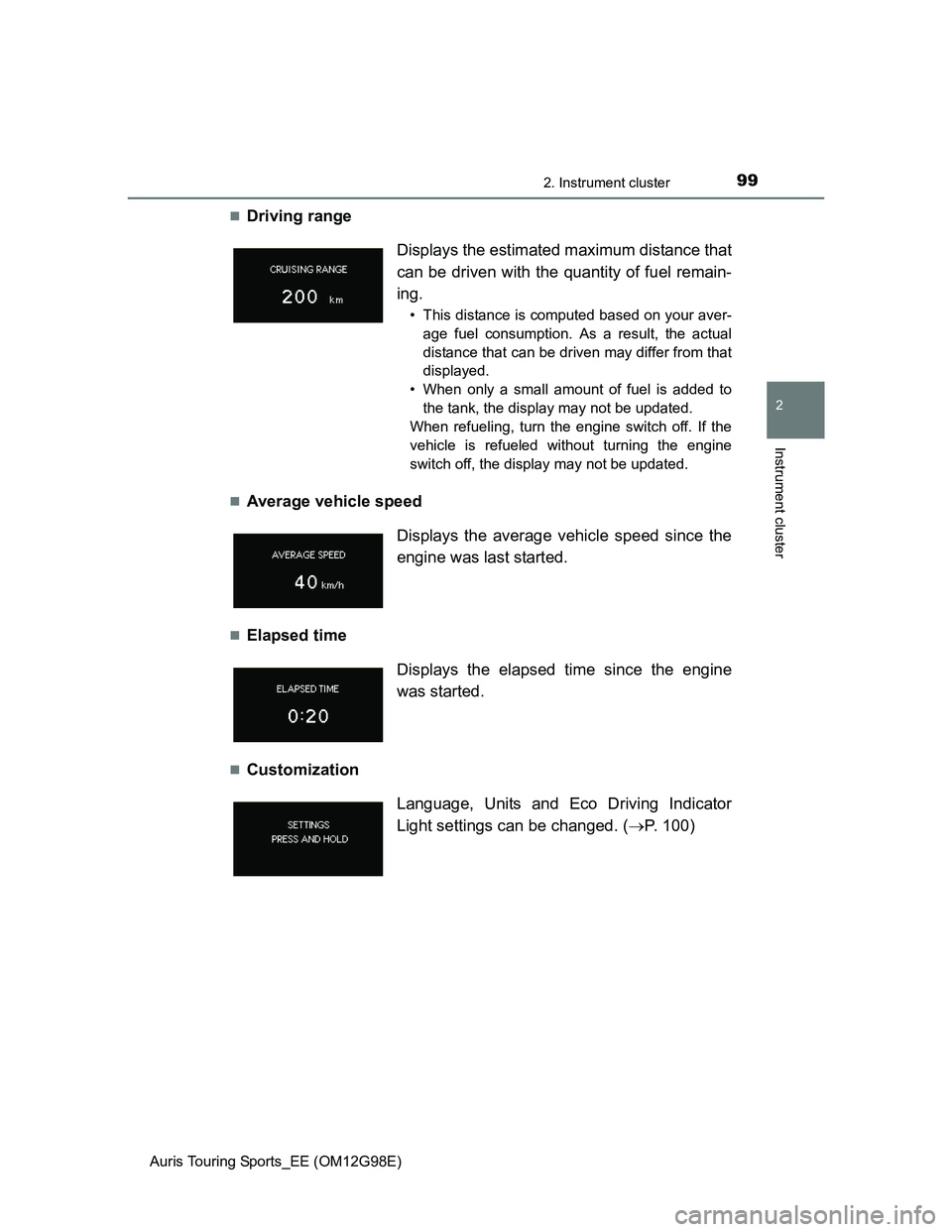

Driving range
Average vehicle speed
Elapsed time
CustomizationDisplays the estimated maximum distance that
can be driven with the quantity of fuel remain-
ing.
• This distance is computed based on your aver-
age fuel consumption. As a result, the actual
distance that can be driven may differ from that
displayed.
• When only a small amount of fuel is added to
the tank, the display may not be updated.
When refueling, turn the engine switch off. If the
vehicle is refueled without turning the engine
switch off, the display may not be updated.
Displays the average vehicle speed since the
engine was last started.
Displays the elapsed time since the engine
was started.
Language, Units and Eco Driving Indicator
Light settings can be changed. (P. 100)

1002. Instrument cluster
Auris Touring Sports_EE (OM12G98E)

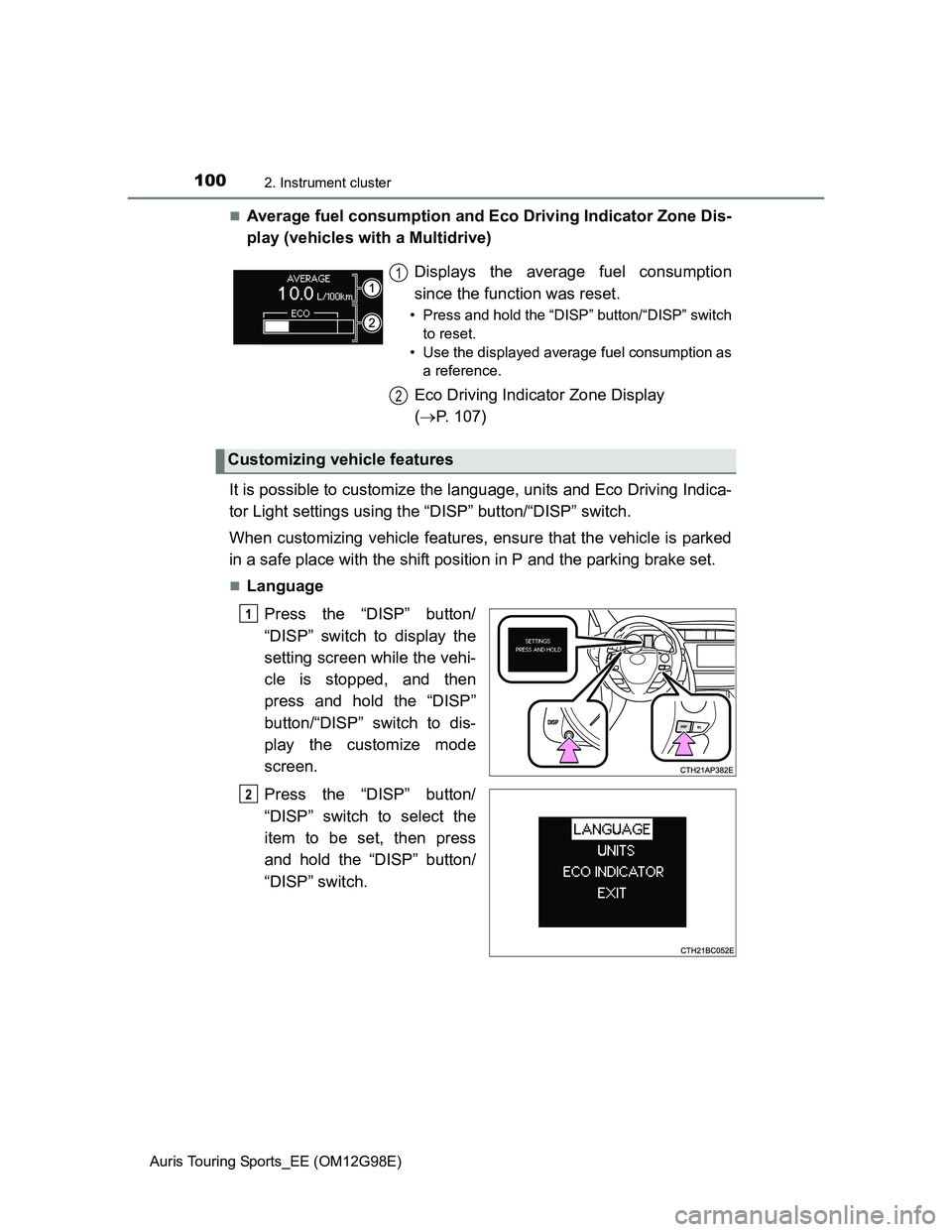

Average fuel consumption and Eco Driving Indicator Zone Dis-
play (vehicles with a Multidrive)
It is possible to customize the language, units and Eco Driving Indica-
tor Light settings using the “DISP” button/“DISP” switch.
When customizing vehicle features, ensure that the vehicle is parked
in a safe place with the shift position in P and the parking brake set.
Language
Press the “DISP” button/
“DISP” switch to display the
setting screen while the vehi-
cle is stopped, and then
press and hold the “DISP”
button/“DISP” switch to dis-
play the customize mode
screen.
Press the “DISP” button/
“DISP” switch to select the
item to be set, then press
and hold the “DISP” button/
“DISP” switch.Displays the average fuel consumption
since the function was reset.
• Press and hold the “DISP” button/“DISP” switch
to reset.
• Use the displayed average fuel consumption as
a reference.
Eco Driving Indicator Zone Display
(P. 107)
Customizing vehicle features
1
2
1
2
