TOYOTA AURIS TOURING SPORTS 2014 Owners Manual

1012. Instrument cluster
Auris Touring Sports_EE (OM12G98E)
2
Instrument cluster
Press the “DISP” button/
“DISP” switch to select the
desired setting, and then
press and hold the “DISP”
button/“DISP” switch.
To go back to the previous screen or exit the customize mode, press
the “DISP” button/“DISP” switch to select “EXIT”, and then press and
hold the “DISP” button/“DISP” switch.

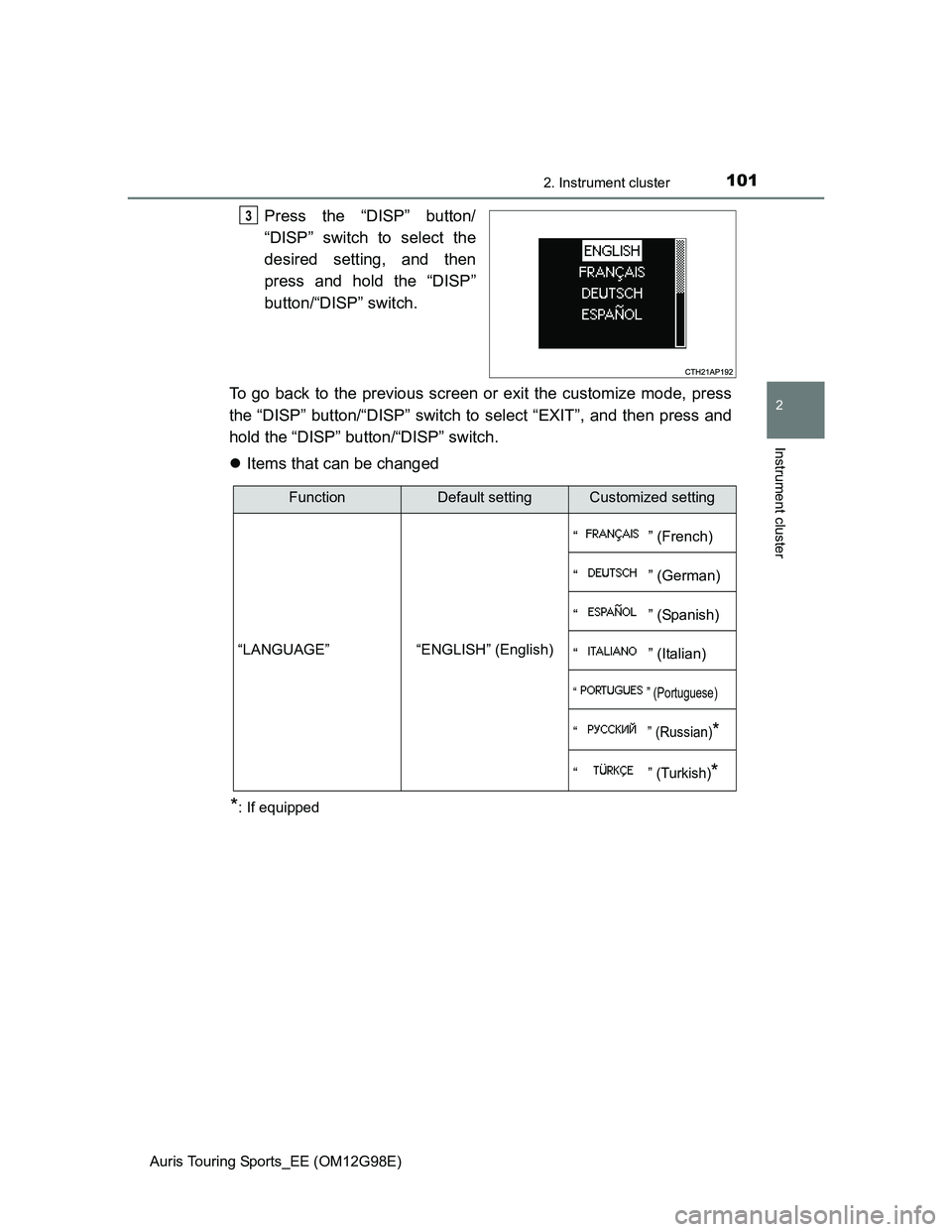

Items that can be changed
*: If equipped
3
FunctionDefault settingCustomized setting
“LANGUAGE” “ENGLISH” (English)“ ” (French)
“ ” (German)
“ ” (Spanish)
“ ” (Italian)
“ ” (Portuguese)
“ ” (Russian)*
“ ” (Turkish)*

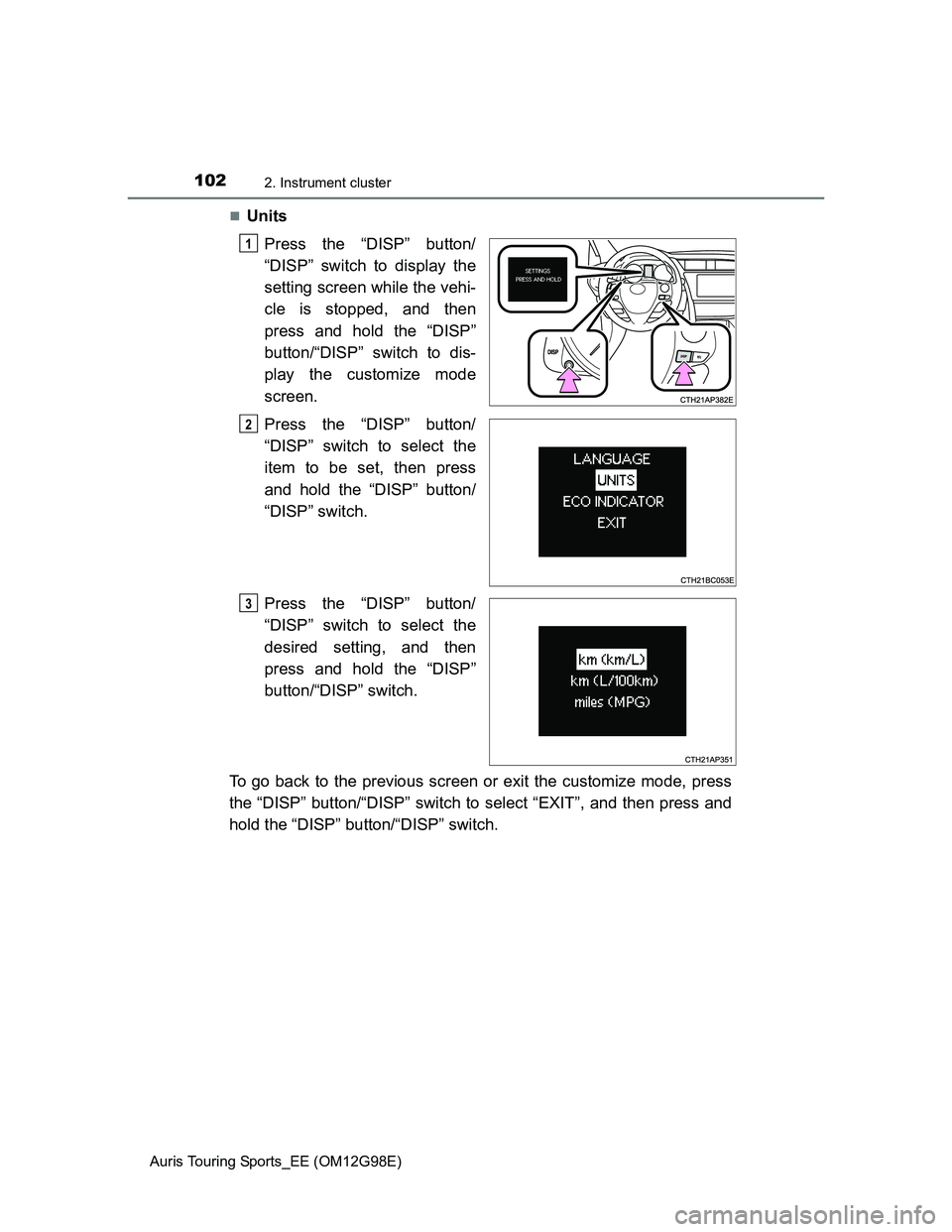

1022. Instrument cluster
Auris Touring Sports_EE (OM12G98E)
Units
Press the “DISP” button/
“DISP” switch to display the
setting screen while the vehi-
cle is stopped, and then
press and hold the “DISP”
button/“DISP” switch to dis-
play the customize mode
screen.
Press the “DISP” button/
“DISP” switch to select the
item to be set, then press
and hold the “DISP” button/
“DISP” switch.
Press the “DISP” button/
“DISP” switch to select the
desired setting, and then
press and hold the “DISP”
button/“DISP” switch.
To go back to the previous screen or exit the customize mode, press
the “DISP” button/“DISP” switch to select “EXIT”, and then press and
hold the “DISP” button/“DISP” switch.
1
2
3

1032. Instrument cluster
Auris Touring Sports_EE (OM12G98E)
2
Instrument cluster
Items that can be changed
*: The default setting varies according to countries.


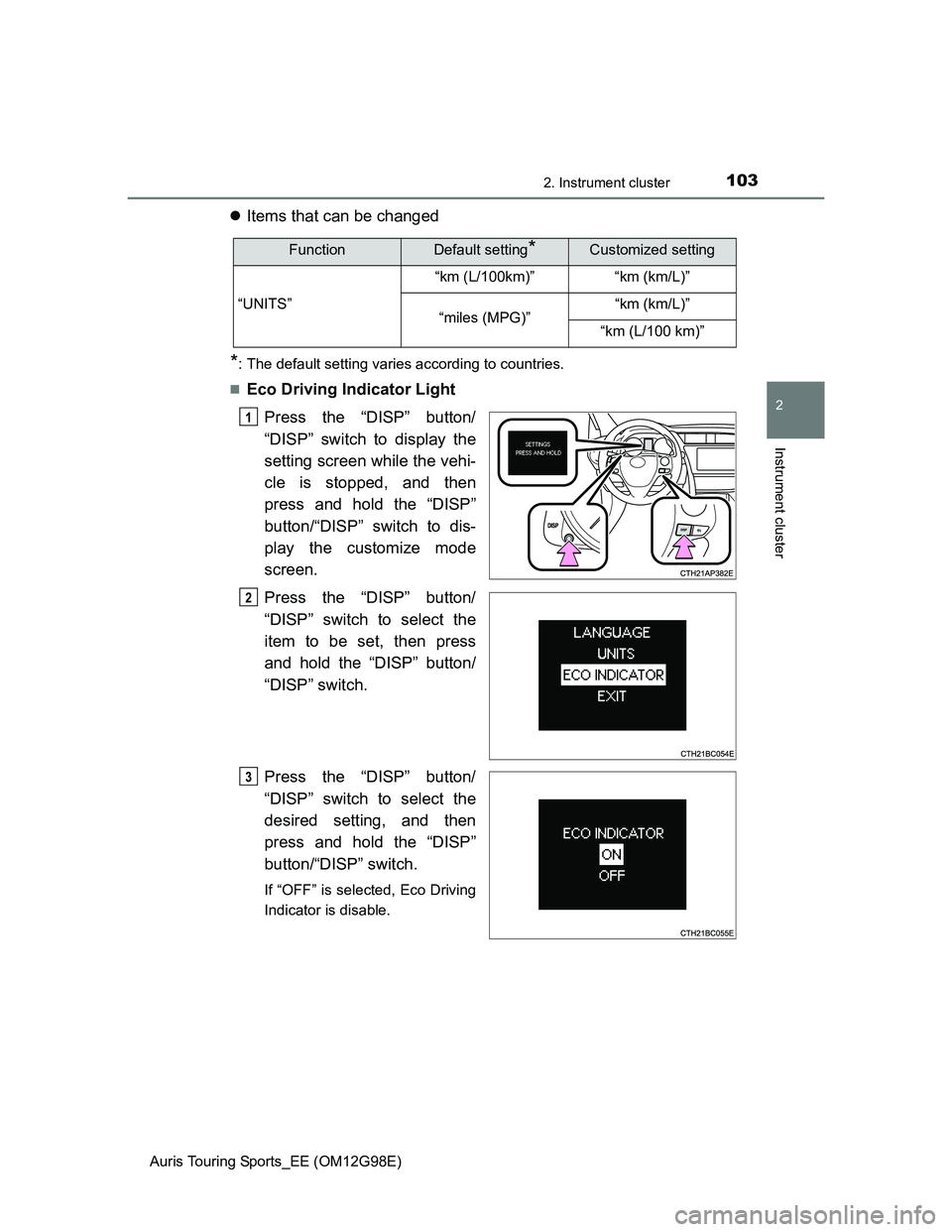

Eco Driving Indicator Light
Press the “DISP” button/
“DISP” switch to display the
setting screen while the vehi-
cle is stopped, and then
press and hold the “DISP”
button/“DISP” switch to dis-
play the customize mode
screen.
Press the “DISP” button/
“DISP” switch to select the
item to be set, then press
and hold the “DISP” button/
“DISP” switch.
Press the “DISP” button/
“DISP” switch to select the
desired setting, and then
press and hold the “DISP”
button/“DISP” switch.
If “OFF” is selected, Eco Driving
Indicator is disable.
FunctionDefault setting*Customized setting
“UNITS”“km (L/100km)” “km (km/L)”
“miles (MPG)”“km (km/L)”
“km (L/100 km)”
1
2
3

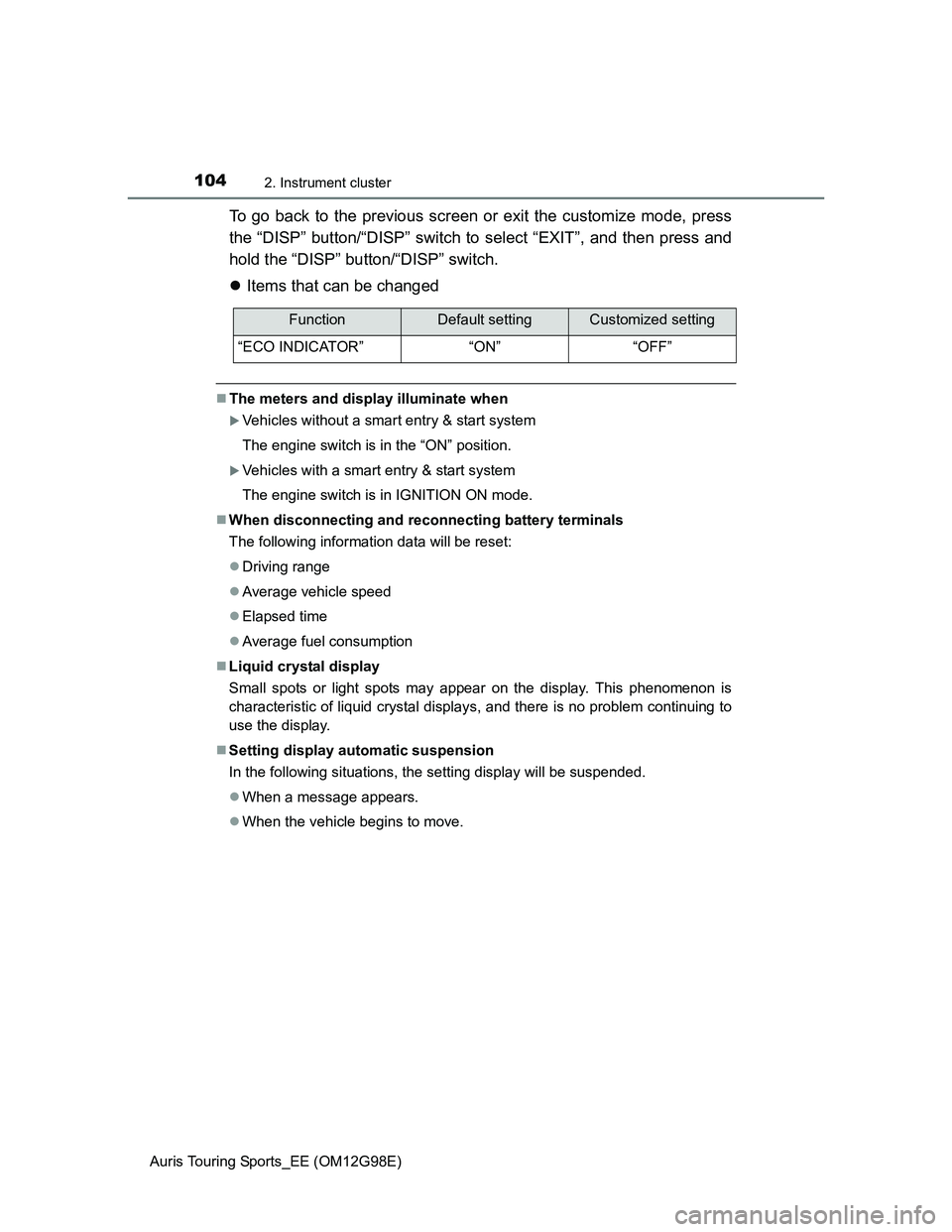

1042. Instrument cluster
Auris Touring Sports_EE (OM12G98E)
To go back to the previous screen or exit the customize mode, press
the “DISP” button/“DISP” switch to select “EXIT”, and then press and
hold the “DISP” button/“DISP” switch.
Items that can be changed
The meters and display illuminate when
Vehicles without a smart entry & start system
The engine switch is in the “ON” position.
Vehicles with a smart entry & start system
The engine switch is in IGNITION ON mode.
When disconnecting and reconnecting battery terminals
The following information data will be reset:
Driving range
Average vehicle speed
Elapsed time
Average fuel consumption
Liquid crystal display
Small spots or light spots may appear on the display. This phenomenon is
characteristic of liquid crystal displays, and there is no problem continuing to
use the display.
Setting display automatic suspension
In the following situations, the setting display will be suspended.
When a message appears.
When the vehicle begins to move.
FunctionDefault settingCustomized setting
“ECO INDICATOR” “ON” “OFF”

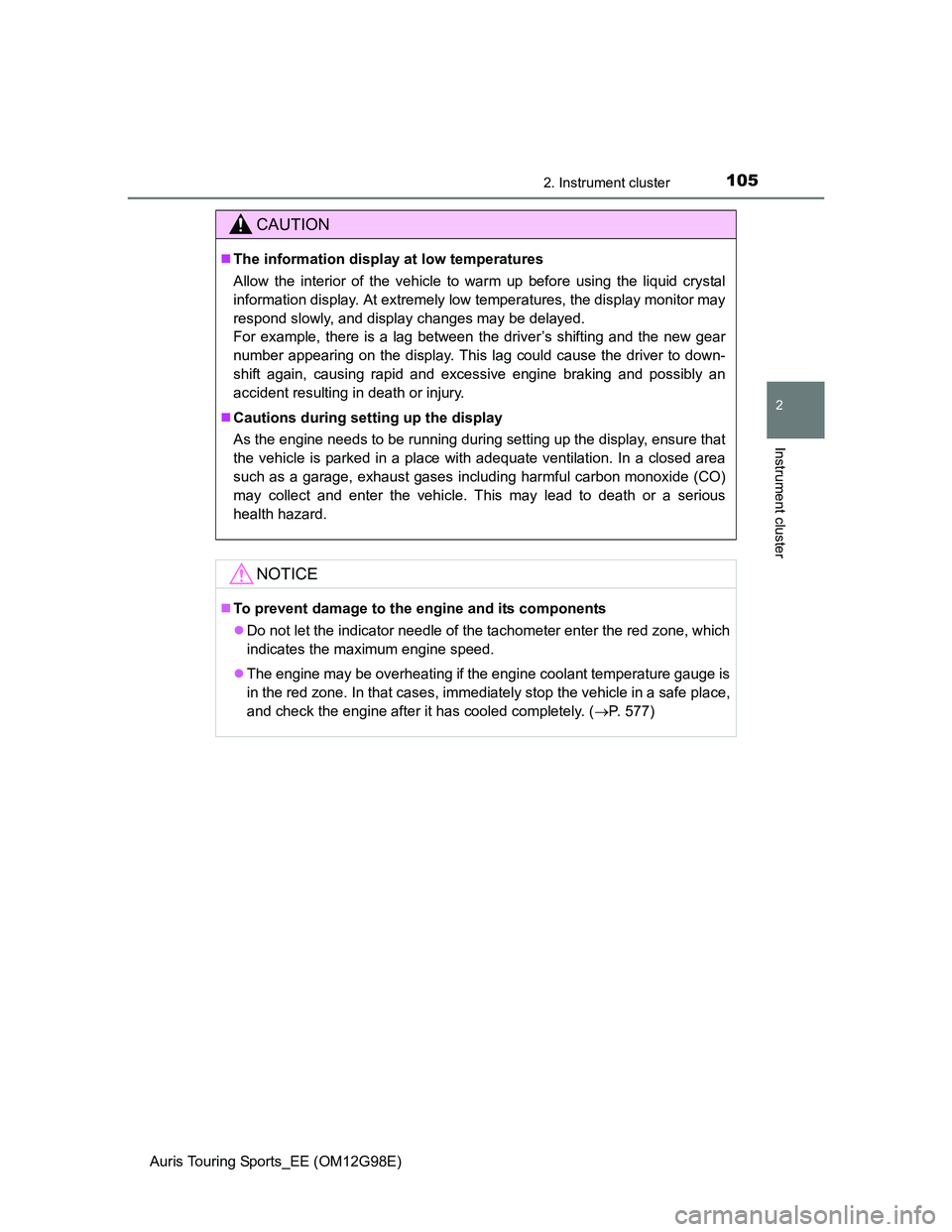

1052. Instrument cluster
Auris Touring Sports_EE (OM12G98E)
2
Instrument cluster
CAUTION
The information display at low temperatures
Allow the interior of the vehicle to warm up before using the liquid crystal
information display. At extremely low temperatures, the display monitor may
respond slowly, and display changes may be delayed.
For example, there is a lag between the driver’s shifting and the new gear
number appearing on the display. This lag could cause the driver to down-
shift again, causing rapid and excessive engine braking and possibly an
accident resulting in death or injury.
Cautions during setting up the display
As the engine needs to be running during setting up the display, ensure that
the vehicle is parked in a place with adequate ventilation. In a closed area
such as a garage, exhaust gases including harmful carbon monoxide (CO)
may collect and enter the vehicle. This may lead to death or a serious
health hazard.
NOTICE
To prevent damage to the engine and its components
Do not let the indicator needle of the tachometer enter the red zone, which
indicates the maximum engine speed.
The engine may be overheating if the engine coolant temperature gauge is
in the red zone. In that cases, immediately stop the vehicle in a safe place,
and check the engine after it has cooled completely. (P. 577)

1062. Instrument cluster
Auris Touring Sports_EE (OM12G98E)
During Eco-friendly acceleration
operation (Eco driving), Eco Driv-
ing Indicator Light will turn on.
When the acceleration exceeds
Zone of Eco driving, and when the
vehicle is stopped, the light turns
off.

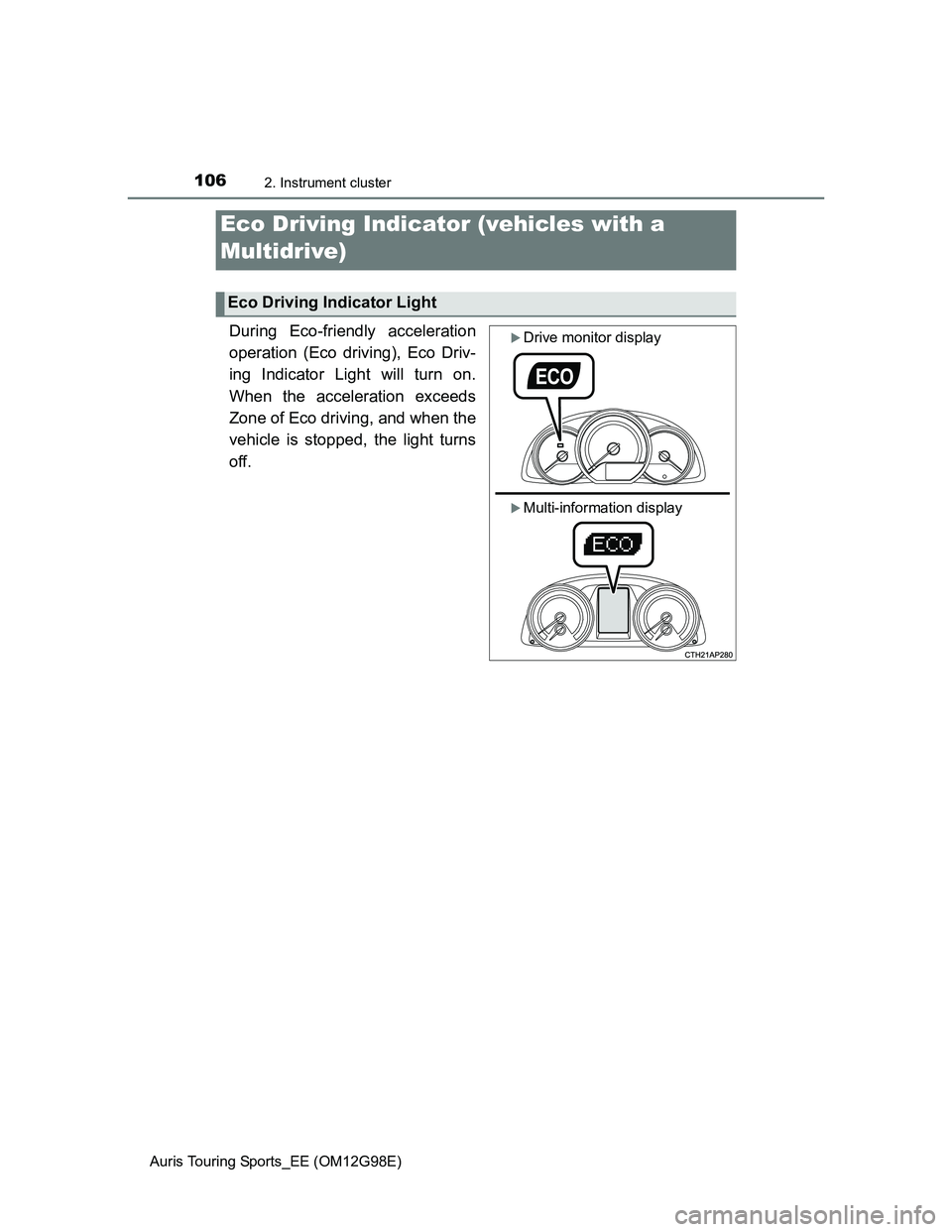

Eco Driving Indicator (vehicles with a
Multidrive)
Eco Driving Indicator Light
Drive monitor display
Multi-information display

1072. Instrument cluster
Auris Touring Sports_EE (OM12G98E)
2
Instrument cluster

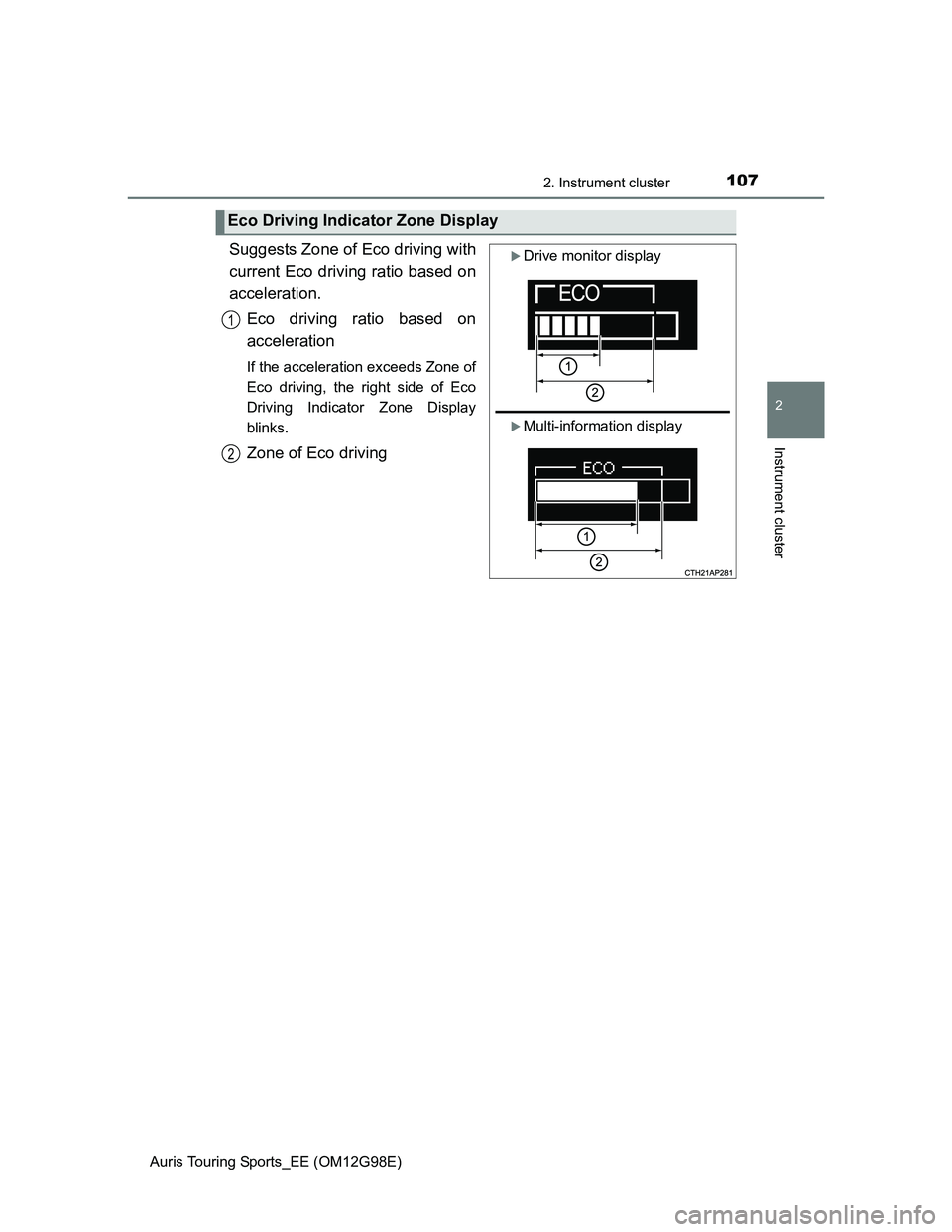

Suggests Zone of Eco driving with
current Eco driving ratio based on
acceleration.
Eco driving ratio based on
acceleration
If the acceleration exceeds Zone of
Eco driving, the right side of Eco
Driving Indicator Zone Display
blinks.
Zone of Eco driving
Eco Driving Indicator Zone Display
Drive monitor display
Multi-information display
1
2

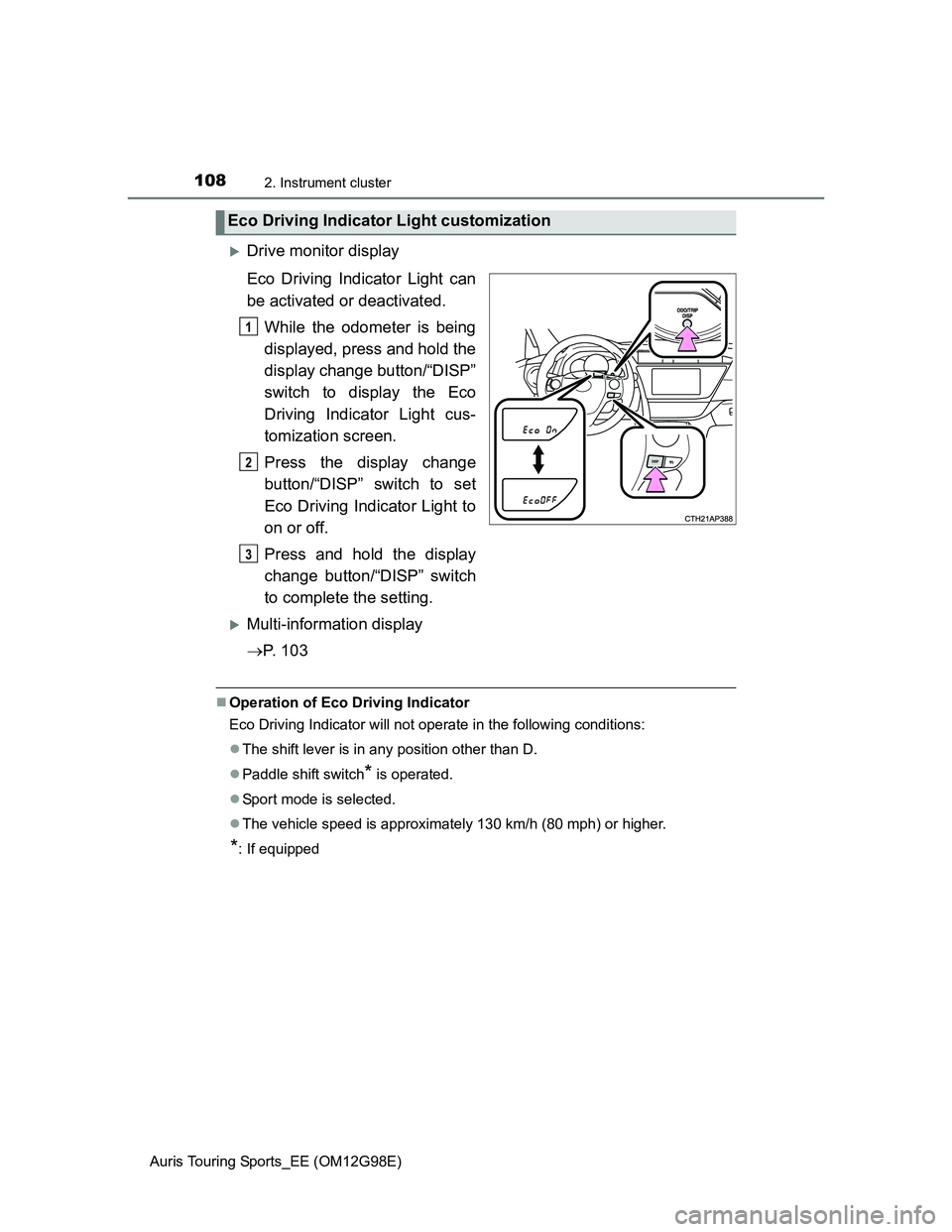

1082. Instrument cluster
Auris Touring Sports_EE (OM12G98E)
Drive monitor display
Eco Driving Indicator Light can
be activated or deactivated.
While the odometer is being
displayed, press and hold the
display change button/“DISP”
switch to display the Eco
Driving Indicator Light cus-
tomization screen.
Press the display change
button/“DISP” switch to set
Eco Driving Indicator Light to
on or off.
Press and hold the display
change button/“DISP” switch
to complete the setting.
Multi-information display
P. 1 0 3
Operation of Eco Driving Indicator
Eco Driving Indicator will not operate in the following conditions:
The shift lever is in any position other than D.
Paddle shift switch
* is operated.
Sport mode is selected.
The vehicle speed is approximately 130 km/h (80 mph) or higher.
*: If equipped
Eco Driving Indicator Light customization
1
2
3

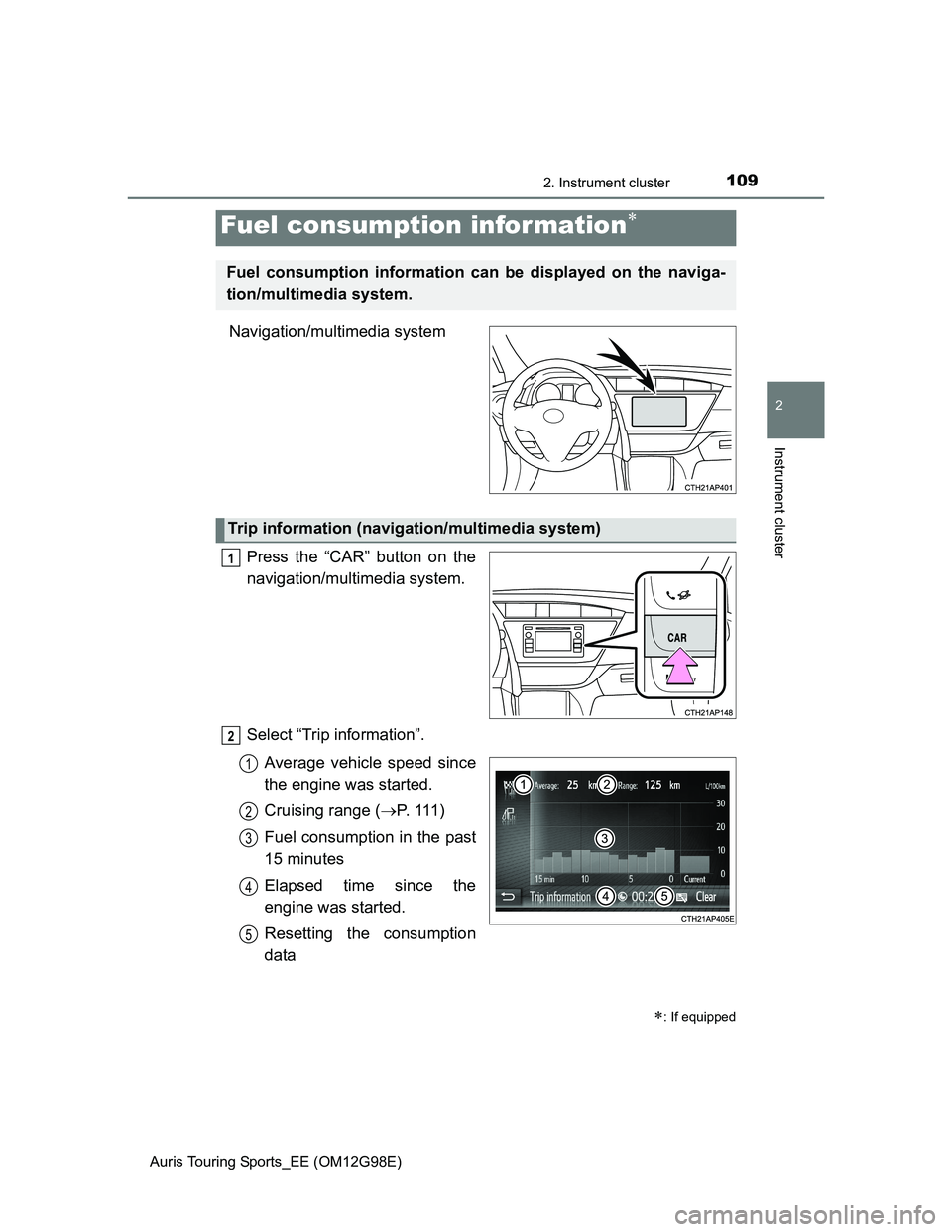

1092. Instrument cluster
Auris Touring Sports_EE (OM12G98E)
2
Instrument cluster
Navigation/multimedia system
Press the “CAR” button on the
navigation/multimedia system.
Select “Trip information”.
Average vehicle speed since
the engine was started.
Cruising range (P. 11 1 )
Fuel consumption in the past
15 minutes
Elapsed time since the
engine was started.
Resetting the consumption
data
Fuel consumption information
: If equipped
Fuel consumption information can be displayed on the naviga-
tion/multimedia system.
Trip information (navigation/multimedia system)
1
2
1
2
3
4
5

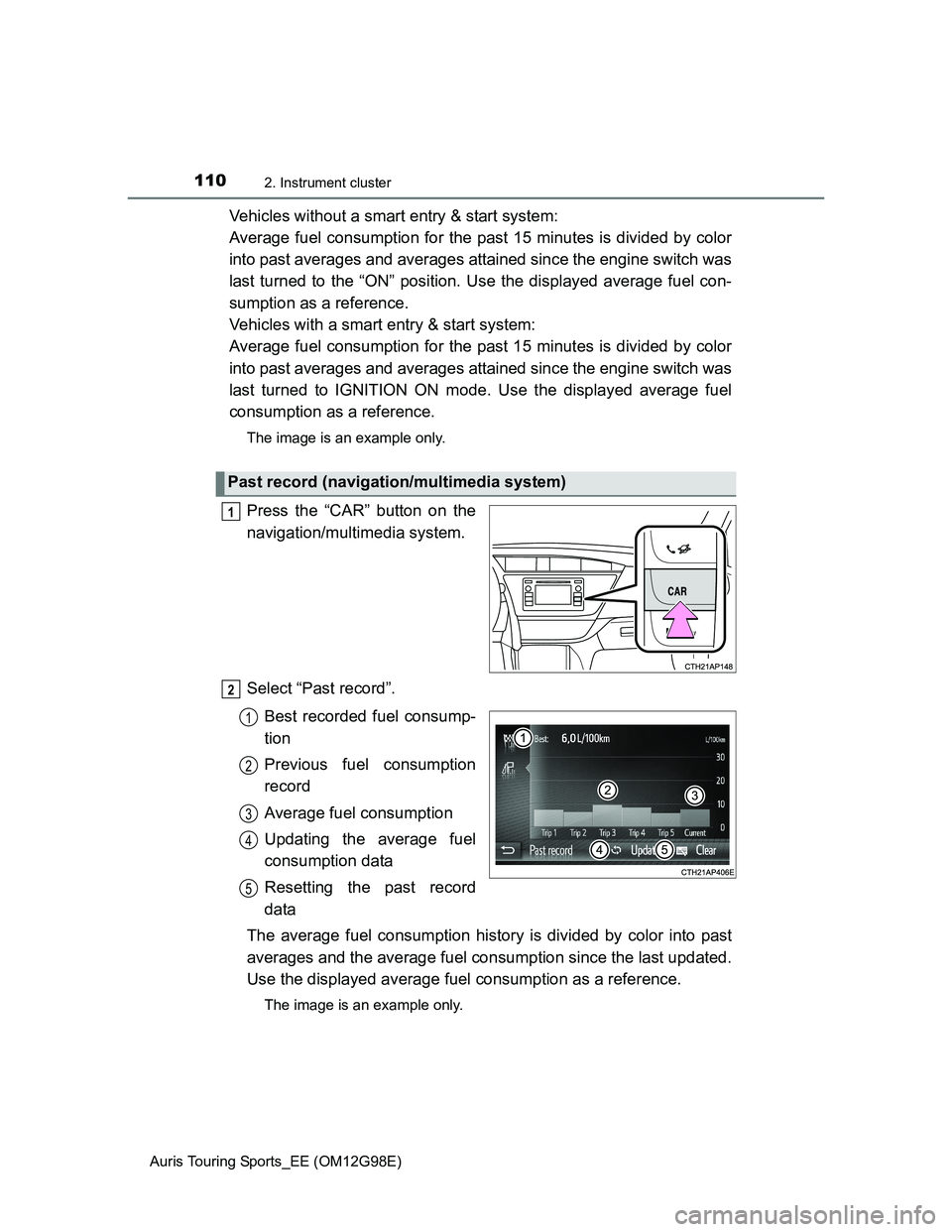

1102. Instrument cluster
Auris Touring Sports_EE (OM12G98E)
Vehicles without a smart entry & start system:
Average fuel consumption for the past 15 minutes is divided by color
into past averages and averages attained since the engine switch was
last turned to the “ON” position. Use the displayed average fuel con-
sumption as a reference.
Vehicles with a smart entry & start system:
Average fuel consumption for the past 15 minutes is divided by color
into past averages and averages attained since the engine switch was
last turned to IGNITION ON mode. Use the displayed average fuel
consumption as a reference.
The image is an example only.
Press the “CAR” button on the
navigation/multimedia system.
Select “Past record”.
Best recorded fuel consump-
tion
Previous fuel consumption
record
Average fuel consumption
Updating the average fuel
consumption data
Resetting the past record
data
The average fuel consumption history is divided by color into past
averages and the average fuel consumption since the last updated.
Use the displayed average fuel consumption as a reference.
The image is an example only.
Past record (navigation/multimedia system)
1
2
1
2
3
4
5
