811-2. Theft deterrent system
1
For safety and security
Auris Touring Sports_EE (OM12G98E)Triggering of the alarm
The alarm may be triggered in the following situations:
(Stopping the alarm deactivates the alarm system.)
Alarm-operated door lock
When the alarm is operating, the doors are locked automatically to prevent
intruders.
Do not leave the key inside the vehicle when the alarm is operating, and
make sure the key is not inside the vehicle when recharging or replacing the
battery. The doors are unlocked using the key.

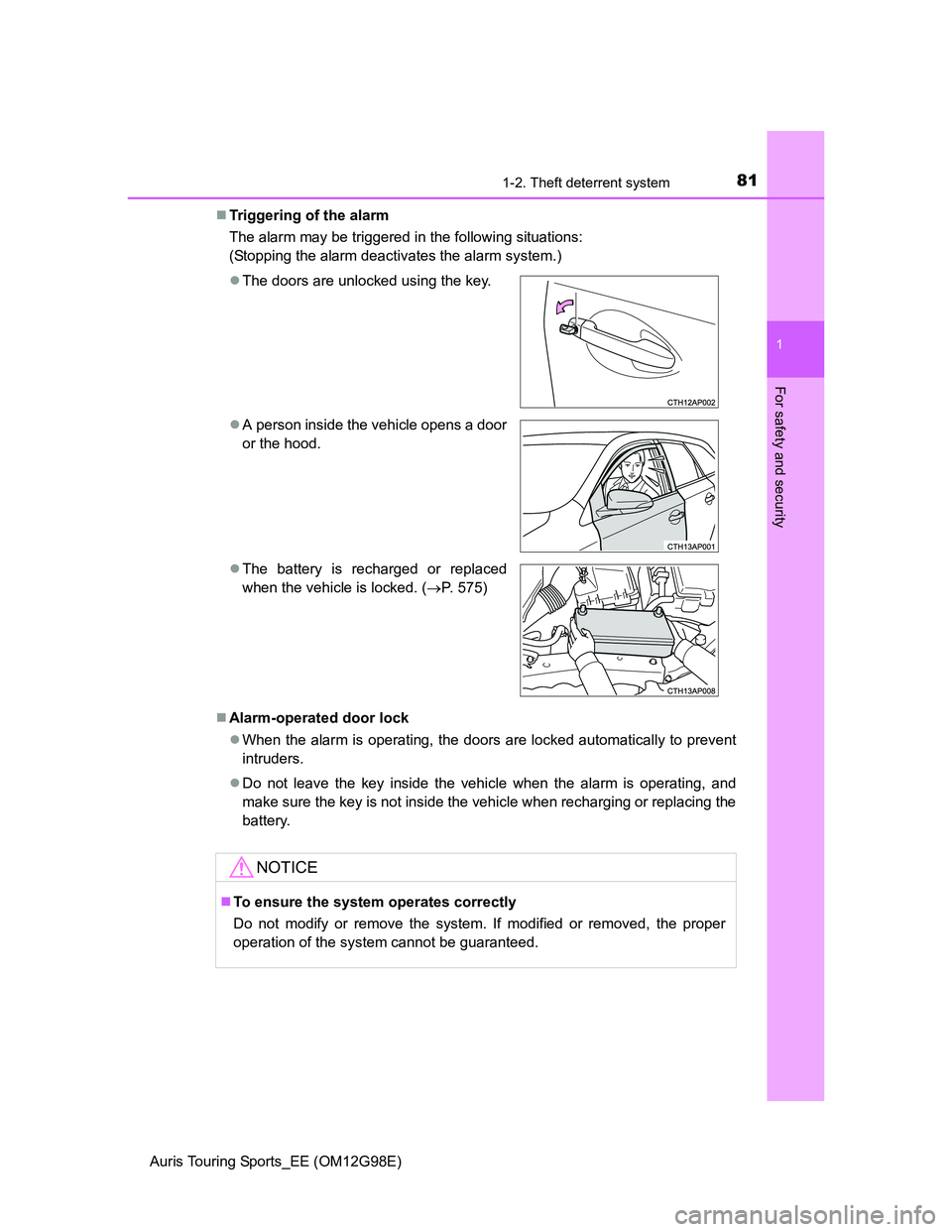

A person inside the vehicle opens a door
or the hood.
The battery is recharged or replaced
when the vehicle is locked. (P. 575)
NOTICE
To ensure the system operates correctly
Do not modify or remove the system. If modified or removed, the proper
operation of the system cannot be guaranteed.

821-2. Theft deterrent system
Auris Touring Sports_EE (OM12G98E)

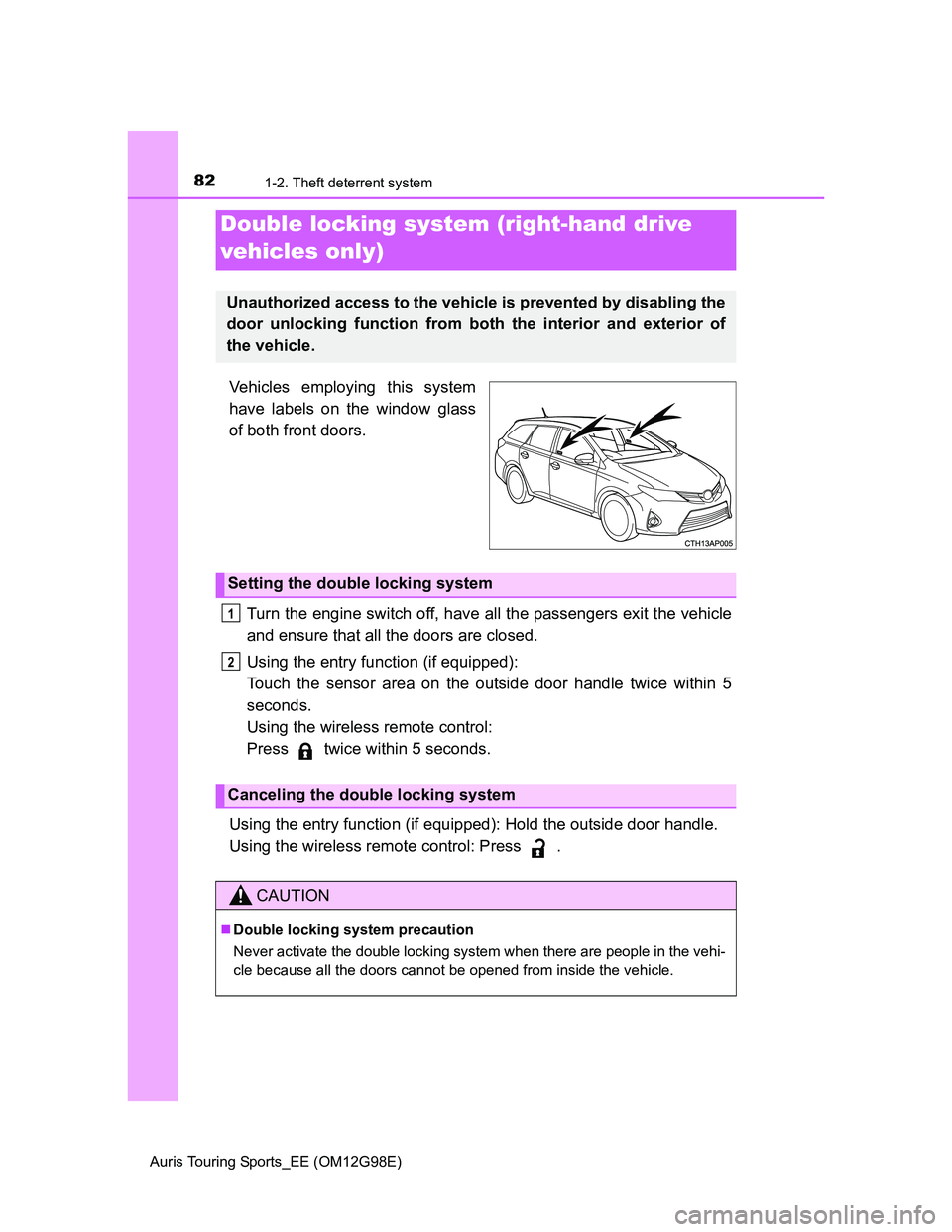

Vehicles employing this system
have labels on the window glass
of both front doors.
Turn the engine switch off, have all the passengers exit the vehicle
and ensure that all the doors are closed.
Using the entry function (if equipped):
Touch the sensor area on the outside door handle twice within 5
seconds.
Using the wireless remote control:
Press twice within 5 seconds.
Using the entry function (if equipped): Hold the outside door handle.
Using the wireless remote control: Press .
Double locking system (right-hand drive
vehicles only)
Unauthorized access to the vehicle is prevented by disabling the
door unlocking function from both the interior and exterior of
the vehicle.
Setting the double locking system
Canceling the double locking system
CAUTION
Double locking system precaution
Never activate the double locking system when there are people in the vehi-
cle because all the doors cannot be opened from inside the vehicle.
1
2

83
2Instrument cluster
Auris Touring Sports_EE (OM12G98E)2. Instrument cluster
Warning lights and
indicators ........................... 84
Meter (drive monitor
display) .............................. 90
Meter (multi-information
display) .............................. 95
Eco Driving Indicator.......... 106
Fuel consumption
information ....................... 109

84
Auris Touring Sports_EE (OM12G98E)
2. Instrument cluster
Instrument cluster
Vehicles with a drive monitor display
Vehicles with a multi-information display
War ning lights and indicators

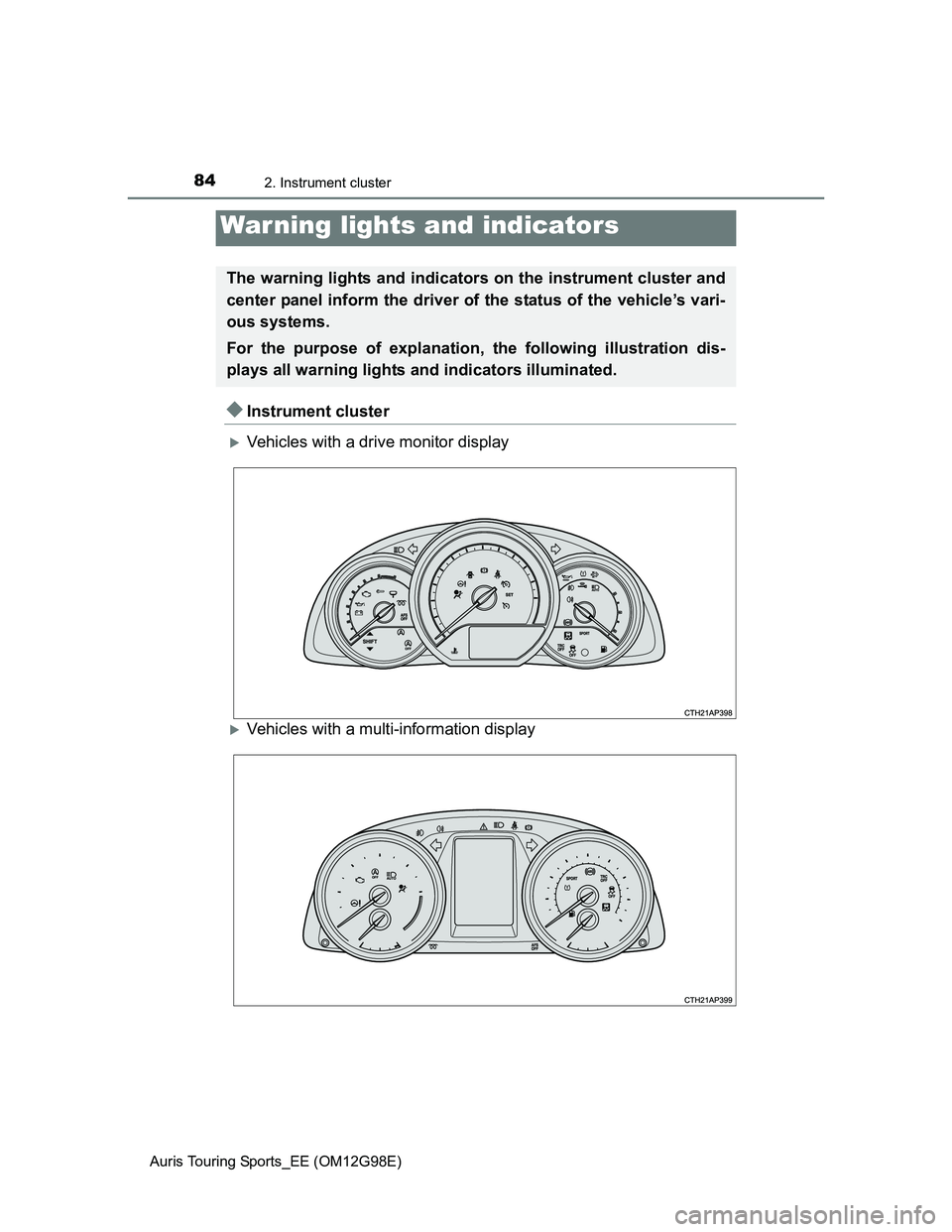

The warning lights and indicators on the instrument cluster and
center panel inform the driver of the status of the vehicle’s vari-
ous systems.
For the purpose of explanation, the following illustration dis-
plays all warning lights and indicators illuminated.

852. Instrument cluster
Auris Touring Sports_EE (OM12G98E)
2
Instrument cluster

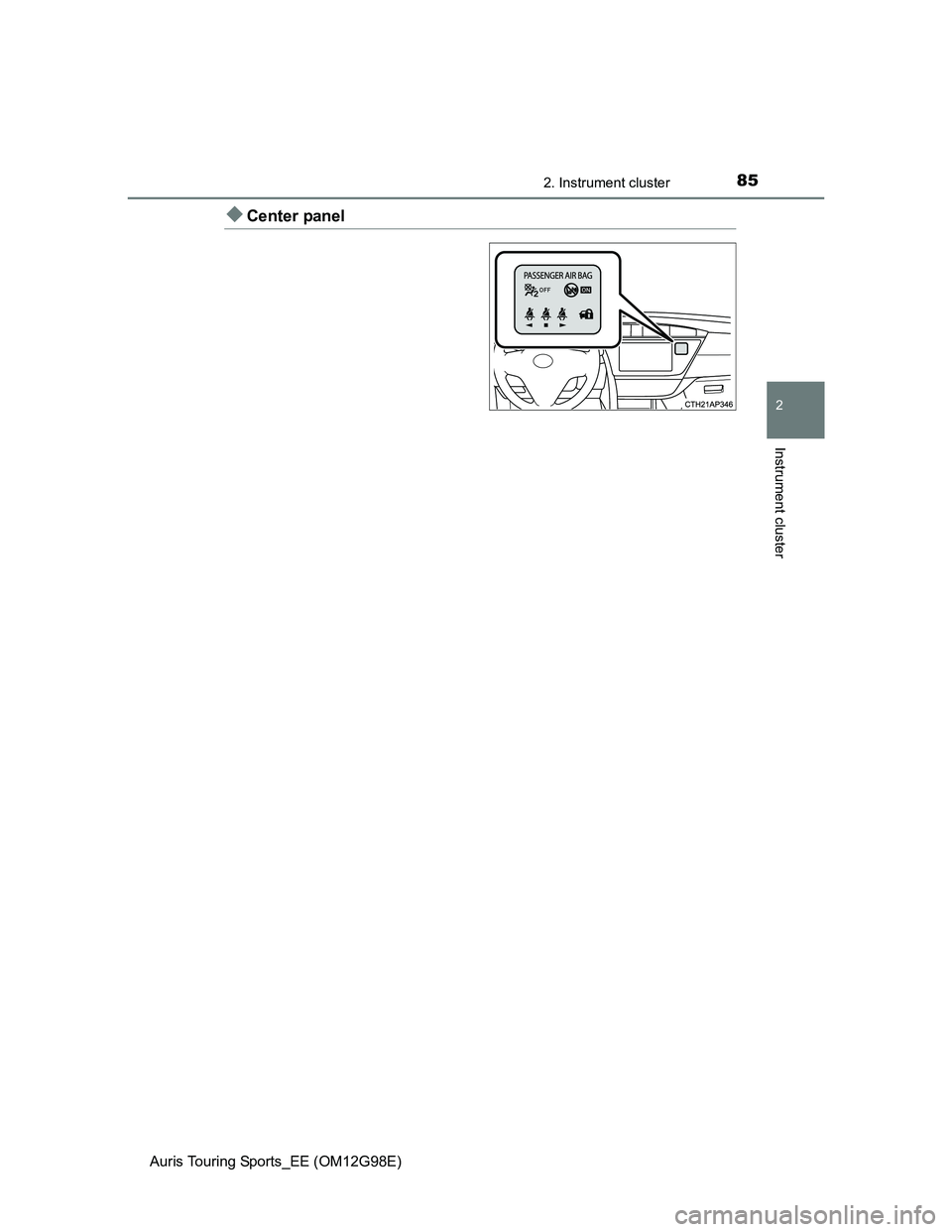

Center panel

862. Instrument cluster
Auris Touring Sports_EE (OM12G98E)

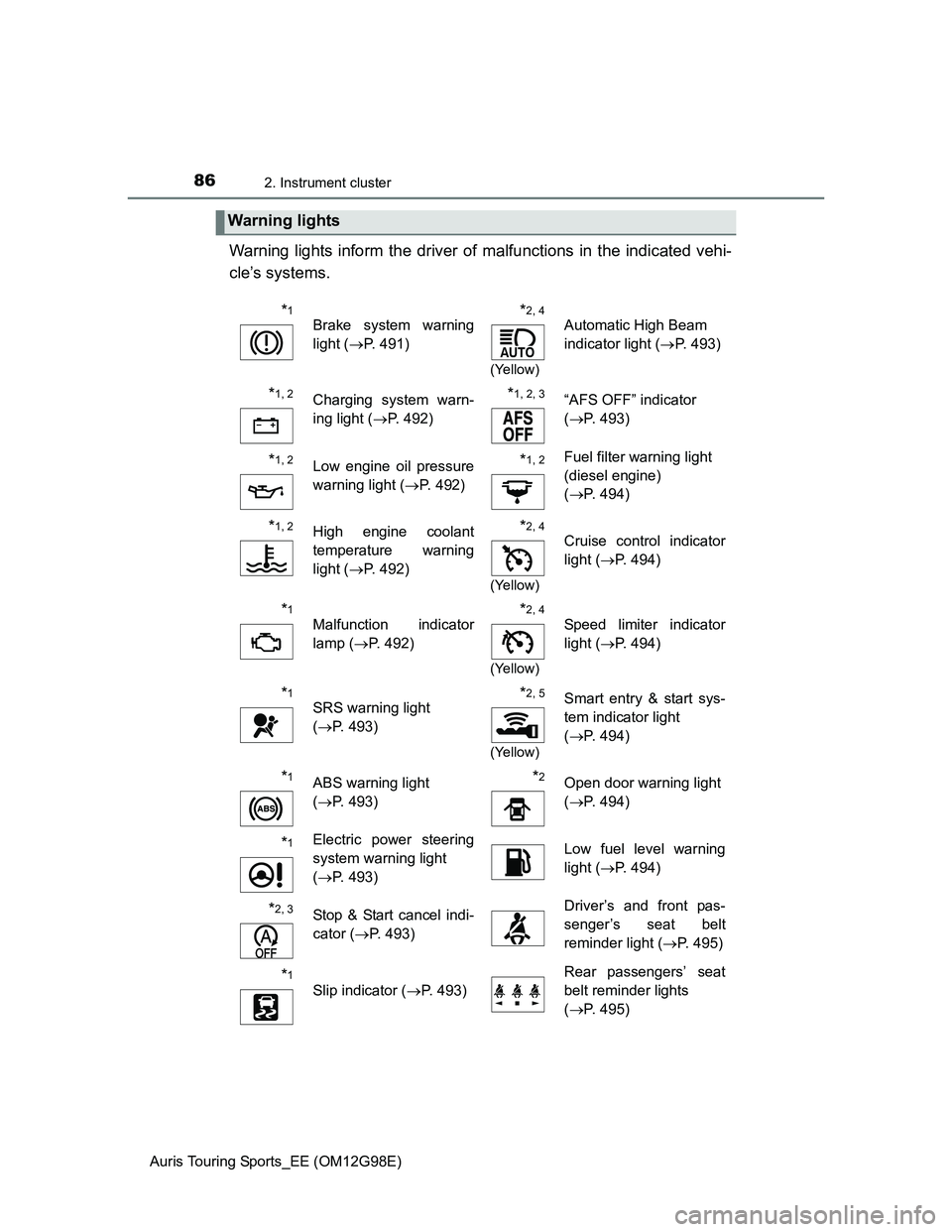

Warning lights inform the driver of malfunctions in the indicated vehi-
cle’s systems.
Warning lights
*1
Brake system warning
light (P. 491)*2, 4
(Yellow)
Automatic High Beam
indicator light (P. 493)
*1, 2Charging system warn-
ing light (P. 492)*1, 2, 3 “AFS OFF” indicator
(P. 493)
*1, 2Low engine oil pressure
warning light (P. 492)*1, 2Fuel filter warning light
(diesel engine)
(P. 494)
*1, 2High engine coolant
temperature warning
light (P. 492)*2, 4
(Yellow)
Cruise control indicator
light (P. 494)
*1
Malfunction indicator
lamp (P. 492)*2, 4
(Yellow)
Speed limiter indicator
light (P. 494)
*1
SRS warning light
(P. 493)*2, 5
(Yellow)
Smart entry & start sys-
tem indicator light
(P. 494)
*1ABS warning light
(P. 493)*2Open door warning light
(P. 494)
*1Electric power steering
system warning light
(P. 493)Low fuel level warning
light (P. 494)
*2, 3Stop & Start cancel indi-
cator (P. 493)Driver’s and front pas-
senger’s seat belt
reminder light (P. 495)
*1
Slip indicator (P. 493)
Rear passengers’ seat
belt reminder lights
(P. 495)

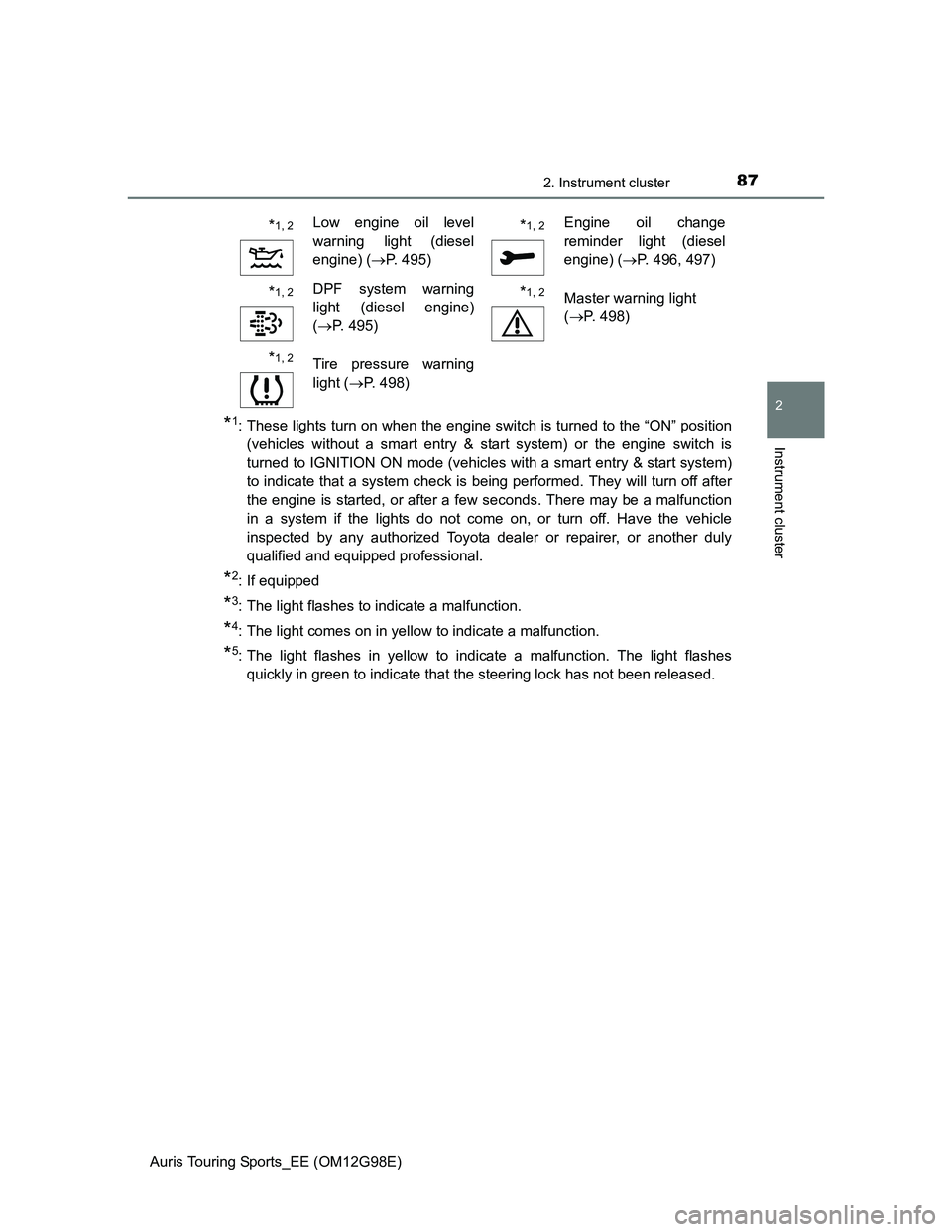

872. Instrument cluster
Auris Touring Sports_EE (OM12G98E)
2
Instrument cluster
*1: These lights turn on when the engine switch is turned to the “ON” position
(vehicles without a smart entry & start system) or the engine switch is
turned to IGNITION ON mode (vehicles with a smart entry & start system)
to indicate that a system check is being performed. They will turn off after
the engine is started, or after a few seconds. There may be a malfunction
in a system if the lights do not come on, or turn off. Have the vehicle
inspected by any authorized Toyota dealer or repairer, or another duly
qualified and equipped professional.
*2: If equipped
*3: The light flashes to indicate a malfunction.
*4: The light comes on in yellow to indicate a malfunction.
*5: The light flashes in yellow to indicate a malfunction. The light flashes
quickly in green to indicate that the steering lock has not been released.
*1, 2Low engine oil level
warning light (diesel
engine) (P. 495)*1, 2Engine oil change
reminder light (diesel
engine) (P. 496, 497)
*1, 2DPF system warning
light (diesel engine)
(P. 495)*1, 2Master warning light
(P. 498)
*1, 2 Tire pressure warning
light (P. 498)

882. Instrument cluster
Auris Touring Sports_EE (OM12G98E)

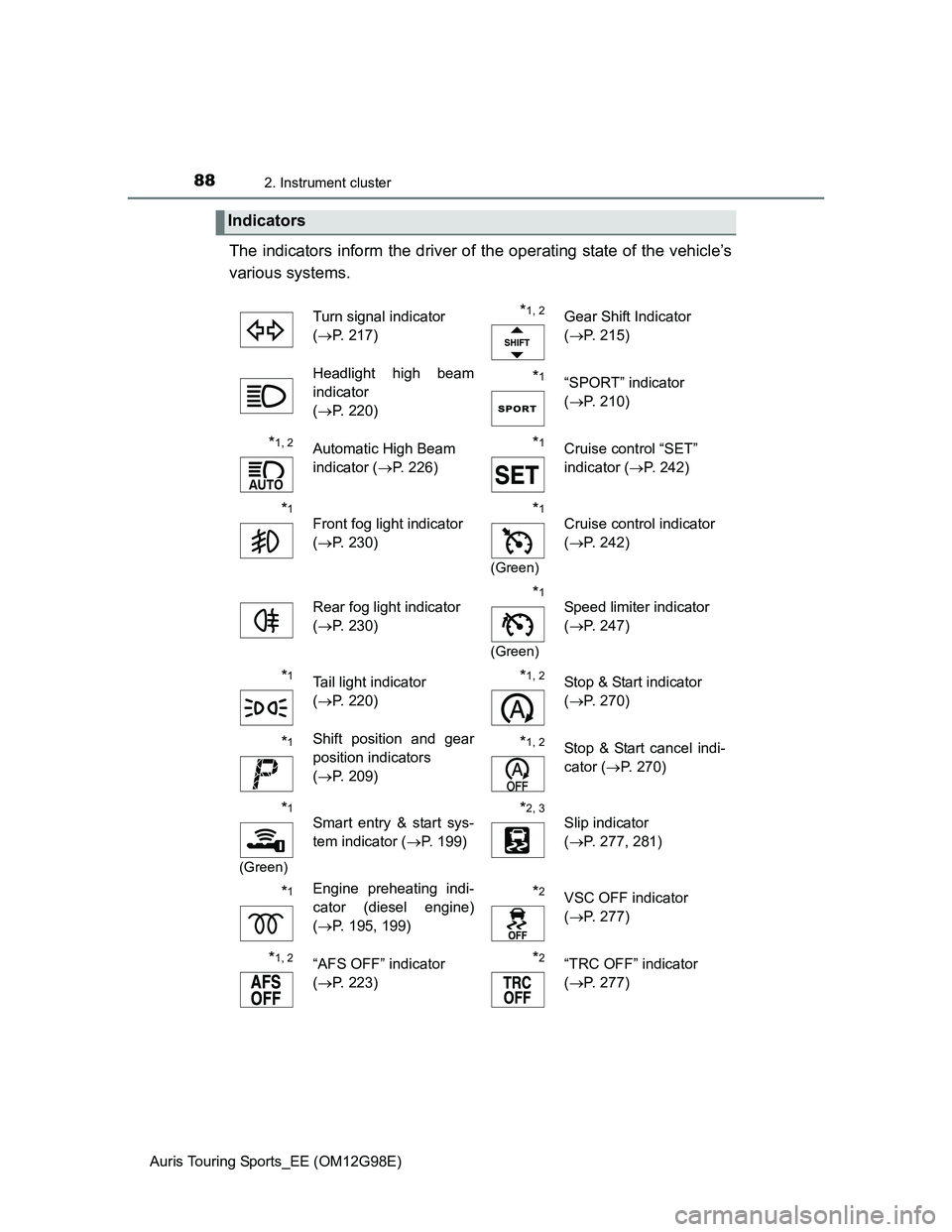

The indicators inform the driver of the operating state of the vehicle’s
various systems.
Indicators
Turn signal indicator
(P. 217)*1, 2Gear Shift Indicator
(P. 215)
Headlight high beam
indicator
(P. 220)
*1“SPORT” indicator
(P. 210)
*1, 2Automatic High Beam
indicator (P. 226)*1Cruise control “SET”
indicator (P. 242)
*1
Front fog light indicator
(P. 230)*1
(Green)
Cruise control indicator
(P. 242)
Rear fog light indicator
(P. 230)
*1
(Green)
Speed limiter indicator
(P. 247)
*1Tail light indicator
(P. 220)*1, 2Stop & Start indicator
(P. 270)
*1Shift position and gear
position indicators
(P. 209)*1, 2Stop & Start cancel indi-
cator (P. 270)
*1
(Green)
Smart entry & start sys-
tem indicator (P. 199) *2, 3 Slip indicator
(P. 277, 281)
*1Engine preheating indi-
cator (diesel engine)
(P. 195, 199) *2VSC OFF indicator
(P. 277)
*1, 2“AFS OFF” indicator
(P. 223)*2 “TRC OFF” indicator
(P. 277)

892. Instrument cluster
Auris Touring Sports_EE (OM12G98E)
2
Instrument cluster
*1: If equipped
*2: These lights turn on when the engine switch is turned to the “ON” position
(vehicles without a smart entry & start system) or the engine switch is
turned to IGNITION ON mode (vehicles with a smart entry & start system)
to indicate that a system check is being performed. They will turn off after
the engine is on, or after a few seconds. There may be a malfunction in a
system if the lights do not come on, or turn off. Have the vehicle inspected
by any authorized Toyota dealer or repairer, or another duly qualified and
equipped professional.
*3: The light flashes to indicate that the system is operating.

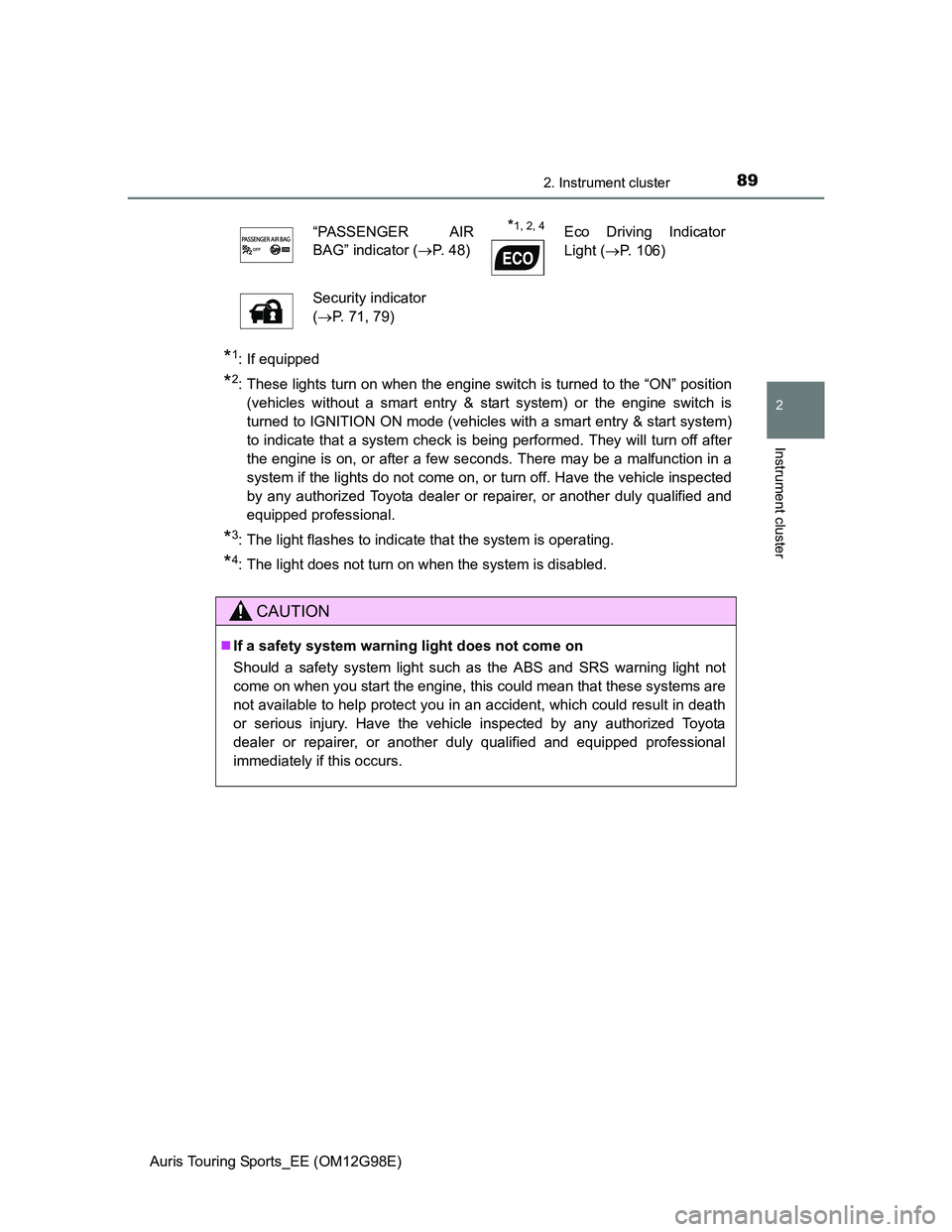

*4: The light does not turn on when the system is disabled.“PASSENGER AIR
BAG” indicator (P. 48)
*1, 2, 4Eco Driving Indicator
Light (P. 106)
Security indicator
(P. 71, 79)
CAUTION
If a safety system warning light does not come on
Should a safety system light such as the ABS and SRS warning light not
come on when you start the engine, this could mean that these systems are
not available to help protect you in an accident, which could result in death
or serious injury. Have the vehicle inspected by any authorized Toyota
dealer or repairer, or another duly qualified and equipped professional
immediately if this occurs.

902. Instrument cluster
Auris Touring Sports_EE (OM12G98E)

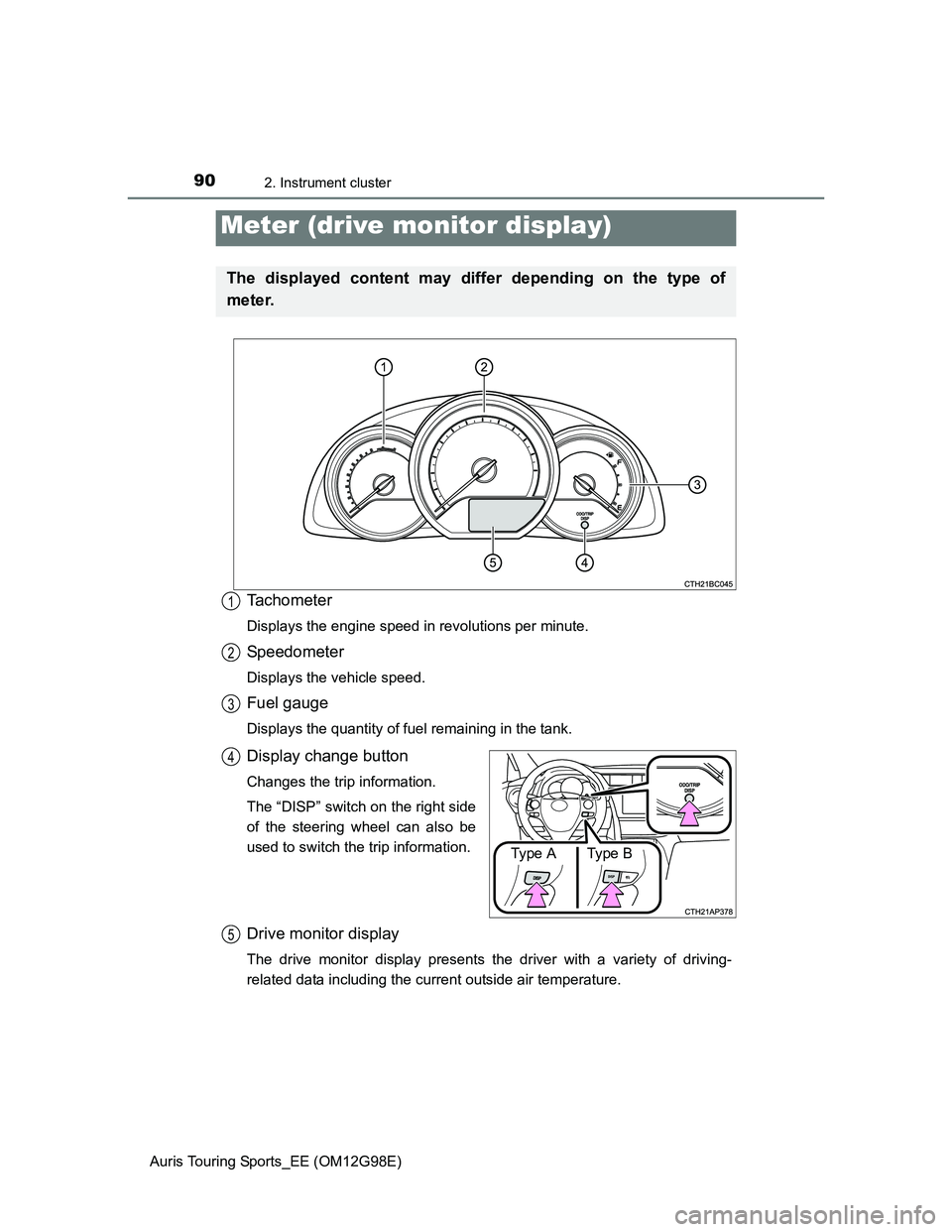

Tachometer
Displays the engine speed in revolutions per minute.
Speedometer
Displays the vehicle speed.
Fuel gauge
Displays the quantity of fuel remaining in the tank.
Display change button
Changes the trip information.
The “DISP” switch on the right side
of the steering wheel can also be
used to switch the trip information.
Drive monitor display
The drive monitor display presents the driver with a variety of driving-
related data including the current outside air temperature.
Meter (drive monitor display)
The displayed content may differ depending on the type of
meter.
1
2
3
Type AType B
4
5
