For safety and security
Auris Touring Sports_EE (OM12G98E)
1-2. Theft deterrent system
Vehicles without a smart entry &
start system:
The indicator light flashes after
the key has been removed from
the engine switch to indicate that
the system is operating.
The indicator light stops flashing
after the registered key has been
inserted into the engine switch to
indicate that the system has been
canceled.
Vehicles with a smart entry & start
system:
The indicator light flashes after
the engine switch has been turned
off to indicate that the system is
operating.
The indicator light stops flashing
after the engine switch has been
turned to ACCESSORY or IGNI-
TION ON mode to indicate that
the system has been canceled.

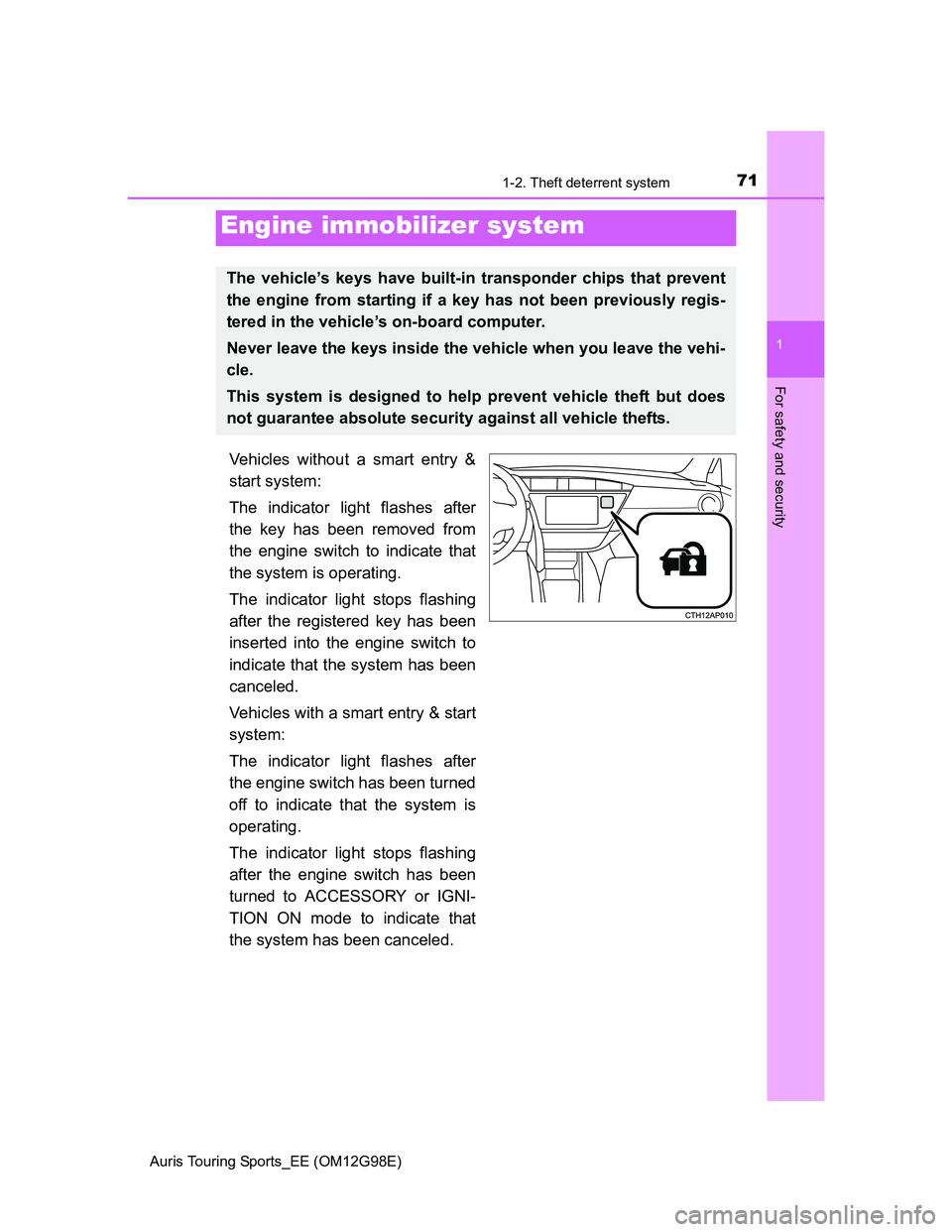

Engine immobilizer system
The vehicle’s keys have built-in transponder chips that prevent
the engine from starting if a key has not been previously regis-
tered in the vehicle’s on-board computer.
Never leave the keys inside the vehicle when you leave the vehi-
cle.
This system is designed to help prevent vehicle theft but does
not guarantee absolute security against all vehicle thefts.

721-2. Theft deterrent system
Auris Touring Sports_EE (OM12G98E)

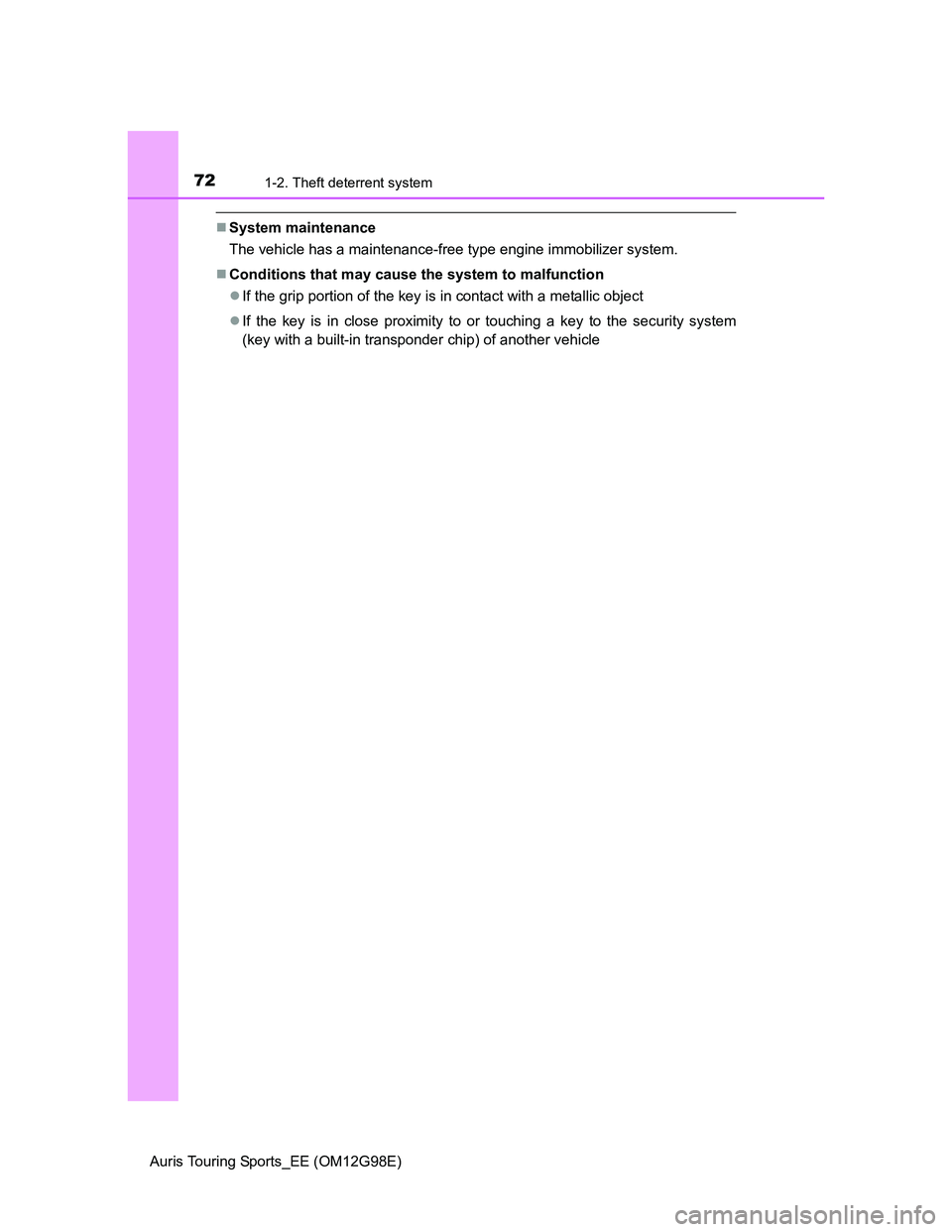

System maintenance
The vehicle has a maintenance-free type engine immobilizer system.
Conditions that may cause the system to malfunction
If the grip portion of the key is in contact with a metallic object
If the key is in close proximity to or touching a key to the security system
(key with a built-in transponder chip) of another vehicle

731-2. Theft deterrent system
1
For safety and security

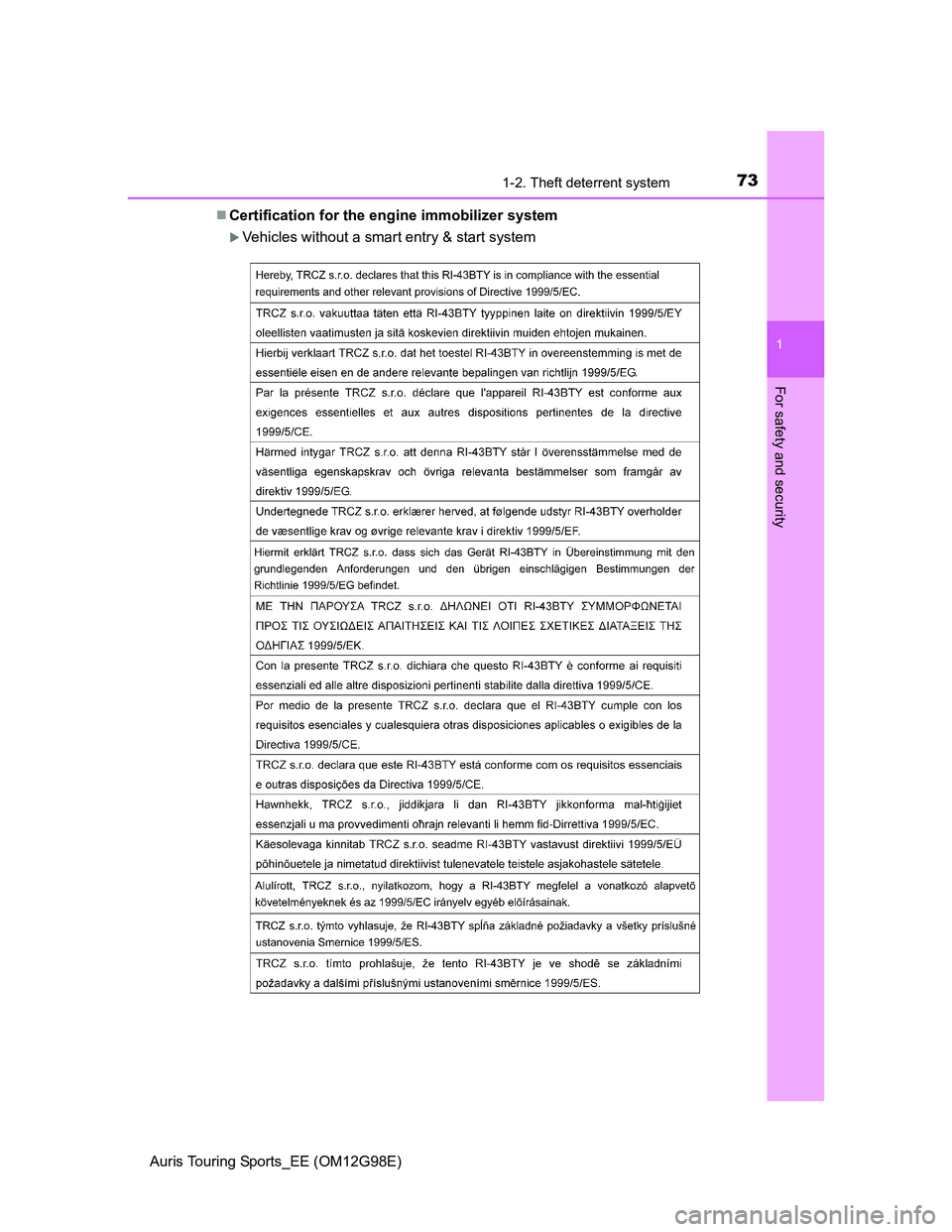

Auris Touring Sports_EE (OM12G98E)Certification for the engine immobilizer system
Vehicles without a smart entry & start system

741-2. Theft deterrent system
Auris Touring Sports_EE (OM12G98E)

751-2. Theft deterrent system
1
For safety and security
Auris Touring Sports_EE (OM12G98E)

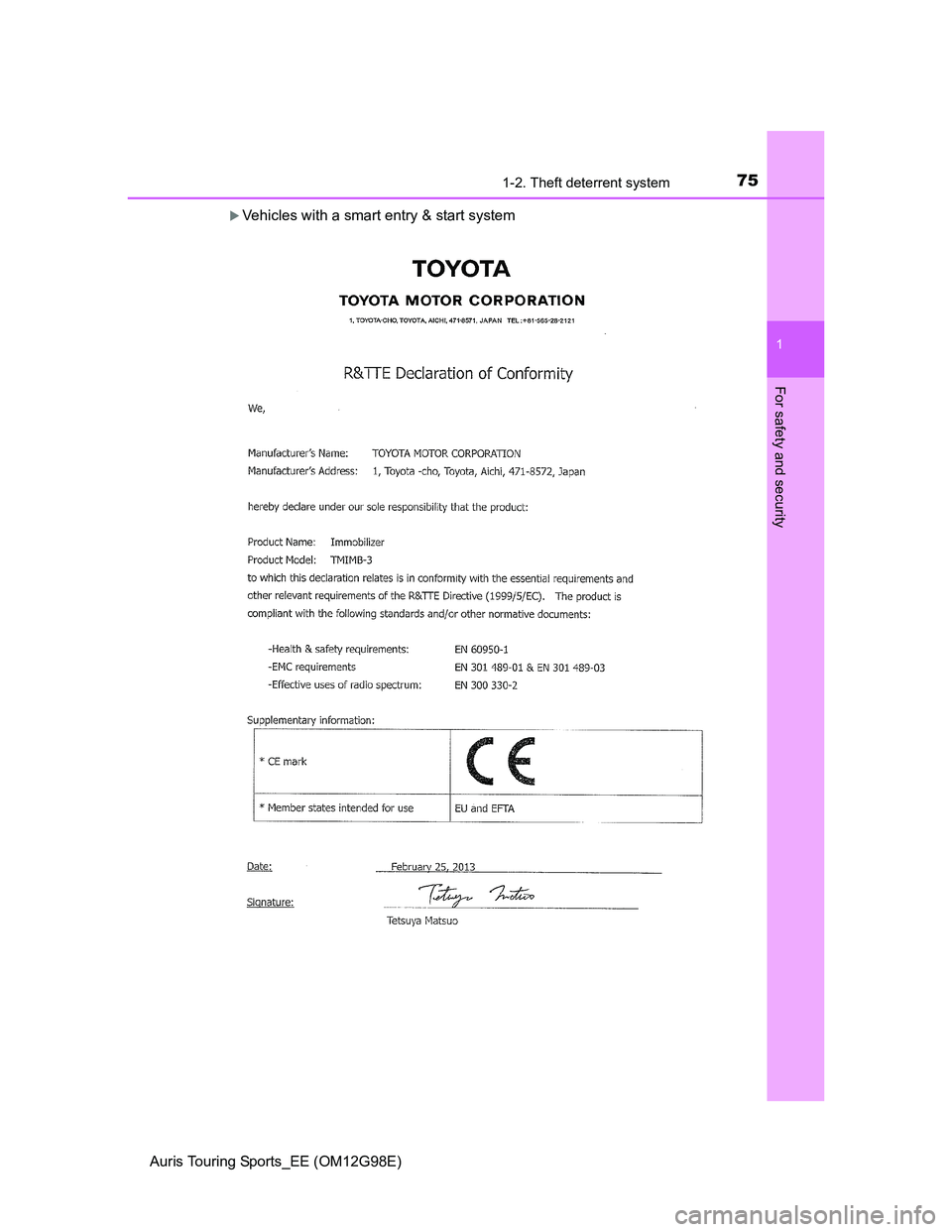

Vehicles with a smart entry & start system

761-2. Theft deterrent system
Auris Touring Sports_EE (OM12G98E)

771-2. Theft deterrent system
1
For safety and security
Auris Touring Sports_EE (OM12G98E)

781-2. Theft deterrent system
Auris Touring Sports_EE (OM12G98E)

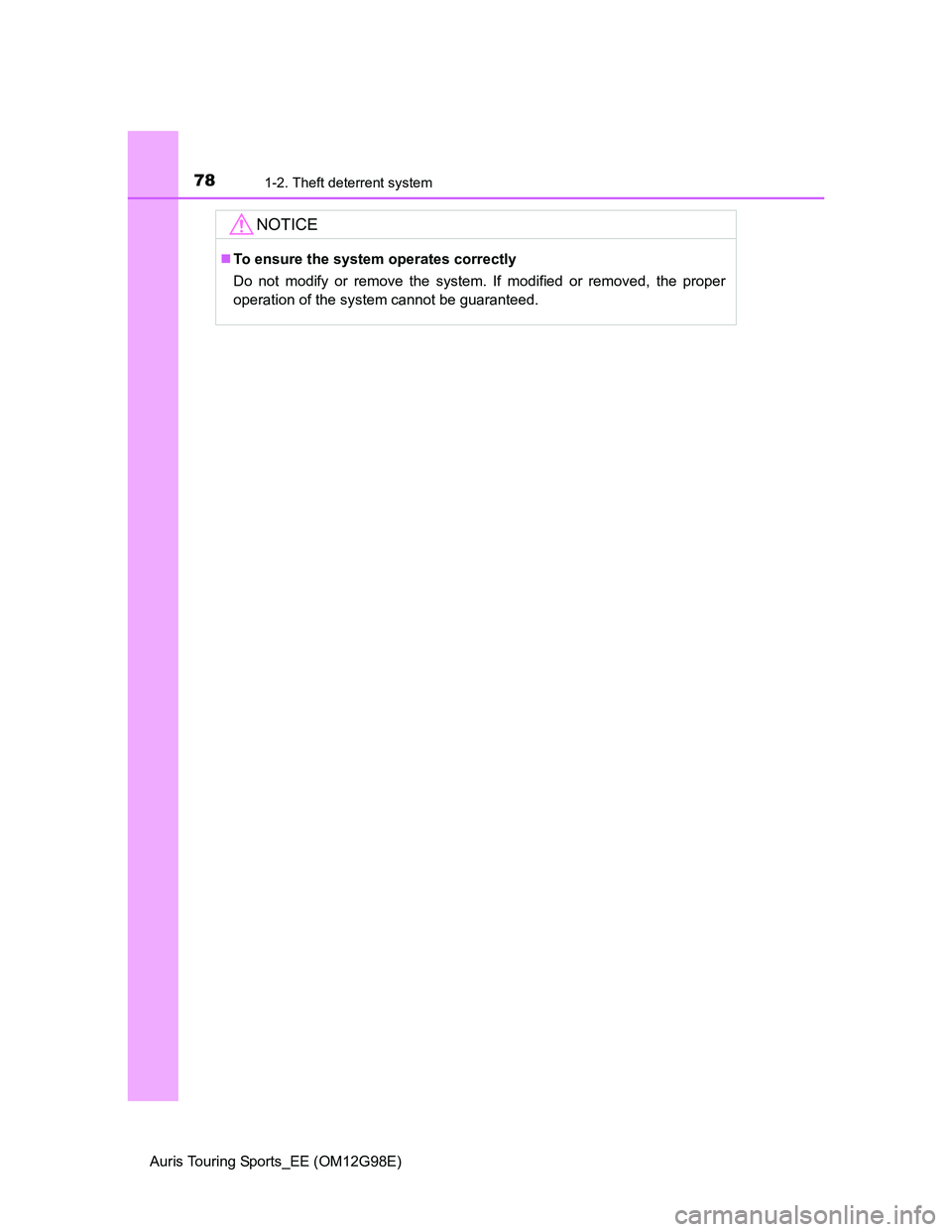

NOTICE
To ensure the system operates correctly
Do not modify or remove the system. If modified or removed, the proper
operation of the system cannot be guaranteed.

791-2. Theft deterrent system
1
For safety and security
Auris Touring Sports_EE (OM12G98E)

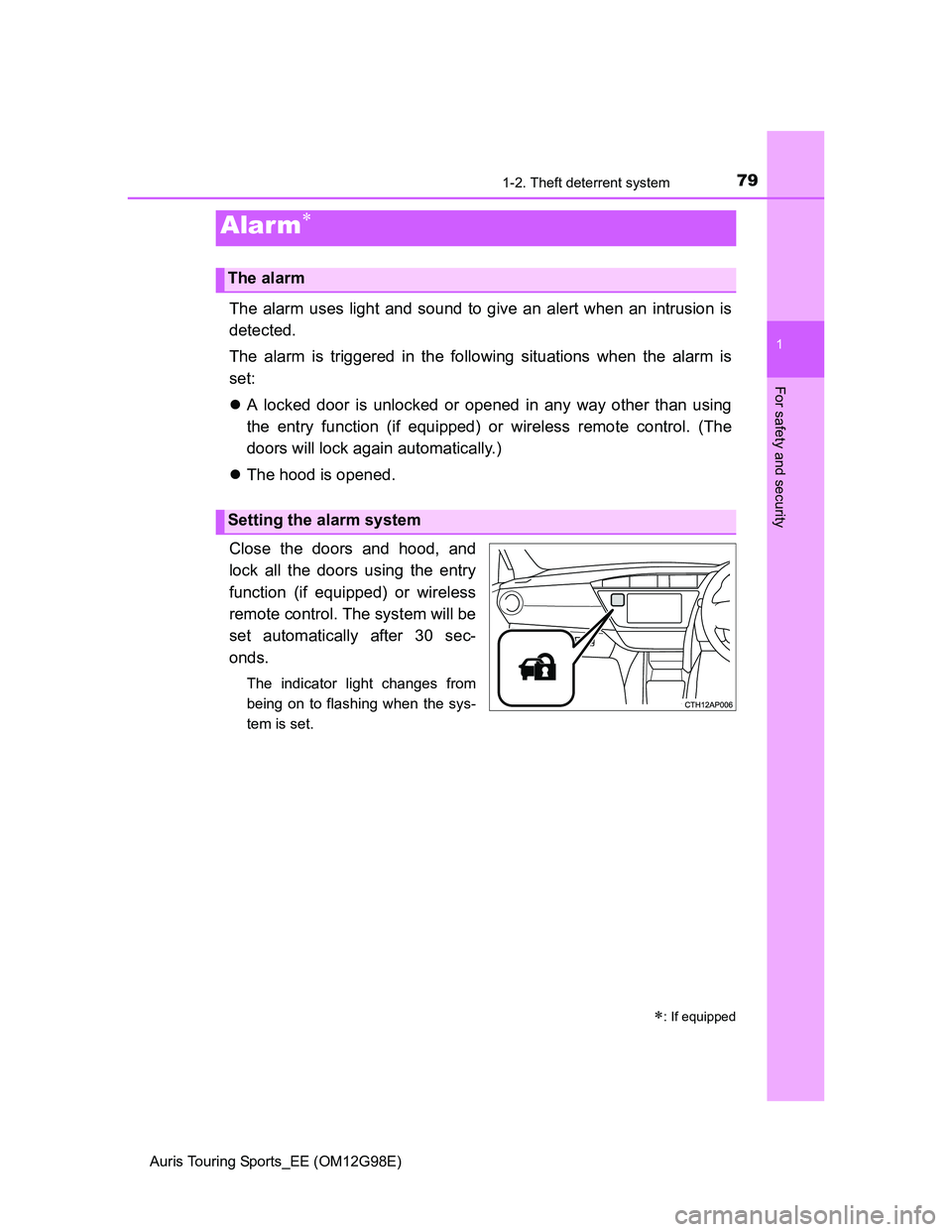

The alarm uses light and sound to give an alert when an intrusion is
detected.
The alarm is triggered in the following situations when the alarm is
set:
A locked door is unlocked or opened in any way other than using
the entry function (if equipped) or wireless remote control. (The
doors will lock again automatically.)
The hood is opened.
Close the doors and hood, and
lock all the doors using the entry
function (if equipped) or wireless
remote control. The system will be
set automatically after 30 sec-
onds.
The indicator light changes from
being on to flashing when the sys-
tem is set.
Alarm
: If equipped
The alarm
Setting the alarm system

801-2. Theft deterrent system
Auris Touring Sports_EE (OM12G98E)

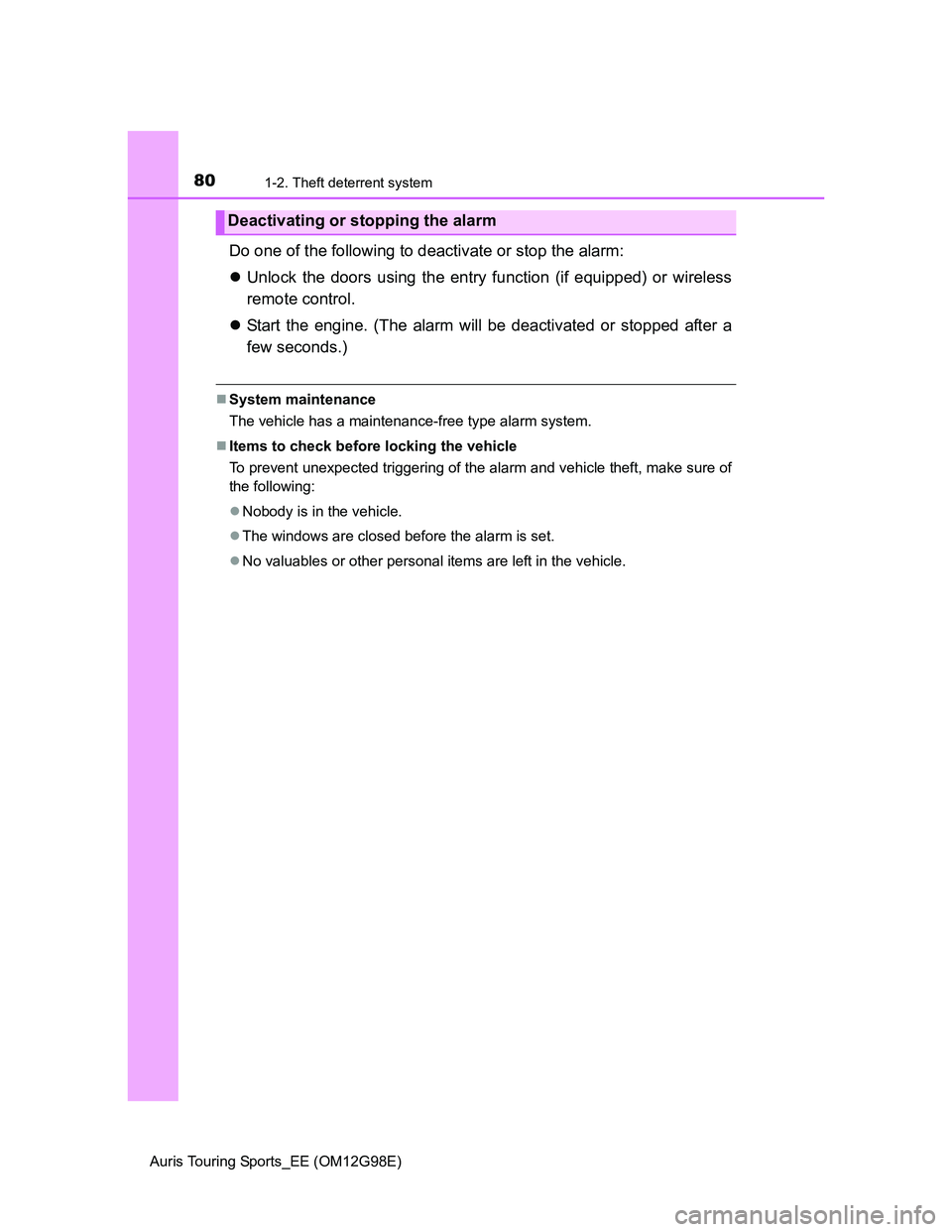

Do one of the following to deactivate or stop the alarm:
Unlock the doors using the entry function (if equipped) or wireless
remote control.
Start the engine. (The alarm will be deactivated or stopped after a
few seconds.)
System maintenance
The vehicle has a maintenance-free type alarm system.
Items to check before locking the vehicle
To prevent unexpected triggering of the alarm and vehicle theft, make sure of
the following:
Nobody is in the vehicle.
The windows are closed before the alarm is set.
No valuables or other personal items are left in the vehicle.
Deactivating or stopping the alarm
