TOYOTA AVALON 2000 Owners Manual
Manufacturer: TOYOTA, Model Year: 2000, Model line: AVALON, Model: TOYOTA AVALON 2000Pages: 352, PDF Size: 3.15 MB
Page 161 of 352
'00 AVALON U (L/O 9908)
160

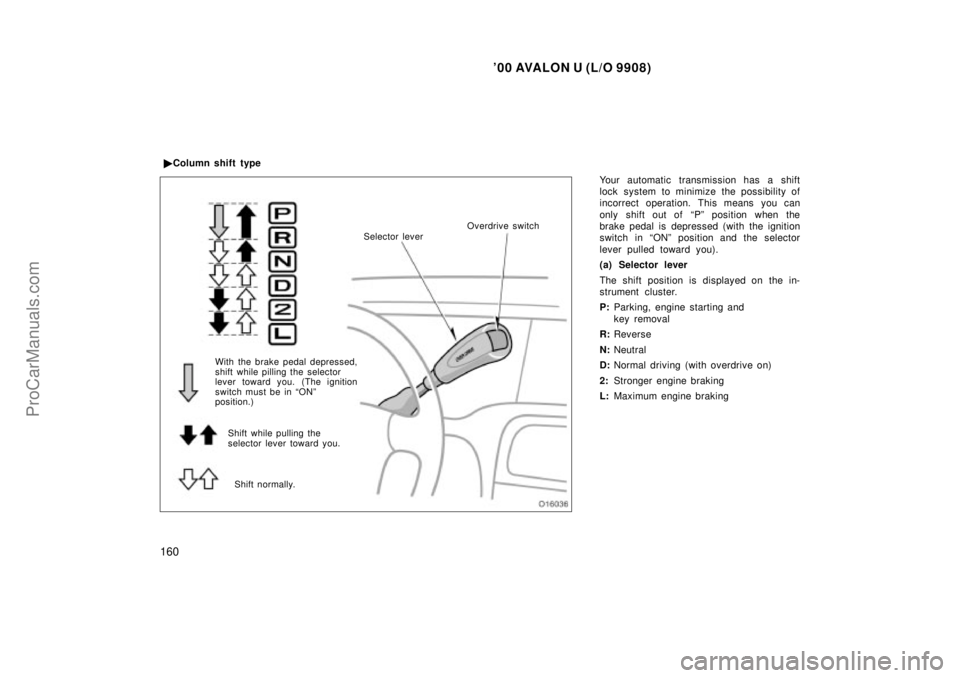

Your automatic transmission has a shift
lock system to minimize the possibility of
incorrect operation. This means you can
only shift out of Pº position when the
brake pedal is depressed (with the ignition
switch in ONº position and the selector
lever pulled toward you).
(a) Selector lever
The shift position is displayed on the in-
strument cluster.
P:Parking, engine starting and
key removal
R: Reverse
N: Neutral
D: Normal driving (with overdrive on)
2: Stronger engine braking
L: Maximum engine braking
Column shift type
Overdrive switch
Selector lever
With the brake pedal depressed,
shift while pilling the selector
lever toward you. (The ignition
switch must be in ONº
position.) Shift while pulling the
selector lever toward you.
Shift normally.
ProCarManuals.com
Page 162 of 352
'00 AVALON U (L/O9908)
161
(b) Overdrive switch
You can select either a third gear (with
overdrive off) or fourth gear (with over-
drive on) by pushing this switch.
To turn the overdrive off, push the switch.
The O/D OFFº indicator light should come
on. To turn the overdrive on again, push
the switch again. The O/D OFFº indicator
light should go off.
Always drive your vehicle with the over-
drive on for better fuel economy and
quieter driving.
If the engine is turned off when the over-
drive is off and restarted, the overdrive
will automatically be on.When the cruise control is being used,
even if you downshift the transmission by
pushing and releasing the overdrive
switch, engine braking will not applied be-
cause the cruise control is not cancelled.
For ways to decrease the vehicle speed,
see Cruise controlº in this section.
(c) Normal driving
1. Start the engine as instructed in How to start the engineº in Section 3. The
transmission must be in Pº or Nº.
2. With your foot holding down the brake pedal, shift the selector lever to Dº.
When the lever is in the Dº position, the
automatic transmission system will select
the most suitable gear for running condi-
tions such as normal cruising, hill climb-
ing, hard towing, etc.
Always turn the overdrive on for better
fuel economy and quieter driving. If the
engine coolant temperature is low, the
transmission will not shift into the over-
drive gear even with the overdrive on.
CAUTION
Never put your foot on the accelera-
tor pedal while shifting.
3. Release the parking brake and brake pedal. Depress the accelerator pedal
slowly for smooth starting.
(d) Using engine braking
To use engine braking, you can downshift
the transmission as follows:
Push the overdrive switch. The O/D
OFFº indicator light will come on and
the transmission will downshift to the
third gear.
Shift into the 2º position. The trans-
mission will downshift to the second
gear when the vehicle speed drops
down to or lower than 132 km/h (82
mph), and stronger engine braking will
be enabled.
Shift into the Lº position. The trans-
mission will downshift to the first gear
When the vehicle speed drops down to
or lower than 59 km/h (36 mph), and
maximum engine braking will be ap-
plied.
When the cruise control is being used,
even if you downshift the transmission by
pushing and releasing the overdrive
switch, engine braking will not applied be-
cause the cruise control is not cancelled.
For ways to decrease the vehicle speed,
see Cruise controlº in this section.
ProCarManuals.com
Page 163 of 352
'00 AVALON U (L/O 9908)
162
CAUTION
Be careful when downshifting on a
slippery surface. Abrupt shifting
could cause the vehicle to spin or
skid.
(e) Using 2º and Lº positions
The 2º and Lº positions are used for
strong engine braking as described pre-
viously.
With the selector lever in 2º or Lº, you
can start the vehicle in motion as with the
lever in Dº.
With the selector lever in 2º, the vehicle
will start in the first gear and automatical-
ly shift to the second gear.
With the selector lever in Lº, the trans-
mission is engaged in the first gear.
NOTICE
Be careful not to overrev the en-gine. Watch the tachometer to keepengine rpm from going into the redzone. The approximate maximum al-
lowable speed for each position isgiven below for your reference:
2º 139 km/h (86 mph) . . . . . . . . . . .
Lº 76 km/h (47 mph)
. . . . . . . . . . . .
Do not continue hill climbing or
hard towing for a long time in the2º or Lº position. This may causesevere automatic transmission dam-
age from overheating. To preventsuch damage, Dº position shouldbe used in hill climbing or hard
towing.
(f) Backing up
1. Bring the vehicle to a complete stop.
2. With the brake pedal held down with your foot, shift the selector lever to the
Rº position.
NOTICE
Never shift into reverse while the ve-
hicle is moving.
(g) Parking
1. Bring the vehicle to a complete stop.
2. With the brake pedal pressed down, fully depress the parking brake pedal
to apply the parking brake securely.
3. With the brake pedal pressed down, shift the selector lever to the Pº posi-
tion.
CAUTION
Never attempt to move the selector
lever into Pº position under any cir-
cumstances while the vehicle is mov-
ing. Serious mechanical damage and
loss of vehicle control may result.
(h) Good driving practice
If the transmission repeatedly shifts up
and down between third gear and over-
drive when climbing a gentle slope, the
overdrive should be turned off. Be sure
to turn the switch on immediately after-
ward.
When towing a trailer, in order to main-
tain engine braking efficiency, do not
use overdrive.
ProCarManuals.com
Page 164 of 352
'00 AVALON U (L/O9908)
163
CAUTION
Always keep your foot on the brake
pedal while stopped with the engine
running. This prevents the vehicle
from creeping.
NOTICE
Do not hold the vehicle on an up-grade with the accelerator pedal. Itcan cause the transmission to over-heat. Always use the brake pedal or
parking brake.
(i) Rocking your vehicle if stuck
CAUTION
If your vehicle becomes stuck in
snow, mud, sand, etc., then you may
attempt to rock the vehicle free by
moving it forward and backward. Do
not attempt this procedure if people
or objects are anywhere near the ve-
hicle. During the rocking operation
the vehicle may suddenly move for-
ward or backward as it becomes un-
stuck, causing injury or damage to
nearby people or objects.
NOTICE
If you rock your vehicle, observe thefollowing precautions to prevent dam-age to the transmission and otherparts.
Do not depress the accelerator ped-al while shifting the selector leveror before the transmission is com-
pletely shifted to forward or reversegear.
Do not race the engine and avoid
spinning the wheels.
If your vehicle remains stuck afterrocking the vehicle several times,
consider other ways such as tow-ing.
(j) If you cannot shift the selector le-
ver out of Pº position
If you cannot shift the selector lever from
the Pº position even though the brake
pedal is depressed, use the shift lock
override button. For instructions, see If
you cannot shift automatic transmission
selector leverº in Section 4.
ProCarManuals.com
Page 165 of 352
'00 AVALON U (L/O 9908)
164
Traction control system
The traction control system automatical-
ly helps control the spinning of the
front wheels which may occur when ac-
celerating on slippery road surfaces,
thus assisting driver to control the driv-
ing power of the front wheels.
Leave the system on during ordinary
driving so that it can operate when
needed. When traction control is ap-
plied, the slip indicator light blinks.
While the VSCº warning light and VSC
OFFº indicator light come on, the traction
control system cannot be operated.You may hear a sound in the engine
compartment for a few seconds when the
engine is started or just after the vehicle
is started. This means that the traction
control system is in the self- check mode,
and does not indicate malfunction.
When the traction control system is oper-
ating, you may feel vibration or noise of
your vehicle, caused by operation of the
brakes. This indicates the system is func-
tioning properly.
When getting the vehicle out of mud or
new snow, etc. the traction control system
will help operate to prevent the wheels
from spinning.You can turn off the traction control
system by pushing the VSC OFFº
switch. The VSC OFFº indicator light
will come on. Pushing the VSC OFFº
switch a second time turns on the trac-
tion control system again and the VSC
OFFº indicator light will go off. At this
time, the vehicle skid control also turns
off and on simultaneously.
ProCarManuals.com
Page 166 of 352
'00 AVALON U (L/O9908)
165

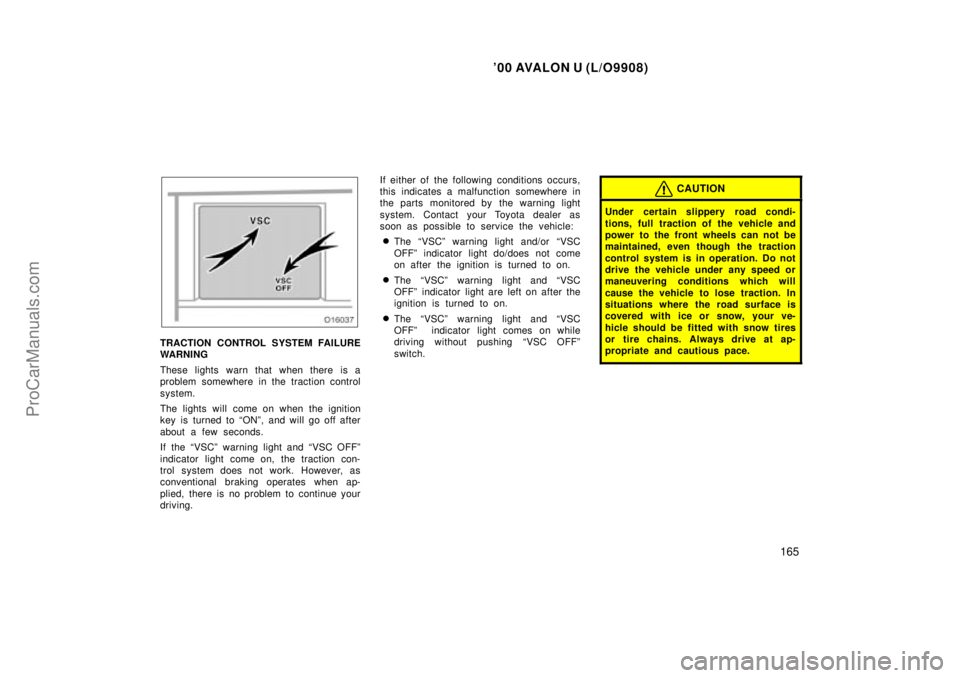

TRACTION CONTROL SYSTEM FAILURE
WARNING
These lights warn that when there is a
problem somewhere in the traction control
system.
The lights will come on when the ignition
key is turned to ONº, and will go off after
about a few seconds.
If the VSCº warning light and VSC OFFº
indicator light come on, the traction con-
trol system does not work. However, as
conventional braking operates when ap-
plied, there is no problem to continue your
driving.If either of the following conditions occurs,
this indicates a malfunction somewhere in
the parts monitored by the warning light
system. Contact your Toyota dealer as
soon as possible to service the vehicle:
The VSCº warning light and/or VSC
OFFº indicator light do/does not come
on after the ignition is turned to on.
The VSCº warning light and VSC
OFFº indicator light are left on after the
ignition is turned to on.
The VSCº warning light and VSC
OFFº indicator light comes on while
driving without pushing VSC OFFº
switch.
CAUTION
Under certain slippery road condi-
tions, full traction of the vehicle and
power to the front wheels can not be
maintained, even though the traction
control system is in operation. Do not
drive the vehicle under any speed or
maneuvering conditions which will
cause the vehicle to lose traction. In
situations where the road surface is
covered with ice or snow, your ve-
hicle should be fitted with snow tires
or tire chains. Always drive at ap-
propriate and cautious pace.
ProCarManuals.com
Page 167 of 352
'00 AVALON U (L/O 9908)
166
Vehicle skid control system
The vehicle skid control system helps
provide comprehensive control of the
systems such as an anti- lock brake
system, brake assist system, traction
control, engine control, etc. This sys-
tem automatically controls the output of
the brakes or engine to help prevent
the vehicle from skidding when corner-
ing on a slippery road surface or
abrupt steering wheel operation occurs.If the vehicles is going to skid during
driving, the slip indicator light flashes and
an alarm sounds intermittently.
The vehicle skid control system activates
when the vehicle speed is about more
than 15 km/h (9 mph).
While the VSCº warning light and VSC
OFFº indicator light come on, the vehicle
skid control system cannot be operated.
You may hear a sound in the engine
compartment for a few seconds when the
engine is started or just after the vehicle
is started. This means that the vehicle
skid control is in the self- check mode and
does not indicate a malfunction.You can turn off the vehicle skid con-
trol system by pushing the VSC OFFº
switch. The VSC OFFº indicator light
will come on. Pushing the VSC OFFº
switch a second time turns the system
again and the VSC OFFº indicator light
will go off. At this time, the traction
control also turns off and on simulta-
neously.
When you turn the ignition switch on, this
system always turns on.
ProCarManuals.com
Page 168 of 352
'00 AVALON U (L/O9908)
167

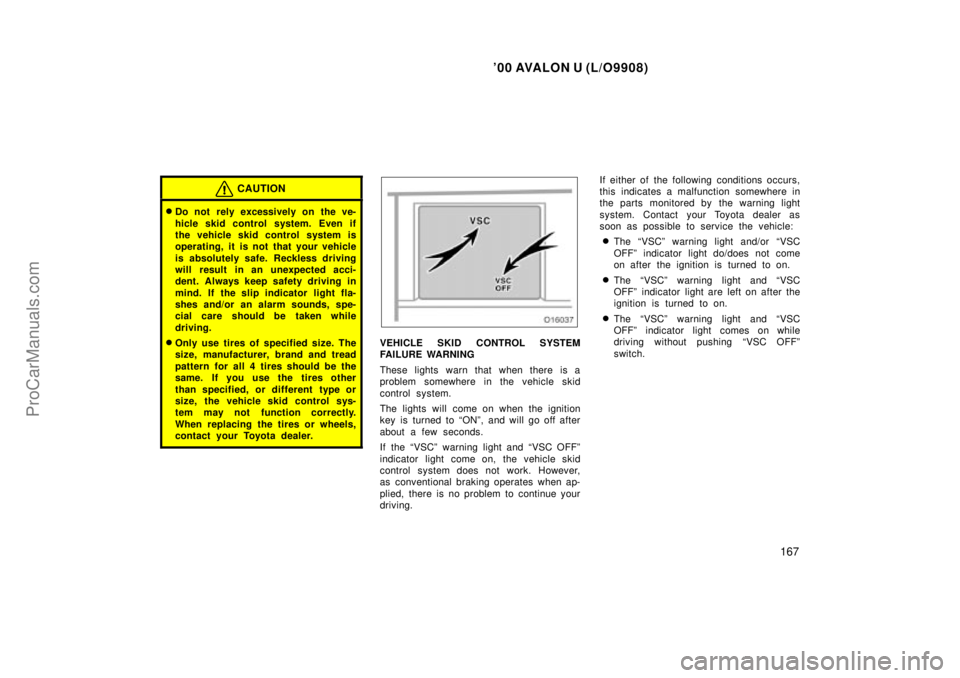

CAUTION
Do not rely excessively on the ve-
hicle skid control system. Even if
the vehicle skid control system is
operating, it is not that your vehicle
is absolutely safe. Reckless driving
will result in an unexpected acci-
dent. Always keep safety driving in
mind. If the slip indicator light fla-
shes and/or an alarm sounds, spe-
cial care should be taken while
driving.
Only use tires of specified size. The
size, manufacturer, brand and tread
pattern for all 4 tires should be the
same. If you use the tires other
than specified, or different type or
size, the vehicle skid control sys-
tem may not function correctly.
When replacing the tires or wheels,
contact your Toyota dealer.VEHICLE SKID CONTROL SYSTEM
FAILURE WARNING
These lights warn that when there is a
problem somewhere in the vehicle skid
control system.
The lights will come on when the ignition
key is turned to ONº, and will go off after
about a few seconds.
If the VSCº warning light and VSC OFFº
indicator light come on, the vehicle skid
control system does not work. However,
as conventional braking operates when ap-
plied, there is no problem to continue your
driving.If either of the following conditions occurs,
this indicates a malfunction somewhere in
the parts monitored by the warning light
system. Contact your Toyota dealer as
soon as possible to service the vehicle:
The VSCº warning light and/or VSC
OFFº indicator light do/does not come
on after the ignition is turned to on.
The VSCº warning light and VSC
OFFº indicator light are left on after the
ignition is turned to on.
The VSCº warning light and VSC
OFFº indicator light comes on while
driving without pushing VSC OFFº
switch.
ProCarManuals.com
Page 169 of 352
'00 AVALON U (L/O 9908)
168

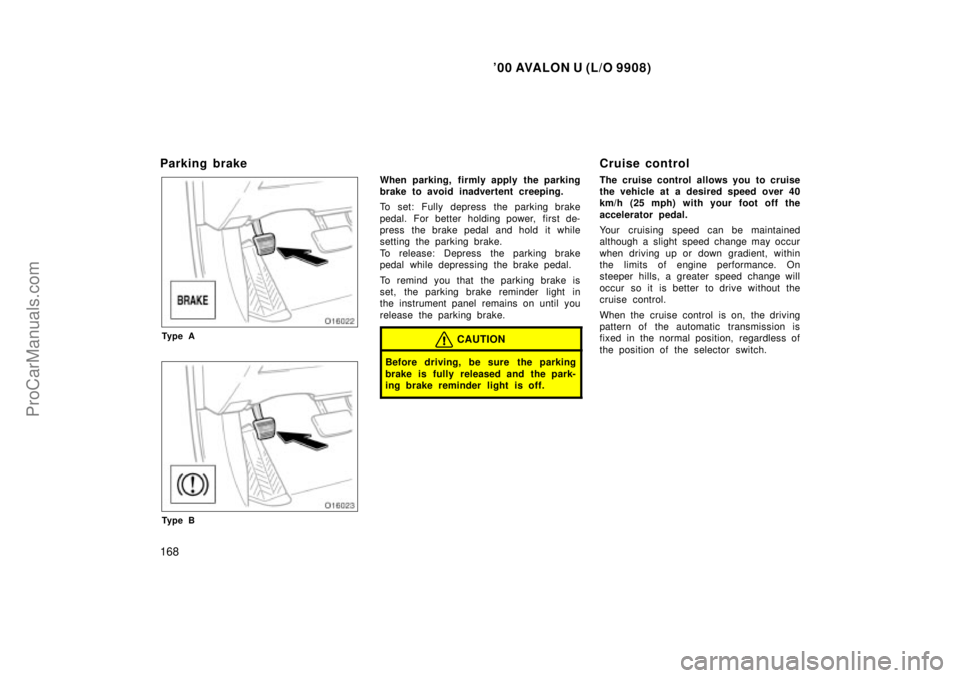

Parking brake
Ty p e A
Ty p e B
When parking, firmly apply the parking
brake to avoid inadvertent creeping.
To set: Fully depress the parking brake
pedal. For better holding power, first de-
press the brake pedal and hold it while
setting the parking brake.
To release: Depress the parking brake
pedal while depressing the brake pedal.
To remind you that the parking brake is
set, the parking brake reminder light in
the instrument panel remains on until you
release the parking brake.
CAUTION
Before driving, be sure the parking
brake is fully released and the park-
ing brake reminder light is off.
Cruise control
The cruise control allows you to cruise
the vehicle at a desired speed over 40
km/h (25 mph) with your foot off the
accelerator pedal.
Your cruising speed can be maintained
although a slight speed change may occur
when driving up or down gradient, within
the limits of engine performance. On
steeper hills, a greater speed change will
occur so it is better to drive without the
cruise control.
When the cruise control is on, the driving
pattern of the automatic transmission is
fixed in the normal position, regardless of
the position of the selector switch.
ProCarManuals.com
Page 170 of 352
'00 AVALON U (L/O9908)
169

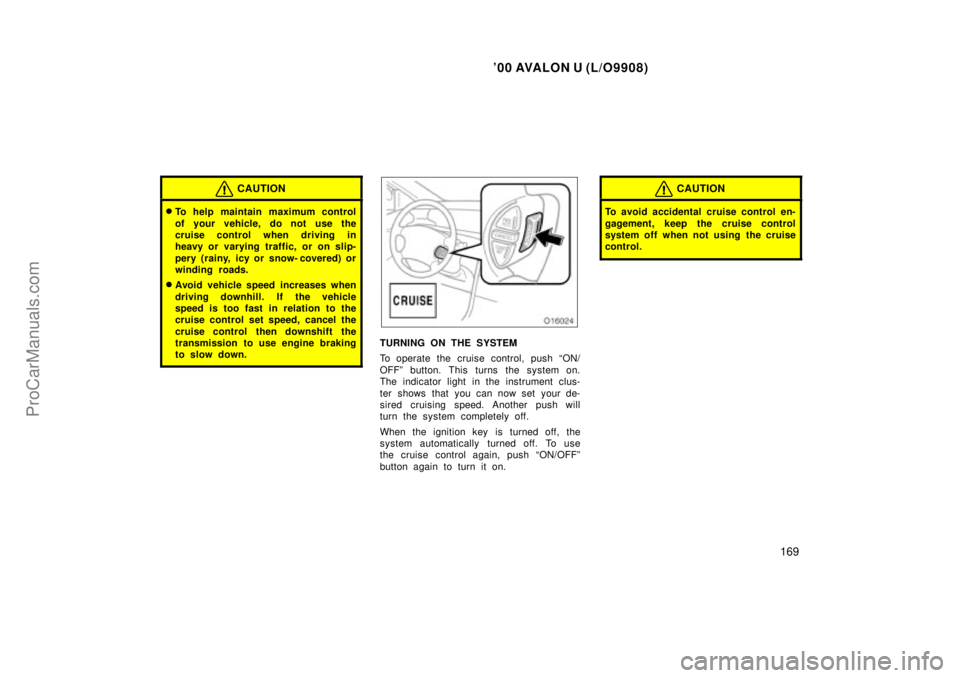

CAUTION
To help maintain maximum control
of your vehicle, do not use the
cruise control when driving in
heavy or varying traffic, or on slip-
pery (rainy, icy or snow- covered) or
winding roads.
Avoid vehicle speed increases when
driving downhill. If the vehicle
speed is too fast in relation to the
cruise control set speed, cancel the
cruise control then downshift the
transmission to use engine braking
to slow down.
TURNING ON THE SYSTEM
To operate the cruise control, push ON/
OFFº button. This turns the system on.
The indicator light in the instrument clus-
ter shows that you can now set your de-
sired cruising speed. Another push will
turn the system completely off.
When the ignition key is turned off, the
system automatically turned off. To use
the cruise control again, push ON/OFFº
button again to turn it on.
CAUTION
To avoid accidental cruise control en-
gagement, keep the cruise control
system off when not using the cruise
control.
ProCarManuals.com
