TOYOTA AVALON 2008 XX30 / 3.G Navigation Manual

SECTION 3
MORE ADVANCED FUNCTIONS
105
MORE ADVANCED FUNCTIONS
Convenient features
Setup 106. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Map color 107. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Automatic rerouting 107. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Time to destination 108. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Adjust time zone 110. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Distance 111. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Notify seasonal restrict 111. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Voice guide in all modes 112. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Current street name 113. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Maintenance information 114. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Dealer setting 117. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Calendar with memo 121. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

MORE ADVANCED FUNCTIONS
106
You can set the values shown on the
“Setup” screen.
1. Select the “MENU” button on the
navigation controller.
2. Select the “Setup” switch to dis-
play the “Setup” menu screen. Select
items you want to set. Selected items
will be highlighted in green.
3. Select the “OK” switch on the
screen and then the previous screen
will be displayed.“Default”: Select the
“Default” switch
on the right side of the screen. All of the
settings can be defaulted.
“Map color” (day or night): You can se-
lect your desired map color.
“Auto reroute”: You can set the system
will or will not automatically search for a
new route to the destination.
“Estimated travel time”: You can set to
display the time required to reach the des-
tination on the route guidance screen.
“Adjust time zone”: You can select your
desired time zone.
“Distance”: You can change
“km” or“miles” to display your desired units.
“Notify seasonal restrict”: You can se-
lect to notify or not to notify a seasonal re-
strict.
“Voice guide in all modes”: You can set
the voice guide in all modes or not.
“Current street name”: You can select to
show or not to show a current street name
on the map screen.
“Operation guide on map”: Display or
non−display of the operation guide on the
display can be selected.
Setup

MORE ADVANCED FUNCTIONS
107
1. Push the “MENU” button on the
navigation controller.
2. Select the “Setup” switch.
3. Select your desired day and/or night
map color and then select the “OK”switch to return the map screen.
Select the
“Normal” switch to default
the map color.
Select the
“Auto” switch to select the
map color automatically.
When you select the
“Auto” switch, the
map color is changed in every three
month.When the “Auto reroute” feature is
turned on, the system will automatical-
ly search for a new route to the destina-
tion if you leave the guidance route.
This feature does not operate while you
are driving on roads where the guid-
ance is not available.
To turn the “Auto reroute” mode on:
1. Push the “MENU” button on the
navigation controller.
2. Select the “Setup” switch.
Map colorAutomatic rerouting

MORE ADVANCED FUNCTIONS
108
3. Select the “On” switch of “Auto re-
route”.
Selected switch is highlighted in green.
INFORMATION
If your vehicle leaves the guidance
route, the system searches for a new
route to the destination. The new
route may or may not take you back to
the previous route depending on how
far you are off the original guidance
route.
When the “Estimated travel time” fea-
ture is turned on, the time estimated to
reach the destination is displayed on
the route guidance screen.
To turn the “Estimated travel time”
mode on:
1. Push the “MENU” button on the
navigation controller.
Time to destination

MORE ADVANCED FUNCTIONS
109
2. Select the “Setup” switch.
3. Select the “Change speed”switch on the “Setup” screen.
4. You can set the speed as your desire
by operating the select and scroll lever
of the navigation controller. Select the
item by moving the lever vertically, and
move the lever horizontally to set the
speed.
If you select the
“Default” switch, the
default speed is set at each item.
5. After you finish setting the desired
speeds, select the
“OK” switch on the
right side of the screen.
6. The “Setup” screen will be dis-
played. Select the
“On” switch of “Es-
timated travel time”.
Selected switch is highlighted in green.
INFORMATION
The displayed time to the destina-
tion is the approximate driving
time calculated based on the
speeds you selected and your ac-
tual position along the guidance
route.
The time shown may vary greatly
depending on your progress along
the route (which may be affected
by road conditions such as traffic
jams, construction work, etc.).
Up to 99 hours 59 minutes can be
displayed.

MORE ADVANCED FUNCTIONS
11 0
1. Push the “MENU” button on the
navigation controller.
2. Select the “Setup” switch.
3. Select the “Adjust” switch. The
“Adjust time zone” screen appears on
the display.
4. Select your desired time zone.
Selected switch is highlighted in green.
“Daylight saving time”: Select the
“On” switch on the screen and then se-
lect
or to set the day light saving
time.
5. Select the
“OK” switch on the
screen and the “Setup” screen will be
displayed.
Adjust time zone

MORE ADVANCED FUNCTIONS
111
1. Push the “MENU” button on the
navigation controller.
2. Select the “Setup” switch on the
screen.
3. Choose the “km” or “miles”switch of “Distance” to select your de-
sired units.
Selected switch is highlighted in green.
4. Select the
“OK” switch.
1. Push the “MENU” button on the
navigation controller.
2. Select the “Setup” switch on the
screen.
DistanceNotify seasonal restrict

MORE ADVANCED FUNCTIONS
11 2
3. Select the “On” switch of “Notify
seasonal restrict.” and select the
“OK” switch.
The restricted road icon and the message
may appear on the screen.
1. Push the “MENU” button on the
navigation controller.
2. Select the “Setup” switch on the
screen.
3. Select the “On” switch of “Voice
guide in all modes” and select the
“OK” switch.
Voice guide in all modes

MORE ADVANCED FUNCTIONS
11 3

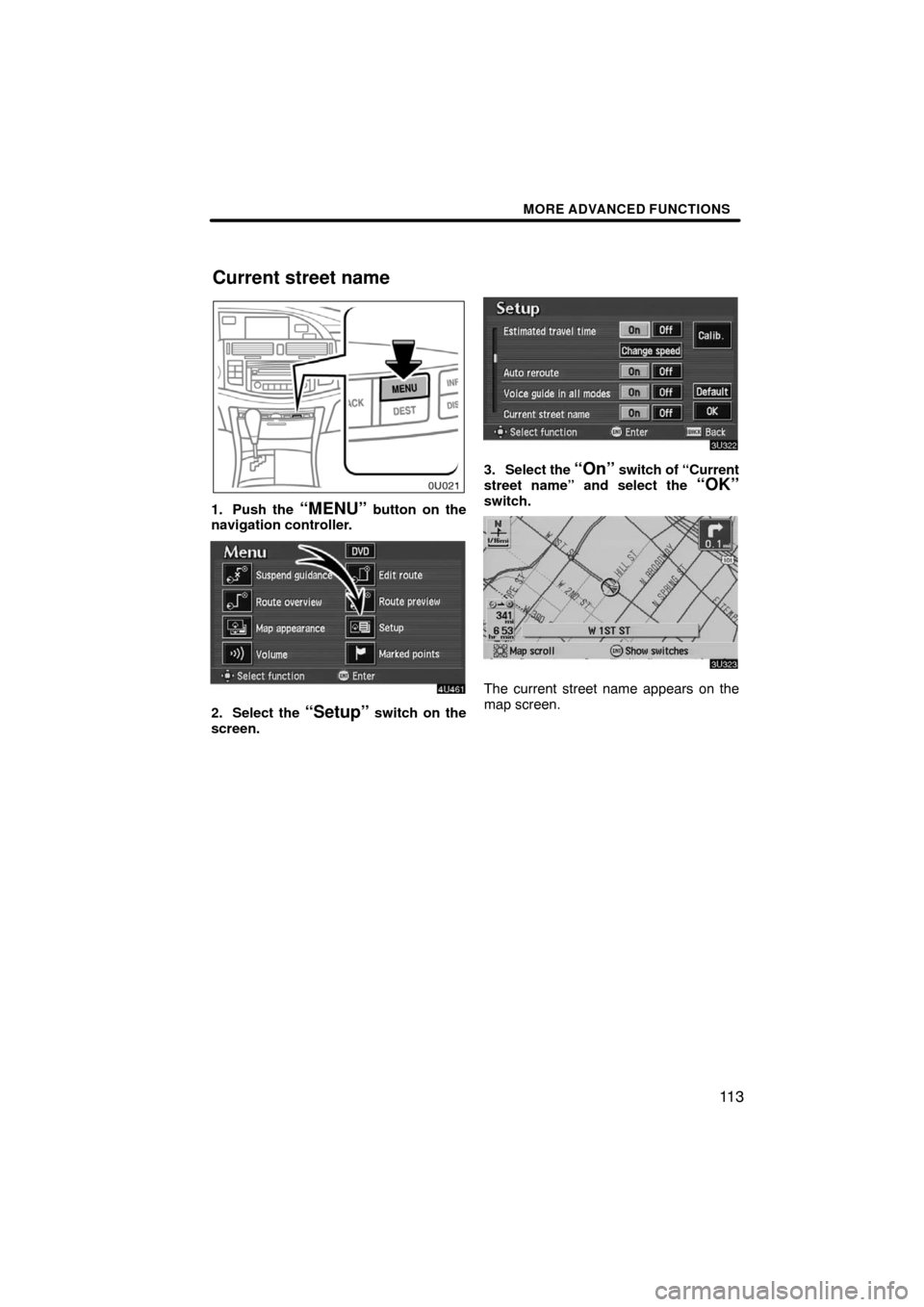

1. Push the “MENU” button on the
navigation controller.
2. Select the “Setup” switch on the
screen.
3. Select the “On” switch of “Current
street name” and select the “OK”switch.
The current street name appears on the
map screen.
Current street name

MORE ADVANCED FUNCTIONS
11 4

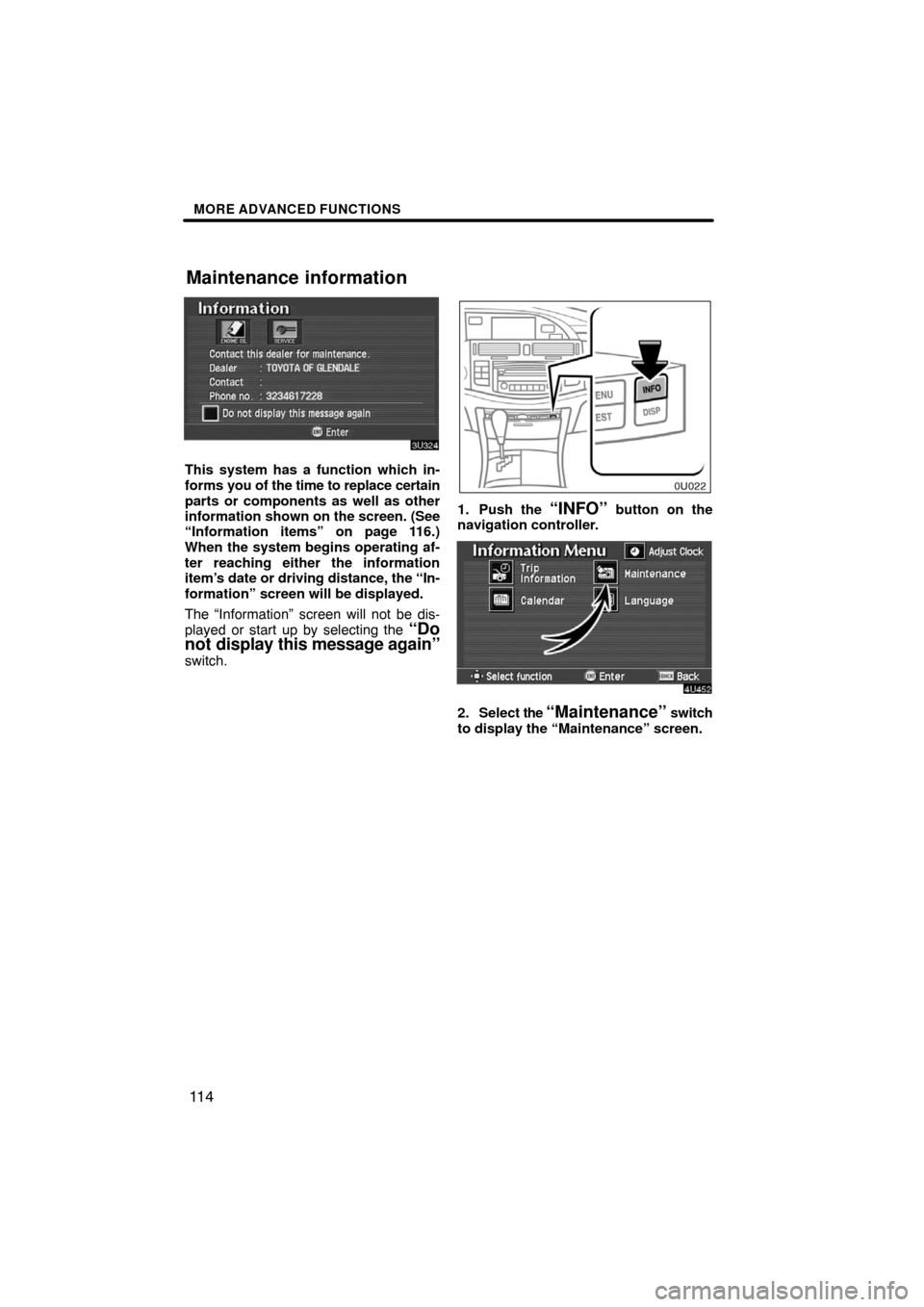

This system has a function which in-
forms you of the time to replace certain
parts or components as well as other
information shown on the screen. (See
“Information items” on page 116.)
When the system begins operating af-
ter reaching either the information
item’s date or driving distance, the “In-
formation” screen will be displayed.
The “Information” screen will not be dis-
played or start up by selecting the
“Do
not display this message again”
switch.
1. Push the “INFO” button on the
navigation controller.
2. Select the “Maintenance” switch
to display the “Maintenance” screen.
Maintenance information
