TOYOTA AVALON 2008 XX30 / 3.G Owners Manual

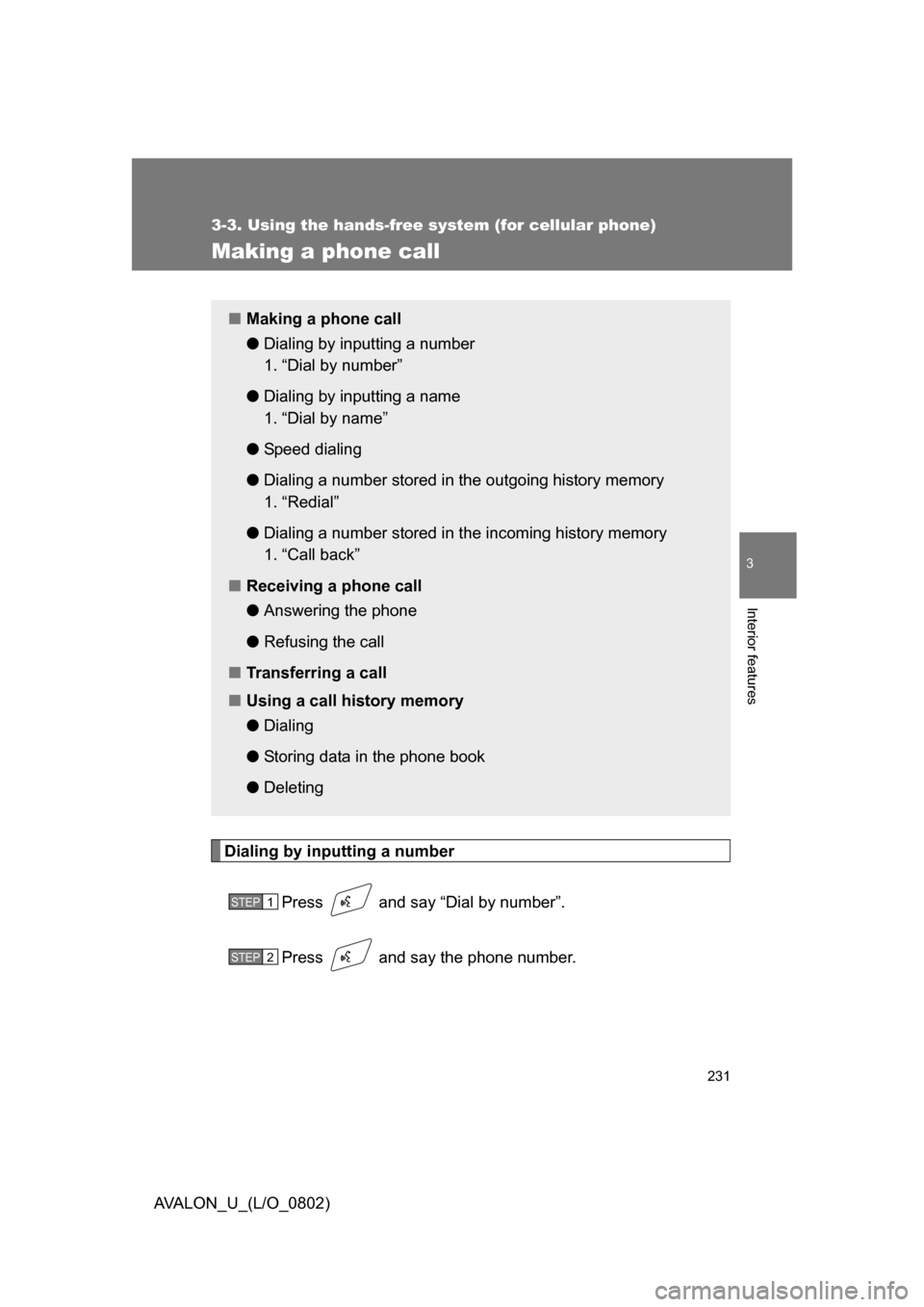

231
3-3. Using the hands-free system (for cellular phone)
3
Interior features
AVALON_U_(L/O_0802)
Making a phone call
Dialing by inputting a numberPress and say “Dial by number”.
Press and say the phone number.
■Making a phone call
●Dialing by inputting a number 
1. “Dial by number”
● Dialing by inputting a name 
1. “Dial by name”
● Speed dialing
● Dialing a number stored in the outgoing history memory 
1. “Redial”
● Dialing a number stored in the incoming history memory 
1. “Call back”
■ Receiving a phone call
●Answering the phone
● Refusing the call
■ Transferring a call
■ Using a call history memory
●Dialing
● Storing data in the phone book
● Deleting
STEP1
STEP2

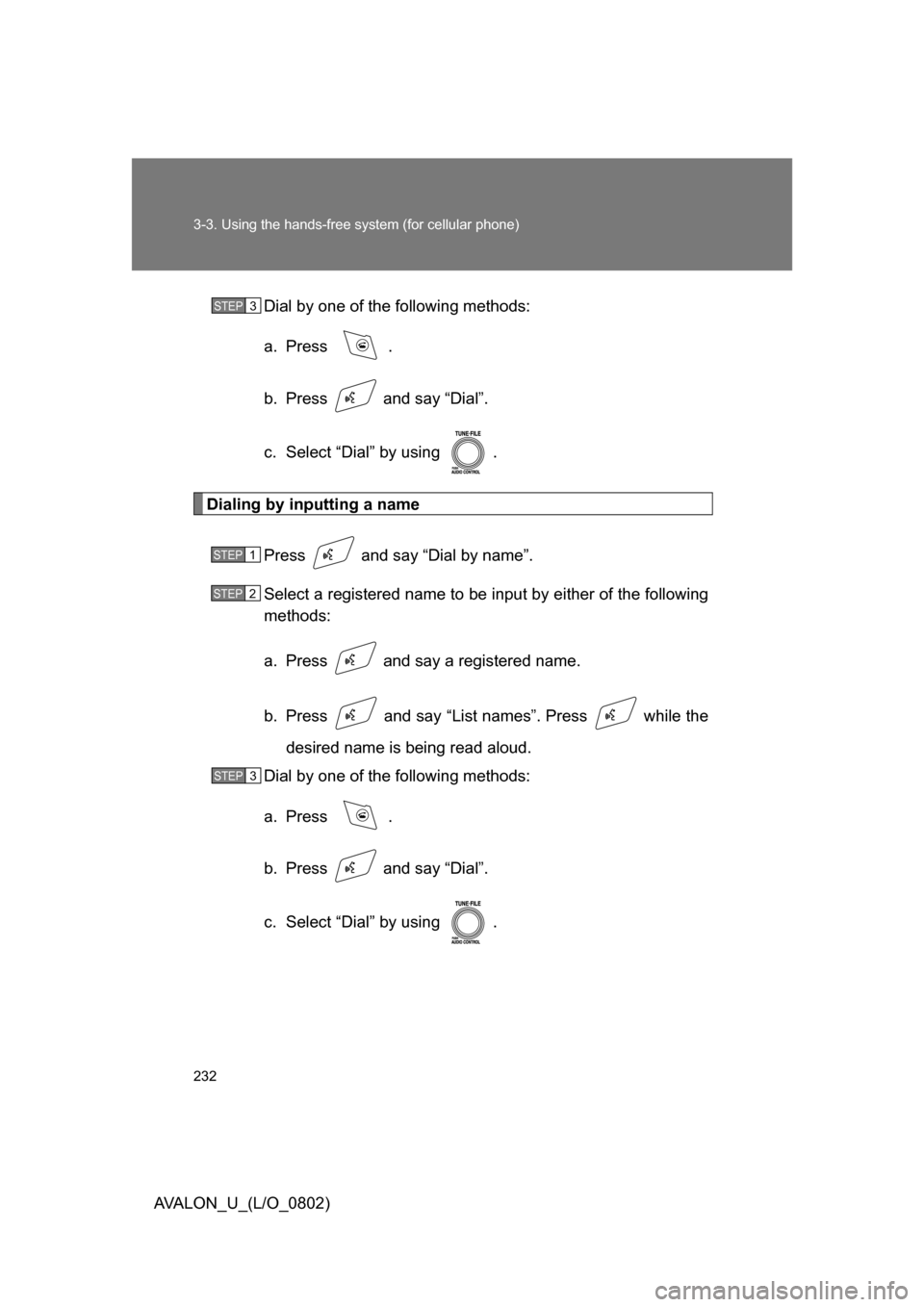

232 3-3. Using the hands-free system (for cellular phone)
AVALON_U_(L/O_0802)Dial by one of the following methods:
a. Press .
b. Press and say “Dial”.
c. Select “Dial” by using .
Dialing by inputting a name
Press and say “Dial by name”.
Select a registered name to be input by either of the following
methods:
a. Press and say a registered name.
b. Press and say “List names”. Press while the desired name is being read aloud.
Dial by one of the following methods:
a. Press .
b. Press and say “Dial”.
c. Select “Dial” by using .
STEP3
STEP1
STEP2
STEP3

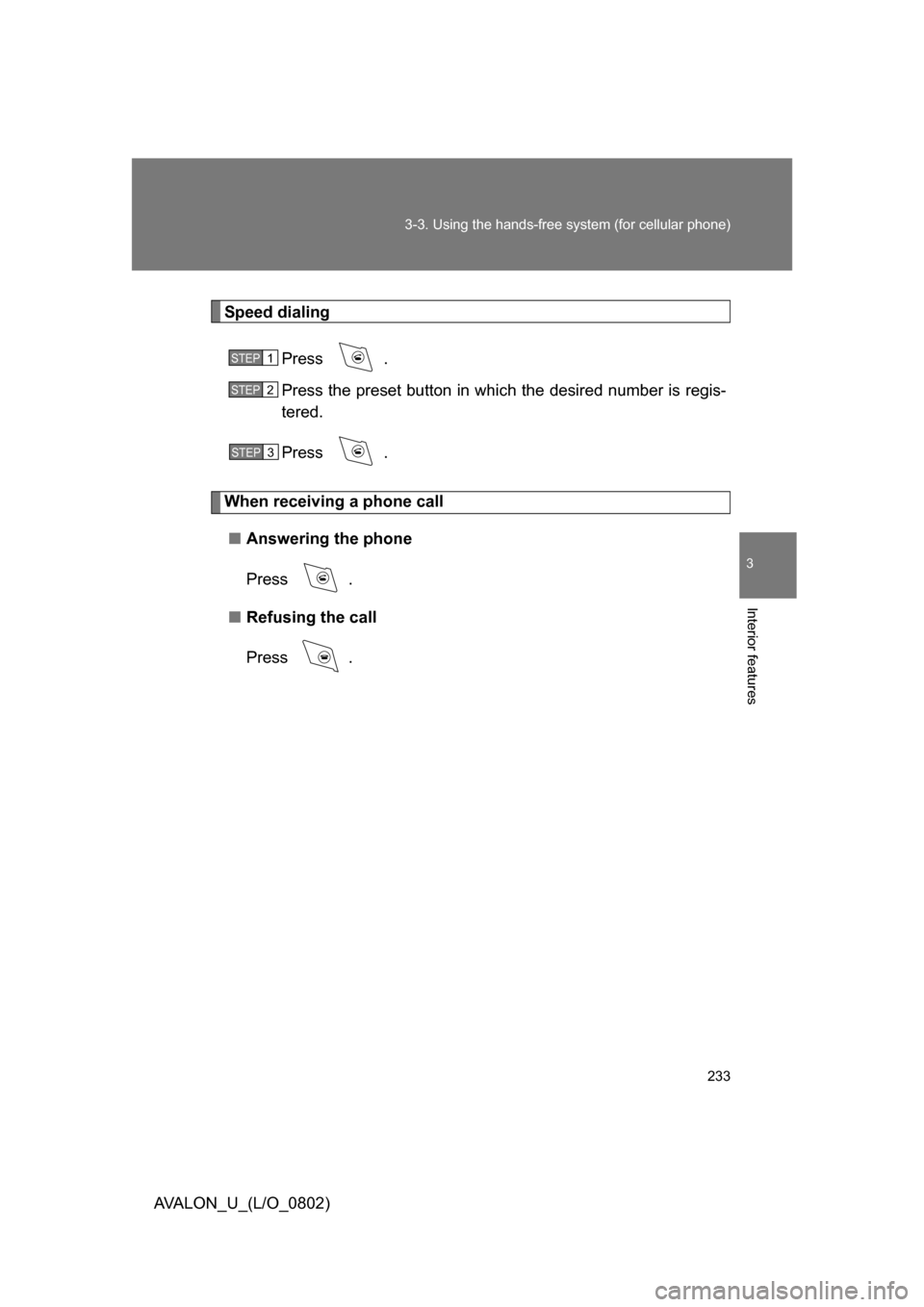

233
3-3. Using the hands-free
system (for cellular phone)
3
Interior features
AVALON_U_(L/O_0802)
Speed dialing
Press .
Press the preset button in whic h the desired number is regis-
tered.
Press .
When receiving a phone call
■ Answering the phone
Press .
■ Refusing the call
Press .
STEP1
STEP2
STEP3

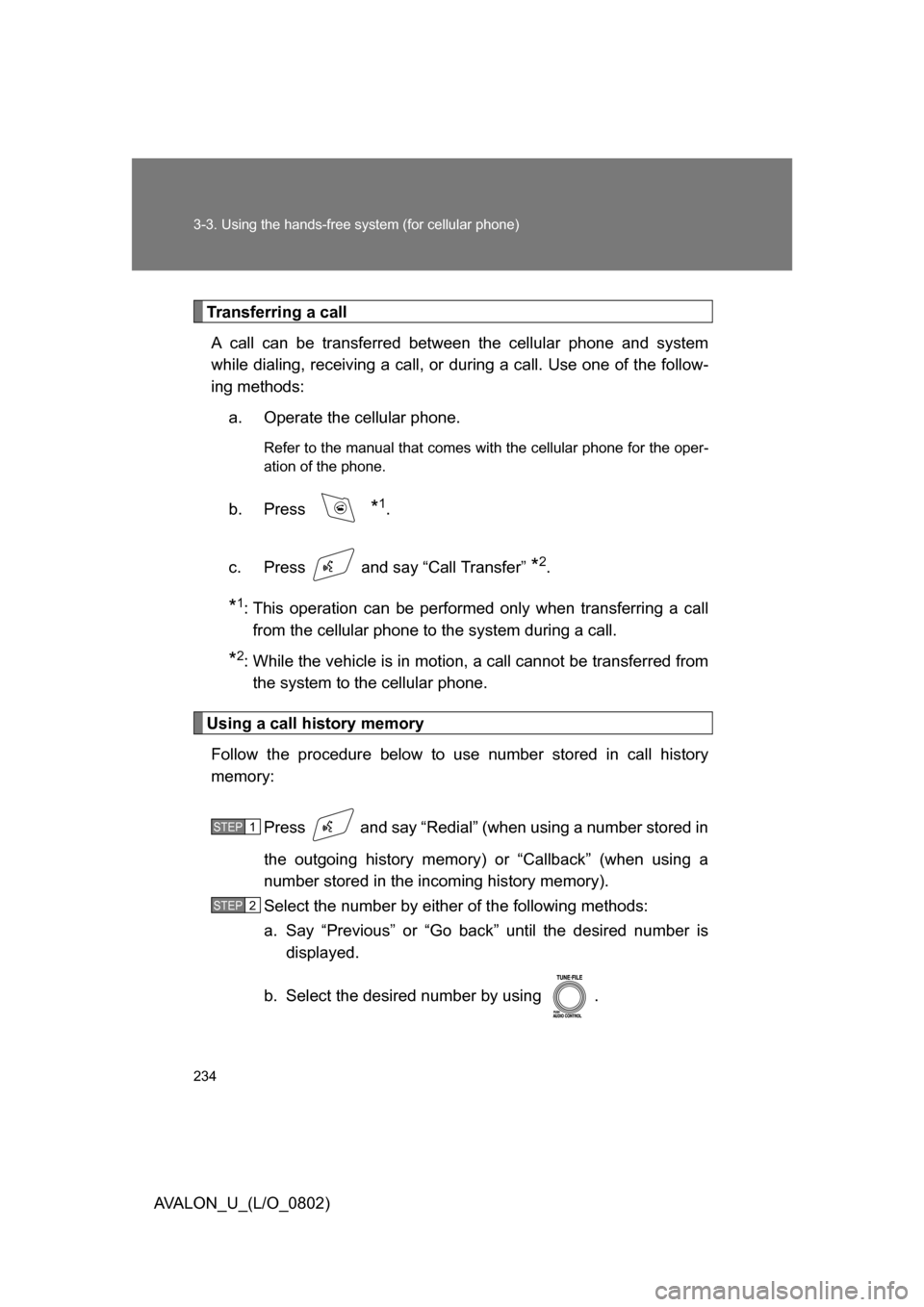

234 3-3. Using the hands-free system (for cellular phone)
AVALON_U_(L/O_0802)
Transferring a callA call can be transferred between the cellular phone and system
while dialing, receiving a call, or during a call. Use one of the follow-
ing methods:
a. Operate the cellular phone.
Refer to the manual that comes with the cellular phone for the oper-
ation of the phone.
b. Press *1.
c. Press and say “Call Transfer”
*2.
*1: This operation can be performed only when transferring a call from the cellular phone to the system during a call.
*2: While the vehicle is in motion, a call cannot be transferred from the system to the cellular phone.
Using a call history memory
Follow the procedure below to use number stored in call history
memory:
Press and say “Redial” (when using a number stored in
the outgoing history memory) or “Callback” (when using a
number stored in the incoming history memory).
Select the number by either of the following methods:
a. Say “Previous” or “Go back” until the desired number is displayed.
b. Select the desired number by using .
STEP1
STEP2

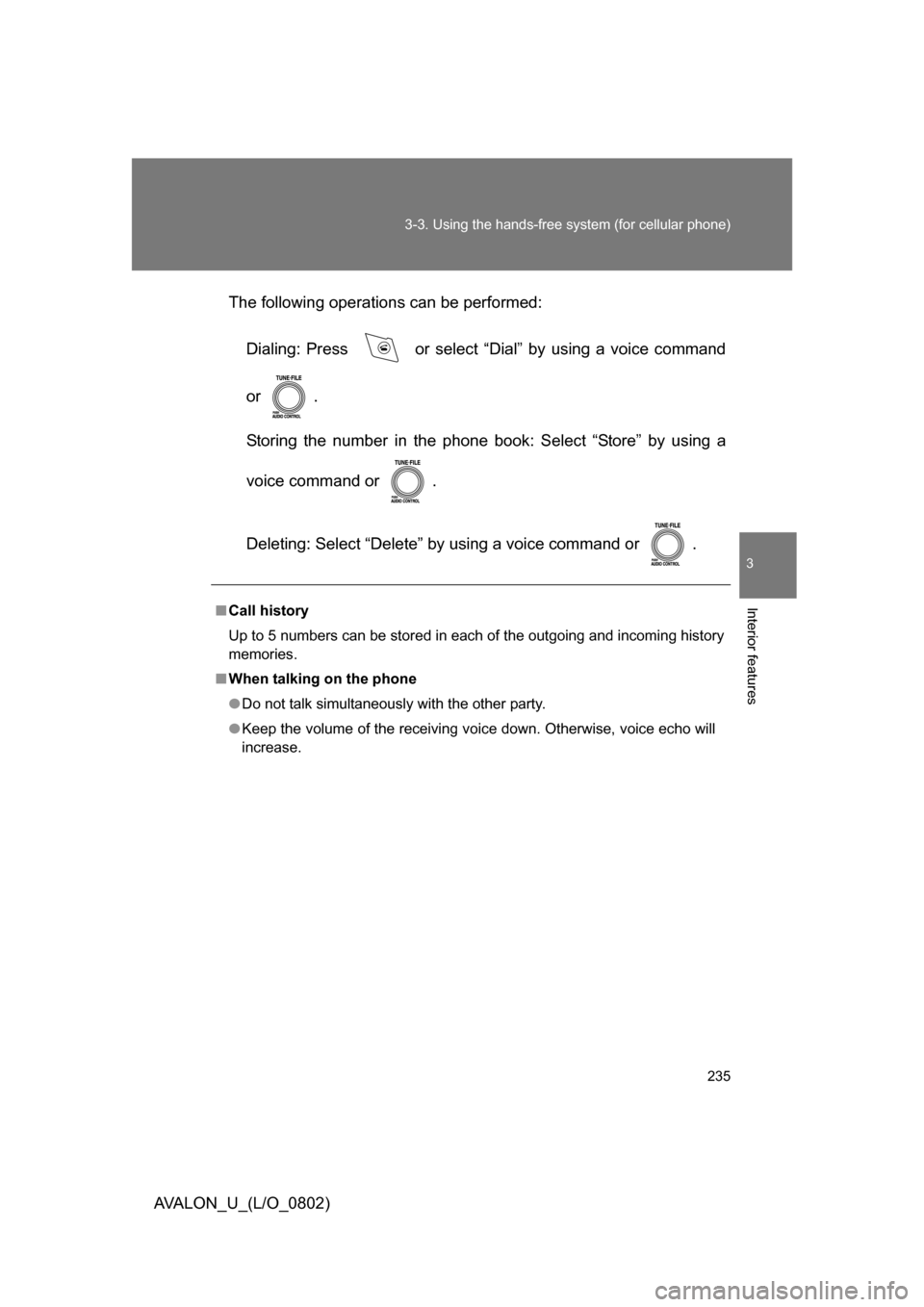

235
3-3. Using the hands-free
system (for cellular phone)
3
Interior features
AVALON_U_(L/O_0802)The following operations can be performed:
Dialing: Press or select “Dial” by using a voice command
or .
Storing the number in the phone book: Select “Store” by using a
voice command or .
Deleting: Select “Delete” by using a voice command or .
■Call history
Up to 5 numbers can be stored in each of the outgoing and incoming history
memories.
■ When talking on the phone
● Do not talk simultaneously with the other party.
● Keep the volume of the receiving voice down. Otherwise, voice echo will
increase.

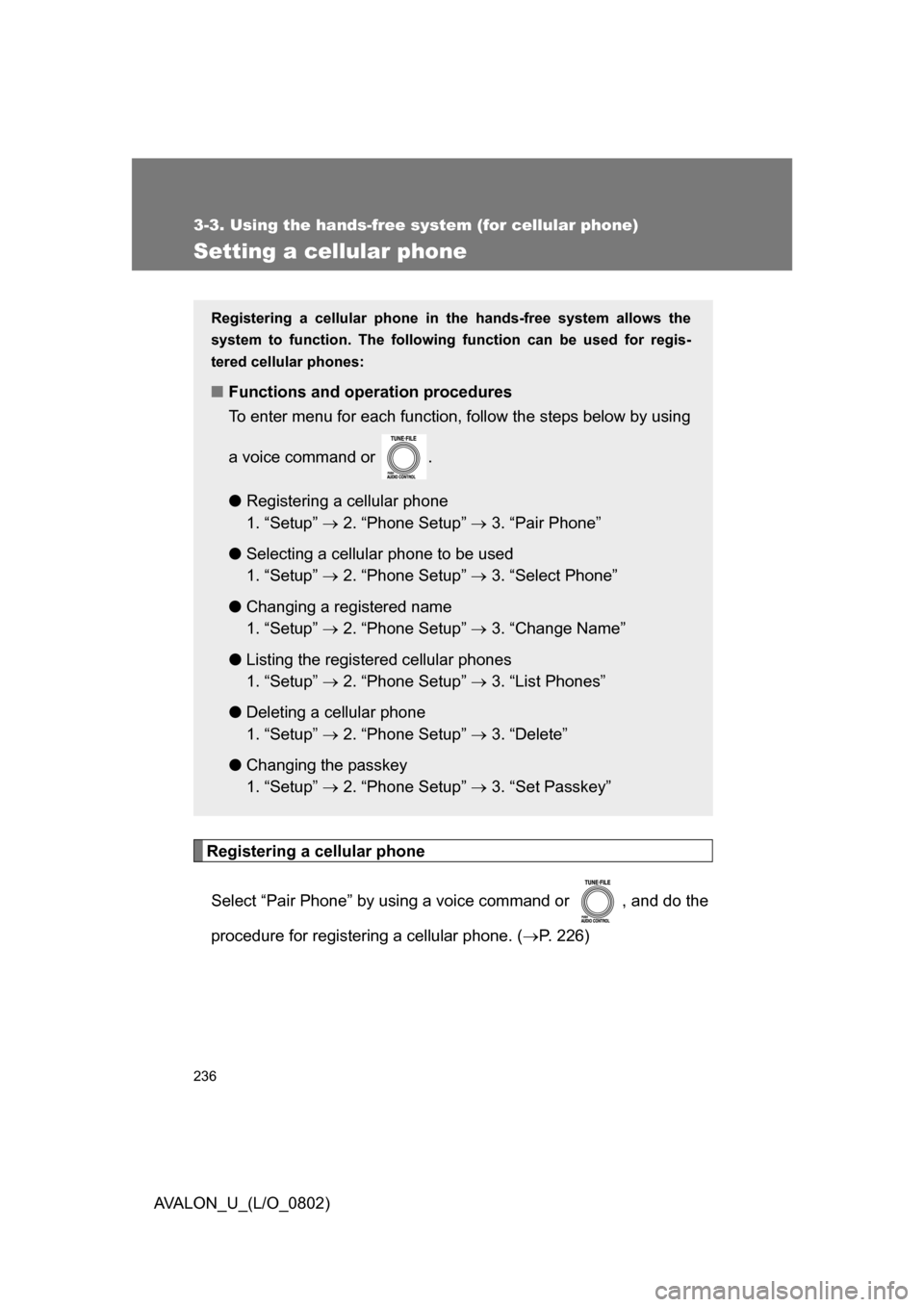

236
3-3. Using the hands-free system (for cellular phone)
AVALON_U_(L/O_0802)
Setting a cellular phone
Registering a cellular phoneSelect “Pair Phone” by using a voice command or , and do the
procedure for registering a cellular phone. ( P. 226)
Registering a cellular phone in the hands-free system allows the
system to function. The following function can be used for regis-
tered cellular phones:
■ Functions and operation procedures
To enter menu for each function, follow the steps below by using
a voice command or .
●Registering a cellular phone 
1. “Setup”  2. “Phone Setup”  3. “Pair Phone”
● Selecting a cellular phone to be used 
1. “Setup”  2. “Phone Setup”  3. “Select Phone”
● Changing a registered name 
1. “Setup”  2. “Phone Setup”  3. “Change Name”
● Listing the registered cellular phones 
1. “Setup”  2. “Phone Setup”  3. “List Phones”
● Deleting a cellular phone 
1. “Setup”  2. “Phone Setup”  3. “Delete”
● Changing the passkey 
1. “Setup”  2. “Phone Setup”  3. “Set Passkey”

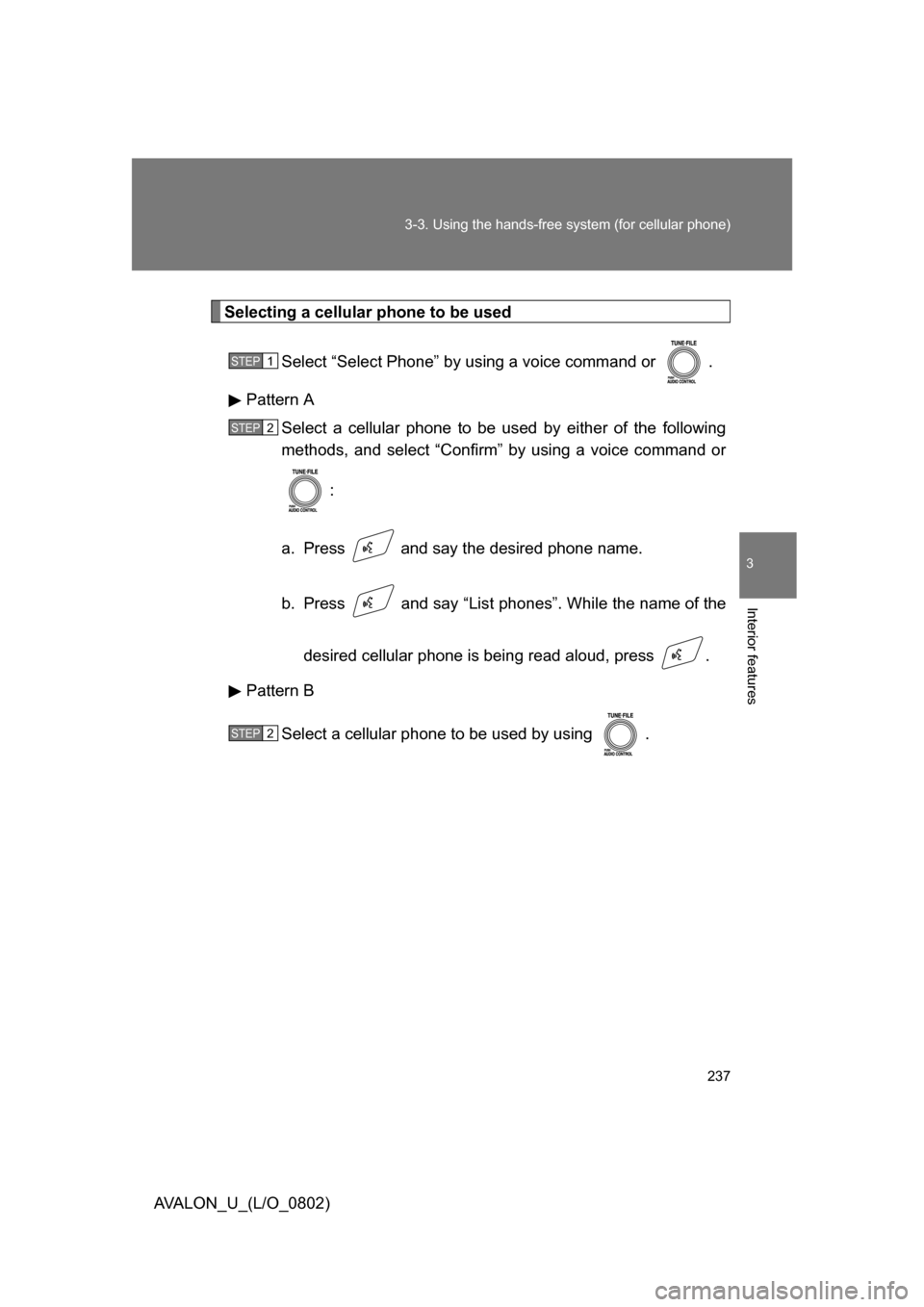

237
3-3. Using the hands-free
system (for cellular phone)
3
Interior features
AVALON_U_(L/O_0802)
Selecting a cellular phone to be used
Select “Select Phone” by using a voice command or .
Pattern A Select a cellular phone to be us ed by either of the following
methods, and select “Confirm” by using a voice command or
:
a. Press and say the desired phone name.
b. Press and say “List pho nes”. While the name of the
desired cellular phone is being read aloud, press .
Pattern B
Select a cellular phone to be used by using .
STEP1
STEP2
STEP2

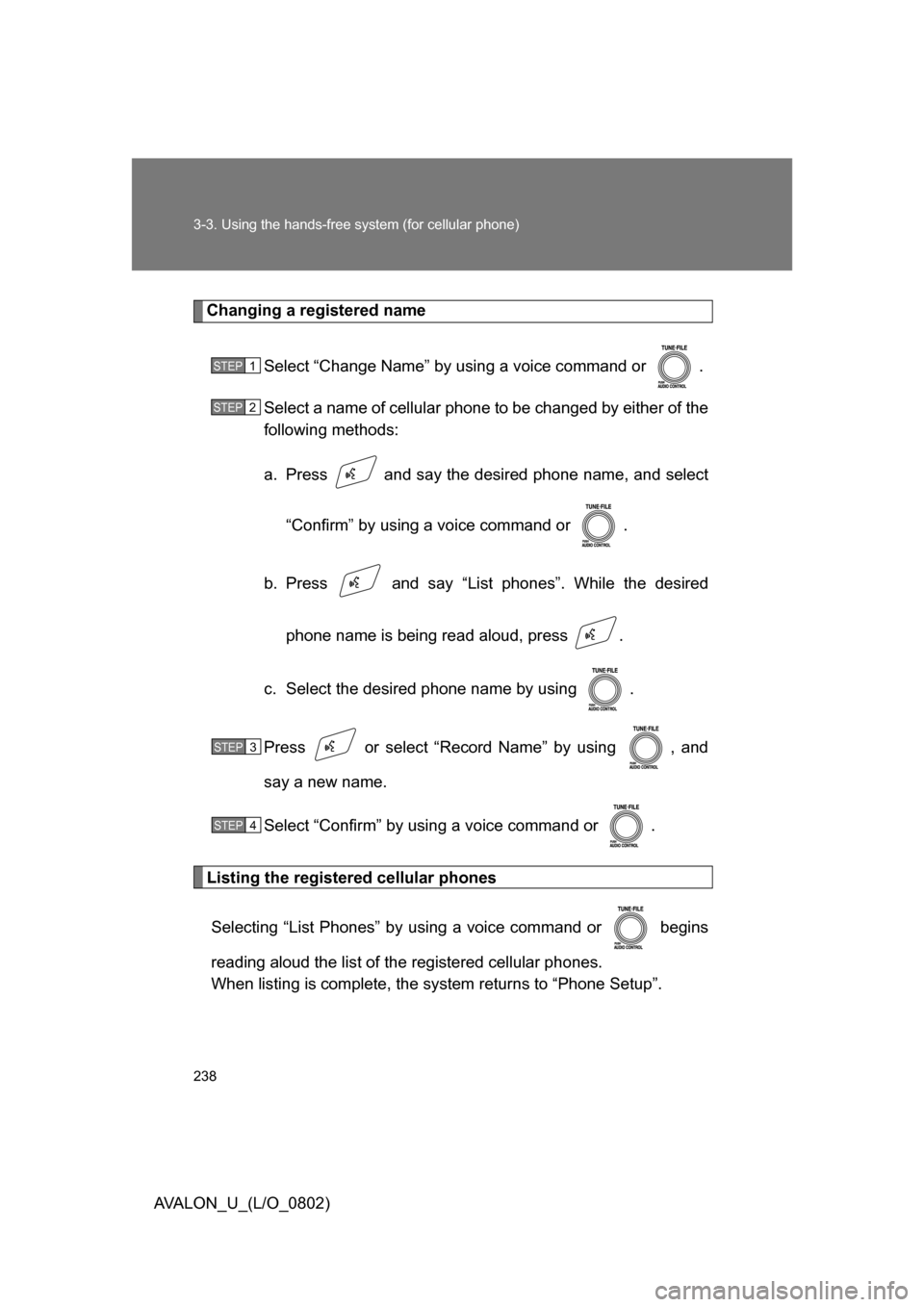

238 3-3. Using the hands-free system (for cellular phone)
AVALON_U_(L/O_0802)
Changing a registered nameSelect “Change Name” by using a voice command or .
Select a name of cellular phone to be changed by either of the
following methods:
a. Press and say the desired phone name, and select “Confirm” by using a voice command or .
b. Press and say “List phones”. While the desired phone name is being read aloud, press .
c. Select the desired phone name by using .
Press or select “Record Name” by using , and
say a new name.
Select “Confirm” by using a voice command or .
Listing the registered cellular phones Selecting “List Phones” by using a voice command or begins
reading aloud the list of the registered cellular phones. 
When listing is complete, the system returns to “Phone Setup”.
STEP1
STEP2
STEP3
STEP4

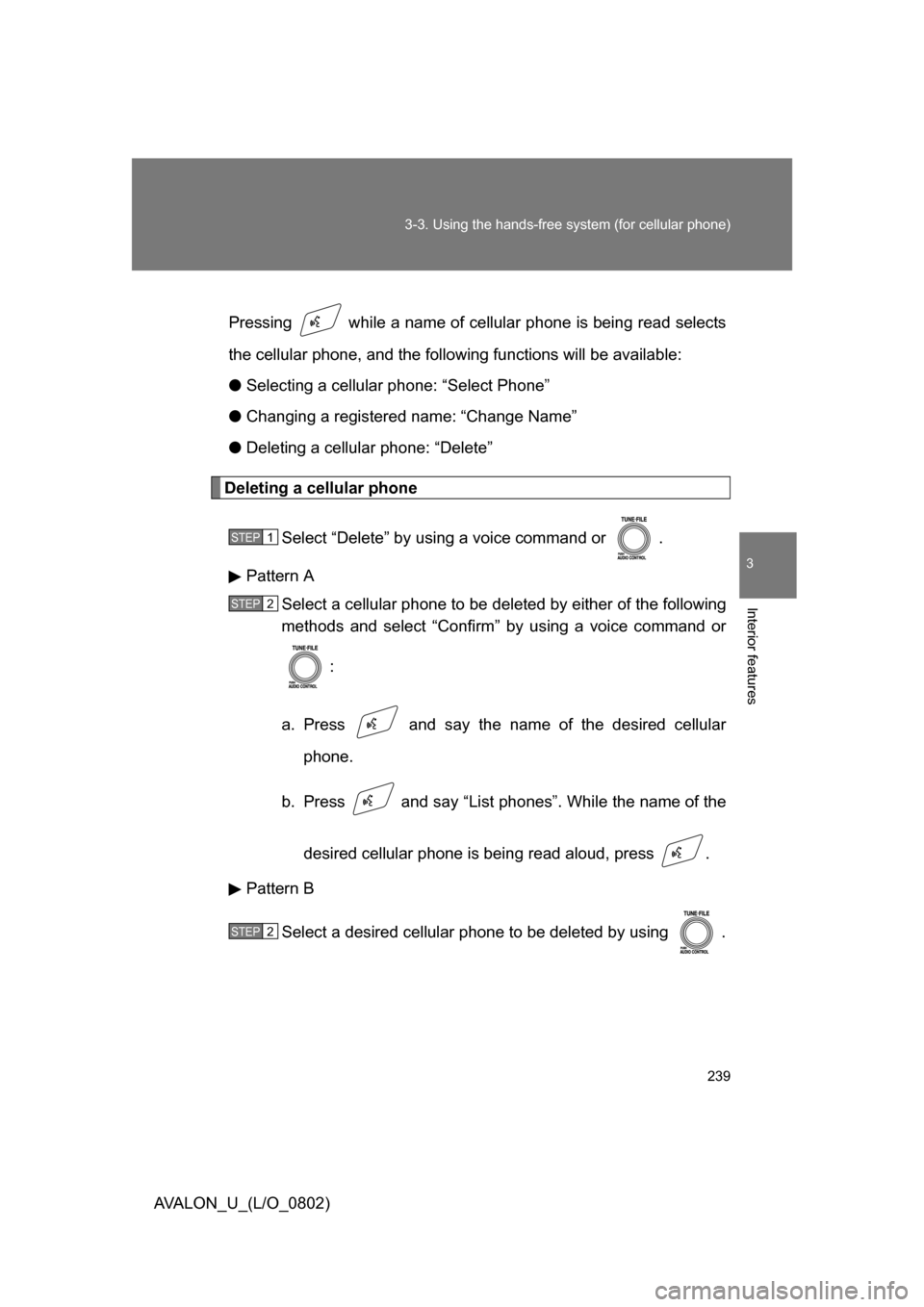

239
3-3. Using the hands-free
system (for cellular phone)
3
Interior features
AVALON_U_(L/O_0802)Pressing while a name of cellular phone is being read selects
the cellular phone, a
nd the following functions will be available:
● Selecting a cellular phone: “Select Phone”
● Changing a registered name: “Change Name”
● Deleting a cellular phone: “Delete”
Deleting a cellular phone
Select “Delete” by using a voice command or .
Pattern A Select a cellular phone to be deleted by either of the following
methods and select “Confirm” by using a voice command or
:
a. Press and say the name of the desired cellular phone.
b. Press and say “List pho nes”. While the name of the
desired cellular phone is being read aloud, press .
Pattern B
Select a desired cellular phone to be deleted by using .
STEP1
STEP2
STEP2

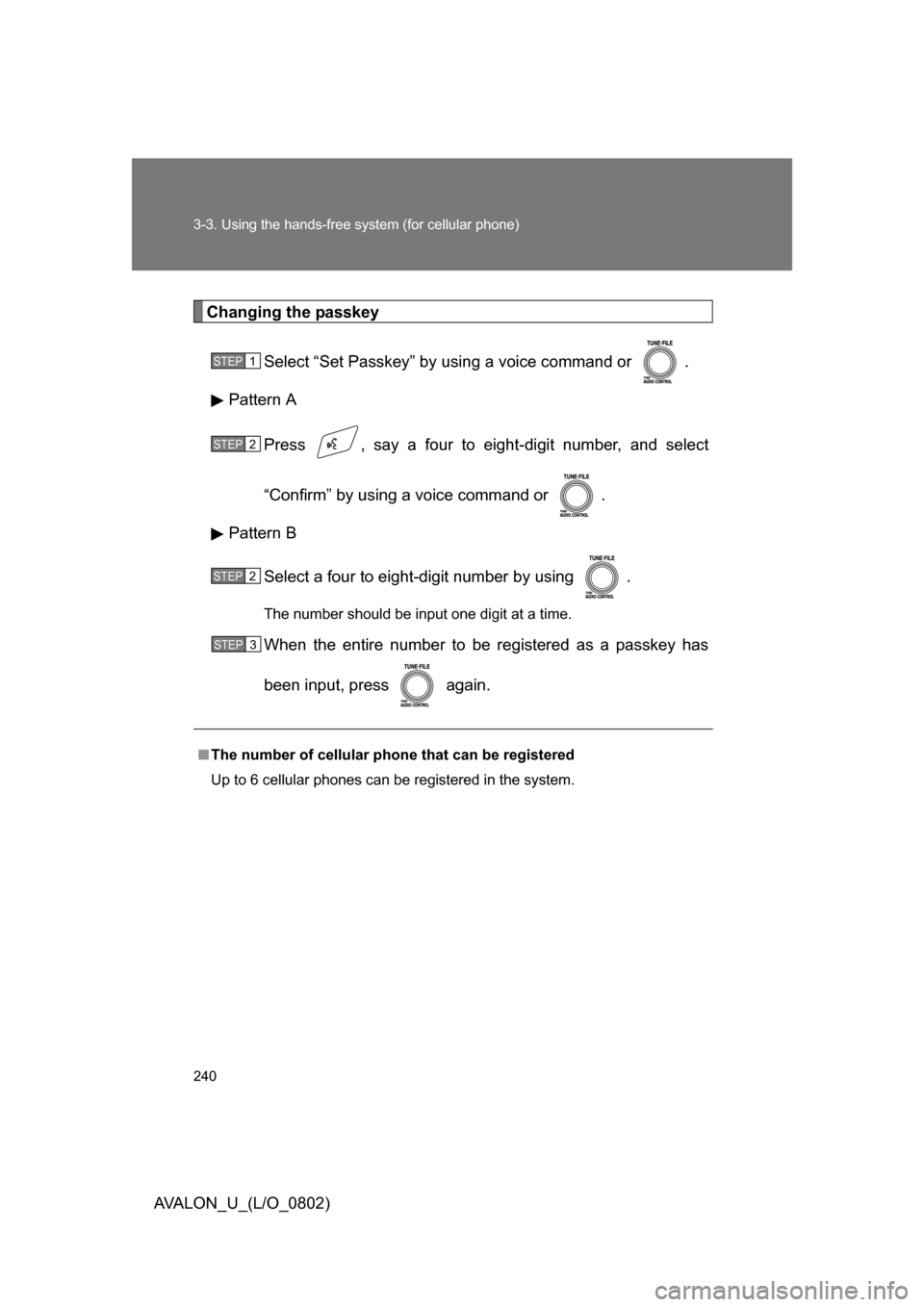

240 3-3. Using the hands-free system (for cellular phone)
AVALON_U_(L/O_0802)
Changing the passkeySelect “Set Passkey” by using a voice command or .
Pattern A
Press , say a four to eight-digit number, and select
“Confirm” by using a voice command or .
Pattern B
Select a four to eight-digit number by using .
The number should be input one digit at a time.
When the entire number to be registered as a passkey has
been input, press again.
■The number of cellular phone that can be registered
Up to 6 cellular phones can be registered in the system.
STEP1
STEP2
STEP2
STEP3
