TOYOTA AVALON 2012 XX40 / 4.G Owners Manual

231
3-1. Using the air conditioning system
and defogger
3
Interior features
Air flows to the feet.
Air flows to the feet and the
windshield defogger operates.
■ Switching between outside air and recirculated air modes
Press .
The mode switches between outside air mode (indicator off) and recircu-
lated air mode (indicator on) modes each time the button is pressed.

232 3-1. Using the air conditioning system and defogger
Defogging the windshield
Press
.
The air conditioning system con-
trol operates automatically.

233
3-1. Using the air conditioning system
and defogger
3
Interior features
Adjusting the position of and opening and closing the air outlets
Center outlets Turn the knob to open or close
the vent
Direct air flow to the left or
right, up or down
Side outlets Direct air flow to the up or
down
Direct air flow to the left or
right
Rear seat outlets Direct air flow to the up or
down
Direct air flow to the left or
right

234 3-1. Using the air conditioning system and defogger
■Using the automatic mode
Fan speed is adjusted automatically in accordance with the temperature set-
ting and ambient conditions. As a result, the following may occur.
●Immediately after the switch is pressed, the fan may stop for a while until
warm or cool air is ready to flow.
● Cool air may flow to the area around the upper body when the heater is
on.
■ Using the system in recirculated air mode
The windows will fog up more easily if the recirculated air mode is used for
an extended period.
■ Switching between outside air and recirculated air modes
Recirculated air mode or outside air mode may be automatically switched to
in accordance with the temperature setting and the inside temperature.
■ Window defogger feature
Recirculated air mode may automatically switch to outside air mode in situa-
tions where the windows need to be defogged.
■ Outside temperature approaches 32 F (0  C)
The air conditioning system may not operate even when is pressed.
■ When the indicator light on flashes
Press and turn off the air conditioning system before turning it on once
more. There may be a problem in the ai r conditioning system if the indicator
light continues to flash. Turn the air conditioning system off and have it
inspected by your Toyota dealer.
■ Air conditioning odors
●During use, various odors from inside and outside the vehicle may enter
into and accumulate in the air conditioning system. This may then cause
odor to be emitted from the vents.
● To reduce potential odors from occurring:
• It is recommended that the air conditioning system be set to outside air
mode prior to turning the vehicle off.
• The start timing of the blower may be delayed for a short period of time immediately after the air conditioning system is started in automatic
mode.

235
3-1. Using the air conditioning system
and defogger
3
Interior features
CAUTION
■To prevent the windshield from fogging up
Do not use during cool air operation in extremely humid weather. The
difference between the temperature of the outside air and that of the wind-
shield can cause the outer surface of the windshield to fog up, blocking your
vision.
NOTICE
■To prevent battery discharge
Do not leave the automatic air conditioning system on longer than necessary
when the engine is not running.

236
3-1. Using the air conditioning system and defogger
Using the steering wheel climate control switches
Using the automatic mode
Press .
The air conditioning system will begin to operate. Air outlets and
fan speed are automatically adjusted according to the tempera-
ture setting.
Press “” to increase the temperature and “” to decrease the
temperature on .
The temperature for the driver and passenger seats can be set
separately.
Adjust the temperature settings
Press “
” to increase the temperature and “” to decrease the tem-
perature on .
Turning off the fan
Press .
Some air conditioning feature can be controlled using the switches
on the steering wheel.
Temperature control
Automatic mode
Off
STEP1
STEP2

237
3-1. Using the air conditioning system and defogger
3
Interior features

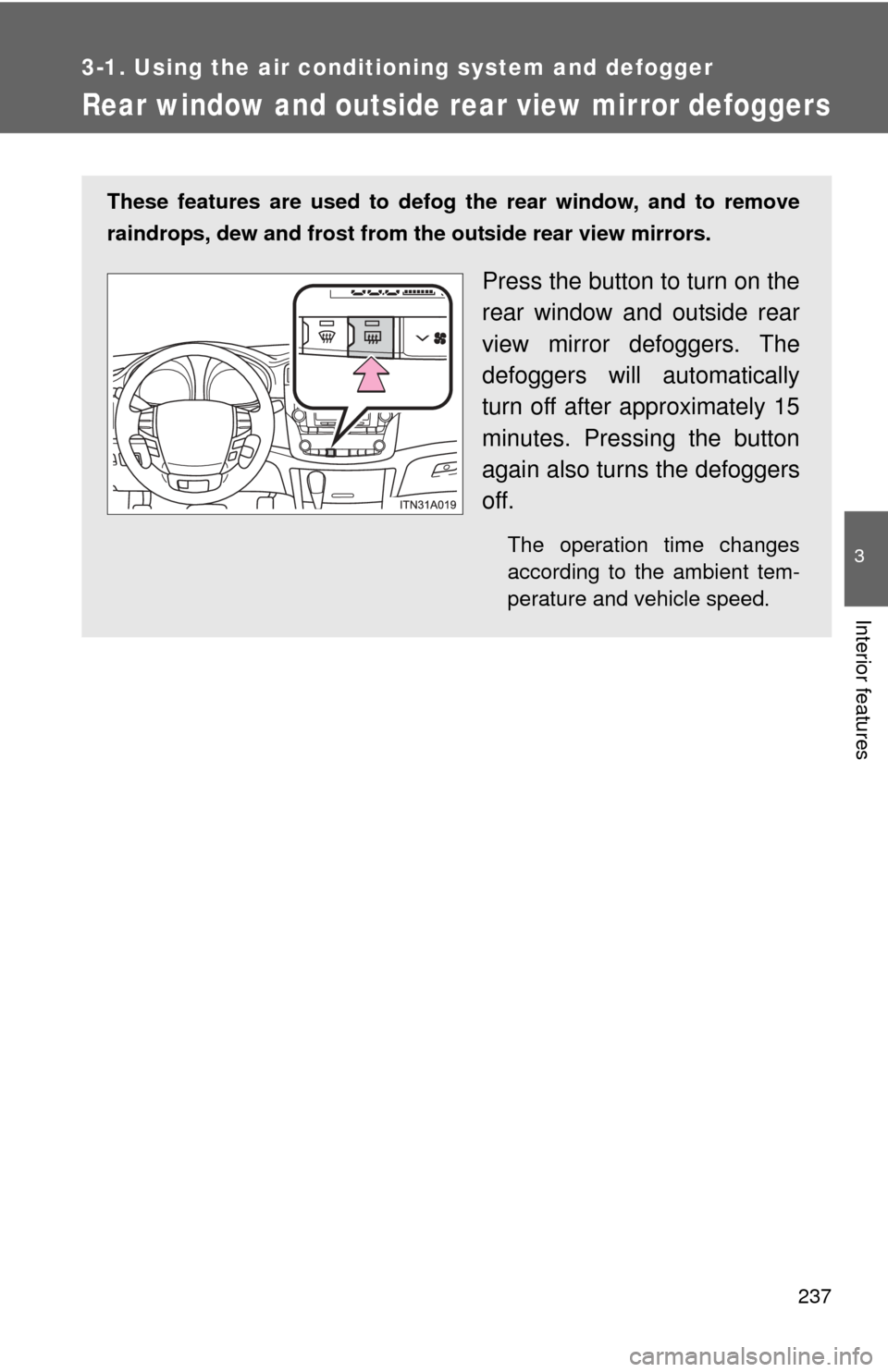

Rear window and outside rear view mirror defoggers
These features are used to defog the rear window, and to remove
raindrops, dew and frost from the outside rear view mirrors.
Press the button to turn on the
rear window and outside rear
view mirror defoggers. The
defoggers will automatically
turn off after approximately 15
minutes. Pressing the button
again also turns the defoggers
off.
The operation time changes
according to the ambient tem-
perature and vehicle speed.

238 3-1. Using the air conditioning system and defogger
■Operating conditions
Vehicles with smart key system
The “ENGINE START STOP” switch must be in IGNITION ON mode.
Vehicles without smart key system
The engine switch must be in the “ON” position.
CAUTION
■ When the outside rear view mirror defoggers are on
Do not touch the rear view mirror surfaces, as they can become very hot and
burn you.
NOTICE
■ To prevent battery discharge
Turn the defoggers off when the engine is not running.

239
3
Interior features
3-2. Using the audio system

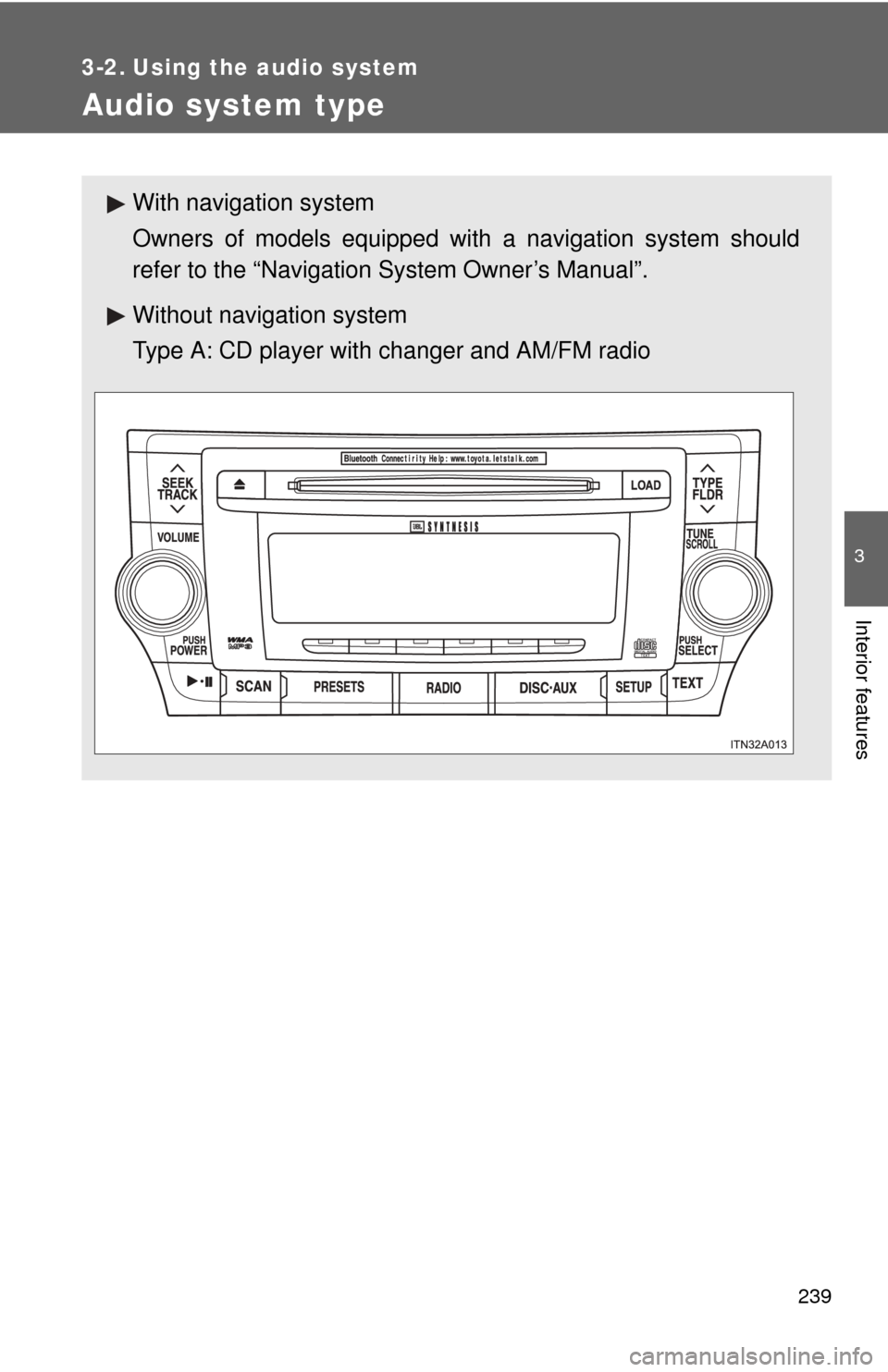

Audio system type
With navigation system
Owners of models equipped with a navigation system should
refer to the “Navigation System Owner’s Manual”.
Without navig ation system
Type A: CD player with changer and AM/FM radio

240 3-2. Using the audio system

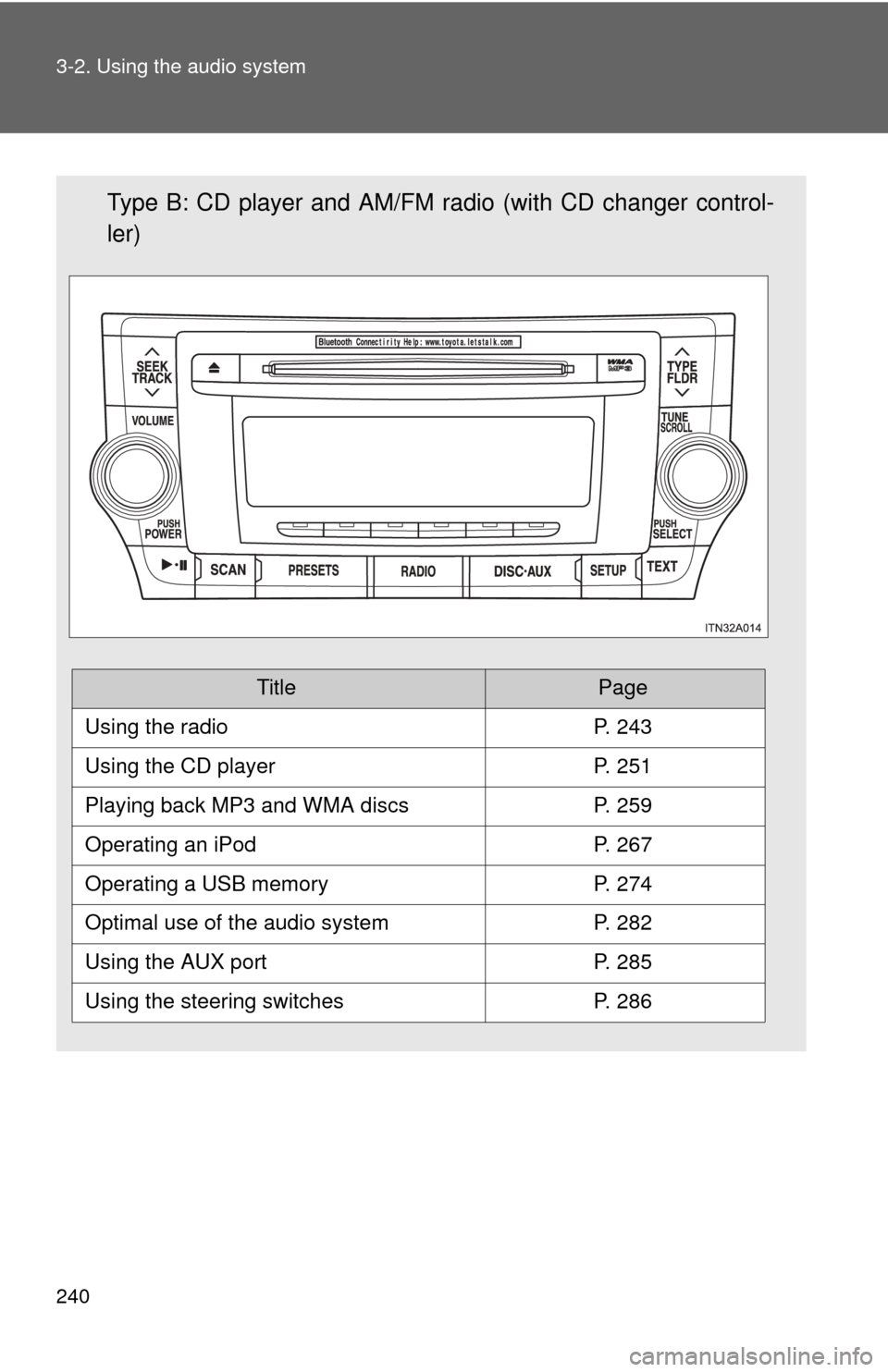

Type B: CD player and AM/FM radio (with CD changer control-
ler)
TitlePage
Using the radioP. 243
Using the CD playerP. 251
Playing back MP3 and WMA discs P. 259
Operating an iPodP. 267
Operating a USB memoryP. 274
Optimal use of the audio systemP. 282
Using the AUX portP. 285
Using the steering switchesP. 286
