TOYOTA AVALON 2012 XX40 / 4.G Owners Manual

281
3-2. Using the audio system
3
Interior features
CAUTION
■
While driving
Do not connect USB memory or operate the controls.
NOTICE
■To prevent damage to USB memory
●Do not leave USB memory in the vehicle. The temperature inside the vehi-
cle may become high, resulting in damage to the player.
● Do not push down on or apply unnecessary pressure to the USB memory
while it is connected as this may damage the USB memory or its terminal.
● Do not insert foreign objects into the port as this may damage the USB
memory or its terminal.

282
3-2. Using the audio system
Optimal use of the audio system
Using the audio control function■ Changing modes
Press .
Press that corresponds to the desired mode.
“BASS”, “MID” (type A only), “TREB”, “FADE” or “BAL”
Selector buttonsAdjusting the sound quality
Menu button
Power Volume
STEP1
STEP2

283
3-2. Using the audio system
3
Interior features
■
Adjusting sound quality
Turning adjusts the level.
*: The sound quality level is adjusted individually in each audio mode.
Mode
displayedSound quality modeLevelTurn to the leftTurn to the right
BASS Bass
*-5 to 5
Low High
MID Mid-range
*
(type A only) -5 to 5
TREB Treble
*-5 to 5
FA D E Front/rear
volume balance F7 to R7 Shift to rear Shift to front
BAL Left/right
volume balance L7 to R7 Shift to left Shift to right

284 3-2. Using the audio system
■Adjusting the Automatic Sound Levelizer (ASL)
Press .
Press that corresponds to “MORE”.
Press that corresponds to “ASL”.
Press that corresponds to the desired mode.
Type A: “ON” or “OFF”
ASL automatically adjusts the volume and tone quality according to vehi-
cle speed.
Type B: “LOW”, “MID”, “HIGH” or “OFF”
■ Setting the number of preset pages
The number of preset pages desired c an be set from 1 to 6. The initial
setting is 6 pages.
Press .
Press that corresponds to “MORE”.
Press that corresponds to “PRESET”.
Press that corresponds to the desired number of preset
pages.
This menu may also be reached directly by pressing and holding .
■Language settings
P. 2 4 1
STEP1
STEP2
STEP3
STEP4
STEP1
STEP2
STEP3
STEP4

285
3-2. Using the audio system
3
Interior features
Using the AUX port
■Operating portable audio devices connected to the audio system
The volume can be adjusted using the vehicle’s audio controls. All other
adjustments must be made on the portable audio device itself.
This port can be used to connect a portable audio device and listen
to it using the vehicle’s speakers.
Open the cover and connect the portable audio device.
Press .STEP1
STEP2

286
3-2. Using the audio system

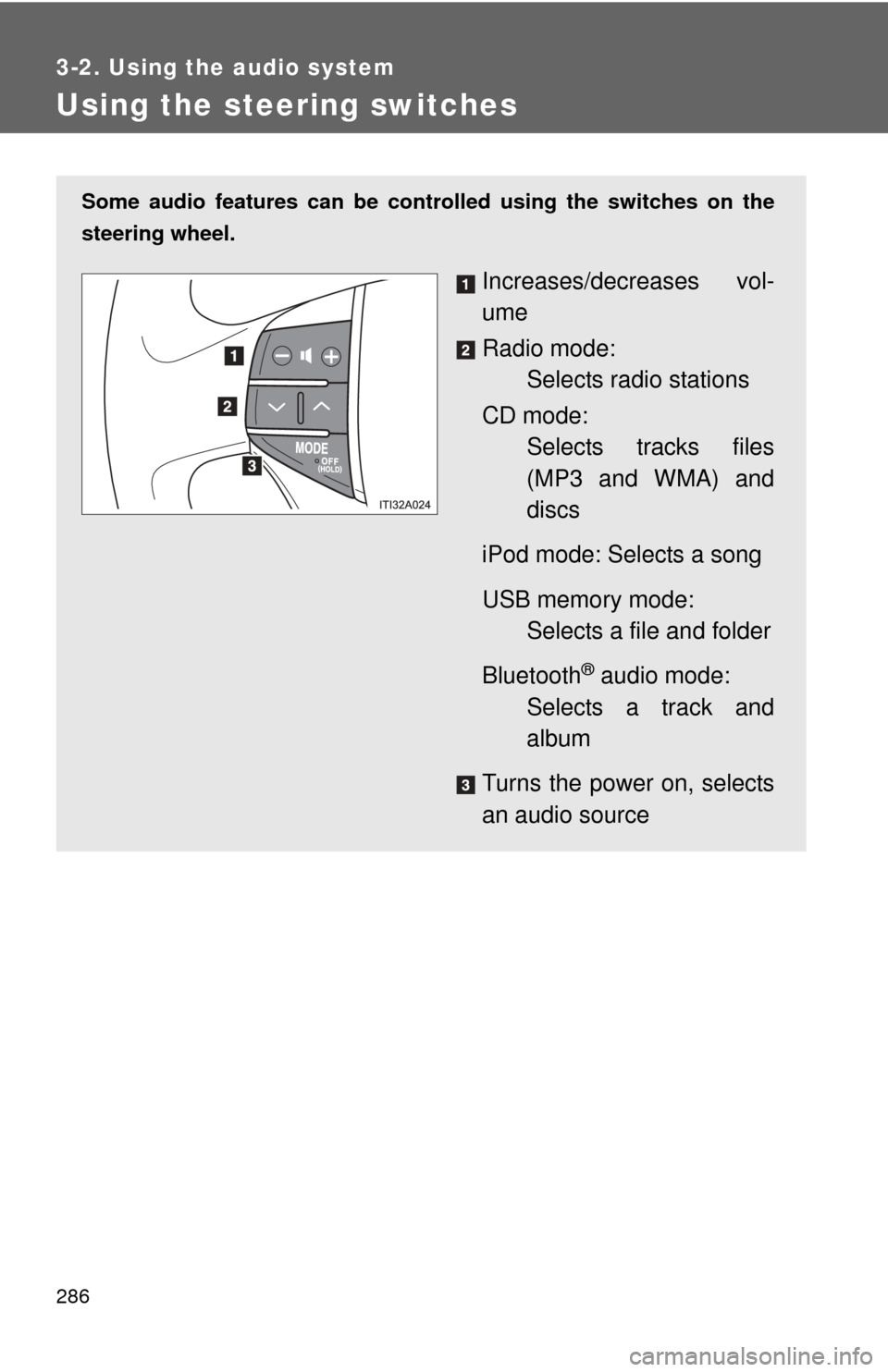

Using the steering switches
Some audio features can be controlled using the switches on the
steering wheel.
Increases/decreases vol-
ume
Radio mode: Selects radio stations
CD mode: Selects tracks files
(MP3 and WMA) and
discs
iPod mode: Selects a song
USB memory mode: Selects a file and folder
Bluetooth
® audio mode:
Selects a track and
album
Turns the power on, selects
an audio source

287
3-2. Using the audio system
3
Interior features
Turning on the power
Press when the audio system is turned off.
The audio system can be turned off by holding the switch down until you
hear a beep.
Changing the audio source
Press when the audio system is turned on. The audio source
changes as follows each time the bu tton is pressed. If a CD is not
inserted, that mode will be skipped.
FM SAT CD CD changer (type A only) USB/iPod

AUX Bluetooth
® audio AM
Adjusting the volume
Press “+” on to increase the vo lume and “-” to decrease the
volume.
Press and hold the switch to continue increasing or decreasing the vol-
ume.
Selecting a radio station
Press to select the radio mode.
Press “” or “ ” on to select a preset station.
To scan for receivable stations, press and hold the switch until you
hear a beep.
STEP1
STEP2

288 3-2. Using the audio system
Selecting a track/file or songPress to select the CD, iPod, USB memory or
Bluetooth
® audio mode.
Press “ ” or “ ” on to select the desired track/file or
folder.
Selecting a folder or album
Press to select the CD, USB memory or Bluetooth
®
audio mode.
Press and hold “” or “ ” on until you hear a beep.
Selecting a disc in the CD player (type A only)
Press to select the CD mode.
Press and hold “ ” or “ ” on until you hear a beep.
CAUTION
■ To reduce the risk of an accident
Exercise care when operating the audio switches on the steering wheel.
STEP1
STEP2
STEP1
STEP2
STEP1
STEP2

289
3
Interior features
3-3. Using the Bluetooth® audio system

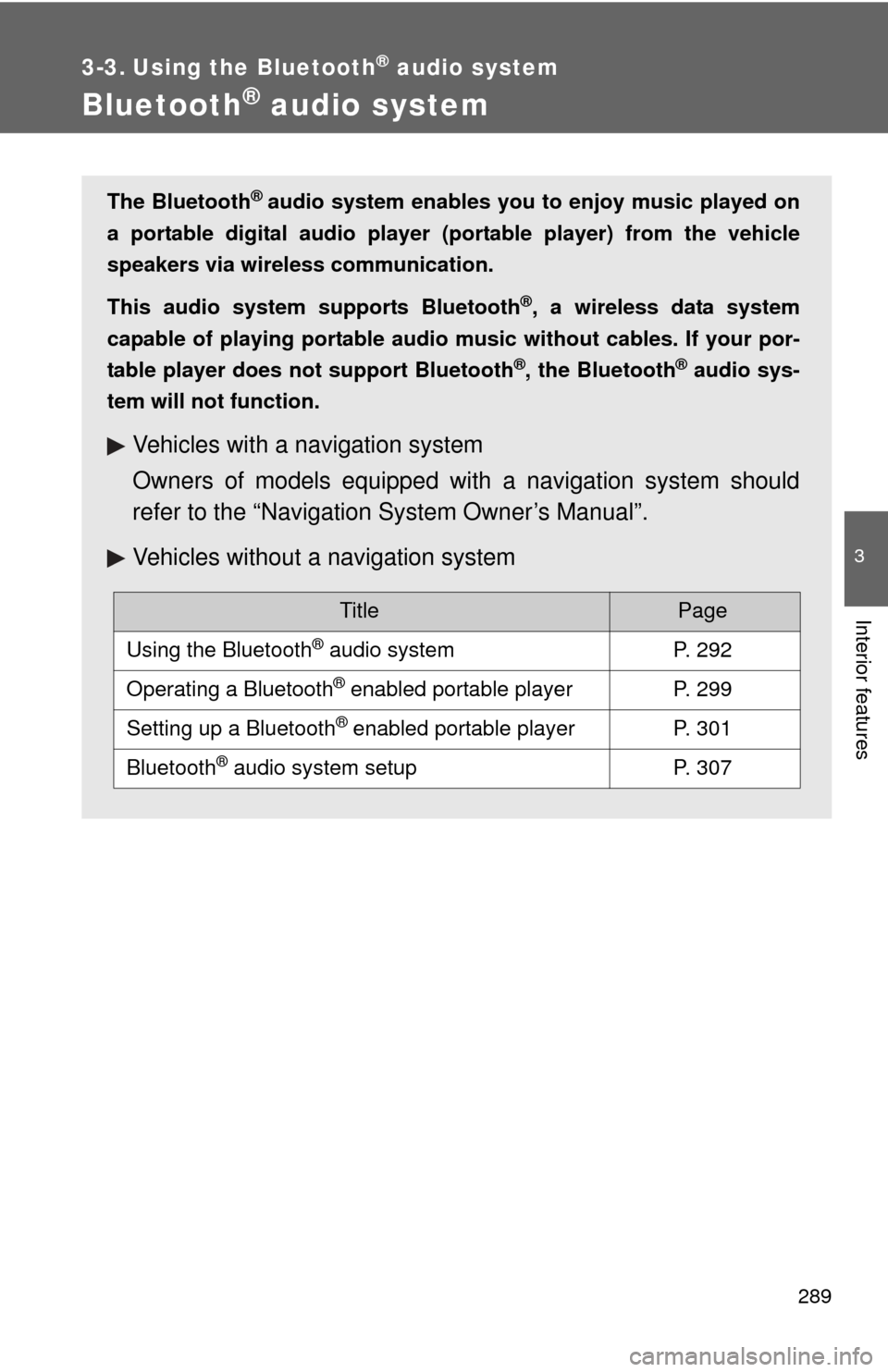

Bluetooth® audio system
The Bluetooth® audio system enables you to enjoy music played on
a portable digital audio player (portable player) from the vehicle
speakers via wireless communication.
This audio system supports Bluetooth
®, a wireless data system
capable of playing portable audio music without cables. If your por-
table player does not support Bluetooth
®, the Bluetooth® audio sys-
tem will not function.
Vehicles with a navigation system
Owners of models equipped with a navigation system should
refer to the “Navigation System Owner’s Manual”.
Vehicles without a navigation system
TitlePage
Using the Bluetooth® audio systemP. 292
Operating a Bluetooth® enabled portable playerP. 299
Setting up a Bluetooth® enabled portable playerP. 301
Bluetooth® audio system setupP. 307

290 3-3. Using the Bluetooth
® audio system
■Conditions under which th e system will not operate
● If using a portable player that does not support Bluetooth
®
●If the portable player is switched off
● If the portable player is not connected
● If the portable player’s battery is low
● If the portable player is behind the seat or in the glove box or console box
● If metal is covering or touching the portable player
■ When transferring ownership of the vehicle
Be sure to initialize the system to prevent personal data from being improp-
erly accessed. ( P. 335)
■ About Bluetooth
®
■Compatible models
●Bluetooth
® specifications:
Ver. 1.2, or higher (Recommended: Ver. 2.0+EDR or higher)
● Following Profiles:
• A2DP (Advanced Audio Distribution Profile) Ver. 1.0 or higher
• AVRCP (Audio/Video Remote Control Profile) Ver. 1.0 or higher
(Ver. 1.3 or higher recommended)
Portable players must correspond to the above specifications in order to be
connected to the Bluetooth
® audio system. However, please note that some
functions may be limited depending on the type of portable player.
Bluetooth is a registered trademark of
Bluetooth SIG. Inc.
