TOYOTA AVALON 2014 XX40 / 4.G Owners Manual

3516-3. Do-it-yourself maintenance
6
Maintenance and care
AVALON (U)_(OM41452U)
■Use a CR2032 lithium battery
●Batteries can be purchased at your Toyota dealer, local electrical appliance
shops or camera stores.
● Replace only with the same or equivalent type recommended by the manu-
facturer.
● Dispose of used batteries according to local laws.
■ If the electronic key battery is depleted
The following symptoms may occur:
●The smart key system and wireless remote control will not function properly.
● The operational range will be reduced.
CAUTION
■Removed battery and other parts
These parts are small and if swallowed by a child, they can cause choking.
Keep away from children. Failure to do so could result in death or serious
injury.
NOTICE
■For normal operation after replacing the battery
Observe the following precautions to prevent accidents:
● Always work with dry hands.
Moisture may cause the battery to rust.
● Do not touch or move any other component inside the remote control.
● Do not bend either of the battery terminals.

3526-3. Do-it-yourself maintenance
AVALON (U)_(OM41452U)

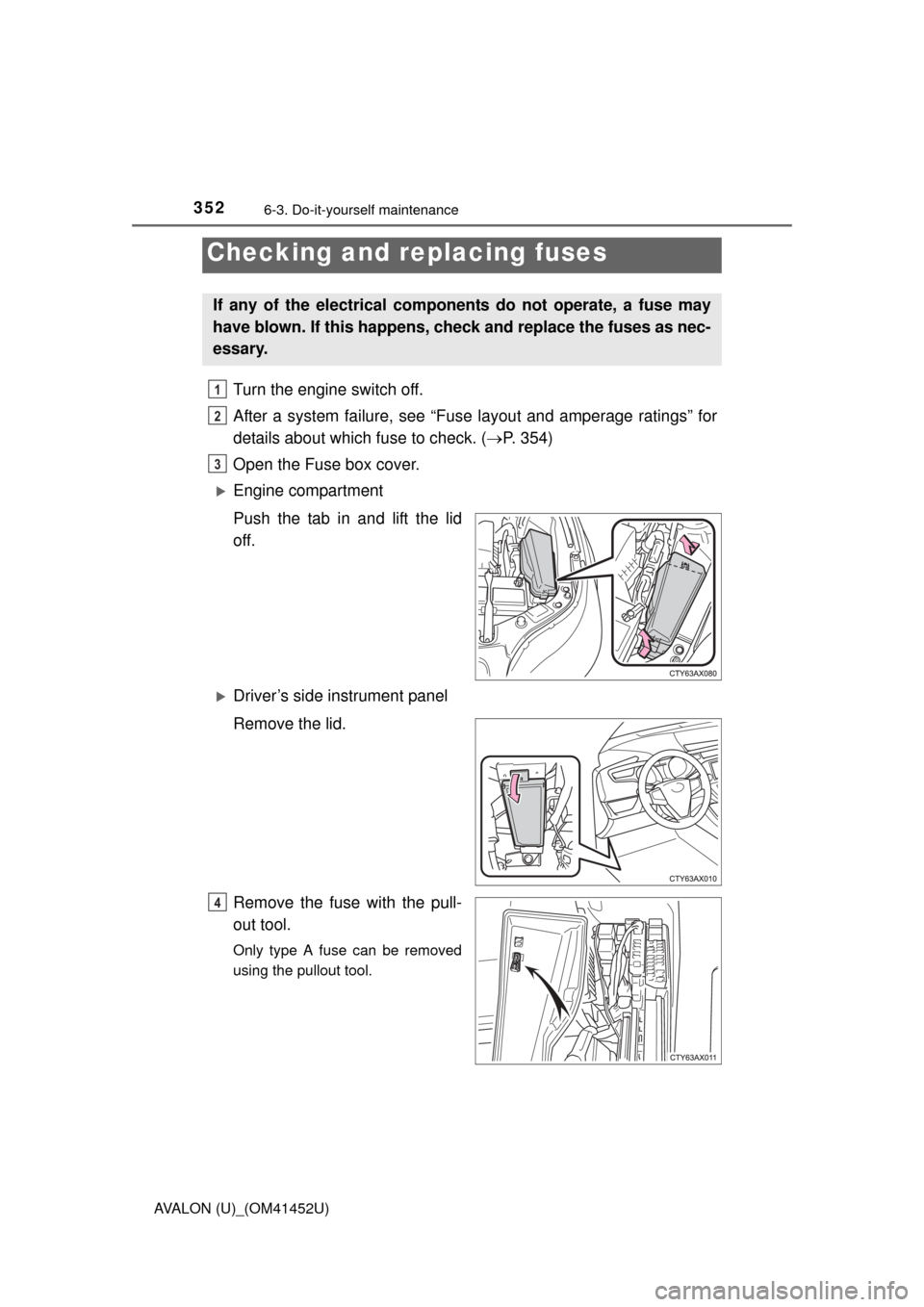

Turn the engine switch off.
After a system failure, see “Fuse layout and amperage ratings” for
details about which fuse to check. ( P. 354)
Open the Fuse box cover.
Engine compartment
Push the tab in and lift the lid
off.
Driver’s side instrument panel
Remove the lid.
Remove the fuse with the pull-
out tool.
Only type A fuse can be removed
using the pullout tool.
Checking and replacing fuses
If any of the electrical components do not operate, a fuse may
have blown. If this happens, check and replace the fuses as nec-
essary.
1
2
3
4

3536-3. Do-it-yourself maintenance
6
Maintenance and care
AVALON (U)_(OM41452U)

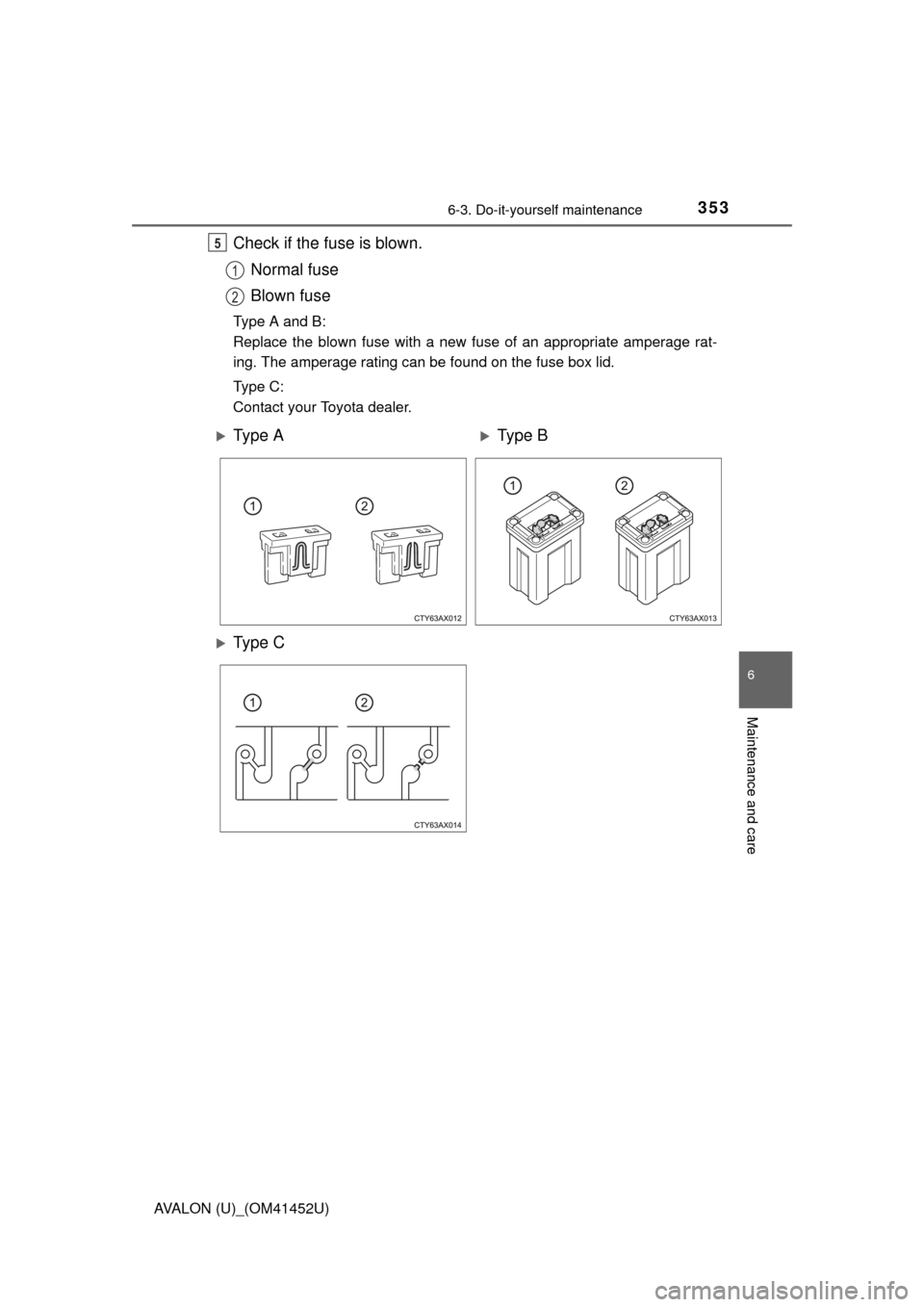

Check if the fuse is blown.Normal fuse
Blown fuse
Type A and B:
Replace the blown fuse with a new fuse of an appropriate amperage rat-
ing. The amperage rating can be found on the fuse box lid.
Type C:
Contact your Toyota dealer.
5
1
2
Ty p e AType B
Ty p e C

3546-3. Do-it-yourself maintenance
AVALON (U)_(OM41452U)■

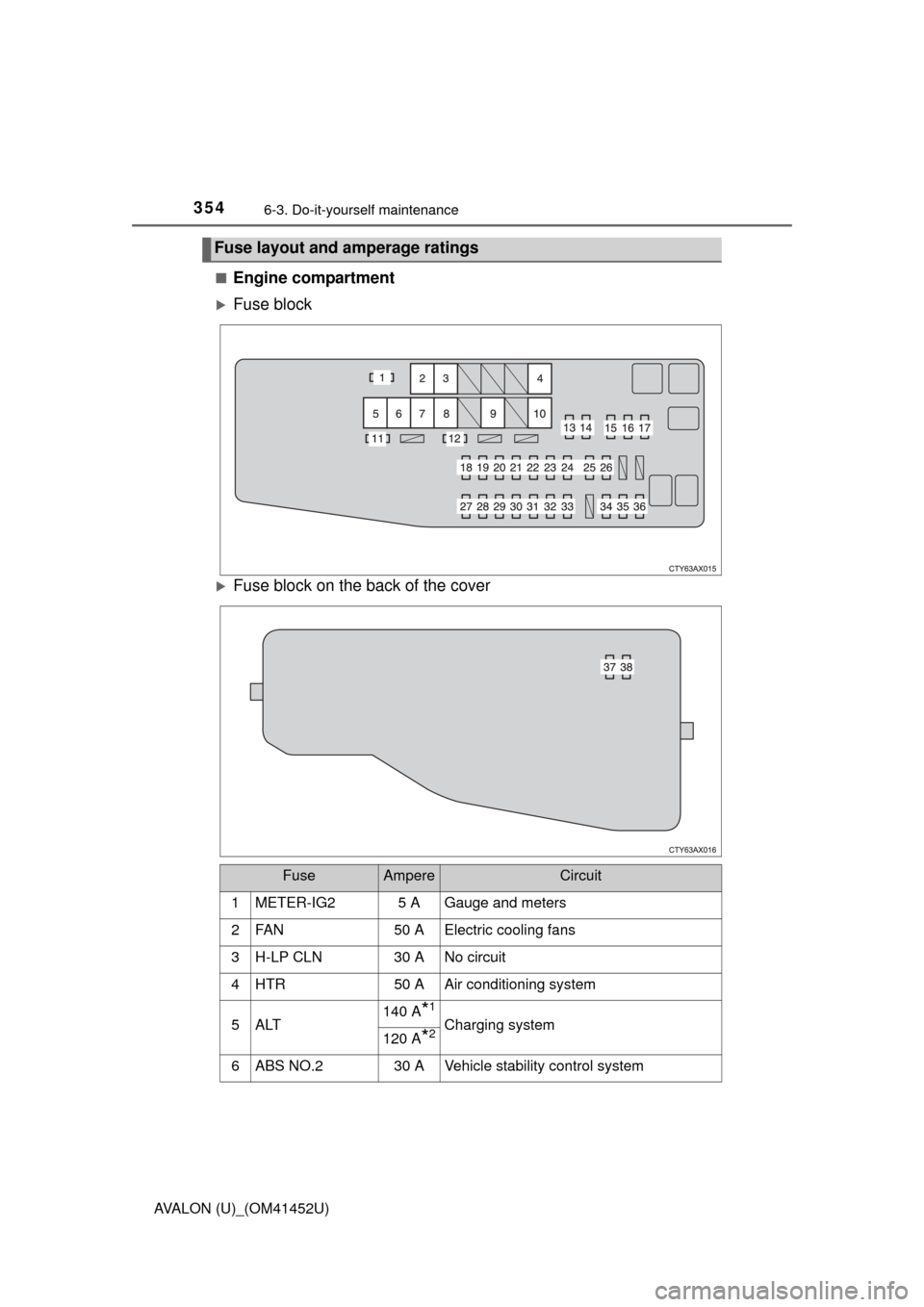

Engine compartment
Fuse block
Fuse block on the back of the cover
Fuse layout and amperage ratings
FuseAmpereCircuit
1 METER-IG2 5 A Gauge and meters
2 FAN 50 A Electric cooling fans
3 H-LP CLN 30 A No circuit
4 HTR 50 A Air conditioning system
5ALT 140 A
*1
Charging system
120 A*2
6 ABS NO.2 30 A Vehicle stability control system

3556-3. Do-it-yourself maintenance
6
Maintenance and care
AVALON (U)_(OM41452U)7 ST/AM2 30 A Starter system
8 H-LP-MAIN 30 A
H-LP LH-LO, H-LP RH-LO, headlights
(low beam)
9 ABS NO.1 50 A Vehicle stability control system
10 EPS 80 A Electric power steering 11 S-HORN 7.5 A S-HORN
12 HORN 10 A Horns
13 EFI NO.2 15 A Multiport fuel injection system/sequential
multiport fuel injection system, electronic
controlled transmission
14 EFI NO.3 10 A Multiport fuel injection system/sequential
multiport fuel injection system
15 INJ 7.5 A Multiport fuel injection system/sequential
multiport fuel injection system
16 ECU-IG2 NO.3 7.5 A Multiport fuel injection system/sequential
multiport fuel injection system, steering
lock system, electronic controlled trans-
mission, stop lights, high-mounted stop
light
17 IGN 15 A Starter system
18 D/L-AM2 20 A No circuit
19 IG2-MAIN 25 A IGN, INJ, METER-IG2, ECU-IG2 NO.3,
A/B, ECU-IG2 NO.2, ECU-IG2 NO.1
20 ALT-S 7.5 A Charging system
21 MAYDAY 5 A MAYDAY
22 TURN&HAZ 15 A Turn signal lights, emergency flashers,
gauge and meters
23 STRG LOCK 10 A Steering lock system
24 AMP 15 A Audio system
25 H-LP LH-LO 20 A
*1
Left-hand headlight (low beam)
15 A*2
26 H-LP RH-LO 20 A*1
Right-hand headlight (low beam)
15 A*2
FuseAmpereCircuit

3566-3. Do-it-yourself maintenance
AVALON (U)_(OM41452U)
*1:Vehicles with discharge headlight low beam
*2:Vehicles with halogen headlight low beam
27 EFI-MAIN NO.1 30 A EFI NO.2, EFI NO.3, A/F sensor
28 SMART 5 A No circuit
29 ETCS 10 A Electronic throttle control system
30 TOWING 20 A No circuit
31 EFI NO.1 7.5 A
Multiport fuel injection system/sequential
multiport fuel injection system, electronic
controlled transmission
32 A/F 20 A A/F sensor
33 AM2 7.5 A Smart key system
34 RADIO-B 20 A Audio system, navigation system
35 DOME 7.5 A Vanity lights, personal/interior lights,
trunk light, door courtesy lights, illumi-
nated entry system,
ambient light
36 ECU-B NO.1 10 AMultiplex communication system, smart
key system, gauge and meters, starter
system, steering sensor, air conditioning
system, outside rear view mirror, front
power seats
37 SPARE 25 A Spare fuse
38SPARE30 ASpare fuse
FuseAmpereCircuit

3576-3. Do-it-yourself maintenance
6
Maintenance and care
AVALON (U)_(OM41452U)■

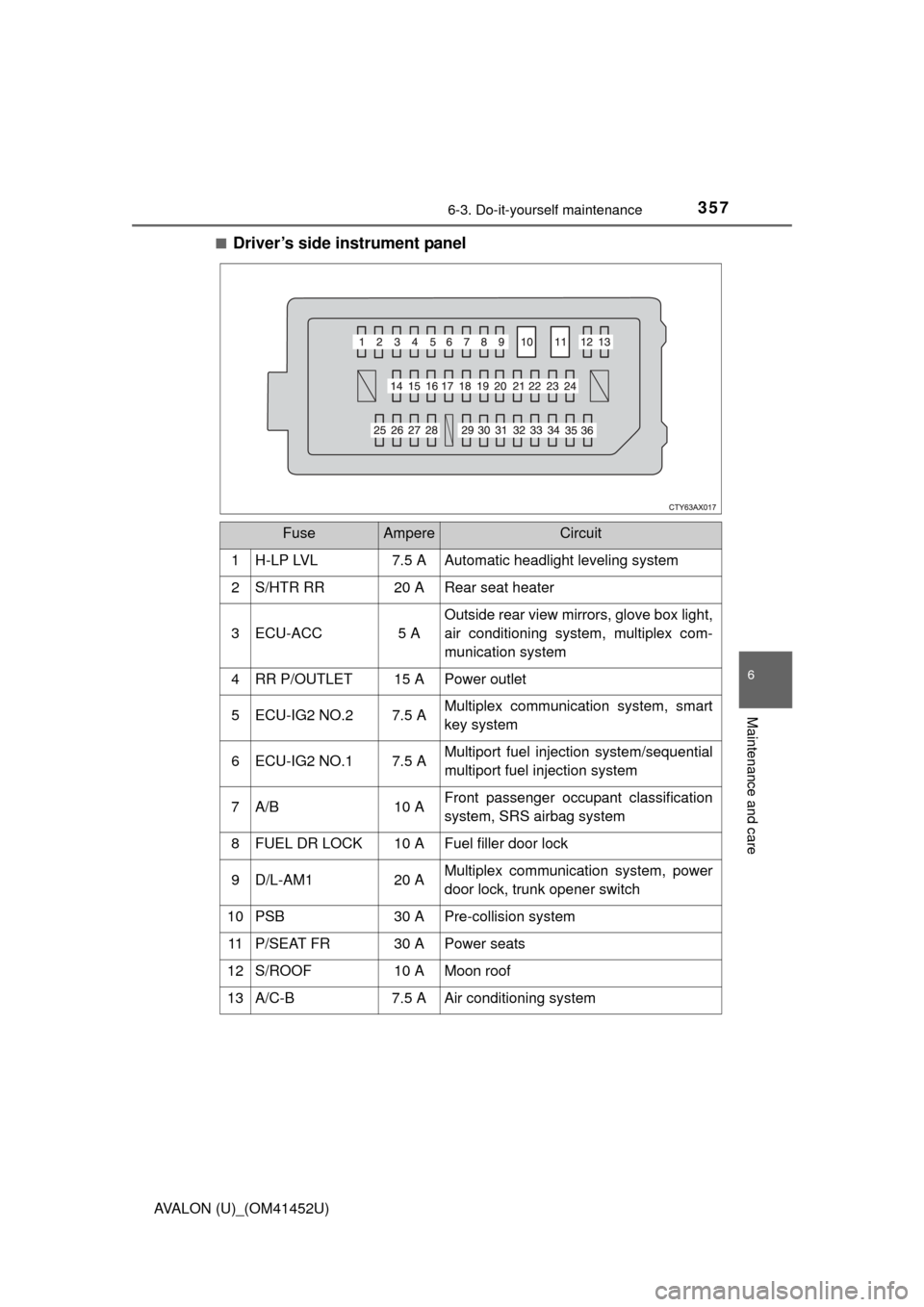

Driver’s side instrument panel
FuseAmpereCircuit
1 H-LP LVL 7.5 A Automatic headlight leveling system
2 S/HTR RR 20 A Rear seat heater
3 ECU-ACC 5 A Outside rear view mirrors, glove box light,
air conditioning system, multiplex com-
munication system
4 RR P/OUTLET 15 A Power outlet
5 ECU-IG2 NO.2 7.5 A Multiplex communication system, smart
key system
6 ECU-IG2 NO.1 7.5 A Multiport fuel injection system/sequential
multiport fuel injection system
7 A/B 10 A Front passenger occupant classification
system, SRS airbag system
8 FUEL DR LOCK 10 A Fuel filler door lock
9 D/L-AM1 20 A Multiplex communication system, power
door lock, trunk opener switch
10 PSB 30 A Pre-collision system 11 P/SEAT FR 30 A Power seats
12 S/ROOF 10 A Moon roof
13 A/C-B 7.5 A Air conditioning system

3586-3. Do-it-yourself maintenance
AVALON (U)_(OM41452U)14 STOP 7.5 A
Stop/tail lights, multiport fuel injection
system/sequential multiport fuel injection
system, vehicle stability control system,
anti-lock brake system, electronic con-
trolled transmission, high mounted stop-
light, smart key system, shift lock control
system
15 AM1 7.5 A No circuit
16 4-WAY LUMBAR 7.5 A Power seat
17 ECU-B NO.2 10 A Smart key system, tire pressure warning
system, power window, front passenger
occupant classification system
18 OBD 10 A On-board diagnosis system
19 S/HTR&FAN F/L 10 A Seat heaters
20 S/HTR&FAN F/R 10 A Seat heaters
21 RADIO-ACC 5 A Audio system, navigation system
22 FR P/OUTLET 15 A Power outlet
23 WIPER-S 10 A Dynamic radar cruise control, pre-colli-
sion system
24 EPS-IG1 7.5 A Electric power steering
25 BKUP LP 7.5 A Back-up lights, multiport fuel injection
system/sequential multiport fuel injection
system, electronic controlled transmis-
sion
26 WIPER 25 A Windshield wipers and washer
27 A/C-IG1 7.5 A Air conditioning system
28 WASHER 10 A Windshield wipers and washer
29 DOOR R/L 20 A Rear left-hand power windows
30 DOOR F/L 20 A Power windows, outside rear view mir-
rors
31 DOOR R/R 20 A Rear right-hand power windows
32 DOOR F/R 20 A Power windows, outside rear view mir-
rors
FuseAmpereCircuit

3596-3. Do-it-yourself maintenance
6
Maintenance and care
AVALON (U)_(OM41452U)33 TAIL 10 A
Parking lights, side marker lights, stop/tail
lights, rear turn signal lights, back up
lights, license plate lights, fog lights
34 PANEL 10 A Switch illumination, air conditioning sys-
tem, glove box light, interior lights, per-
sonal lights, audio system, navigation
system, rear sunshade, seat heater,
Blind Spot Monitor, driving mode select
switch, steering wheel switch, ambient
light, trunk opener switch, vehicle stability
control off switch, emergency flashers,
outside rear view mirrors
35 ECU-IG1 NO.1 10 A Vehicle stability control system, electric
cooling fans, steering sensor, multiport
fuel injection system/sequential multiport
fuel injection system, charging system,
rear window defogger, outside rear view
mirror defoggers, rain-sensing windshield
wipers, Blind Spot Monitor, rear sun-
shade, dynamic radar cruise control, mul-
tiplex communication system, rear seat
heater, backup lights, fog lights, headlight
(high beam), daytime running light, pre-
collision system
36 ECU-IG1 NO.2 10 A Shift lock control system, seat heaters,
smart key system, tire pressure warning
system, wireless remote control, multi-
plex communication system, audio sys-
tem, navigation system, moon roof, auto
anti-glare inside rear view mirror, outside
rear view mirrors, pre-collision system,
air conditioning controls, rain-sensing
windshield wipers, starting system,
dynamic radar cruise control
FuseAmpereCircuit

3606-3. Do-it-yourself maintenance
AVALON (U)_(OM41452U)
■After a fuse is replaced
●If the lights do not turn on even after the fuse has been replaced, a bulb may
need replacement. ( P. 361)
● If the replaced fuse blows again, have the vehicle inspected by your Toyota
dealer.
■ If there is an overload in a circuit
The fuses are designed to blow, protecting the wiring harness from damage.
■ When replacing light bulbs
Toyota recommends that you use genuine Toyota products designed for this
vehicle. Because certain bulbs are connected to circuits designed to prevent
overload, non-genuine parts or parts not designed for this vehicle may be
unusable.
CAUTION
■To prevent system breakdowns and vehicle fire
Observe the following precautions.
Failure to do so may cause damage to the vehicle, and possibly a fire or
injury.
● Never use a fuse of a higher amperage rating than that indicated, or use\
any other object in place of a fuse.
● Always use a genuine Toyota fuse or equivalent.
Never replace a fuse with a wire, even as a temporary fix.
● Do not modify the fuses or fuse boxes.
NOTICE
■Before replacing fuses
Have the cause of electrical overload determined and repaired by your
Toyota dealer as soon as possible.
