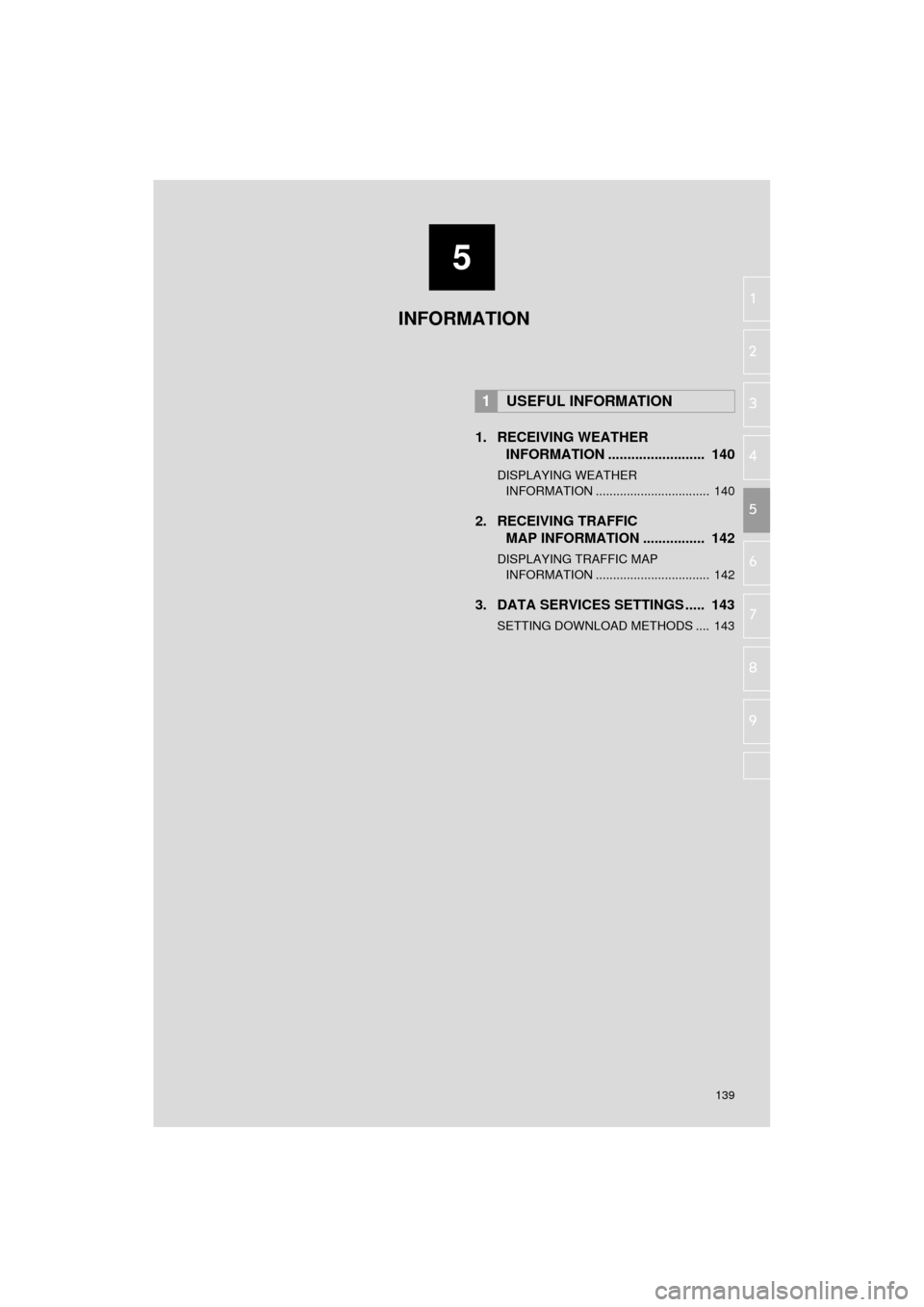

1. RECEIVING WEATHER
INFORMATION ......................... 140
DISPLAYING WEATHER
INFORMATION ................................. 140
2. RECEIVING TRAFFIC MAP INFORMATION ................ 142
DISPLAYING TRAFFIC MAP
INFORMATION ................................. 142
3. DATA SERVICES SETTINGS ..... 143
SETTING DOWNLOAD METHODS .... 143
1USEFUL INFORMATION
INFORMATION

140
AVA L O N _ N a v i _ U
1. USEFUL INFORMATION

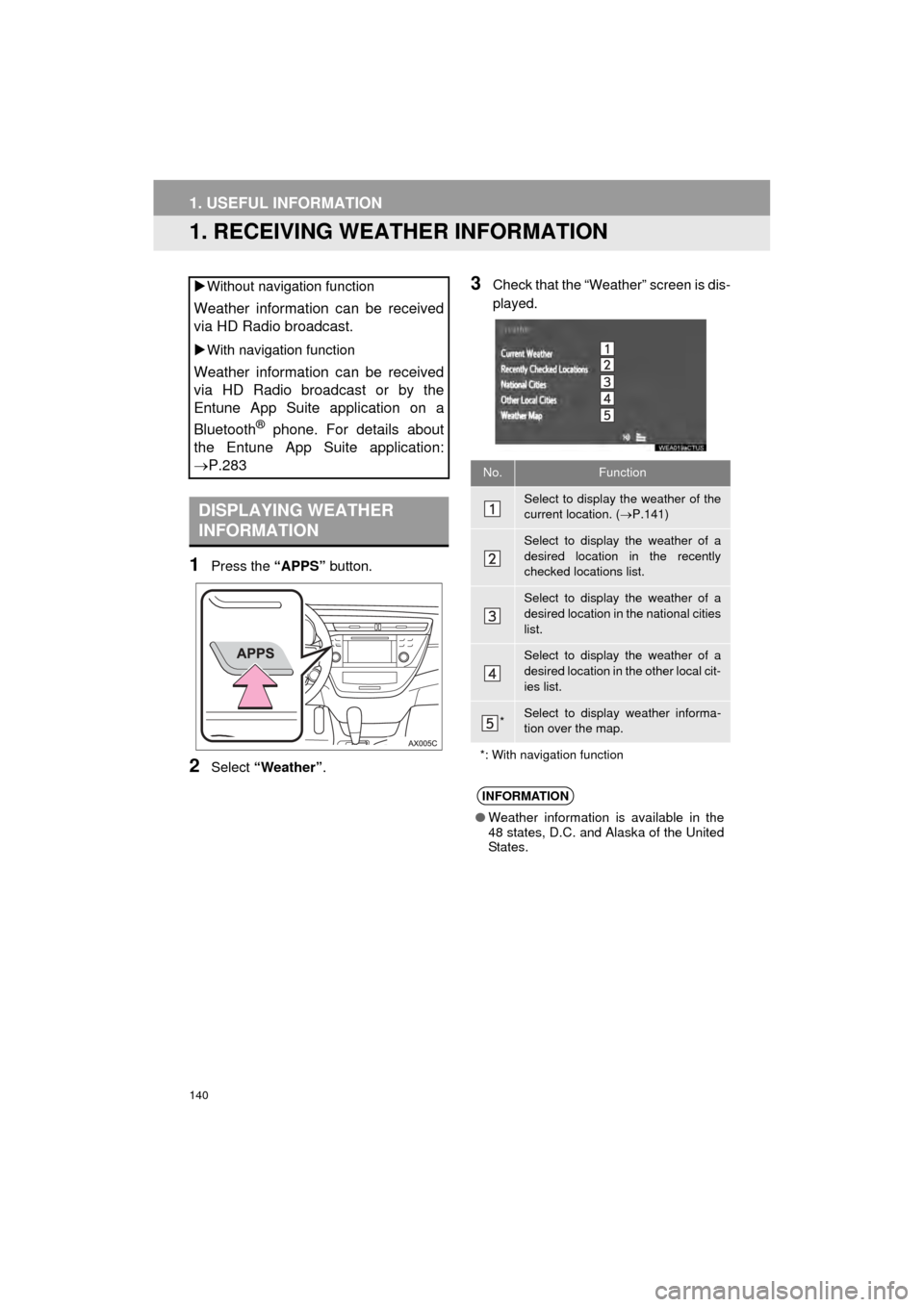

1. RECEIVING WEATHER INFORMATION
1Press the “APPS” button.
2Select “Weather” .
3Check that the “Weather” screen is dis-
played.

Without navigation function
Weather information can be received
via HD Radio broadcast.
With navigation function
Weather information can be received
via HD Radio broadcast or by the
Entune App Suite application on a
Bluetooth
® phone. For details about
the Entune App Suite application:
P.283
DISPLAYING WEATHER
INFORMATION
No.Function
Select to display the weather of the
current location. ( P.141)
Select to display the weather of a
desired location in the recently
checked locations list.
Select to display the weather of a
desired location in the national cities
list.
Select to display the weather of a
desired location in the other local cit-
ies list.
*Select to display weather informa-
tion over the map.
*: With navigation function
INFORMATION
● Weather information is available in the
48 states, D.C. and Alaska of the United
States.

141
1. USEFUL INFORMATION
AVA L O N _ N a v i _ U
INFORMATION
5
1Display the “Weather” screen.
(P.140)
2Select “Current Weather” .
3Select the desired tab to be displayed.
DISPLAYING THE WEATHER
OF THE CURRENT LOCATION
INFORMATION
●If weather is set to the home screen, the
weather screen of the current location
will be displayed.
● The weather might not show the closest
location when the engine
switch is in IGNITION ON mode.
It will show the closest as data comes in.

142
1. USEFUL INFORMATION
AVA L O N _ N a v i _ U

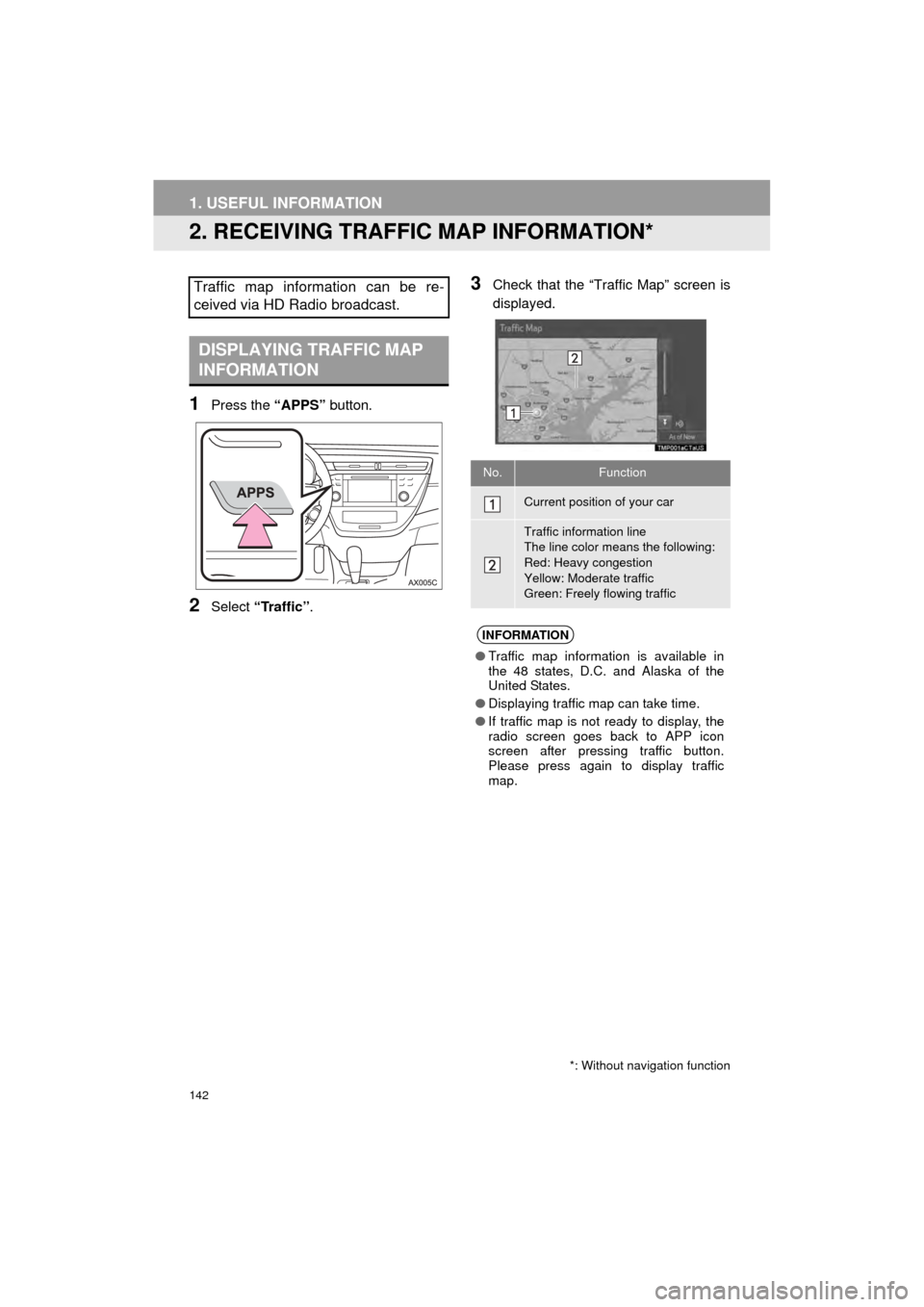

2. RECEIVING TRAFFIC MAP INFORMATION*
1Press the “APPS” button.
2Select “Traffic”.
3Check that the “Traffic Map” screen is
displayed.Traffic map information can be re-
ceived via HD Radio broadcast.
DISPLAYING TRAFFIC MAP
INFORMATION
*: Without navigation function
No.Function
Current position of your car
Traffic information line
The line color means the following:
Red: Heavy congestion
Yellow: Moderate traffic
Green: Freely flowing traffic
INFORMATION
●Traffic map information is available in
the 48 states, D.C. and Alaska of the
United States.
● Displaying traffic map can take time.
● If traffic map is not ready to display, the
radio screen goes back to APP icon
screen after pressing traffic button.
Please press again to display traffic
map.

6
145
AVA L O N _ N a v i _ U
4
5
7
8
9
1
2
3
6
1. REAR VIEW MONITOR
SYSTEM..................................... 146
DRIVING PRECAUTIONS ................... 146
SCREEN DESCRIPTION .................... 147
2. REAR VIEW MONITOR
SYSTEM PRECAUTIONS ......... 148
AREA DISPLAYED ON SCREEN ....... 148
THE CAMERA ..................................... 148
DIFFERENCES BETWEEN
THE SCREEN AND
THE ACTUAL ROAD ........................ 149
WHEN APPROACHING THREE-DIMENSIONAL
OBJECTS.......................................... 151
3. THINGS YOU SHOULD KNOW ........................................ 153
IF YOU NOTICE ANY SYMPTOMS .... 153
1. TOYOTA PARKING ASSIST MONITOR .................... 154
TOYOTA PARKING
ASSIST MONITOR ............................ 154
DRIVING PRECAUTIONS ................... 154
SCREEN DISPLAY .............................. 156
USING THE SYSTEM.......................... 157
2. ESTIMATED COURSE LINE DISPLAY MODE ....................... 159
SCREEN DESCRIPTION .................... 159
PARKING ............................................. 160
3. PARKING ASSIST GUIDE LINE DISPLAY MODE ....................... 161
SCREEN DESCRIPTION .................... 161
PARKING ............................................. 162
4. TOYOTA PARKING ASSIST MONITOR PRECAUTIONS....... 163
AREA DISPLAYED ON SCREEN........ 163
THE CAMERA ..................................... 164
DIFFERENCES BETWEEN
THE SCREEN AND
THE ACTUAL ROAD ......................... 165
WHEN APPROACHING THREE-DIMENSIONAL
OBJECTS .......................................... 166
5. THINGS YOU SHOULD KNOW ....................................... 168
IF YOU NOTICE ANY SYMPTOMS .... 168

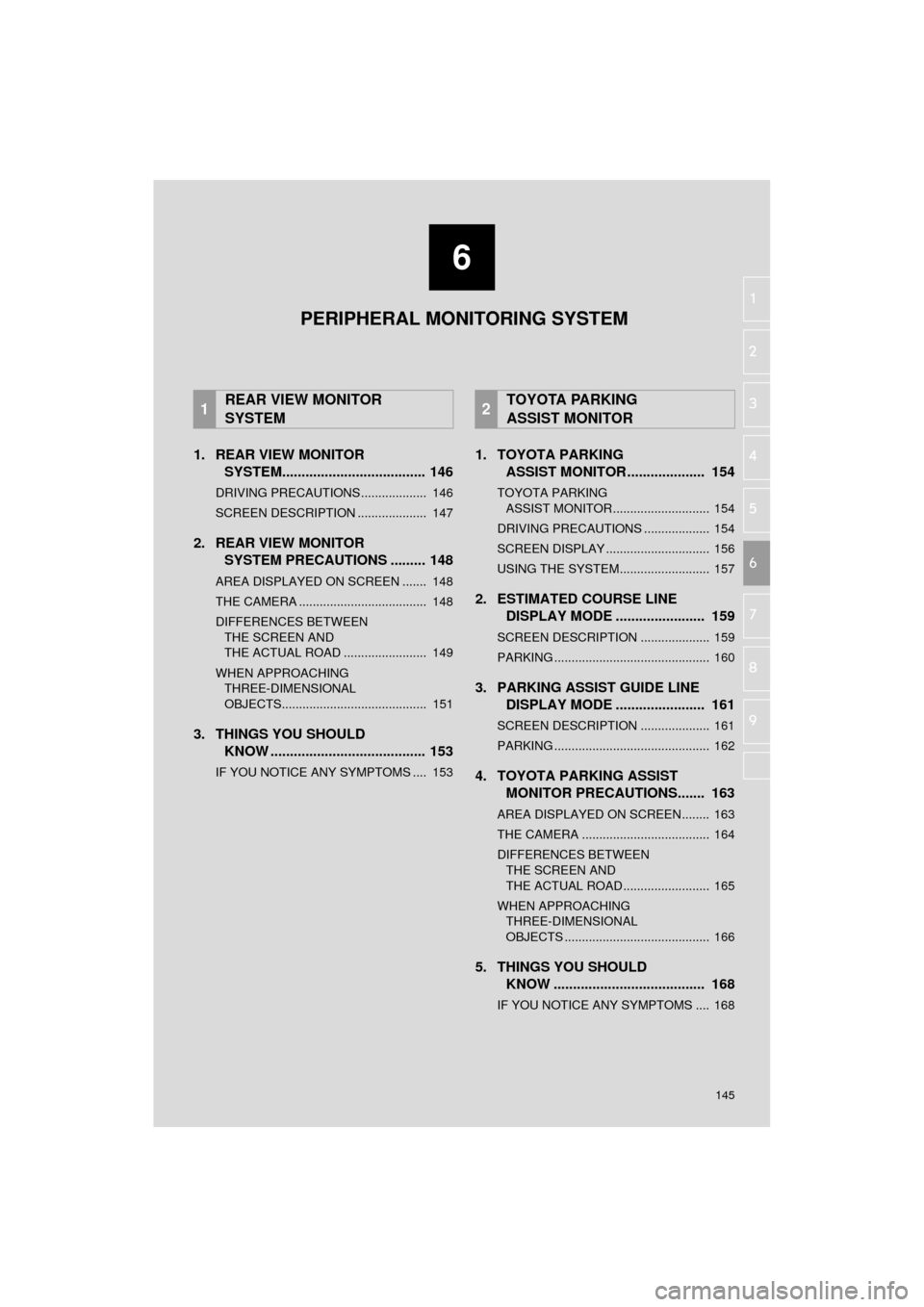

1REAR VIEW MONITOR
SYSTEM2TOYOTA PARKING
ASSIST MONITOR
PERIPHERAL MONITORING SYSTEM

146
AVA L O N _ N a v i _ U
1. REAR VIEW MONITOR SYSTEM
1. REAR VIEW MONITOR SYSTEM*
The rear view monitor system assists
the driver by displaying an image of the
view behind the vehicle while backing
up, for example while parking.
INFORMATION
●The screen illustrations used in this text
are intended as examples, and may dif-
fer from the image that is actually dis-
played on the screen.
DRIVING PRECAUTIONS
The rear view monitor system is a sup-
plemental device intended to assist the
driver when backing up. When backing
up, be sure to visually check all around
the vehicle both directly and using the
mirrors before proceeding. If you do
not, you may hit another vehicle, and
could possibly cause an accident.
Pay attention to the following precau-
tions when using the rear view monitor
system.
*: If equipped
CAUTION
●Never depend on the rear view monitor
system entirely when backing up. The
image and the position of the guide lines
displayed on the screen may differ from
the actual state.
Use caution, just as you would when
backing up any vehicle.
● Be sure to back up slowly, depressing
the brake pedal to control vehicle speed.
● The instructions given are only guide
lines. When and how much to turn the
steering wheel will vary according to
traffic conditions, road surface condi-
tions, vehicle condition, etc. when park-
ing. It is necessary to be fully aware of
this before using the rear view monitor
system.
● When parking, be sure to check that the
parking space will accommodate your
vehicle before maneuvering into it.
● Do not use the rear view monitor system
in the following cases:
• On icy or slick road surfaces, or in
snow
• When using tire chains or emergency tires
• When the trunk is not closed com- pletely
• On roads that are not flat or straight,
such as curves or slopes
● In low temperatures, the screen may
darken or the image may become faint.
The image could distort when the vehi-
cle is moving, or you may become
unable to see the image on the screen.
Be sure to visually check all around the
vehicle both directly and using the mir-
rors before proceeding.
● If the tire sizes are changed, the position
of the fixed guide lines displayed on the
screen may change.
● The camera uses a special lens. The
distances between objects and pedestri-
ans that appear in the image displayed
on the screen will differ from the actual
distances.( P.149)

147
1. REAR VIEW MONITOR SYSTEM
PERIPHERAL MONITORING SYSTEM
AVA L O N _ N a v i _ U
6

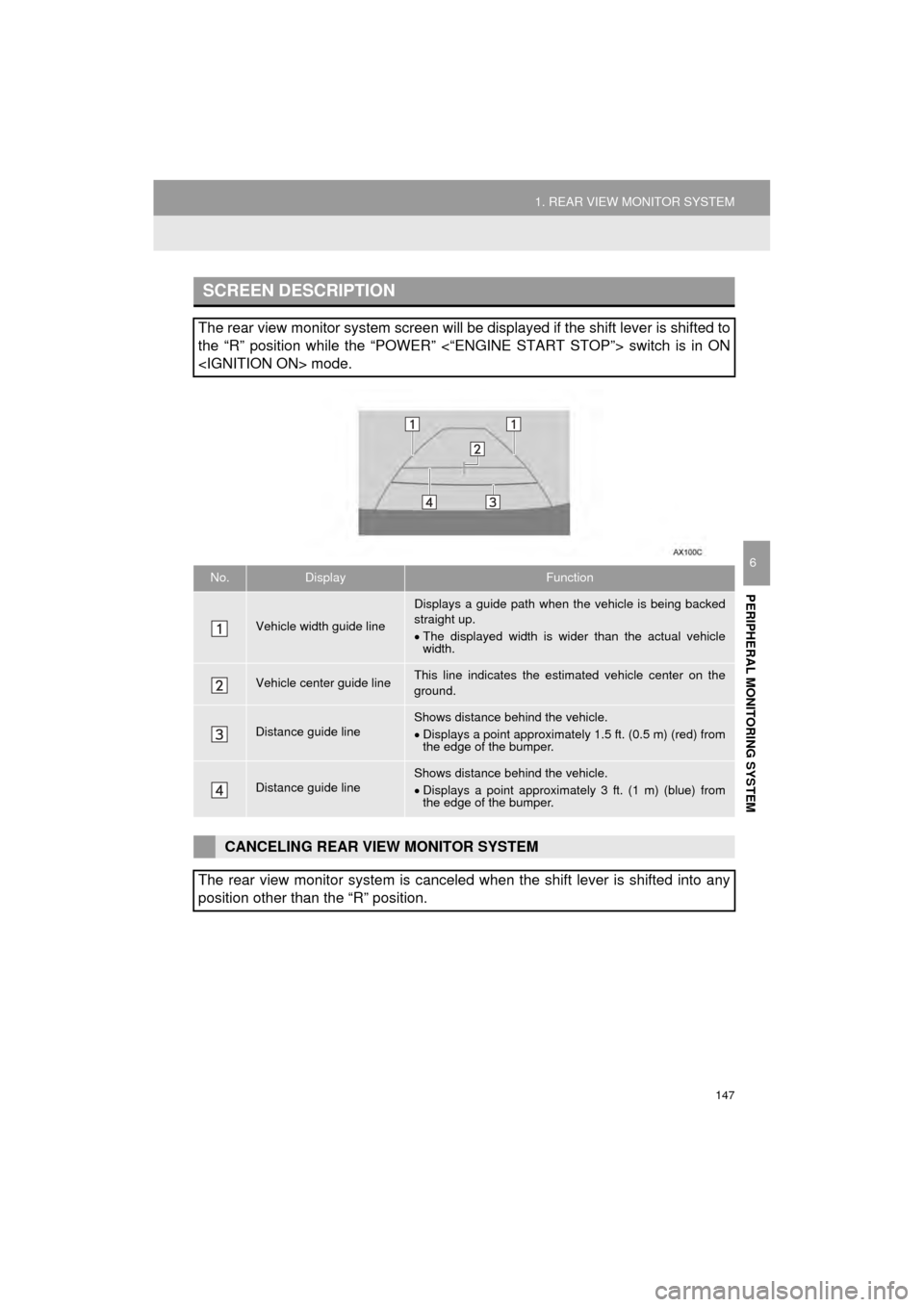

SCREEN DESCRIPTION
The rear view monitor system screen will be displayed if the shift lever is shifted to
the “R” position while the “POWER” <“ENGINE START STOP”> switch is in ON
mode.
No.DisplayFunction
Vehicle width guide line
Displays a guide path when t he vehicle is being backed
straight up.
 The displayed width is wider than the actual vehicle
width.
Vehicle center guide lineThis line indicates the estimated vehicle center on the
ground.
Distance guide lineShows distance behind the vehicle.
Displays a point approximately 1.5 ft. (0.5 m) (red) from
the edge of the bumper.
Distance guide lineShows distance behind the vehicle.
Displays a point approximately 3 ft. (1 m) (blue) from
the edge of the bumper.
CANCELING REAR VIEW MONITOR SYSTEM
The rear view monitor system is canceled when the shift lever is shifted into any
position other than the “R” position.

148
1. REAR VIEW MONITOR SYSTEM
AVA L O N _ N a v i _ U
2. REAR VIEW MONITOR SYSTEM PRECAUTIONS
The image adjustment procedure for the
rear view monitor system screen is the
same as the procedure for adjusting the
navigation screen. ( P. 4 1 )

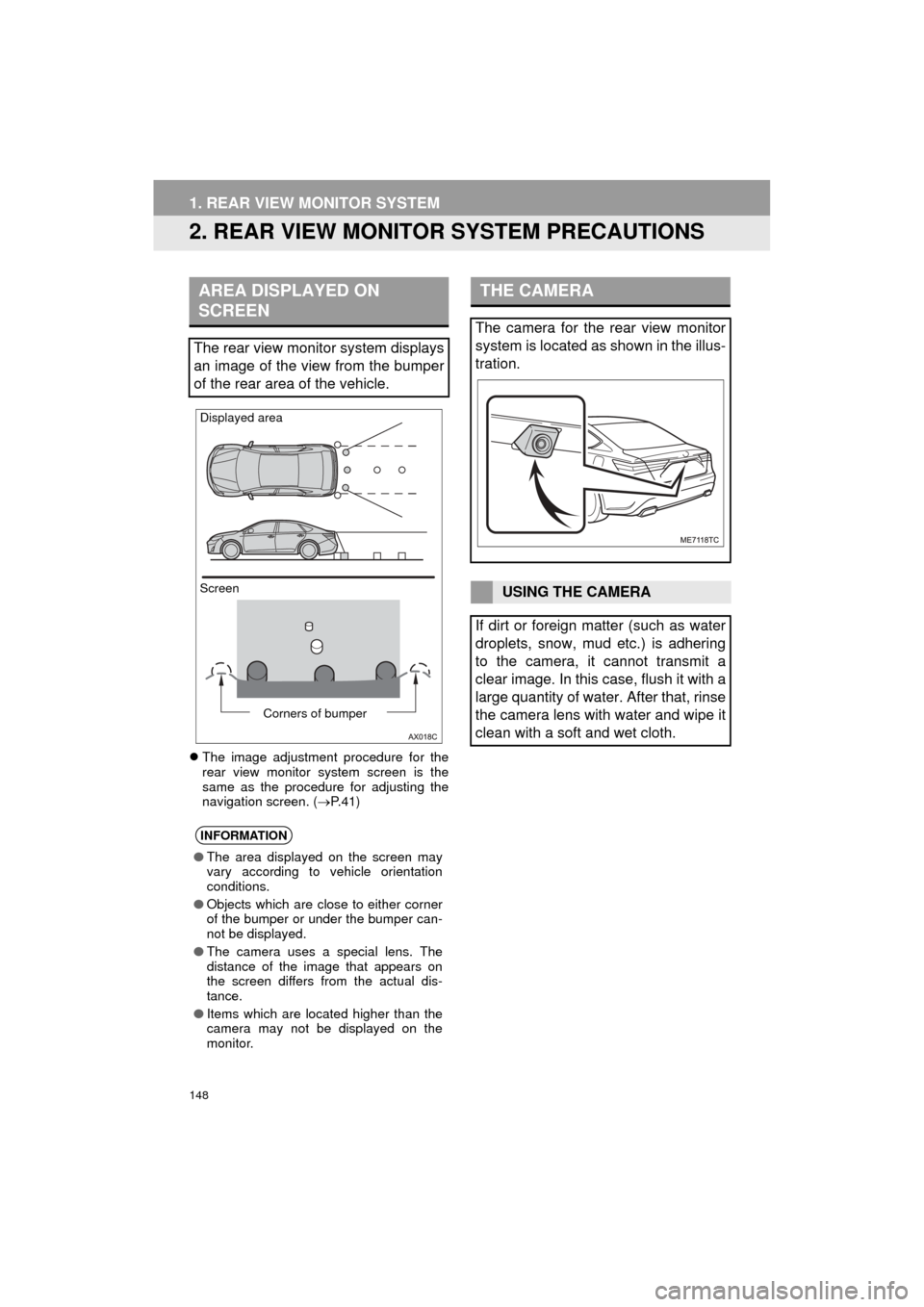

AREA DISPLAYED ON
SCREEN
The rear view monitor system displays
an image of the view from the bumper
of the rear area of the vehicle.
INFORMATION
● The area displayed on the screen may
vary according to vehicle orientation
conditions.
● Objects which are close to either corner
of the bumper or under the bumper can-
not be displayed.
● The camera uses a special lens. The
distance of the image that appears on
the screen differs from the actual dis-
tance.
● Items which are located higher than the
camera may not be displayed on the
monitor.
Screen Displayed area
Corners of bumper
THE CAMERA
The camera for the rear view monitor
system is located as shown in the illus-
tration.
USING THE CAMERA
If dirt or foreign matter (such as water
droplets, snow, mud etc.) is adhering
to the camera, it cannot transmit a
clear image. In this case, flush it with a
large quantity of water. After that, rinse
the camera lens with water and wipe it
clean with a soft and wet cloth.

151
1. REAR VIEW MONITOR SYSTEM
PERIPHERAL MONITORING SYSTEM
AVA L O N _ N a v i _ U
6

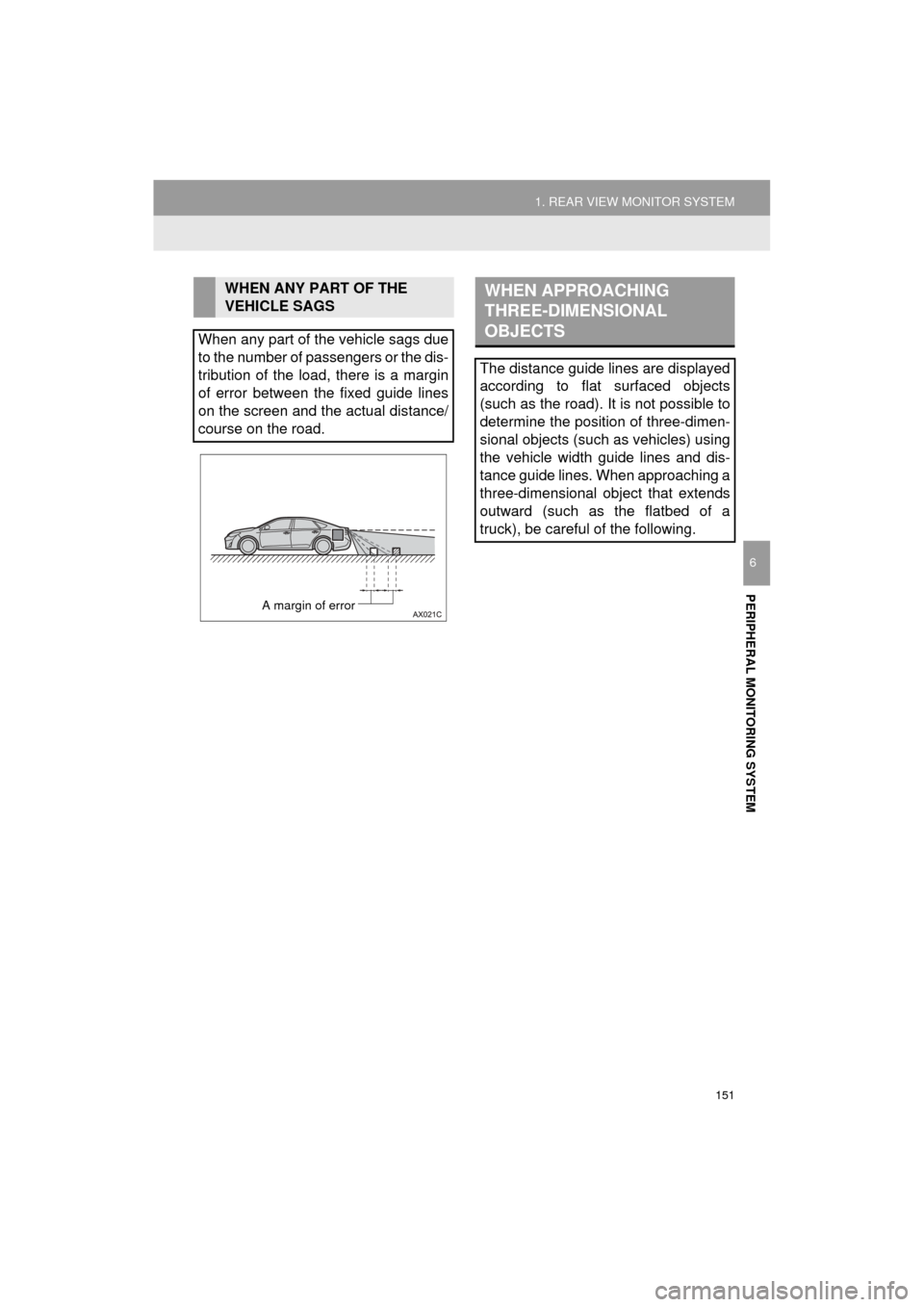

WHEN ANY PART OF THE
VEHICLE SAGS
When any part of the vehicle sags due
to the number of passengers or the dis-
tribution of the load, there is a margin
of error between the fixed guide lines
on the screen and the actual distance/
course on the road.
A margin of error
WHEN APPROACHING
THREE-DIMENSIONAL
OBJECTS
The distance guide lines are displayed
according to flat surfaced objects
(such as the road). It is not possible to
determine the position of three-dimen-
sional objects (such as vehicles) using
the vehicle width guide lines and dis-
tance guide lines. When approaching a
three-dimensional object that extends
outward (such as the flatbed of a
truck), be careful of the following.

154
AVA L O N _ N a v i _ U
2. TOYOTA PARKING ASSIST MONITOR
1. TOYOTA PARKING ASSIST MONITOR*
TOYOTA PARKING ASSIST
MONITOR
The parking assist monitor assists the
driver by displaying an image of the
view behind the vehicle while backing
up, for example while parking.
INFORMATION
●The screen illustrations used in this text
are intended as examples, and may dif-
fer from the image that is actually dis-
played on the screen.
*: If equipped
DRIVING PRECAUTIONS
The parking assist monitor is a supple-
mental device intended to assist the
driver when backing up. When backing
up, be sure to visually check all around
the vehicle both directly and using the
mirrors before proceeding. If you do
not, you may hit another vehicle, and
could possibly cause an accident.
Pay attention to the following precau-
tions when using the parking assist
monitor.
CAUTION
●Never depend on the parking assist
monitor entirely when backing up. The
image and the position of the guide lines
displayed on the screen may differ from
the actual state.
Use caution, just as you would when
backing up any vehicle.
● Be sure to back up slowly, depressing
the brake pedal to control vehicle speed.
● If you seem likely to hit nearby vehicles,
obstacles, people or mount the shoulder,
depress the brake pedal to stop the
vehicle.
