TOYOTA AVALON 2019 Accessories, Audio & Navigation (in English)

30

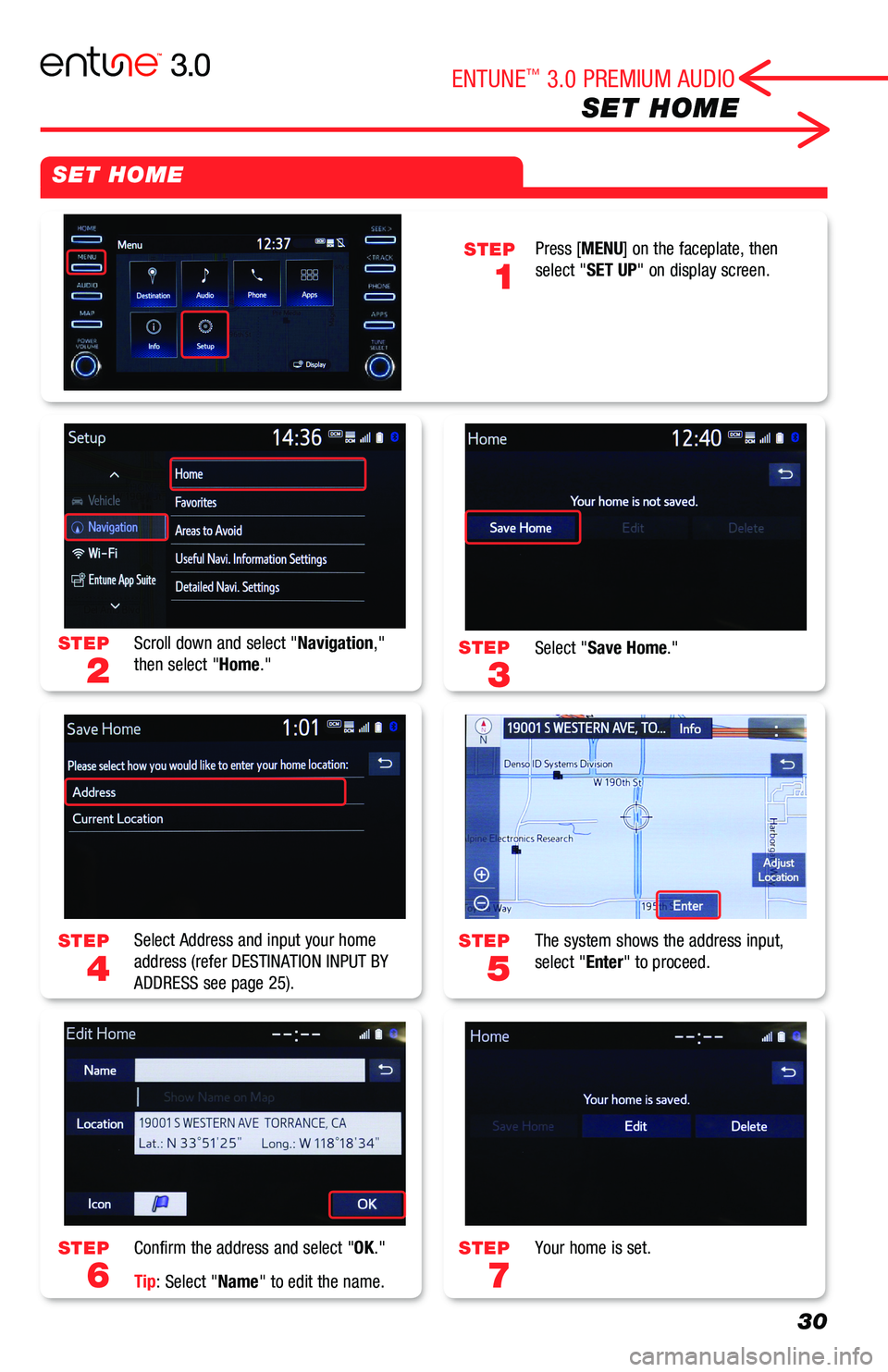

SET HOME
STEP
3
STEP
5
STEP
7
STEP
2
STEP
4
STEP
6
Select "Save Home."
The system shows the address input,select "Enter" to proceed.
Your home is set.
Scroll down and select "Navigation," then select "Home."
Select Address and input your home address (refer DESTINATION INPUT BY ADDRESS see page 25).
Confirm the address and select "OK."
Tip: Select "Name" to edit the name.
SET HOME
STEP
1
Press [MENU] on the faceplate, then select "SET UP" on display screen.
ENTUNE™ 3.0 PREMIUM AUDIO

31

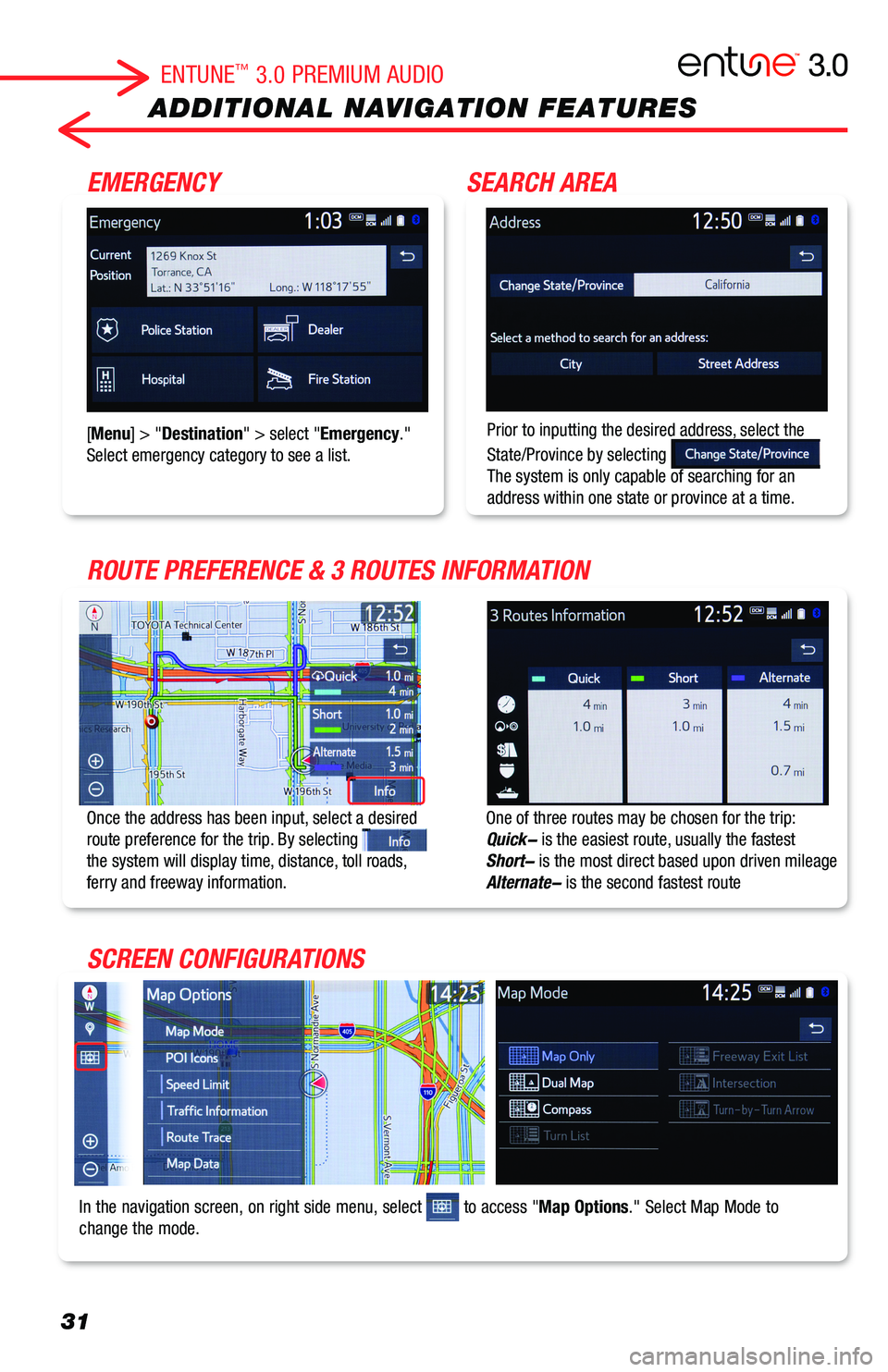

ADDITIONAL NAVIGATION FEATURES
One of three routes may be chosen for the trip: Quick- is the easiest route, usually the fastestShort- is the most direct based upon driven mileageAlternate- is the second fastest route
Once the address has been input, select a desired route preference for the trip. By selecting the system will display time, distance, toll roads, ferry and freeway information.
In the navigation screen, on right side menu, select to access "Map Options." Select Map Mode to change the mode.ン
Prior to inputting the desired address, select the
State/Province by selecting The system is only capable of searching for an address within one state or province at a time.
[Menu] > "Destination" > select "Emergency." Select emergency category to see a list.
EMERGENCY
ROUTE PREFERENCE & 3 ROUTES INFORMATION
SCREEN CONFIGURATIONS
SEARCH AREA
ENTUNE™ 3.0 PREMIUM AUDIO

32
ADDITIONAL NAVIGATION FEATURES
[Menu] > "Setup" > "General" > "Clock.""Auto Adjust by GPS"> "OFF," you can adjust time by yourself.
Once the screen transition is "OFF," the audio screen will remain without reverting to the map display.
[Menu] > "Setup" > "Voice"> "Voice Volume."select to pull down and select number to adjust the Voice Guidance volume level.
[Menu] > "Setup" > "General" > "Beep."Toggle ON or OFF.
[Menu] > "Setup" > "General" > "Language."Select pulldown to select your language preference from: English, Español or Français.
BEEP SETTING*
LANGUAGE*
AUTO CHANGE TO SCREEN*1
VOICE VOLUME*
SYSTEM TIME*
CACHÉ RADIO2
The Caché Radio features a pause function that will record the last 20 minutes of live radio and up to 1 hour of SiriusXM for playback later.
NOTE: When the vehicle is turned off or the radio station is changed, any saved audio content will be lost.*Beep, Voice, Language, System are on all Entune™ 3.0 Systems. 1Available Entune™ 3.0 Premium Audio only.2AM/FM/HD with Cache Radio Available on Entune™ 3.0 Premium Audio only. SiriusXM with Cache Radio Available on Entune™ 3.0 Audio Plus and Entune™ 3.0 Premium Audio.
ENTUNE™ 3.0 PREMIUM AUDIO

33

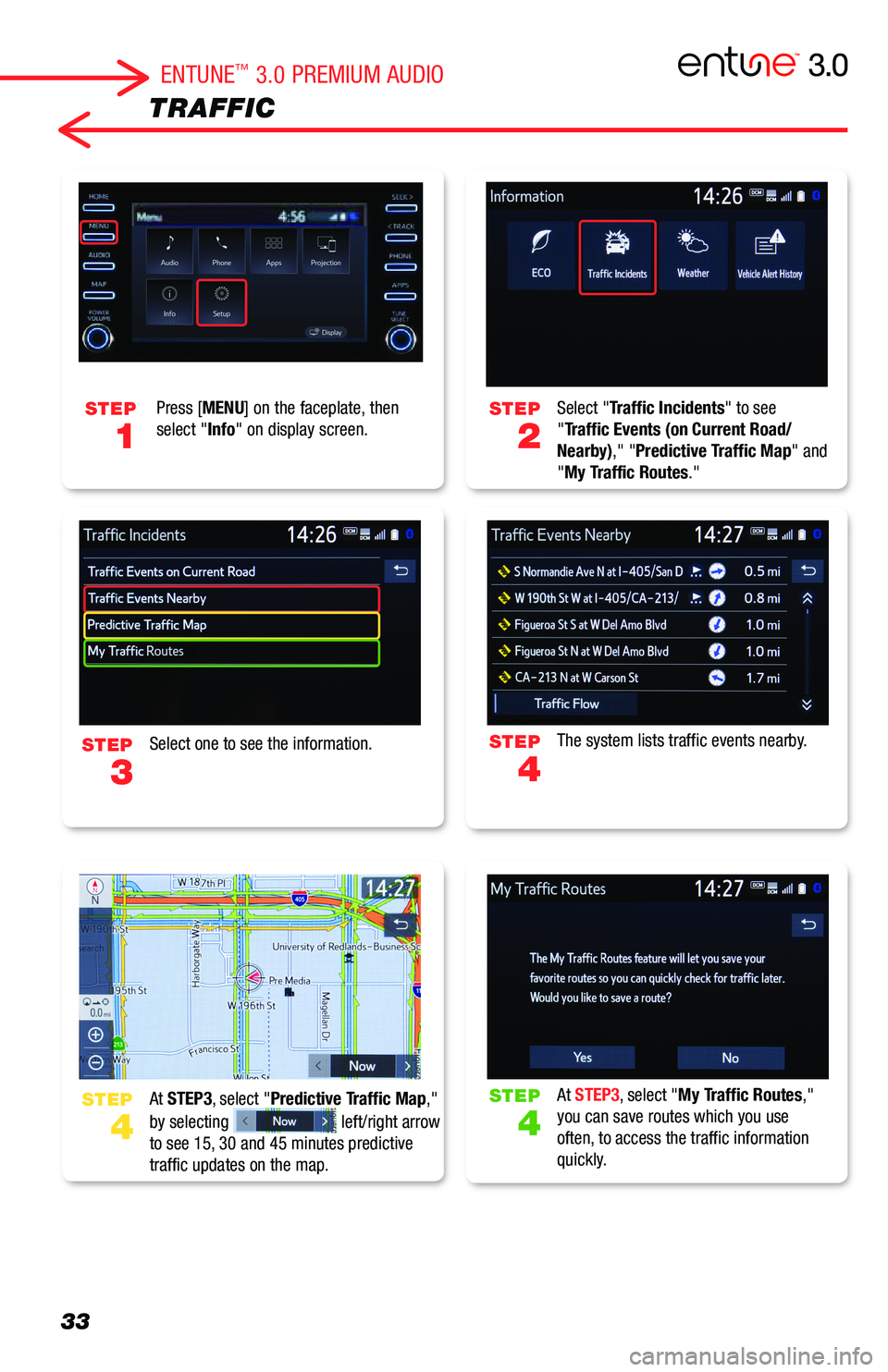

TRAFFIC
Select "Traffic Incidents" to see "Traffic Events (on Current Road/Nearby)," "Predictive Traffic Map" and "My Traffic Routes."
The system lists traffic events nearby.
At STEP3, select "My Traffic Routes,"you can save routes which you use often, to access the traffic information quickly.
Select one to see the information.
At STEP3, select "Predictive Traffic Map,"
by selecting left/right arrow to see 15, 30 and 45 minutes predictive traffic updates on the map.
STEP
1
STEP
2
STEP
4
STEP
4
Press [MENU] on the faceplate, then select "Info" on display screen.
STEP
STEP
3
4
ENTUNE™ 3.0 PREMIUM AUDIO

34

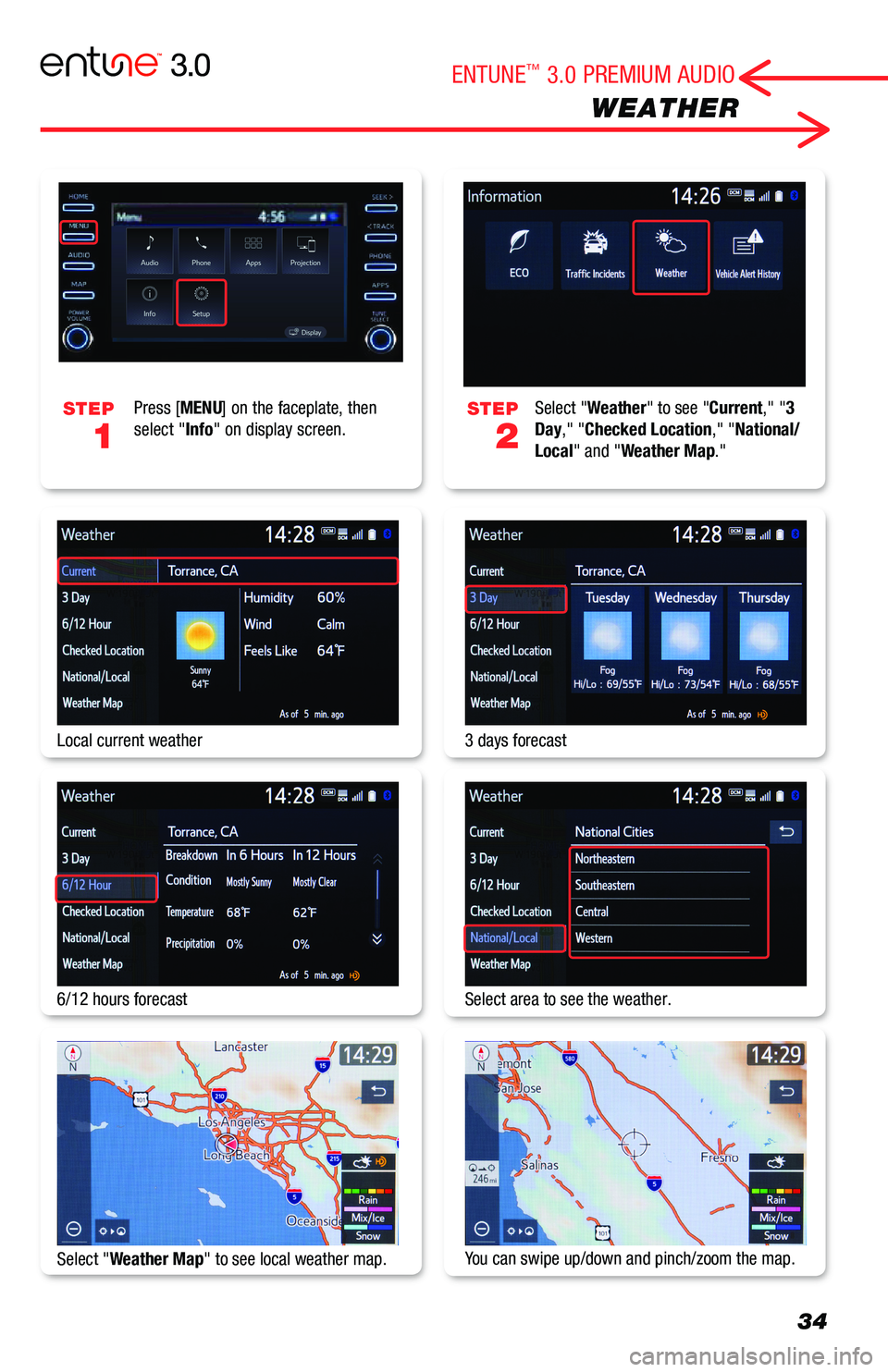

WEATHER
Select "Weather" to see "Current," "3 Day," "Checked Location," "National/Local" and "Weather Map."
Local current weather
6/12 hours forecast
Select "Weather Map" to see local weather map.
3 days forecast
Select area to see the weather.
You can swipe up/down and pinch/zoom the map.
STEP
1
STEP
2
Press [MENU] on the faceplate, then select "Info" on display screen.
ENTUNE™ 3.0 PREMIUM AUDIO

35

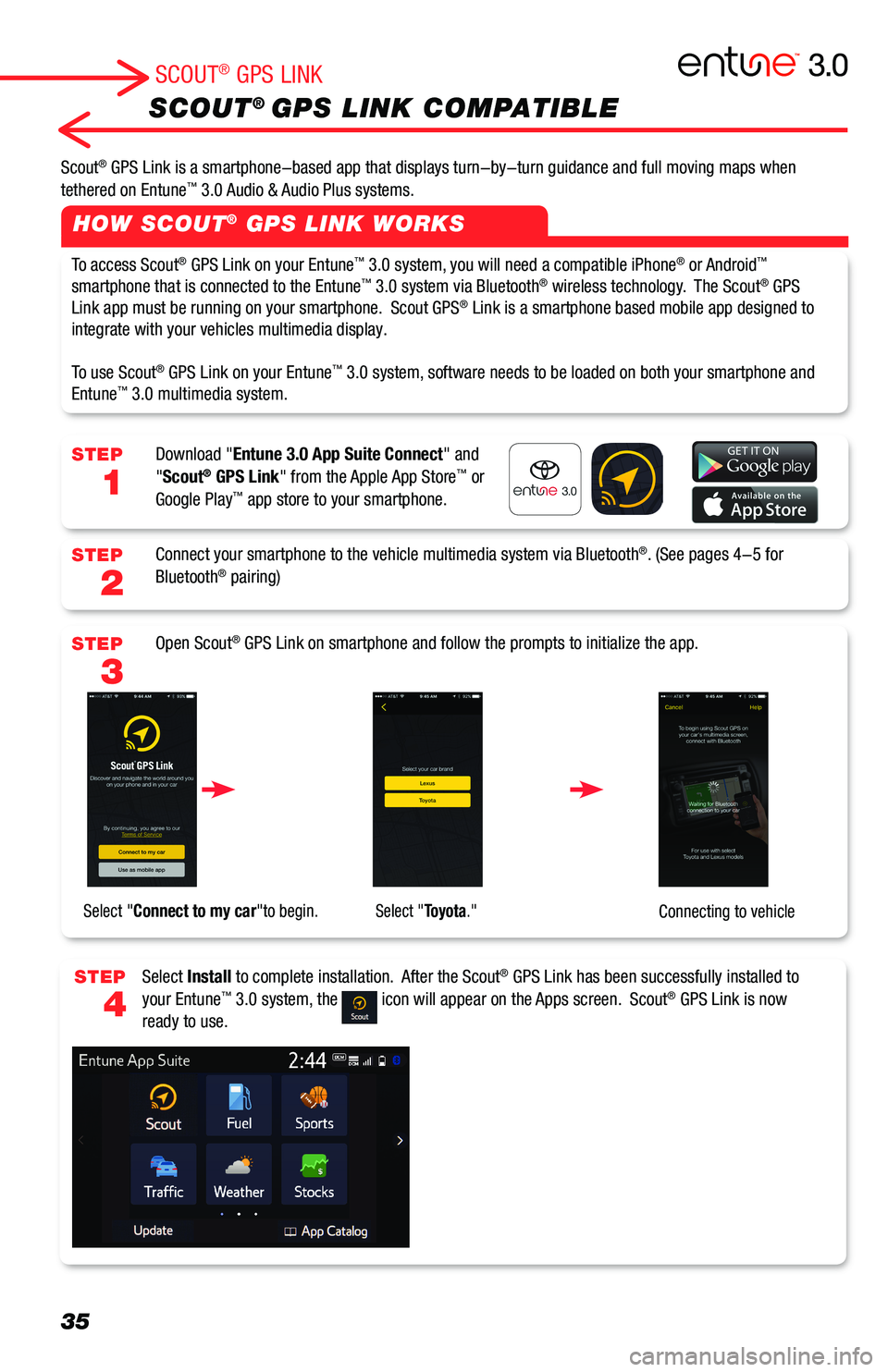

SCOUT® GPS LINK COMPATIBLE
HOW SCOUT® GPS LINK WORKS
STEP
1
STEP
2
STEP
3
STEP
4
SCOUT® GPS LINK
Scout® GPS Link is a smartphone-based app that displays turn-by-turn guidance and full moving maps when tethered on Entune™ 3.0 Audio & Audio Plus systems.
To access Scout® GPS Link on your Entune™ 3.0 system, you will need a compatible iPhone® or Android™ smartphone that is connected to the Entune™ 3.0 system via Bluetooth® wireless technology. The Scout® GPS Link app must be running on your smartphone. Scout GPS® Link is a smartphone based mobile app designed to integrate with your vehicles multimedia display.
To use Scout® GPS Link on your Entune™ 3.0 system, software needs to be loaded on both your smartphone and Entune™ 3.0 multimedia system.
Download "Entune 3.0 App Suite Connect" and "Scout® GPS Link" from the Apple App Store™ or Google Play™ app store to your smartphone.
Connect your smartphone to the vehicle multimedia system via Bluetooth®. (See pages 4-5 for Bluetooth® pairing)
Open Scout® GPS Link on smartphone and follow the prompts to initialize the app.
Select Install to complete installation. After the Scout® GPS Link has been successfully installed to your Entune™ 3.0 system, the icon will appear on the Apps screen. Scout® GPS Link is now ready to use.
Select "Connect to my car"to begin. Select "Toyota."Connecting to vehicle

ACCESS TO SCOUT® GPS LINK
On the smartphone that is connected to the
Entune™ system, select the App to launch
Scout® GPS Link. Follow the set-up prompts
on your compatible smartphone.
On the Entune™ 3.0 system, select APPS to
open the Apps menu screen. Press [APPS] on
the faceplate, then select "SCOUT GPS Link."
Entune™ 3.0 Audio/Entune™ 3.0 Audio Plus
STEP
5
36

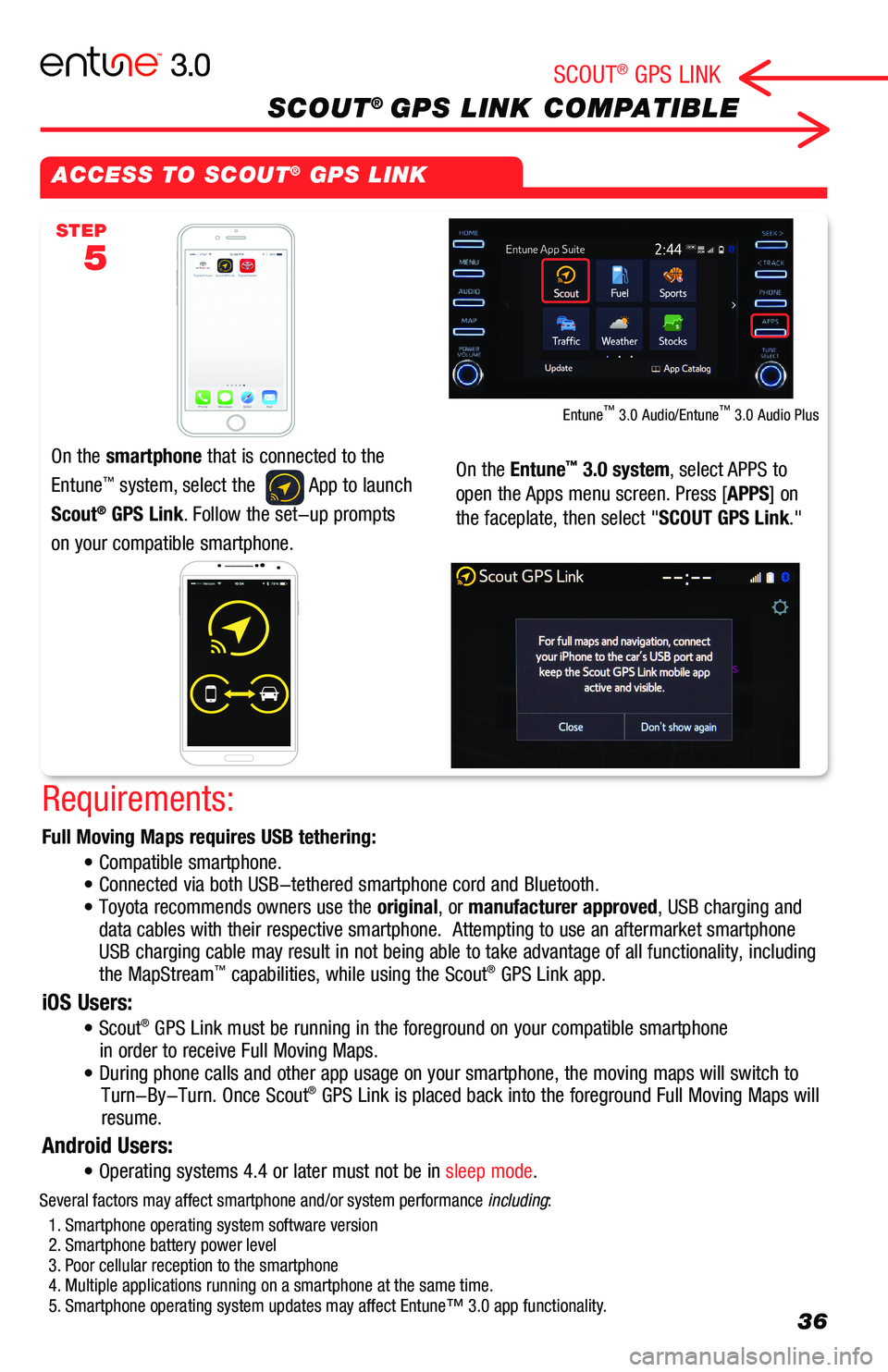

SCOUT® GPS LINK COMPATIBLE
SCOUT® GPS LINK
Requirements:
Full Moving Maps requires USB tethering:
iOS Users:
Android Users:
• Compatible smartphone. • Connected via both USB-tethered smartphone cord and Bluetooth.• Toyota recommends owners use the original, or manufacturer approved, USB charging and data cables with their respective smartphone. Attempting to use an afte\
rmarket smartphone USB charging cable may result in not being able to take advantage of all\
functionality, including the MapStream™ capabilities, while using the Scout® GPS Link app.
• Scout® GPS Link must be running in the foreground on your compatible smartphon\
e in order to receive Full Moving Maps.• During phone calls and other app usage on your smartphone, the movi\
ng maps will switch to Turn-By-Turn. Once Scout® GPS Link is placed back into the foreground Full Moving Maps will resume.
• Operating systems 4.4 or later must not be in sleep mode.
1. Smartphone operating system software version2. Smartphone battery power level3. Poor cellular reception to the smartphone4. Multiple applications running on a smartphone at the same time.5. Smartphone operating system updates may affect Entune™ 3.0 app functionality.
Several factors may affect smartphone and/or system performance including:

37

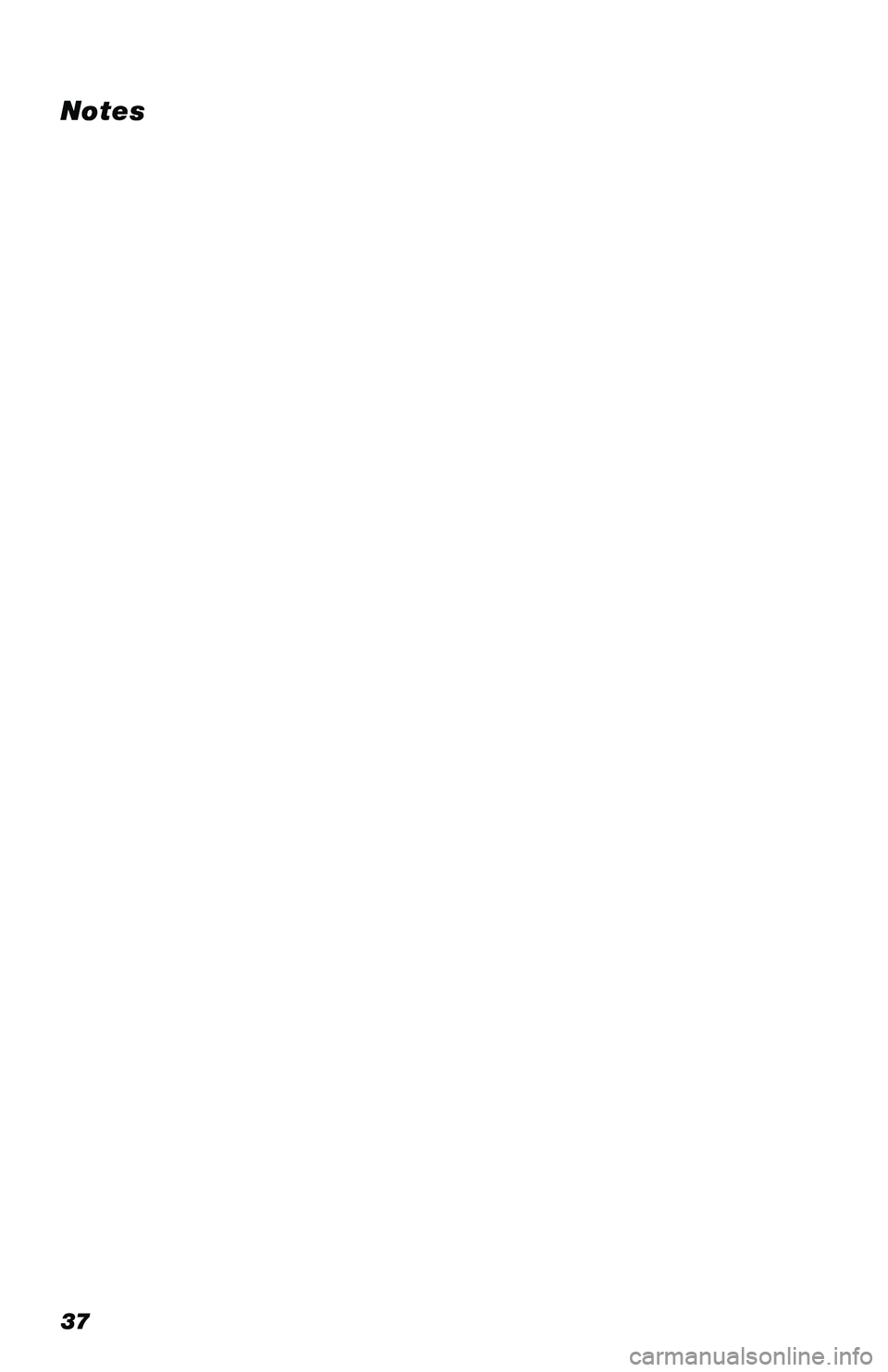

Notes
