TOYOTA AVALON 2020 Accessories, Audio & Navigation (in English)

141
1. USEFUL INFORMATION
INFORMATION
5

142

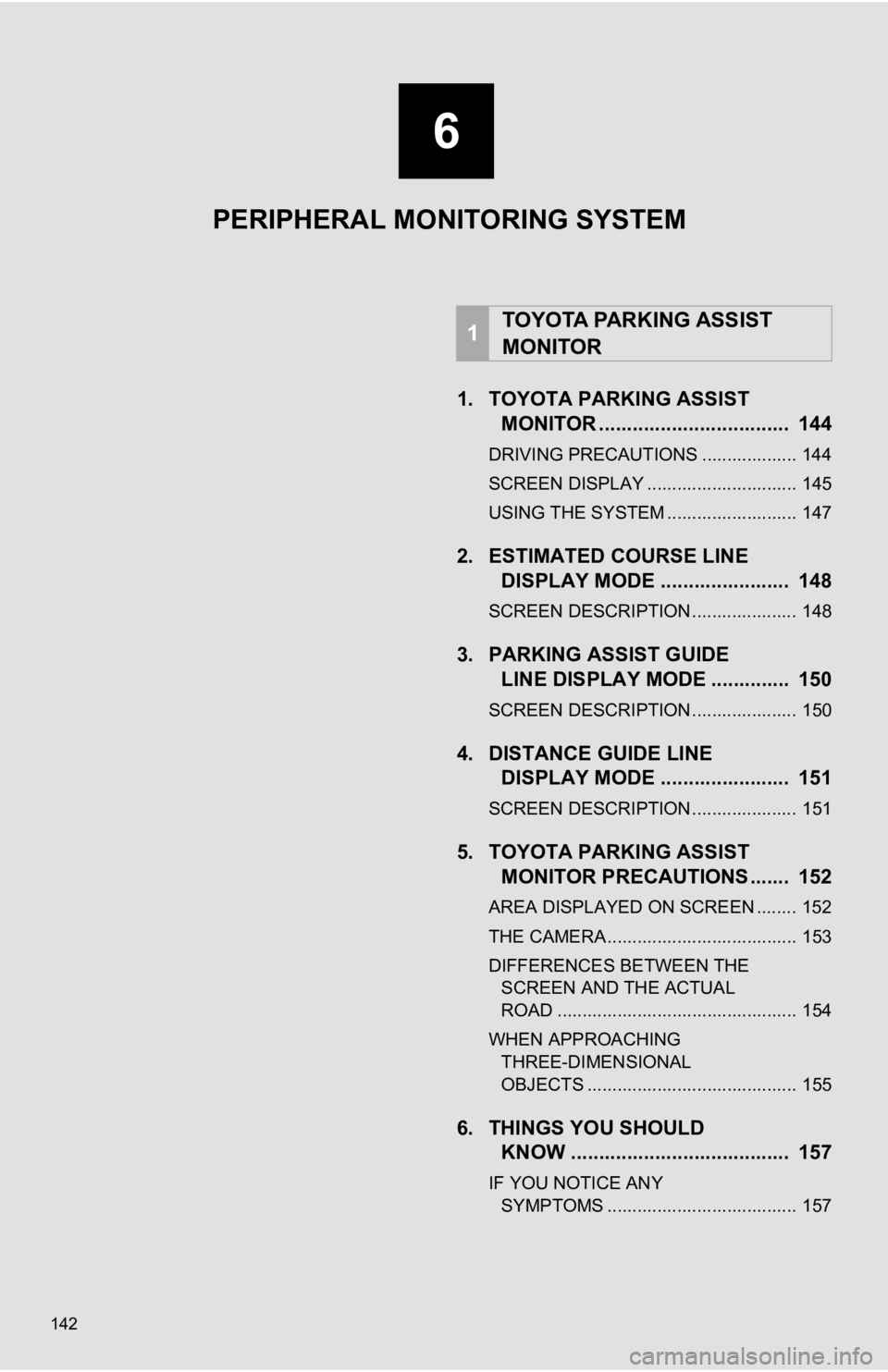

1. TOYOTA PARKING ASSISTMONITOR .................................. 144
DRIVING PRECAUTIONS ................... 144
SCREEN DISPLAY .............................. 145
USING THE SYSTEM .......................... 147
2. ESTIMATED C OURSE LINE
DISPLAY MODE ....................... 148
SCREEN DESCRIPTION ..................... 148
3. PARKING ASSIST GUIDE LINE DISPLAY MODE .............. 150
SCREEN DESCRIPTION ..................... 150
4. DISTANCE GUIDE LINEDISPLAY MODE ....................... 151
SCREEN DESCRIPTION ..................... 151
5. TOYOTA PARKING ASSIST
MONITOR PRECAUTIONS ....... 152
AREA DISPLAYED ON SCREEN ........ 152
THE CAMERA ...................................... 153
DIFFERENCES BETWEEN THE
SCREEN AND THE ACTUAL
ROAD ................................................ 154
WHEN APPROACHING THREE-DIMENSIONAL
OBJECTS .......................................... 155
6. THINGS YOU SHOULD KNOW ....................................... 157
IF YOU NOTICE ANY
SYMPTOMS ...................................... 157
1TOYOTA PARKING ASSIST
MONITOR
6
PERIPHERAL MONITORING SYSTEM

6
143
4
5
7
8
9
1
2
3
6

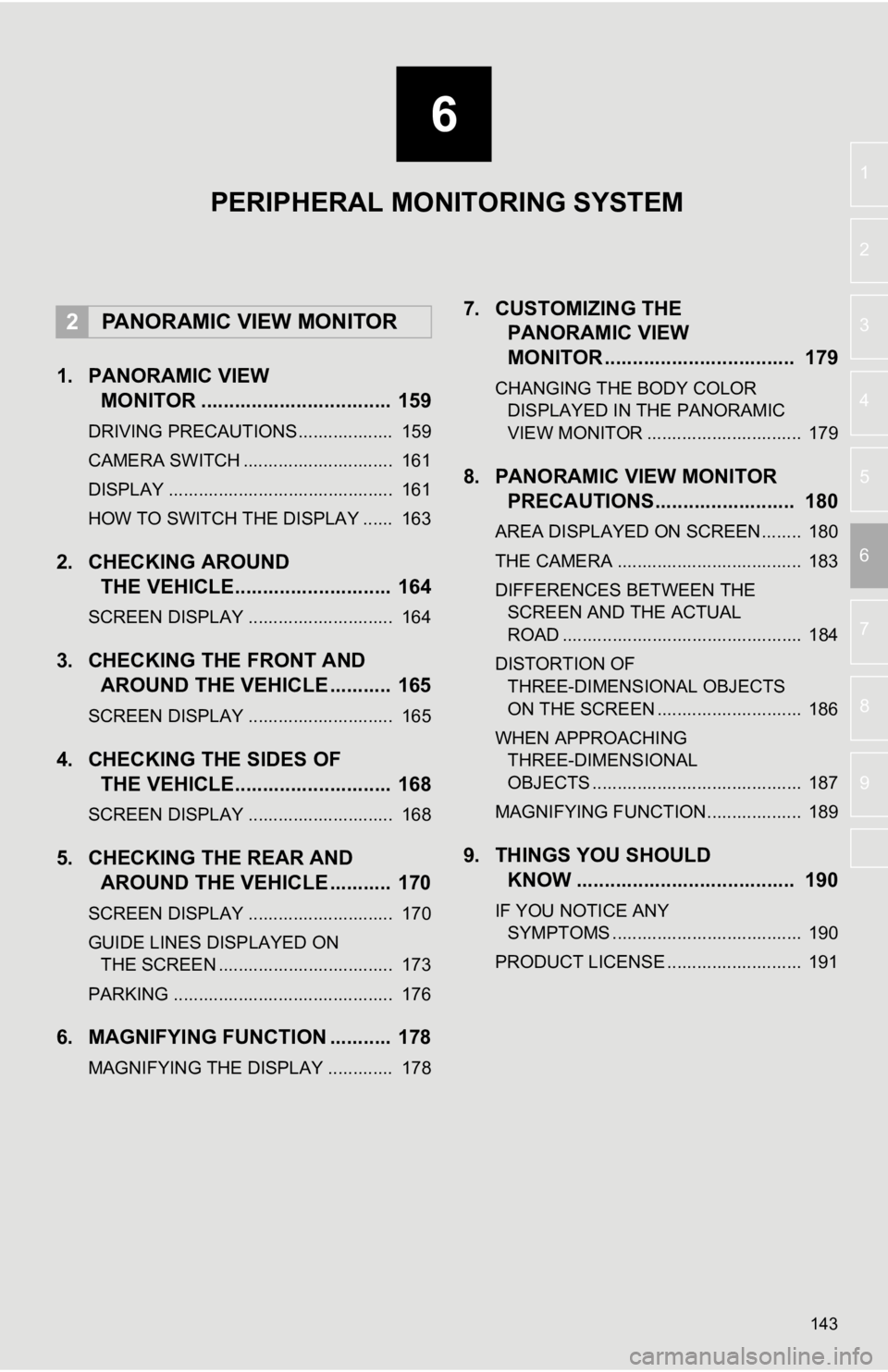

1. PANORAMIC VIEWMONITOR .................................. 159
DRIVING PRECAUTIONS ................... 159
CAMERA SWITCH .............................. 161
DISPLAY ............................................. 161
HOW TO SWITCH THE DISPLAY ...... 163
2. CHECKING AROUNDTHE VEHICLE............................ 164
SCREEN DISPLAY ............................. 164
3. CHECKING THE FRONT AND
AROUND THE VEHICLE ........... 165
SCREEN DISPLAY ............................. 165
4. CHECKING THE SIDES OFTHE VEHICLE............................ 168
SCREEN DISPLAY ............................. 168
5. CHECKING THE REAR ANDAROUND THE VEHICLE ........... 170
SCREEN DISPLAY ............................. 170
GUIDE LINES DISPLAYED ON
THE SCREEN ................................... 173
PARKING ............................................ 176
6. MAGNIFYING FUNCTION ........... 178
MAGNIFYING THE DISPLAY ............. 178
7. CUSTOMIZING THE PANORAMIC VIEW
MONITOR .................................. 179
CHANGING THE BODY COLOR
DISPLAYED IN THE PANORAMIC
VIEW MONITOR ............................... 179
8. PANORAMIC V IEW MONITOR
PRECAUTIONS......................... 180
AREA DISPLAYED ON SCREEN........ 180
THE CAMERA ..................................... 183
DIFFERENCES BETWEEN THE
SCREEN AND THE ACTUAL
ROAD ................................................ 184
DISTORTION OF THREE-DIMENSIONAL OBJECTS
ON THE SCREEN ............................. 186
WHEN APPROACHING THREE-DIMENSIONAL
OBJECTS .......................................... 187
MAGNIFYING FUNCTION ................... 189
9. THINGS YOU SHOULD KNOW ....................................... 190
IF YOU NOTICE ANY
SYMPTOMS ...................................... 190
PRODUCT LICENSE ........................... 191
2PANORAMIC VIEW MONITOR
PERIPHERAL MONITORING SYSTEM

144
1. TOYOTA PARKING ASSIST MONITOR
1. TOYOTA PARKING ASSIST MONITOR*
The parking assist monitor assists the
driver by displaying an image of the
view behind the vehicle while backing
up, for example while parking. When
the display is changed to the wide rear
view mode, a wider lateral view behind
the vehicle will be displayed.
INFORMATION
●The screen illustrations used in this text
are intended as examples, and may dif-
fer from the image that is actually dis-
played on the screen.
DRIVING PRECAUTIONS
The parking assist monitor is a supple-
mental device intended to assist the
driver when backing up. When backing
up, be sure to visually check all around
the vehicle both directly and using the
mirrors before proceeding. If you do
not, you may hit another vehicle, and
could possibly cause an accident.
Pay attention to the following precau-
tions when using the parking assist
monitor.
WA R N I N G
●Never depend on the parking assist
monitor entirely when backing up. The
image and the position of the guide lines
displayed on the screen may differ from
the actual state.
Use caution, just as you would when
backing up any vehicle.
● Be sure to back up slowly, depressing
the brake pedal to control vehicle speed.
● If you seem likely to hit nearby vehicles,
obstacles, people or mount the shoulder,
depress the brake pedal to stop the
vehicle.
*: If equipped
WA R N I N G
●The instructions given are only guide-
lines. When and how much to turn the
steering wheel will vary according to
traffic conditions, road surface condi-
tions, vehicle condition, etc. when park-
ing. It is necessary to be fully aware of
this before using the parking assist sys-
tem.
● When parking, be sure to check that the
parking space will accommodate your
vehicle before maneuvering into it.
● Do not use the parking assist monitor in
the following cases:
• On icy or slick road surfaces, or in
snow
• When using tire chains or emergency tires
• When the trunk is not closed com- pletely
• On roads that are not flat or straight,
such as curves or slopes
• If the suspension has been modified or tires of a size other than specified are
installed
● In low temperatures, the screen may
darken or the image may become faint.
The image could distort when the vehi-
cle is moving, or you may become
unable to see the image on the screen.
Be sure to visually check all around the
vehicle both directly and using the mir-
rors before proceeding.
● If the tire sizes are changed, the position
of the guide lines displayed on the
screen may change.
● The camera uses a special lens. The
distances between objects and pedestri-
ans that appear in the image displayed
on the screen will differ from the actual
distances. ( P.154)

145
1. TOYOTA PARKING ASSIST MONITOR
PERIPHERAL MONITORING SYSTEM
6
Rear view
 Wide rear view
SCREEN DISPLAY
The parking assist monitor screen will be displayed if the shif t lever is shifted to the
“R” position while the engine switch is in IGNITION ON mode.
Each time the display mode switching button is selected, the mo de will change as
follows:
Displays the rear view of the vehicle.
Displays a near 180° image from the rear view camera.

146
1. TOYOTA PARKING ASSIST MONITOR
No.DisplayFunction
Display mode switching
button
Each time the display mode switching button is selected,
the mode will change as follows:
From the rear view mode to the wide rear view mode
 From the wide rear view mode to the rear view mode
Guide line switching but-
tonSelect to switch the guide line mode. ( P.147)
Rear Cross Traffic AlertWhen a sensor detects an obstacle, the direction of ob-
stacle is displayed and the buzzer sounds.
INFORMATION
● For details about the Rear Cross Traffic Alert function, refer to the “OWNER’S MANUAL”.
WA R N I N G
●As the Rear Cross Traffic Alert display is displayed over the c amera view, it may be diffi-
cult to see the Rear Cross Traffic Alert display depending on t he color and brightness of
the surrounding area.
CANCELING TOYOTA PARKING ASSIST MONITOR
The parking assist monitor is canceled when the shift lever is shifted into any posi-
tion other than the “R” position.

147
1. TOYOTA PARKING ASSIST MONITOR
PERIPHERAL MONITORING SYSTEM
6
Estimated course line display mode
( P.148) 
Parking assist guide line display mode
(P.150)
 Distance guide line display mode
(P.151)
USING THE SYSTEM
Use any of the following modes.
Estimated course lines are displayed
which move in accordance with the op-
eration of the steering wheel.The steering wheel return points (park-
ing assist guide lines) are displayed.
This mode is recommended for those
who are comfortable with parking the
vehicle without the aid of the estimated
course lines.
Distance guide lines only are dis-
played.
This mode is recommended for those
who are comfortable with parking the
vehicle without the aid of the guide
lines.

148
1. TOYOTA PARKING ASSIST MONITOR
2. ESTIMATED COURSE LINE DISPLAY MODE
Rear view
 Wide rear view
SCREEN DESCRIPTION
No.DisplayFunction
Vehicle width guide lineDisplays a guide path when the vehicle is being backed
straight up.
Estimated course linesShow an estimated course when the steering wheel is
turned.
Distance guide lines
Show distance behind the vehicle when the steering
wheel is turned.
The guide lines move in conjunction with the estimated
course lines.
 The guide lines display p oints approximately 1.5 ft.
(0.5m) (red) and approximately 3ft. (1m) (yellow) from
the center of the edge of the bumper.
Distance guide lineShows distance behind the vehicle.
 Displays a point approximately 1.5 ft. (0.5m) (blue)
from the edge of the bumper.
Vehicle center guide lineThe line indicates the estima ted vehicle center on the
ground.

149
1. TOYOTA PARKING ASSIST MONITOR
PERIPHERAL MONITORING SYSTEM
6
WA R N I N G
●If the steering wheel is straight and the vehicle width guide l ines and the estimated
course lines are not in alignment, have the vehicle inspected b y your Toyota dealer.

150
1. TOYOTA PARKING ASSIST MONITOR
3. PARKING ASSIST GUIDE LINE DISPLAY MODE
Rear view
 Wide rear view
SCREEN DESCRIPTION
No.DisplayFunction
Vehicle width guide line
Displays a guide path when the vehicle is being backed
straight up.
The displayed width is wi der than the actual vehicle
width.
Parking assist guide linesShow the path of the smallest turn possible behind the ve-
hicle.
Distance guide linesShow distance behind the vehicle.
 Display points approximately 1.5 ft. (0.5m) (red) from
the edge of the bumper.
Vehicle center guide lineThe line indicates the estima ted vehicle center on the
ground.
