811-3. Theft deterrent system
1
For safety and security
■System maintenance
The vehicle has a maintenance-free type alarm system.
■ Items to check before locking the vehicle
To prevent unexpected triggering of the alarm and vehicle theft , make sure of
the following:
● Nobody is in the vehicle.
● The windows and moon roof (if equipped) are closed before the a larm is set.
● No valuables or other personal items are left in the vehicle.
■ Triggering of the alarm
The alarm may be triggered in the following situations:
(Stopping the alarm deactivates the alarm system.)

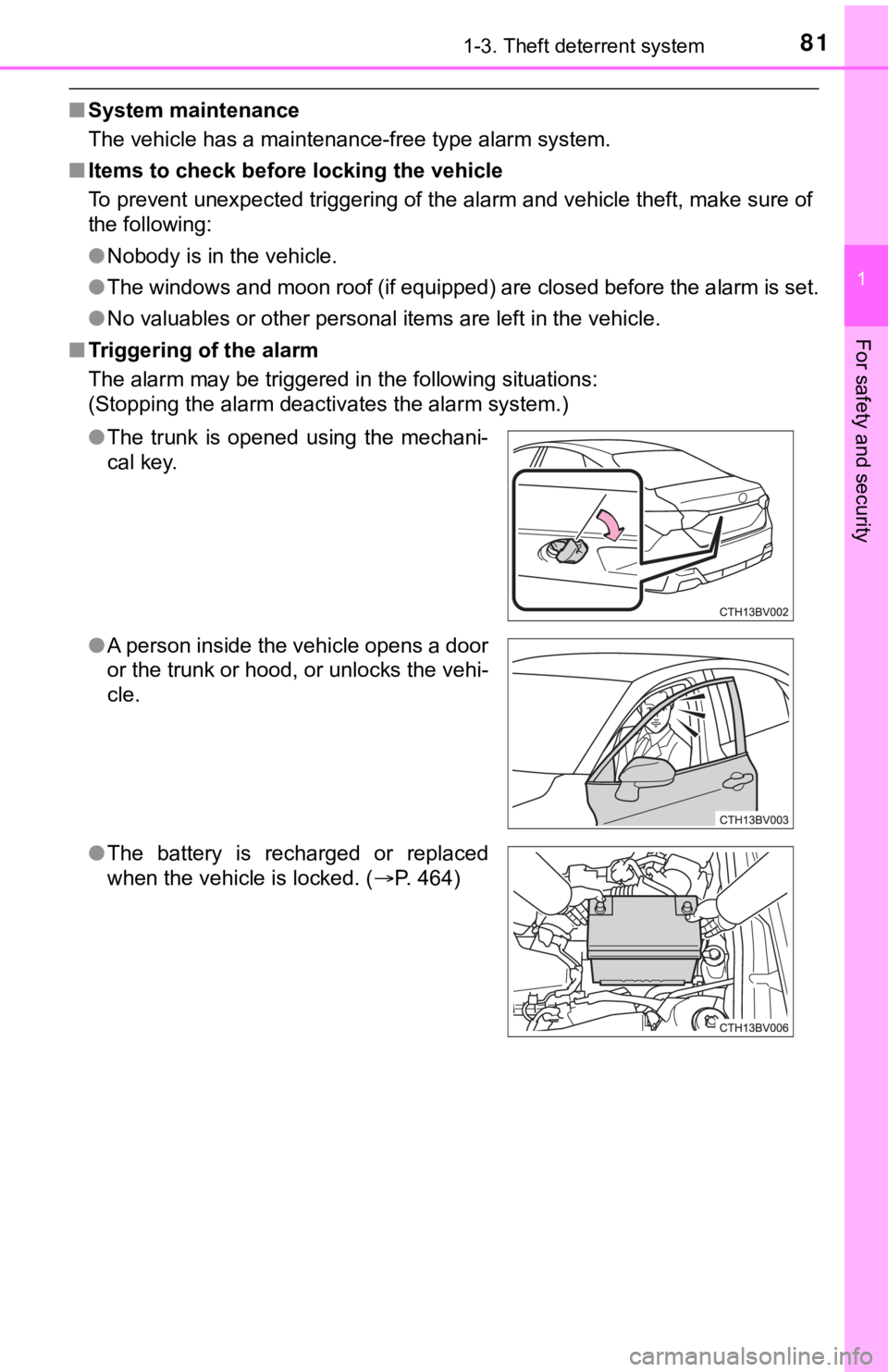

●The trunk is opened using the mechani-
cal key.
● A person inside the vehicle opens a door
or the trunk or hood, or unlocks the vehi-
cle.
● The battery is recharged or replaced
when the vehicle is locked. ( P. 464)

821-3. Theft deterrent system
■Alarm-operated door lock
In the following cases, depending on the situation, the door ma y automatically
lock to prevent improper entry into the vehicle:
● When a person remaining in the vehicle unlocks the door and the alarm is
activated.
● While the alarm is activated, a person remaining in the vehicle unlocks the
door.
● When recharging or replacing the battery
NOTICE
■To ensure the system operates correctly
Do not modify or remove the system. If modified or removed, the proper
operation of the system cannot be guaranteed.

83
Instrument cluster2
2. Instrument clusterWarning lights and indicators .......................... 84
Gauges and meters ............ 90
Multi-information display ..... 93
Head-up display ................ 109
Fuel consumption information ...................... 116

842. Instrument cluster
The units used on the meters and some indicators may differ depending on
the target region.
Warning lights and indicators

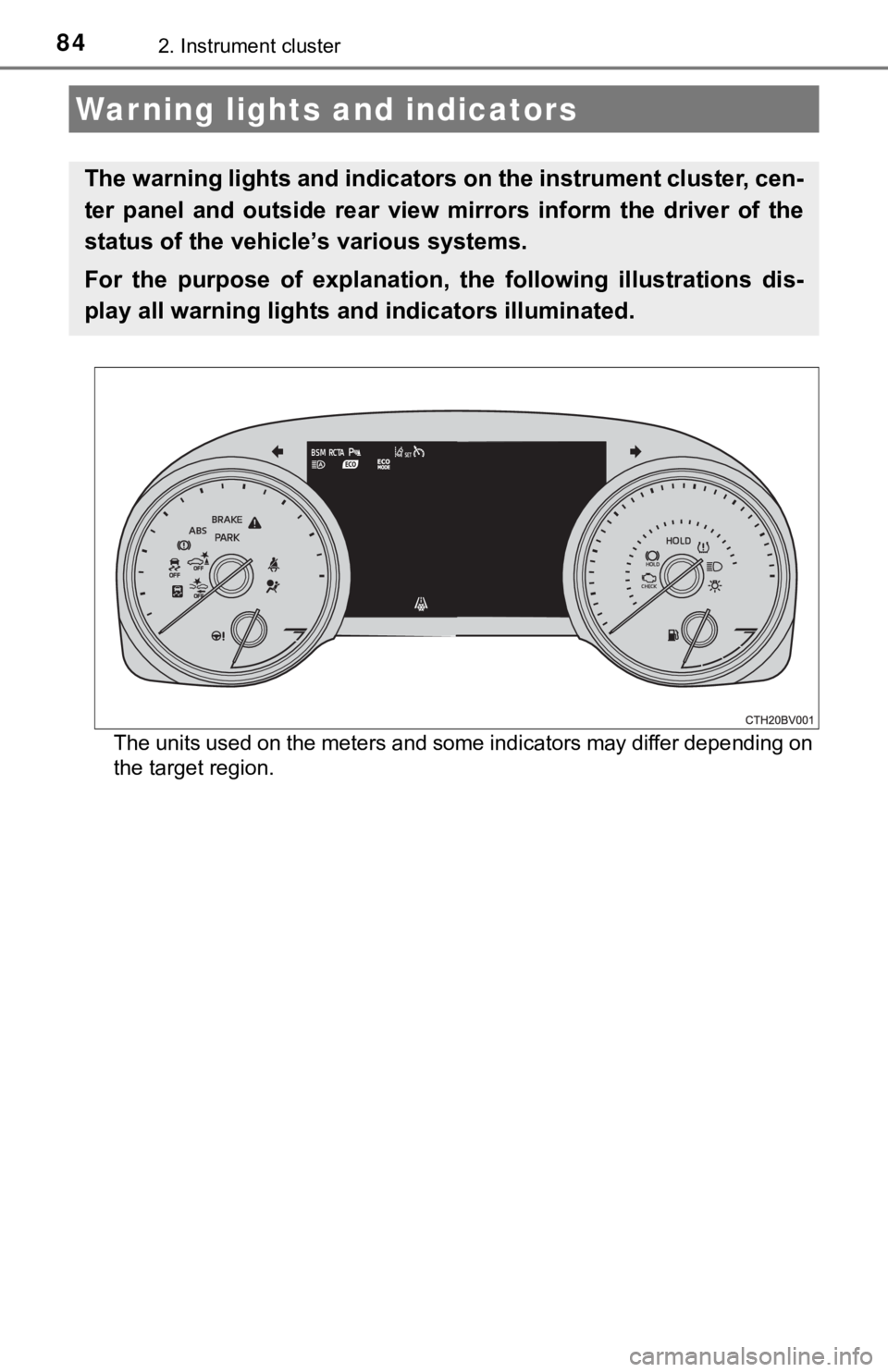

The warning lights and indicators on the instrument cluster, ce n-
ter panel and outside rear view mirrors inform the driver of the
status of the vehicle’s various systems.
For the purpose of explanation, t he following illustrations dis-
play all warning lights a nd indicators illuminated.

852. Instrument cluster
2
Instrument cluster

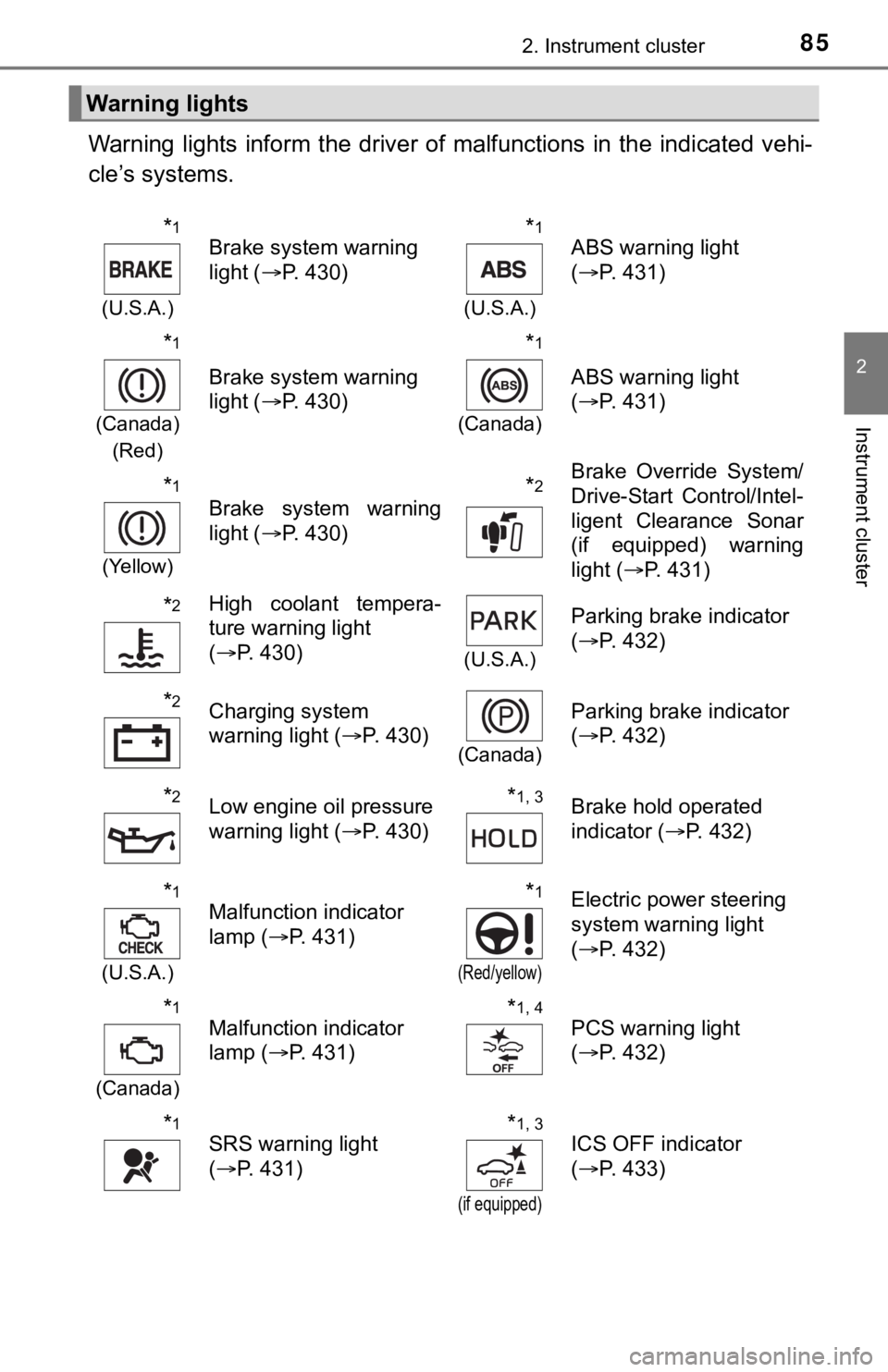

Warning lights inform the driver of malfunctions in the indicated vehi-
cle’s systems.
Warning lights
*1
(U.S.A.)
Brake system warning
light ( P. 430)*1
(U.S.A.)
ABS warning light
(P. 431)
*1
(Canada)
(Red)
Brake system warning
light ( P. 430)
*1
(Canada)
ABS warning light
(P. 431)
*1
(Yellow)
Brake system warning
light ( P. 430)*2Brake Override System/
Drive-Start Control/Intel-
ligent Clearance Sonar
(if equipped) warning
light (P. 431)
*2High coolant tempera-
ture warning light
(P. 430)
(U.S.A.)
Parking brake indicator
(P. 432)
*2Charging system
warning light ( P. 430)
(Canada)
Parking brake indicator
(P. 432)
*2Low engine oil pressure
warning light ( P. 430)*1, 3Brake hold operated
indicator ( P. 432)
*1
(U.S.A.)
Malfunction indicator
lamp ( P. 431)*1
(Red/yellow)
Electric power steering
system warning light
(P. 432)
*1
(Canada)
Malfunction indicator
lamp ( P. 431)*1, 4PCS warning light
(P. 432)
*1SRS warning light
(P. 431)*1, 3
(if equipped)
ICS OFF indicator
(P. 433)

862. Instrument cluster
*1: These lights turn on when the engine switch is turned to IGNITION ON
mode to indicate that a system check is being performed. They will turn off
after the engine is started, or after a few seconds. There may be a mal-
function in a system if a light does not come on, or turn off. Have the vehi-
cle inspected by your Toyota dealer.
*2: This light illuminates on the multi-information display.
*3: This light flashes to indicate a malfunction.
*4: This light flashes or illuminates to indicate a malfunction.
*5: This light illuminates on the center panel.
*2
(Amber)
LDA indicator ( P. 432)
*5Rear passengers’ seat
belt reminder lights
(P. 433)
*1
Slip indicator ( P. 433)*1Master warning light
(P. 433)
Low fuel level warning
light ( P. 433)*1Tire pressure warning
light ( P. 434)
Driver’s and front
passenger’s seat belt
reminder light ( P. 433)

872. Instrument cluster
2
Instrument cluster

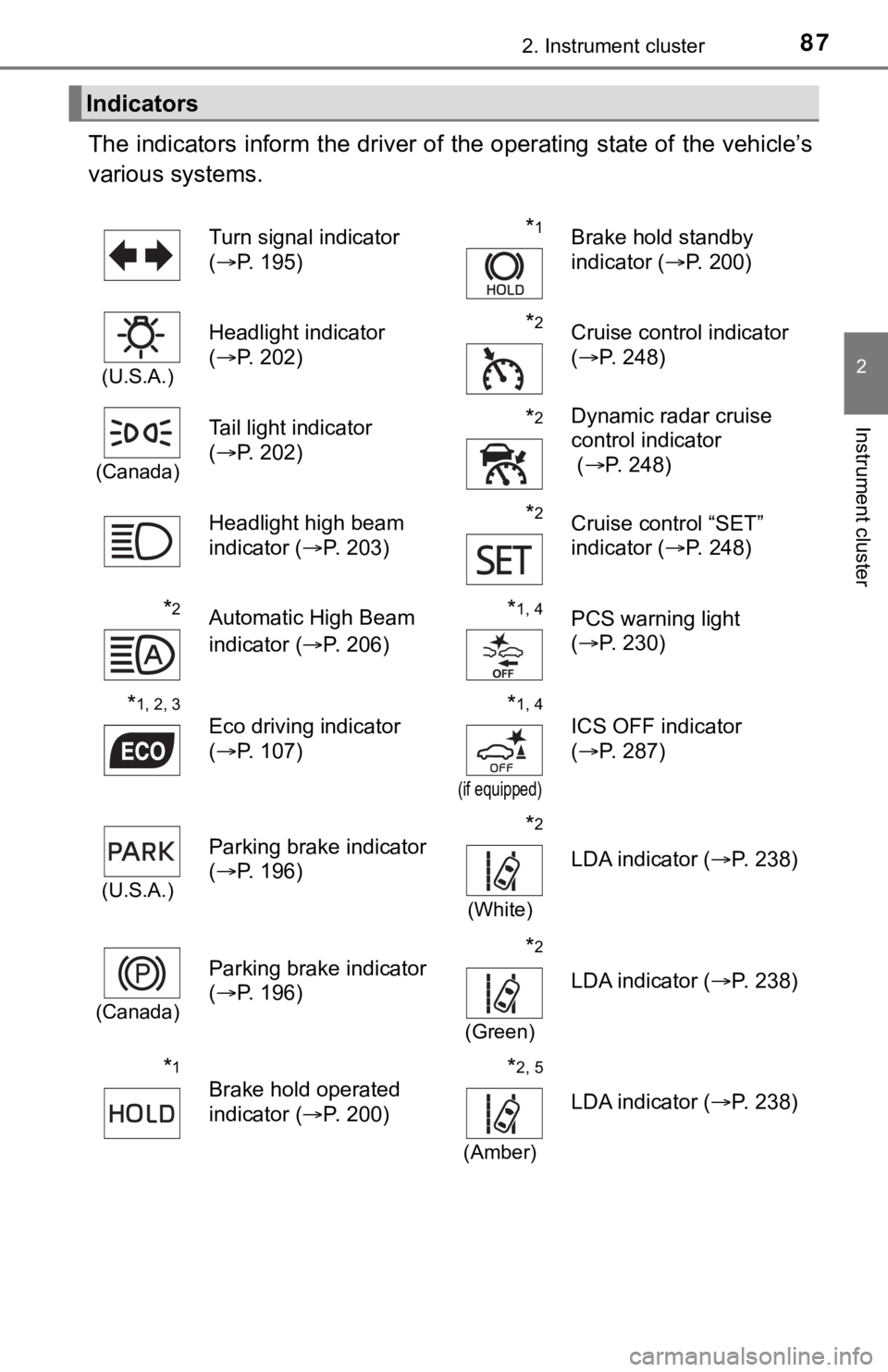

The indicators inform the driver of the operating state of the vehicle’s
various systems.
Indicators
Turn signal indicator
( P. 195)*1Brake hold standby
indicator ( P. 200)
(U.S.A.)
Headlight indicator
(P. 202)*2Cruise control indicator
(P. 248)
(Canada)
Tail light indicator
(P. 202) *2Dynamic radar cruise
control indicator
( P. 248)
Headlight high beam
indicator ( P. 203)
*2Cruise control “SET”
indicator (P. 248)
*2Automatic High Beam
indicator ( P. 206)*1, 4PCS warning light
(P. 230)
*1, 2, 3
Eco driving indicator
(P. 107)*1, 4
(if equipped)
ICS OFF indicator
(P. 287)
(U.S.A.)
Parking brake indicator
(P. 196)*2
(White)
LDA indicator ( P. 238)
(Canada)
Parking brake indicator
(P. 196)*2
(Green)
LDA indicator ( P. 238)
*1
Brake hold operated
indicator (P. 200)*2, 5
(Amber)
LDA indicator ( P. 238)

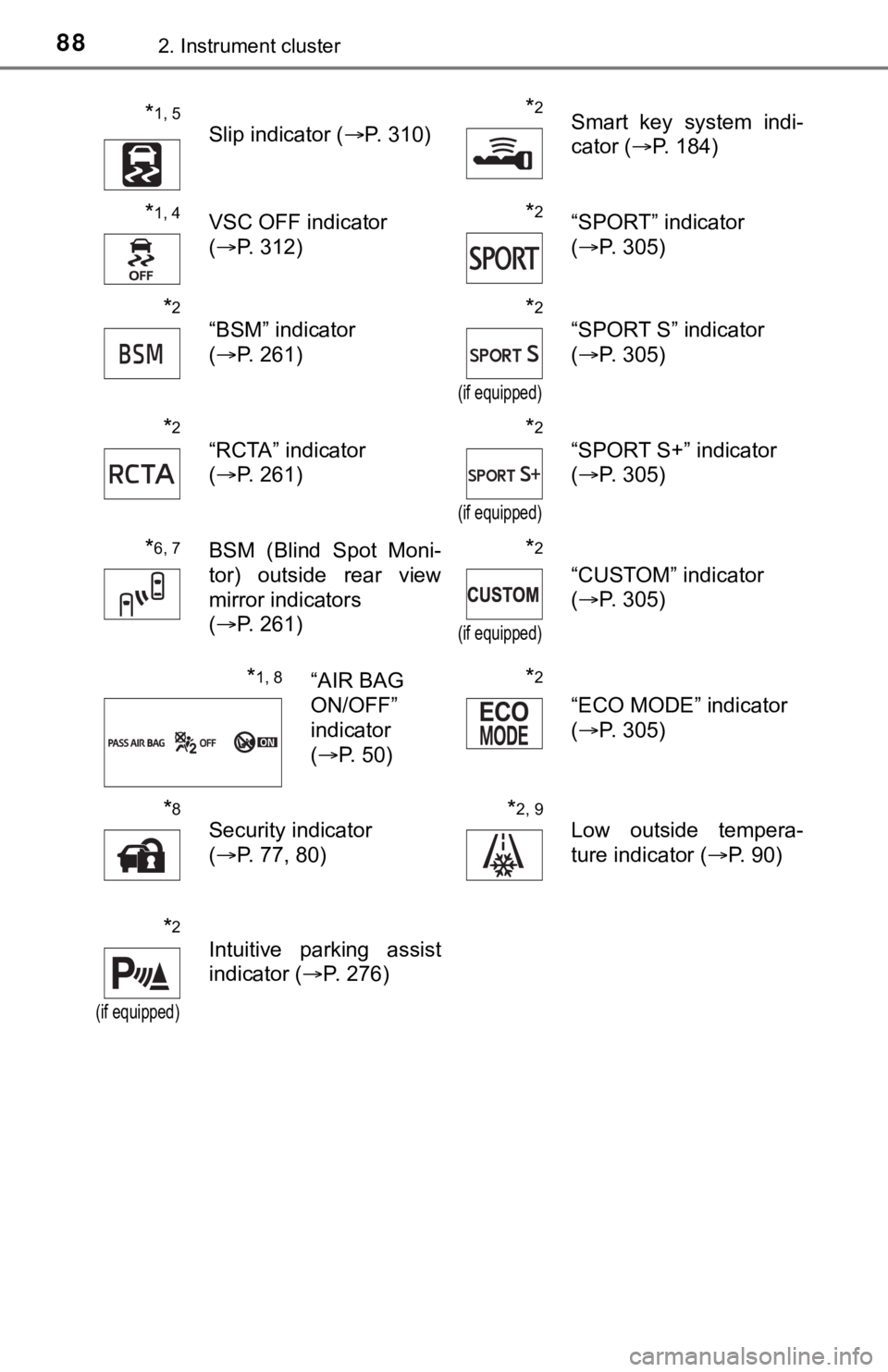

882. Instrument cluster
*1, 5
Slip indicator (P. 310)
*2Smart key system indi-
cator (P. 184)
*1, 4VSC OFF indicator
(P. 312)*2“SPORT” indicator
(P. 305)
*2
“BSM” indicator
(P. 261)*2
(if equipped)
“SPORT S” indicator
(P. 305)
*2
“RCTA” indicator
(P. 261)*2
(if equipped)
“SPORT S+” indicator
(P. 305)
*6, 7BSM (Blind Spot Moni-
tor) outside rear view
mirror indicators
(P. 261)*2
(if equipped)
“CUSTOM” indicator
(P. 305)
*1, 8“AIR BAG
ON/OFF”
indicator
(P. 50)*2
“ECO MODE” indicator
(P. 305)
*8
Security indicator
(P. 77, 80)*2, 9
Low outside tempera-
ture indicator ( P. 90)
*2
(if equipped)
Intuitive parking assist
indicator (P. 276)

892. Instrument cluster
2
Instrument cluster
*1: These lights turn on when the engine switch is turned to IGNITION ON
mode to indicate that a system check is being performed. They will turn off
after the engine is started, or after a few seconds. There may be a mal-
function in a system if a light does not come on, or turn off. Have the vehi-
cle inspected by your Toyota dealer.
*2: This light illuminates on the multi-information display.
*3: This light does not turn on when the system is disabled.
*4: This light turns on when the system is off.
*5: This light flashes to indicate that the system is operating.
*6: These indicators will illuminate in the following situations t o indicate that
the system initial check is being performed:
• When the BSM function or RCTA function is enabled and the engi ne
switch is turned to IGNITION ON mode.
• When the engine switch is in IGNITION ON mode and the BSM func tion
is enabled.
• When the engine switch is in IGNITION ON mode and the RCTA fun c-
tion is enabled. (At this time, a buzzer will also sound.)
The indicators will turn off after a few seconds. If the indicators do not
illuminate or turn off, or if a buzzer does not sound when the RCTA func-
tion is enabled, the system may be malfunctioning. Have the vehicle
inspected by your Toyota dealer.
*7: This light illuminates on the outside rear view mirrors.
*8: This light illuminates on the center panel.
*9: When the outside temperature is approximately 37°F (3°C) or lo wer, this
indicator will flash for approximately 10 seconds, then stay on .
WARNING
■If a safety system warning light does not come on
Should a safety system light such as the ABS and SRS warning lights not
come on when you start the engine, this could mean that these s ystems are
not available to help protect you in an accident, which could r esult in death
or serious injury. Have the vehicle inspected by your Toyota de aler immedi-
ately if this occurs.

902. Instrument cluster
The units used on the meters may differ depending on the target region.

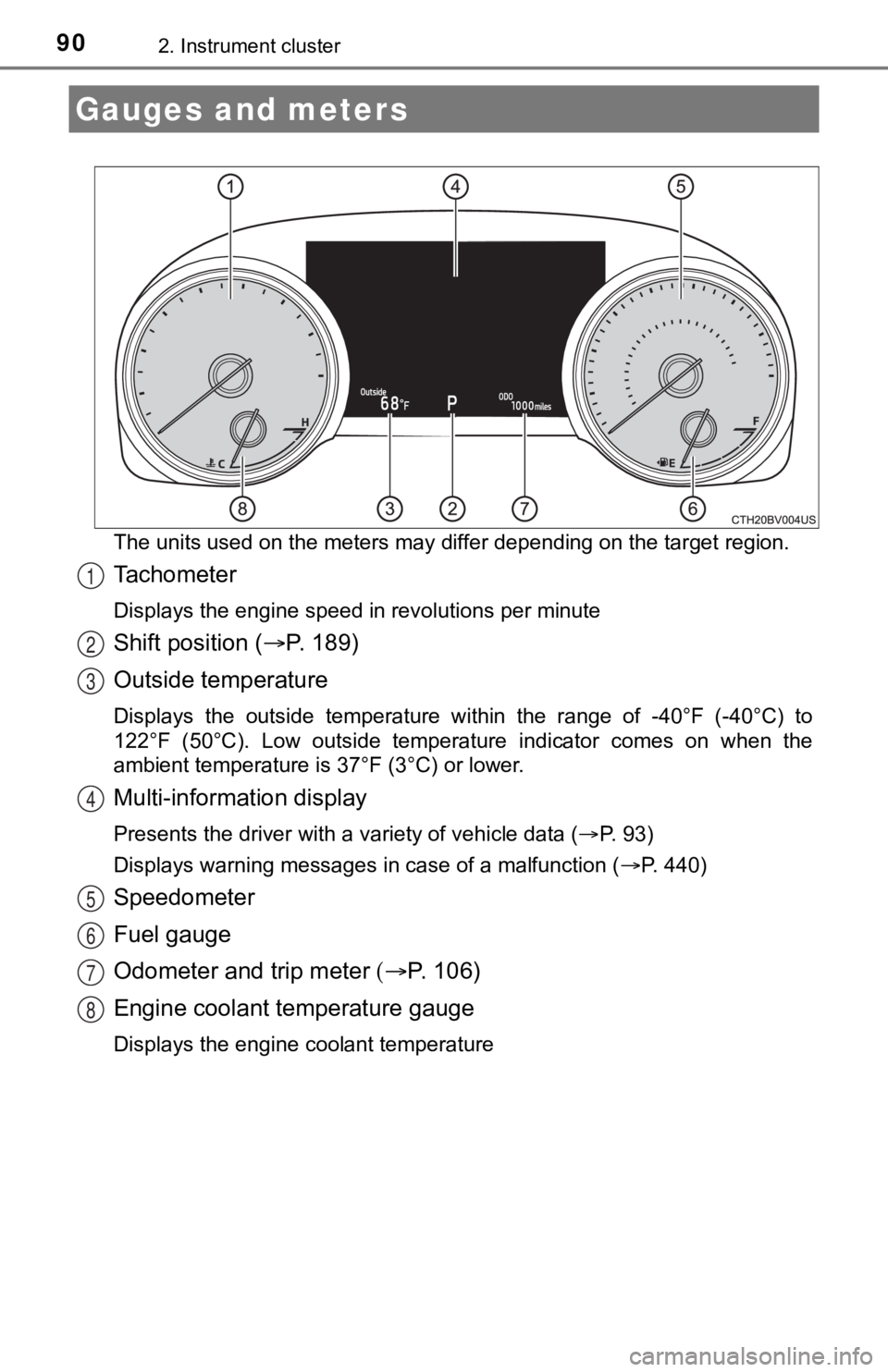

Tachometer
Displays the engine speed in revolutions per minute
Shift position (P. 1 8 9 )
Outside temperature
Displays the outside temperature within the range of -40°F (-40 °C) to
122°F (50°C). Low outside temperat ure indicator comes on when the
ambient temperature is 37°F (3°C) or lower.
Multi-information display
Presents the driver with a variety of vehicle data ( P. 93)
Displays warning messages in case of a malfunction ( P. 440)
Speedometer
Fuel gauge
Odometer and trip meter P. 1 0 6 )
Engine coolant temperature gauge
Displays the engine coolant temperature
Gauges and meters
1
2
3
4
5
6
7
