AVALON_AVALON HV_Navi_(U)TABLE OF CONTENTS
Introduction ......................................
5
Reading this manual ........................ 7
1-1. Basic function Buttons overview ................... 12
Menu screen ......................... 14
Status icon ............................ 16
“Setup” screen ...................... 18
Information screen ................ 19
1-2. Navigation operation Operating the map screen..... 21
Guiding the route .................. 22
Registering home .................. 23
2-1. Basic information before oper- ation
Initial screen .......................... 26
Touch screen ......................... 27
Home screen ......................... 29
Entering letters and num- bers/list screen operation .... 30
Screen adjustment ................ 33
Linking multi-information display and the system.................... 35
2-2. Connectivity settings Registering/Connecting a Blue-
tooth
® device ...................... 36
Setting Bluetooth
® details ..... 41
Wi-Fi
® Hotspot ...................... 49
2-3. Apple CarPlay
®/Android
Auto™
Apple CarPlay/Android Auto
............................................ 55
2-4. Other settings General settings .................... 62
Voice settings ........................ 67Vehicle settings .....................
68
3-1. Basic operation Navigation ............................. 74
Map screen operation ........... 76
Map screen information ........ 78
Traffic information ................. 83
3-2. Destination search Destination search operation............................................ 86
Starting route guidance ......... 95
3-3. Route guidance Route guidance screen ...... 100
Typical voice guidance prompts ......................................... 105
Editing route ....................... 105
3-4. Setup Navigation settings............. 109
Detailed navigation settings ......................................... 114
Traffic settings .................... 118
Use of information accumulated by navigation system ....... 122
3-5. Tips for the navigation system GPS (Global Positioning Sys-tem) .................................. 123
Map database version and cov- ered area ......................... 125
4-1. Basic operation Quick reference.................. 128
Some basics ...................... 129
4-2. Radio operation AM radio/FM radio/
SiriusXM
® Satellite
Radio(SXM) ..................... 135
1Quick guide
2Basic function
3Navigation system
4Audio/visual system

3TABLE OF CONTENTS
1
2
3
4
5
6
7
8
9
AVALON_AVALON HV_Navi_(U)
4-3. Media operation USB memory ...................... 144
iPod/iPhone (Apple CarPlay)................ 146
Android Auto ...................... 149
Bluetooth
® audio ................ 150
4-4. Audio/visual remote controls Steering switches ............... 154
4-5. Setup Audio settings .................... 156
4-6. Tips for operating the audio/visual system
Operating information......... 158
5-1. Voice command system oper- ation
Voice command system ..... 168
Natural language understanding ......................................... 171
Command list ..................... 172
6-1. Information display Receiving weather information......................................... 178
Data services settings ........ 180
7-1. Toyota parking assist monitor Toyota parking assist monitor......................................... 184
Estimated course line display mode ................................ 188
Parking assist guide line display mode ................................ 189Distance guide line display
mode ................................ 190
Toyota parking assist monitor precautions ...................... 191
Things you should know .... 197
7-2. Panoramic view monitor Panoramic view monitor..... 199
Checking around the vehicle ......................................... 205
Checking the front and around the vehicle........................ 207
Checking the sides of the vehicle ......................................... 210
Checking the rear and around the vehicle........................ 213
Magnifying function ............ 222
Customizing the panoramic view monitor ............................. 223
Panoramic view monitor precau- tions ................................. 224
Things you should know .... 235
8-1. Phone operation (Hands-free system for cellular phones)
Quick reference.................. 240
Some basics ...................... 241
Placing a call using the Blue-
tooth
® hands-free system 245
Receiving a call using the Blue-
tooth
®hands-free system . 249
Talking on the Bluetooth
®
hands-free system ........... 250
Bluetooth
® phone message
function ............................ 252
8-2. Setup Phone settings ................... 258
8-3. What to do if... Troubleshooting ................. 269
5Voice command system
6Information
7Peripheral monitoring
system
8Phone

5
AVALON_AVALON HV_Navi_(U)
This manual explains the opera-
tion of the system. Please read
this manual carefully to ensure
proper use. Keep this manual in
your vehicle at all times.
The screens shown in this man-
ual may differ from the actual
screen of the system depending
on availability of functions, con-
nected services subscription
status, and map data available
at the time this manual was pro-
duced.
The screens in this manual will
also differ if the screen theme
settings have been changed.
(Theme setting: P. 6 2 )
In some situations when chang-
ing between screens, it may
take longer than normal for the
screen to change, the screen
may be blank momentarily or
noise may be displayed.
Please be aware that the con-
tent of this manual may be dif-
ferent from the system in some
cases, such as when the sys-
tem’s software is updated.
The company names and prod-
uct names appearing on this
manual are trademarks and reg-
istered trademarks of their
respective companies. The navigation system is one of
the most technologically
advanced vehicle accessories
ever developed. The system
receives satellite signals from
the Global Positioning System
(GPS) operated by the U.S.
Department of Defense. Using
these signals and other vehicle
sensors, the system indicates
your present position and
assists in locating a desired des-
tination.
The navigation system is
designed to select efficient
routes from your present start-
ing location to your destination.
The system is also designed to
direct you to a destination that is
unfamiliar to you in an efficient
manner. The system uses AISIN
AW maps. The calculated routes
may not be the shortest nor the
least traffic congested. Your own
personal local knowledge or
“short cut” may at times be
faster than the calculated
routes.
The navigation system’s data-
base includes Point of Interest
categories to allow you to easily
select destinat
ions such as
restaurants and hotels. If a des-
tination is not in the database,
you can enter the street address
close to it and the system will
Introduction
Navigation and multimedia
system owner’s manual
Navigation system (Premium
Audio)

121-1. Basic function
AVALON_AVALON HV_Navi_(U)

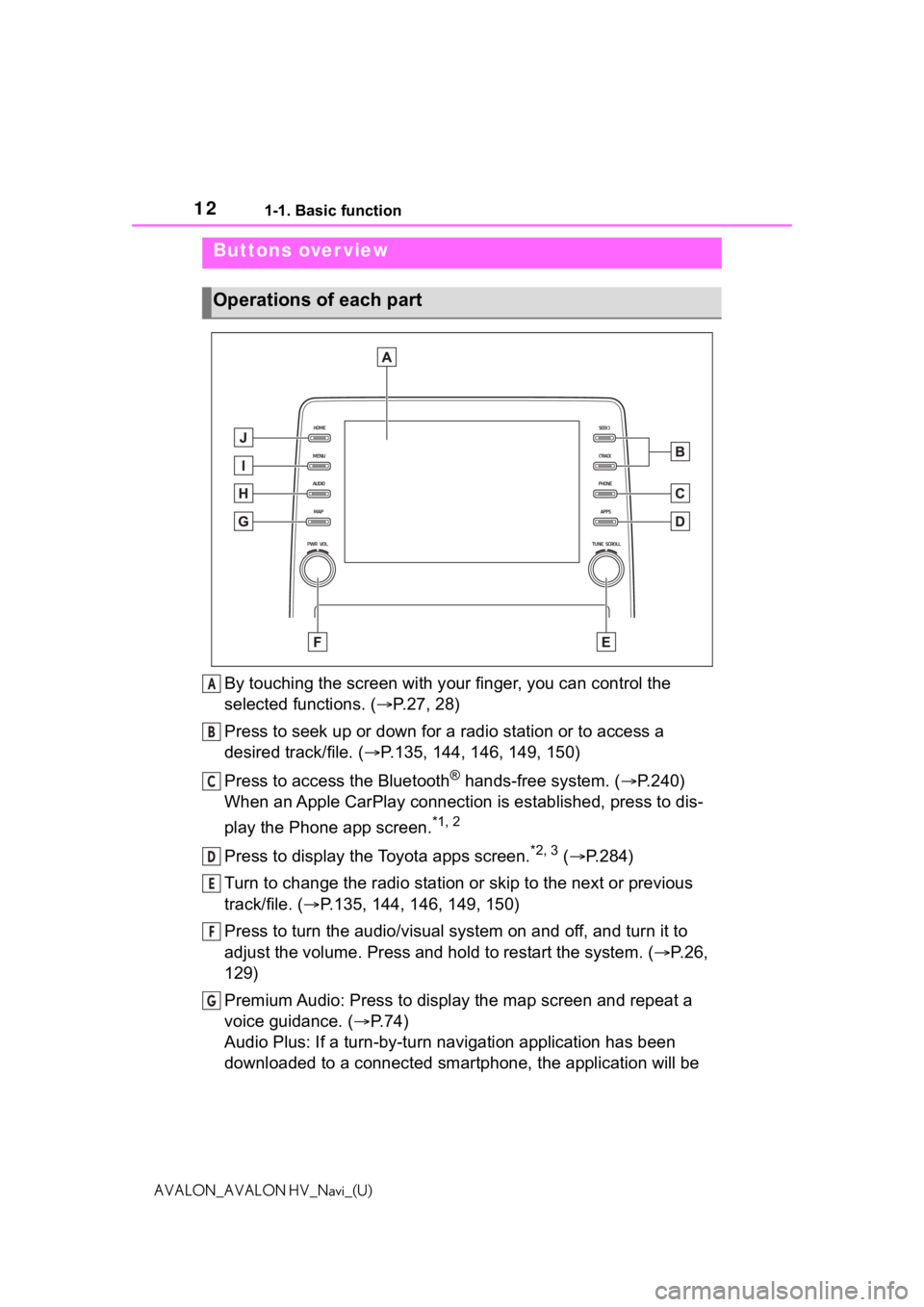

1-1.Basic function
By touching the screen with your finger, you can control the
selected functions. ( P.27, 28)
Press to seek up or down for a radio station or to access a
desired track/file. ( P.135, 144, 146, 149, 150)
Press to access the Bluetooth
® hands-free system. ( P.240)
When an Apple CarPlay connection is established, press to dis-
play the Phone app screen.
*1, 2
Press to display the Toyota apps screen.*2, 3 (  P.284)
Turn to change the radio station or skip to the next or previou s
track/file. ( P.135, 144, 146, 149, 150)
Press to turn the audio/visual system on and off, and turn it t o
adjust the volume. Press and hold to restart the system. ( P.26,
129)
Premium Audio: Press to display the map screen and repeat a
voice guidance. ( P.74)
Audio Plus: If a turn-by-turn navigation application has been
downloaded to a connected smar tphone, the application will be
Buttons over view
Operations of each part
A
B
C
D
E
F
G

131-1. Basic function
1
Quick guide
AVALON_AVALON HV_Navi_(U)
displayed and can be used.*4
When an Apple CarPlay/Android Auto connection is established,
press to display the Maps app screen.
*1, 2
Press to display the audio/visual system screen. (P.128, 129)
Press to display the “Menu” screen. ( P. 1 4 )
Press to display the home screen. ( P. 2 9 )
*1: For details about Apple CarPlay/Android Auto: P. 5 5
*2: This function is not available in some countries or areas.
*3: When an Apple CarPlay/Android Auto connection is established, this
function will be unavailable.
*4: For details about a turn-by-turn navigation application, refer to
https://www.toyota.com/audio-multimedia
in the United States,
https://www.toyota.ca/connected
in Canada, and
http://www.toyotapr.com/audio-multimedia
in Puerto Rico.
H
I
J

141-1. Basic function
AVALON_AVALON HV_Navi_(U)

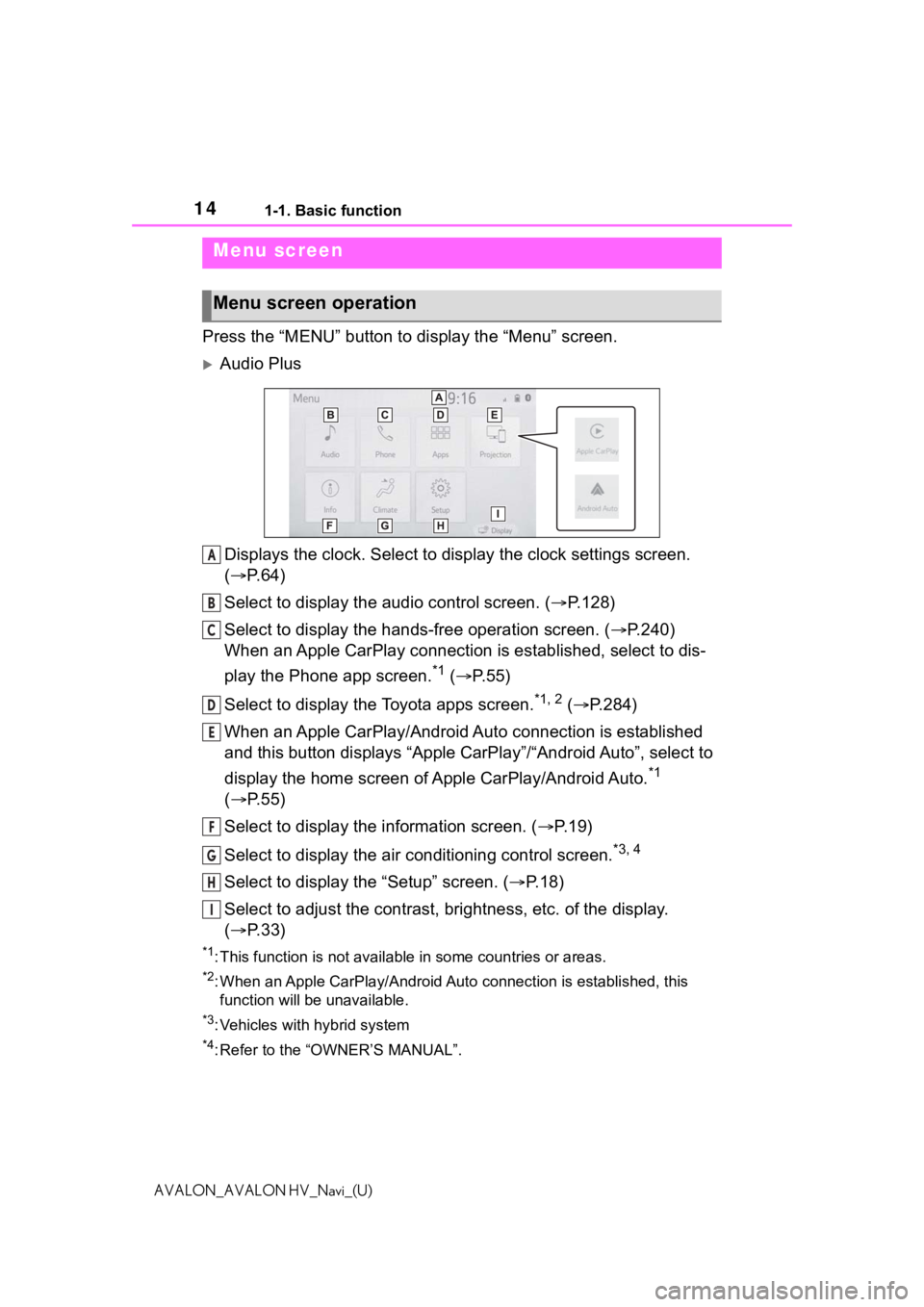

Press the “MENU” button to display the “Menu” screen.
Audio Plus
Displays the clock. Select to display the clock settings screen.
( P. 6 4 )
Select to display the audio control screen. ( P.128)
Select to display the hands-free operation screen. ( P.240)
When an Apple CarPlay connection is established, select to dis-
play the Phone app screen.
*1 (  P.55)
Select to display the Toyota apps screen.
*1, 2 (  P.284)
When an Apple CarPlay/Android Auto connection is established
and this button displays “Apple CarPlay”/“Android Auto”, select to
display the home screen of Apple CarPlay/Android Auto.
*1
( P. 5 5 )
Select to display the information screen. ( P.19)
Select to display the air conditioning control screen.
*3, 4
Select to display the “Setup” screen. ( P.18)
Select to adjust the contrast, brightness, etc. of the display.
( P. 3 3 )
*1: This function is not available in some countries or areas.
*2: When an Apple CarPlay/Android Auto connection is established, this
function will be unavailable.
*3: Vehicles with hybrid system
*4: Refer to the “OWNER’S MANUAL”.
Menu screen
Menu screen operation
A
B
C
D
E
F
G
H
I

151-1. Basic function
1
Quick guide
AVALON_AVALON HV_Navi_(U)

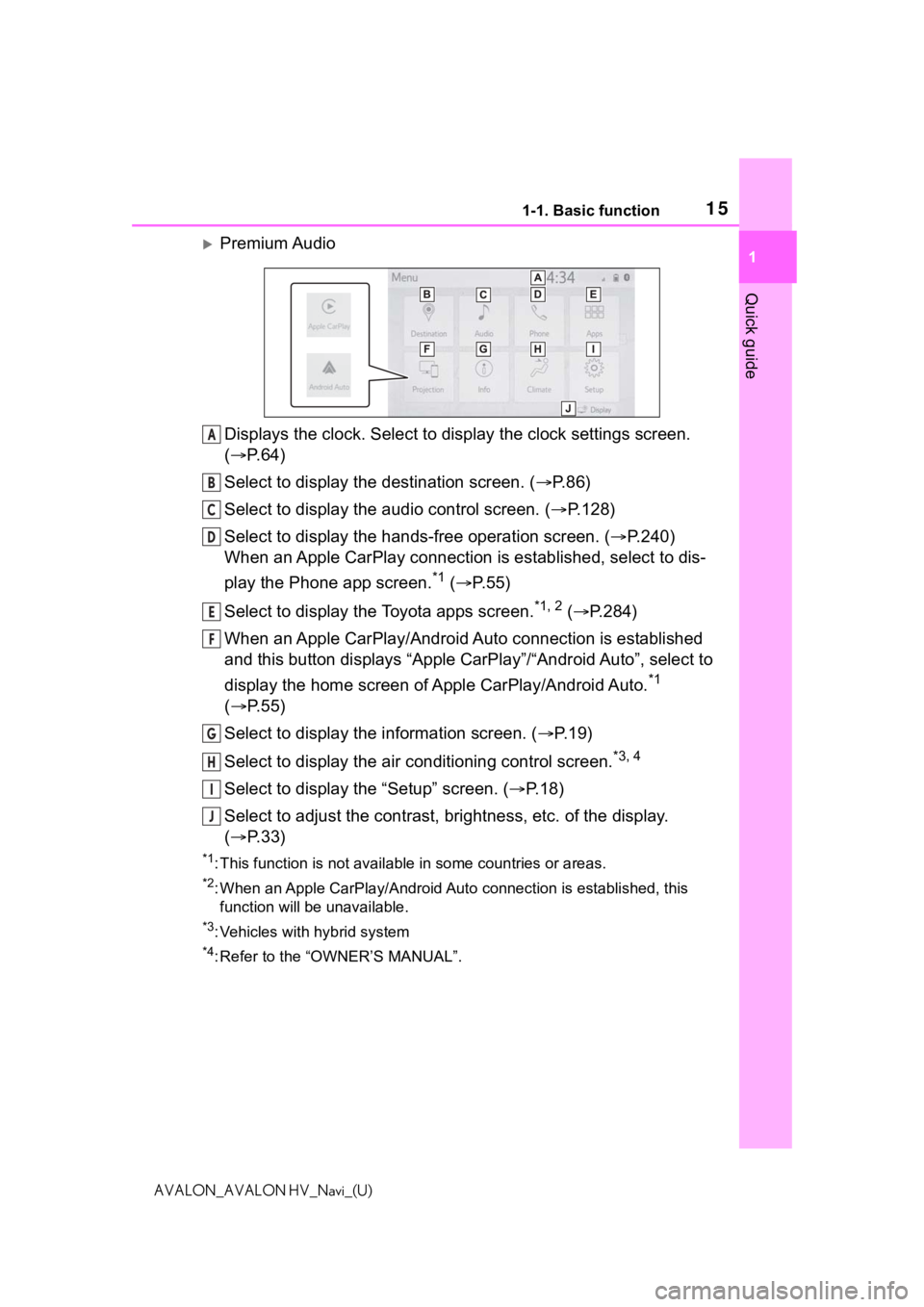

Premium AudioDisplays the clock. Select to display the clock settings screen.
( P. 6 4 )
Select to display the destination screen. ( P.86)
Select to display the audio control screen. ( P.128)
Select to display the hands-free operation screen. ( P.240)
When an Apple CarPlay connection is established, select to dis-
play the Phone app screen.
*1 (  P.55)
Select to display the Toyota apps screen.
*1, 2 (  P.284)
When an Apple CarPlay/Android Auto connection is established
and this button displays “Apple CarPlay”/“Android Auto”, select to
display the home screen of Apple CarPlay/Android Auto.
*1
( P. 5 5 )
Select to display the information screen. ( P.19)
Select to display the air conditioning control screen.
*3, 4
Select to display the “Setup” screen. ( P.18)
Select to adjust the contrast, brightness, etc. of the display.
( P. 3 3 )
*1: This function is not available in some countries or areas.
*2: When an Apple CarPlay/Android Auto connection is established, this
function will be unavailable.
*3: Vehicles with hybrid system
*4: Refer to the “OWNER’S MANUAL”.
A
B
C
D
E
F
G
H
I
J

161-1. Basic function
AVALON_AVALON HV_Navi_(U)
Weather alert display*1, 2
( P.178)
• Select to display important
weather information for the current
location or along the route.
Indicate during data commu-
nication performed via Data
Communication Module
(DCM)
The reception level of Data
Communication Module
(DCM) display ( P.16)
The reception level of the
connected phone display
( P. 1 6 )
Remaining battery charge
display ( P. 1 7 )
Bluetooth
® phone connection condition display (
P. 1 7 )
Wi-Fi
® connection condition
display
*2 (  P. 1 6 )
*1: Premium Audio only
*2: This function is not available in
some countries or areas.
●The number of status icons that
can be displayed differs depend-
ing on the displayed screen.
The level of reception does not
always correspond with the level
displayed on the cellular phone.
The level of reception may not
be displayed depending on the
phone you have.
When the cellular phone is out
of the service area or in a place
inaccessible by radio waves,
/ is displayed.
“Rm” is displayed when receiv-
ing in a roaming area. While
roaming, display “Rm” top-left
on the icon.
The receiving area may not be
displayed depending on the type
of Bluetooth
® phone you have.
While connected with cellular
phone

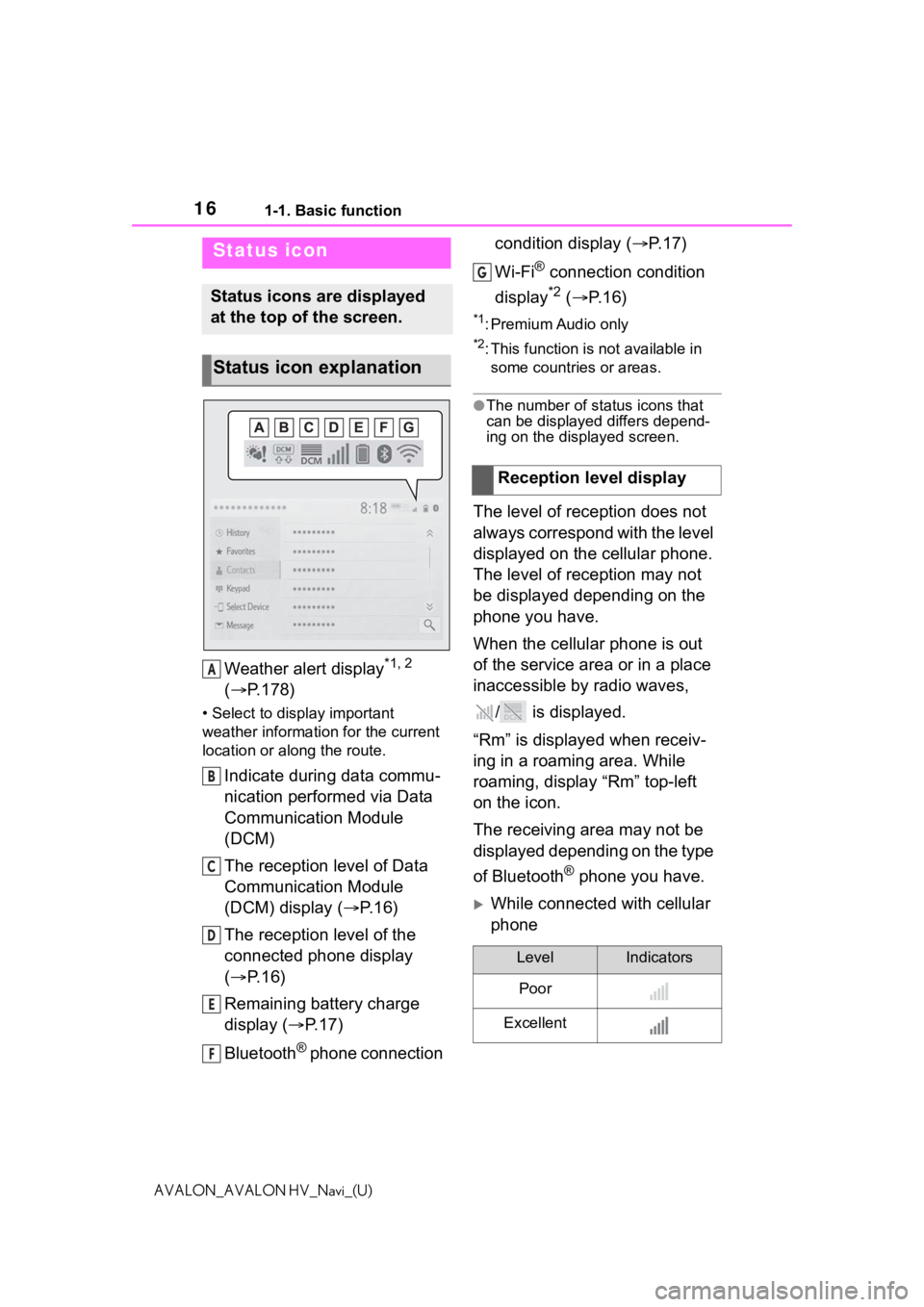

Status icon
Status icons are displayed
at the top of the screen.
Status icon explanation
A
B
C
D
E
F
5HFHSWLRQOHYHOGLVSOD\
LevelIndicators
Poor
Excellent
G

171-1. Basic function
1
Quick guide
AVALON_AVALON HV_Navi_(U)

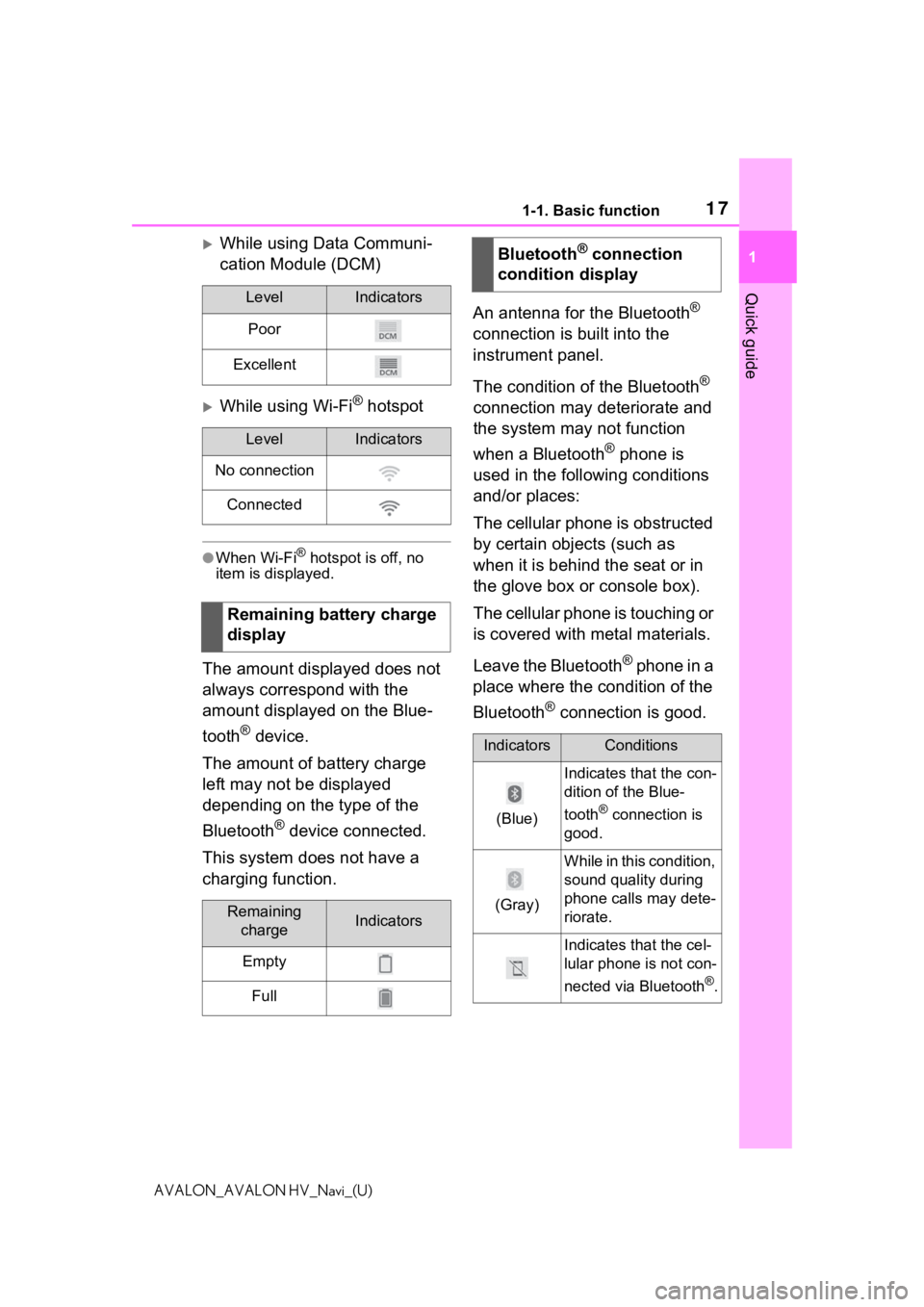

While using Data Communi-
cation Module (DCM)
While using Wi-Fi® hotspot
●When Wi-Fi® hotspot is off, no
item is displayed.
The amount displayed does not
always correspond with the
amount displayed on the Blue-
tooth
® device.
The amount of battery charge
left may not be displayed
depending on the type of the
Bluetooth
® device connected.
This system does not have a
charging function. An antenna for the Bluetooth
®
connection is built into the
instrument panel.
The condition of the Bluetooth
®
connection may deteriorate and
the system may not function
when a Bluetooth
® phone is
used in the following conditions
and/or places:
The cellular phone is obstructed
by certain objects (such as
when it is behind the seat or in
the glove box or console box).
The cellular phone is touching or
is covered with metal materials.
Leave the Bluetooth
® phone in a
place where the condition of the
Bluetooth
® connection is good.
LevelIndicators
Poor
Excellent
LevelIndicators
No connection
Connected
Remaining battery charge
display
Remaining chargeIndicators
Empty
Full
Bluetooth® connection
condition display
IndicatorsConditions
(Blue)
Indicates that the con-
dition of the Blue-
tooth
® connection is
good.
(Gray)
While in this condition,
sound quality during
phone calls may dete-
riorate.
Indicates that the cel-
lular phone is not con-
nected via Bluetooth
®.

181-1. Basic function
AVALON_AVALON HV_Navi_(U)

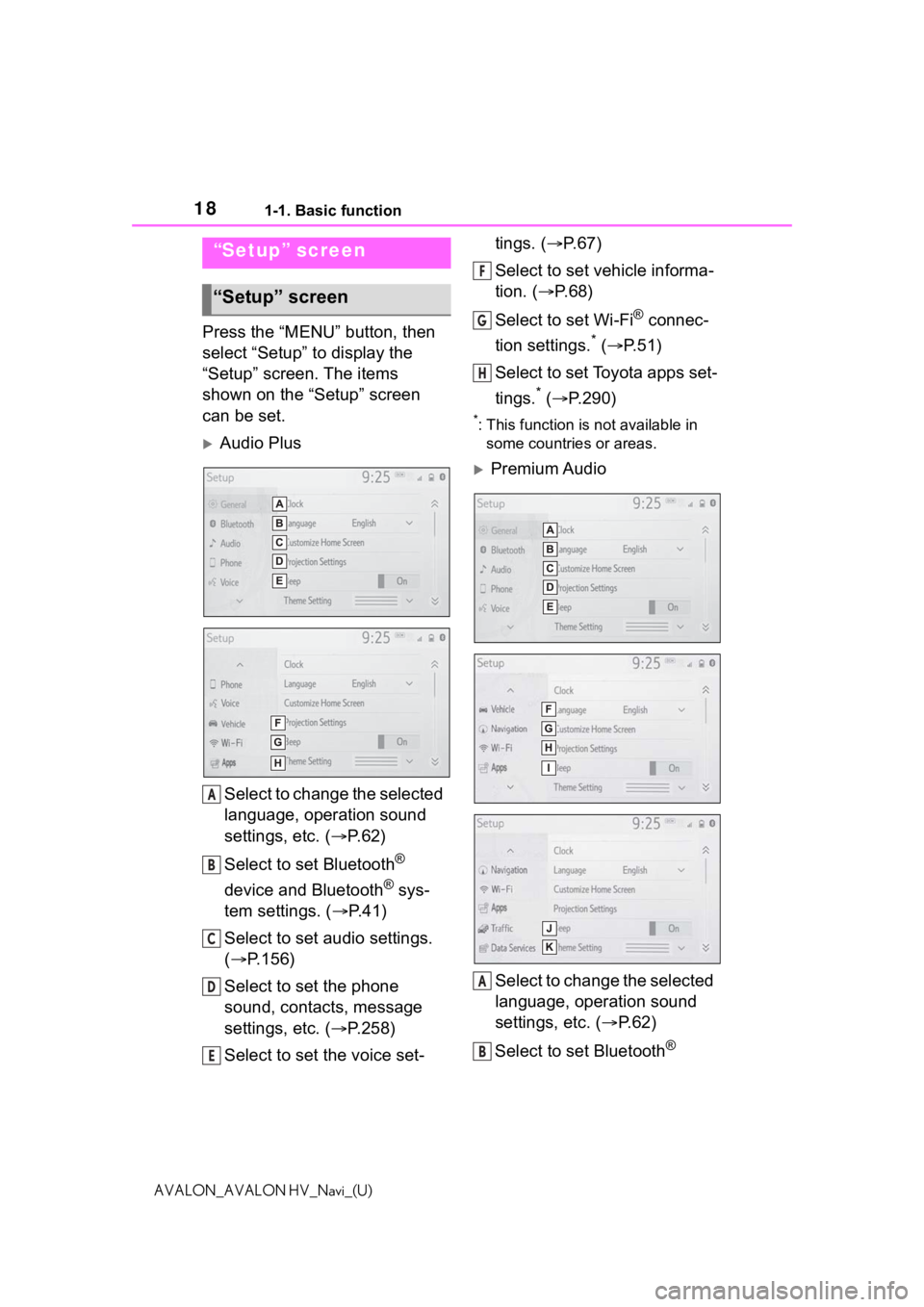

Press the “MENU” button, then
select “Setup” to display the
“Setup” screen. The items
shown on the “Setup” screen
can be set.
Audio PlusSelect to change the selected
language, operation sound
settings, etc. ( P. 6 2 )
Select to set Bluetooth
®
device and Bluetooth
® sys-
tem settings. ( P. 4 1 )
Select to set audio settings.
( P.156)
Select to set the phone
sound, contacts, message
settings, etc. ( P.258)
Select to set the voice set- tings. (
P.67)
Select to set vehicle informa-
tion. ( P.68)
Select to set Wi-Fi
® connec-
tion settings.
* (  P.51)
Select to set Toyota apps set-
tings.
* (  P.290)
*: This function is not available in
some countries or areas.
Premium Audio
Select to change the selected
language, operation sound
settings, etc. ( P.62)
Select to set Bluetooth
®
“Setup” screen
“Setup” screen
A
B
C
D
E
F
G
H
A
B
