2914-5. Using the driving support systems
4
Driving
■The Intelligent Clearance Sonar function will operate when
The function will operate when the ICS OFF indicator is not illuminated or
flashing (P. 287, 295) and all of the following conditions are met:
●Engine output restriction control
• The Intelligent Clearance Sonar system is enabled.
• The vehicle speed is 10 mph (15 km/h) or less.
• There is an object in the traveling direction of the vehicle and 6 to 13 ft. (2
to 4 m) away.
• The system determines that a stronger-than-normal brake operation is
necessary to avoid a collision.
●Brake control
• Engine output restriction control is operating.
• The system determines that an emergency brake operation is necessary
to avoid a collision.
■The Intelligent Clearance Sonar function will stop operating when
The function will stop operating if any of the following conditions are met:
●Engine output restriction control
• The Intelligent Clearance Sonar system is disabled.
• The collision becomes avoidable with normal brake operation.
• The object is no longer 6 to 13 ft. (2 to 4 m) away in the traveling direction
of the vehicle.
●Brake control
• The Intelligent Clearance Sonar system is disabled.
• Approximately 2 seconds elapse after the vehicle is stopped by brake
control.
• The brake pedal is depressed after the vehicle is stopped by brake con-
trol.
• The object is no longer 6 to 13 ft. (2 to 4 m) away in the traveling direction
of the vehicle.
■Detection range of the Intelligent Clearance Sonar function
The detection range of the Intelligent Clearance Sonar function differs from
the detection range of the intuitive parking assist. (P. 279)
Therefore, even if the intuitive parking assist detects an object and provides a
<005a004400550051004c0051004a000f00030057004b00480003002c005100570048004f004f004c004a00480051005700030026004f0048004400550044005100460048000300360052005100440055000300490058005100460057004c00520051000300
500044005c0003005100520057000300560057004400550057[ operating.
■If the Intelligent Clearance Sonar function has operated
If the vehicle is stopped due to operation of the Intelligent Clearance Sonar
function, the Intelligent Clearance Sonar system will be disabled and the ICS
OFF indicator will illuminate.

2924-5. Using the driving support systems
■Re-enabling the Intelligent Clearance Sonar system
To re-enable the Intelligent Clearance Sonar system when it is disabled due
to operation of the Intelligent Clearance Sonar function, either enable the sys-
tem again (P. 287), or turn the engine switch off and then back to IGNITION
ON mode.
Additionally, if the object becomes no longer in the traveling direction of the
vehicle or if the traveling direction of the vehicle changes (such as changing
from moving forward to backing up, or from backing up to moving forward),
the system will be re-enabled automatically.
■Objects that the Intelligent Clearance Sonar function may not detect
The sensors may not be able to detect certain objects, such as the following.
●Cotton cloth, snow, and other materials that are poor reflectors of ultrasonic
waves.
(People may also not be detected depending on the type of clothing they are
wearing.)
●Objects which are not perpendicular to the ground, are not perpendicular to
<0057004b0048000300570055004400590048004f004c0051004a00030047004c0055004800460057004c0052005100030052004900030057004b0048000300590048004b004c0046004f0048000f0003004400550048000300580051004800590048005100
030052005500030044005500480003005a00440059004c0051[g.
●Low objects
●Thin objects such as wires, fences, ropes and signposts
●Objects that are extremely close to the bumper
■Situations in which the Intelligent Clearance Sonar may not operate
properly
When the shift lever is in N
■Intuitive parking assist buzzer
Regardless of whether the intuitive parking assist system is enabled or not
(P. 276), if the Intelligent Clearance Sonar system is enabled (P. 287),
the front or rear sensors detect an object and brake control is performed, the
intuitive parking assist buzzer will sound to notify the driver of the approxi-
mate distance to the object.

2934-5. Using the driving support systems
4
Driving
■Situations in which the Intelligent Clearance Sonar function may operate
even if there is no possibility of a collision
In some situations such as the following, the Intelligent Clearance Sonar
function may operate even though there is no possibility of a collision.
●Vehicle surroundings
• When driving toward a banner, flag, low-hanging branch or boom barrier
(such as those used at railroad crossings, toll gates and parking lots).
• When driving on a narrow path surrounded by a structure, such as in a
tunnel or on an iron bridge
• When parallel parking
• When there is a rut or hole in the surface of the road
• When driving on a metal cover (grating), such as those used for drainage
ditches
• When driving on a steep slope
• If a sensor is hit by a large amount of water, such as when driving on a
flooded road
●Weather
• If a sensor is covered with ice, snow, dirt, etc. (when cleared, the system
will return to normal)
• If heavy rain or water strikes a sensor
• When driving in inclement weather such as fog, snow or a sandstorm
●Other ultrasonic waves sources
• When vehicle horns, vehicle detectors, motorcycle engines, air brakes of
large vehicles, the clearance sonar of other vehicles or other devices
which produce ultrasonic waves are near the vehicle
• If a sticker or an electronic component, such as a backlit license plate
(especially fluorescent type), fog lights, a fender pole or wireless antenna
is installed near a sensor • When driving on a narrow road
• When driving on a gravel road or in
an area with tall grass

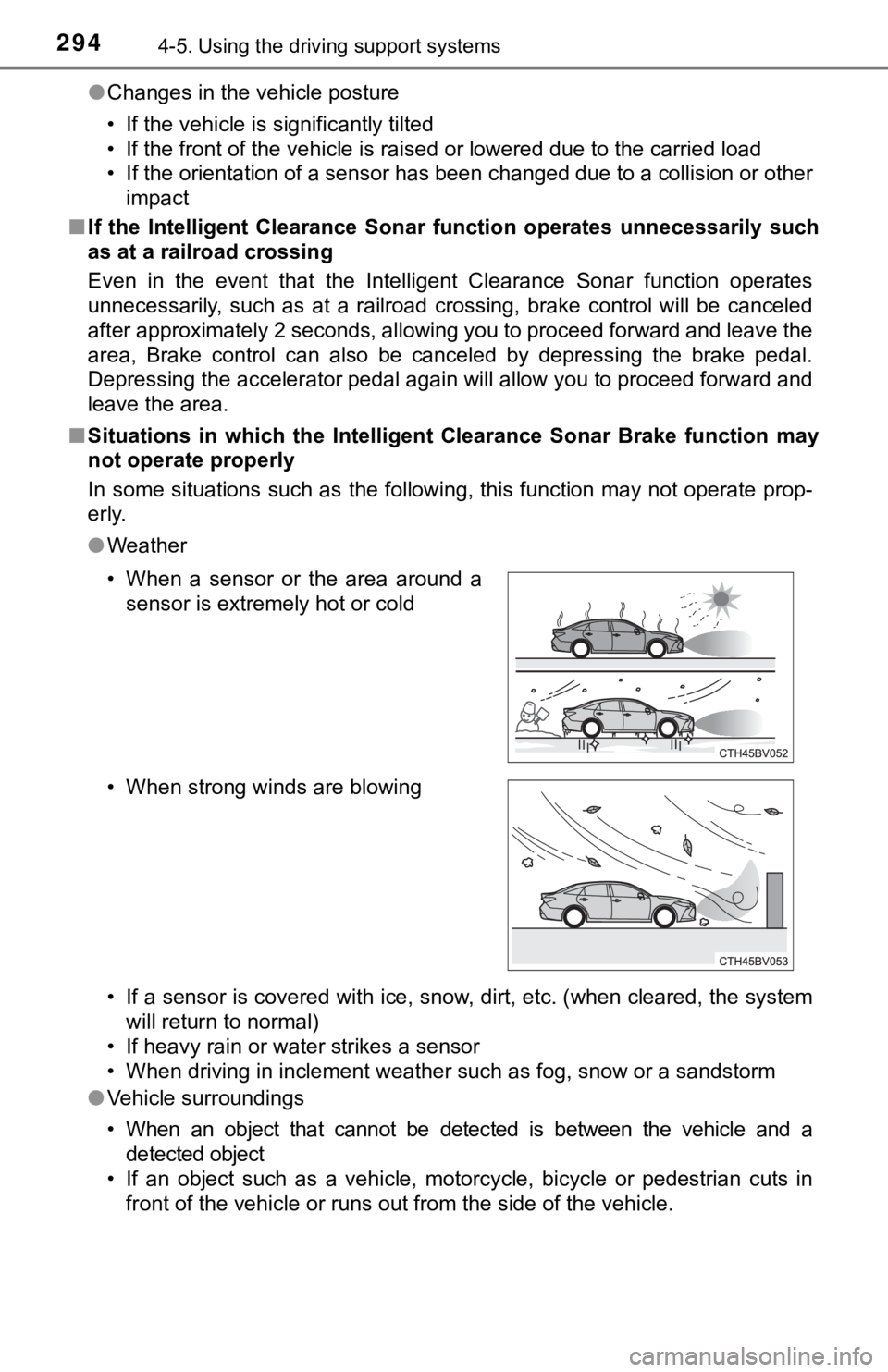

2944-5. Using the driving support systems
●Changes in the vehicle posture
• If the vehicle is significantly tilted
• If the front of the vehicle is raised or lowered due to the carried load
• If the orientation of a sensor has been changed due to a collision or other
impact
■If the Intelligent Clearance Sonar function operates unnecessarily such
as at a railroad crossing
Even in the event that the Intelligent Clearance Sonar function operates
unnecessarily, such as at a railroad crossing, brake control will be canceled
after approximately 2 seconds, allowing you to proceed forward and leave the
area, Brake control can also be canceled by depressing the brake pedal.
Depressing the accelerator pedal again will allow you to proceed forward and
leave the area.
■Situations in which the Intelligent Clearance Sonar Brake function may
not operate properly
In some situations such as the following, this function may not operate prop-
erly.
●Weather
• If a sensor is covered with ice, snow, dirt, etc. (when cleared, the system
will return to normal)
• If heavy rain or water strikes a sensor
• When driving in inclement weather such as fog, snow or a sandstorm
●Vehicle surroundings
• When an object that cannot be detected is between the vehicle and a
detected object
• If an object such as a vehicle, motorcycle, bicycle or pedestrian cuts in
front of the vehicle or runs out from the side of the vehicle. • When a sensor or the area around a
sensor is extremely hot or cold
• When strong winds are blowing

2954-5. Using the driving support systems
4
Driving
●Other ultrasonic waves sources
• When vehicle horns, vehicle detectors, motorcycle engines, air brakes of
large vehicles, the clearance sonar of other vehicles or other devices
which produce ultrasonic waves are near the vehicle
• If a sticker or an electronic component, such as a backlit license plate
(especially fluorescent type), fog lights, a fender pole or wireless antenna
is installed near a sensor
●Changes in the vehicle posture
• If the vehicle is significantly tilted
• If the front of the vehicle is raised or lowered due to the carried load
• If the orientation of a sensor has been changed due to a collision or other
impact
■If a battery terminal has been disconnected and reconnected
The system needs to be initialized.
To initialize the system, drive the vehicle straight ahead for 5 seconds or more
at a speed of approximately 22 mph (35 km/h) or more.
■If “ICS Unavailable” is displayed on the multi-information display and
the ICS OFF indicator is flashing
Initialization may not have been performed after a battery terminal was dis-
connected and reconnected. Initialize the system. (P. 295)
If this message continues to be displayed even after initialization, have the
vehicle inspected by your Toyota dealer.
■If “ICS Unavailable” and “Parking Assist Unavailable Clean Parking
Assist Sensor” are displayed on the multi-information display and the
ICS OFF indicator is flashing
●A sensor may be covered with ice, snow, dirt, etc. In this case, remove the
ice, snow, dirt, etc., from the sensor to return the system to normal. If this
message is shown even after removing dirt from the sensor, or shown when
the sensor was not dirty to begin with, have the vehicle inspected at your
Toyota dealer.
●A sensor may be frozen. Once the ice melts, the system will return to nor-
mal.
●Water may be continuously flowing over the sensor surface, such as in a
heavy rain. When the system determines that it is normal, the system will
return to normal.

2964-5. Using the driving support systems
WARNING
■Limitations of the Intelligent Clearance Sonar system
Do not overly rely on the system, as doing so may lead to an accident.
●The driver is solely responsible for safe driving. Always drive carefully, tak-
ing care to observe your surroundings. The Intelligent Clearance Sonar
system is designed to provide support to lessen the severity of collisions.
However, it may not operate in some situations.
●The Intelligent Clearance Sonar system is not designed to stop the vehicle
completely. Additionally, even if the system has stopped the vehicle, it is
<00510048004600480056005600440055005c0003005700520003004700480053005500480056005600030057004b00480003004500550044004e004800030053004800470044004f0003004c0050005000480047004c004400570048004f005c0003004400
560003004500550044004e0048000300460052005100570055[ol will be
canceled after approximately 2 seconds.
■To ensure the Intelligent Clearance Sonar system can operate properly
Observe the following precautions regarding the sensors (P. 287). Failure
to do so may cause a sensor to not operate properly, and may cause an
accident.
●Do not modify, disassemble or paint the sensors.
●Do not replace a sensor with a part other than a genuine part.
●Do not subject a sensor or its surrounding area to a strong impact.
●Do not damage the sensors, and always keep them clean.
Observe the following precautions regarding the radar sensors (P. 263).
Failure to do so may cause a radar sensor to not operate properly, and may
cause an accident.
●Do not modify, disassemble or paint the sensors.
●Do not replace a radar sensor with a part other than a genuine part.
●Do not subject a radar sensor or its surrounding area to a strong impact.
●Do not damage the radar sensors, and always keep the radar sensors and
their surrounding area on the bumper clean.
■Handling the suspension
Do not modify the suspension, as changes to the height or inclination of the
vehicle may prevent the sensors from detecting objects correctly or cause
the system to not operate or operate unnecessarily.

2974-5. Using the driving support systems
4
Driving
NOTICE
■To prevent the system from malfunctioning
●If the area around a sensor is subjected to an impact, the system may not
operate properly due to the sensor being misaligned. Have the vehicle
inspected by your Toyota dealer.
●When using a high pressure washer to wash the vehicle, do not spray the
sensors directly, as doing so may cause a sensor to malfunction.
●When using steam to clean the vehicle, do not direct steam too close to
<0057004b004800030056004800510056005200550056000300440056000300470052004c0051004a000300560052000300500044005c000300460044005800560048000300440003005600480051005600520055000300570052000300500044004f004900
58005100460057004c005200510011[
■To prevent a radar sensor from malfunctioning
●If the area around a radar sensor is subjected to an impact, the system
may not operate properly due to a sensor malfunction. Have the vehicle
inspected by your Toyota dealer.
●Observe the radar sensor handling precautions. (P. 263)
■To prevent unnecessary operation of the Intelligent Clearance Sonar
system
In the following situations, disable the Intelligent Clearance Sonar system
as the system may operate even though there is no possibility of a collision.
●When inspecting the vehicle using a chassis roller, chassis dynamo or free
roller
●When loading the vehicle onto a boat, truck or other transport vessel
●If the suspension has been modified or tires of a size other than specified
are installed
●If the front of the vehicle is raised or lowered due to the carried load
●When equipment that may obstruct a sensor is installed, such as a towing
eyelet, bumper protector (an additional trim strip, etc.), bicycle carrier, or
snow plow
●When using an automatic car wash

2984-5. Using the driving support systems

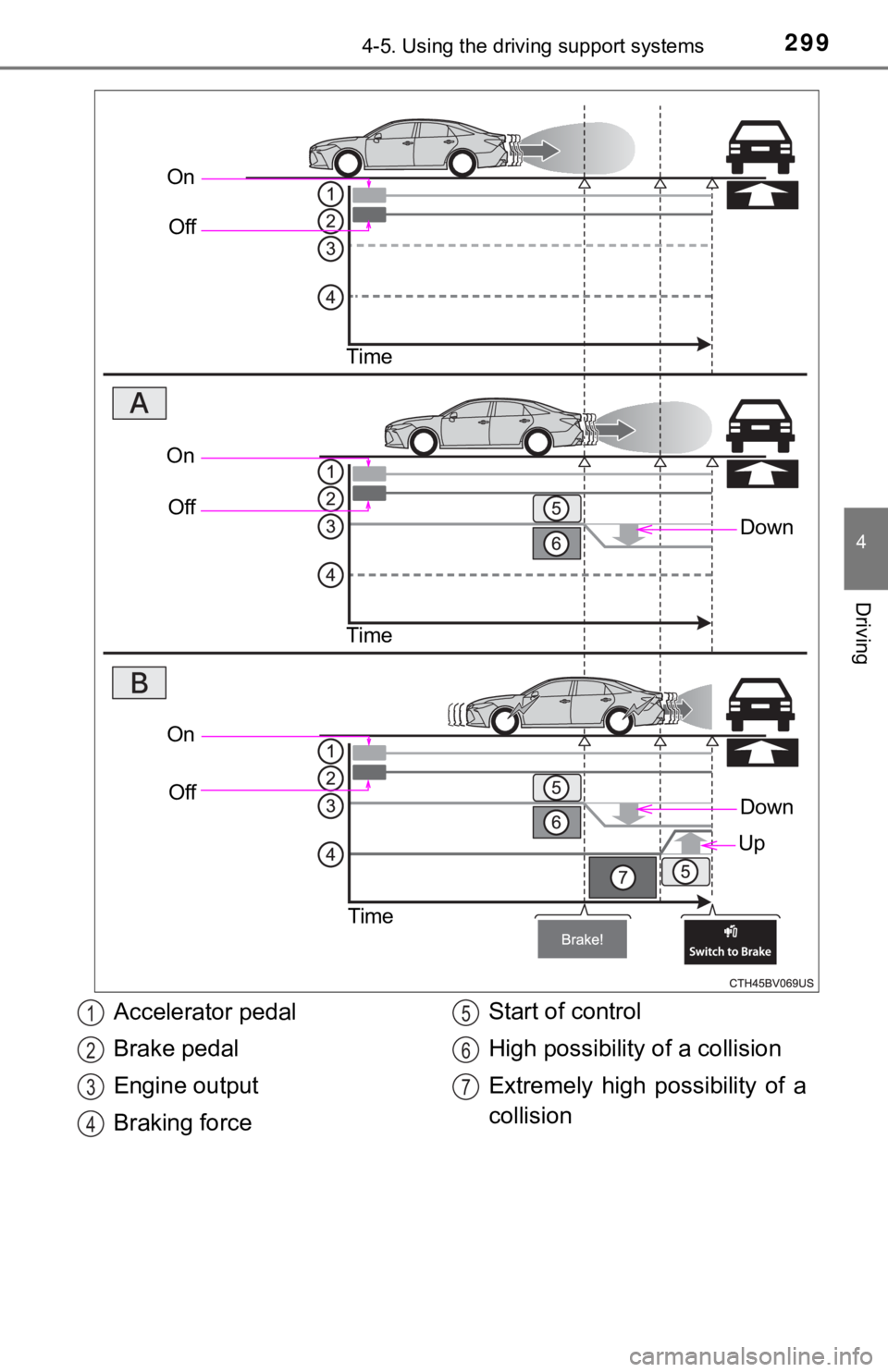

If the Rear Cross Traffic Auto Brake function detects that a collision
with an approaching vehicle is possible, the engine output will be
restricted to restrain any increase in vehicle speed. (Engine output
restriction control: See A below.)
Additionally, if the accelerator pedal continues to be depressed, the
brakes will be applied automatically to reduce the vehicle speed.
(Brake control: See B below.)
Rear Cross Traffic Auto Brake function

2994-5. Using the driving support systems
4
Driving
On
Off
Time
Down
On
Off
Time
On
Off
Time
Down
Up
Accelerator pedal
Brake pedal
Engine output
Braking forceStart of control
High possibility of a collision
Extremely high possibility of a
collision1
2
3
4
5
6
7

3004-5. Using the driving support systems
■The Rear Cross Traffic Auto Brake function will operate when
The function will operate when the ICS OFF indicator is not illuminated or
flashing (P. 287, 295) and all of the following conditions are met:
●Engine output restriction control
• The Intelligent Clearance Sonar with Rear Cross Traffic Auto Brake is
enabled.
• The vehicle speed is 10 mph (15 km/h) or less.
• Vehicles which are approaching from the right or left at the rear of the
vehicle at a traveling speed of less than approximately 5 mph (8 km/h)
• The shift lever is in R.
• The system determines that a stronger than normal brake operation is
necessary to avoid a collision with an approaching vehicle.
●Brake control
• Engine output restriction control is operating.
• The system determines that an emergency brake operation is necessary
to avoid a collision with an approaching vehicle.
■The Rear Cross Traffic Auto Brake function will stop operating when
The function will stop operating if any of the following conditions are met:
●Engine output restriction control
• The Intelligent Clearance Sonar with Rear Cross Traffic Auto Brake is
disabled.
• The collision becomes avoidable with normal brake operation.
• A vehicle is no longer approaching from the right or left at the rear of the
vehicle.
●Brake control
• The Intelligent Clearance Sonar with Rear Cross Traffic Auto Brake is
disabled.
• Approximately 2 seconds elapse after the vehicle is stopped by brake
control.
• The brake pedal is depressed after the vehicle is stopped by brake con-
trol.
• A vehicle is no longer approaching from the right or left at the rear of the
vehicle.
■Detection area of the Rear Cross Traffic Auto Brake function
The detection area of the Rear Cross Traffic Auto Brake function differs from
the detection area of the RCTA function (P. 269).
Therefore, even if the RCTA function detects a vehicle and provides an alert,
the Rear Cross Traffic Auto Brake function may not start operating.
■If the Rear Cross Traffic Auto Brake function has operated
If the vehicle is stopped due to operation of the Rear Cross Traffic Auto Brake
function, the Rear Cross Traffic Auto Brake function will be disabled and the
ICS OFF indicator will illuminate.
