instrument cluster TOYOTA AVALON 2021 Owners Manual (in English)

Pictorial indexSearch by illustration
1For safety
and securityMake sure to read through them
2Instrument
clusterHow to read the gauges and meters, the variety of
warning lights and indicators, etc.
3
Operation of
each
componentOpening and closing the doors and windows,
adjustment before driving, etc.
4DrivingOperations and advice which are necessary for
driving
5Interior featuresUsage of the interior features, etc.
6Maintenance
and careCaring for your vehicle and maintenance
procedures
7When trouble
arisesWhat to do in case of malfunction or emergency
8Vehicle
specificationsVehicle specifications, customizable features, etc.
9For ownersReporting safety defects for U.S. owners, and seat
belt and SRS airbag instructions for Canadian
owners
IndexSearch by symptom
Search alphabetically

TABLE OF CONTENTS2
For your information....................... 8
Reading this manual .................... 14
How to search .............................. 15
Pictorial index .............................. 16
1-1. For safe use
Before driving ...................... 26
For safe driving ................... 28
Seat belts ............................ 30
SRS airbags ........................ 36
Front passenger occupant
classification system ......... 50
Safety information
for children ........................ 55
Child restraint systems ........ 56
Installing child restraints ...... 60
Exhaust gas precautions ..... 70
1-2. Emergency assistance
Safety Connect.................... 71
1-3. Theft deterrent system
Engine immobilizer
system............................... 77
Alarm ................................... 802. Instrument cluster
Warning lights and
indicators ........................... 84
Gauges and meters ............. 90
Multi-information display ...... 93
Head-up display................. 109
Fuel consumption
information....................... 116
1For safety and security
2Instrument cluster

83
Instrument cluster2
2. Instrument cluster
Warning lights and
indicators .......................... 84
Gauges and meters ............ 90
Multi-information display ..... 93
Head-up display ................ 109
Fuel consumption
information ...................... 116

842. Instrument cluster
The units used on the meters and some indicators may differ depending on
the target region.

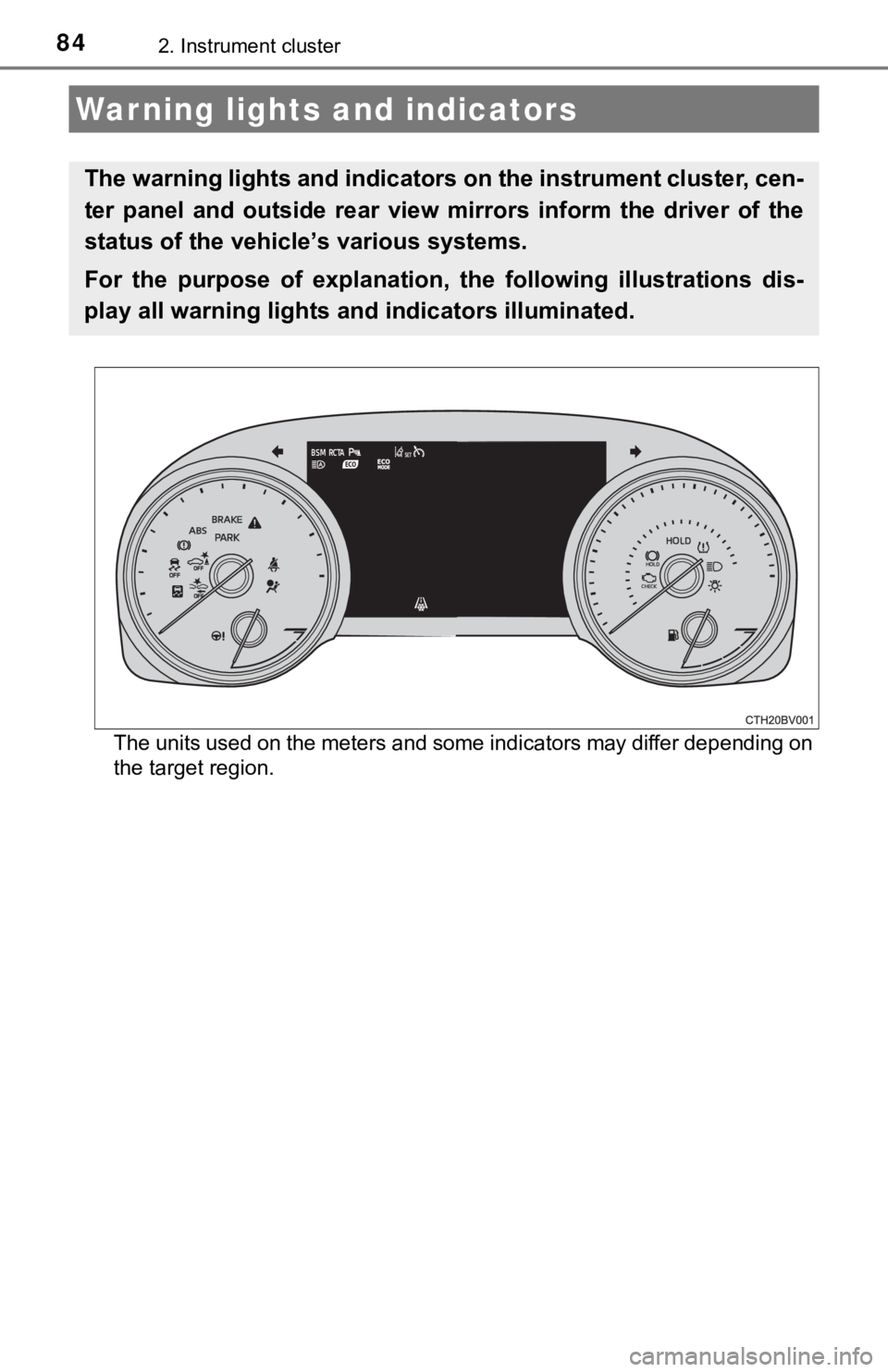

Warning lights and indicators
The warning lights and indicators on the instrument cluster, cen-
ter panel and outside rear view mirrors inform the driver of the
status of the vehicle’s various systems.
For the purpose of explanation, the following illustrations dis-
play all warning lights and indicators illuminated.

852. Instrument cluster
2
Instrument cluster
Warning lights inform the driver of malfunctions in the indicated vehi-
cle’s systems.

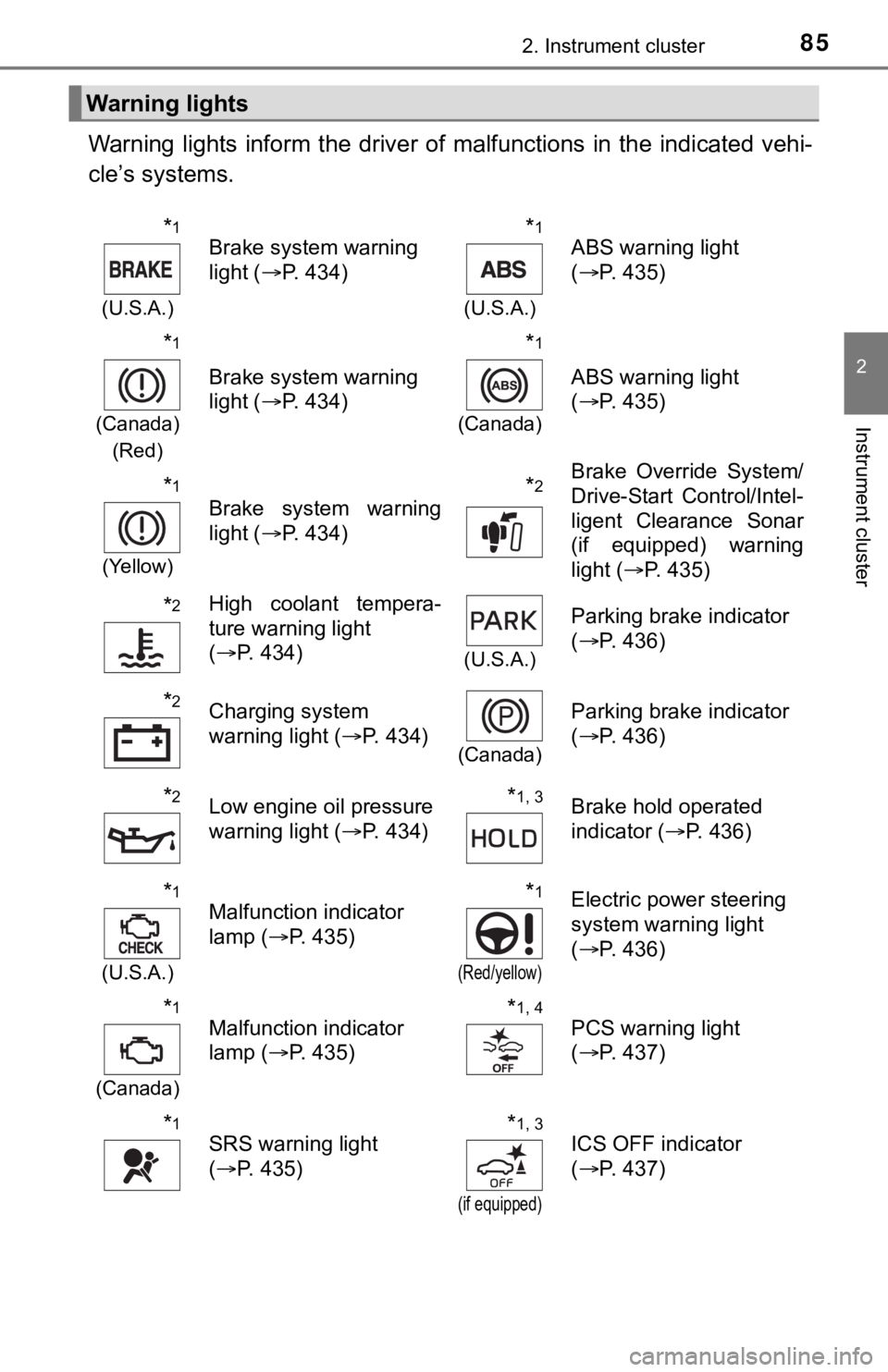

Warning lights
*1
(U.S.A.)
Brake system warning
light (P. 434)*1
(U.S.A.)
ABS warning light
(P. 435)
*1
(Canada)
(Red)
Brake system warning
light (P. 434)
*1
(Canada)
ABS warning light
(P. 435)
*1
(Yellow)
Brake system warning
light (P. 434)*2Brake Override System/
Drive-Start Control/Intel-
ligent Clearance Sonar
(if equipped) warning
light (P. 435)
*2High coolant tempera-
ture warning light
(P. 434)
(U.S.A.)
Parking brake indicator
(P. 436)
*2Charging system
warning light (P. 434)
(Canada)
Parking brake indicator
(P. 436)
*2Low engine oil pressure
warning light (P. 434)*1, 3Brake hold operated
indicator (P. 436)
*1
(U.S.A.)
Malfunction indicator
lamp (P. 435)*1
(Red/yellow)
Electric power steering
system warning light
(P. 436)
*1
(Canada)
Malfunction indicator
lamp (P. 435)*1, 4PCS warning light
(P. 437)
*1SRS warning light
(P. 435)*1, 3
(if equipped)
ICS OFF indicator
(P. 437)

862. Instrument cluster
*1: These lights turn on when the engine switch is turned to IGNITION ON
mode to indicate that a system check is being performed. They will turn off
after the engine is started, or after a few seconds. There may be a mal-
function in a system if a light does not come on, or turn off. Have the vehi-
cle inspected by your Toyota dealer.
*2: This light illuminates on the multi-information display.
*3: This light flashes to indicate a malfunction.
*4: This light flashes or illuminates to indicate a malfunction.
*5: This light illuminates on the center panel.

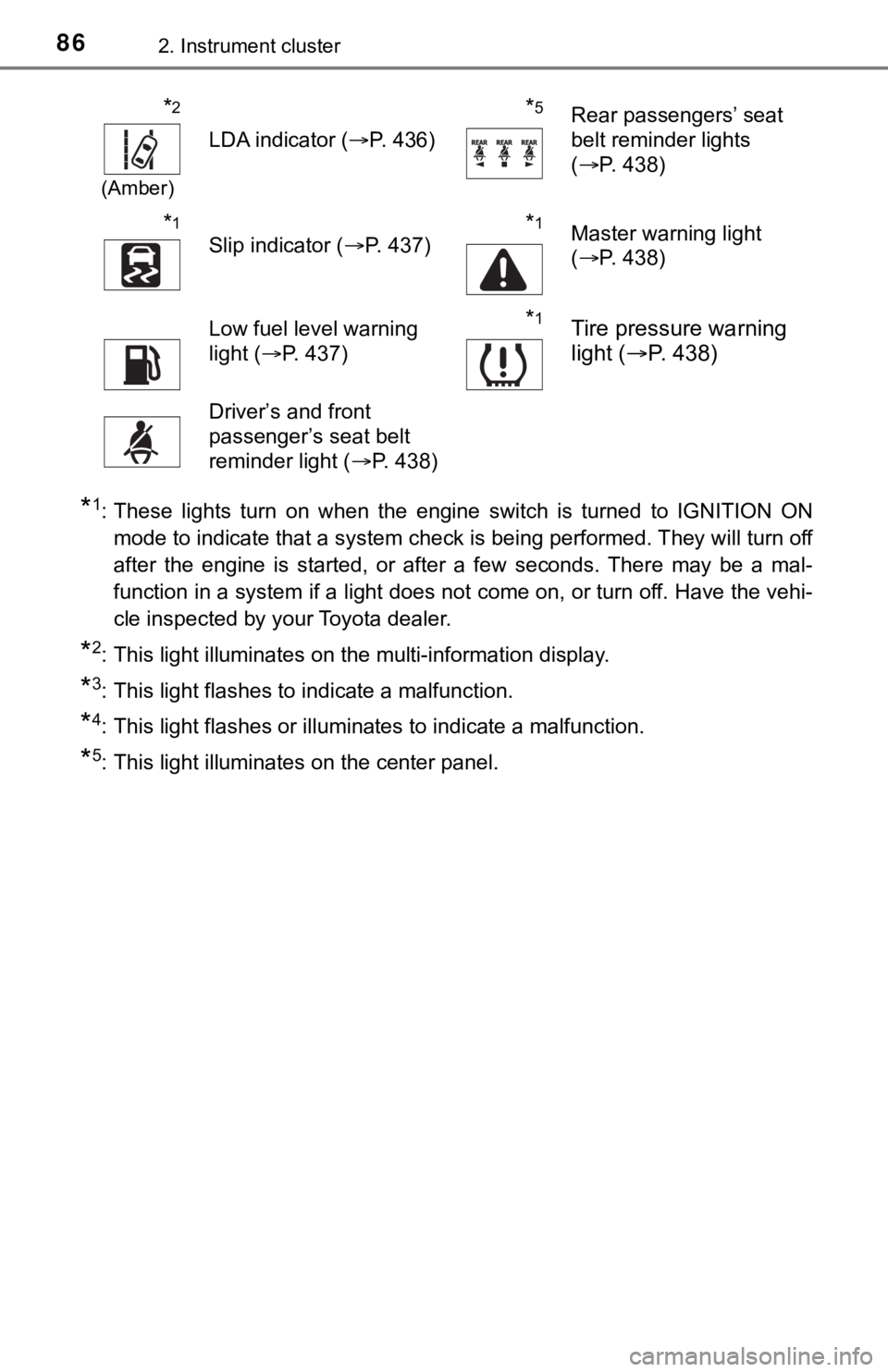

*2
(Amber)
LDA indicator (P. 436)
*5Rear passengers’ seat
belt reminder lights
(P. 438)
*1
Slip indicator (P. 437)*1Master warning light
(P. 438)
Low fuel level warning
light (P. 437)*1Tire pressure warning
light (P. 438)
Driver’s and front
passenger’s seat belt
reminder light (P. 438)

872. Instrument cluster
2
Instrument cluster
The indicators inform the driver of the operating state of the vehicle’s
various systems.

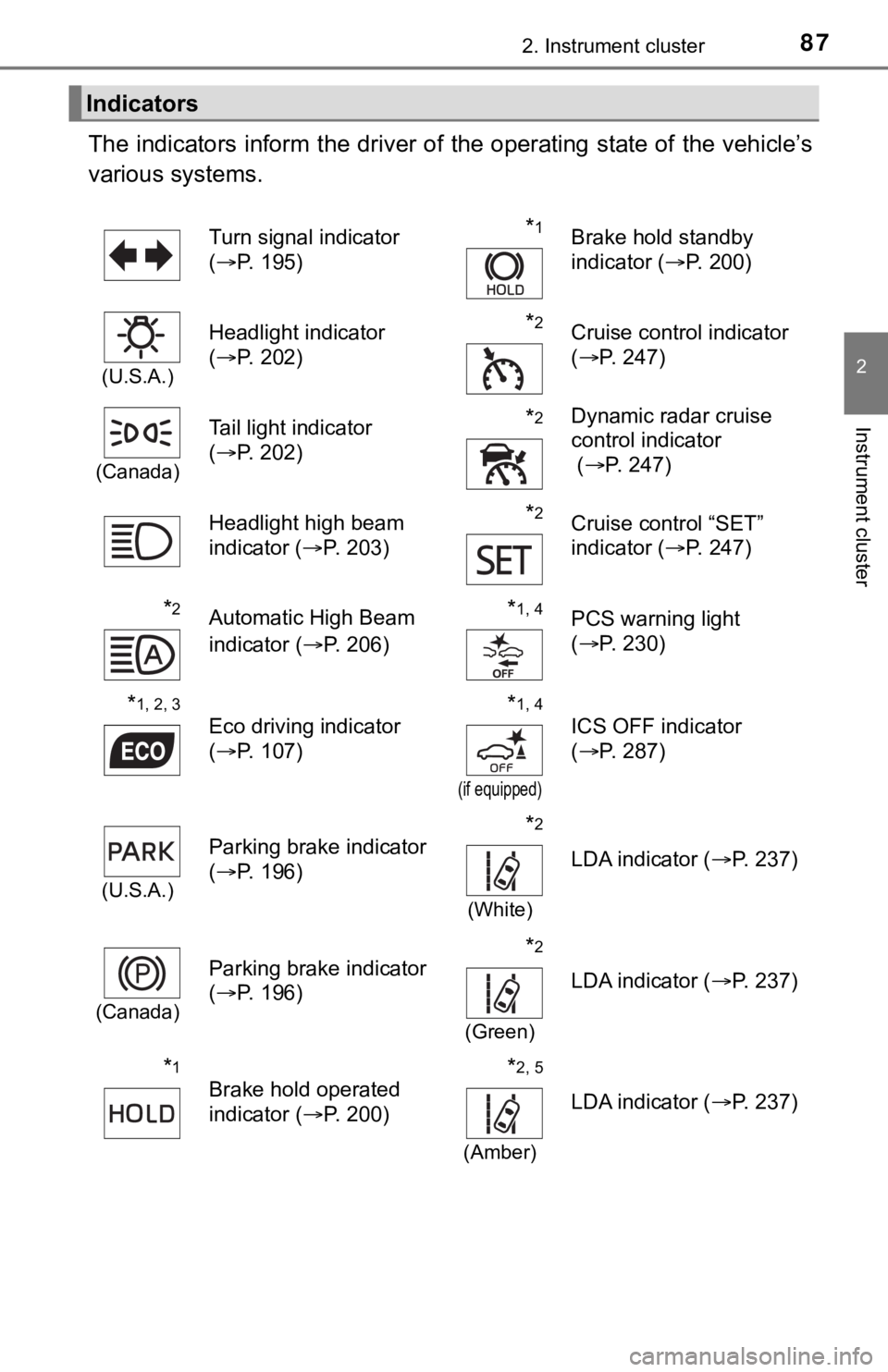

Indicators
Turn signal indicator
(P. 195)*1Brake hold standby
indicator (P. 200)
(U.S.A.)
Headlight indicator
(P. 202)*2Cruise control indicator
(P. 247)
(Canada)
Tail light indicator
(P. 202) *2Dynamic radar cruise
control indicator
(P. 247)
Headlight high beam
indicator (P. 203)
*2Cruise control “SET”
indicator (P. 247)
*2Automatic High Beam
indicator (P. 206)*1, 4PCS warning light
(P. 230)
*1, 2, 3
Eco driving indicator
(P. 107)*1, 4
(if equipped)
ICS OFF indicator
(P. 287)
(U.S.A.)
Parking brake indicator
(P. 196)*2
(White)
LDA indicator (P. 237)
(Canada)
Parking brake indicator
(P. 196)*2
(Green)
LDA indicator (P. 237)
*1
Brake hold operated
indicator (P. 200)*2, 5
(Amber)
LDA indicator (P. 237)

882. Instrument cluster

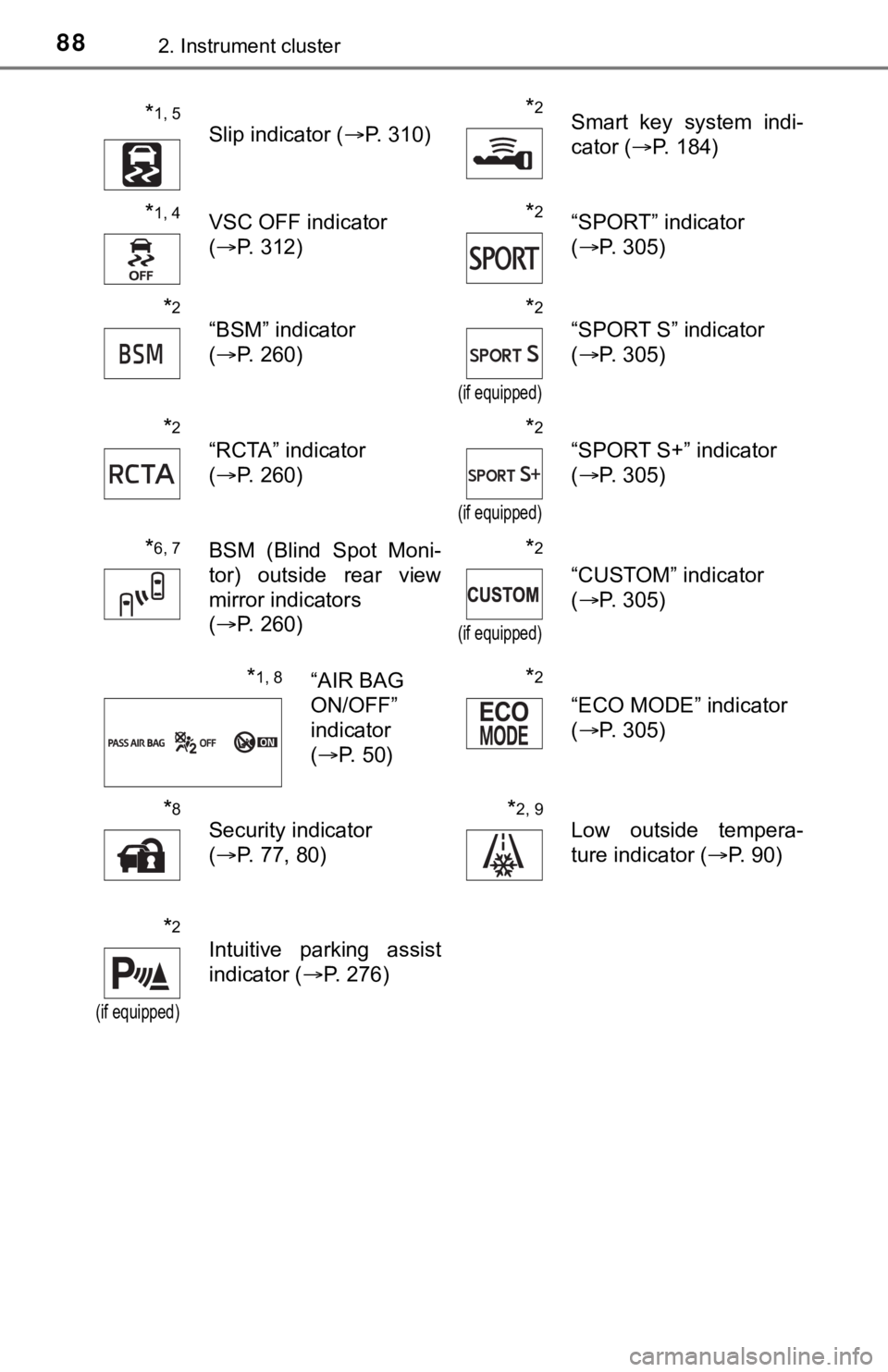

*1, 5
Slip indicator (P. 310)
*2Smart key system indi-
cator (P. 184)
*1, 4VSC OFF indicator
(P. 312)*2“SPORT” indicator
(P. 305)
*2
“BSM” indicator
(P. 260)*2
(if equipped)
“SPORT S” indicator
(P. 305)
*2
“RCTA” indicator
(P. 260)*2
(if equipped)
“SPORT S+” indicator
(P. 305)
*6, 7BSM (Blind Spot Moni-
tor) outside rear view
mirror indicators
(P. 260)*2
(if equipped)
“CUSTOM” indicator
(P. 305)
*1, 8“AIR BAG
ON/OFF”
indicator
(P. 50)*2
“ECO MODE” indicator
(P. 305)
*8
Security indicator
(P. 77, 80)*2, 9
Low outside tempera-
ture indicator (P. 90)
*2
(if equipped)
Intuitive parking assist
indicator (P. 276)

892. Instrument cluster
2
Instrument cluster
*1: These lights turn on when the engine switch is turned to IGNITION ON
mode to indicate that a system check is being performed. They will turn off
after the engine is started, or after a few seconds. There may be a mal-
function in a system if a light does not come on, or turn off. Have the vehi-
cle inspected by your Toyota dealer.
*2: This light illuminates on the multi-information display.
*3: This light does not turn on when the system is disabled.
*4: This light turns on when the system is off.
*5: This light flashes to indicate that the system is operating.
*6: These indicators will illuminate in the following situations to indicate that
the system initial check is being performed:
• When the BSM function or RCTA function is enabled and the engine
switch is turned to IGNITION ON mode.
• When the engine switch is in IGNITION ON mode and the BSM function
is enabled.
• When the engine switch is in IGNITION ON mode and the RCTA func-
tion is enabled. (At this time, a buzzer will also sound.)
The indicators will turn off after a few seconds. If the indicators do not
illuminate or turn off, or if a buzzer does not sound when the RCTA func-
tion is enabled, the system may be malfunctioning. Have the vehicle
inspected by your Toyota dealer.
*7: This light illuminates on the outside rear view mirrors.
*8: This light illuminates on the center panel.
*9: When the outside temperature is approximately 37°F (3°C) or lower, this
indicator will flash for approximately 10 seconds, then stay on.
WARNING
■If a safety system warning light does not come on
Should a safety system light such as the ABS and SRS warning lights not
come on when you start the engine, this could mean that these systems are
not available to help protect you in an accident, which could result in death
or serious injury. Have the vehicle inspected by your Toyota dealer immedi-
ately if this occurs.

902. Instrument cluster
The units used on the meters may differ depending on the target region.
Tachometer
Displays the engine speed in revolutions per minute
Shift position (P. 1 8 9 )
Outside temperature
Displays the outside temperature within the range of -40°F (-40°C) to
122°F (50°C). Low outside temperature indicator comes on when the
ambient temperature is 37°F (3°C) or lower.
Multi-information display
<0033005500480056004800510057005600030057004b0048000300470055004c0059004800550003005a004c0057004b000300440003005900440055004c00480057005c000300520049000300590048004b004c0046004f00480003004700440057004400
03000b[P. 93)
Displays warning messages in case of a malfunction (P. 444)
Speedometer
Fuel gauge
Odometer and trip meter P. 1 0 6 )
Engine coolant temperature gauge
Displays the engine coolant temperature
Gauges and meters
1
2
3
4
5
6
7
8
