TOYOTA AVENSIS 2002 Repair Manual

022L8±01
02±26
± PREPARATIONREAR SUSPENSION
AVENSIS REPAIR MANUAL (RM1018E)

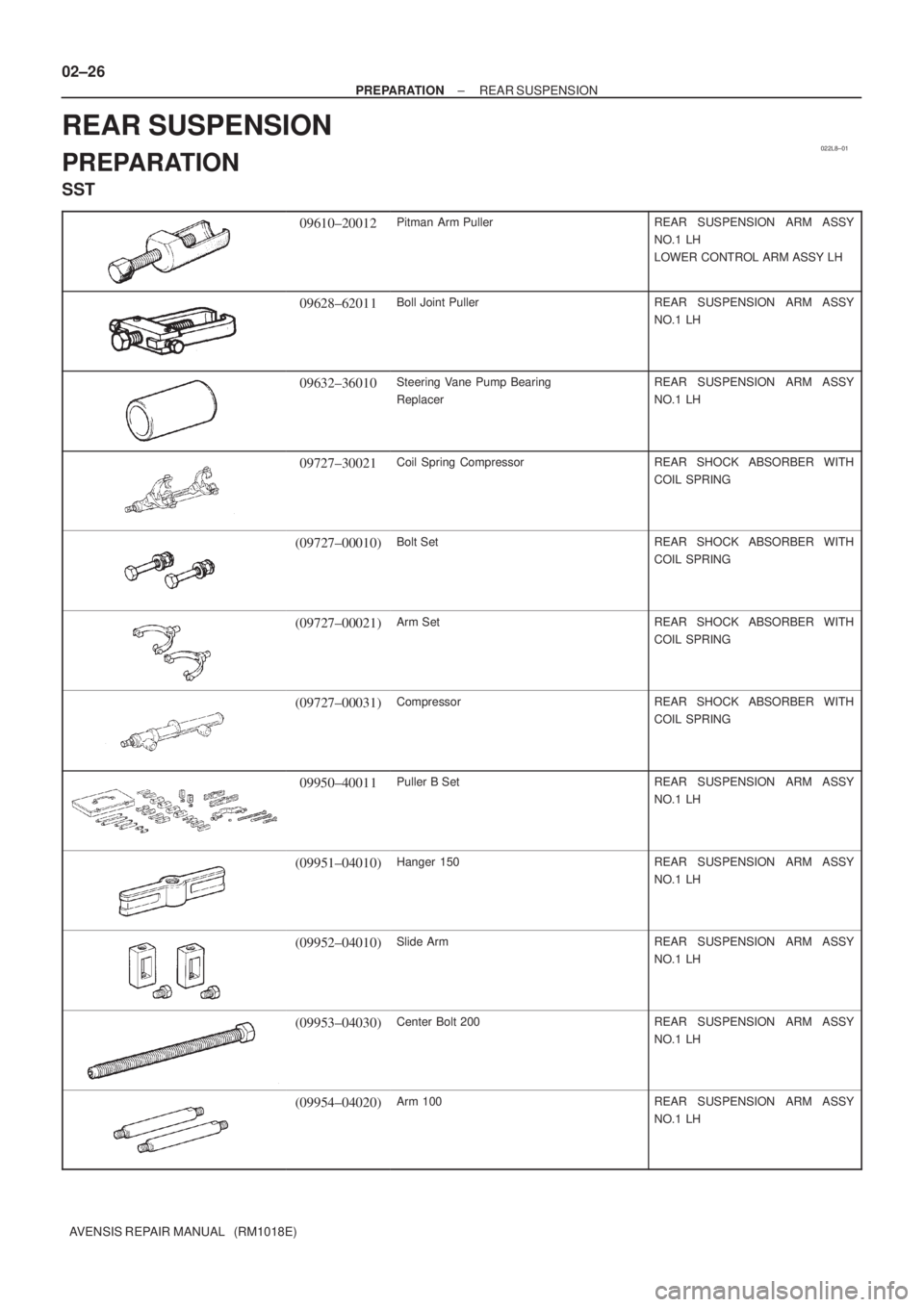

REAR SUSPENSION
PREPARATION
SST
09610±20012Pitman Arm PullerREAR SUSPENSION ARM ASSY
NO.1 LH
LOWER CONTROL ARM ASSY LH
09628±62011Boll Joint PullerREAR SUSPENSION ARM ASSY
NO.1 LH
09632±36010Steering Vane Pump Bearing
ReplacerREAR SUSPENSION ARM ASSY
NO.1 LH
09727±30021Coil Spring CompressorREAR SHOCK ABSORBER WITH
COIL SPRING
(09727±00010)Bolt SetREAR SHOCK ABSORBER WITH
COIL SPRING
(09727±00021)Arm SetREAR SHOCK ABSORBER WITH
COIL SPRING
(09727±00031)CompressorREAR SHOCK ABSORBER WITH
COIL SPRING
09950±40011Puller B SetREAR SUSPENSION ARM ASSY
NO.1 LH
(09951±04010)Hanger 150REAR SUSPENSION ARM ASSY
NO.1 LH
(09952±04010)Slide ArmREAR SUSPENSION ARM ASSY
NO.1 LH
(09953±04030)Center Bolt 200REAR SUSPENSION ARM ASSY
NO.1 LH
(09954±04020)Arm 100REAR SUSPENSION ARM ASSY
NO.1 LH

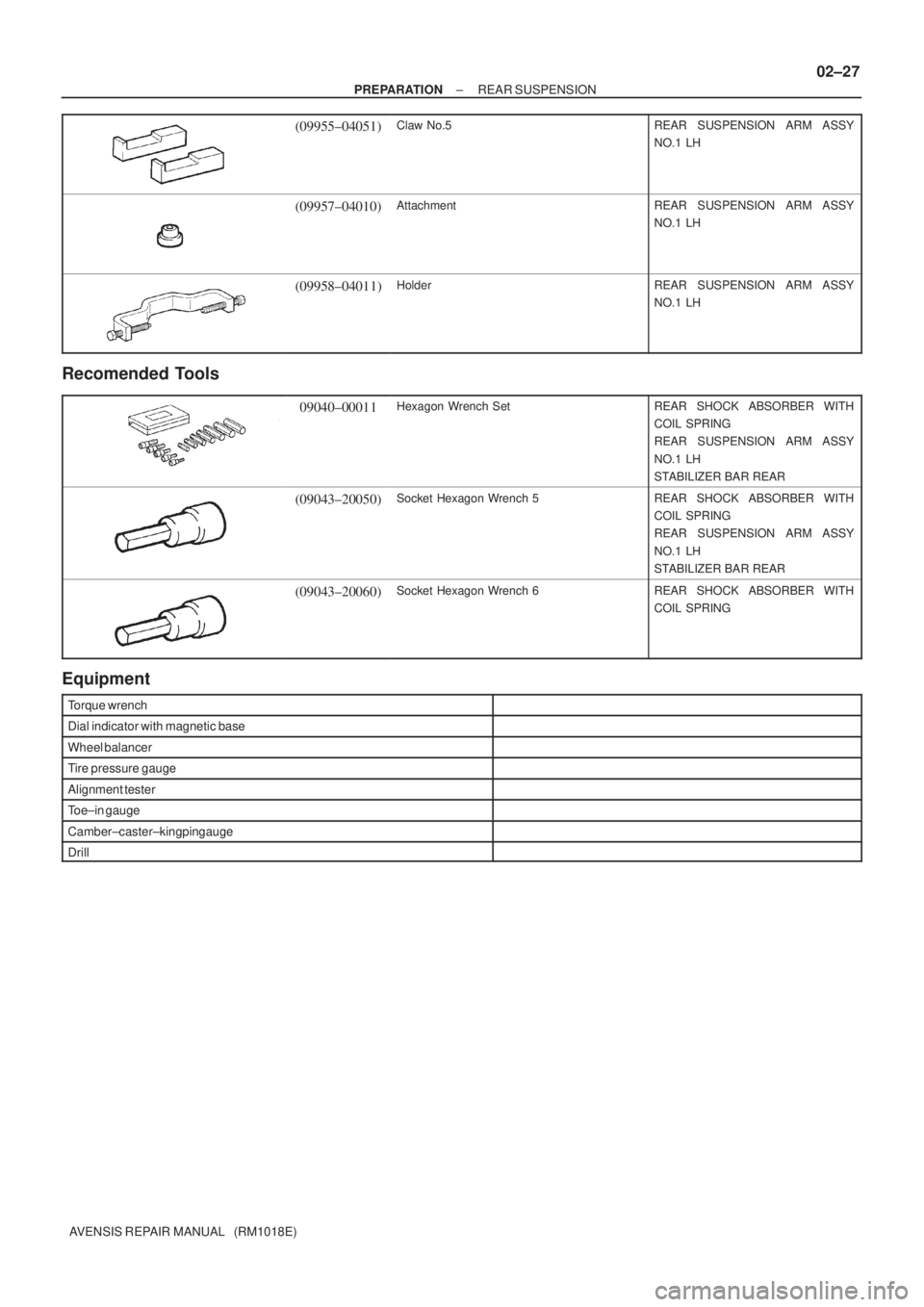

± PREPARATIONREAR SUSPENSION
02±27
AVENSIS REPAIR MANUAL (RM1018E)
(09955±04051)Claw No.5REAR SUSPENSION ARM ASSY
NO.1 LH
(09957±04010)AttachmentREAR SUSPENSION ARM ASSY
NO.1 LH
(09958±04011)HolderREAR SUSPENSION ARM ASSY
NO.1 LH
Recomended Tools
09040±00011Hexagon Wrench SetREAR SHOCK ABSORBER WITH
COIL SPRING
REAR SUSPENSION ARM ASSY
NO.1 LH
STABILIZER BAR REAR
(09043±20050)Socket Hexagon Wrench 5REAR SHOCK ABSORBER WITH
COIL SPRING
REAR SUSPENSION ARM ASSY
NO.1 LH
STABILIZER BAR REAR
(09043±20060)Socket Hexagon Wrench 6REAR SHOCK ABSORBER WITH
COIL SPRING
Equipment
Torque wrench
Dial indicator with magnetic base
Wheel balancer
Tire pressure gauge
Alignment tester
Toe±in gauge
Camber±caster±kingpin gauge
Drill

022L6±01
± PREPARATIONSEAT
02±59
AVENSIS REPAIR MANUAL (RM1018E)

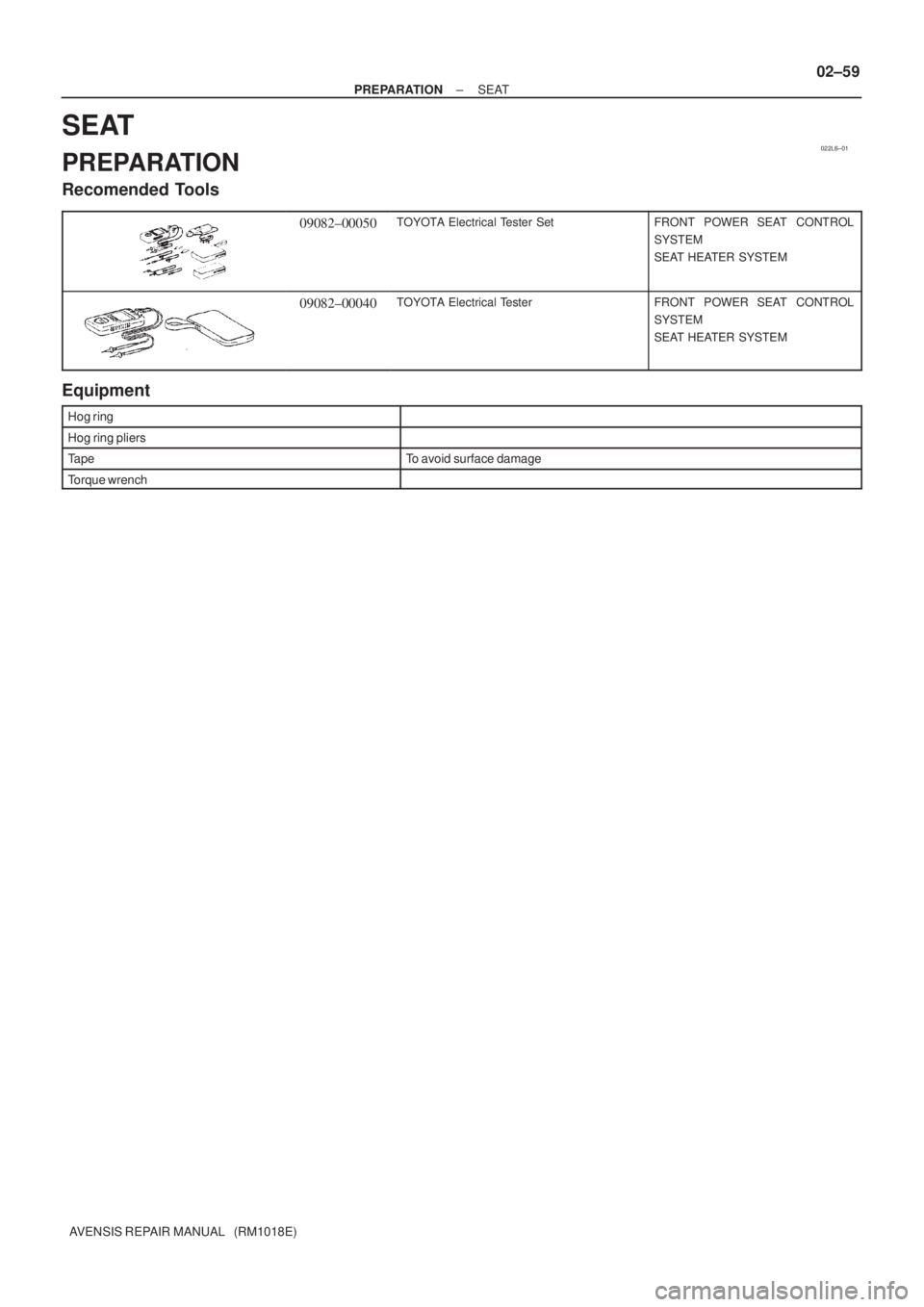

SEAT
PREPARATION
Recomended Tools
09082±00050TOYOTA Electrical Tester SetFRONT POWER SEAT CONTROL
SYSTEM
SEAT HEATER SYSTEM
09082±00040TOYOTA Electrical TesterFRONT POWER SEAT CONTROL
SYSTEM
SEAT HEATER SYSTEM
Equipment
Hog ring
Hog ring pliers
TapeTo avoid surface damage
Torque wrench

022KO±01
02±60

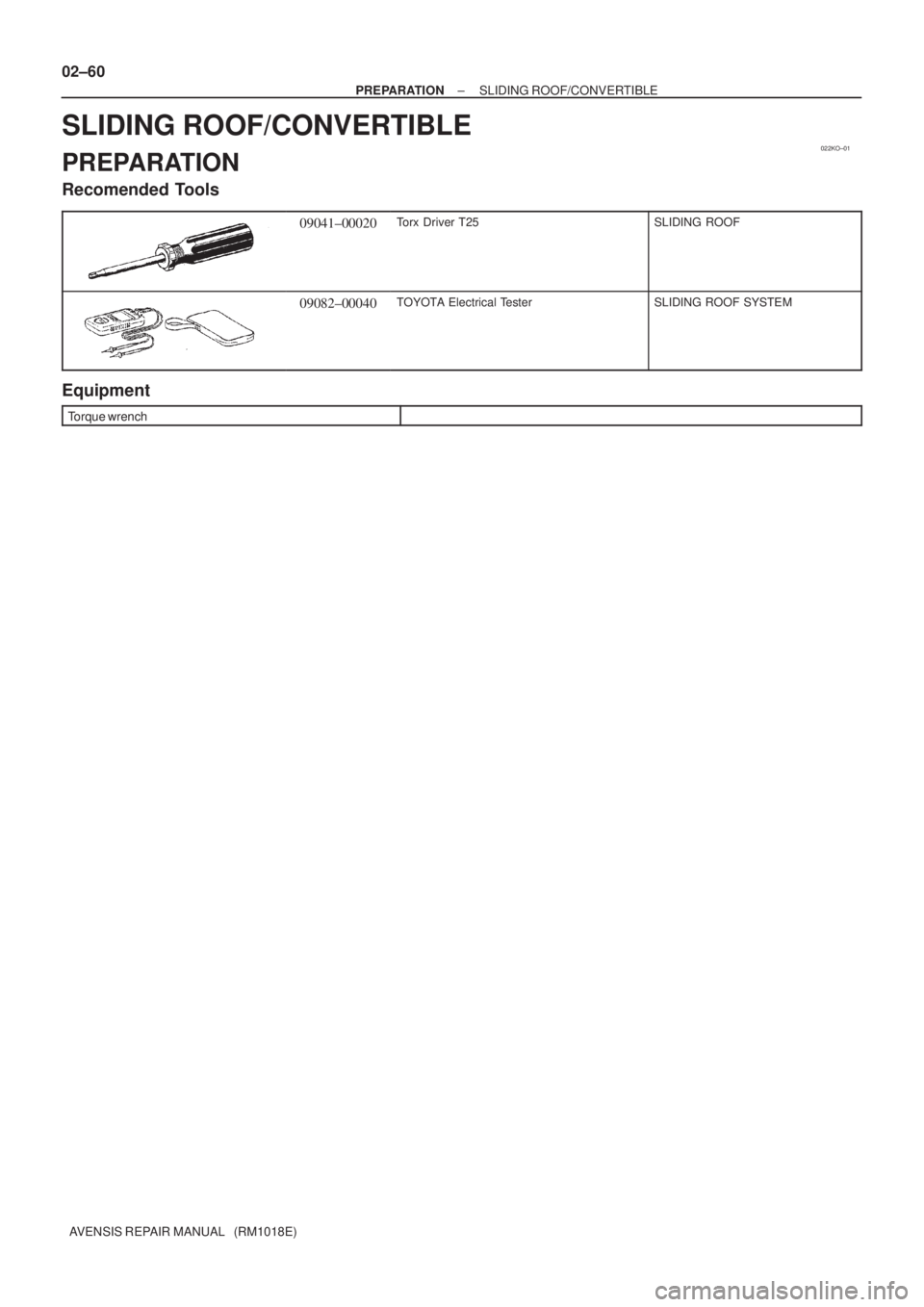

± PREPARATIONSLIDING ROOF/CONVERTIBLE
AVENSIS REPAIR MANUAL (RM1018E)
SLIDING ROOF/CONVERTIBLE
PREPARATION
Recomended Tools
09041±00020Torx Driver T25SLIDING ROOF
09082±00040TOYOTA Electrical TesterSLIDING ROOF SYSTEM
Equipment
Torque wrench

022J9±01
02±24

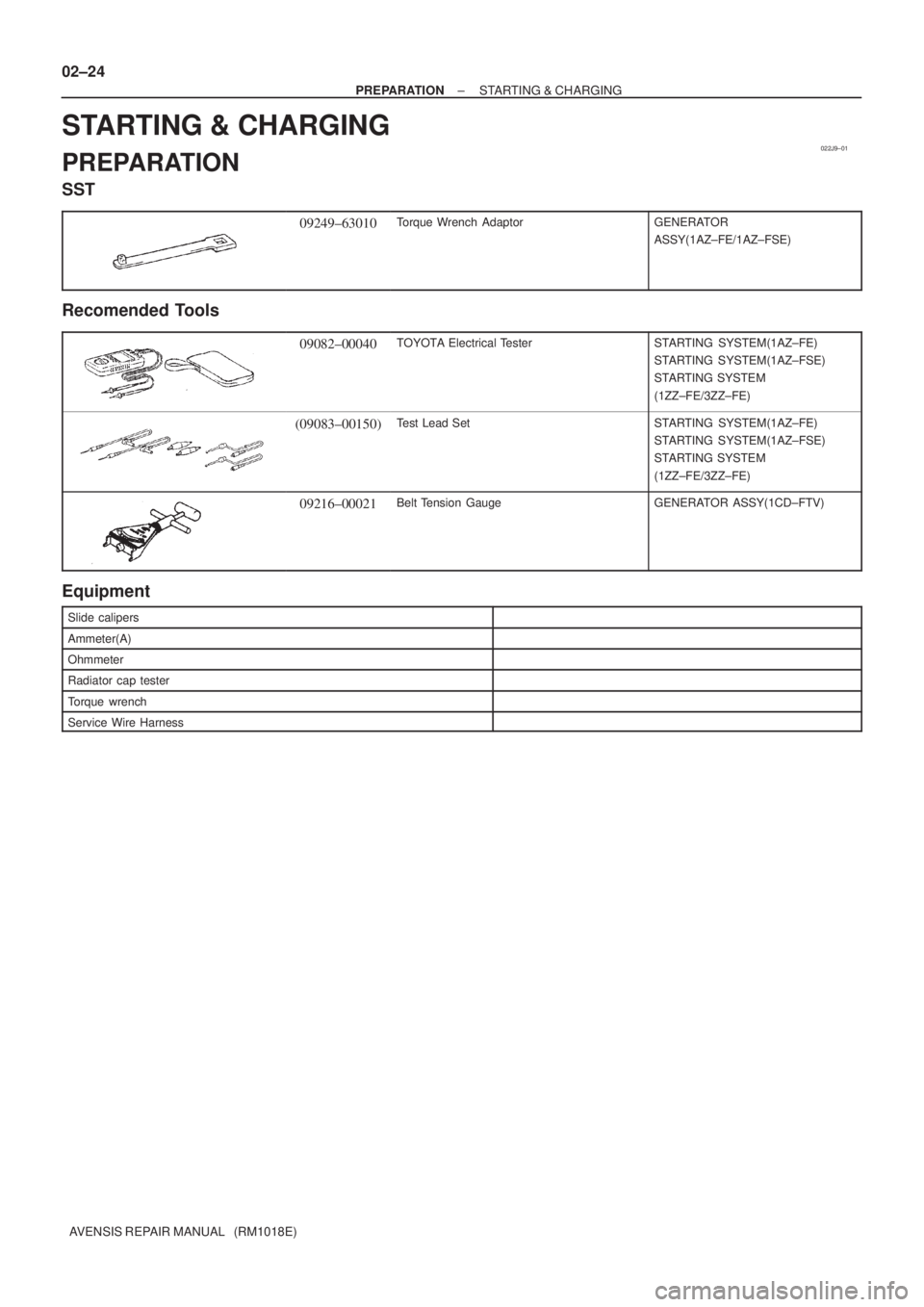

± PREPARATIONSTARTING & CHARGING
AVENSIS REPAIR MANUAL (RM1018E)
STARTING & CHARGING
PREPARATION
SST
09249±63010Torque Wrench AdaptorGENERATOR
ASSY(1AZ±FE/1AZ±FSE)
Recomended Tools
09082±00040TOYOTA Electrical TesterSTARTING SYSTEM(1AZ±FE)
STARTING SYSTEM(1AZ±FSE)
STARTING SYSTEM
(1ZZ±FE/3ZZ±FE)
(09083±00150)Test Lead SetSTARTING SYSTEM(1AZ±FE)
STARTING SYSTEM(1AZ±FSE)
STARTING SYSTEM
(1ZZ±FE/3ZZ±FE)
09216±00021Belt Tension GaugeGENERATOR ASSY(1CD±FTV)
Equipment
Slide calipers
Ammeter(A)
Ohmmeter
Radiator cap tester
Torque wrench
Service Wire Harness

022JS±01
02±44

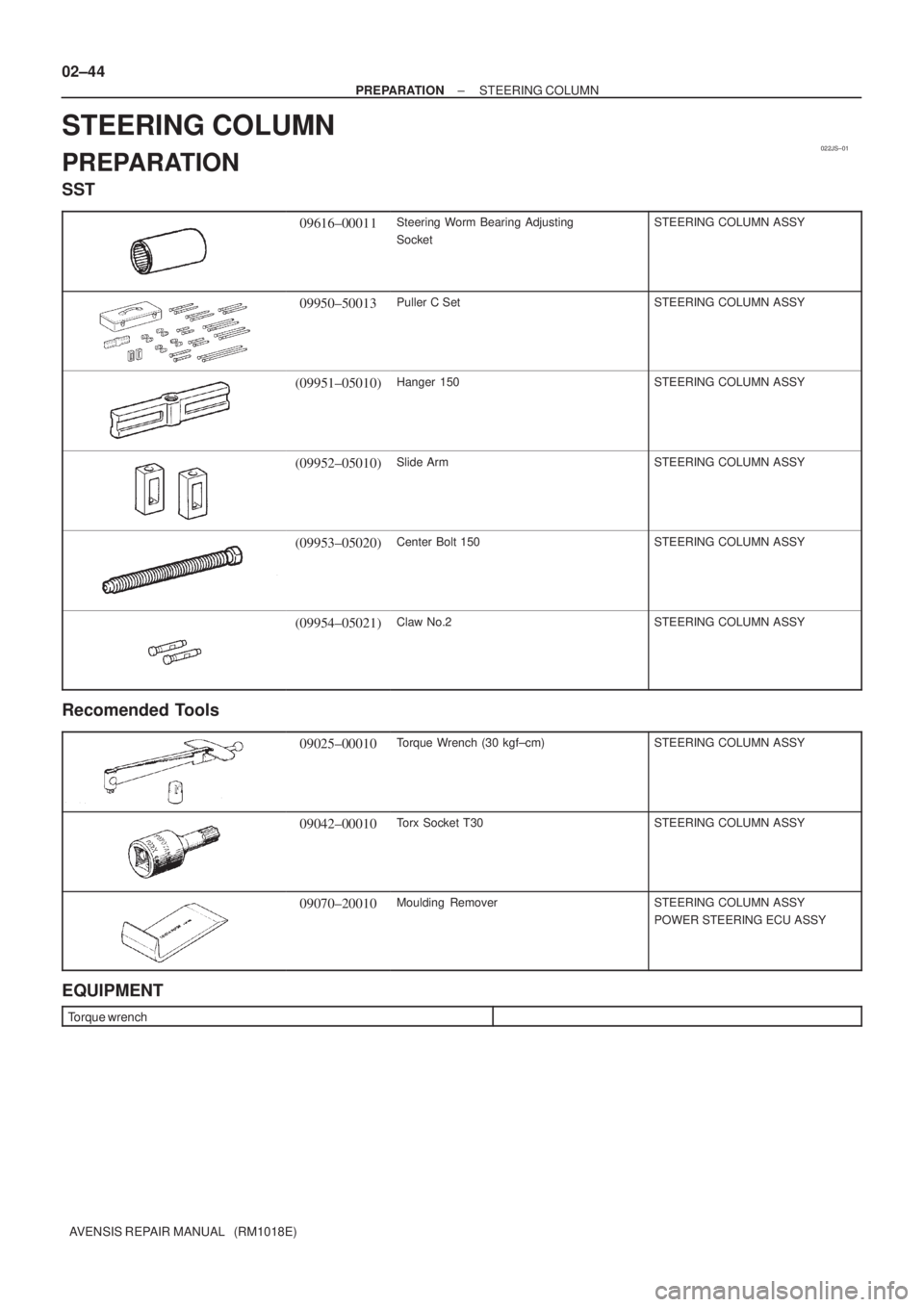

± PREPARATIONSTEERING COLUMN
AVENSIS REPAIR MANUAL (RM1018E)
STEERING COLUMN
PREPARATION
SST
09616±00011Steering Worm Bearing Adjusting
SocketSTEERING COLUMN ASSY
09950±50013Puller C SetSTEERING COLUMN ASSY
(09951±05010)Hanger 150STEERING COLUMN ASSY
(09952±05010)Slide ArmSTEERING COLUMN ASSY
(09953±05020)Center Bolt 150STEERING COLUMN ASSY
(09954±05021)Claw No.2STEERING COLUMN ASSY
Recomended Tools
09025±00010Torque Wrench (30 kgf±cm)STEERING COLUMN ASSY
09042±00010Torx Socket T30STEERING COLUMN ASSY
09070±20010Moulding RemoverSTEERING COLUMN ASSY
POWER STEERING ECU ASSY
EQUIPMENT
Torque wrench

022L5±01
02±52

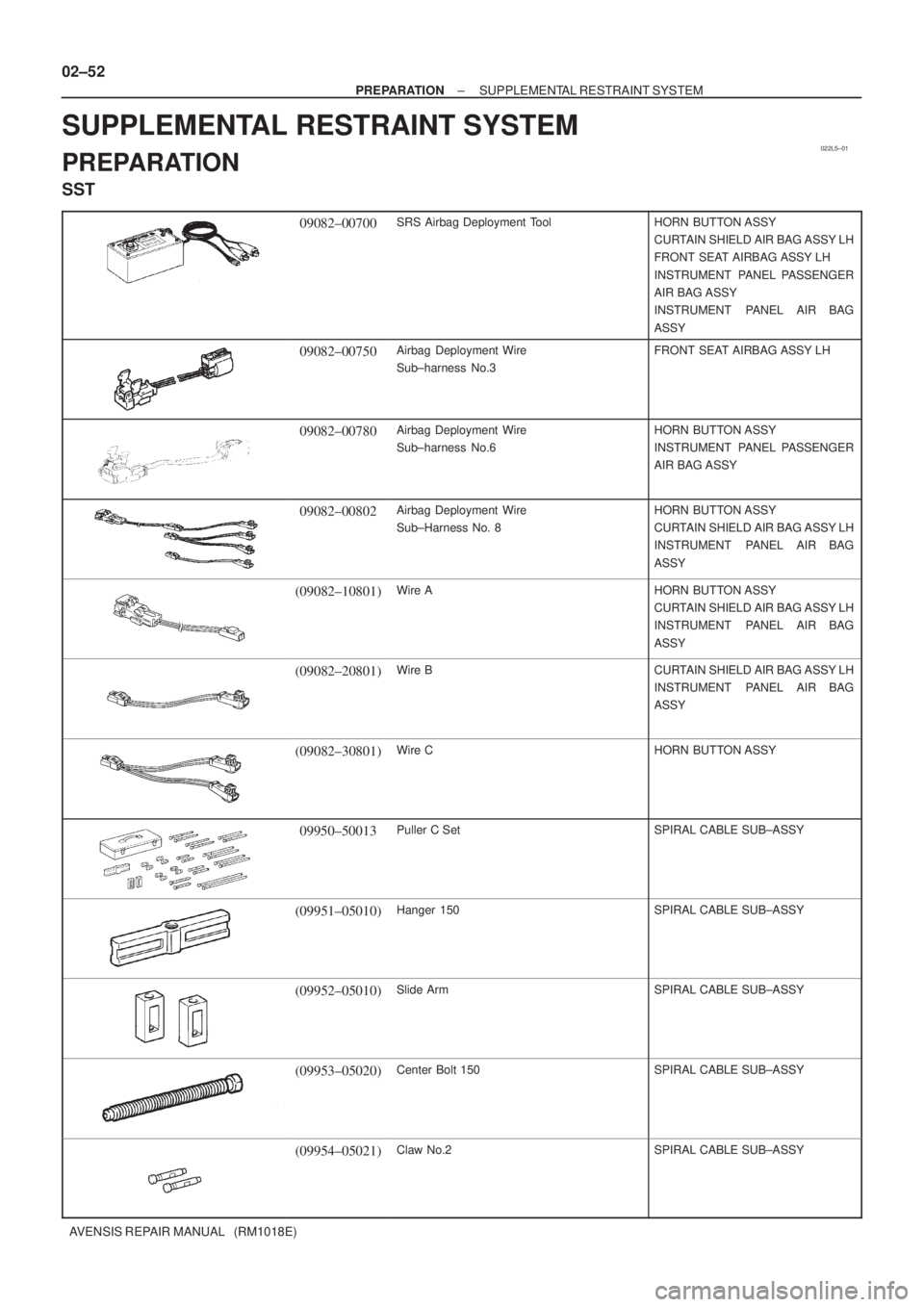

± PREPARATIONSUPPLEMENTAL RESTRAINT SYSTEM
AVENSIS REPAIR MANUAL (RM1018E)
SUPPLEMENTAL RESTRAINT SYSTEM
PREPARATION
SST
09082±00700SRS Airbag Deployment ToolHORN BUTTON ASSY
CURTAIN SHIELD AIR BAG ASSY LH
FRONT SEAT AIRBAG ASSY LH
INSTRUMENT PANEL PASSENGER
AIR BAG ASSY
INSTRUMENT PANEL AIR BAG
ASSY
09082±00750Airbag Deployment Wire
Sub±harness No.3FRONT SEAT AIRBAG ASSY LH
09082±00780Airbag Deployment Wire
Sub±harness No.6HORN BUTTON ASSY
INSTRUMENT PANEL PASSENGER
AIR BAG ASSY
09082±00802Airbag Deployment Wire
Sub±Harness No. 8HORN BUTTON ASSY
CURTAIN SHIELD AIR BAG ASSY LH
INSTRUMENT PANEL AIR BAG
ASSY
(09082±10801)Wire AHORN BUTTON ASSY
CURTAIN SHIELD AIR BAG ASSY LH
INSTRUMENT PANEL AIR BAG
ASSY
(09082±20801)Wire BCURTAIN SHIELD AIR BAG ASSY LH
INSTRUMENT PANEL AIR BAG
ASSY
(09082±30801)Wire CHORN BUTTON ASSY
09950±50013Puller C SetSPIRAL CABLE SUB±ASSY
(09951±05010)Hanger 150SPIRAL CABLE SUB±ASSY
(09952±05010)Slide ArmSPIRAL CABLE SUB±ASSY
(09953±05020)Center Bolt 150SPIRAL CABLE SUB±ASSY
(09954±05021)Claw No.2SPIRAL CABLE SUB±ASSY

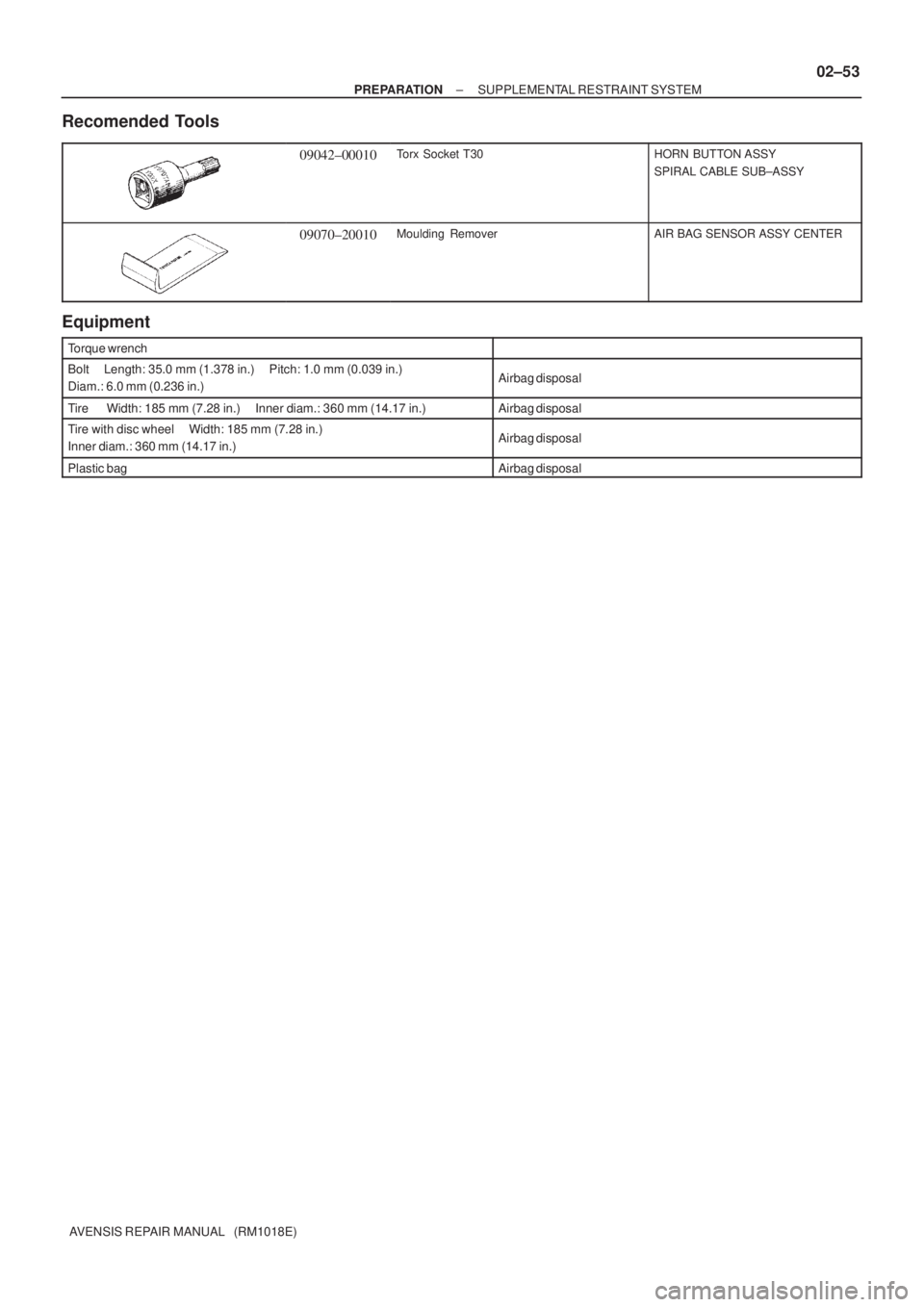

± PREPARATIONSUPPLEMENTAL RESTRAINT SYSTEM
02±53
AVENSIS REPAIR MANUAL (RM1018E)
Recomended Tools
09042±00010Torx Socket T30HORN BUTTON ASSY
SPIRAL CABLE SUB±ASSY
09070±20010Moulding RemoverAIR BAG SENSOR ASSY CENTER
Equipment
Torque wrench
Bolt Length: 35.0 mm (1.378 in.) Pitch: 1.0 mm (0.039 in.)
Diam.: 6.0 mm (0.236 in.)Airbag disposal
Tire Width: 185 mm (7.28 in.) Inner diam.: 360 mm (14.17 in.)Airbag disposal
Tire with disc wheel Width: 185 mm (7.28 in.)
Inner diam.: 360 mm (14.17 in.)Airbag disposal
Plastic bagAirbag disposal

022KG±01
02±28

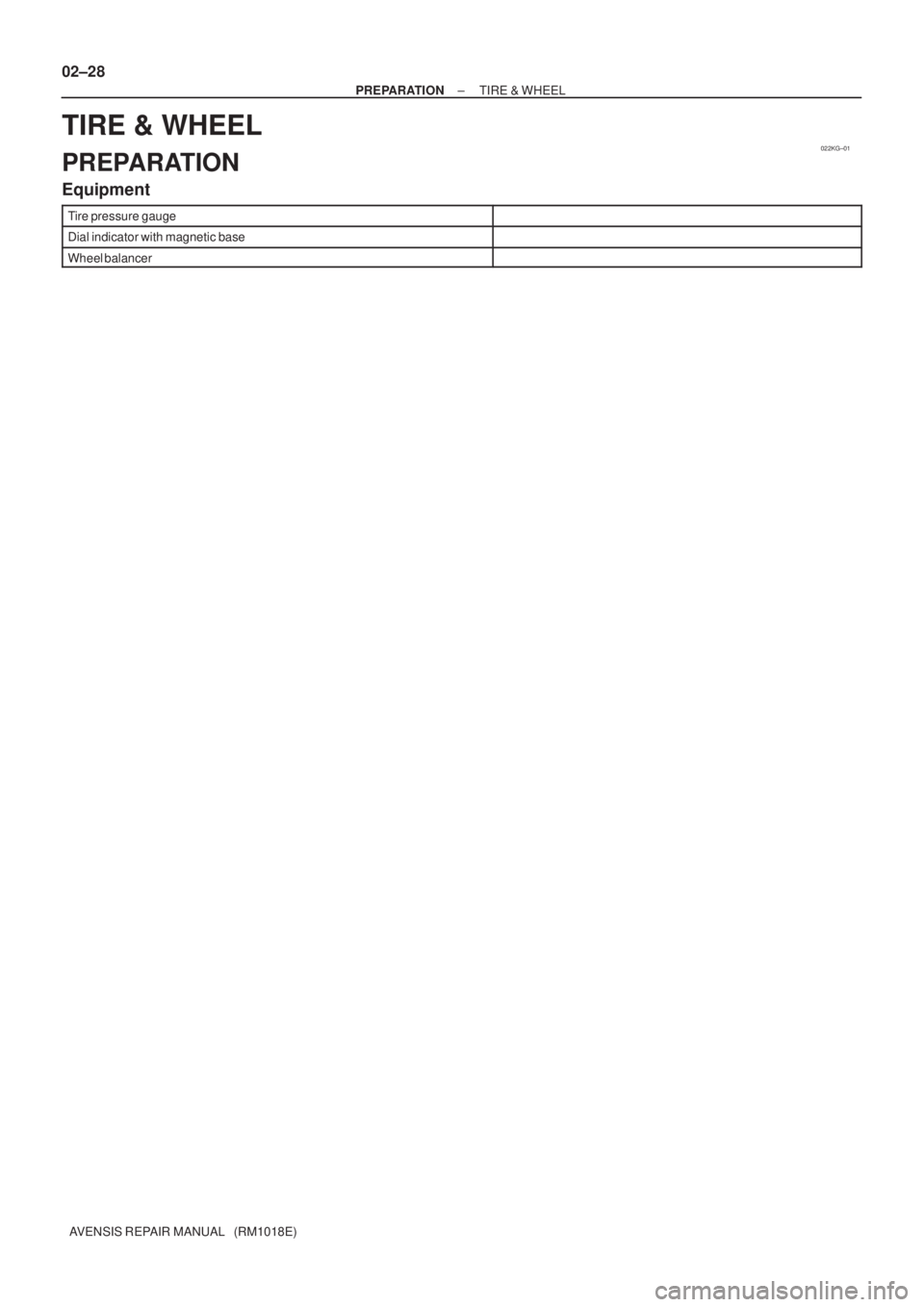

± PREPARATIONTIRE & WHEEL
AVENSIS REPAIR MANUAL (RM1018E)
TIRE & WHEEL
PREPARATION
Equipment
Tire pressure gauge
Dial indicator with magnetic base
Wheel balancer

022L3±01

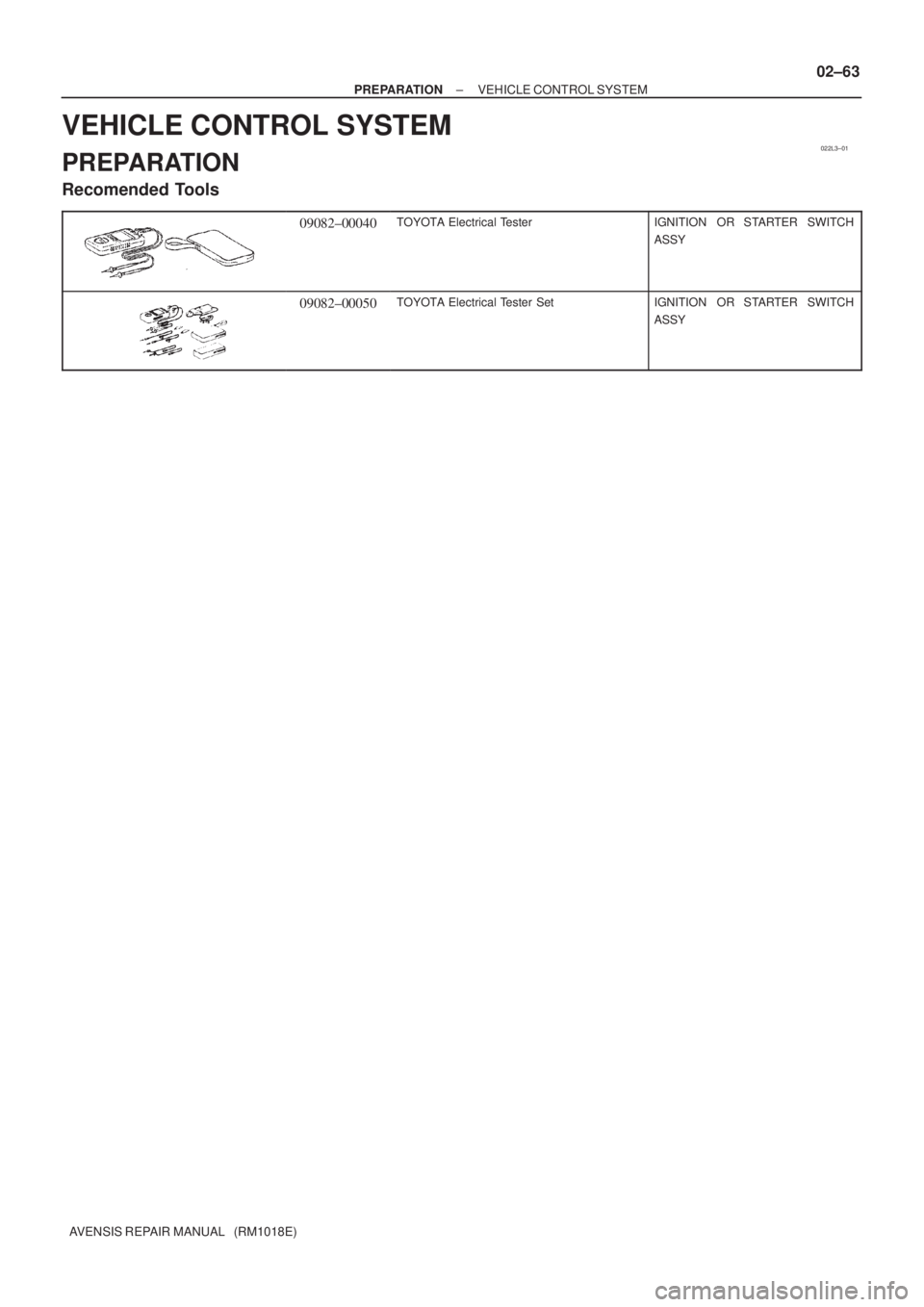

± PREPARATIONVEHICLE CONTROL SYSTEM
02±63
AVENSIS REPAIR MANUAL (RM1018E)
VEHICLE CONTROL SYSTEM
PREPARATION
Recomended Tools
09082±00040TOYOTA Electrical TesterIGNITION OR STARTER SWITCH
ASSY
09082±00050TOYOTA Electrical Tester SetIGNITION OR STARTER SWITCH
ASSY
