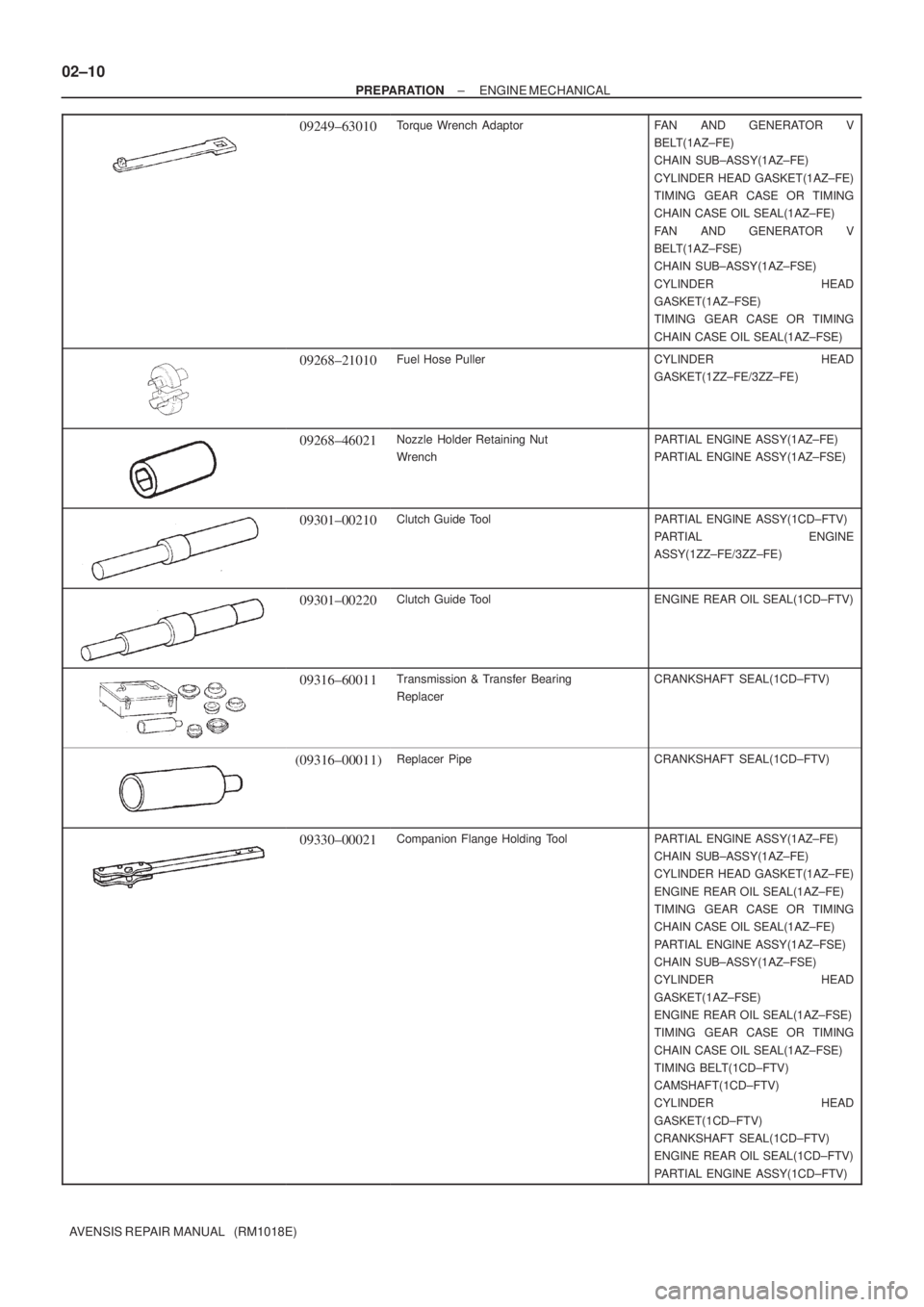

02±10
± PREPARATIONENGINE MECHANICAL
AVENSIS REPAIR MANUAL (RM1018E)
09249±63010Torque Wrench AdaptorFAN AND GENERATOR V
BELT(1AZ±FE)
CHAIN SUB±ASSY(1AZ±FE)
CYLINDER HEAD GASKET(1AZ±FE)
TIMING GEAR CASE OR TIMING
CHAIN CASE OIL SEAL(1AZ±FE)
FAN AND GENERATOR V
BELT(1AZ±FSE)
CHAIN SUB±ASSY(1AZ±FSE)
CYLINDER HEAD
GASKET(1AZ±FSE)
TIMING GEAR CASE OR TIMING
CHAIN CASE OIL SEAL(1AZ±FSE)
09268±21010Fuel Hose PullerCYLINDER HEAD
GASKET(1ZZ±FE/3ZZ±FE)
09268±46021Nozzle Holder Retaining Nut
WrenchPARTIAL ENGINE ASSY(1AZ±FE)
PARTIAL ENGINE ASSY(1AZ±FSE)
09301±00210Clutch Guide ToolPARTIAL ENGINE ASSY(1CD±FTV)
PARTIAL ENGINE
ASSY(1ZZ±FE/3ZZ±FE)
09301±00220Clutch Guide ToolENGINE REAR OIL SEAL(1CD±FTV)
09316±60011Transmission & Transfer Bearing
ReplacerCRANKSHAFT SEAL(1CD±FTV)
(09316±00011)Replacer PipeCRANKSHAFT SEAL(1CD±FTV)
09330±00021Companion Flange Holding ToolPARTIAL ENGINE ASSY(1AZ±FE)
CHAIN SUB±ASSY(1AZ±FE)
CYLINDER HEAD GASKET(1AZ±FE)
ENGINE REAR OIL SEAL(1AZ±FE)
TIMING GEAR CASE OR TIMING
CHAIN CASE OIL SEAL(1AZ±FE)
PARTIAL ENGINE ASSY(1AZ±FSE)
CHAIN SUB±ASSY(1AZ±FSE)
CYLINDER HEAD
GASKET(1AZ±FSE)
ENGINE REAR OIL SEAL(1AZ±FSE)
TIMING GEAR CASE OR TIMING
CHAIN CASE OIL SEAL(1AZ±FSE)
TIMING BELT(1CD±FTV)
CAMSHAFT(1CD±FTV)
CYLINDER HEAD
GASKET(1CD±FTV)
CRANKSHAFT SEAL(1CD±FTV)
ENGINE REAR OIL SEAL(1CD±FTV)
PARTIAL ENGINE ASSY(1CD±FTV)

± PREPARATIONENGINE MECHANICAL

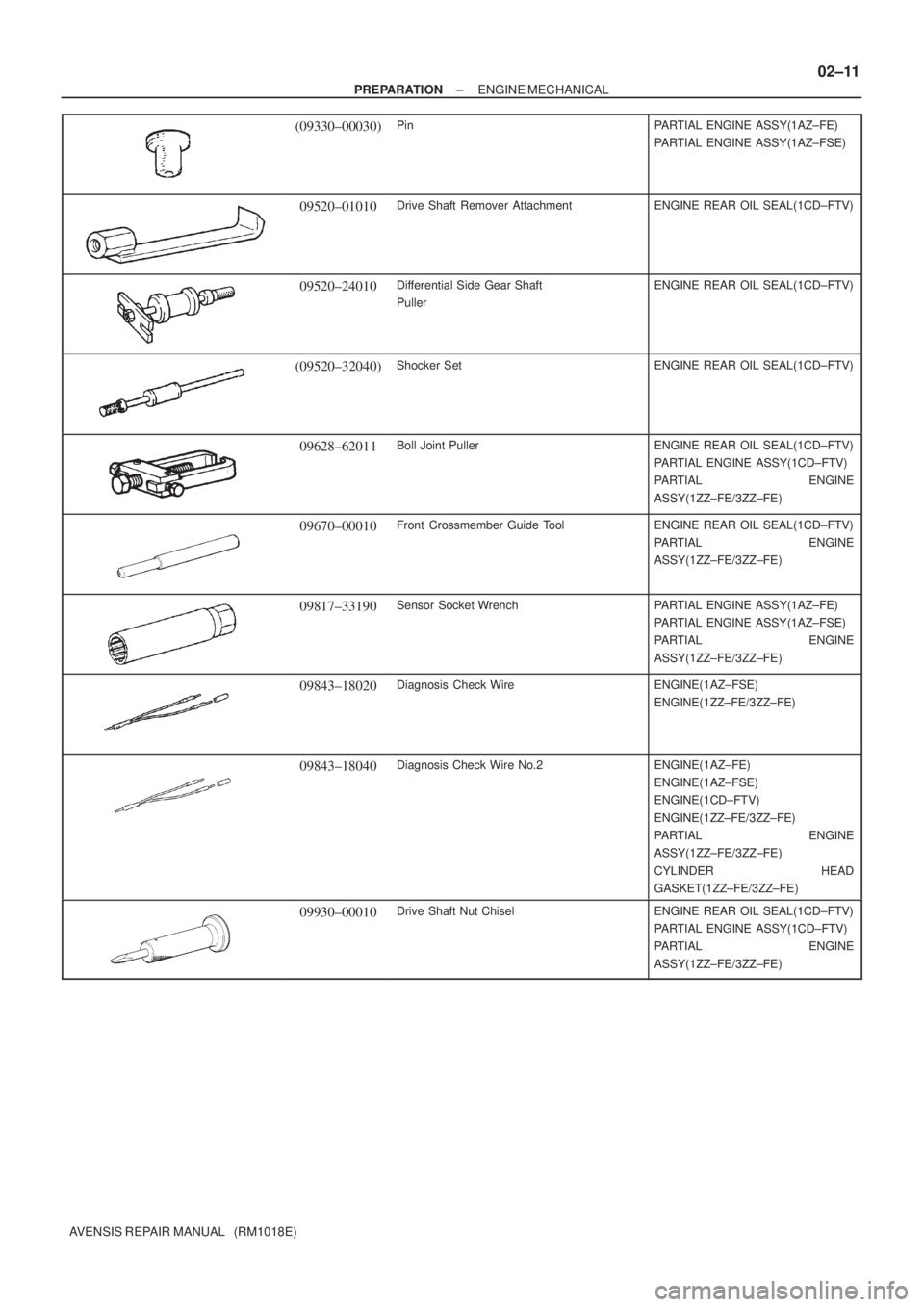

02±11
AVENSIS REPAIR MANUAL (RM1018E)
(09330±00030)PinPARTIAL ENGINE ASSY(1AZ±FE)
PARTIAL ENGINE ASSY(1AZ±FSE)
09520±01010Drive Shaft Remover AttachmentENGINE REAR OIL SEAL(1CD±FTV)
09520±24010Differential Side Gear Shaft
PullerENGINE REAR OIL SEAL(1CD±FTV)
(09520±32040)Shocker SetENGINE REAR OIL SEAL(1CD±FTV)
09628±62011Boll Joint PullerENGINE REAR OIL SEAL(1CD±FTV)
PARTIAL ENGINE ASSY(1CD±FTV)
PARTIAL ENGINE
ASSY(1ZZ±FE/3ZZ±FE)
09670±00010Front Crossmember Guide ToolENGINE REAR OIL SEAL(1CD±FTV)
PARTIAL ENGINE
ASSY(1ZZ±FE/3ZZ±FE)
09817±33190Sensor Socket WrenchPARTIAL ENGINE ASSY(1AZ±FE)
PARTIAL ENGINE ASSY(1AZ±FSE)
PARTIAL ENGINE
ASSY(1ZZ±FE/3ZZ±FE)
09843±18020Diagnosis Check WireENGINE(1AZ±FSE)
ENGINE(1ZZ±FE/3ZZ±FE)
09843±18040Diagnosis Check Wire No.2ENGINE(1AZ±FE)
ENGINE(1AZ±FSE)
ENGINE(1CD±FTV)
ENGINE(1ZZ±FE/3ZZ±FE)
PARTIAL ENGINE
ASSY(1ZZ±FE/3ZZ±FE)
CYLINDER HEAD
GASKET(1ZZ±FE/3ZZ±FE)
09930±00010Drive Shaft Nut ChiselENGINE REAR OIL SEAL(1CD±FTV)
PARTIAL ENGINE ASSY(1CD±FTV)
PARTIAL ENGINE
ASSY(1ZZ±FE/3ZZ±FE)

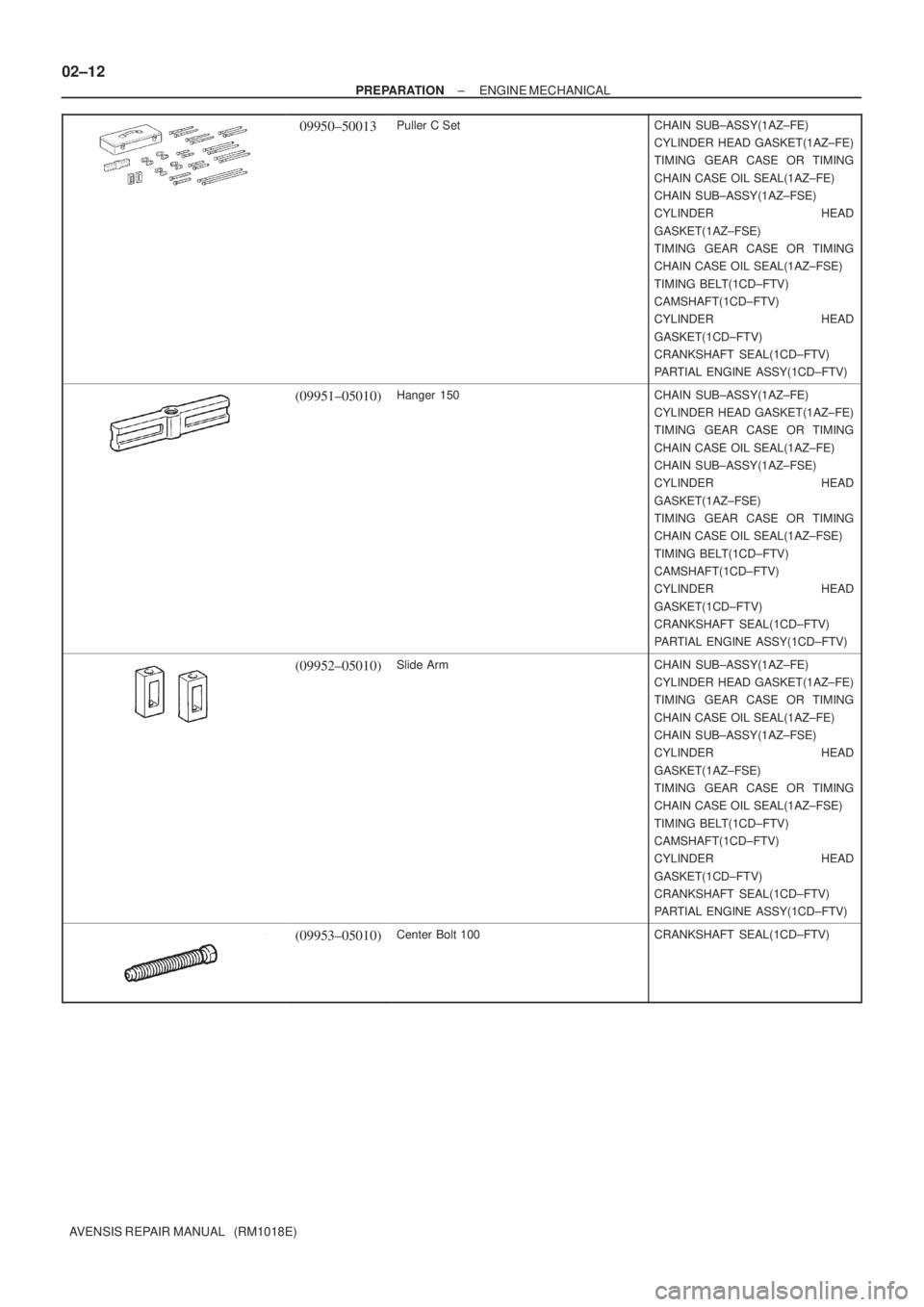

02±12
± PREPARATIONENGINE MECHANICAL
AVENSIS REPAIR MANUAL (RM1018E)
09950±50013Puller C SetCHAIN SUB±ASSY(1AZ±FE)
CYLINDER HEAD GASKET(1AZ±FE)
TIMING GEAR CASE OR TIMING
CHAIN CASE OIL SEAL(1AZ±FE)
CHAIN SUB±ASSY(1AZ±FSE)
CYLINDER HEAD
GASKET(1AZ±FSE)
TIMING GEAR CASE OR TIMING
CHAIN CASE OIL SEAL(1AZ±FSE)
TIMING BELT(1CD±FTV)
CAMSHAFT(1CD±FTV)
CYLINDER HEAD
GASKET(1CD±FTV)
CRANKSHAFT SEAL(1CD±FTV)
PARTIAL ENGINE ASSY(1CD±FTV)
(09951±05010)Hanger 150CHAIN SUB±ASSY(1AZ±FE)
CYLINDER HEAD GASKET(1AZ±FE)
TIMING GEAR CASE OR TIMING
CHAIN CASE OIL SEAL(1AZ±FE)
CHAIN SUB±ASSY(1AZ±FSE)
CYLINDER HEAD
GASKET(1AZ±FSE)
TIMING GEAR CASE OR TIMING
CHAIN CASE OIL SEAL(1AZ±FSE)
TIMING BELT(1CD±FTV)
CAMSHAFT(1CD±FTV)
CYLINDER HEAD
GASKET(1CD±FTV)
CRANKSHAFT SEAL(1CD±FTV)
PARTIAL ENGINE ASSY(1CD±FTV)
(09952±05010)Slide ArmCHAIN SUB±ASSY(1AZ±FE)
CYLINDER HEAD GASKET(1AZ±FE)
TIMING GEAR CASE OR TIMING
CHAIN CASE OIL SEAL(1AZ±FE)
CHAIN SUB±ASSY(1AZ±FSE)
CYLINDER HEAD
GASKET(1AZ±FSE)
TIMING GEAR CASE OR TIMING
CHAIN CASE OIL SEAL(1AZ±FSE)
TIMING BELT(1CD±FTV)
CAMSHAFT(1CD±FTV)
CYLINDER HEAD
GASKET(1CD±FTV)
CRANKSHAFT SEAL(1CD±FTV)
PARTIAL ENGINE ASSY(1CD±FTV)
(09953±05010)Center Bolt 100CRANKSHAFT SEAL(1CD±FTV)

± PREPARATIONENGINE MECHANICAL

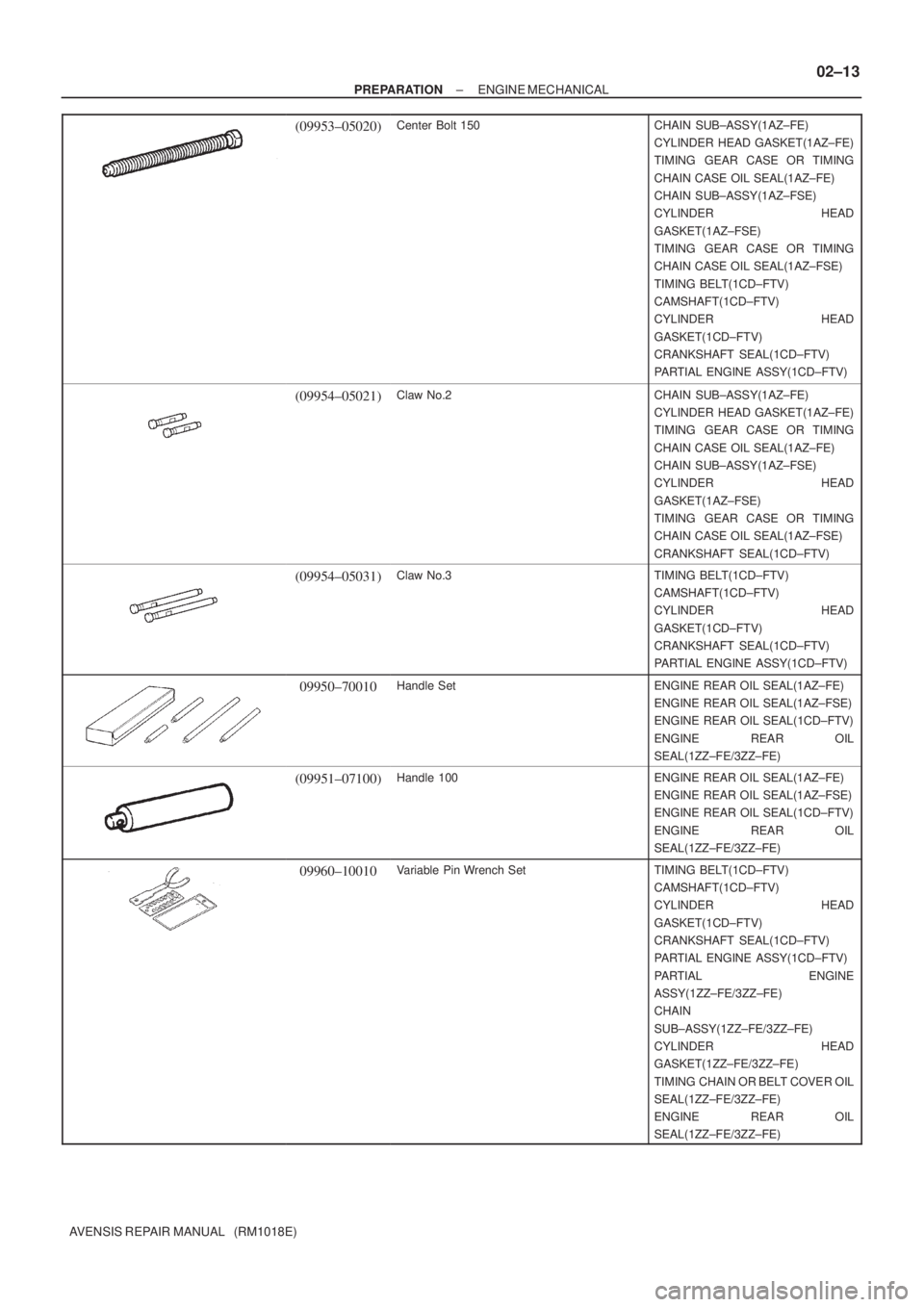

02±13
AVENSIS REPAIR MANUAL (RM1018E)
(09953±05020)Center Bolt 150CHAIN SUB±ASSY(1AZ±FE)
CYLINDER HEAD GASKET(1AZ±FE)
TIMING GEAR CASE OR TIMING
CHAIN CASE OIL SEAL(1AZ±FE)
CHAIN SUB±ASSY(1AZ±FSE)
CYLINDER HEAD
GASKET(1AZ±FSE)
TIMING GEAR CASE OR TIMING
CHAIN CASE OIL SEAL(1AZ±FSE)
TIMING BELT(1CD±FTV)
CAMSHAFT(1CD±FTV)
CYLINDER HEAD
GASKET(1CD±FTV)
CRANKSHAFT SEAL(1CD±FTV)
PARTIAL ENGINE ASSY(1CD±FTV)
(09954±05021)Claw No.2CHAIN SUB±ASSY(1AZ±FE)
CYLINDER HEAD GASKET(1AZ±FE)
TIMING GEAR CASE OR TIMING
CHAIN CASE OIL SEAL(1AZ±FE)
CHAIN SUB±ASSY(1AZ±FSE)
CYLINDER HEAD
GASKET(1AZ±FSE)
TIMING GEAR CASE OR TIMING
CHAIN CASE OIL SEAL(1AZ±FSE)
CRANKSHAFT SEAL(1CD±FTV)
(09954±05031)Claw No.3TIMING BELT(1CD±FTV)
CAMSHAFT(1CD±FTV)
CYLINDER HEAD
GASKET(1CD±FTV)
CRANKSHAFT SEAL(1CD±FTV)
PARTIAL ENGINE ASSY(1CD±FTV)
09950±70010Handle SetENGINE REAR OIL SEAL(1AZ±FE)
ENGINE REAR OIL SEAL(1AZ±FSE)
ENGINE REAR OIL SEAL(1CD±FTV)
ENGINE REAR OIL
SEAL(1ZZ±FE/3ZZ±FE)
(09951±07100)Handle 100ENGINE REAR OIL SEAL(1AZ±FE)
ENGINE REAR OIL SEAL(1AZ±FSE)
ENGINE REAR OIL SEAL(1CD±FTV)
ENGINE REAR OIL
SEAL(1ZZ±FE/3ZZ±FE)
09960±10010Variable Pin Wrench SetTIMING BELT(1CD±FTV)
CAMSHAFT(1CD±FTV)
CYLINDER HEAD
GASKET(1CD±FTV)
CRANKSHAFT SEAL(1CD±FTV)
PARTIAL ENGINE ASSY(1CD±FTV)
PARTIAL ENGINE
ASSY(1ZZ±FE/3ZZ±FE)
CHAIN
SUB±ASSY(1ZZ±FE/3ZZ±FE)
CYLINDER HEAD
GASKET(1ZZ±FE/3ZZ±FE)
TIMING CHAIN OR BELT COVER OIL
SEAL(1ZZ±FE/3ZZ±FE)
ENGINE REAR OIL
SEAL(1ZZ±FE/3ZZ±FE)

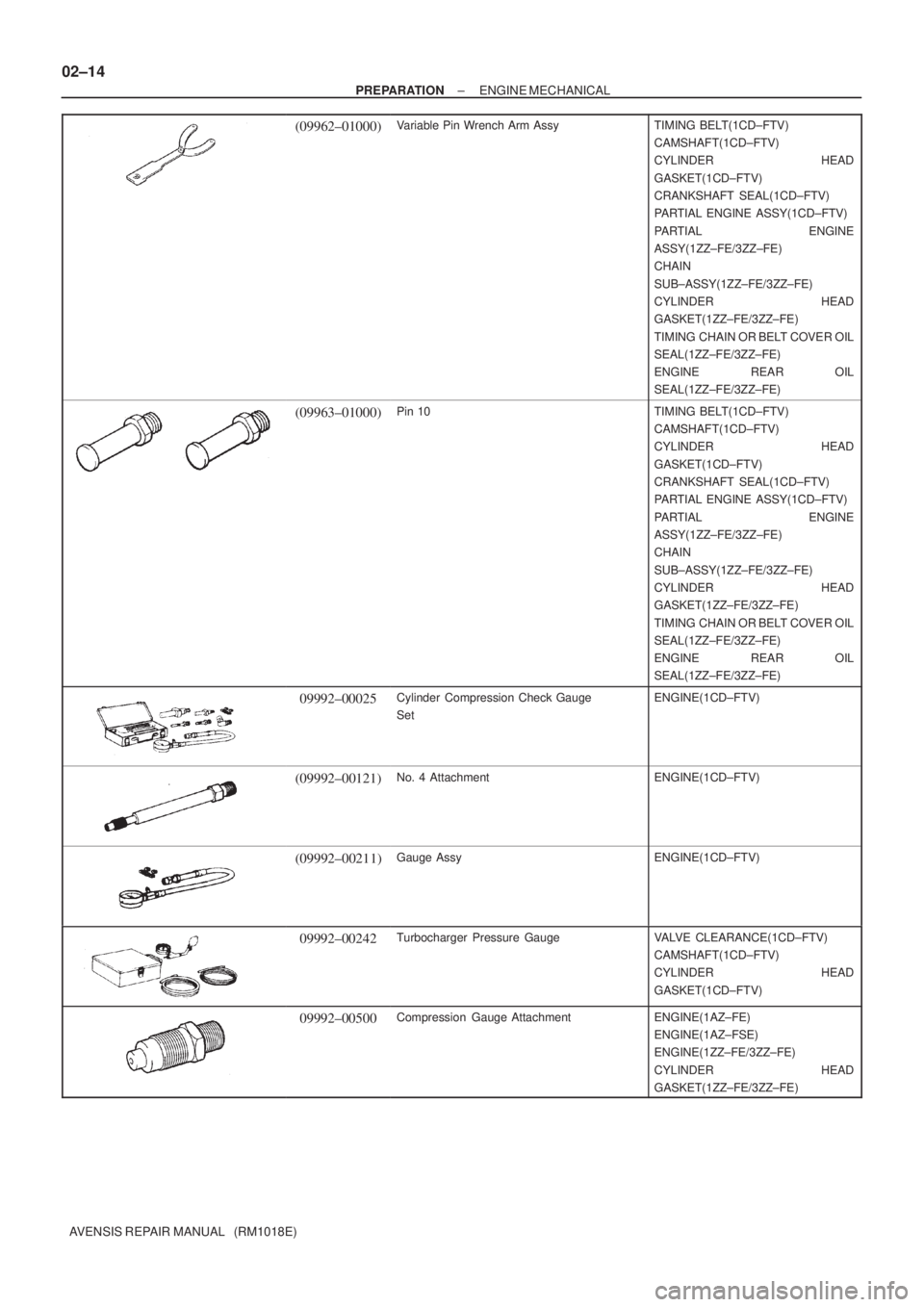

02±14
± PREPARATIONENGINE MECHANICAL
AVENSIS REPAIR MANUAL (RM1018E)
(09962±01000)Variable Pin Wrench Arm AssyTIMING BELT(1CD±FTV)
CAMSHAFT(1CD±FTV)
CYLINDER HEAD
GASKET(1CD±FTV)
CRANKSHAFT SEAL(1CD±FTV)
PARTIAL ENGINE ASSY(1CD±FTV)
PARTIAL ENGINE
ASSY(1ZZ±FE/3ZZ±FE)
CHAIN
SUB±ASSY(1ZZ±FE/3ZZ±FE)
CYLINDER HEAD
GASKET(1ZZ±FE/3ZZ±FE)
TIMING CHAIN OR BELT COVER OIL
SEAL(1ZZ±FE/3ZZ±FE)
ENGINE REAR OIL
SEAL(1ZZ±FE/3ZZ±FE)
(09963±01000)Pin 10TIMING BELT(1CD±FTV)
CAMSHAFT(1CD±FTV)
CYLINDER HEAD
GASKET(1CD±FTV)
CRANKSHAFT SEAL(1CD±FTV)
PARTIAL ENGINE ASSY(1CD±FTV)
PARTIAL ENGINE
ASSY(1ZZ±FE/3ZZ±FE)
CHAIN
SUB±ASSY(1ZZ±FE/3ZZ±FE)
CYLINDER HEAD
GASKET(1ZZ±FE/3ZZ±FE)
TIMING CHAIN OR BELT COVER OIL
SEAL(1ZZ±FE/3ZZ±FE)
ENGINE REAR OIL
SEAL(1ZZ±FE/3ZZ±FE)
09992±00025Cylinder Compression Check Gauge
SetENGINE(1CD±FTV)
(09992±00121)No. 4 AttachmentENGINE(1CD±FTV)
(09992±00211)Gauge AssyENGINE(1CD±FTV)
09992±00242Turbocharger Pressure GaugeVALVE CLEARANCE(1CD±FTV)
CAMSHAFT(1CD±FTV)
CYLINDER HEAD
GASKET(1CD±FTV)
09992±00500Compression Gauge AttachmentENGINE(1AZ±FE)
ENGINE(1AZ±FSE)
ENGINE(1ZZ±FE/3ZZ±FE)
CYLINDER HEAD
GASKET(1ZZ±FE/3ZZ±FE)

± PREPARATIONENGINE MECHANICAL

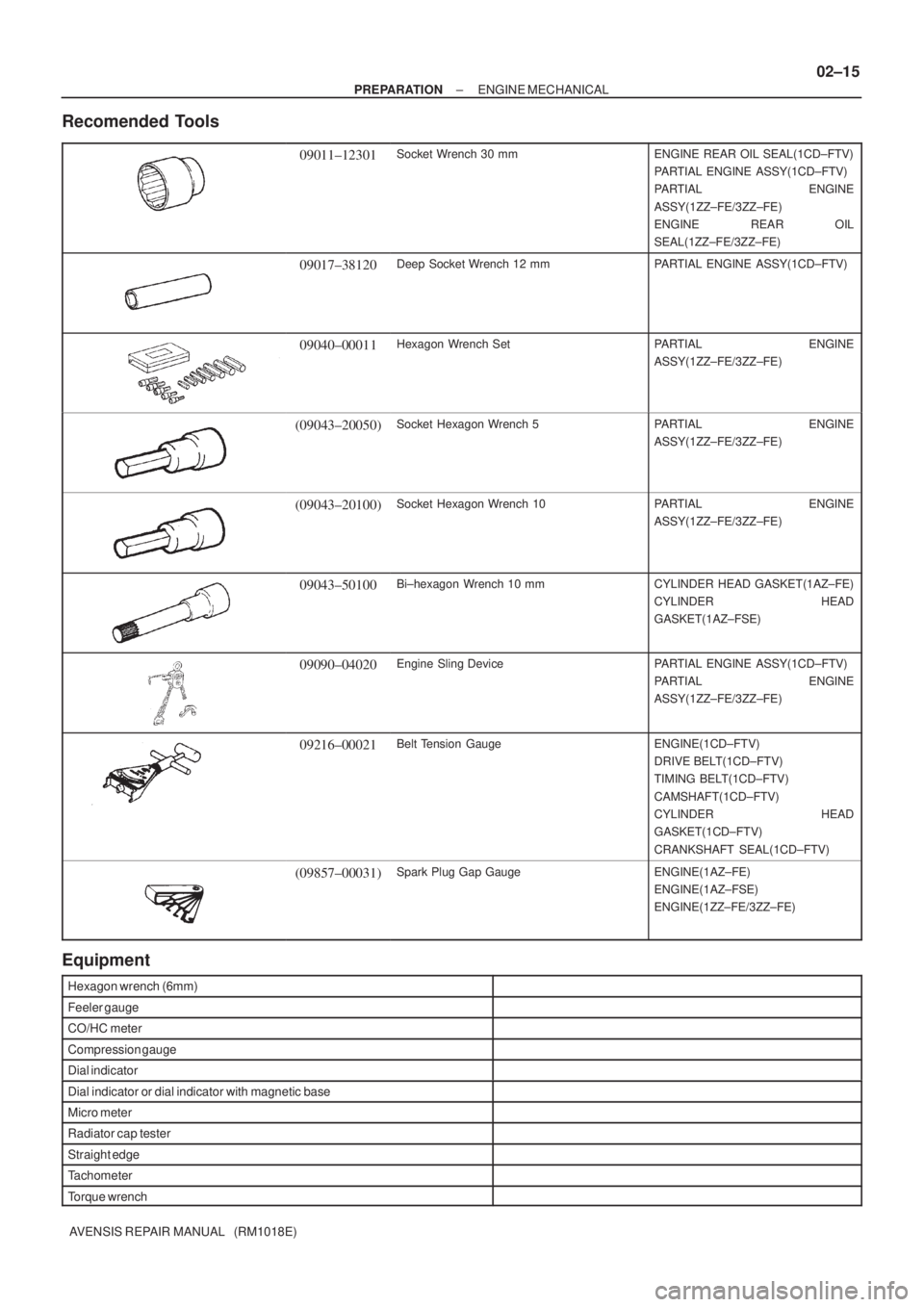

02±15
AVENSIS REPAIR MANUAL (RM1018E)
Recomended Tools
09011±12301Socket Wrench 30 mmENGINE REAR OIL SEAL(1CD±FTV)
PARTIAL ENGINE ASSY(1CD±FTV)
PARTIAL ENGINE
ASSY(1ZZ±FE/3ZZ±FE)
ENGINE REAR OIL
SEAL(1ZZ±FE/3ZZ±FE)
09017±38120Deep Socket Wrench 12 mmPARTIAL ENGINE ASSY(1CD±FTV)
09040±00011Hexagon Wrench SetPARTIAL ENGINE
ASSY(1ZZ±FE/3ZZ±FE)
(09043±20050)Socket Hexagon Wrench 5PARTIAL ENGINE
ASSY(1ZZ±FE/3ZZ±FE)
(09043±20100)Socket Hexagon Wrench 10PARTIAL ENGINE
ASSY(1ZZ±FE/3ZZ±FE)
09043±50100Bi±hexagon Wrench 10 mmCYLINDER HEAD GASKET(1AZ±FE)
CYLINDER HEAD
GASKET(1AZ±FSE)
09090±04020Engine Sling DevicePARTIAL ENGINE ASSY(1CD±FTV)
PARTIAL ENGINE
ASSY(1ZZ±FE/3ZZ±FE)
09216±00021Belt Tension GaugeENGINE(1CD±FTV)
DRIVE BELT(1CD±FTV)
TIMING BELT(1CD±FTV)
CAMSHAFT(1CD±FTV)
CYLINDER HEAD
GASKET(1CD±FTV)
CRANKSHAFT SEAL(1CD±FTV)
(09857±00031)Spark Plug Gap GaugeENGINE(1AZ±FE)
ENGINE(1AZ±FSE)
ENGINE(1ZZ±FE/3ZZ±FE)
Equipment
Hexagon wrench (6mm)
Feeler gauge
CO/HC meter
Compression gauge
Dial indicator
Dial indicator or dial indicator with magnetic base
Micro meter
Radiator cap tester
Straight edge
Tachometer
Torque wrench

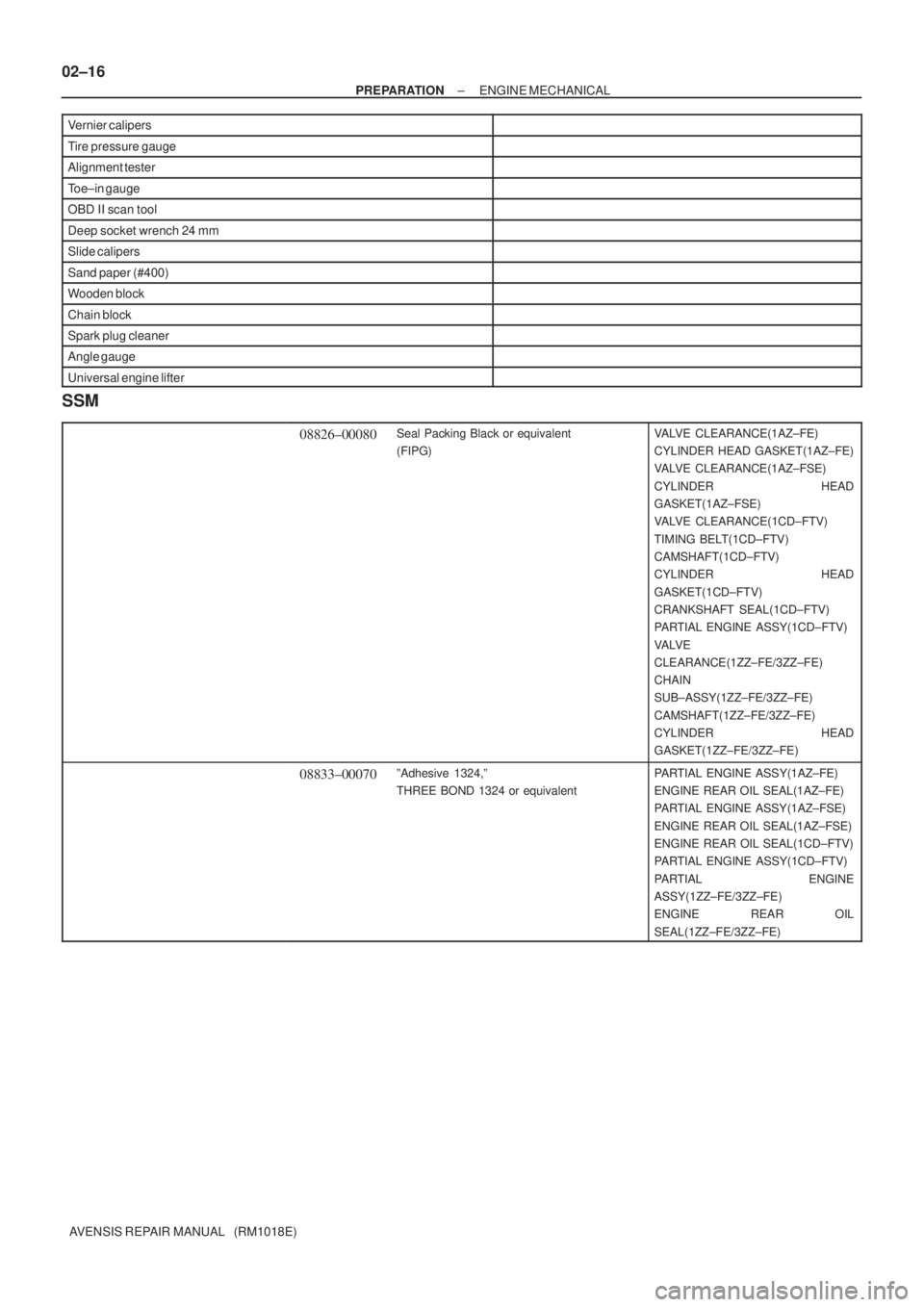

02±16
± PREPARATIONENGINE MECHANICAL
AVENSIS REPAIR MANUAL (RM1018E) Vernier calipers
Tire pressure gauge
Alignment tester
Toe±in gauge
OBD II scan tool
Deep socket wrench 24 mm
Slide calipers
Sand paper (#400)
Wooden block
Chain block
Spark plug cleaner
Angle gauge
Universal engine lifter
SSM
08826±00080Seal Packing Black or equivalent
(FIPG)VALVE CLEARANCE(1AZ±FE)
CYLINDER HEAD GASKET(1AZ±FE)
VALVE CLEARANCE(1AZ±FSE)
CYLINDER HEAD
GASKET(1AZ±FSE)
VALVE CLEARANCE(1CD±FTV)
TIMING BELT(1CD±FTV)
CAMSHAFT(1CD±FTV)
CYLINDER HEAD
GASKET(1CD±FTV)
CRANKSHAFT SEAL(1CD±FTV)
PARTIAL ENGINE ASSY(1CD±FTV)
VA LV E
CLEARANCE(1ZZ±FE/3ZZ±FE)
CHAIN
SUB±ASSY(1ZZ±FE/3ZZ±FE)
CAMSHAFT(1ZZ±FE/3ZZ±FE)
CYLINDER HEAD
GASKET(1ZZ±FE/3ZZ±FE)
08833±00070ºAdhesive 1324,º
THREE BOND 1324 or equivalentPARTIAL ENGINE ASSY(1AZ±FE)
ENGINE REAR OIL SEAL(1AZ±FE)
PARTIAL ENGINE ASSY(1AZ±FSE)
ENGINE REAR OIL SEAL(1AZ±FSE)
ENGINE REAR OIL SEAL(1CD±FTV)
PARTIAL ENGINE ASSY(1CD±FTV)
PARTIAL ENGINE
ASSY(1ZZ±FE/3ZZ±FE)
ENGINE REAR OIL
SEAL(1ZZ±FE/3ZZ±FE)

022J7±01
± PREPARATIONEXHAUST

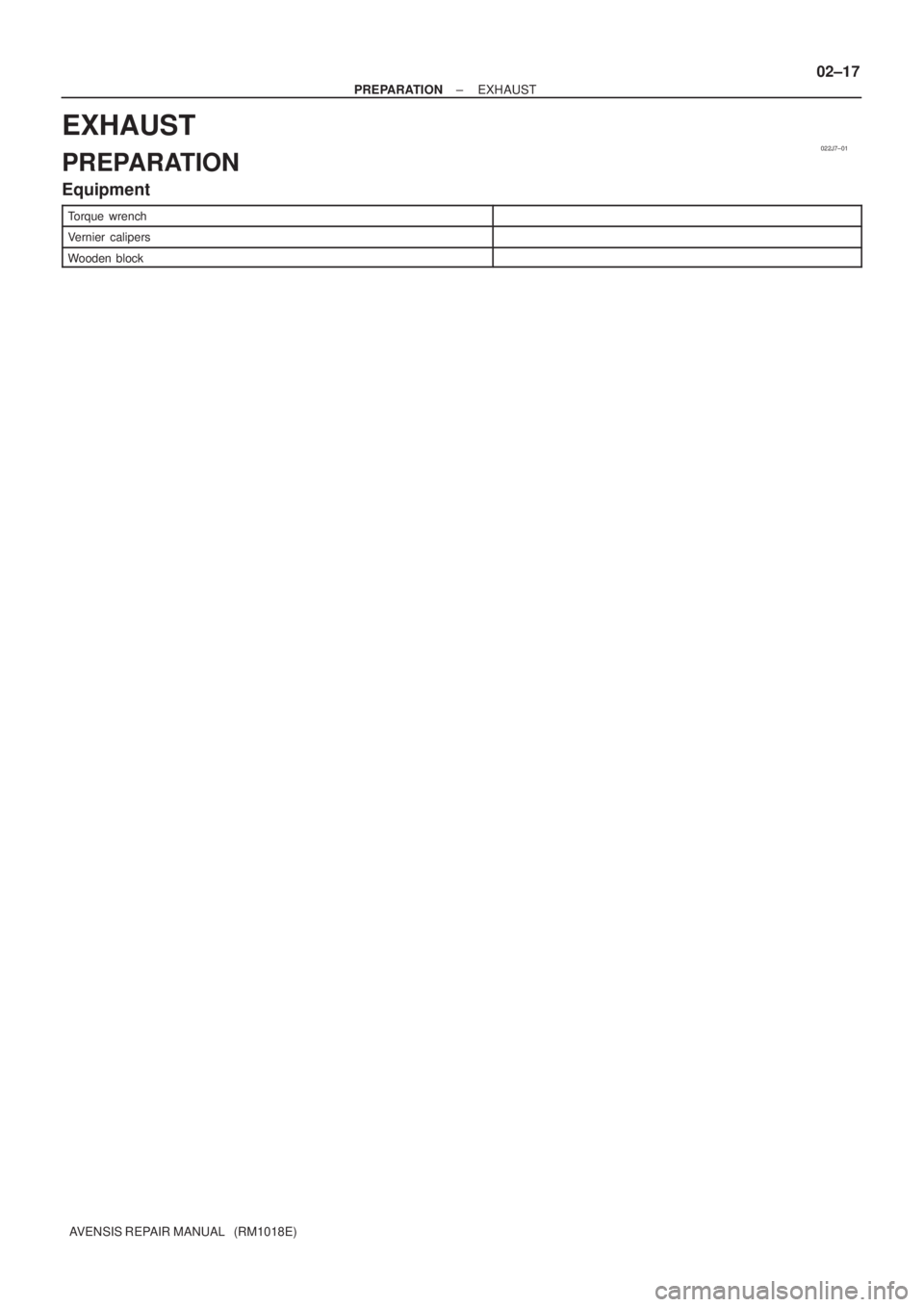

02±17
AVENSIS REPAIR MANUAL (RM1018E)
EXHAUST
PREPARATION
Equipment
Torque wrench
Vernier calipers
Wooden block

022KP±01

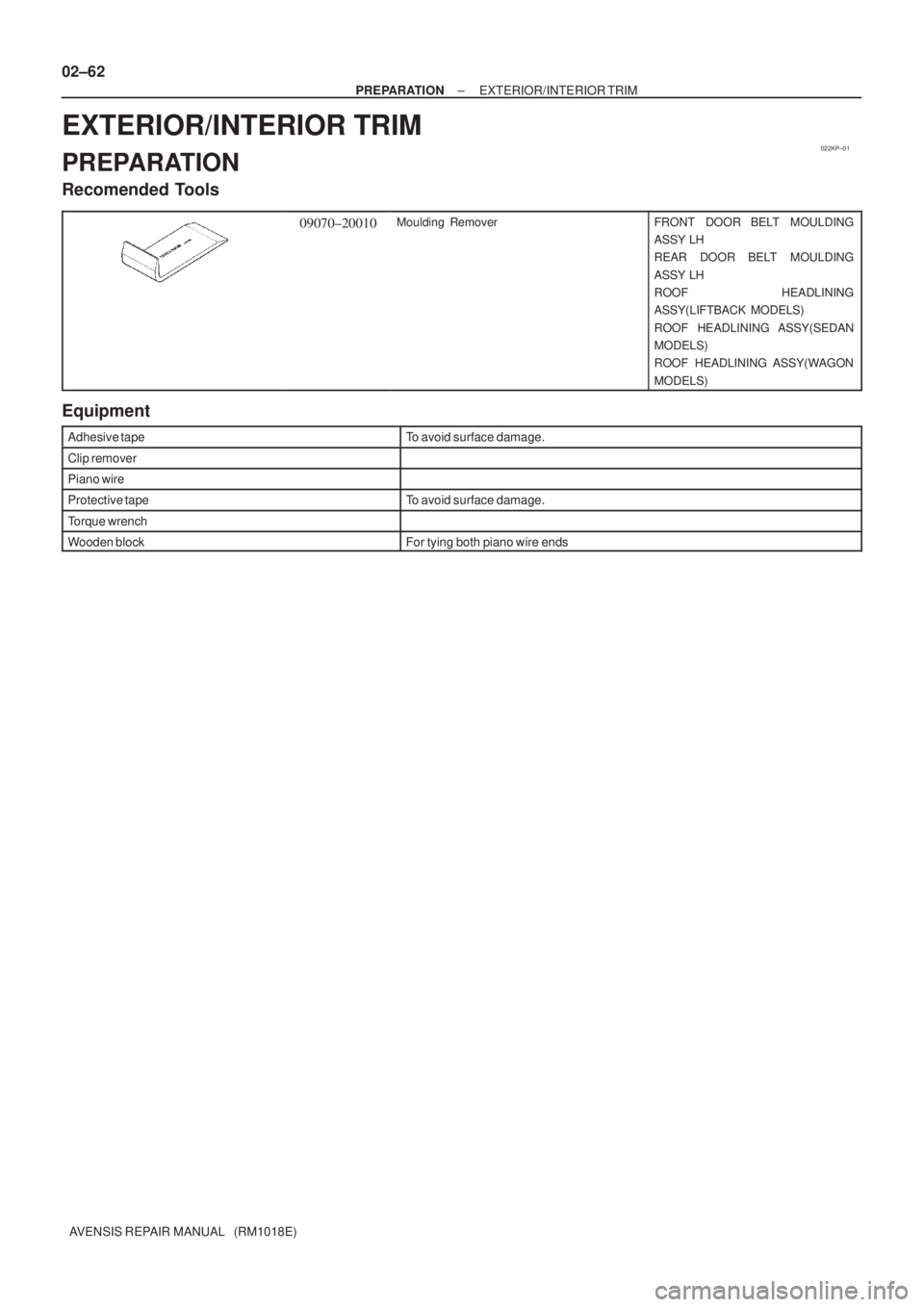

02±62
± PREPARATIONEXTERIOR/INTERIOR TRIM
AVENSIS REPAIR MANUAL (RM1018E)
EXTERIOR/INTERIOR TRIM
PREPARATION
Recomended Tools
09070±20010Moulding RemoverFRONT DOOR BELT MOULDING
ASSY LH
REAR DOOR BELT MOULDING
ASSY LH
ROOF HEADLINING
ASSY(LIFTBACK MODELS)
ROOF HEADLINING ASSY(SEDAN
MODELS)
ROOF HEADLINING ASSY(WAGON
MODELS)
Equipment
Adhesive tapeTo avoid surface damage.
Clip remover
Piano wire
Protective tapeTo avoid surface damage.
Torque wrench
Wooden blockFor tying both piano wire ends

022KF±01
± PREPARATIONFRONT SUSPENSION

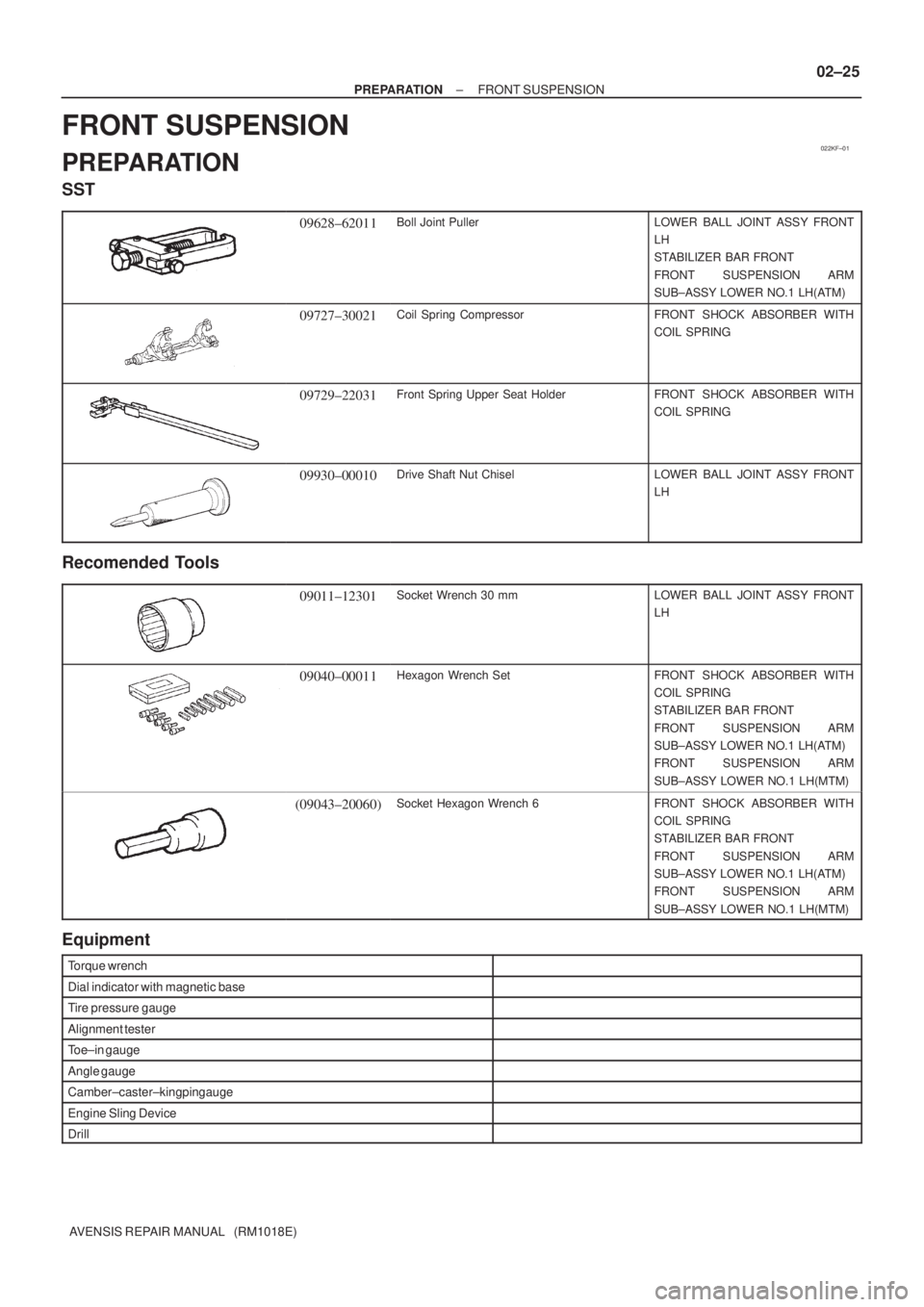

02±25
AVENSIS REPAIR MANUAL (RM1018E)
FRONT SUSPENSION
PREPARATION
SST
09628±62011Boll Joint PullerLOWER BALL JOINT ASSY FRONT
LH
STABILIZER BAR FRONT
FRONT SUSPENSION ARM
SUB±ASSY LOWER NO.1 LH(ATM)
09727±30021Coil Spring CompressorFRONT SHOCK ABSORBER WITH
COIL SPRING
09729±22031Front Spring Upper Seat HolderFRONT SHOCK ABSORBER WITH
COIL SPRING
09930±00010Drive Shaft Nut ChiselLOWER BALL JOINT ASSY FRONT
LH
Recomended Tools
09011±12301Socket Wrench 30 mmLOWER BALL JOINT ASSY FRONT
LH
09040±00011Hexagon Wrench SetFRONT SHOCK ABSORBER WITH
COIL SPRING
STABILIZER BAR FRONT
FRONT SUSPENSION ARM
SUB±ASSY LOWER NO.1 LH(ATM)
FRONT SUSPENSION ARM
SUB±ASSY LOWER NO.1 LH(MTM)
(09043±20060)Socket Hexagon Wrench 6FRONT SHOCK ABSORBER WITH
COIL SPRING
STABILIZER BAR FRONT
FRONT SUSPENSION ARM
SUB±ASSY LOWER NO.1 LH(ATM)
FRONT SUSPENSION ARM
SUB±ASSY LOWER NO.1 LH(MTM)
Equipment
Torque wrench
Dial indicator with magnetic base
Tire pressure gauge
Alignment tester
Toe±in gauge
Angle gauge
Camber±caster±kingpin gauge
Engine Sling Device
Drill
