TOYOTA AVENSIS 2002 Repair Manual

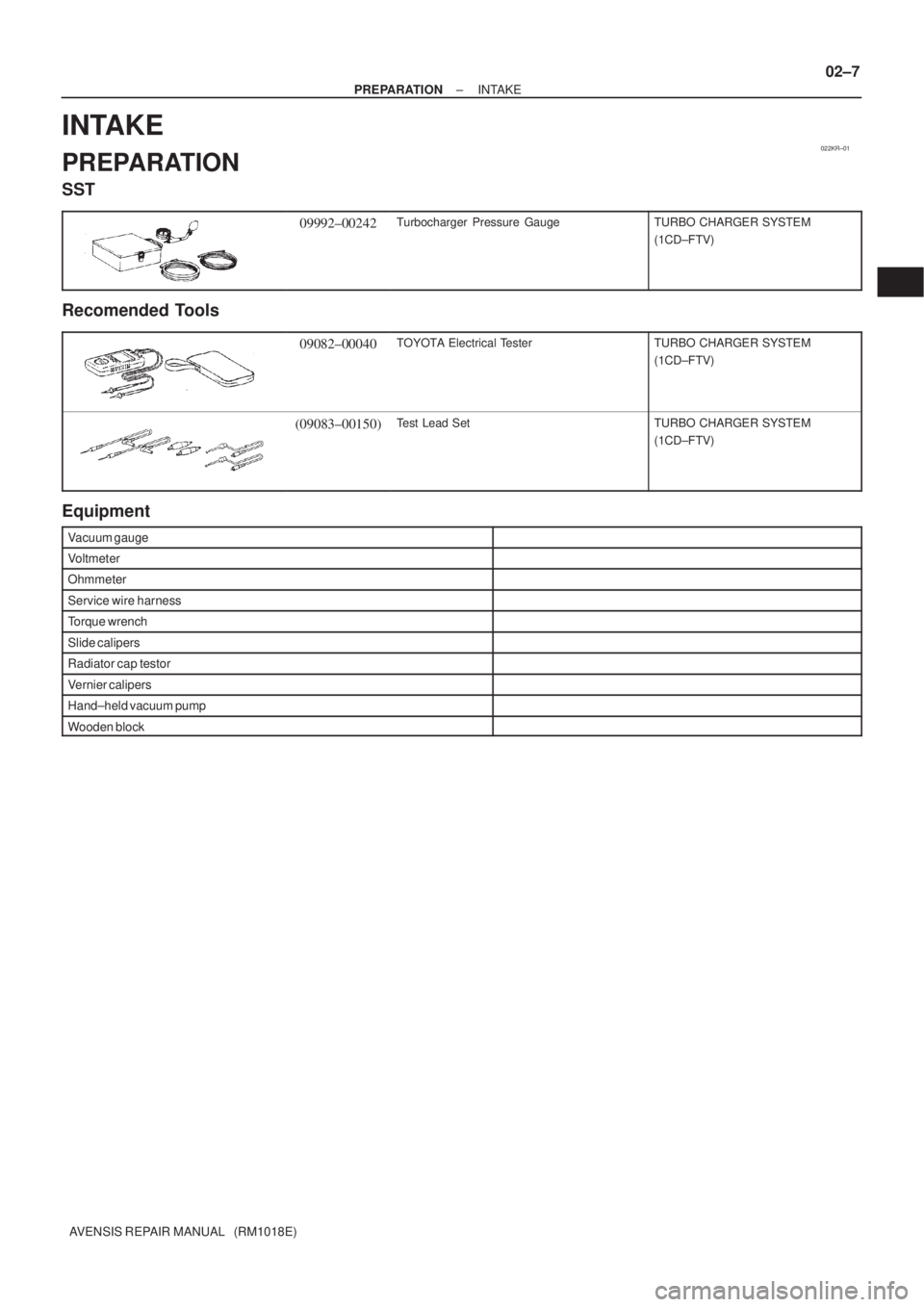

022KR±01
± PREPARATIONINTAKE
02±7
AVENSIS REPAIR MANUAL (RM1018E)
INTAKE
PREPARATION
SST
09992±00242Turbocharger Pressure GaugeTURBO CHARGER SYSTEM
(1CD±FTV)
Recomended Tools
09082±00040TOYOTA Electrical TesterTURBO CHARGER SYSTEM
(1CD±FTV)
(09083±00150)Test Lead SetTURBO CHARGER SYSTEM
(1CD±FTV)
Equipment
Vacuum gauge
Voltmeter
Ohmmeter
Service wire harness
Torque wrench
Slide calipers
Radiator cap testor
Vernier calipers
Hand±held vacuum pump
Wooden block

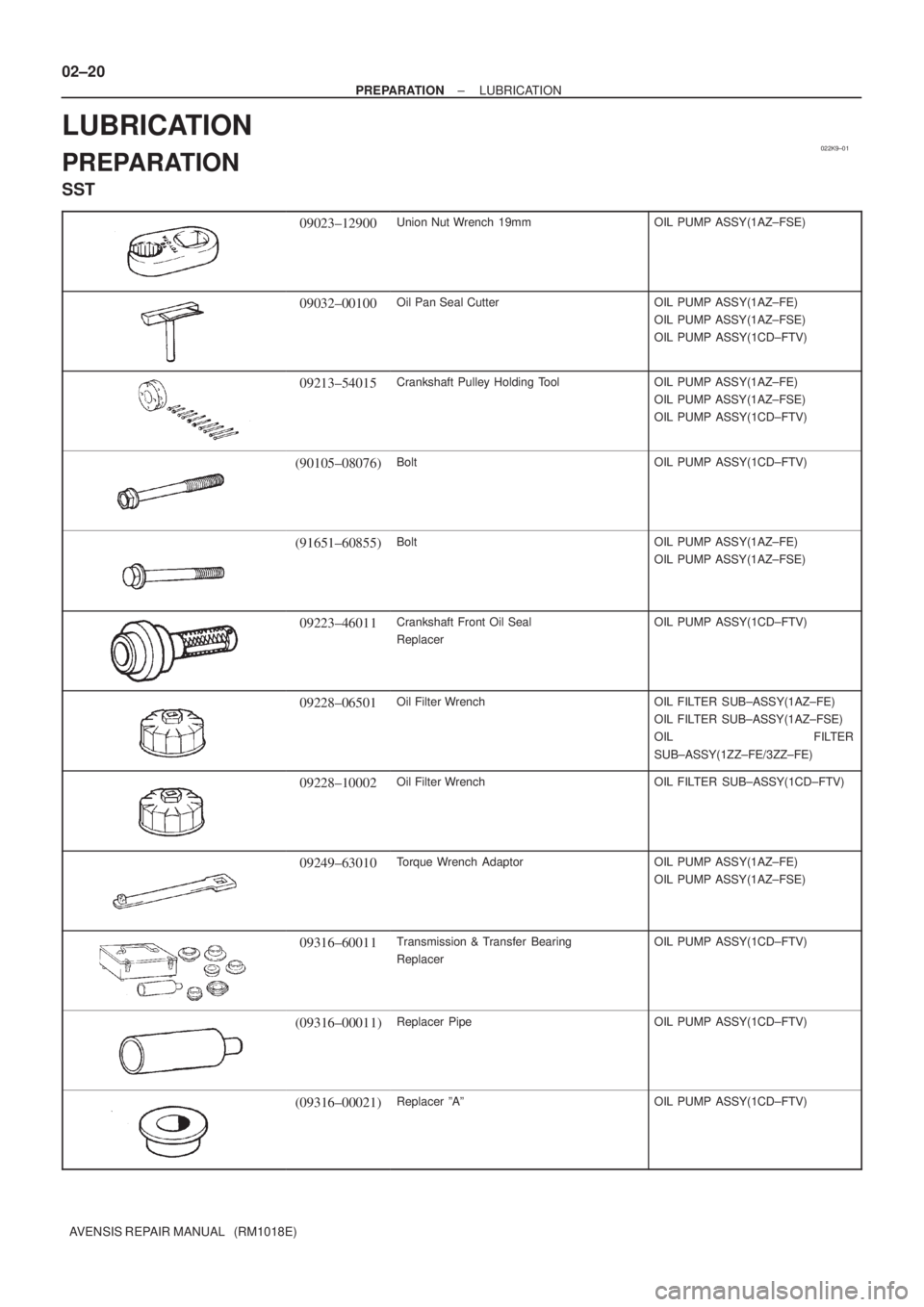

022K9±01
02±20
± PREPARATIONLUBRICATION
AVENSIS REPAIR MANUAL (RM1018E)
LUBRICATION
PREPARATION
SST
09023±12900Union Nut Wrench 19mmOIL PUMP ASSY(1AZ±FSE)
09032±00100Oil Pan Seal CutterOIL PUMP ASSY(1AZ±FE)
OIL PUMP ASSY(1AZ±FSE)
OIL PUMP ASSY(1CD±FTV)
09213±54015Crankshaft Pulley Holding ToolOIL PUMP ASSY(1AZ±FE)
OIL PUMP ASSY(1AZ±FSE)
OIL PUMP ASSY(1CD±FTV)
(90105±08076)BoltOIL PUMP ASSY(1CD±FTV)
(91651±60855)BoltOIL PUMP ASSY(1AZ±FE)
OIL PUMP ASSY(1AZ±FSE)
09223±46011Crankshaft Front Oil Seal
ReplacerOIL PUMP ASSY(1CD±FTV)
09228±06501Oil Filter WrenchOIL FILTER SUB±ASSY(1AZ±FE)
OIL FILTER SUB±ASSY(1AZ±FSE)
OIL FILTER
SUB±ASSY(1ZZ±FE/3ZZ±FE)
09228±10002Oil Filter WrenchOIL FILTER SUB±ASSY(1CD±FTV)
09249±63010Torque Wrench AdaptorOIL PUMP ASSY(1AZ±FE)
OIL PUMP ASSY(1AZ±FSE)
09316±60011Transmission & Transfer Bearing
ReplacerOIL PUMP ASSY(1CD±FTV)
(09316±00011)Replacer PipeOIL PUMP ASSY(1CD±FTV)
(09316±00021)Replacer ºAºOIL PUMP ASSY(1CD±FTV)

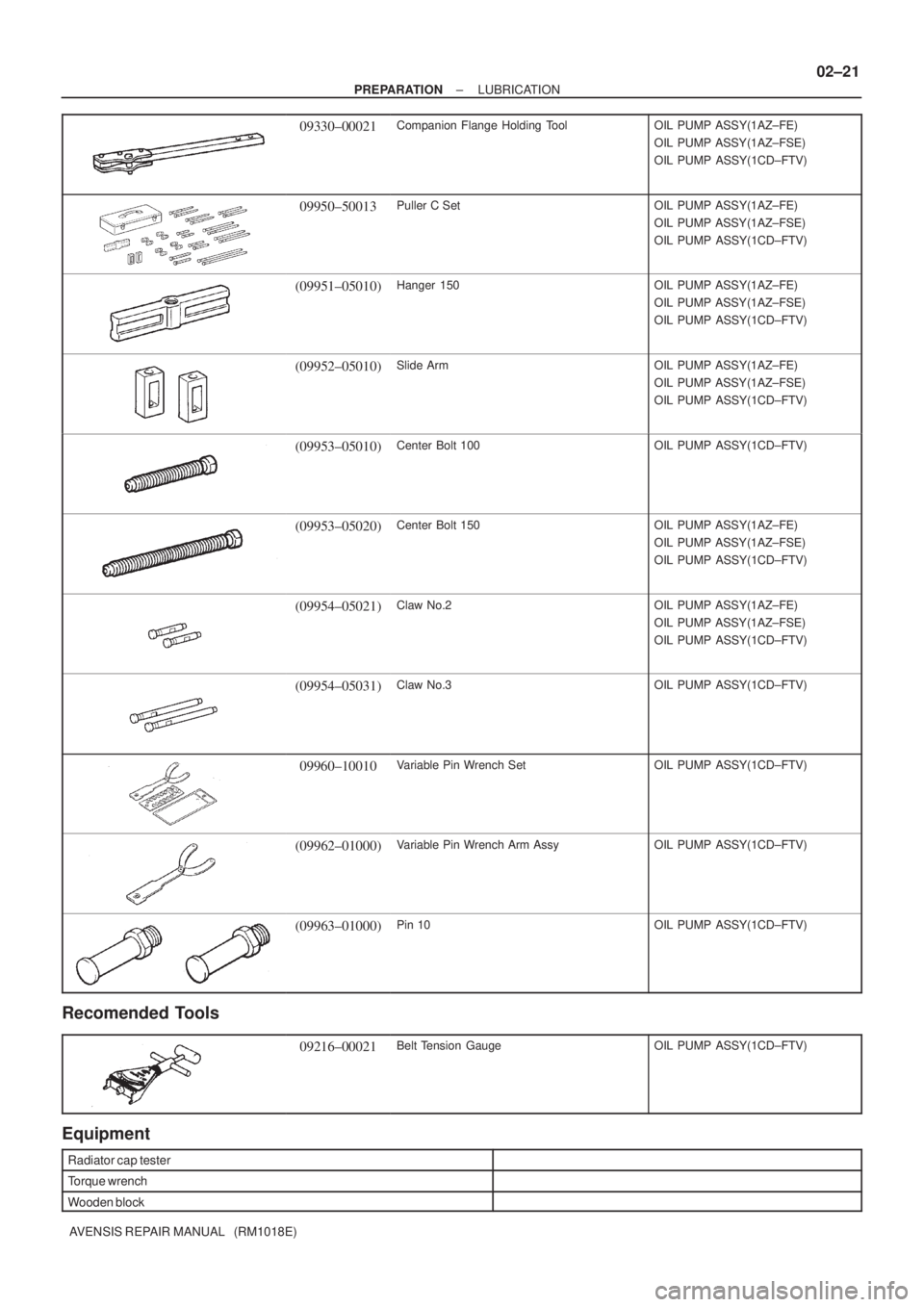

± PREPARATIONLUBRICATION
02±21
AVENSIS REPAIR MANUAL (RM1018E)
09330±00021Companion Flange Holding ToolOIL PUMP ASSY(1AZ±FE)
OIL PUMP ASSY(1AZ±FSE)
OIL PUMP ASSY(1CD±FTV)
09950±50013Puller C SetOIL PUMP ASSY(1AZ±FE)
OIL PUMP ASSY(1AZ±FSE)
OIL PUMP ASSY(1CD±FTV)
(09951±05010)Hanger 150OIL PUMP ASSY(1AZ±FE)
OIL PUMP ASSY(1AZ±FSE)
OIL PUMP ASSY(1CD±FTV)
(09952±05010)Slide ArmOIL PUMP ASSY(1AZ±FE)
OIL PUMP ASSY(1AZ±FSE)
OIL PUMP ASSY(1CD±FTV)
(09953±05010)Center Bolt 100OIL PUMP ASSY(1CD±FTV)
(09953±05020)Center Bolt 150OIL PUMP ASSY(1AZ±FE)
OIL PUMP ASSY(1AZ±FSE)
OIL PUMP ASSY(1CD±FTV)
(09954±05021)Claw No.2OIL PUMP ASSY(1AZ±FE)
OIL PUMP ASSY(1AZ±FSE)
OIL PUMP ASSY(1CD±FTV)
(09954±05031)Claw No.3OIL PUMP ASSY(1CD±FTV)
09960±10010Variable Pin Wrench SetOIL PUMP ASSY(1CD±FTV)
(09962±01000)Variable Pin Wrench Arm AssyOIL PUMP ASSY(1CD±FTV)
(09963±01000)Pin 10OIL PUMP ASSY(1CD±FTV)
Recomended Tools
09216±00021Belt Tension GaugeOIL PUMP ASSY(1CD±FTV)
Equipment
Radiator cap tester
Torque wrench
Wooden block

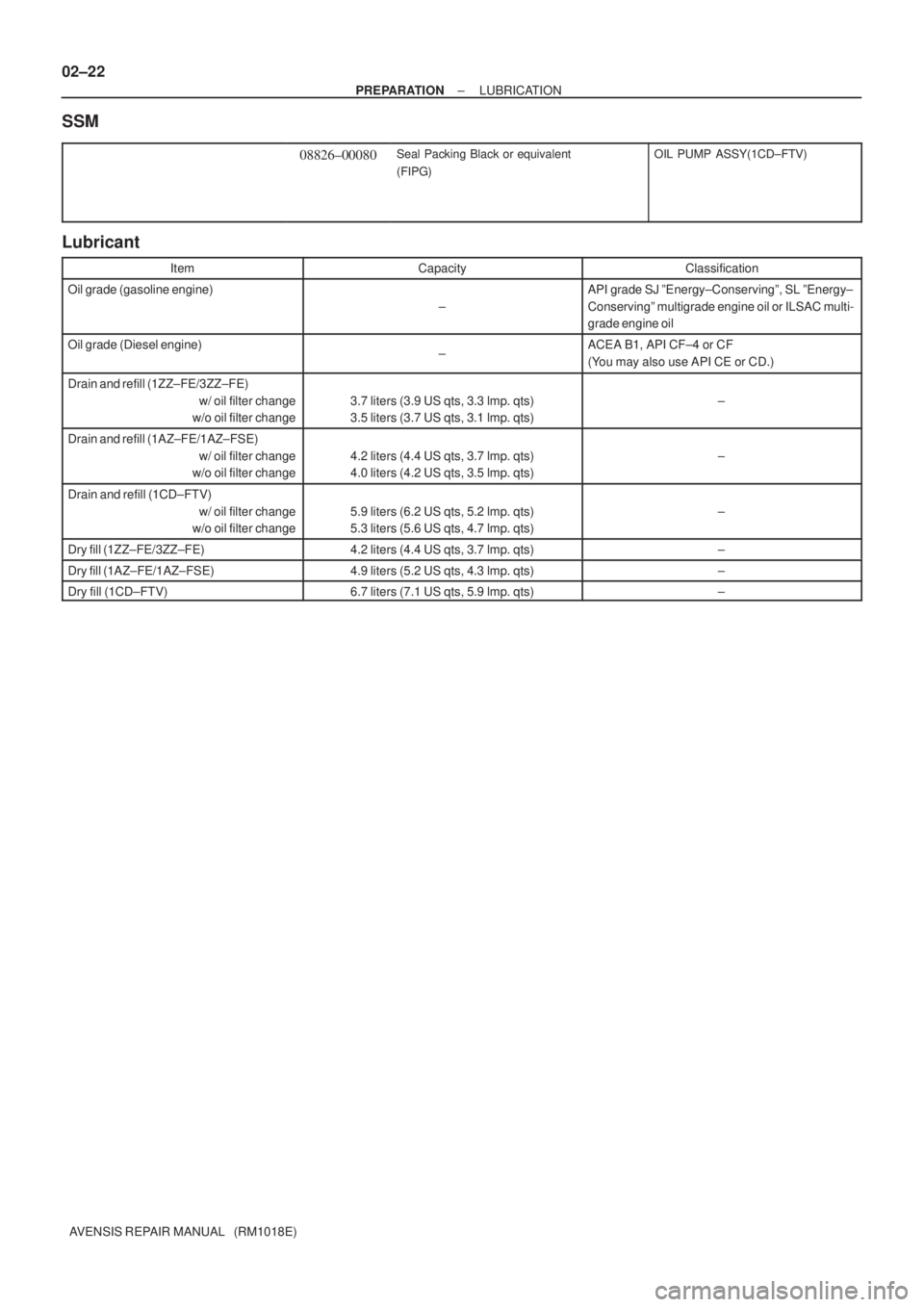

02±22
± PREPARATIONLUBRICATION
AVENSIS REPAIR MANUAL (RM1018E)
SSM
08826±00080Seal Packing Black or equivalent
(FIPG)OIL PUMP ASSY(1CD±FTV)
Lubricant
ItemCapacityClassification
Oil grade (gasoline engine)
±
API grade SJ ºEnergy±Conservingº, SL ºEnergy±
Conservingº multigrade engine oil or ILSAC multi-
grade engine oil
Oil grade (Diesel engine)±ACEA B1, API CF±4 or CF
(You may also use API CE or CD.)
Drain and refill (1ZZ±FE/3ZZ±FE)
w/ oil filter change
w/o oil filter change
3.7 liters (3.9 US qts, 3.3 lmp. qts)
3.5 liters (3.7 US qts, 3.1 lmp. qts)±
Drain and refill (1AZ±FE/1AZ±FSE)
w/ oil filter change
w/o oil filter change
4.2 liters (4.4 US qts, 3.7 lmp. qts)
4.0 liters (4.2 US qts, 3.5 lmp. qts)±
Drain and refill (1CD±FTV)
w/ oil filter change
w/o oil filter change
5.9 liters (6.2 US qts, 5.2 lmp. qts)
5.3 liters (5.6 US qts, 4.7 lmp. qts)±
Dry fill (1ZZ±FE/3ZZ±FE)4.2 liters (4.4 US qts, 3.7 lmp. qts)±
Dry fill (1AZ±FE/1AZ±FSE)4.9 liters (5.2 US qts, 4.3 lmp. qts)±
Dry fill (1CD±FTV)6.7 liters (7.1 US qts, 5.9 lmp. qts)±

022KY±01
02±40
± PREPARATIONMANUAL TRANSMISSION/TRANSAXLE
AVENSIS REPAIR MANUAL (RM1018E)

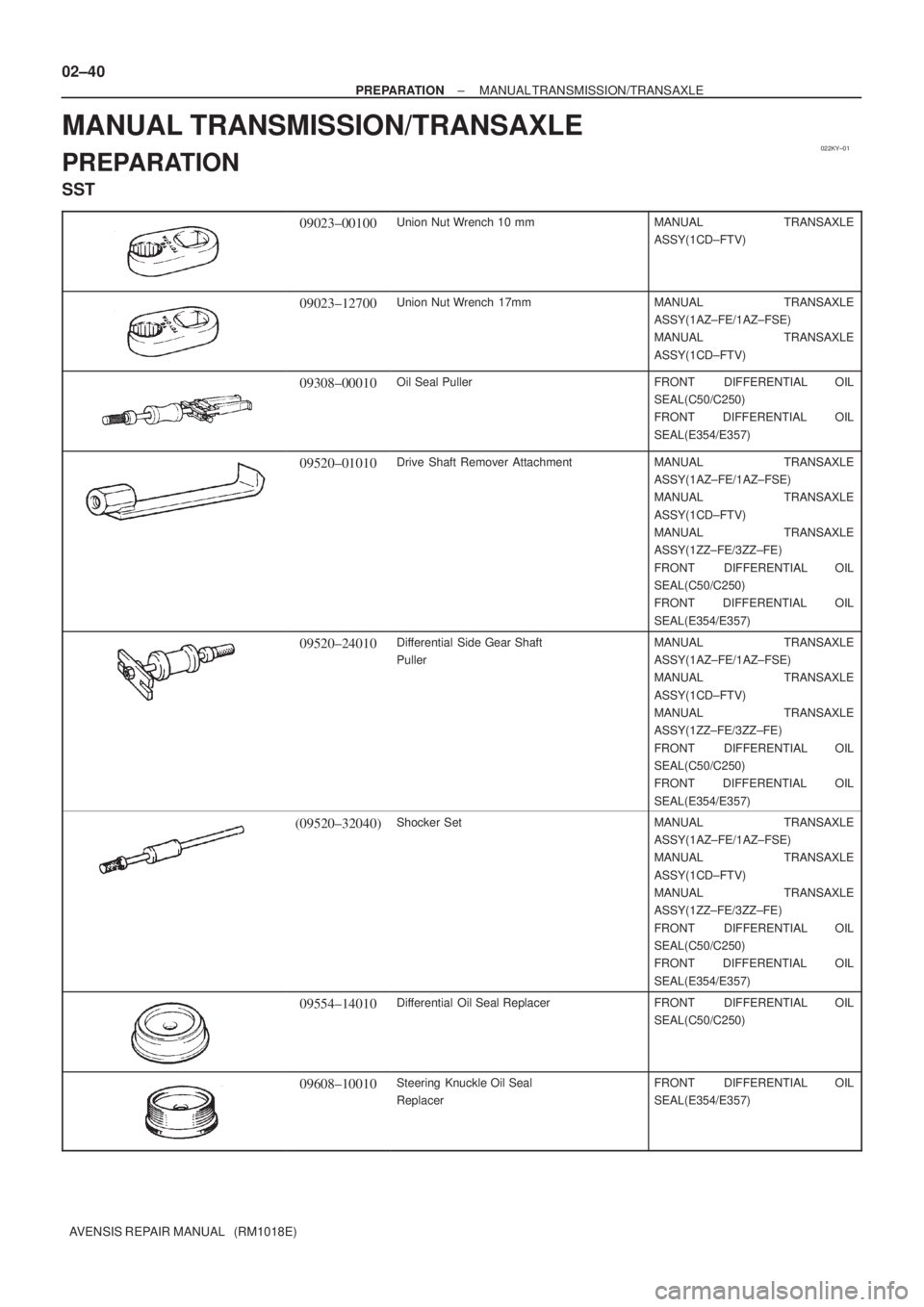

MANUAL TRANSMISSION/TRANSAXLE
PREPARATION
SST
09023±00100Union Nut Wrench 10 mmMANUAL TRANSAXLE
ASSY(1CD±FTV)
09023±12700Union Nut Wrench 17mmMANUAL TRANSAXLE
ASSY(1AZ±FE/1AZ±FSE)
MANUAL TRANSAXLE
ASSY(1CD±FTV)
09308±00010Oil Seal PullerFRONT DIFFERENTIAL OIL
SEAL(C50/C250)
FRONT DIFFERENTIAL OIL
SEAL(E354/E357)
09520±01010Drive Shaft Remover AttachmentMANUAL TRANSAXLE
ASSY(1AZ±FE/1AZ±FSE)
MANUAL TRANSAXLE
ASSY(1CD±FTV)
MANUAL TRANSAXLE
ASSY(1ZZ±FE/3ZZ±FE)
FRONT DIFFERENTIAL OIL
SEAL(C50/C250)
FRONT DIFFERENTIAL OIL
SEAL(E354/E357)
09520±24010Differential Side Gear Shaft
PullerMANUAL TRANSAXLE
ASSY(1AZ±FE/1AZ±FSE)
MANUAL TRANSAXLE
ASSY(1CD±FTV)
MANUAL TRANSAXLE
ASSY(1ZZ±FE/3ZZ±FE)
FRONT DIFFERENTIAL OIL
SEAL(C50/C250)
FRONT DIFFERENTIAL OIL
SEAL(E354/E357)
(09520±32040)Shocker SetMANUAL TRANSAXLE
ASSY(1AZ±FE/1AZ±FSE)
MANUAL TRANSAXLE
ASSY(1CD±FTV)
MANUAL TRANSAXLE
ASSY(1ZZ±FE/3ZZ±FE)
FRONT DIFFERENTIAL OIL
SEAL(C50/C250)
FRONT DIFFERENTIAL OIL
SEAL(E354/E357)
09554±14010Differential Oil Seal ReplacerFRONT DIFFERENTIAL OIL
SEAL(C50/C250)
09608±10010Steering Knuckle Oil Seal
ReplacerFRONT DIFFERENTIAL OIL
SEAL(E354/E357)

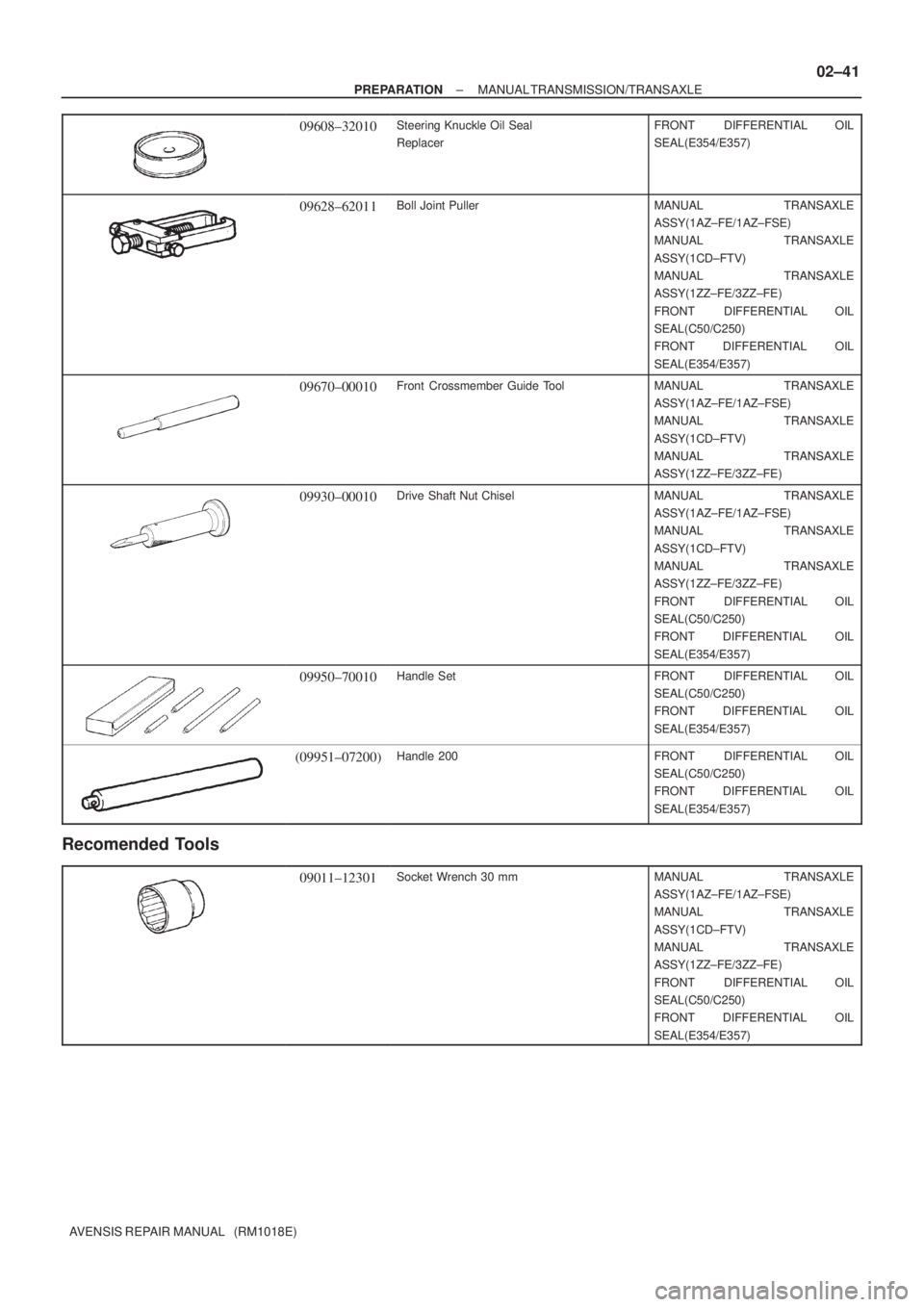

± PREPARATIONMANUAL TRANSMISSION/TRANSAXLE
02±41
AVENSIS REPAIR MANUAL (RM1018E)
09608±32010Steering Knuckle Oil Seal
ReplacerFRONT DIFFERENTIAL OIL
SEAL(E354/E357)
09628±62011Boll Joint PullerMANUAL TRANSAXLE
ASSY(1AZ±FE/1AZ±FSE)
MANUAL TRANSAXLE
ASSY(1CD±FTV)
MANUAL TRANSAXLE
ASSY(1ZZ±FE/3ZZ±FE)
FRONT DIFFERENTIAL OIL
SEAL(C50/C250)
FRONT DIFFERENTIAL OIL
SEAL(E354/E357)
09670±00010Front Crossmember Guide ToolMANUAL TRANSAXLE
ASSY(1AZ±FE/1AZ±FSE)
MANUAL TRANSAXLE
ASSY(1CD±FTV)
MANUAL TRANSAXLE
ASSY(1ZZ±FE/3ZZ±FE)
09930±00010Drive Shaft Nut ChiselMANUAL TRANSAXLE
ASSY(1AZ±FE/1AZ±FSE)
MANUAL TRANSAXLE
ASSY(1CD±FTV)
MANUAL TRANSAXLE
ASSY(1ZZ±FE/3ZZ±FE)
FRONT DIFFERENTIAL OIL
SEAL(C50/C250)
FRONT DIFFERENTIAL OIL
SEAL(E354/E357)
09950±70010Handle SetFRONT DIFFERENTIAL OIL
SEAL(C50/C250)
FRONT DIFFERENTIAL OIL
SEAL(E354/E357)
(09951±07200)Handle 200FRONT DIFFERENTIAL OIL
SEAL(C50/C250)
FRONT DIFFERENTIAL OIL
SEAL(E354/E357)
Recomended Tools
09011±12301Socket Wrench 30 mmMANUAL TRANSAXLE
ASSY(1AZ±FE/1AZ±FSE)
MANUAL TRANSAXLE
ASSY(1CD±FTV)
MANUAL TRANSAXLE
ASSY(1ZZ±FE/3ZZ±FE)
FRONT DIFFERENTIAL OIL
SEAL(C50/C250)
FRONT DIFFERENTIAL OIL
SEAL(E354/E357)

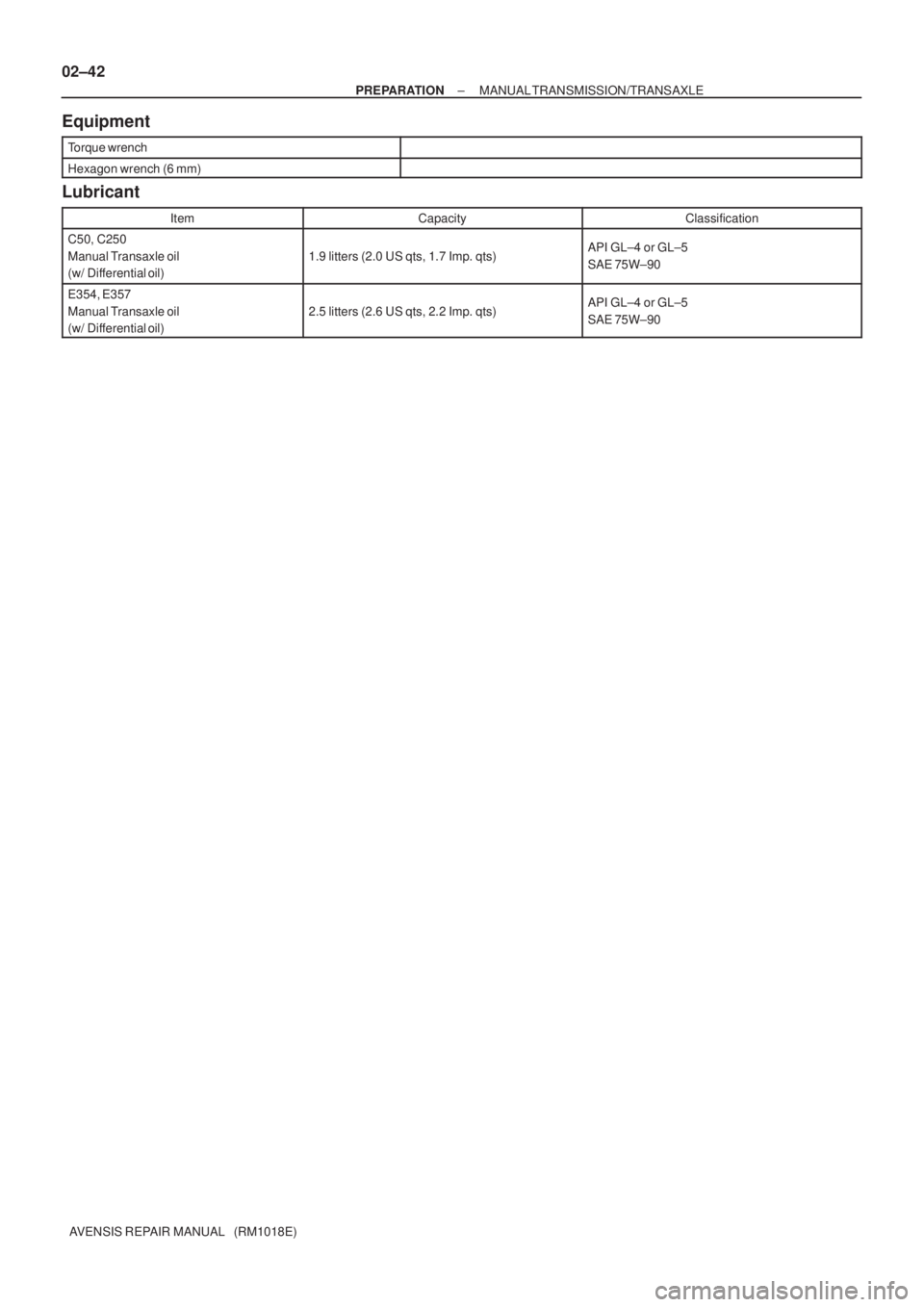

02±42
± PREPARATIONMANUAL TRANSMISSION/TRANSAXLE
AVENSIS REPAIR MANUAL (RM1018E)
Equipment
Torque wrench
Hexagon wrench (6 mm)
Lubricant
ItemCapacityClassification
C50, C250
Manual Transaxle oil
(w/ Differential oil)
1.9 litters (2.0 US qts, 1.7 Imp. qts)API GL±4 or GL±5
SAE 75W±90
E354, E357
Manual Transaxle oil
(w/ Differential oil)
2.5 litters (2.6 US qts, 2.2 Imp. qts)API GL±4 or GL±5
SAE 75W±90

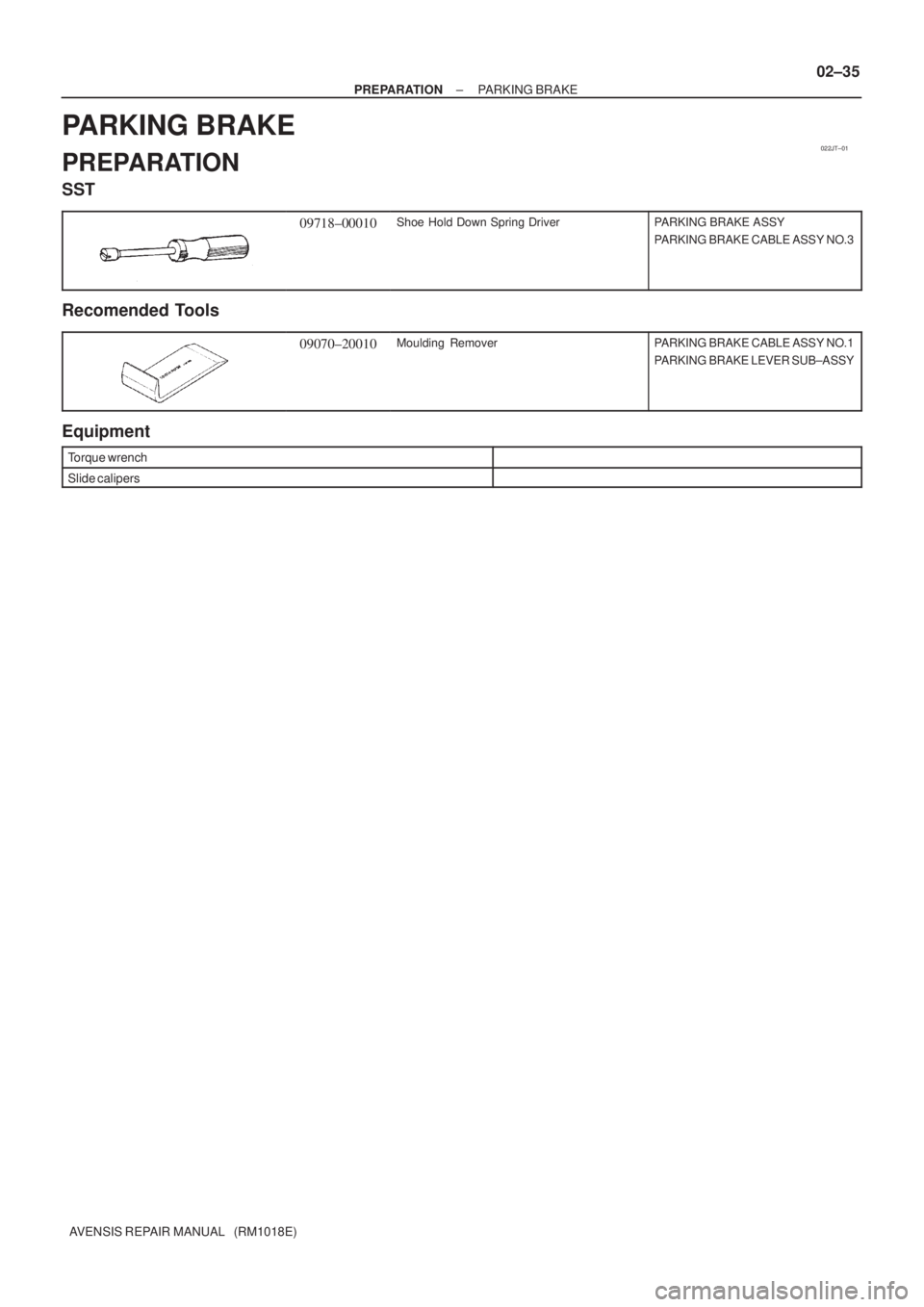

022JT±01
± PREPARATIONPARKING BRAKE
02±35
AVENSIS REPAIR MANUAL (RM1018E)
PARKING BRAKE
PREPARATION
SST
09718±00010Shoe Hold Down Spring DriverPARKING BRAKE ASSY
PARKING BRAKE CABLE ASSY NO.3
Recomended Tools
09070±20010Moulding RemoverPARKING BRAKE CABLE ASSY NO.1
PARKING BRAKE LEVER SUB±ASSY
Equipment
Torque wrench
Slide calipers

022KE±01
± PREPARATIONPOWER STEERING
02±45
AVENSIS REPAIR MANUAL (RM1018E)

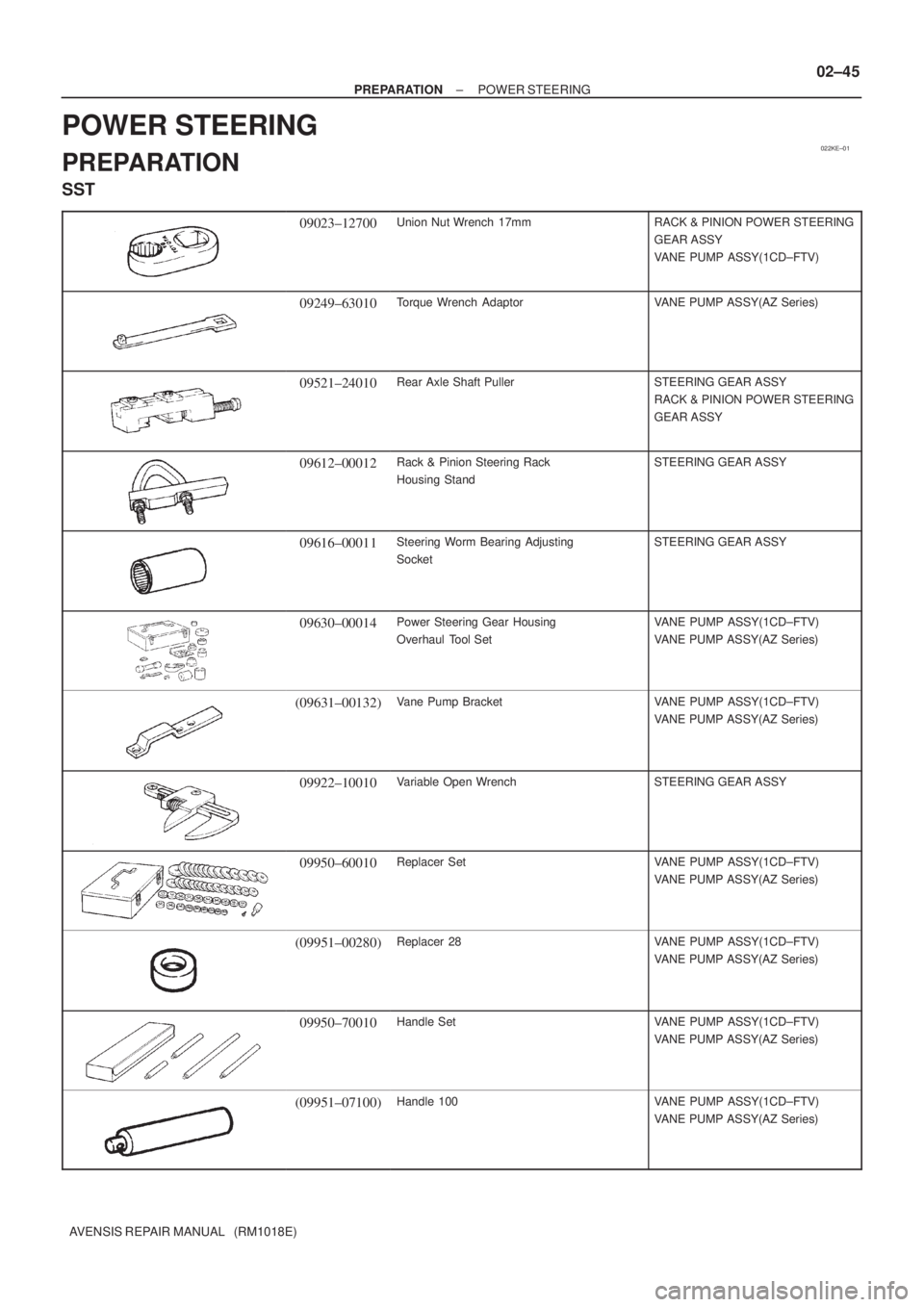

POWER STEERING
PREPARATION
SST
09023±12700Union Nut Wrench 17mmRACK & PINION POWER STEERING
GEAR ASSY
VANE PUMP ASSY(1CD±FTV)
09249±63010Torque Wrench AdaptorVANE PUMP ASSY(AZ Series)
09521±24010Rear Axle Shaft PullerSTEERING GEAR ASSY
RACK & PINION POWER STEERING
GEAR ASSY
09612±00012Rack & Pinion Steering Rack
Housing StandSTEERING GEAR ASSY
09616±00011Steering Worm Bearing Adjusting
SocketSTEERING GEAR ASSY
09630±00014Power Steering Gear Housing
Overhaul Tool SetVANE PUMP ASSY(1CD±FTV)
VANE PUMP ASSY(AZ Series)
(09631±00132)Vane Pump BracketVANE PUMP ASSY(1CD±FTV)
VANE PUMP ASSY(AZ Series)
09922±10010Variable Open WrenchSTEERING GEAR ASSY
09950±60010Replacer SetVANE PUMP ASSY(1CD±FTV)
VANE PUMP ASSY(AZ Series)
(09951±00280)Replacer 28VANE PUMP ASSY(1CD±FTV)
VANE PUMP ASSY(AZ Series)
09950±70010Handle SetVANE PUMP ASSY(1CD±FTV)
VANE PUMP ASSY(AZ Series)
(09951±07100)Handle 100VANE PUMP ASSY(1CD±FTV)
VANE PUMP ASSY(AZ Series)

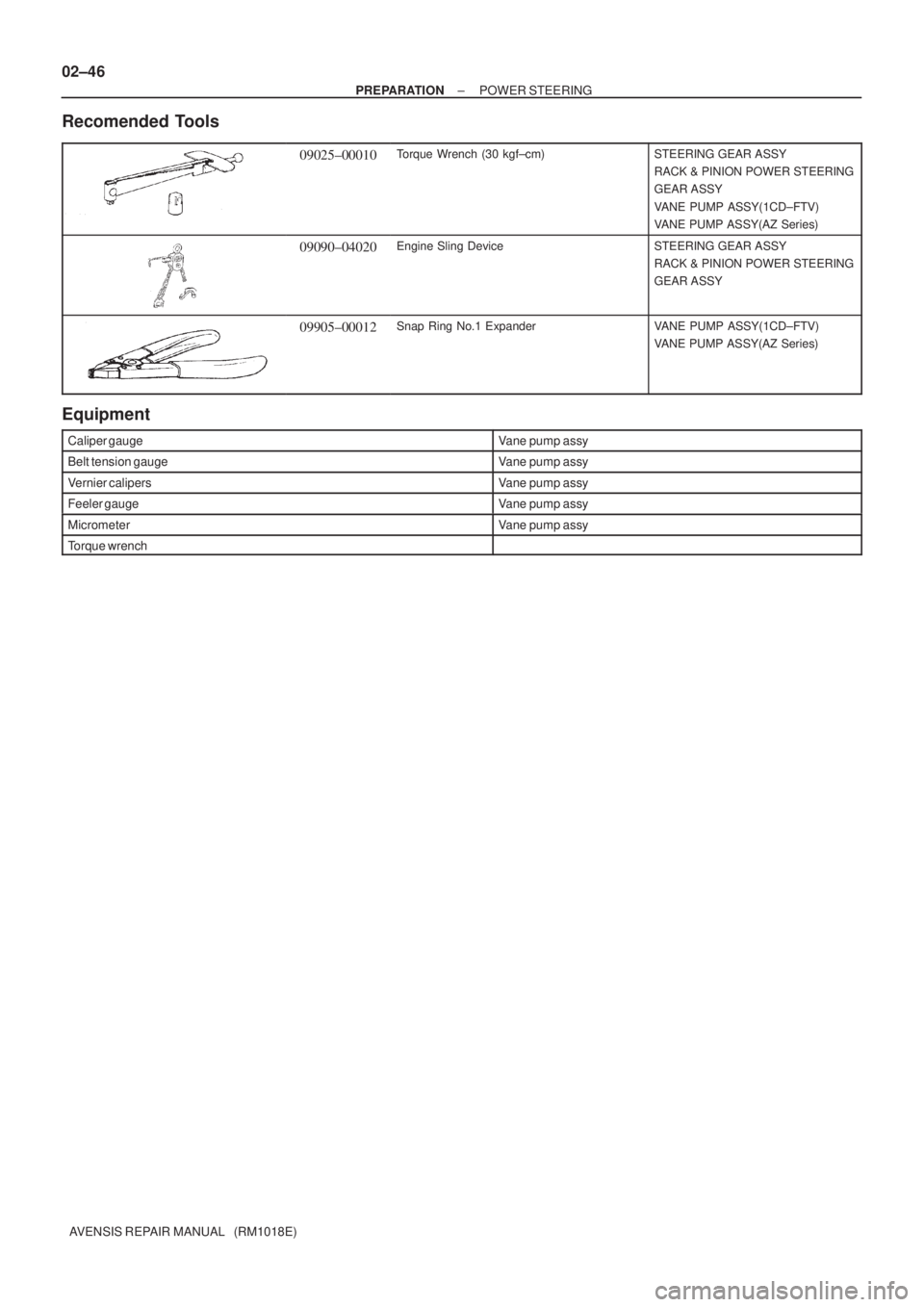

02±46
± PREPARATIONPOWER STEERING
AVENSIS REPAIR MANUAL (RM1018E)
Recomended Tools
09025±00010Torque Wrench (30 kgf±cm)STEERING GEAR ASSY
RACK & PINION POWER STEERING
GEAR ASSY
VANE PUMP ASSY(1CD±FTV)
VANE PUMP ASSY(AZ Series)
09090±04020Engine Sling DeviceSTEERING GEAR ASSY
RACK & PINION POWER STEERING
GEAR ASSY
09905±00012Snap Ring No.1 ExpanderVANE PUMP ASSY(1CD±FTV)
VANE PUMP ASSY(AZ Series)
Equipment
Caliper gaugeVane pump assy
Belt tension gaugeVane pump assy
Vernier calipersVane pump assy
Feeler gaugeVane pump assy
MicrometerVane pump assy
Torque wrench
