± DIAGNOSTICSAIR CONDITIONING SYSTEM
AVENSIS REPAIR MANUAL (RM1018E)

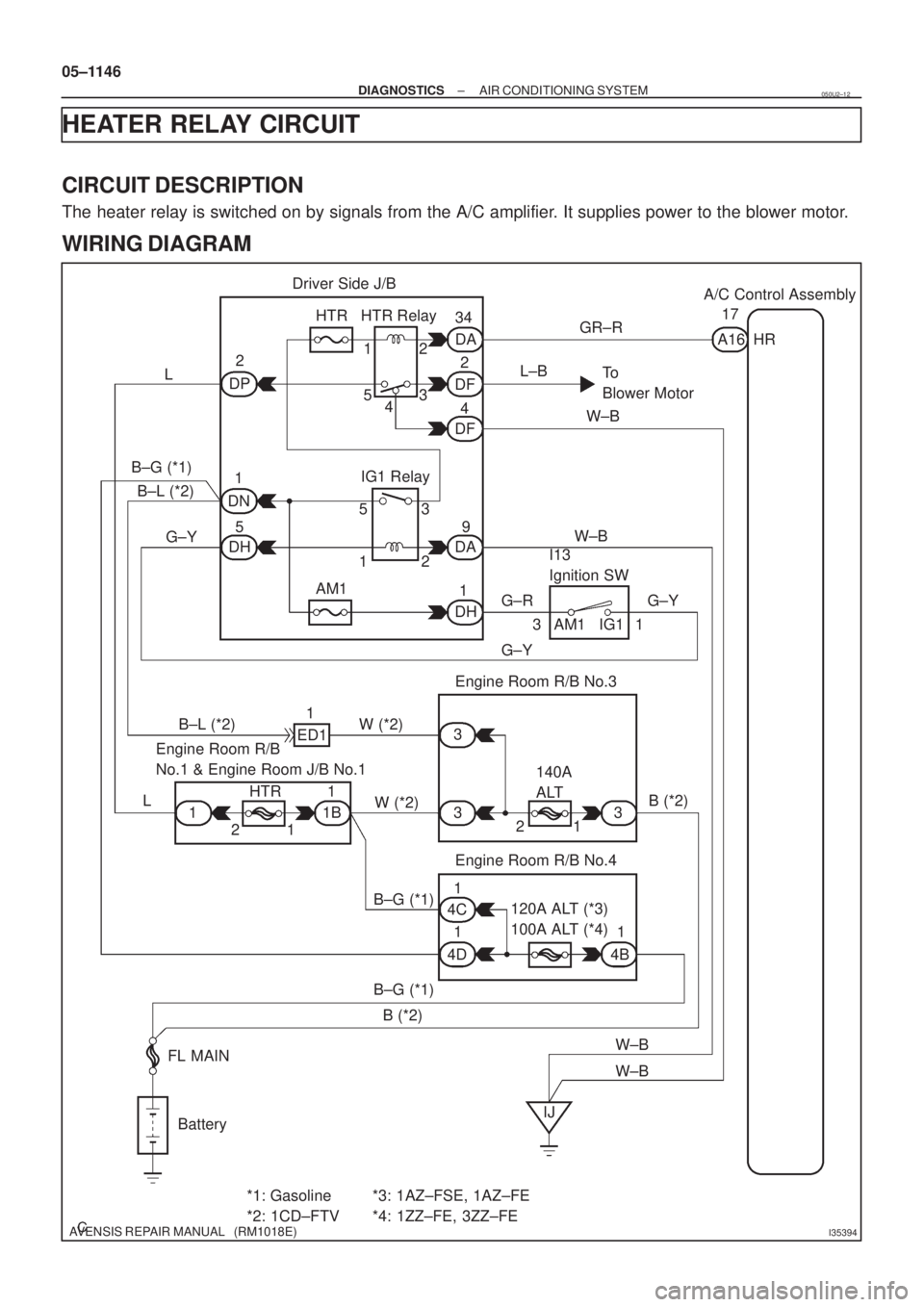

HEATER RELAY CIRCUIT
CIRCUIT DESCRIPTION
The heater relay is switched on by signals from the A/C amplifier. It supplies power to the blower motor.
WIRING DIAGRAM
050U2±12

E32993
I36144
HR
A16A15
± DIAGNOSTICSAIR CONDITIONING SYSTEM
05±1147
AVENSIS REPAIR MANUAL (RM1018E)

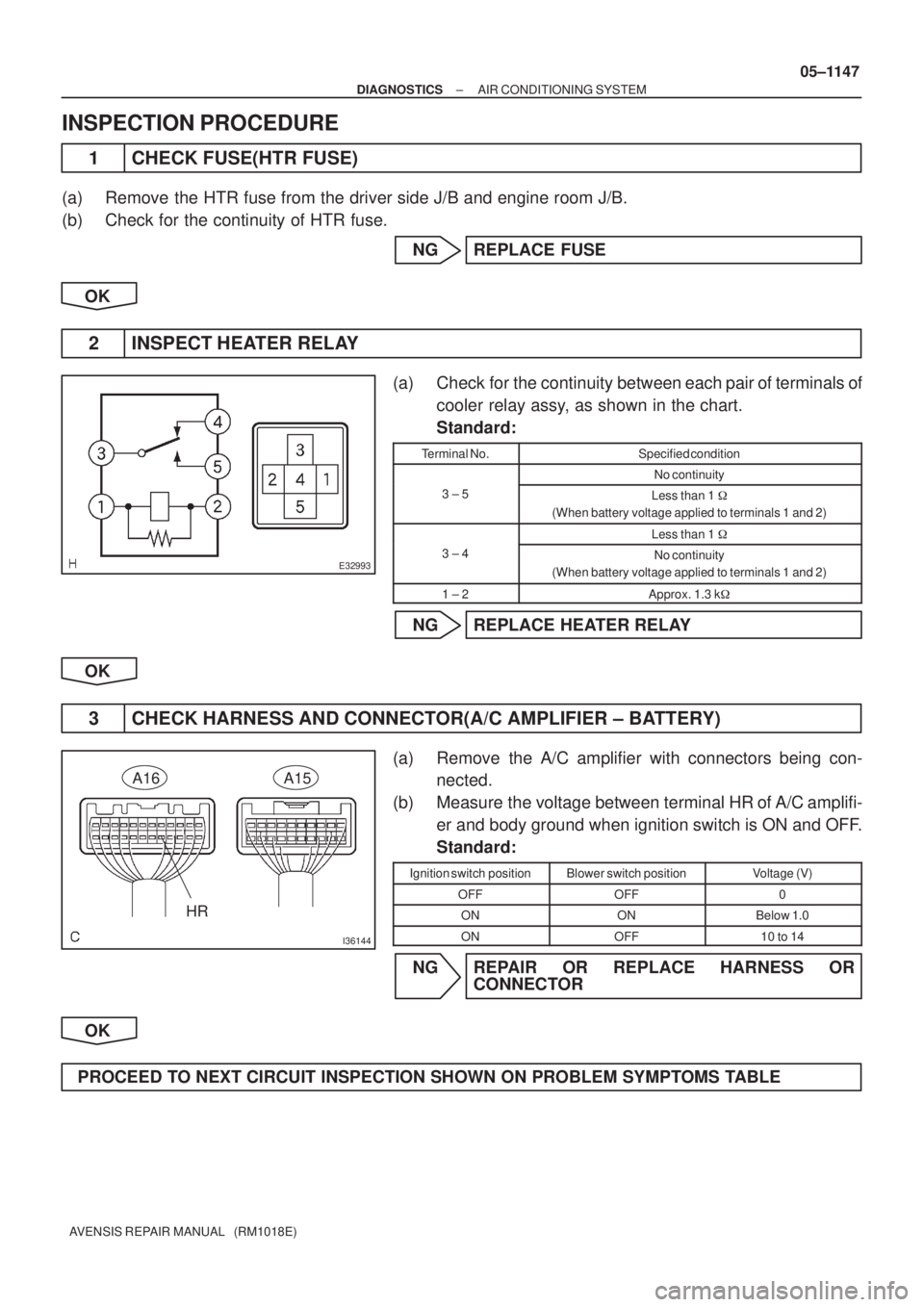

INSPECTION PROCEDURE
1 CHECK FUSE(HTR FUSE)
(a) Remove the HTR fuse from the driver side J/B and engine room J/B.
(b) Check for the continuity of HTR fuse.
NG REPLACE FUSE
OK
2 INSPECT HEATER RELAY
(a) Check for the continuity between each pair of terminals of
cooler relay assy, as shown in the chart.
Standard:
Terminal No.Specified condition
No continuity
3 ± 5Less than 1

(When battery voltage applied to terminals 1 and 2)
Less than 1

3 ± 4No continuity
(When battery voltage applied to terminals 1 and 2)
1 ± 2Approx. 1.3 k

NG REPLACE HEATER RELAY
OK
3 CHECK HARNESS AND CONNECTOR(A/C AMPLIFIER ± BATTERY)
(a) Remove the A/C amplifier with connectors being con-
nected.
(b) Measure the voltage between terminal HR of A/C amplifi-
er and body ground when ignition switch is ON and OFF.
Standard:
Ignition switch positionBlower switch positionVoltage (V)
OFFOFF0
ONONBelow 1.0
ONOFF10 to 14
NG REPAIR OR REPLACE HARNESS OR
CONNECTOR
OK
PROCEED TO NEXT CIRCUIT INSPECTION SHOWN ON PROBLEM SYMPTOMS TABLE




I36744
Driver Side J/BA/C Control Assembly
1
DN6
DC AM1
HTR1
DH
5
DH9
DAW±BR±W
(*3)R±W
(*4)J26 J26R±W
(*4) HHJ/C
1
CB2
CER±W
(*3)A1612
IG
I13 Ignition SW
G±Y G±R
IG1 AM1 13Center J/B
6
CA3
CGW±B
(*3)A1613
GND Center J/B
B±G
(*1)53
12
1
4D
1 2 120A ALT (*5)
1
4B
3
1 2 140A ALT
3 B±L
(*2)ED11
W
(*2)
B
(*2)
B±G
(*1)
FL MAIN
Battery
IJ IP IK *1: Gasoline
*2: 1CD±FTV
*3: LHD
*4: RHD
*5: 1AZ±FSE, 1AZ±FE
*6: 1ZZ±FE, 3ZZ±FEW±B
(*4)
A
J15
J/C W±B
(*3) IG1 Relay
Engine Room R/B No.4
Engine Room R/B No.3100A ALT (*6)
W±B
(*4)J17
J/C
AA 05±1144
± DIAGNOSTICSAIR CONDITIONING SYSTEM
AVENSIS REPAIR MANUAL (RM1018E)

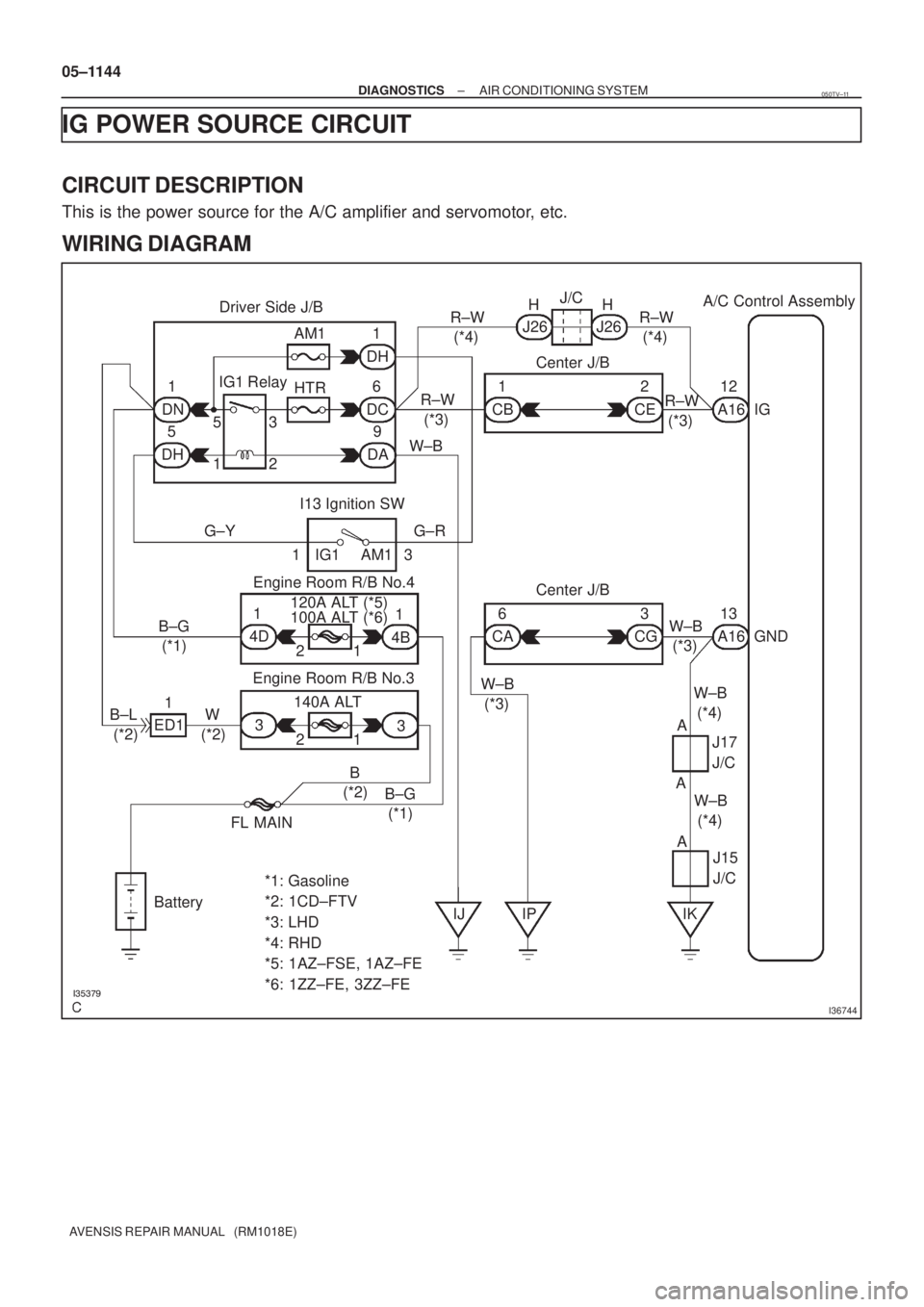

IG POWER SOURCE CIRCUIT
CIRCUIT DESCRIPTION
This is the power source for the A/C amplifier and servomotor, etc.
WIRING DIAGRAM
050TV±11

I36144
IG
GND
A16A15
± DIAGNOSTICSAIR CONDITIONING SYSTEM
05±1145
AVENSIS REPAIR MANUAL (RM1018E)

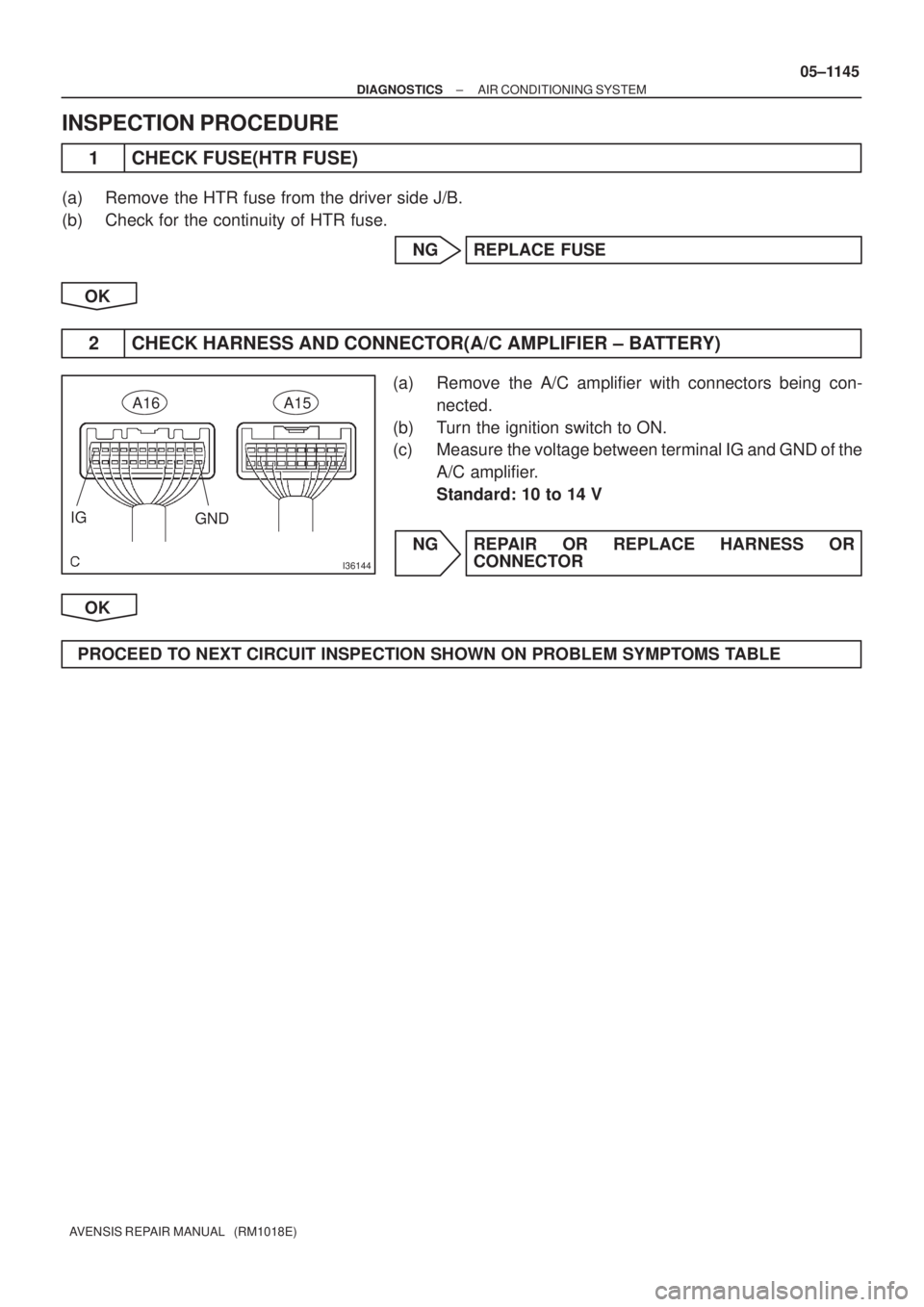

INSPECTION PROCEDURE
1 CHECK FUSE(HTR FUSE)
(a) Remove the HTR fuse from the driver side J/B.
(b) Check for the continuity of HTR fuse.
NG REPLACE FUSE
OK
2 CHECK HARNESS AND CONNECTOR(A/C AMPLIFIER ± BATTERY)
(a) Remove the A/C amplifier with connectors being con-
nected.
(b) Turn the ignition switch to ON.
(c) Measure the voltage between terminal IG and GND of the
A/C amplifier.
Standard: 10 to 14 V
NG REPAIR OR REPLACE HARNESS OR
CONNECTOR
OK
PROCEED TO NEXT CIRCUIT INSPECTION SHOWN ON PROBLEM SYMPTOMS TABLE

I35395
Fuse Block Center J/BA/C Control Assembly
ECU±B2
66
12CC CF 10 7
W±R W±R
A1624
+B
B±W
IE4 IP145
(*3) (*4)B±W Engine Room R/B No.1 & Engine Room J/B No.1B±G (*1)
B (*2) DCC
11A
1 21
Engine Room R/B No.3
Engine Room J/B No.4
Center J/B B (*2)
B±G (*1)B (*2)
B±G (*1) 33
4A 4B
CG CA W±B (*3) W±B (*3)11
63
A1613
GND
FL MAIN
Battery
IP IKAAA W±B (*4) W±B (*4)J17
J/C
*1: Gasoline
*2: 1CD±FTV*3: LHD
*4: RHDJ15
J/C 05±1142
± DIAGNOSTICSAIR CONDITIONING SYSTEM
AVENSIS REPAIR MANUAL (RM1018E)

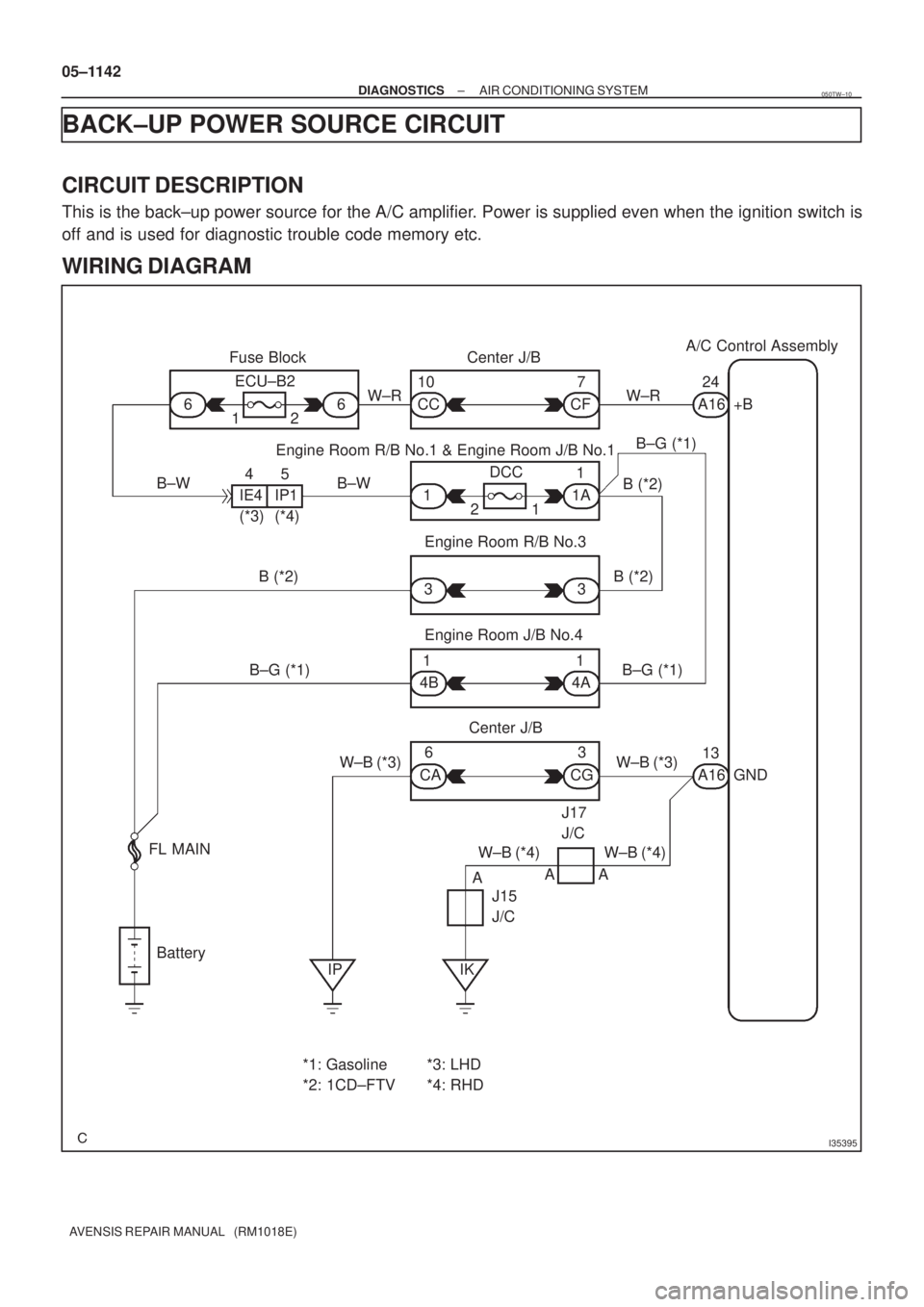

BACK±UP POWER SOURCE CIRCUIT
CIRCUIT DESCRIPTION
This is the back±up power source for the A/C amplifier. Power is supplied even when the ignition switch is
off and is used for diagnostic trouble code memory etc.
WIRING DIAGRAM
050TW±10

I36144
+BGND
A16A15
± DIAGNOSTICSAIR CONDITIONING SYSTEM
05±1143
AVENSIS REPAIR MANUAL (RM1018E)

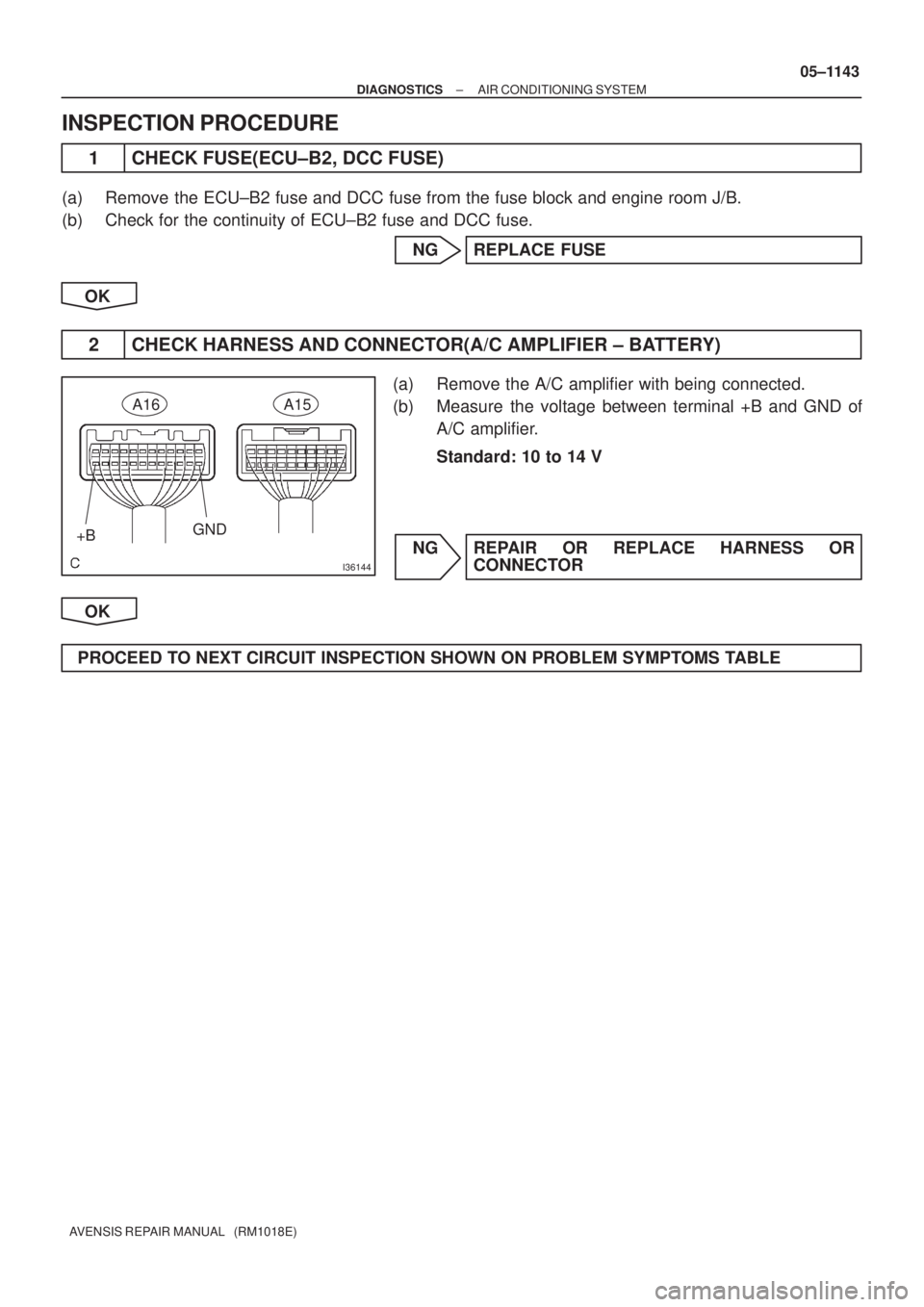

INSPECTION PROCEDURE
1 CHECK FUSE(ECU±B2, DCC FUSE)
(a) Remove the ECU±B2 fuse and DCC fuse from the fuse block and engine room J/B.
(b) Check for the continuity of ECU±B2 fuse and DCC fuse.
NG REPLACE FUSE
OK
2 CHECK HARNESS AND CONNECTOR(A/C AMPLIFIER ± BATTERY)
(a) Remove the A/C amplifier with being connected.
(b) Measure the voltage between terminal +B and GND of
A/C amplifier.
Standard: 10 to 14 V
NG REPAIR OR REPLACE HARNESS OR
CONNECTOR
OK
PROCEED TO NEXT CIRCUIT INSPECTION SHOWN ON PROBLEM SYMPTOMS TABLE








H41439
D SquibAirbag
Sensor
Assy
CenterSpiral
Cable
Sub±assy
Color: Orange
A
B
C
D
E
F
05±1202
±
DIAGNOSTICS SUPPLEMENTAL RESTRAINT SYSTEM
AVENSIS REPAIR MANUAL (RM1018E)

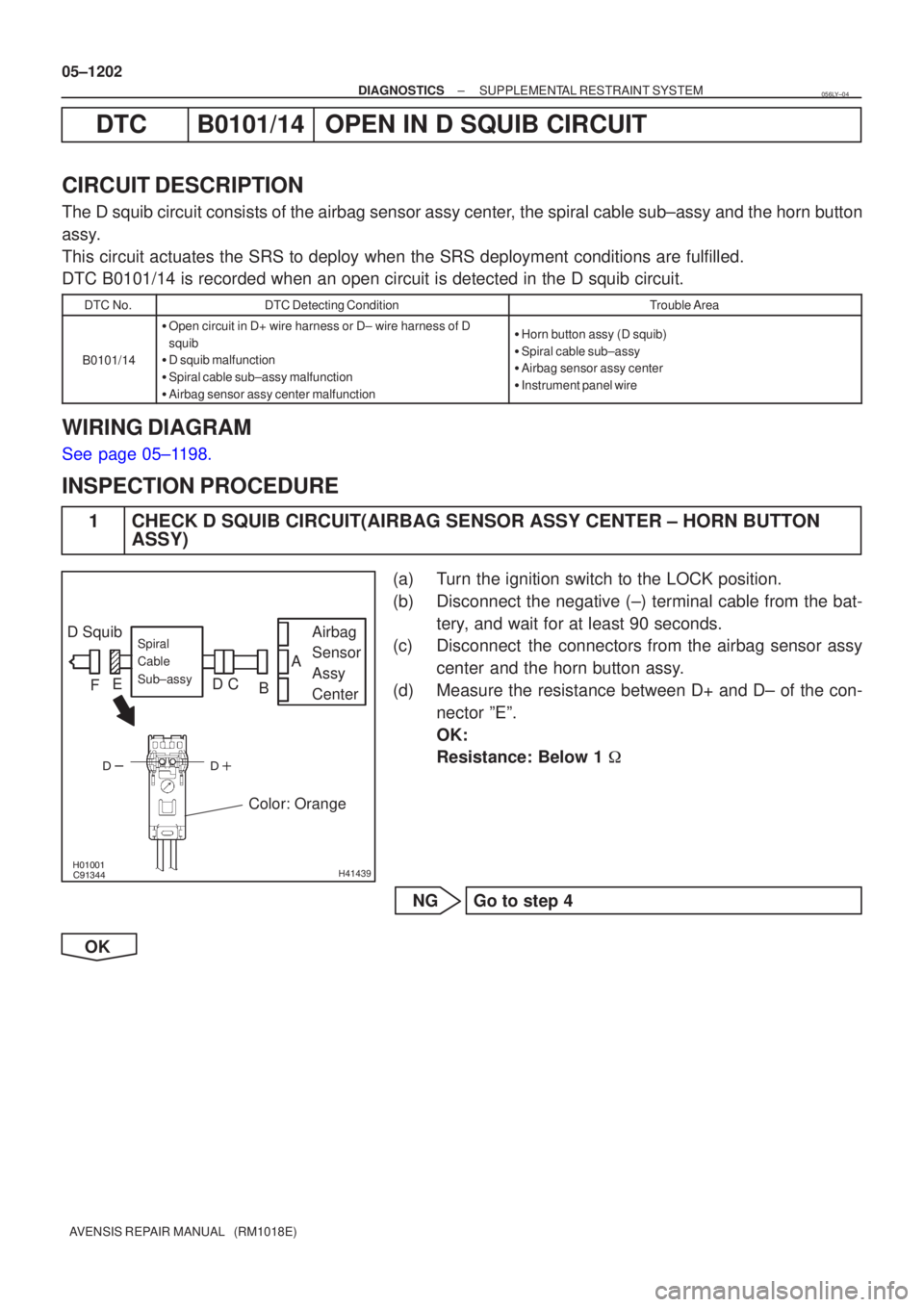

DTCB0101/14OPEN IN D SQUIB CIRCUIT
CIRCUIT DESCRIPTION
The D squib circuit consists of the airbag sensor assy center, the spiral cable sub±assy and the horn button
assy.
This circuit actuates the SRS to deploy when the SRS deployment conditions a\
re fulfilled.
DTC B0101/14 is recorded when an open circuit is detected in the D squib\
circuit.
DTC No.DTC Detecting ConditionTrouble Area
B0101/14

Open circuit in D+ wire harness or D± wire harness of D
squib

D squib malfunction

Spiral cable sub±assy malfunction

Airbag sensor assy center malfunction
Horn button assy (D squib)

Spiral cable sub±assy

Airbag sensor assy center

Instrument panel wire
WIRING DIAGRAM
See page 05±1198.
INSPECTION PROCEDURE
1 CHECK D SQUIB CIRCUIT(AIRBAG SENSOR ASSY CENTER ± HORN BUTTON
ASSY)
(a) Turn the ignition switch to the LOCK position.
(b) Disconnect the negative (±) terminal cable from the bat-
tery, and wait for at least 90 seconds.
(c) Disconnect the connectors from the airbag sensor assy
center and the horn button assy.
(d) Measure the resistance between D+ and D± of the con- nector ºEº.
OK:
Resistance: Below 1

NG Go to step 4
OK
056LY±04








\b

H42104
D SquibAirbag
Sensor
Assy
Center
D±D+Spiral
Cable
Sub±assy
Color: Orange
TC
CG
DLC3 DTC B0101/14
Service Wire
C
D
E
F
±
DIAGNOSTICS SUPPLEMENTAL RESTRAINT SYSTEM
05±1203
AVENSIS REPAIR MANUAL (RM1018E)

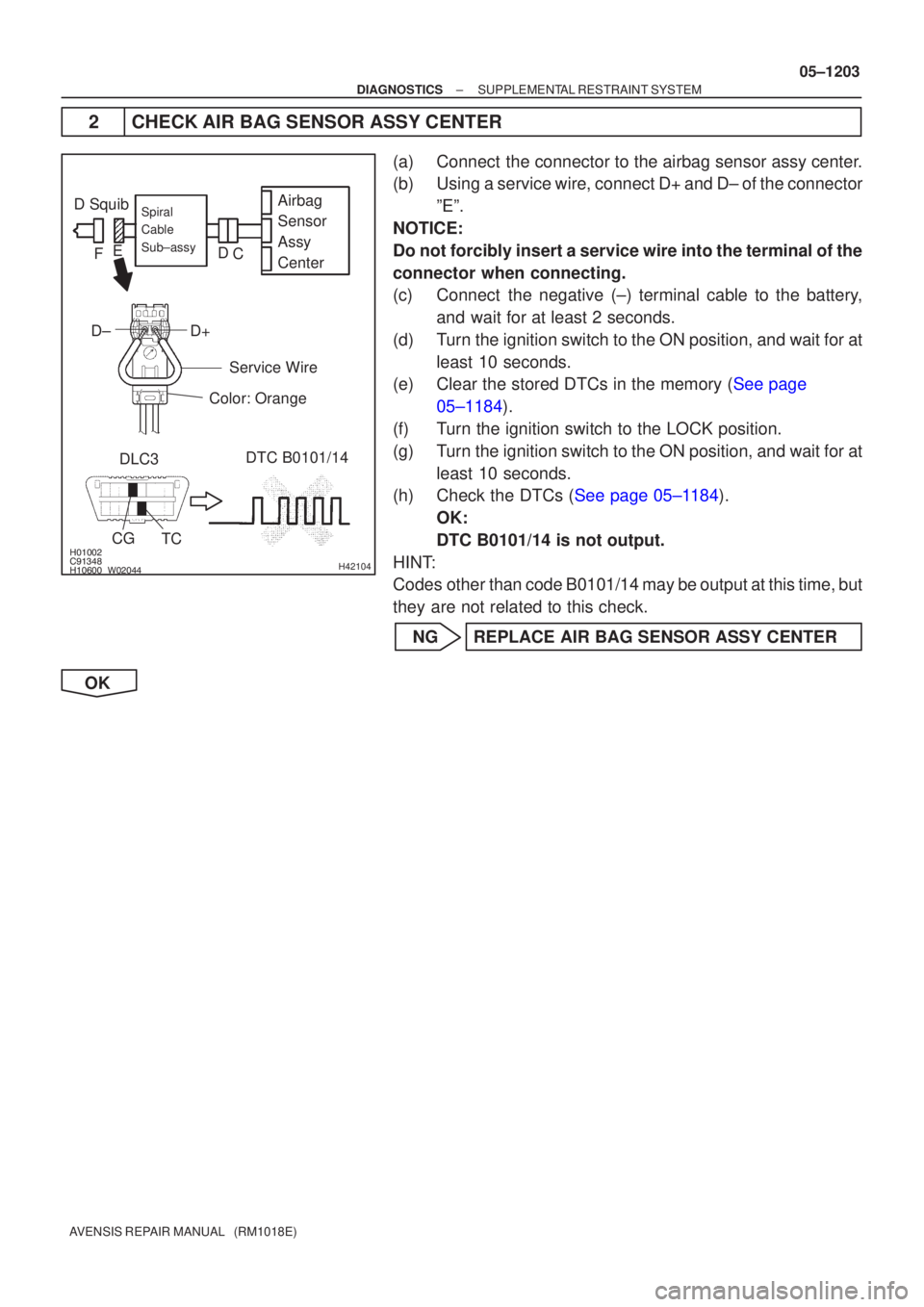

2CHECK AIR BAG SENSOR ASSY CENTER
(a)Connect the connector to the airbag sensor assy center.
(b)Using a service wire, connect D+ and D± of the connector
ºEº.
NOTICE:
Do not forcibly insert a service wire into the terminal of the
connector when connecting.
(c)Connect the negative (±) terminal cable to the battery, and wait for at least 2 seconds.
(d)Turn the ignition switch to the ON position, and wait for at least 10 seconds.
(e)Clear the stored DTCs in the memory (See page
05±1184).
(f) Turn the ignition switch to the LOCK position.
(g) Turn the ignition switch to the ON position, and wait for at least 10 seconds.
(h)Check the DTCs (See page 05±1184).
OK:
DTC B0101/14 is not output.
HINT:
Codes other than code B0101/14 may be output at this time, but
they are not related to this check.
NG REPLACE AIR BAG SENSOR ASSY CENTER
OK







\b

H40036
D SquibDLC3 DTC B0101/14
CG TCAirbag
Sensor
Assy
CenterSpiral
Cable
Sub±assy
C
D
E
F







H41440
D Squib Airbag
Sensor
Assy
CenterSpiral
Cable
Sub±assy
Instrument Panel Wire
A
B
C
D
E
F
05±1204
±
DIAGNOSTICS SUPPLEMENTAL RESTRAINT SYSTEM
AVENSIS REPAIR MANUAL (RM1018E)

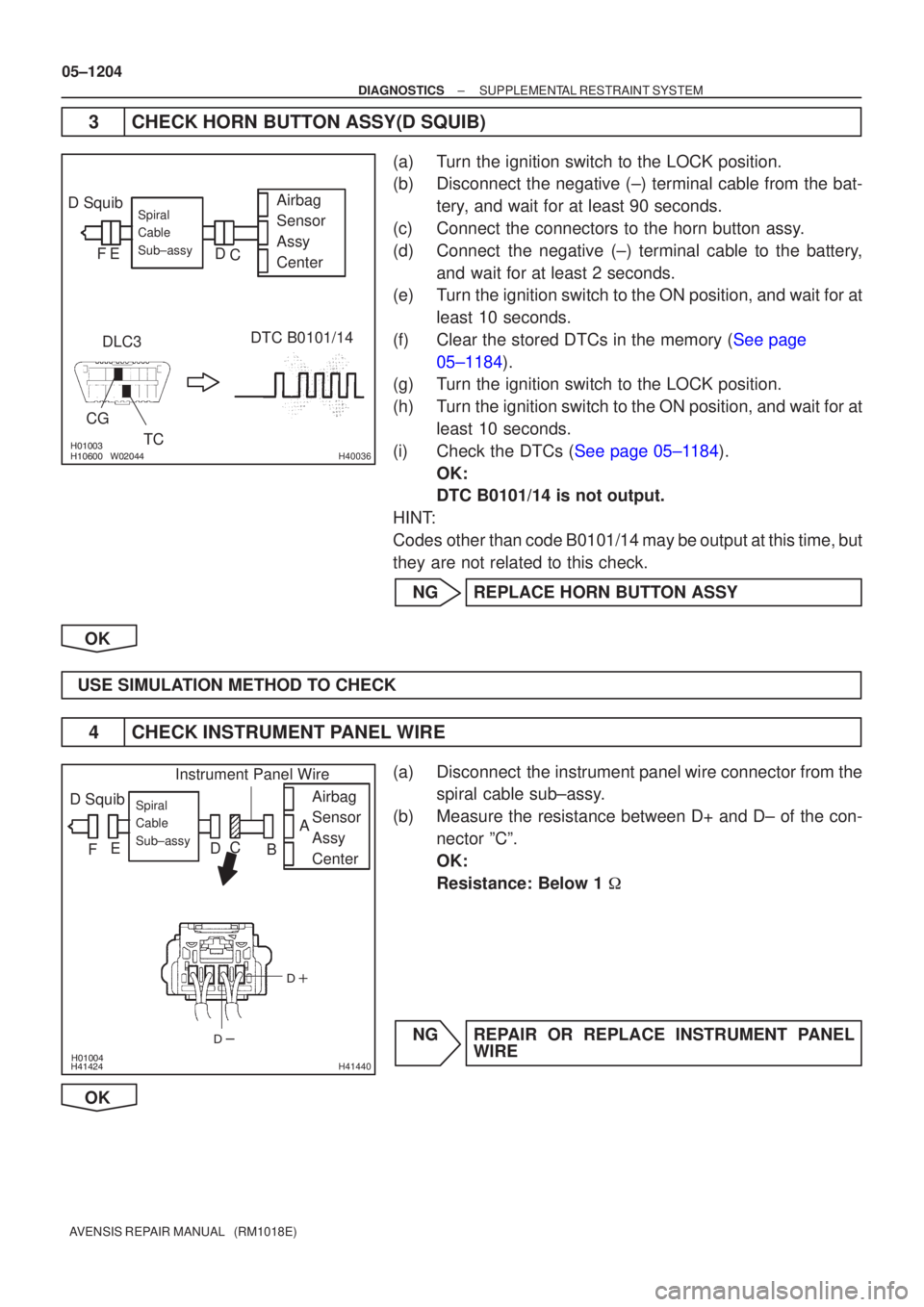

3CHECK HORN BUTTON ASSY(D SQUIB)
(a)Turn the ignition switch to the LOCK position.
(b)Disconnect the negative (±) terminal cable from the bat- tery, and wait for at least 90 seconds.
(c)Connect the connectors to the horn button assy.
(d)Connect the negative (±) terminal cable to the battery, and wait for at least 2 seconds.
(e)Turn the ignition switch to the ON position, and wait for at
least 10 seconds.
(f)Clear the stored DTCs in the memory (See page 05±1184).
(g) Turn the ignition switch to the LOCK position.
(h) Turn the ignition switch to the ON position, and wait for at
least 10 seconds.
(i)Check the DTCs (See page 05±1184). OK:
DTC B0101/14 is not output.
HINT:
Codes other than code B0101/14 may be output at this time, but
they are not related to this check.
NG REPLACE HORN BUTTON ASSY
OK
USE SIMULATION METHOD TO CHECK
4 CHECK INSTRUMENT PANEL WIRE
(a) Disconnect the instrument panel wire connector from the spiral cable sub±assy.
(b) Measure the resistance between D+ and D± of the con- nector ºCº.
OK:
Resistance: Below 1

NG REPAIR OR REPLACE INSTRUMENT PANEL WIRE
OK






H41441
D Squib Airbag
Sensor
Assy
CenterSpiral
Cable
Sub±assy
Color: Orange
A
B C
D E
F
D+ D±
± DIAGNOSTICSSUPPLEMENTAL RESTRAINT SYSTEM
05±1205
AVENSIS REPAIR MANUAL (RM1018E)

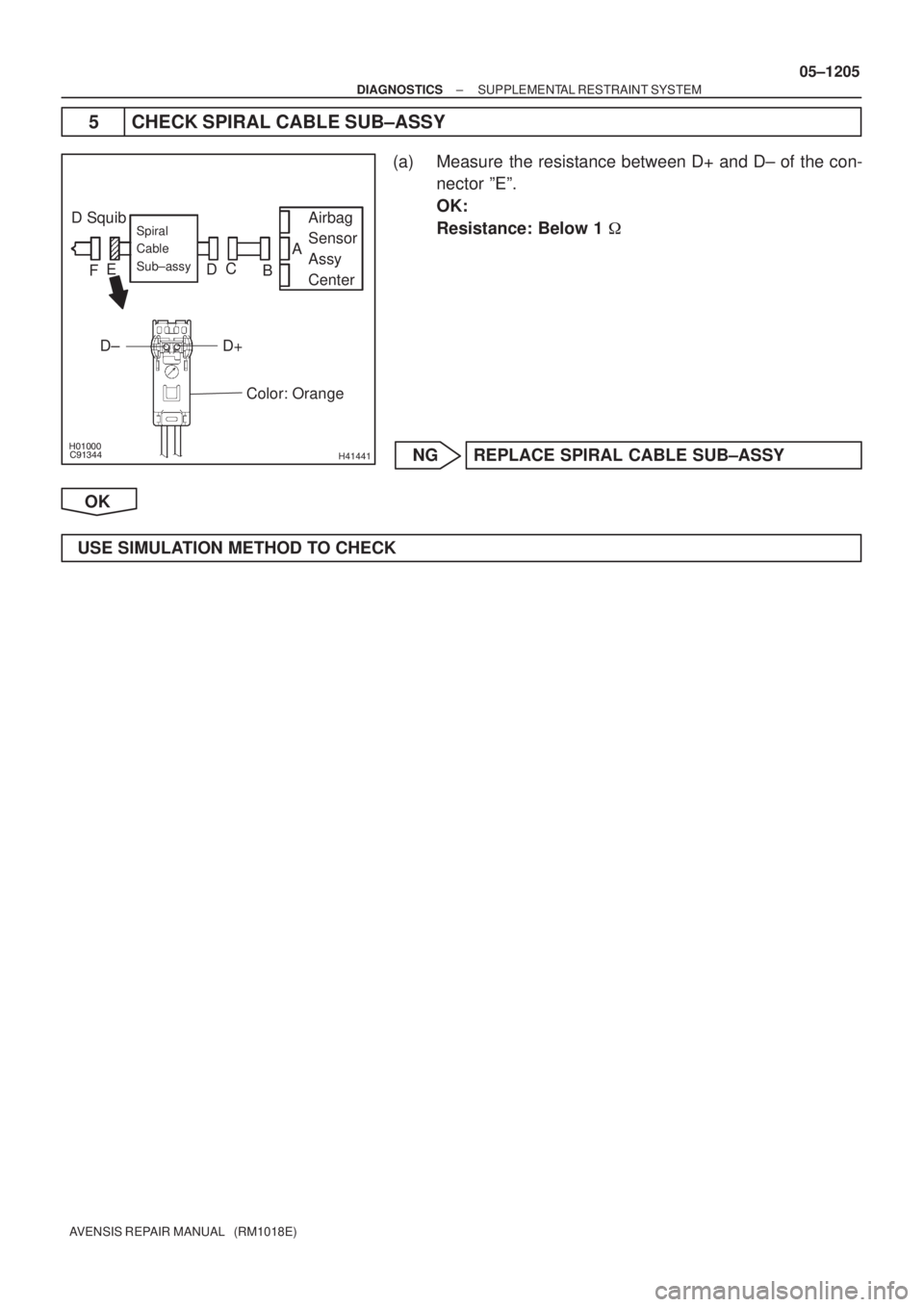

5 CHECK SPIRAL CABLE SUB±ASSY
(a) Measure the resistance between D+ and D± of the con-
nector ºEº.
OK:
Resistance: Below 1

NG REPLACE SPIRAL CABLE SUB±ASSY
OK
USE SIMULATION METHOD TO CHECK
