TOYOTA AVENSIS 2005 Service Repair Manual

05±1484
±
DIAGNOSTICS NAVIGATION SYSTEM
AVENSIS REPAIR MANUAL (RM1018E)
MAP IS DISPLAYED IN WHITE OR BLUE SCREEN (SWITCHED AND VEHICLE POSITION MARK ARE DISPLAYED)
INSPECTION PROCEDURE
1CHECK SETTING
(a)Check the settings.
(1)Check that the map display is normal when the map scale is set to the wi\
destarea.
Standard: Map display is normal
OKSYSTEM OK
NG
2CHECK AND OPERATE AGAIN
(a)Clean the map disc. (1)After wiping the map disc in the circumference direction with a soft clo\
th, insert it again.
OKSYSTEM OK
NG
3REPLACE DISC PLAYER DISC
Standard: Normally returns OKSYSTEM OK
NG
REPLACE NAVIGATION ECU (See page 67±27)
05C3P±01

±
DIAGNOSTICS NAVIGATION SYSTEM
05±1483
AVENSIS REPAIR MANUAL (RM1018E)

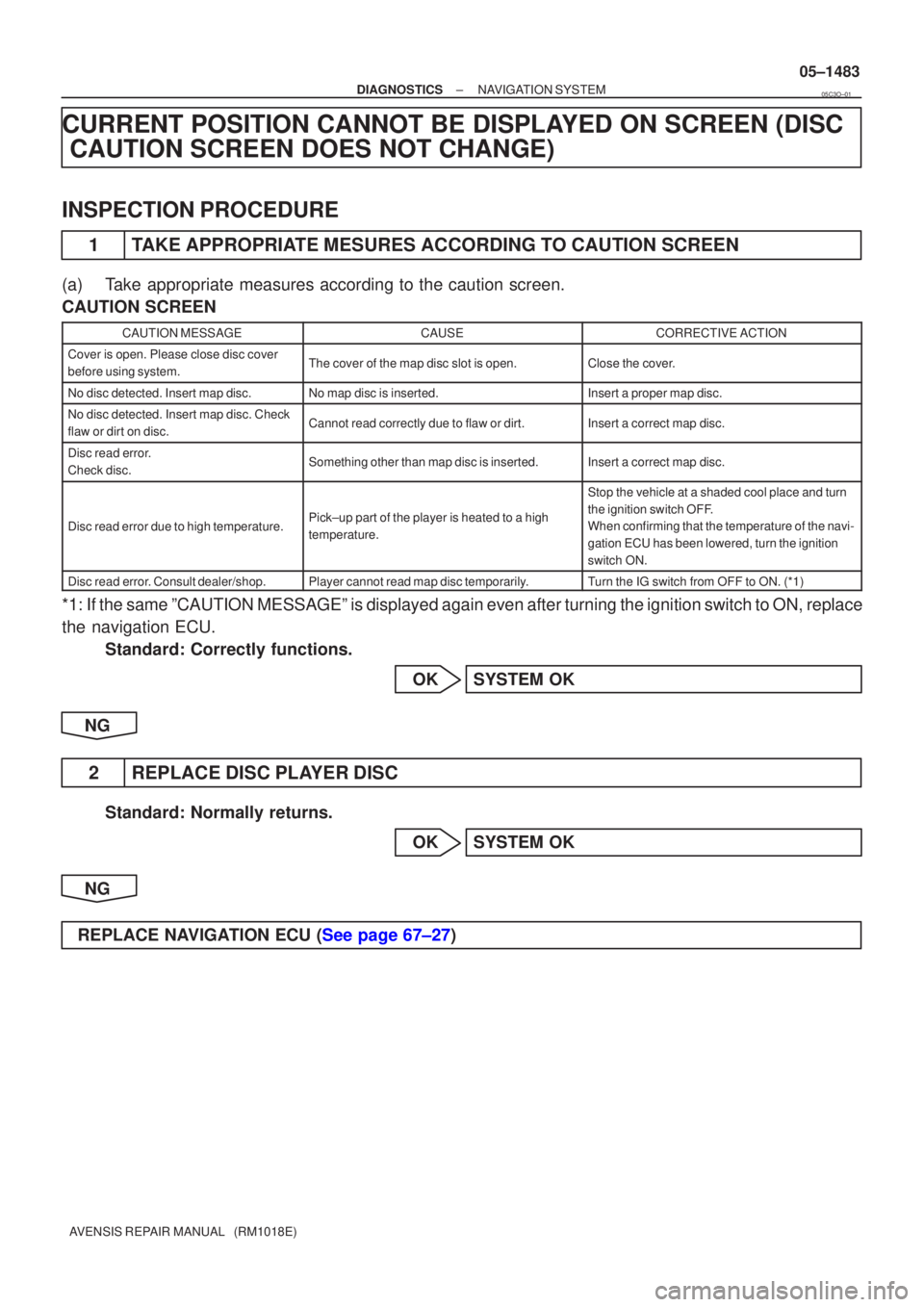

CURRENT POSITION CANNOT BE DISPLAYED ON SCREEN (DISC
CAUTION SCREEN DOES NOT CHANGE)
INSPECTION PROCEDURE
1TAKE APPROPRIATE MESURES ACCORDING TO CAUTION SCREEN
(a)Take appropriate measures according to the caution screen.
CAUTION SCREEN
CAUTION MESSAGECAUSECORRECTIVE ACTION
Cover is open. Please close disc cover
before using system.The cover of the map disc slot is open.Close the cover.
No disc detected. Insert map disc.No map disc is inserted.Insert a proper map disc.
No disc detected. Insert map disc. Check
flaw or dirt on disc.Cannot read correctly due to flaw or dirt.Insert a correct map disc.
Disc read error.
Check disc.Something other than map disc is inserted.Insert a correct map disc.
Disc read error due to high temperature.Pick±up part of the player is heated to a high
temperature.
Stop the vehicle at a shaded cool place and turn
the ignition switch OFF.
When confirming that the temperature of the navi-
gation ECU has been lowered, turn the ignition
switch ON.
Disc read error. Consult dealer/shop.Player cannot read map disc temporarily.Turn the IG switch from OFF to ON. (*1)
*1: If the same ºCAUTION MESSAGEº is displayed again even after turni\
ng the ignition switch to ON, replace
the navigation ECU.
Standard: Correctly functions.
OKSYSTEM OK
NG
2REPLACE DISC PLAYER DISC
Standard: Normally returns. OKSYSTEM OK
NG
REPLACE NAVIGATION ECU (See page 67±27)
05C3O±01

I34726
Radio Receiver Assy
FL±
FL+
FR±
FR+6
12
5 R4
R4
R4
R4LG (*1)
R (*1)
R (*2)
W (*2)Navigation ECU
10
N3
N31AUI±
AUI+
11
N3
N32AUO±
AUO+ F21
Front No.1
Speaker Assy LH
F22
Front No.1
Speaker Assy RH2
1
LG1 LT16
Tweeter Front LH
(±) IN
(+) OUT(+) IN (±) OUT
2
34V
P6
IA1
IA1
IL1
IL1V (*1)
P (*1)
2
1
P1 VT17
Tweeter Front RH
(±) IN
(+) OUT(+) IN (±) OUT
2
34LGL61
1
LG (*2) L (*2)
*1: LHD
*2: RHD
± DIAGNOSTICSNAVIGATION SYSTEM
05±1479
AVENSIS REPAIR MANUAL (RM1018E)
FRONT SPEAKER (DRIVER SIDE) ONLY IS NOT HEARD

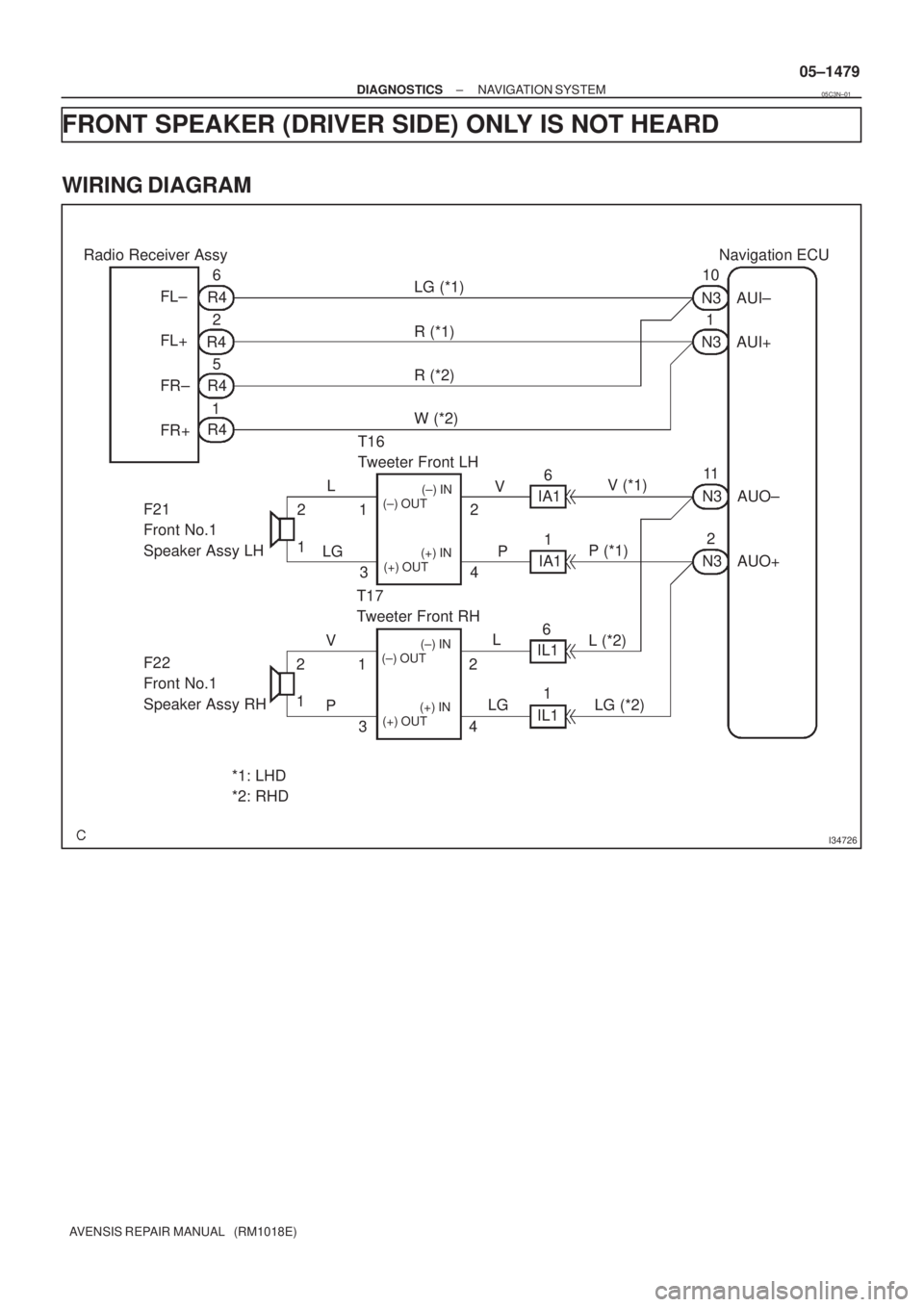

WIRING DIAGRAM
05C3N±01

I35667
AUI+
AUI±
FL± FL+
FR±FR+
Navigation ECU:
Radio Receiver Assy:
N3
R4
05±1480
± DIAGNOSTICSNAVIGATION SYSTEM
AVENSIS REPAIR MANUAL (RM1018E)

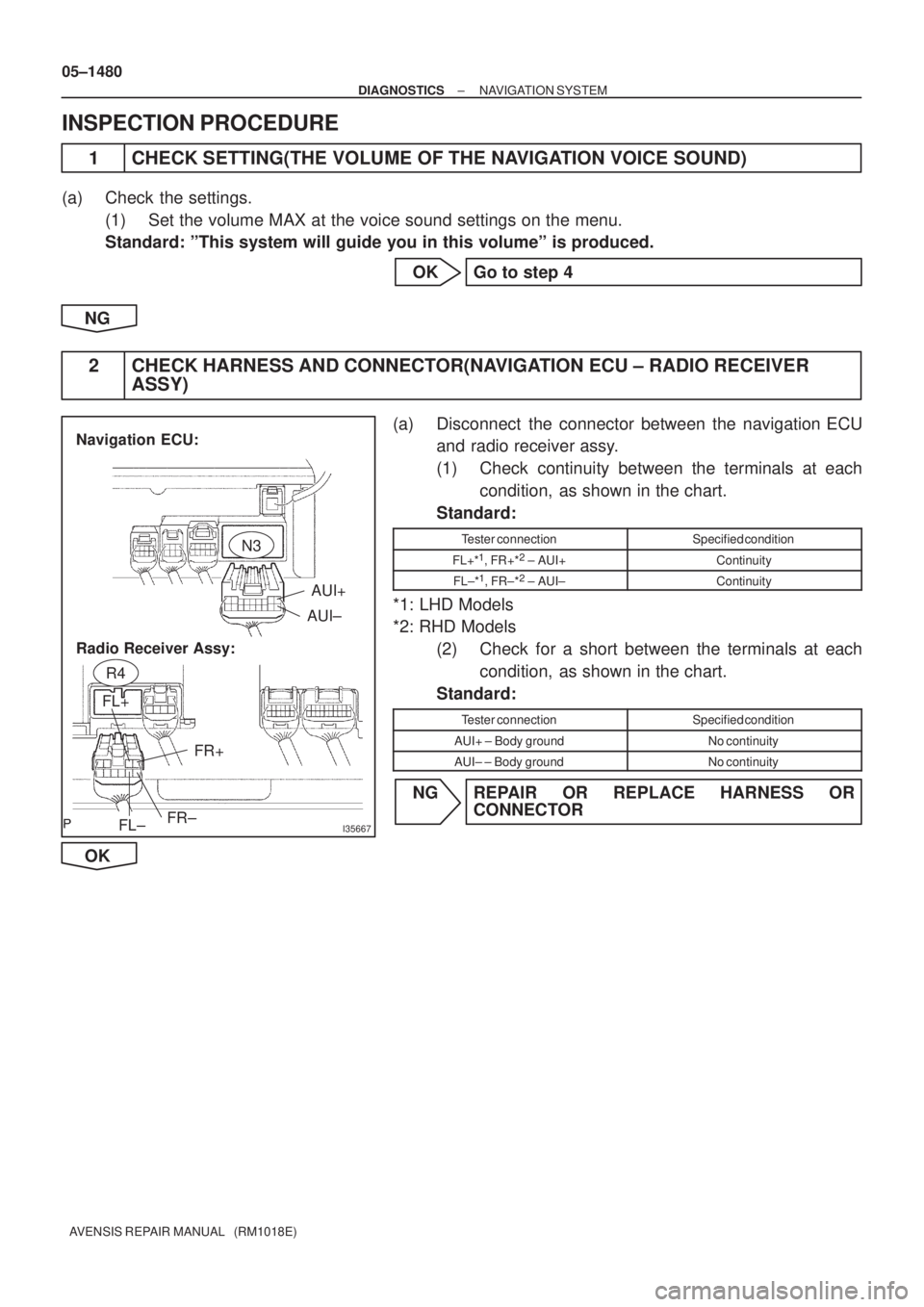

INSPECTION PROCEDURE
1 CHECK SETTING(THE VOLUME OF THE NAVIGATION VOICE SOUND)
(a) Check the settings.
(1) Set the volume MAX at the voice sound settings on the menu.
Standard: ºThis system will guide you in this volumeº is produced.
OK Go to step 4
NG
2 CHECK HARNESS AND CONNECTOR(NAVIGATION ECU ± RADIO RECEIVER
ASSY)
(a) Disconnect the connector between the navigation ECU
and radio receiver assy.
(1) Check continuity between the terminals at each
condition, as shown in the chart.
Standard:
Tester connectionSpecified condition
FL+*1, FR+*2 ± AUI+Continuity
FL±*1, FR±*2 ± AUI±Continuity
*1: LHD Models
*2: RHD Models
(2) Check for a short between the terminals at each
condition, as shown in the chart.
Standard:
Tester connectionSpecified condition
AUI+ ± Body groundNo continuity
AUI± ± Body groundNo continuity
NG REPAIR OR REPLACE HARNESS OR
CONNECTOR
OK

I35668
FL+FR+
FR±FL±
R4
±
DIAGNOSTICS NAVIGATION SYSTEM
05±1481
AVENSIS REPAIR MANUAL (RM1018E)

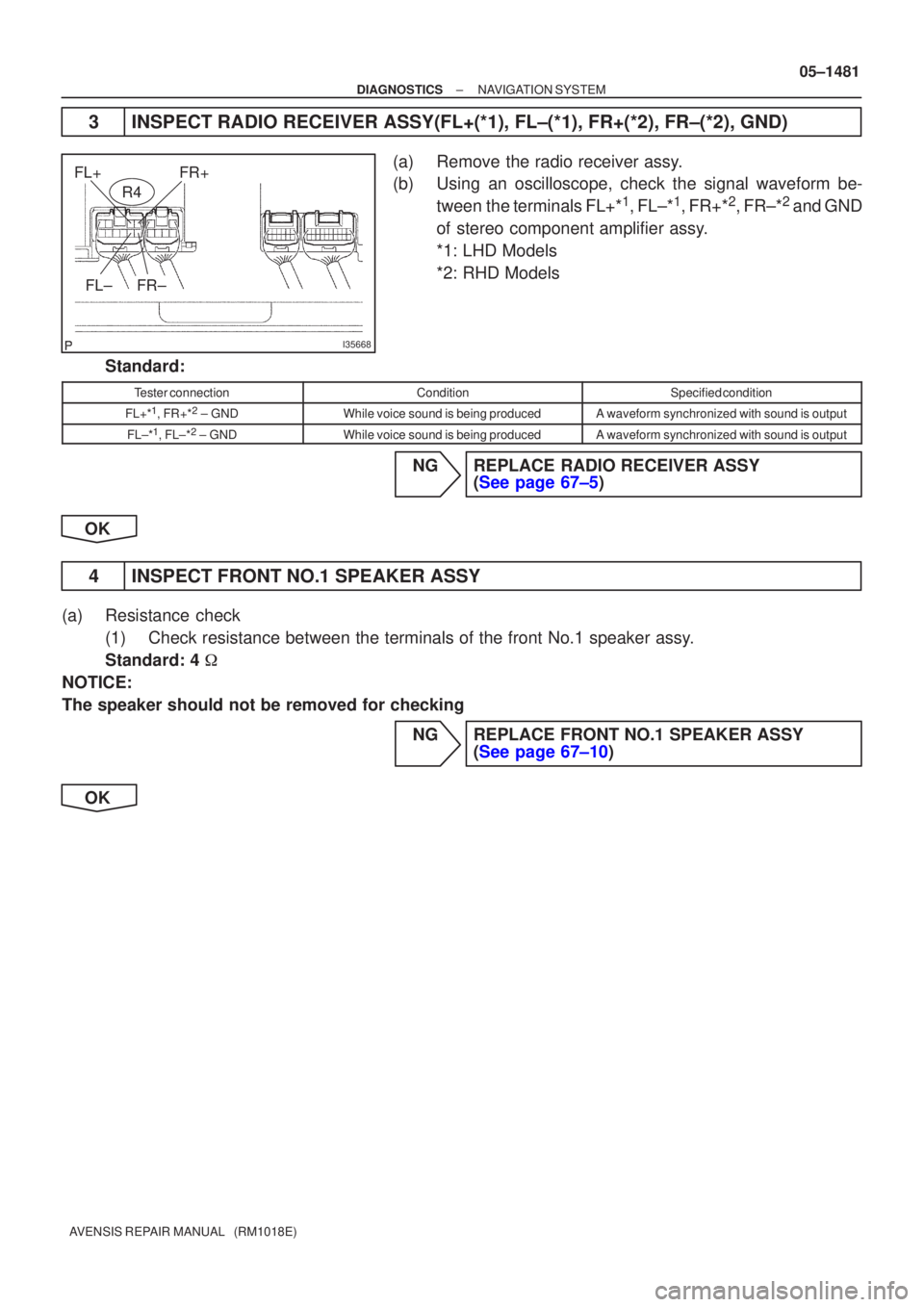

3INSPECT RADIO RECEIVER ASSY(FL+(*1), FL±(*1), FR+(*2), FR±(*2), \
GND)
(a)Remove the radio receiver assy.
(b)Using an oscilloscope, check the signal waveform be-
tween the terminals FL+*
1, FL±*1, FR+*2, FR±*2 and GND
of stereo component amplifier assy.
*1: LHD Models
*2: RHD Models
Standard:
Tester connectionConditionSpecified condition
FL+*1, FR+*2 ± GNDWhile voice sound is being producedA waveform synchronized with sound is output
FL±*1, FL±*2 ±GNDWhile voice sound is being producedA waveform synchronized with sound is output
NGREPLACE RADIO RECEIVER ASSY (See page 67±5)
OK
4 INSPECT FRONT NO.1 SPEAKER ASSY
(a) Resistance check (1) Check resistance between the terminals of the front No.1 speaker assy.
Standard: 4

NOTICE:
The speaker should not be removed for checking
NG REPLACE FRONT NO.1 SPEAKER ASSY (See page 67±10)
OK

I33631
Navigation ECU:
Front No. 1 Speaker Assy LH:AUO+
AUO±
N3
Front No. 1 Speaker Assy RH:
F21
F22
05±1482
±
DIAGNOSTICS NAVIGATION SYSTEM
AVENSIS REPAIR MANUAL (RM1018E)

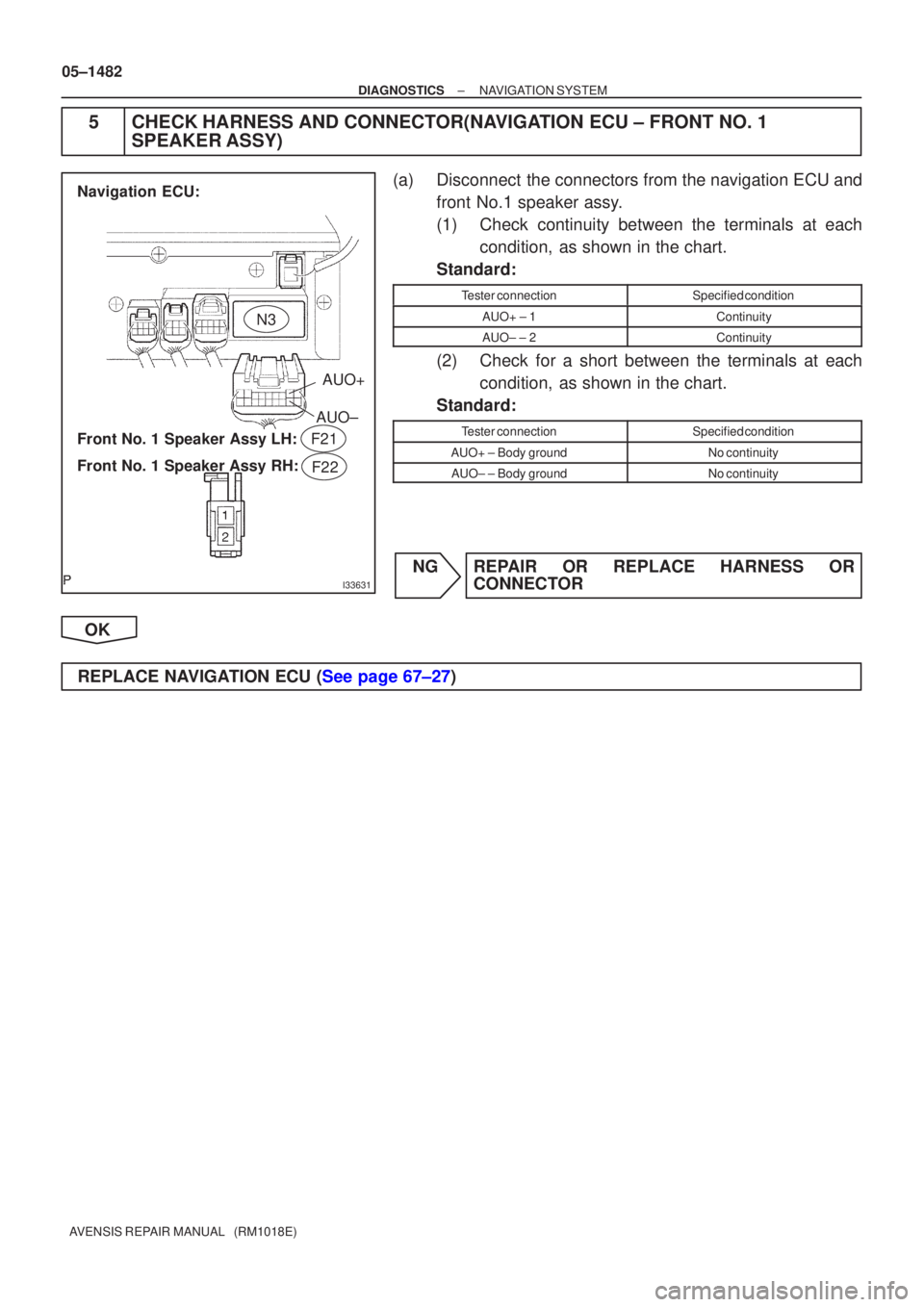

5CHECK HARNESS AND CONNECTOR(NAVIGATION ECU ± FRONT NO. 1 SPEAKER ASSY)
(a)Disconnect the connectors from the navigation ECU and
front No.1 speaker assy.
(1)Check continuity between the terminals at eachcondition, as shown in the chart.
Standard:
Tester connectionSpecified condition
AUO+ ± 1Continuity
AUO± ± 2Continuity
(2)Check for a short between the terminals at each condition, as shown in the chart.
Standard:
Tester connectionSpecified condition
AUO+ ± Body groundNo continuity
AUO± ± Body groundNo continuity
NGREPAIR OR REPLACE HARNESS OR CONNECTOR
OK
REPLACE NAVIGATION ECU (See page 67±27)

05C88±01






B70813
Unlock Warning
Switch Assy
Instrument Panel J/B Assy

Integration Relay

Door Fuse
Unlock Warning
Switch Assy
LHD Models
RHD ModelsCenter J/B
Center J/B
Fuse Block Assy

ECU±B 2 Fuse
Instrument Panel J/B Assy

Integration Relay

Door FuseFuse Block Assy

ECU±B 2 Fuse 05±1540
± DIAGNOSTICSPOWER DOOR LOCK CONTROL SYSTEM
AVENSIS REPAIR MANUAL (RM1018E)

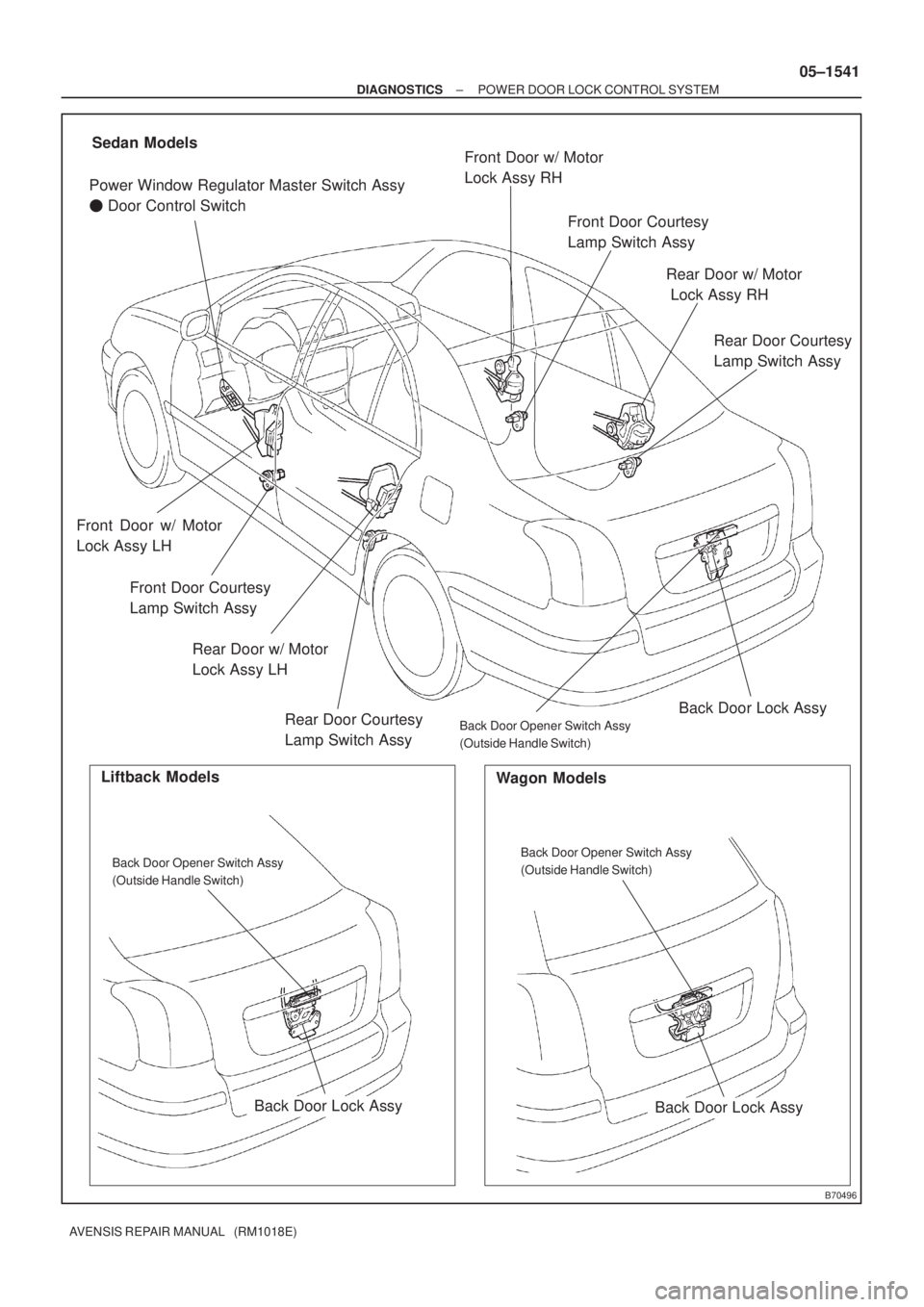

LOCATION

B70496
Front Door w/ Motor
Lock Assy LH
Front Door Courtesy
Lamp Switch Assy
Rear Door w/ Motor
Lock Assy LH
Rear Door Courtesy
Lamp Switch AssyFront Door Courtesy
Lamp Switch Assy
Rear Door w/ Motor
Lock Assy RH
Rear Door Courtesy
Lamp Switch Assy Front Door w/ Motor
Lock Assy RH
Sedan Models
Wagon Models Liftback Models
Back Door Lock Assy Power Window Regulator Master Switch Assy

Door Control SwitchBack Door Lock Assy
Back Door Opener Switch Assy
(Outside Handle Switch)
Back Door Lock Assy
Back Door Opener Switch Assy
(Outside Handle Switch)Back Door Opener Switch Assy
(Outside Handle Switch)
± DIAGNOSTICSPOWER DOOR LOCK CONTROL SYSTEM
05±1541
AVENSIS REPAIR MANUAL (RM1018E)

05C87±01
± DIAGNOSTICSPOWER DOOR LOCK CONTROL SYSTEM
05±1539
AVENSIS REPAIR MANUAL (RM1018E)

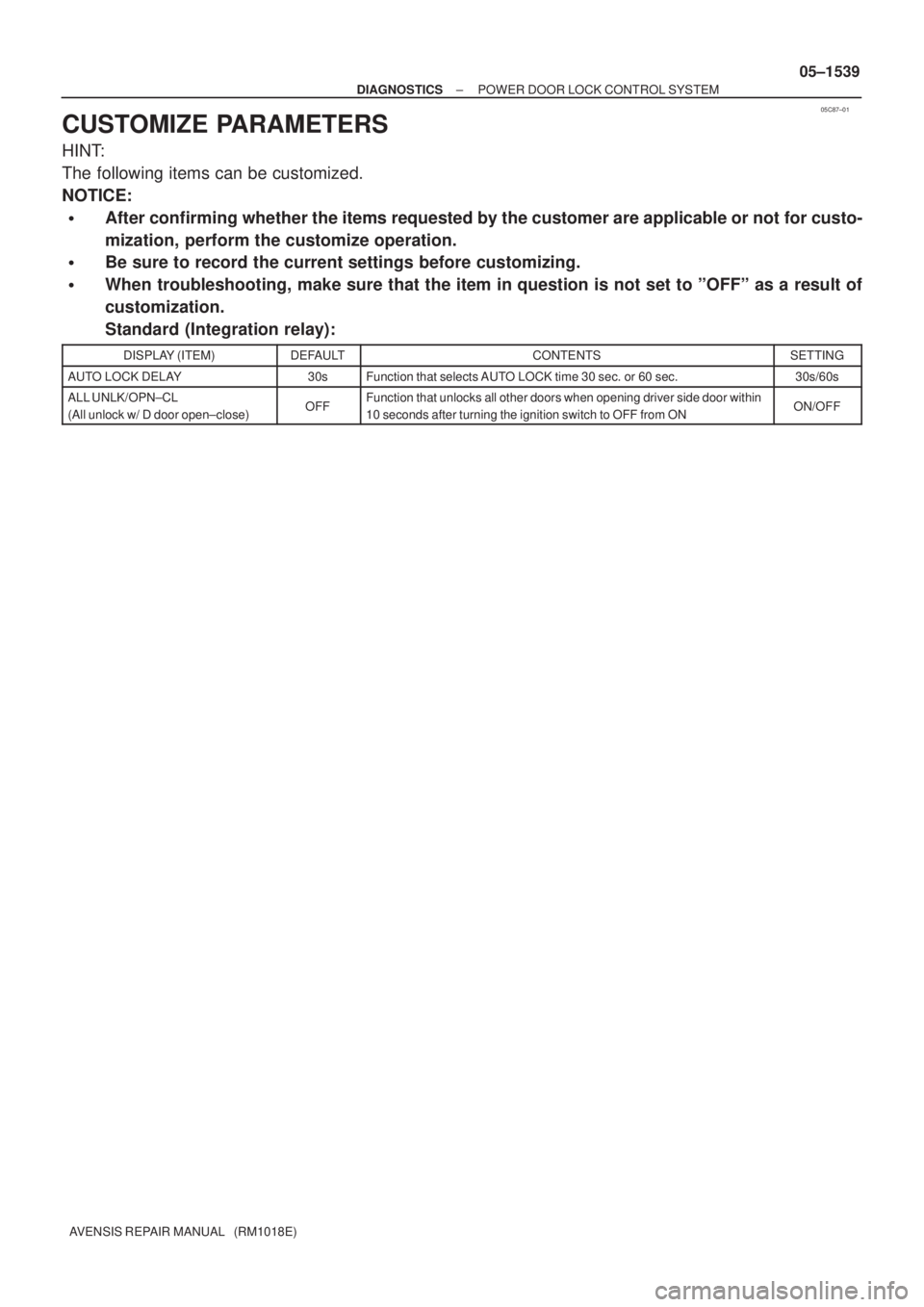

CUSTOMIZE PARAMETERS
HINT:
The following items can be customized.
NOTICE:

After confirming whether the items requested by the customer are applicable or not for custo-
mization, perform the customize operation.

Be sure to record the current settings before customizing.

When troubleshooting, make sure that the item in question is not set to ºOFFº as a result of
customization.
Standard (Integration relay):
DISPLAY (ITEM)DEFAULTCONTENTSSETTING
AUTO LOCK DELAY30sFunction that selects AUTO LOCK time 30 sec. or 60 sec.30s/60s
ALL UNLK/OPN±CL
(All unlock w/ D door open±close)OFFFunction that unlocks all other doors when opening driver side door within
10 seconds after turning the ignition switch to OFF from ONON/OFF

05C86±01
B50154
12 345 67 8
9 11121314 151610
DLC3
A82518
Hand±held Tester
05±1536
± DIAGNOSTICSPOWER DOOR LOCK CONTROL SYSTEM
AVENSIS REPAIR MANUAL (RM1018E)

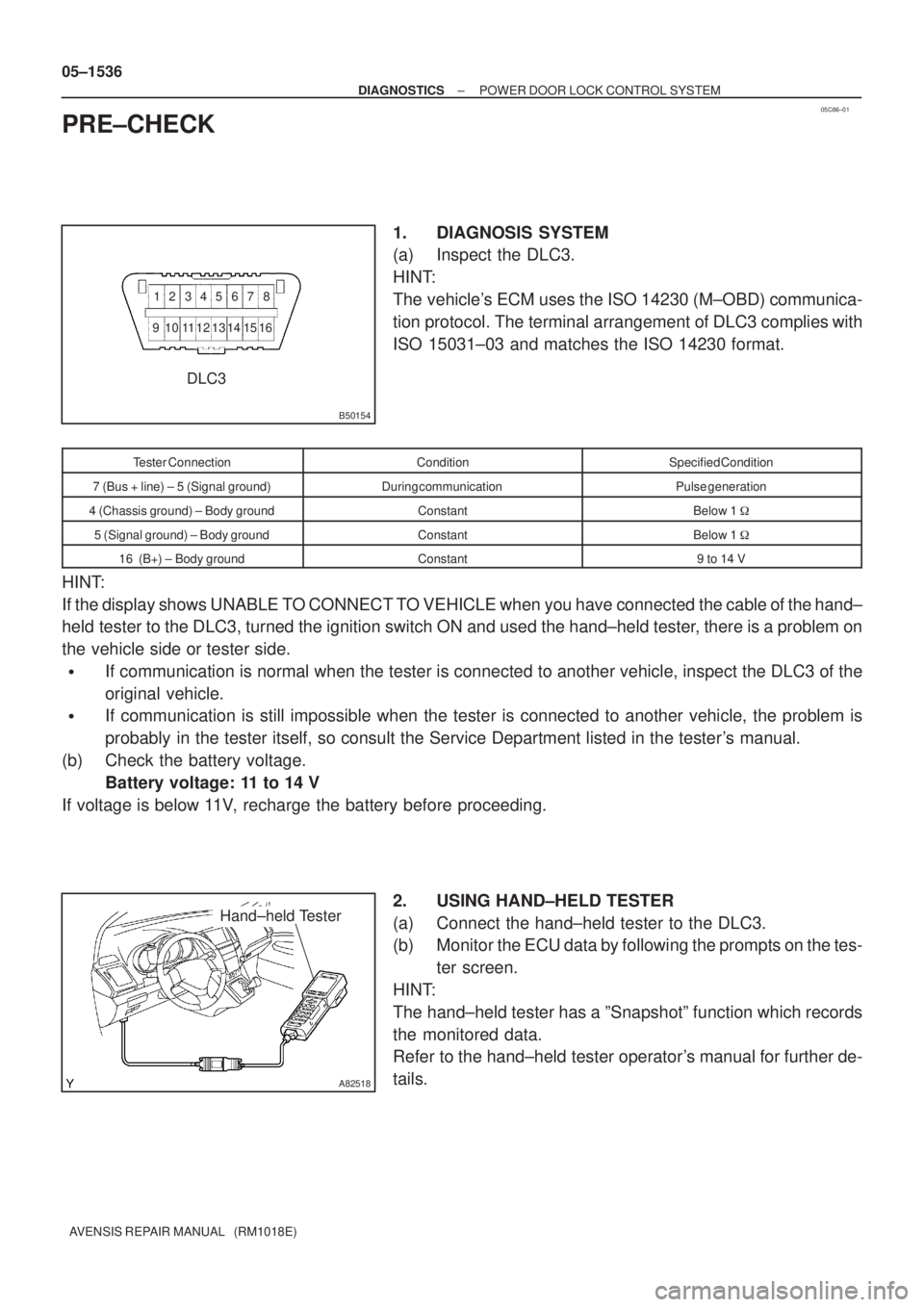

PRE±CHECK
1. DIAGNOSIS SYSTEM
(a) Inspect the DLC3.
HINT:
The vehicle's ECM uses the ISO 14230 (M±OBD) communica-
tion protocol. The terminal arrangement of DLC3 complies with
ISO 15031±03 and matches the ISO 14230 format.
Tester ConnectionConditionSpecified Condition
7 (Bus + line) ± 5 (Signal ground)During communicationPulse generation
4 (Chassis ground) ± Body groundConstantBelow 1

5 (Signal ground) ± Body groundConstantBelow 1

16 (B+) ± Body groundConstant9 to 14 V
HINT:
If the display shows UNABLE TO CONNECT TO VEHICLE when you have connected the cable of the hand±
held tester to the DLC3, turned the ignition switch ON and used the hand±held tester, there is a problem on
the vehicle side or tester side.

If communication is normal when the tester is connected to another vehicle, inspect the DLC3 of the
original vehicle.

If communication is still impossible when the tester is connected to another vehicle, the problem is
probably in the tester itself, so consult the Service Department listed in the tester's manual.
(b) Check the battery voltage.
Battery voltage: 11 to 14 V
If voltage is below 11V, recharge the battery before proceeding.
2. USING HAND±HELD TESTER
(a) Connect the hand±held tester to the DLC3.
(b) Monitor the ECU data by following the prompts on the tes-
ter screen.
HINT:
The hand±held tester has a ºSnapshotº function which records
the monitored data.
Refer to the hand±held tester operator's manual for further de-
tails.
