TOYOTA AVENSIS 2005 Service Repair Manual

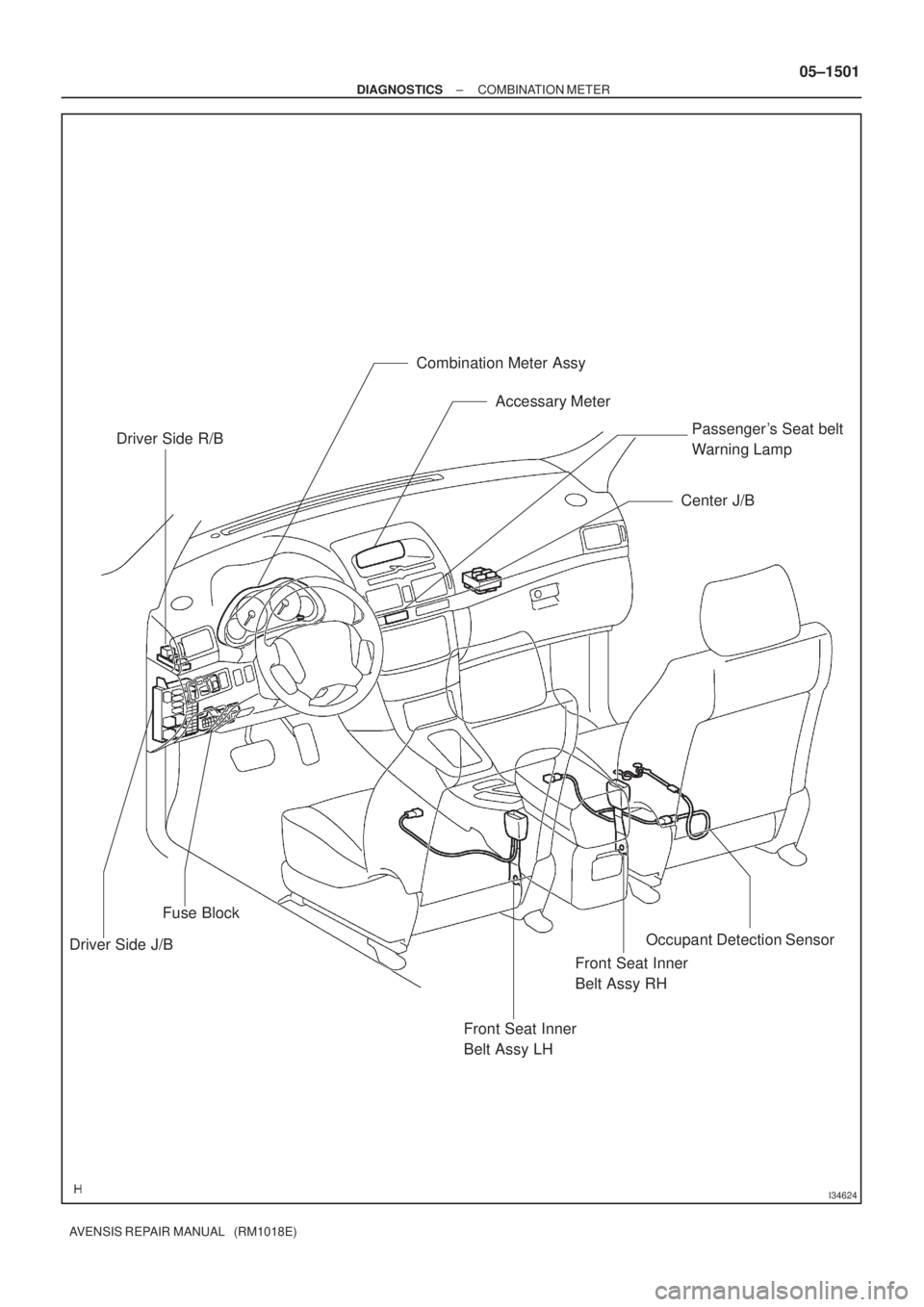

I34624
Front Seat Inner
Belt Assy LH
Occupant Detection Sensor
Front Seat Inner
Belt Assy RH
Passenger's Seat belt
Warning LampDriver Side R/BAccessary Meter
Combination Meter Assy
Driver Side J/B
Fuse Block
Center J/B
± DIAGNOSTICSCOMBINATION METER
05±1501
AVENSIS REPAIR MANUAL (RM1018E)

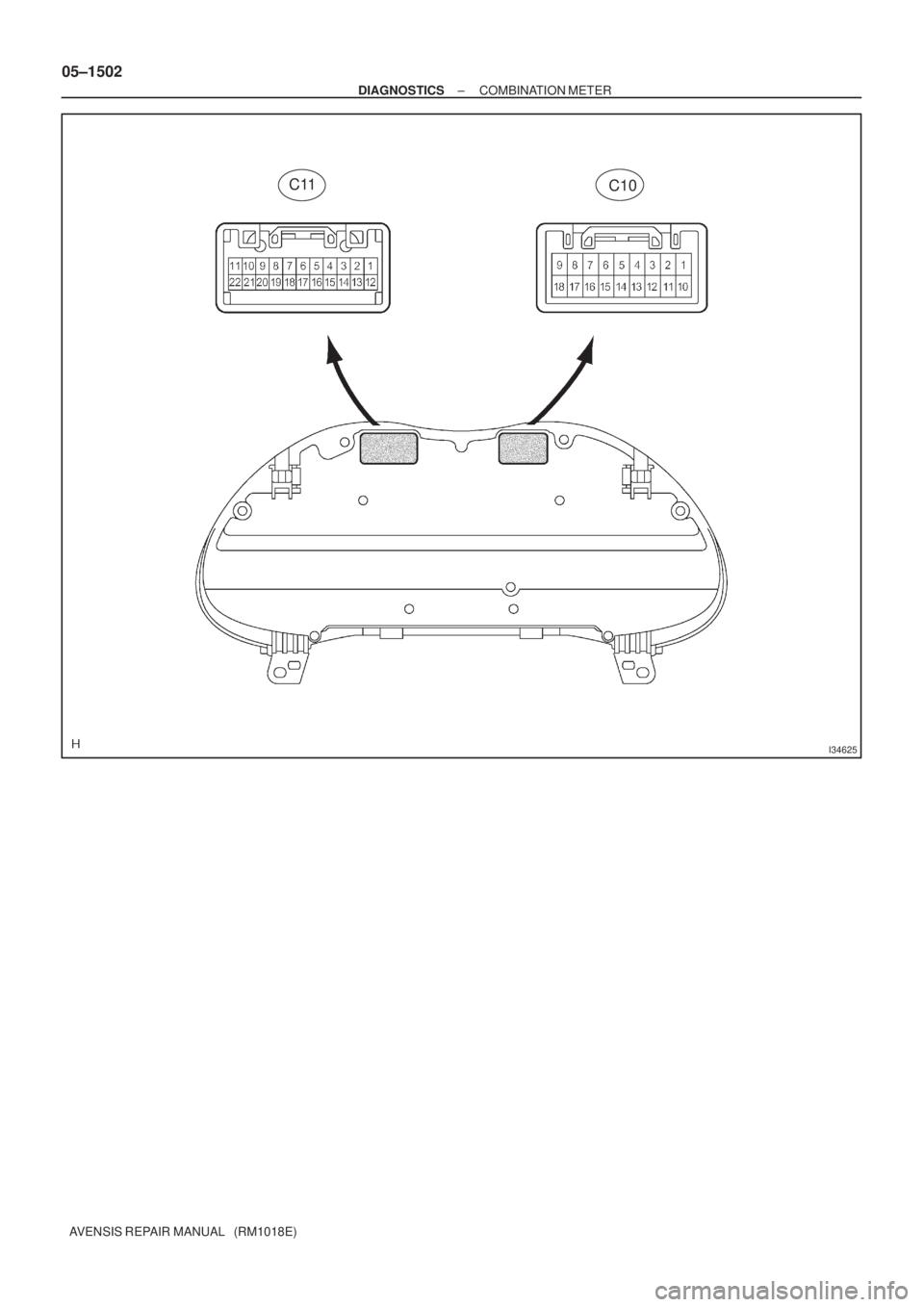

I34625
C11C10
05±1502
± DIAGNOSTICSCOMBINATION METER
AVENSIS REPAIR MANUAL (RM1018E)

I34626
C11±14 (ILL+)
C11±1 (TURN L)
C11±13 (TURN R) C11±12 (BEAM+)
TURN±L
TURN±R TAIL IND
BEAM±
AVC±LAN
I/F
DOOR
LIGHTS
OUTSIDE TEMP
ODO/TRIP
S
T
F
W
A/T SHIFT
CLOCK
CPU POWER
SUPPLY
C11±18 (4P OUT)
C10±2 (ACC)
C11±20 (+B) C10±6 (BEAM±)
C10±3 (AVC LAN+)
C10±5 (FE) C10±4 (AVC LAN±)
C10±13 (BEAN (EFI))
C10±15 (BEAN (SECURITY))
C10±14 (BEAN (BODY)) C10±17 (POWER EARTH)
C10±12 (OUTSIDE TEMP±)
C10±11 (OUTSIDE TEMP+)
C10±10 (FUEL)
C10±16 (E/G OIL LEVEL)*1
C10±1 (WATER LEVEL)*1
C11±5 (SIGNAL EARTH)
C11±19 (SI)
C11±3 (TACHO)CPU BEAN I/F
± DIAGNOSTICSCOMBINATION METER
05±1503
AVENSIS REPAIR MANUAL (RM1018E)

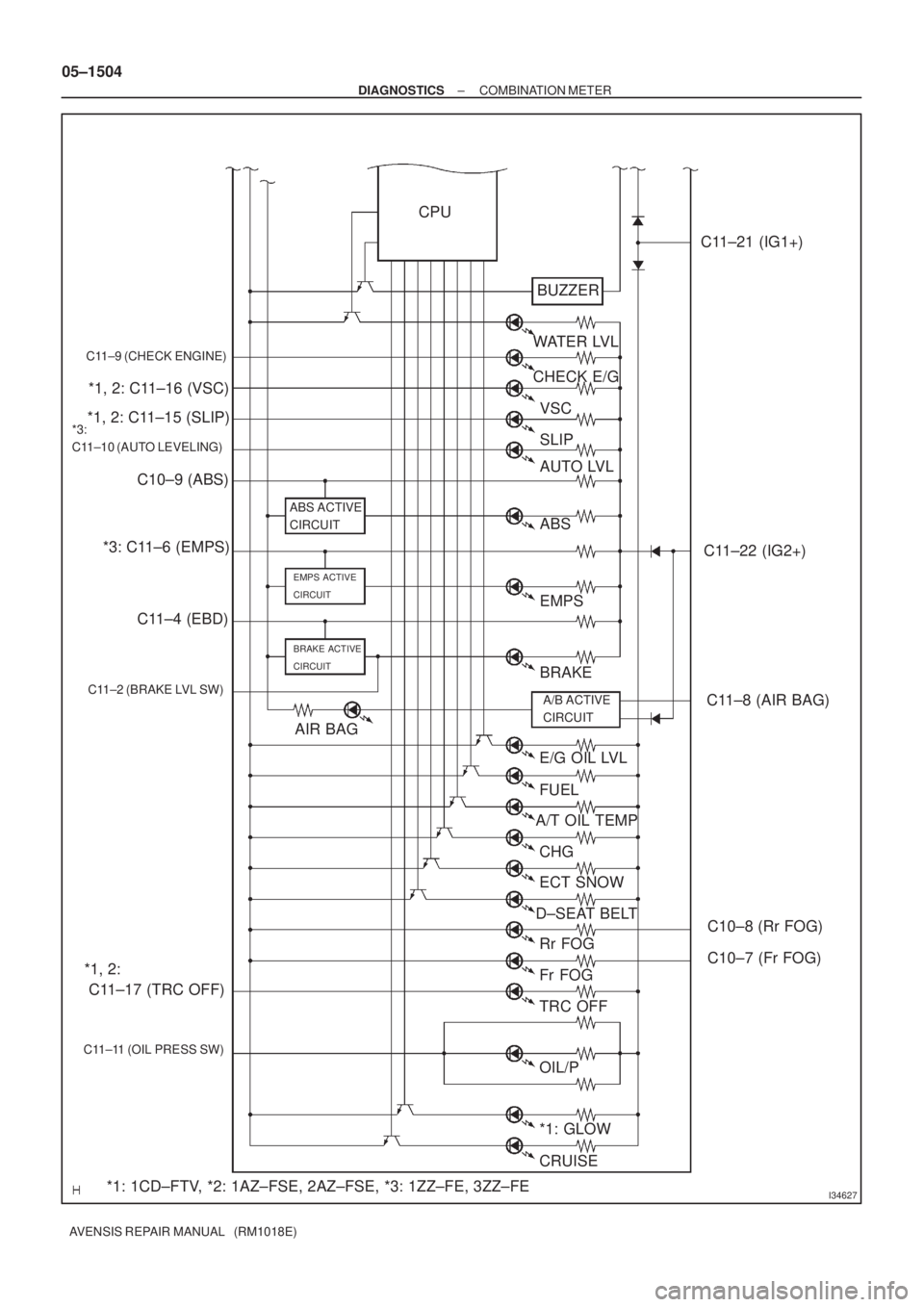

I34627
C11±21 (IG1+)
*3:
C11±10 (AUTO LEVELING)
C11±22 (IG2+)
C11±8 (AIR BAG)
C10±8 (Rr FOG)
C10±7 (Fr FOG) BUZZER
WATER LVL
CHECK E/G
VSC
SLIP
AUTO LVL
ABS
EMPS
BRAKE
A/B ACTIVE
CIRCUIT
E/G OIL LVL
FUEL
A/T OIL TEMP
CHG
ECT SNOW
D±SEAT BELT
Rr FOG
Fr FOG
TRC OFF
OIL/P
*1: GLOW
CRUISE AIR BAG
ABS ACTIVE
CIRCUIT
EMPS ACTIVE
CIRCUIT
BRAKE ACTIVE
CIRCUIT
C11±11 (OIL PRESS SW)
C11±4 (EBD) *3: C11±6 (EMPS)C10±9 (ABS) *1, 2: C11±15 (SLIP)*1, 2: C11±16 (VSC)
C11±2 (BRAKE LVL SW)
CPU
*1: 1CD±FTV, *2: 1AZ±FSE, 2AZ±FSE, *3: 1ZZ±FE, 3ZZ±FE
C11±9 (CHECK ENGINE)
*1, 2:
C11±17 (TRC OFF) 05±1504
± DIAGNOSTICSCOMBINATION METER
AVENSIS REPAIR MANUAL (RM1018E)

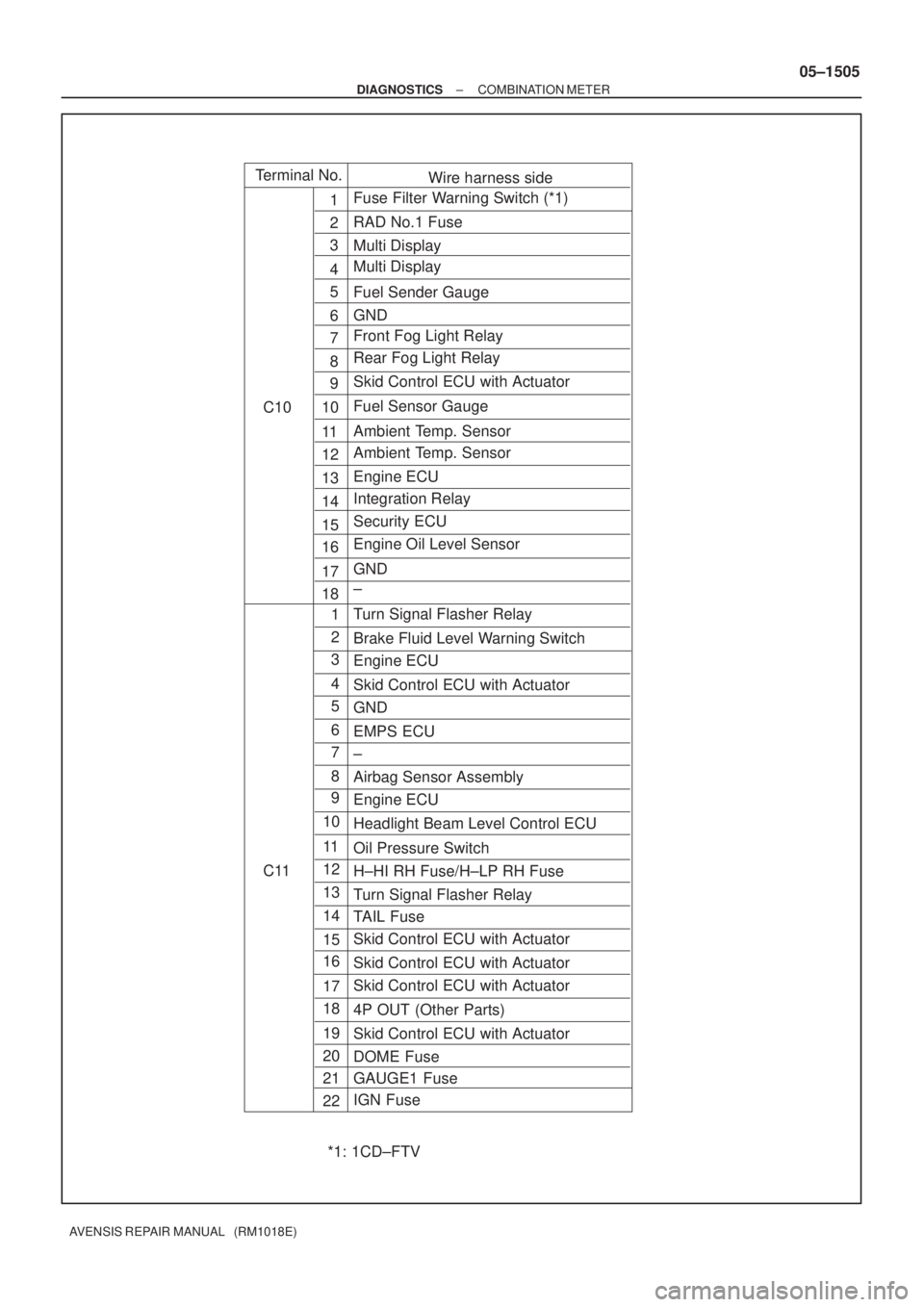

Terminal No.
Wire harness side
Turn Signal Flasher Relay
Skid Control ECU with Actuator Brake Fluid Level Warning Switch
Engine ECU
Oil Pressure Switch
DOME Fuse Headlight Beam Level Control ECU
Skid Control ECU with Actuator
Skid Control ECU with Actuator Turn Signal Flasher Relay Engine ECU ± Multi Display RAD No.1 Fuse
GND
EMPS ECU
TAIL Fuse
Skid Control ECU with Actuator Fuel Sensor Gauge
Skid Control ECU with Actuator
± GND
Rear Fog Light Relay Front Fog Light Relay Multi Display Fuse Filter Warning Switch (*1)
IGN Fuse Fuel Sender Gauge
Engine Oil Level Sensor Security ECU Ambient Temp. Sensor
4P OUT (Other Parts) H±HI RH Fuse/H±LP RH Fuse 1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
201
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
C10
Airbag Sensor Assembly GND
GAUGE1 Fuse Skid Control ECU with Actuator
C11Engine ECU
Integration Relay
21
22
*1: 1CD±FTVAmbient Temp. Sensor
± DIAGNOSTICSCOMBINATION METER
05±1505
AVENSIS REPAIR MANUAL (RM1018E)

056Q9±02
Ignition SW
ODO/TRIP SW
Driver's Seat BeltON
OFF
6s
10s10s
ON
OFF
Unfastened
Fastened
± DIAGNOSTICSCOMBINATION METER
05±1499
AVENSIS REPAIR MANUAL (RM1018E)

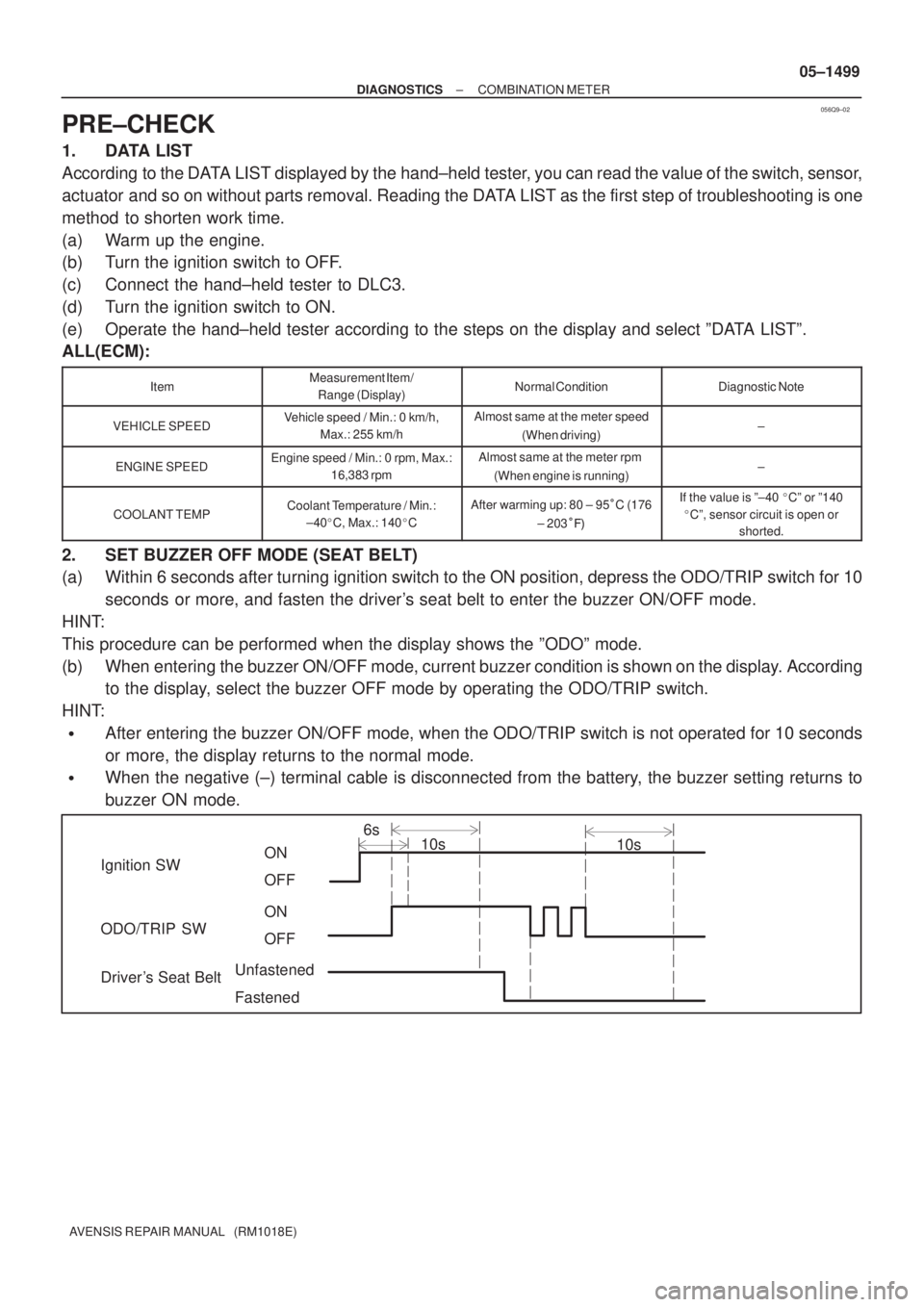

PRE±CHECK
1. DATA LIST
According to the DATA LIST displayed by the hand±held tester, you can read the value of the switch, sensor,
actuator and so on without parts removal. Reading the DATA LIST as the first step of troubleshooting is one
method to shorten work time.
(a) Warm up the engine.
(b) Turn the ignition switch to OFF.
(c) Connect the hand±held tester to DLC3.
(d) Turn the ignition switch to ON.
(e) Operate the hand±held tester according to the steps on the display and select ºDATA LISTº.
ALL(ECM):
ItemMeasurement Item/
Range (Display)Normal ConditionDiagnostic Note
VEHICLE SPEEDVehicle speed / Min.: 0 km/h,
Max.: 255 km/hAlmost same at the meter speed
(When driving)±
ENGINE SPEEDEngine speed / Min.: 0 rpm, Max.:
16,383 rpmAlmost same at the meter rpm
(When engine is running)±
COOLANT TEMPCoolant Temperature / Min.:
±40C, Max.: 140CAfter warming up: 80 ± 95C (176
± 203
If the value is º±40 Cº or º140
Cº, sensor circuit is open or
shorted.
2. SET BUZZER OFF MODE (SEAT BELT)
(a) Within 6 seconds after turning ignition switch to the ON position, depress the ODO/TRIP switch for 10
seconds or more, and fasten the driver's seat belt to enter the buzzer ON/OFF mode.
HINT:
This procedure can be performed when the display shows the ºODOº mode.
(b) When entering the buzzer ON/OFF mode, current buzzer condition is shown on the display. According
to the display, select the buzzer OFF mode by operating the ODO/TRIP switch.
HINT:

After entering the buzzer ON/OFF mode, when the ODO/TRIP switch is not operated for 10 seconds
or more, the display returns to the normal mode.

When the negative (±) terminal cable is disconnected from the battery, the buzzer setting returns to
buzzer ON mode.

05C4F±01
/ /
/ /
COMBINATION METER SYSTEM Check Sheet
Inspector 's name:
Customer 's NameVIN
Production Date
Licence No.
Date of Vehicle
Brought InOdometer Readingkm
Mile
Weather Conditions
When Problem
OccurredFrequency Problem Occurs
Weather
Outside temperature Constantly  Sometimes ( Times per day, month)
 Once only Date Problem First Occurred
 Fine  Cloudy  Rainy  Snowy
 Various/Others
 Hot  Warm  Cool
 Cold (Approx.
F (
C))
Problem Symptom
Gauge

Malfunction in speedometer

Malfunction in tachometer

Malfunction in water temperature receiver gauge

Malfunction in fuel receiver gauge

Entire combination meter does not operate

Buzzer does not sound

Seat belt warning lamp for driver's seat does not come on

Seat belt warning lamp for front passenger's seat does not come on
Others

The ambient temperature is not displayed 05±1498
± DIAGNOSTICSCOMBINATION METER
AVENSIS REPAIR MANUAL (RM1018E)
CUSTOMER PROBLEM ANALYSIS CHECK

056Q7±04
±
DIAGNOSTIC SCOMBIN ATION METER
05±1497
A VENSIS RE PAIR MANUAL (RM1018E)

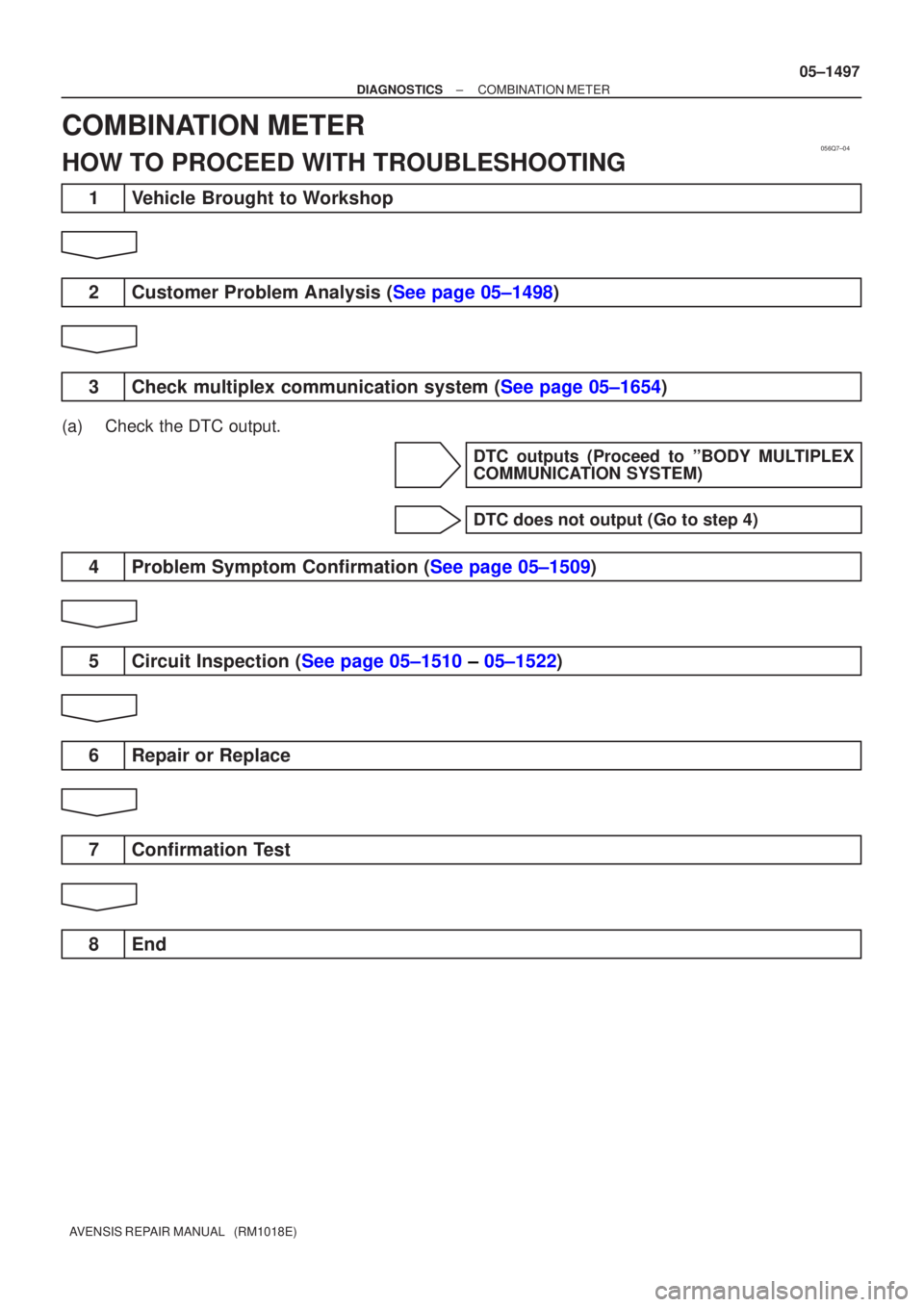

COMBIN ATION METER
HOW T O PROCEED WITH TROUBLESHOOTING
1 Vehicl e Brought to Workshop
2 Customer Problem Analysis ( See page 05±1498)
3 Check multiplex communication system ( See page 05±1654)
(a) Check the DTC output.
DTC outputs (Proceed to ºBODY MULTIPLEX
COMMUNICATION SYSTEM)
DTC does not output (Go to step 4)
4Problem Symptom Confirmation ( See page 05±1509)
5 Circuit Inspection ( See page 05±1510 ± 05±1522 )
6 Repair or Replace
7 Confirmation Test
8 End

I35657
S15
Steering Pad Switch LH
Multi±display
(CRT Display) DisplayAU1
AU2
EAU12
11
10LG (*1)
P (*1)
W±R (*1)
GTX+
GTX±
CTX±
CTX+M1
M1
M2
M25
18
10
5P
LG
LG
V
T11
Telephone Microphone Assy
MACC
MIC+
MIC±5
4
2R
B
W
(Shielded)17
ID1
ID1
ID1
ID118
16
14R
B
W
(Shielded)Radio Receiver Assy
7
8
6 R7
R7
R7SW1
SW2
GND
TX+
TX± R6
R69
10
Navigation ECU
TX±
TX+
MACC
MIC+
MIC±
SGND N4
N4
N5
N5
N5
N54
3
5
6 BR
BR
*1: w/ Steering SW10
5 05±1494
± DIAGNOSTICSNAVIGATION SYSTEM
AVENSIS REPAIR MANUAL (RM1018E)
THE SYSTEM CANNOT BE OPERATED BY THE VOICE SOUND
WIRING DIAGRAM
05C3W±01

I35662
EAU
AU2 ºVOICEº switch
S15
±
DIAGNOSTICS NAVIGATION SYSTEM
05±1495
AVENSIS REPAIR MANUAL (RM1018E)
INSPECTION PROCEDURE
1INSPECT STEERING WHEEL ASSY(BEEP SOUND)
(a)Check the switch (Beep sound).
(1)Press steering pad switch LH to check that the beep sound is produced.
OKGo to step 3
NG
2INSPECT STEERING WHEEL ASSY(AU2, EAU)
(a)Remove the horn button assy(See page 50±9).
(b)Check continuity between the terminals at each condi- tion, as shown in the chart.
Tester connectionConditionSpecified condition
AU2 ± EAUDo not switch positionApprox. 100 k

AU2 ± EAUVOICE switch: pushApprox. 3.1 k
NGREPLACE STEERING WHEEL ASSY
(See page 50±9)
OK
3 CHECK TALK BACK
(a) Check whether the system performs talk back or not. Standard: The system performs talk back.
OK SYSTEM OK
NG
