TOYOTA AVENSIS 2005 Service Repair Manual

B67985
ECM (1AZ±FSE)
ECM (1AZ±FE, 1ZZ±FE, 3ZZ±FE)
ECM (1CD±FTV)
E9 E10
E9
T6 Theft Warning ECU Assy Combination Meter Assy (Conbination Meter ECU)
C11 C10
I14 Instrument Panel J/B Assy (Integration Relay)
05±1668
± DIAGNOSTICSMULTIPLEX COMMUNICATION SYSTEM
AVENSIS REPAIR MANUAL (RM1018E)

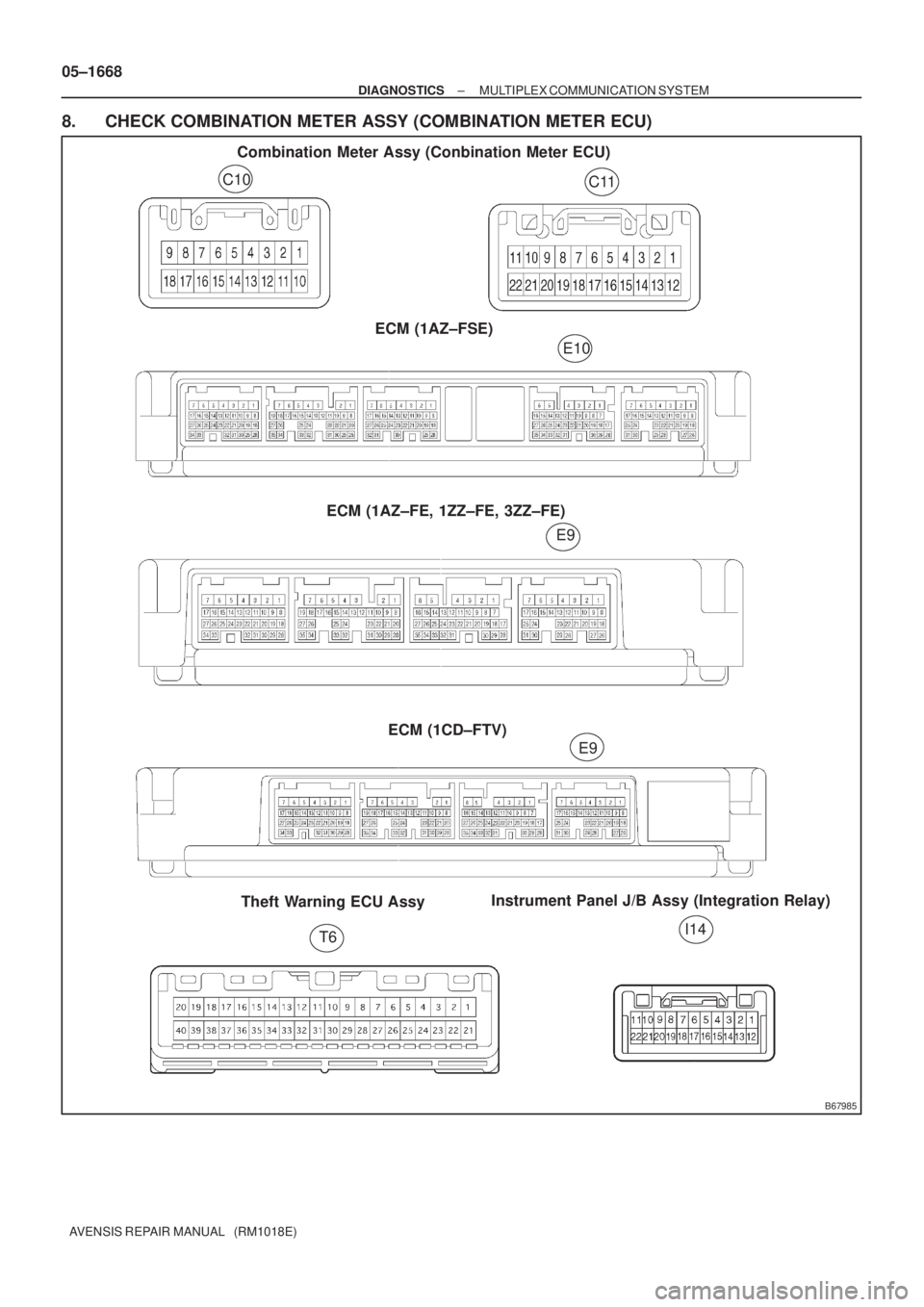

8. CHECK COMBINATION METER ASSY (COMBINATION METER ECU)

± DIAGNOSTICSMULTIPLEX COMMUNICATION SYSTEM
05±1669
AVENSIS REPAIR MANUAL (RM1018E)

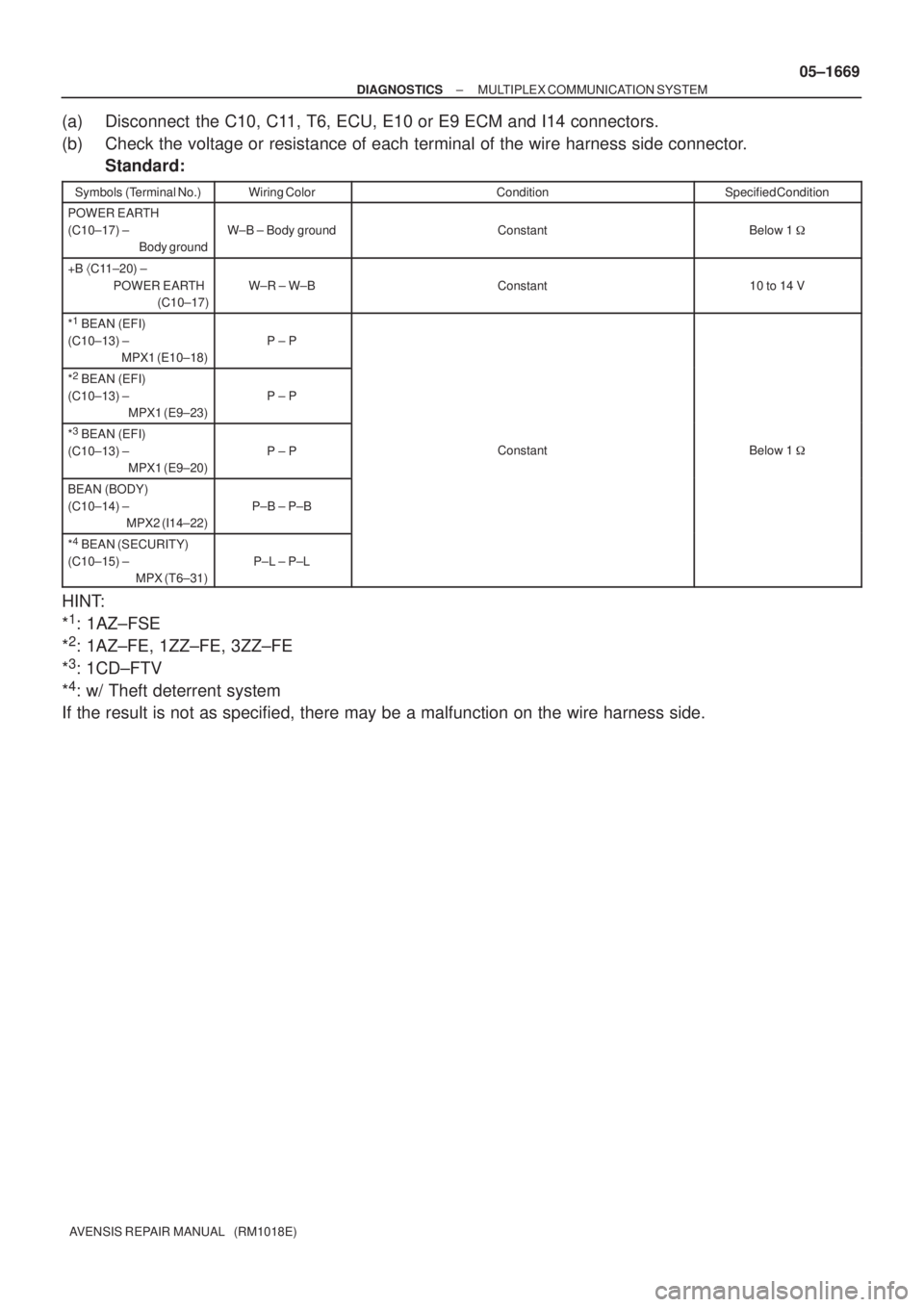

(a) Disconnect the C10, C11, T6, ECU, E10 or E9 ECM and I14 connectors.
(b) Check the voltage or resistance of each terminal of the wire harness side connector.
Standard:
Symbols (Terminal No.)Wiring ColorConditionSpecified Condition
POWER EARTH
(C10±17) ±
Body ground
W±B ± Body groundConstantBelow 1

+B C11±20) ±
POWER EARTH
(C10±17)
W±R ± W±BConstant10 to 14 V
*1
BEAN (EFI)
(C10±13) ±
MPX1 (E10±18)
P ± P
*2
BEAN (EFI)
(C10±13) ±
MPX1 (E9±23)
P ± P
*3
BEAN (EFI)
(C10±13) ±
MPX1 (E9±20)
P ± PConstantBelow 1

BEAN (BODY)
(C10±14) ±
MPX2 (I14±22)
P±B ± P±B
*4
BEAN (SECURITY)
(C10±15) ±
MPX (T6±31)
P±L ± P±L
HINT:
*
1: 1AZ±FSE
*
2: 1AZ±FE, 1ZZ±FE, 3ZZ±FE
*
3: 1CD±FTV
*
4: w/ Theft deterrent system
If the result is not as specified, there may be a malfunction on the wire harness side.

05C5K±01
B70602

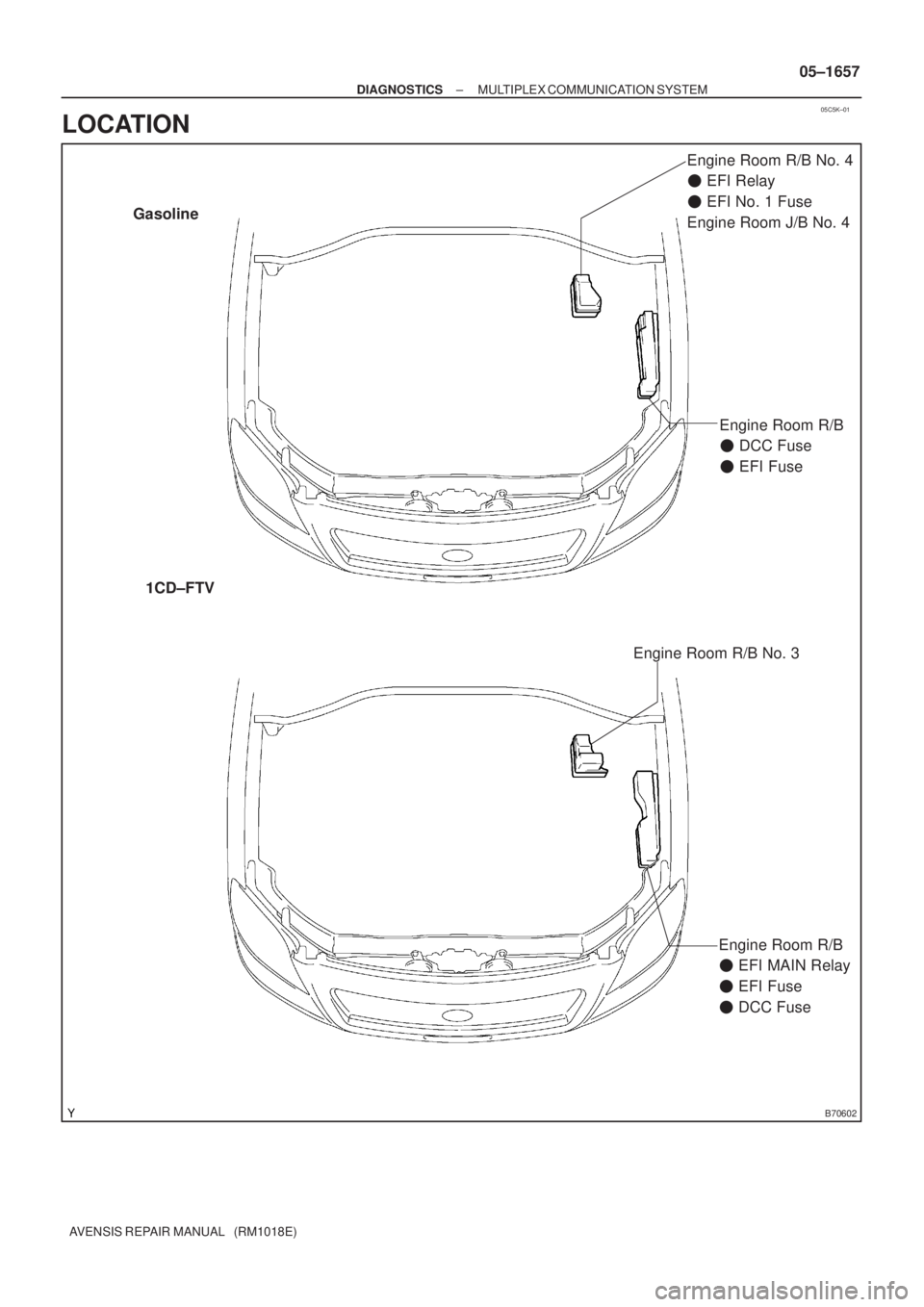

Engine Room R/B No. 4
EFI Relay
EFI No. 1 Fuse
Engine Room J/B No. 4 Gasoline
1CD±FTV
Engine Room R/B
DCC Fuse
EFI Fuse
Engine Room R/B No. 3
Engine Room R/B
EFI MAIN Relay
EFI Fuse
DCC Fuse
± DIAGNOSTICSMULTIPLEX COMMUNICATION SYSTEM
05±1657
AVENSIS REPAIR MANUAL (RM1018E)

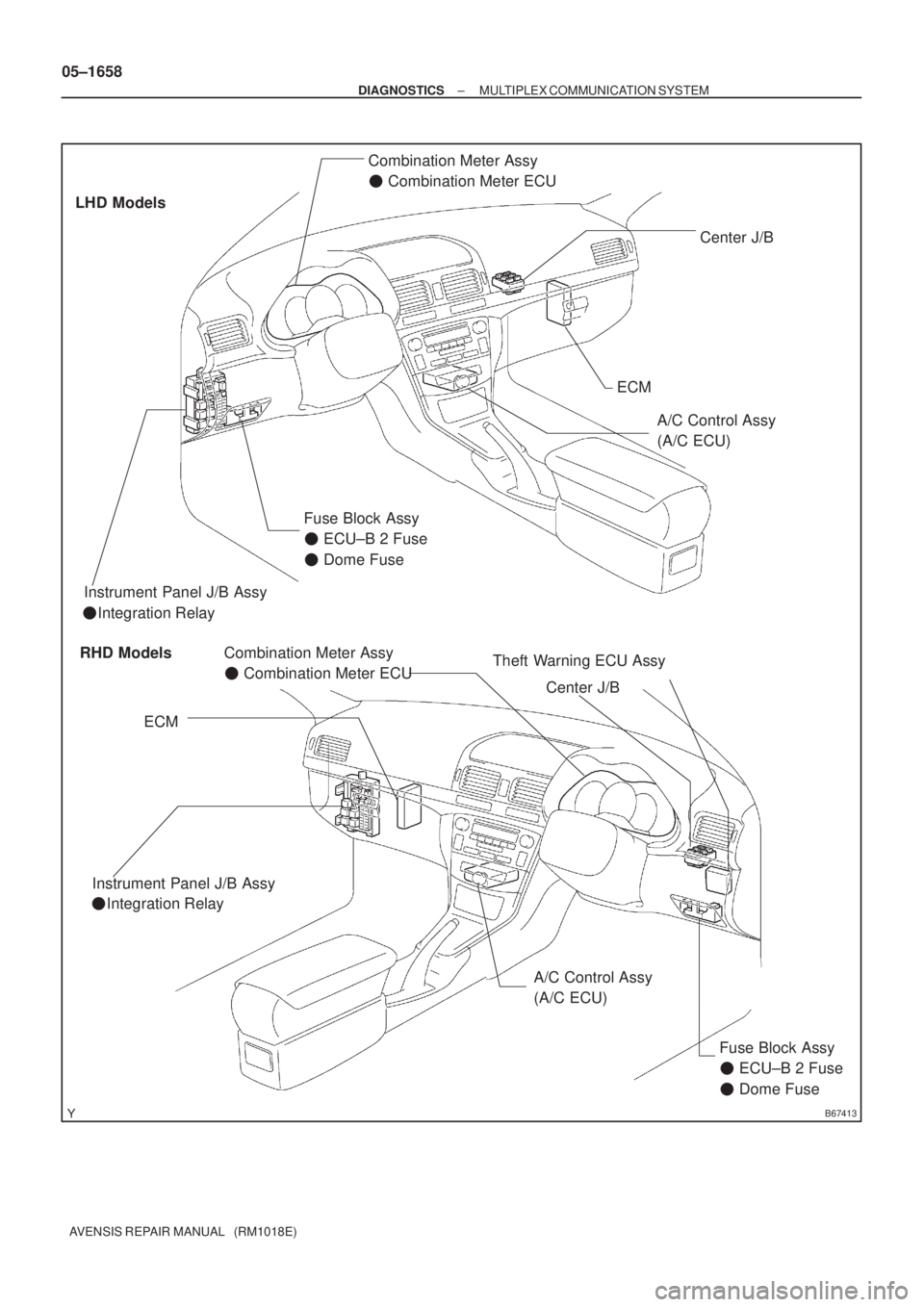

LOCATION

B67413
RHD Models LHD Models
Integration Relay Instrument Panel J/B Assy
Instrument Panel J/B Assy
Integration Relay
ECM
A/C Control Assy
(A/C ECU)
ECM
Theft Warning ECU Assy
A/C Control Assy
(A/C ECU) Combination Meter Assy
Combination Meter ECU
Center J/B
Fuse Block Assy
ECU±B 2 Fuse
Dome Fuse
Combination Meter Assy
Combination Meter ECU
Center J/B
Fuse Block Assy
ECU±B 2 Fuse
Dome Fuse
05±1658
± DIAGNOSTICSMULTIPLEX COMMUNICATION SYSTEM
AVENSIS REPAIR MANUAL (RM1018E)

05AEQ±02
05±1656
±
DIAGNOSTICS MULTIPLEX COMMUNICATION SYSTEM
AVENSIS REPAIR MANUAL (RM1018E)

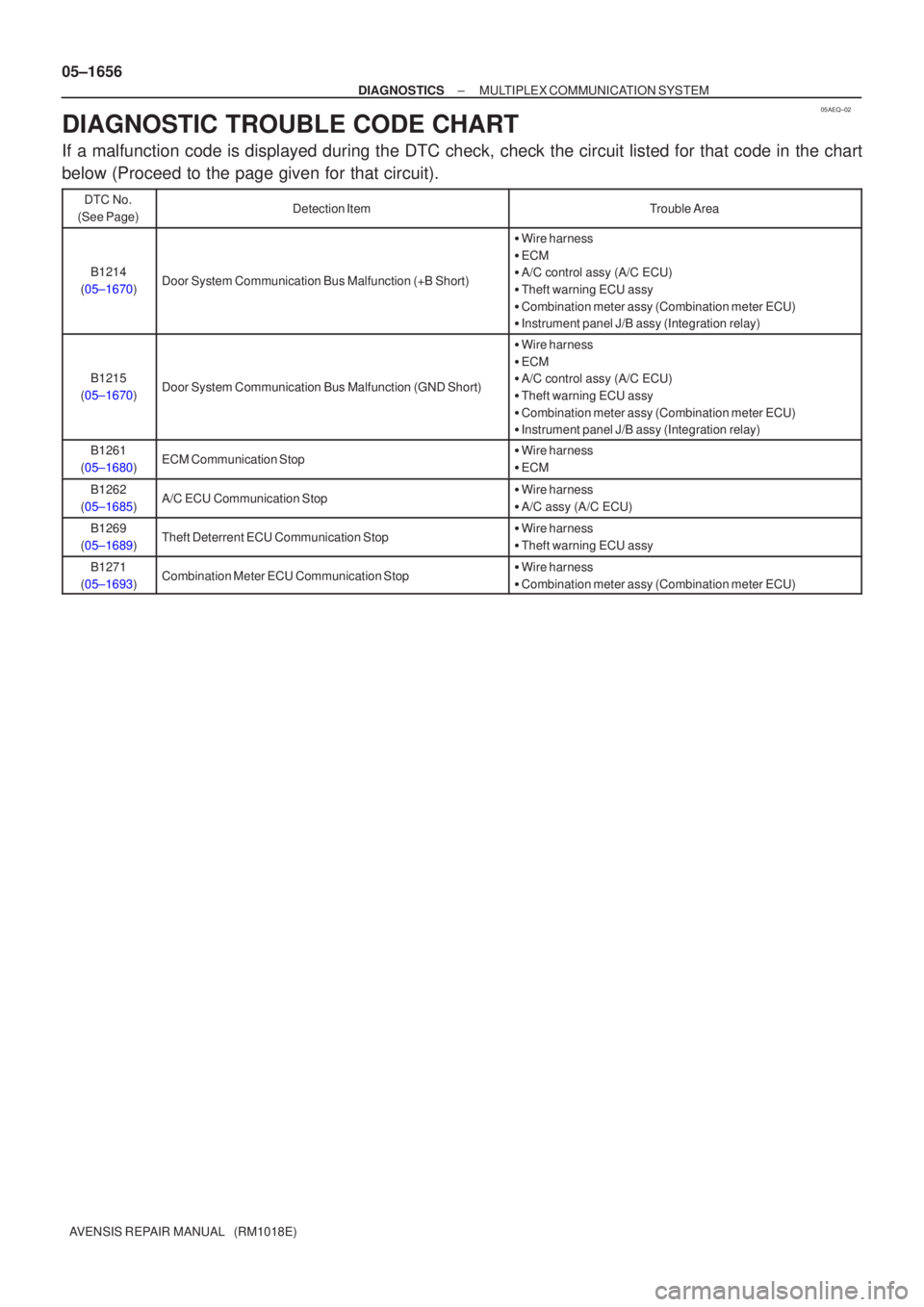

DIAGNOSTIC TROUBLE CODE CHART
If a malfunction code is displayed during the DTC check, check the circuit\
listed for that code in the chart
below (Proceed to the page given for that circuit).
DTC No.
(See Page)Detection ItemTrouble Area
B1214
(05±1670)Door System Communication Bus Malfunction (+B Short)

Wire harness

ECM

A/C control assy (A/C ECU)

Theft warning ECU assy

Combination meter assy (Combination meter ECU)

Instrument panel J/B assy (Integration relay)
B1215
(05±1670)Door System Communication Bus Malfunction (GND Short)

Wire harness

ECM

A/C control assy (A/C ECU)

Theft warning ECU assy

Combination meter assy (Combination meter ECU)

Instrument panel J/B assy (Integration relay)
B1261
(05±1680)ECM Communication Stop
Wire harness

ECM
B1262
(05±1685)A/C ECU Communication Stop
Wire harness

A/C assy (A/C ECU)
B1269
(05±1689)Theft Deterrent ECU Communication Stop
Wire harness

Theft warning ECU assy
B1271
(05±1693)Combination Meter ECU Communication Stop
Wire harness

Combination meter assy (Combination meter ECU)

05AEP±02
± DIAGNOSTICSMULTIPLEX COMMUNICATION SYSTEM
05±1655
AVENSIS REPAIR MANUAL (RM1018E)

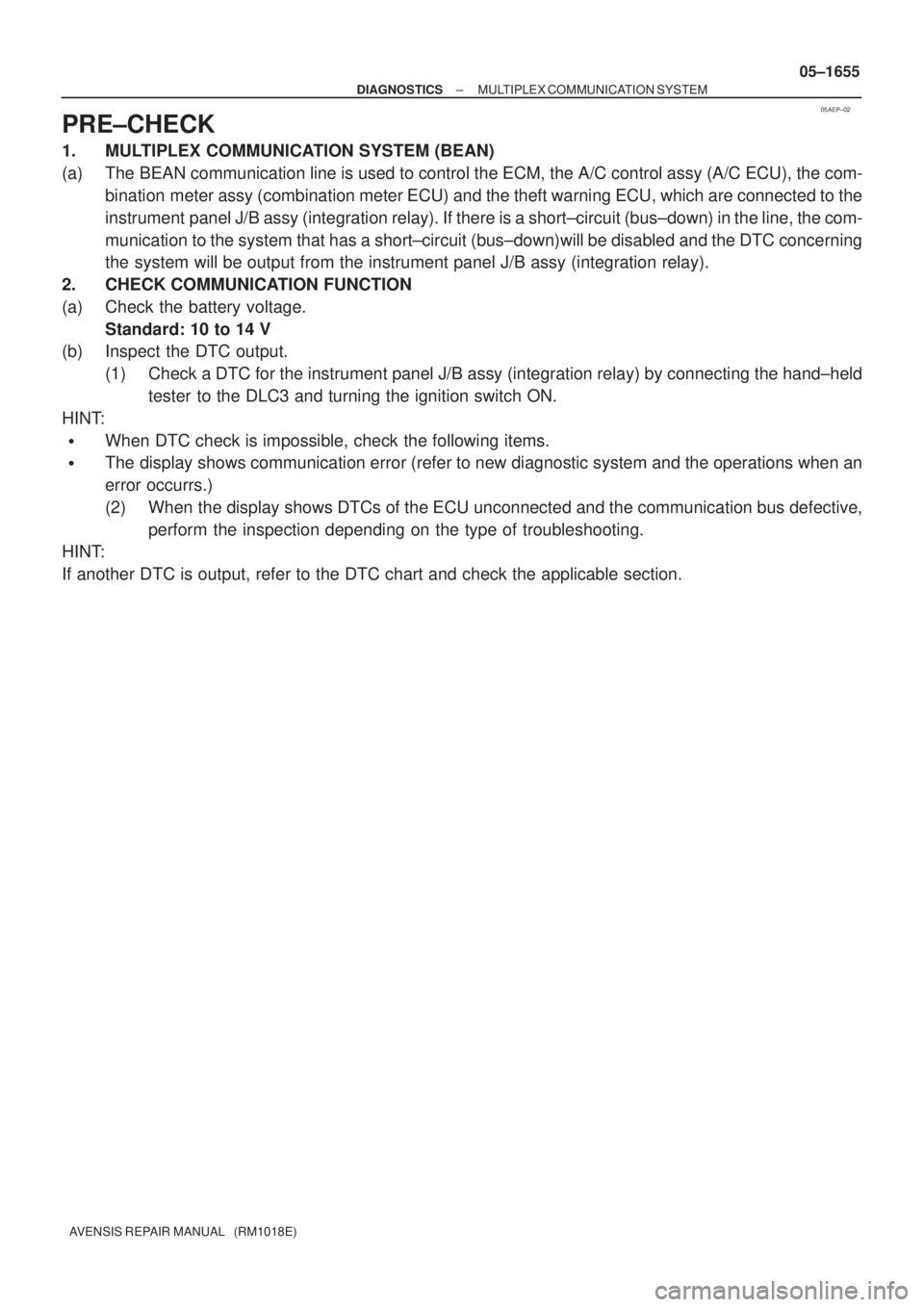

PRE±CHECK
1. MULTIPLEX COMMUNICATION SYSTEM (BEAN)
(a) The BEAN communication line is used to control the ECM, the A/C control assy (A/C ECU), the com-
bination meter assy (combination meter ECU) and the theft warning ECU, which are connected to the
instrument panel J/B assy (integration relay). If there is a short±circuit (bus±down) in the line, the com-
munication to the system that has a short±circuit (bus±down)will be disabled and the DTC concerning
the system will be output from the instrument panel J/B assy (integration relay).
2. CHECK COMMUNICATION FUNCTION
(a) Check the battery voltage.
Standard: 10 to 14 V
(b) Inspect the DTC output.
(1) Check a DTC for the instrument panel J/B assy (integration relay) by connecting the hand±held
tester to the DLC3 and turning the ignition switch ON.
HINT:

When DTC check is impossible, check the following items.

The display shows communication error (refer to new diagnostic system and the operations when an
error occurrs.)
(2) When the display shows DTCs of the ECU unconnected and the communication bus defective,
perform the inspection depending on the type of troubleshooting.
HINT:
If another DTC is output, refer to the DTC chart and check the applicable section.

05AEO±02
05±1654
±
DIAGNOSTICS MULTIPLEX COMMUNICATION SYSTEM
AVENSIS REPAIR MANUAL (RM1018E)
MULTIPLEX COMMUNICATION SYSTEM

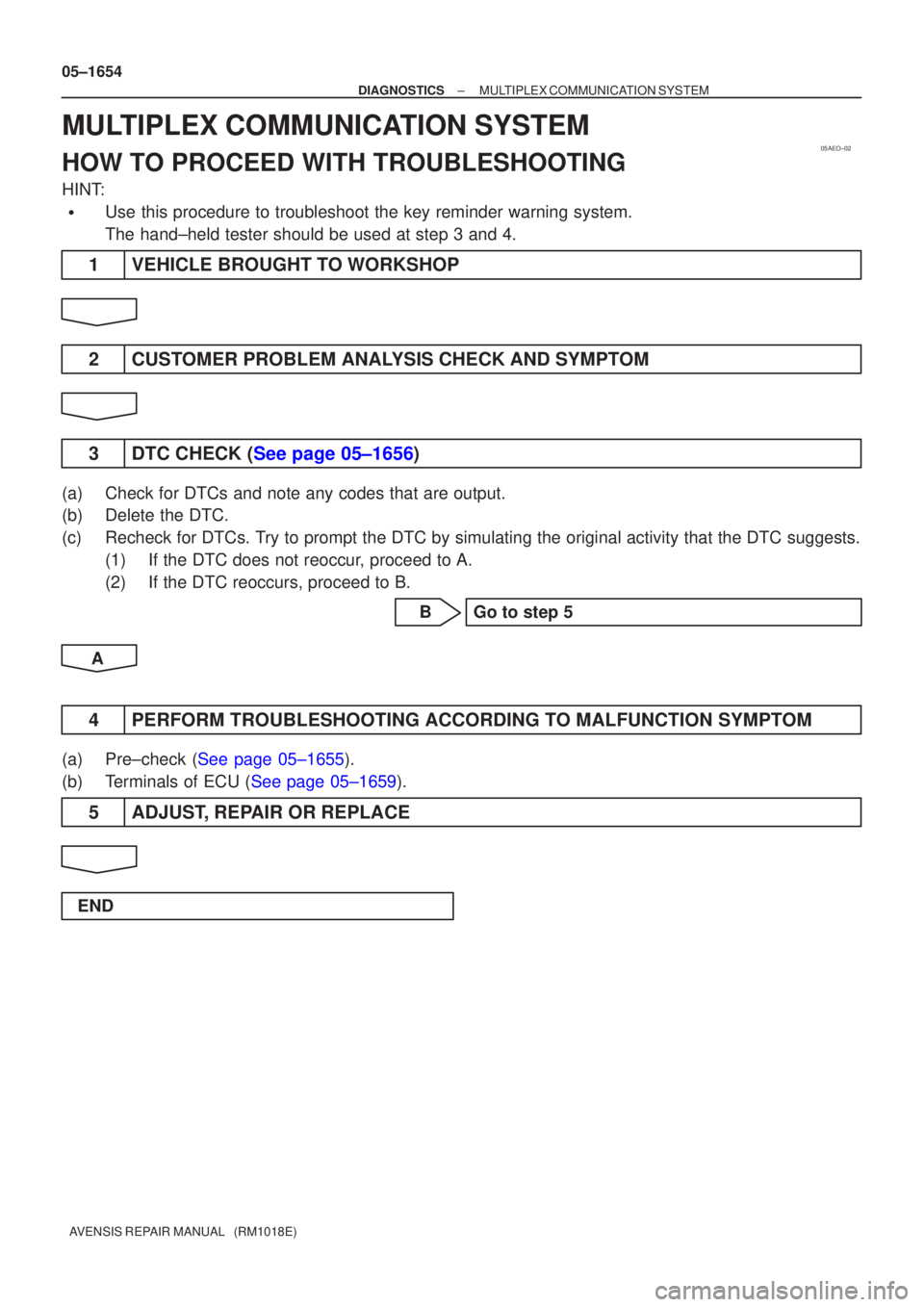

HOW TO PROCEED WITH TROUBLESHOOTING
HINT:

Use this procedure to troubleshoot the key reminder warning system.
The hand±held tester should be used at step 3 and 4.
1VEHICLE BROUGHT TO WORKSHOP
2CUSTOMER PROBLEM ANALYSIS CHECK AND SYMPTOM
3DTC CHECK (See page 05±1656)
(a)Check for DTCs and note any codes that are output.
(b)Delete the DTC.
(c)Recheck for DTCs. Try to prompt the DTC by simulating the original activity that the DTC su\
ggests. (1)If the DTC does not reoccur, proceed to A.
(2)If the DTC reoccurs, proceed to B.
BGo to step 5
A
4PERFORM TROUBLESHOOTING ACCORDING TO MALFUNCTION SYMPTOM
(a)Pre±check (See page 05±1655).
(b)Terminals of ECU (See page 05±1659).
5 ADJUST, REPAIR OR REPLACE
END

B67699
S+B
IOUT 24
26 L±W
L±B 9 T12
Theft Warning Radar Sensor
6 S+B
IOUT
SOFF7
W±BSSW1
13 LG±B
ID18T6
Theft Warning ECU Assy
T14
Rear Theft Warning
Radar Sensor (IN)
T13
Rear Theft Warning
Radar Sensor (OUT)
IJ DA DK9 6 LG±B L±B L±W
ID1 ID1
W±B 19
SOU+
SOU±GND SIN+
SIN± 2
1
2
18
4
1 53 W
P
L
2 MIN+
MIN±
MOU+
MOU±Instrument Panel J/B Assy Shielded 05±1650
± DIAGNOSTICSTHEFT DETERRENT SYSTEM
AVENSIS REPAIR MANUAL (RM1018E)
INTRUSION SENSOR CIRCUIT
CIRCUIT DESCRIPTION
The intrusion sensor (theft warning radar sensor) senses any moving object by using ultrasonic waves and
outputs the signals to inform the theft warning ECU of an intrusion, so that the theft deterrent system can
set off the alarm.
When the theft deterrent system is switched to the arming preparation state, the intrusion sensor is supplied
with S+B by the theft warning ECU. This causes the theft deterrent system to set off the alarm when the signal
is input from the intrusion sensor in a situation such as when the window glass is broken.

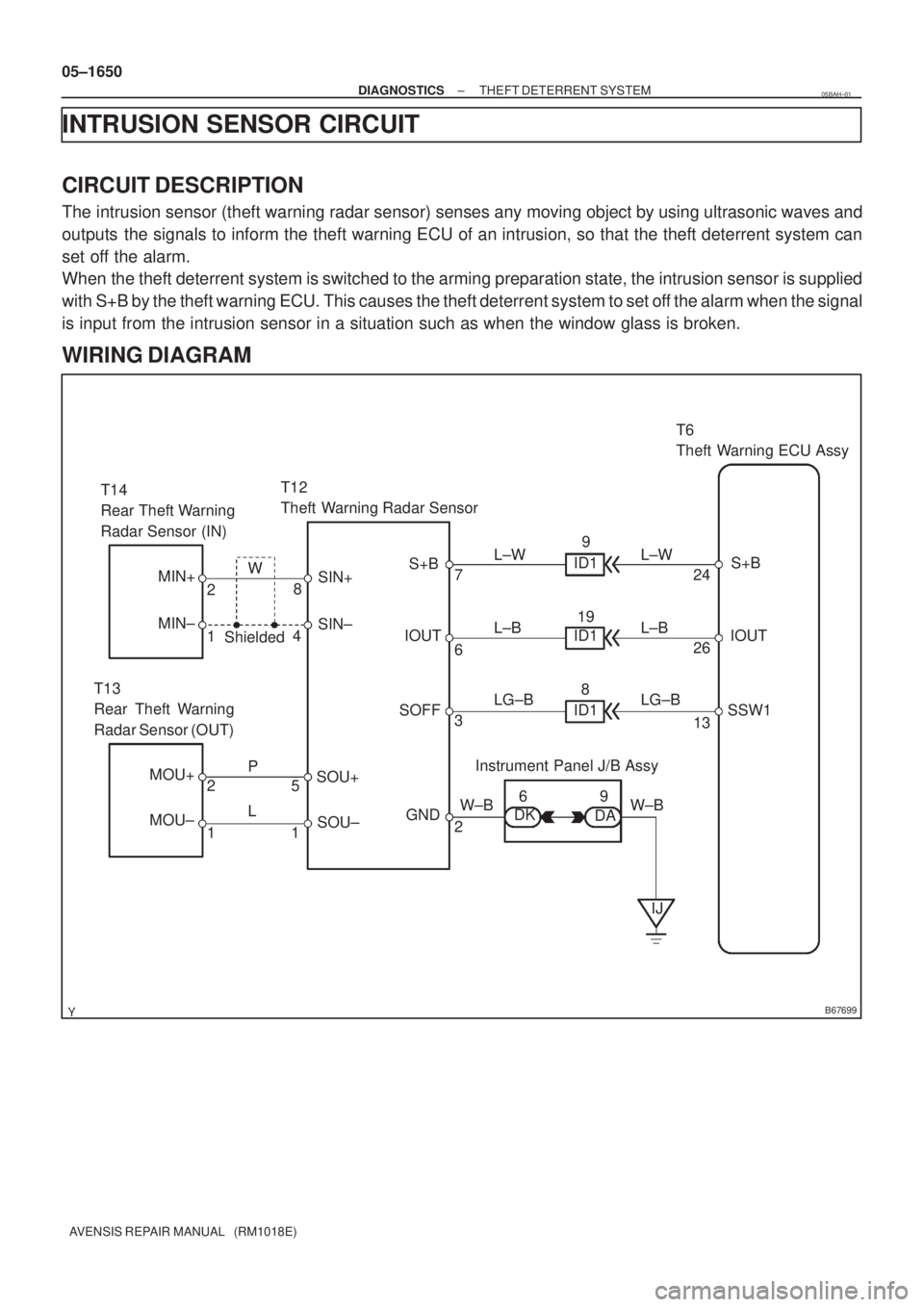

WIRING DIAGRAM
05BAH±01

B67866
T12
Theft Warning Radar Sensor
1 2 4
87653
B69135
HIGH
(10 ± 14 V)
LOW
(0.2 ± 0.8 V)T1: 0.2 sec.
T2: 0.1 sec.
T1T2
± DIAGNOSTICSTHEFT DETERRENT SYSTEM
05±1651
AVENSIS REPAIR MANUAL (RM1018E)

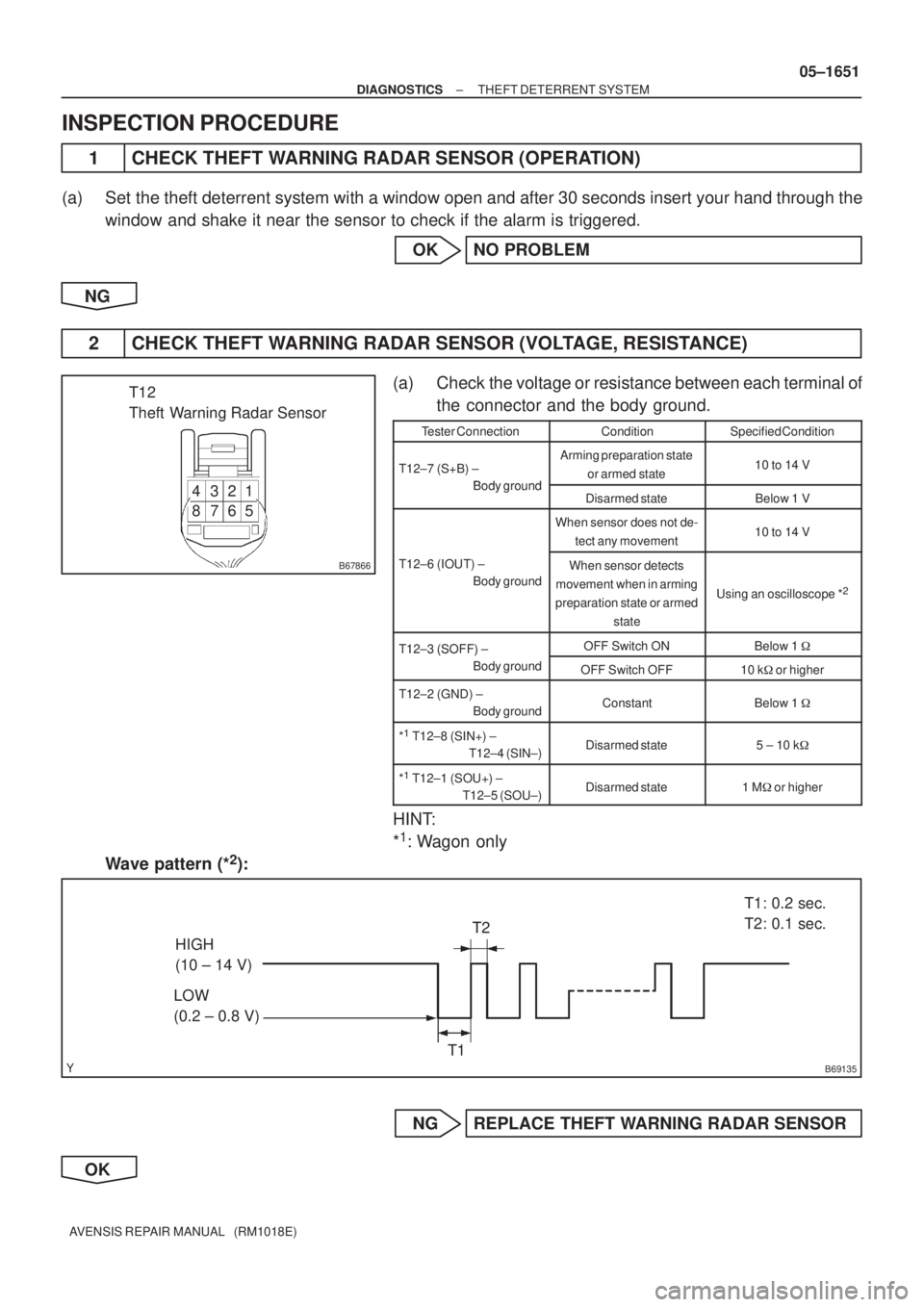

INSPECTION PROCEDURE
1 CHECK THEFT WARNING RADAR SENSOR (OPERATION)
(a) Set the theft deterrent system with a window open and after 30 seconds insert your hand through the
window and shake it near the sensor to check if the alarm is triggered.
OK NO PROBLEM
NG
2 CHECK THEFT WARNING RADAR SENSOR (VOLTAGE, RESISTANCE)
(a) Check the voltage or resistance between each terminal of
the connector and the body ground.
Tester ConnectionConditionSpecified Condition
T12±7 (S+B) ±
Body ground
Arming preparation state
or armed state10 to 14 V
Body groundDisarmed stateBelow 1 V
When sensor does not de-
tect any movement10 to 14 V
T12±6 (IOUT) ±
Body groundWhen sensor detects
movement when in arming
preparation state or armed
state
Using an oscilloscope *2
T12±3 (SOFF) ± OFF Switch ONBelow 1
T12 3 (SOFF)
Body ground
OFF Switch OFF10 k
or higher
T12±2 (GND) ±
Body groundConstantBelow 1

*1
T12±8 (SIN+) ±
T12±4 (SIN±)Disarmed state5 ± 10 k

*1
T12±1 (SOU+) ±
T12±5 (SOU±)Disarmed state1 M
or higher
HINT:
*
1: Wagon only
Wave pattern (*
2):
NG REPLACE THEFT WARNING RADAR SENSOR
OK

B67867
1 2


B68491
Wire Harness Side
T6
Theft Warning ECU Assy
T12
Theft Warning Radar Sensor
05±1652
± DIAGNOSTICSTHEFT DETERRENT SYSTEM
AVENSIS REPAIR MANUAL (RM1018E)

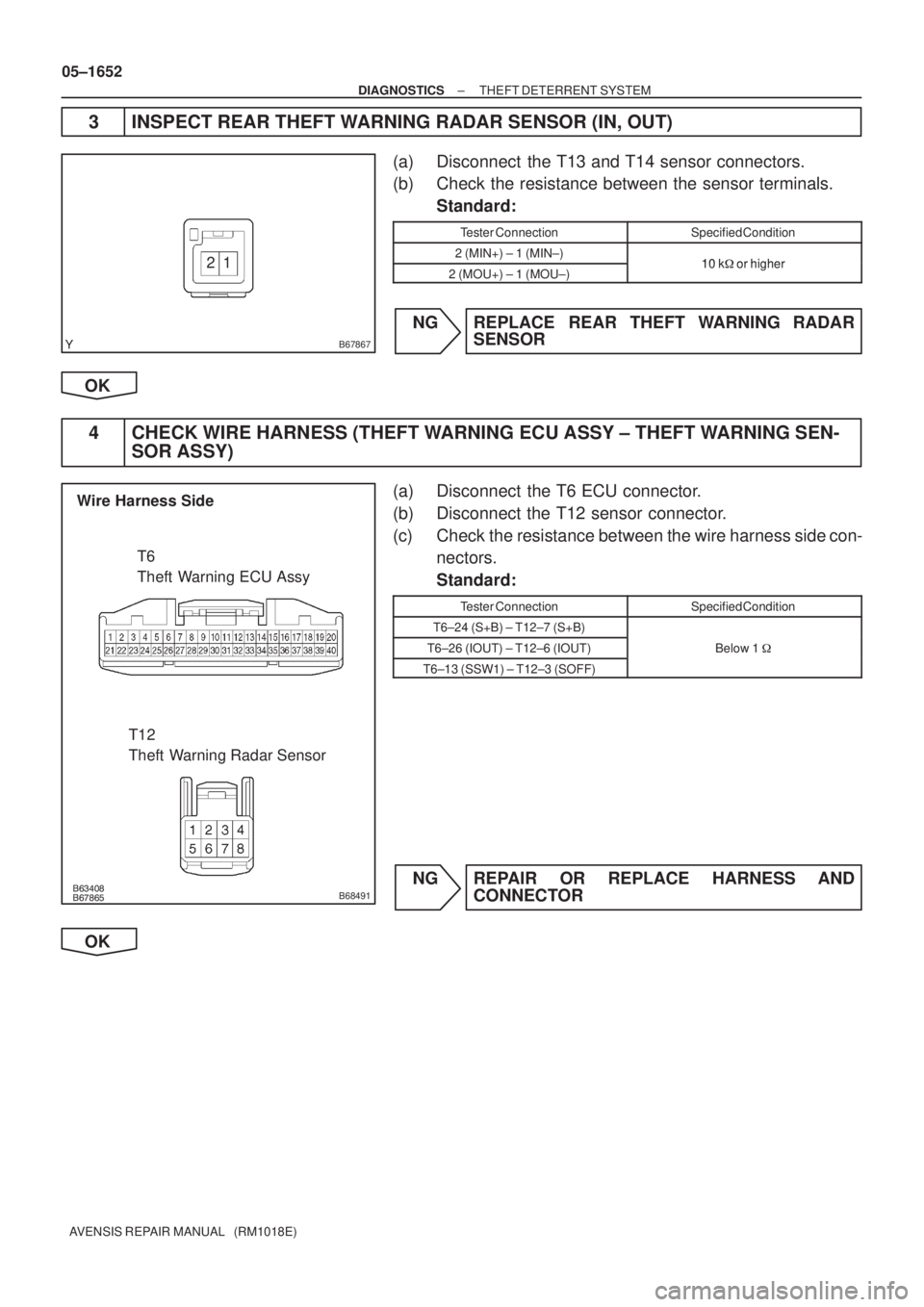

3 INSPECT REAR THEFT WARNING RADAR SENSOR (IN, OUT)
(a) Disconnect the T13 and T14 sensor connectors.
(b) Check the resistance between the sensor terminals.
Standard:
Tester ConnectionSpecified Condition
2 (MIN+) ± 1 (MIN±)10 k
or higher2 (MOU+) ± 1 (MOU±)10 k
or higher
NG REPLACE REAR THEFT WARNING RADAR
SENSOR
OK
4 CHECK WIRE HARNESS (THEFT WARNING ECU ASSY ± THEFT WARNING SEN-
SOR ASSY)
(a) Disconnect the T6 ECU connector.
(b) Disconnect the T12 sensor connector.
(c) Check the resistance between the wire harness side con-
nectors.
Standard:
Tester ConnectionSpecified Condition
T6±24 (S+B) ± T12±7 (S+B)
T6±26 (IOUT) ± T12±6 (IOUT)Below 1

T6±13 (SSW1) ± T12±3 (SOFF)
NG REPAIR OR REPLACE HARNESS AND
CONNECTOR
OK
