ENGINE MECHANICAL CYLINDER HEAD GASKET(1AZ±FE)
AVENSIS REPAIR MANUAL (RM1018E)

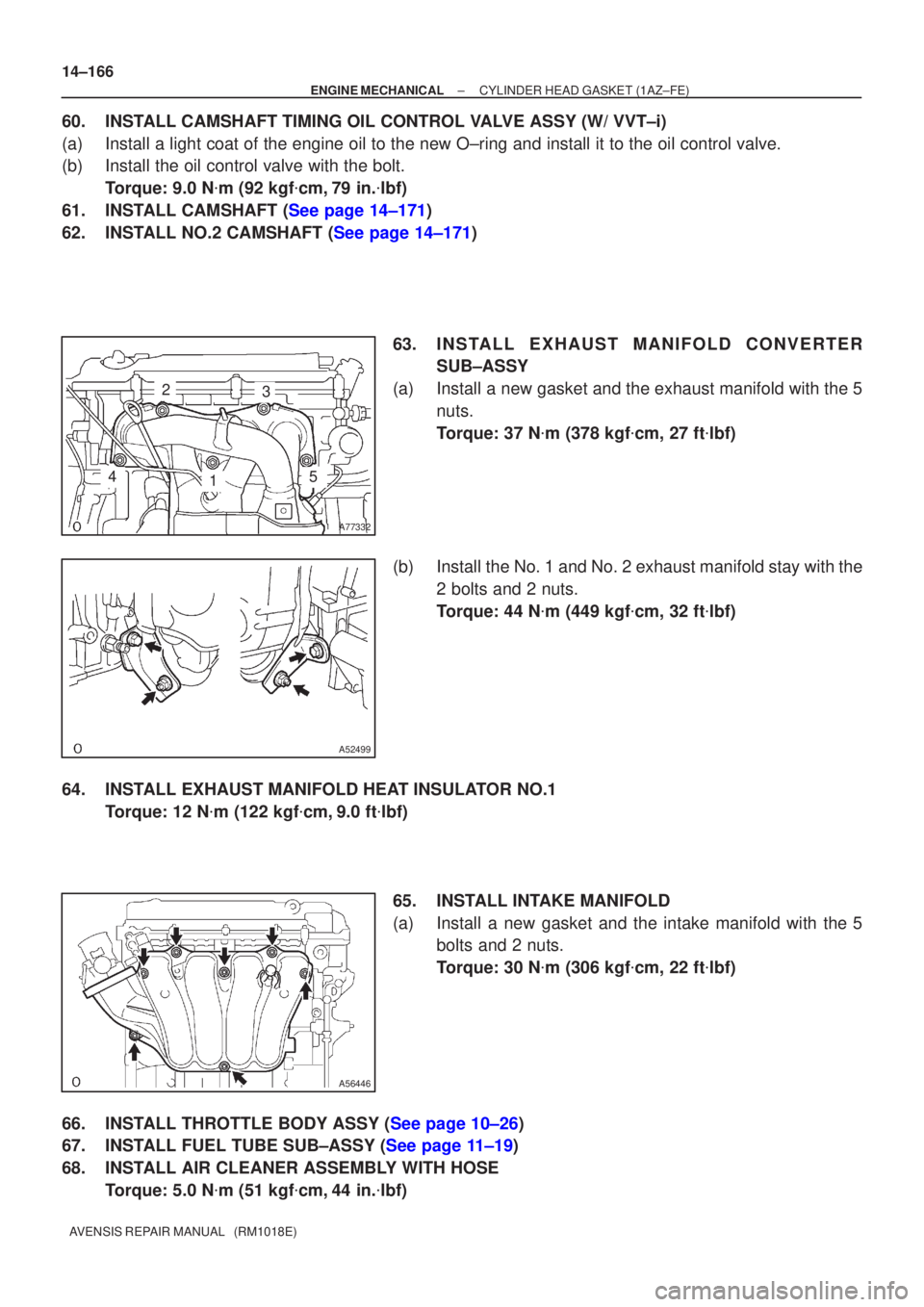

60.INSTALL CAMSHAFT TIMING OIL CONTROL VALVE ASSY (W/ VVT±i)
(a)Install a light coat of the engine oil to the new O±ring and install \
it to the oil control valve.
(b)Install the oil control valve with the bolt. Torque: 9.0 N
m (92 kgf
cm,79 in.
lbf)
61.INSTALL CAMSHAFT (See page 14±171)
62.INSTALL NO.2 CAMSHAFT (See page 14±171)
63.INSTALL EXHAUST MANIFOLD CONVERTERSUB±ASSY
(a)Install a new gasket and the exhaust manifold with the 5 nuts.
Torque: 37 N
m (378 kgf
cm, 27 ft
lbf)
(b)Install the No. 1 and No. 2 exhaust manifold stay with the 2 bolts and 2 nuts.
Torque: 44 N
m (449 kgf
cm, 32 ft
lbf)
64.INSTALL EXHAUST MANIFOLD HEAT INSULATOR NO.1 Torque: 12 N
m (122 kgf
cm,9.0 ft
lbf)
65.INSTALL INTAKE MANIFOLD
(a)Install a new gasket and the intake manifold with the 5 bolts and 2 nuts.
Torque: 30 N
m (306 kgf
cm, 22 ft
lbf)
66.INSTALL THROTTLE BODY ASSY (See page 10±26)
67.INSTALL FUEL TUBE SUB±ASSY (See page 11±19)
68. INSTALL AIR CLEANER ASSEMBLY WITH HOSE Torque: 5.0 N
m (51 kgf
cm, 44 in.
lbf)

±

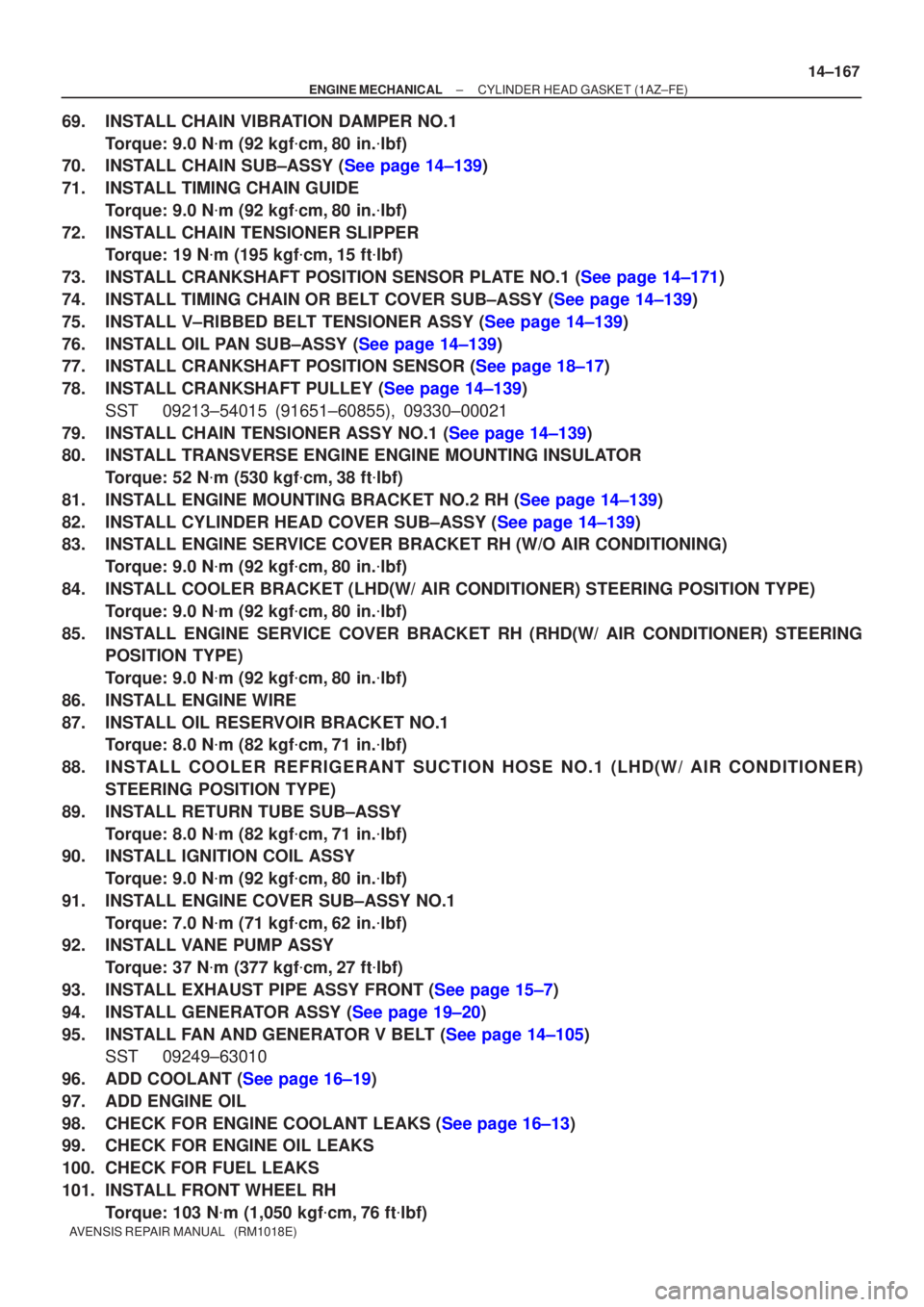

ENGINE MECHANICAL CYLINDER HEAD GASKET(1AZ±FE)
14±167
AVENSIS REPAIR MANUAL (RM1018E)
69.INSTALL CHAIN VIBRATION DAMPER NO.1
Torque: 9.0 N
m (92 kgf
cm,80 in.
lbf)
70.INSTALL CHAIN SUB±ASSY (See page 14±139)
71.INSTALL TIMING CHAIN GUIDE
Torque: 9.0 N
m (92 kgf
cm,80 in.
lbf)
72.INSTALL CHAIN TENSIONER SLIPPER Torque: 19 N
m (195 kgf
cm,15 ft
lbf)
73.INSTALL CRANKSHAFT POSITION SENSOR PLATE NO.1 (See page 14±171)
74.INSTALL TIMING CHAIN OR BELT COVER SUB±ASSY (See page 14±139)
75.INSTALL V±RIBBED BELT TENSIONER ASSY (See page 14±139)
76.INSTALL OIL PAN SUB±ASSY (See page 14±139)
77.INSTALL CRANKSHAFT POSITION SENSOR (See page 18±17)
78.INSTALL CRANKSHAFT PULLEY (See page 14±139) SST09213±54015 (91651±60855), 09330±00021
79.INSTALL CHAIN TENSIONER ASSY NO.1 (See page 14±139)
80.INSTALL TRANSVERSE ENGINE ENGINE MOUNTING INSULATOR Torque: 52 N
m (530 kgf
cm,38 ft
lbf)
81.INSTALL ENGINE MOUNTING BRACKET NO.2 RH (See page 14±139)
82.INSTALL CYLINDER HEAD COVER SUB±ASSY (See page 14±139)
83.INSTALL ENGINE SERVICE COVER BRACKET RH (W/O AIR CONDITIONING) Torque: 9.0 N
m (92 kgf
cm,80 in.
lbf)
84.INSTALL COOLER BRACKET (LHD(W/ AIR CONDITIONER) STEERING POSITION TYPE) Torque: 9.0 N
m (92 kgf
cm,80 in.
lbf)
85.INSTALL ENGINE SERVICE COVER BRACKET RH (RHD(W/ AIR CONDITIONER) STEERING POSITION TYPE)
Torque: 9.0 N
m (92 kgf
cm,80 in.
lbf)
86.INSTALL ENGINE WIRE
87.INSTALL OIL RESERVOIR BRACKET NO.1 Torque: 8.0 N
m (82 kgf
cm,71 in.
lbf)
88.IN STALL COOL ER REFRIGERANT SUCTION HOSE NO.1 (LHD(W/ AIR CONDITION ER)
STEERING POSITION TYPE)
89.INSTALL RETURN TUBE SUB±ASSY Torque: 8.0 N
m (82 kgf
cm,71 in.
lbf)
90.INSTALL IGNITION COIL ASSY
Torque: 9.0 N
m (92 kgf
cm,80 in.
lbf)
91.INSTALL ENGINE COVER SUB±ASSY NO.1 Torque: 7.0 N
m (71 kgf
cm,62 in.
lbf)
92.INSTALL VANE PUMP ASSY
Torque: 37 N
m (377 kgf
cm,27 ft
lbf)
93.INSTALL EXHAUST PIPE ASSY FRONT (See page 15±7)
94.INSTALL GENERATOR ASSY (See page 19±20)
95.INSTALL FAN AND GENERATOR V BELT (See page 14±105) SST 09249±63010
96.ADD COOLANT (See page 16±19)
97. ADD ENGINE OIL
98.CHECK FOR ENGINE COOLANT LEAKS (See page 16±13)
99. CHECK FOR ENGINE OIL LEAKS
100. CHECK FOR FUEL LEAKS
101. INSTALL FRONT WHEEL RH Torque: 103 N
m (1,050 kgf
cm, 76 ft
lbf)

141BA±01
A77310
Engine Room
Cover Side
Radiator Support
Opening CoverEngine Cover Sub±assy No. 1
Fan and Generator V Belt
Engine Under Cover RH
Engine Under Cover LH
7.0 (71, 62 in.
lbf)
7.0 (71, 62 in.
lbf)
N´m (kgf´cm, ft´lbf)
: Specified torque
± ENGINE MECHANICALCYLINDER HEAD GASKET (1AZ±FE)
14±153
AVENSIS REPAIR MANUAL (RM1018E)

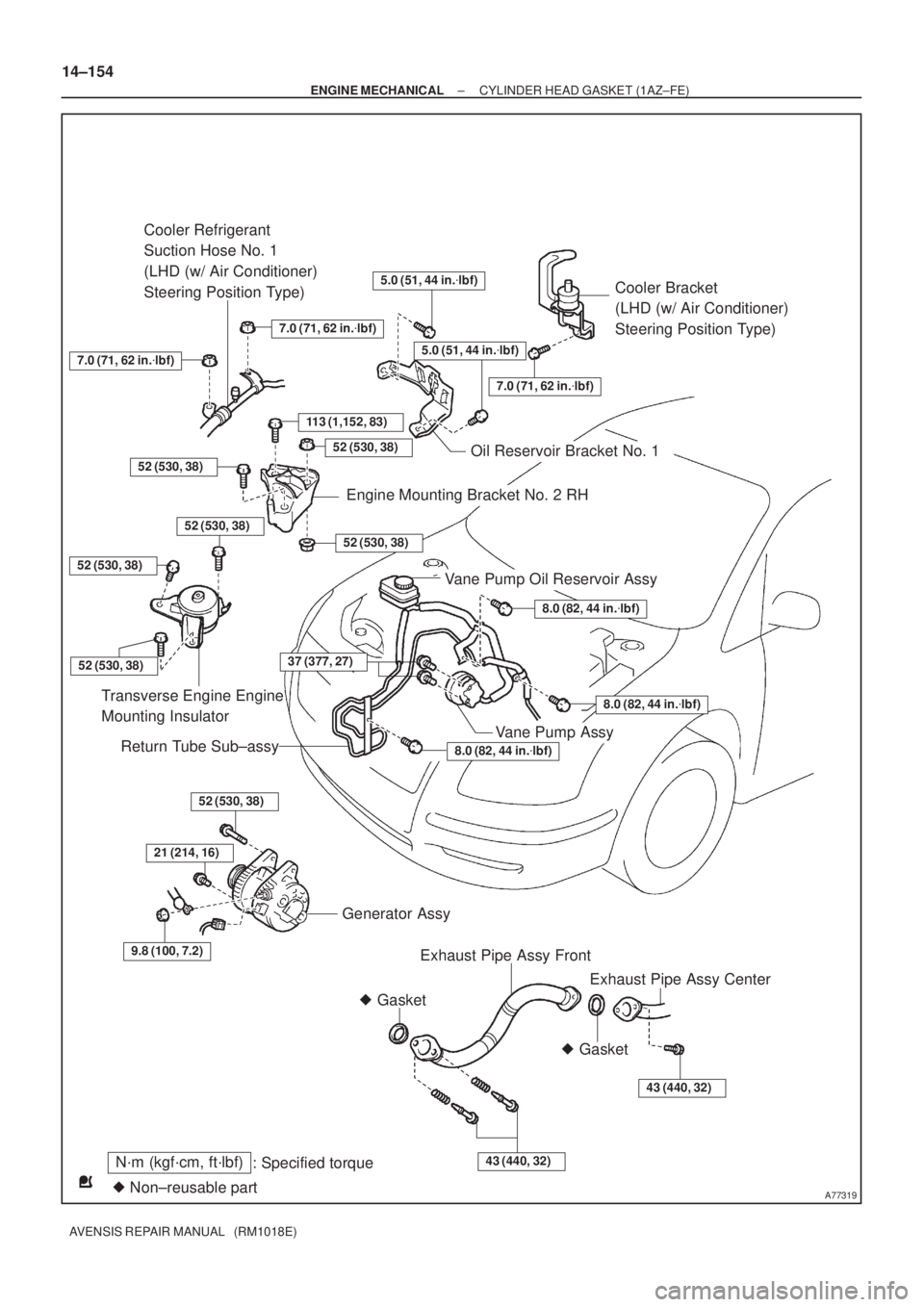

CYLINDER HEAD GASKET (1AZ±FE)
COMPONENTS

A77319
N´m (kgf´cm, ft´lbf)
: Specified torque

Non±reusable part
Gasket
Cooler Bracket
(LHD (w/ Air Conditioner)
Steering Position Type)
113 (1,152, 83)
Cooler Refrigerant
Suction Hose No. 1
(LHD (w/ Air Conditioner)
Steering Position Type)
8.0 (82, 44 in.
lbf)
8.0 (82, 44 in.
lbf)
52 (530, 38)
Transverse Engine Engine
Mounting Insulator
Vane Pump Oil Reservoir Assy
Return Tube Sub±assy
52 (530, 38)
21 (214, 16)
9.8 (100, 7.2)
Generator Assy
Exhaust Pipe Assy Front
43 (440, 32)
43 (440, 32)
7.0 (71, 62 in.
lbf)
7.0 (71, 62 in.
lbf)
Oil Reservoir Bracket No. 1
52 (530, 38)
52 (530, 38)
Engine Mounting Bracket No. 2 RH
7.0 (71, 62 in.
lbf)
5.0 (51, 44 in.
lbf)
5.0 (51, 44 in.
lbf)
52 (530, 38)
Exhaust Pipe Assy Center
52 (530, 38)
52 (530, 38)
Vane Pump Assy

Gasket
8.0 (82, 44 in.
lbf)
37 (377, 27)
14±154

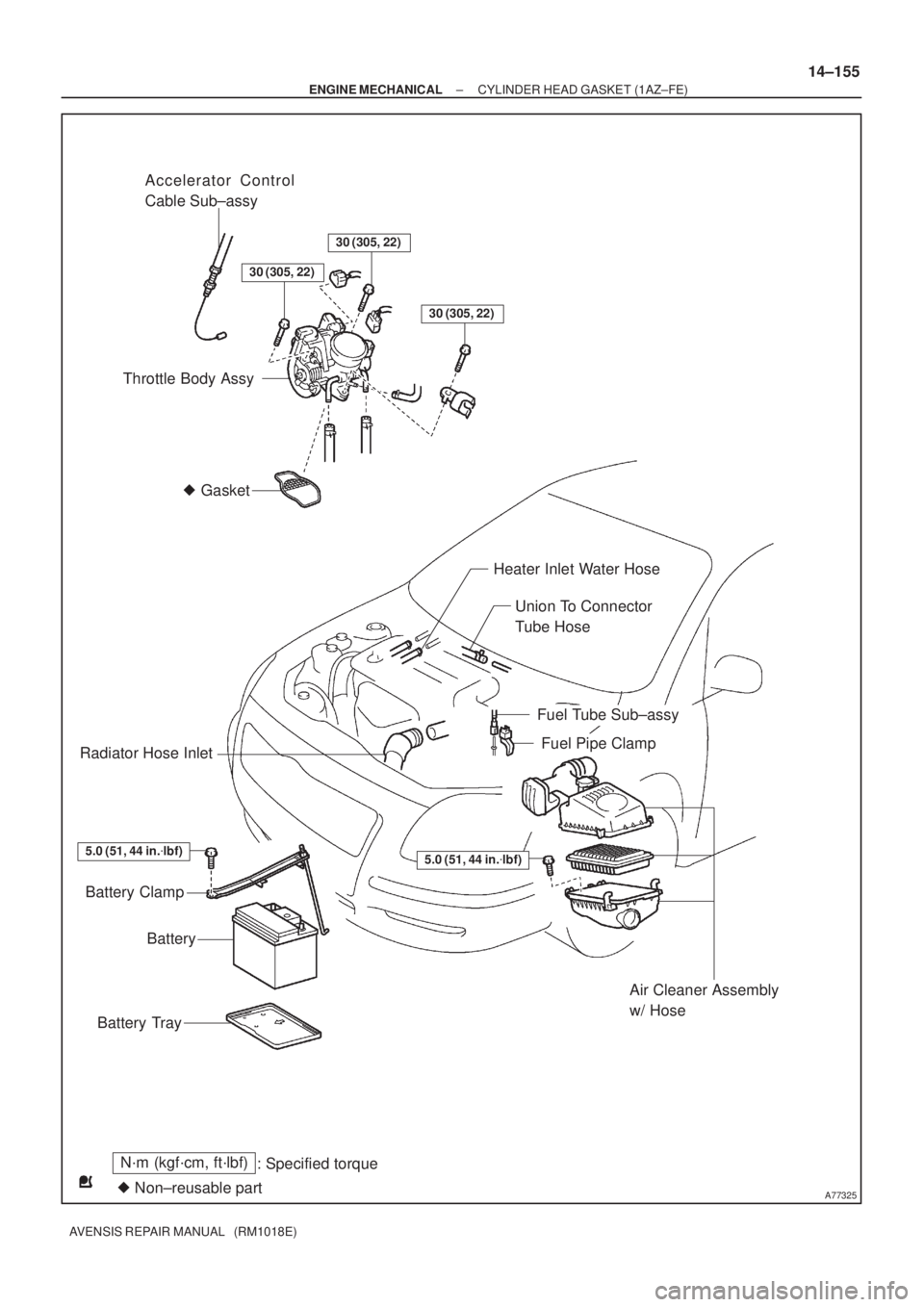

± ENGINE MECHANICALCYLINDER HEAD GASKET (1AZ±FE)
AVENSIS REPAIR MANUAL (RM1018E)

A77325
N´m (kgf´cm, ft´lbf)
: Specified torque

Non±reusable part
Gasket
Accelerator Control
Cable Sub±assy
30 (305, 22)
30 (305, 22)
Throttle Body Assy
Heater Inlet Water Hose
Union To Connector
Tube Hose
Fuel Tube Sub±assy
Fuel Pipe ClampRadiator Hose Inlet
Battery Clamp
Battery
Battery Tray
Air Cleaner Assembly
w/ Hose
30 (305, 22)
5.0 (51, 44 in.
lbf)5.0 (51, 44 in.
lbf)

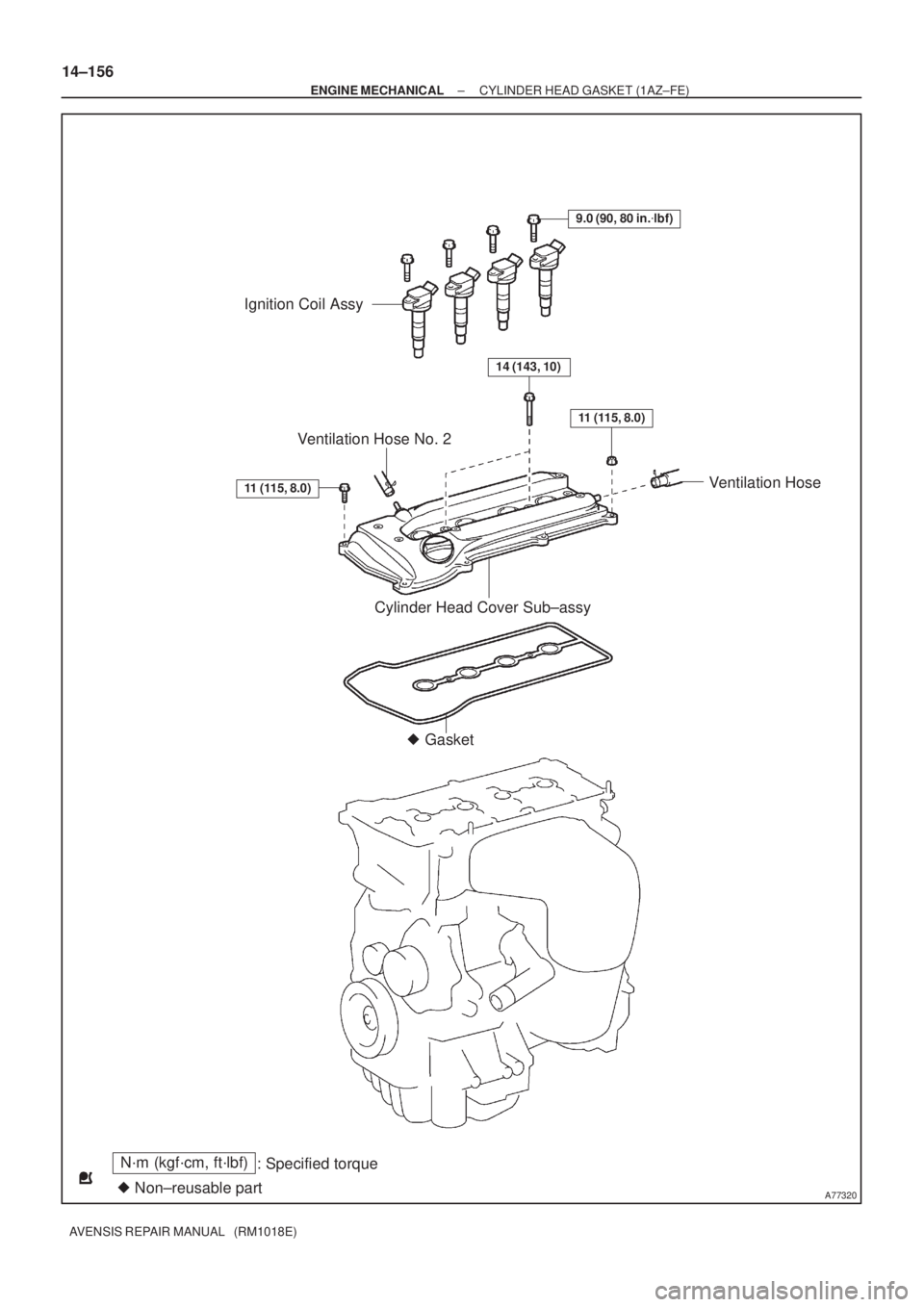

± ENGINE MECHANICALCYLINDER HEAD GASKET (1AZ±FE)
14±155
AVENSIS REPAIR MANUAL (RM1018E)

A77320
N´m (kgf´cm, ft´lbf)
: Specified torque

Non±reusable part
Ignition Coil Assy
9.0 (90, 80 in.
lbf)
14 (143, 10)
11 (115, 8.0)
Cylinder Head Cover Sub±assy

Gasket
11 (115, 8.0)
Ventilation Hose Ventilation Hose No. 2
14±156

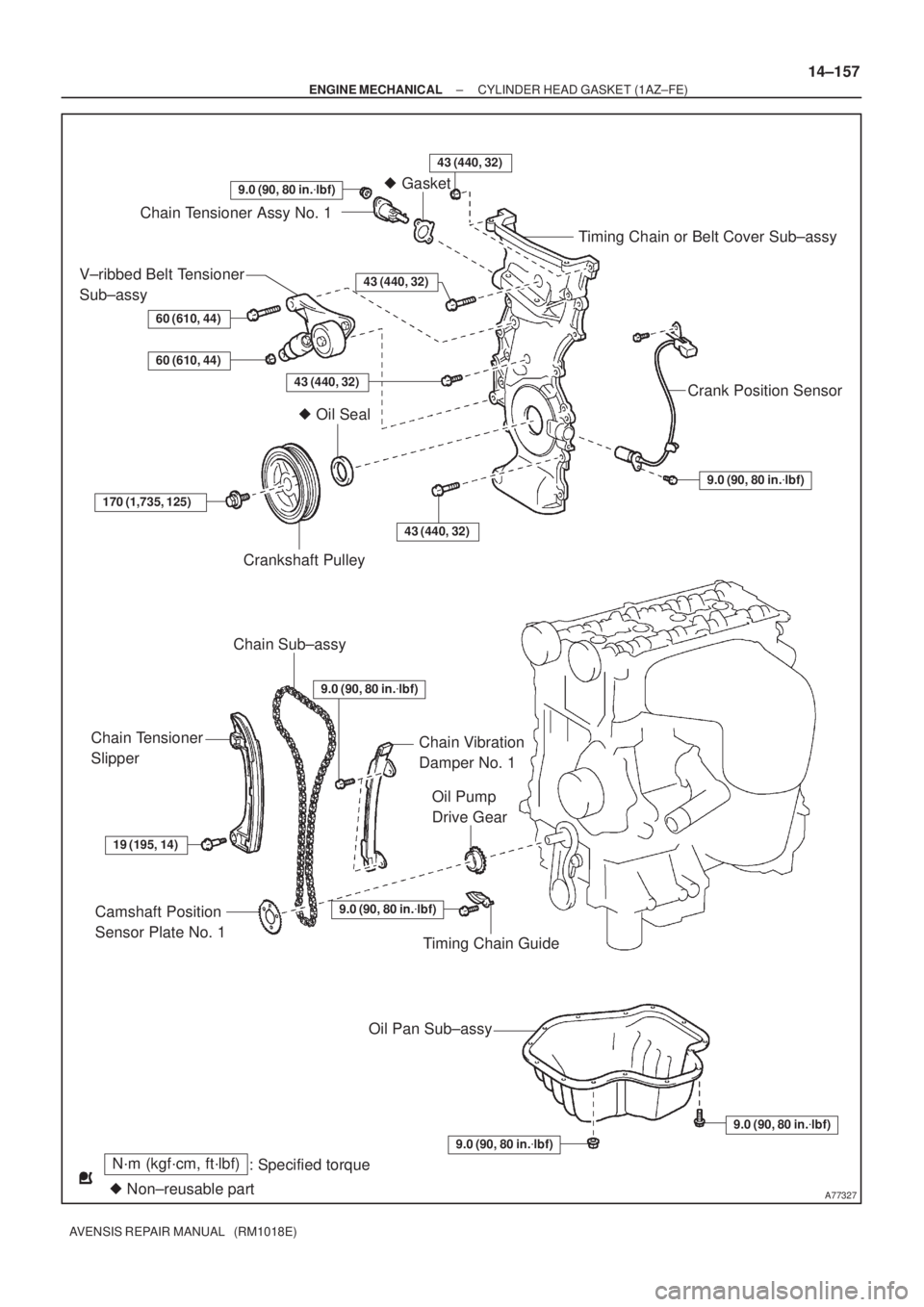

± ENGINE MECHANICALCYLINDER HEAD GASKET (1AZ±FE)
AVENSIS REPAIR MANUAL (RM1018E)

A77327
N´m (kgf´cm, ft´lbf)
: Specified torque

Non±reusable part
Gasket
9.0 (90, 80 in.
lbf)
Chain Tensioner Assy No. 1
Timing Chain or Belt Cover Sub±assy
Crank Position Sensor
9.0 (90, 80 in.
lbf)
V±ribbed Belt Tensioner
Sub±assy
60 (610, 44)
60 (610, 44)
43 (440, 32)
170 (1,735, 125)
Crankshaft Pulley
Chain Sub±assy
43 (440, 32)
Chain Tensioner
Slipper
19 (195, 14)
Camshaft Position
Sensor Plate No. 1
Oil Pump
Drive Gear
Chain Vibration
Damper No. 1

Oil Seal
Timing Chain Guide
9.0 (90, 80 in.
lbf)
Oil Pan Sub±assy
9.0 (90, 80 in.
lbf)
9.0 (90, 80 in.
lbf)
43 (440, 32)
43 (440, 32)
9.0 (90, 80 in.
lbf)

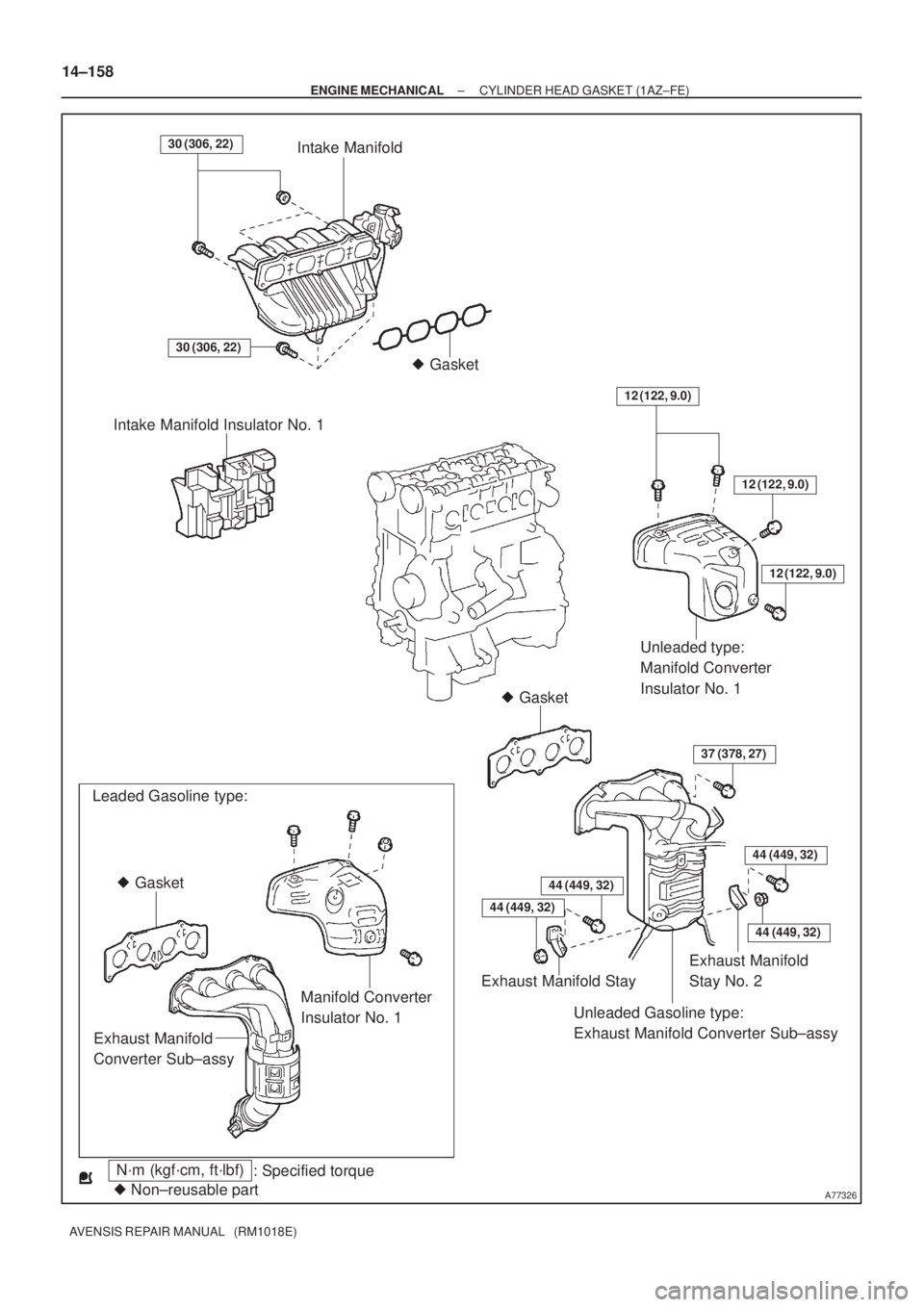

± ENGINE MECHANICALCYLINDER HEAD GASKET (1AZ±FE)
14±157
AVENSIS REPAIR MANUAL (RM1018E)

A77326
Intake Manifold
N´m (kgf´cm, ft´lbf)
: Specified torque

Non±reusable part
30 (306, 22)

Gasket
30 (306, 22)
Intake Manifold Insulator No. 1
12 (122, 9.0)
Unleaded type:
Manifold Converter
Insulator No. 1

Gasket
Unleaded Gasoline type:
Exhaust Manifold Converter Sub±assyExhaust Manifold
Stay No. 2
44 (449, 32)
Leaded Gasoline type:
Manifold Converter
Insulator No. 1
Exhaust Manifold
Converter Sub±assy
12 (122, 9.0)
12 (122, 9.0)
44 (449, 32)
37 (378, 27)
44 (449, 32)
44 (449, 32)
Exhaust Manifold Stay
Gasket 14±158

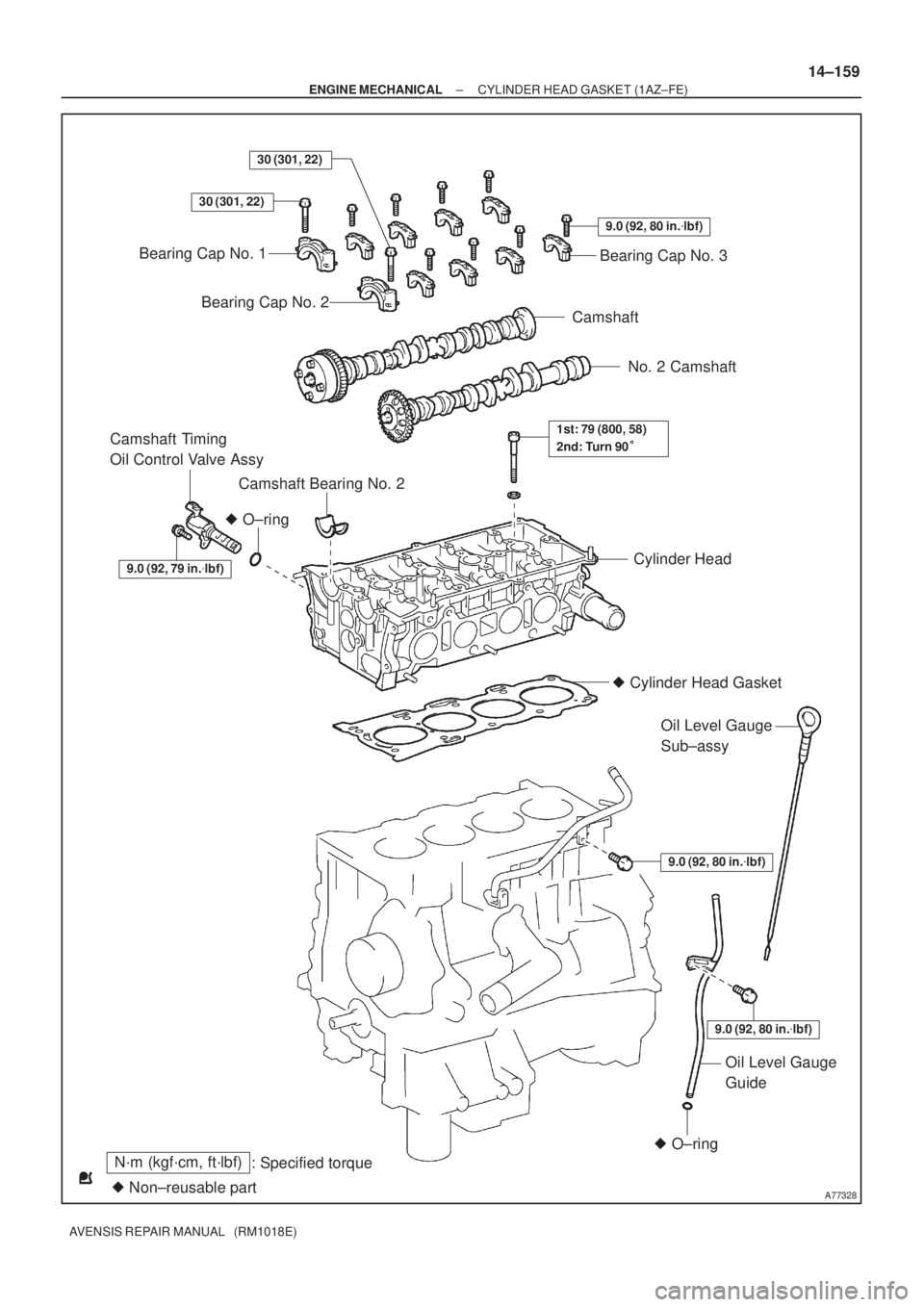

± ENGINE MECHANICALCYLINDER HEAD GASKET (1AZ±FE)
AVENSIS REPAIR MANUAL (RM1018E)

A77328
N´m (kgf´cm, ft´lbf)
: Specified torque

Non±reusable part
30 (301, 22)

O±ring
Bearing Cap No. 1
Bearing Cap No. 2
9.0 (92, 80 in.
lbf)
Bearing Cap No. 3
Camshaft
No. 2 Camshaft
Camshaft Bearing No. 2
Camshaft Timing
Oil Control Valve Assy
Cylinder Head

Cylinder Head Gasket
9.0 (92, 80 in.
lbf)
Oil Level Gauge
Sub±assy
9.0 (92, 80 in.
lbf)

O±ring
Oil Level Gauge
Guide
1st: 79 (800, 58)
2nd: Turn 90

30 (301, 22)
9.0 (92, 79 in.
lbf)
± ENGINE MECHANICALCYLINDER HEAD GASKET (1AZ±FE)
14±159
AVENSIS REPAIR MANUAL (RM1018E)

141B8±01
A77281
A77292
A77299
±
ENGINE MECHANICAL CHAIN SUB±ASSY(1AZ±FE)
14±139
AVENSIS REPAIR MANUAL (RM1018E)
REPLACEMENT
1.REMOVE FRONT WHEEL RH
2.REMOVE RADIATOR SUPPORT OPENING COVER
3.REMOVE ENGINE ROOM COVER SIDE
4.REMOVE ENGINE UNDER COVER RH
5.REMOVE ENGINE UNDER COVER LH
6.DRAIN ENGINE OIL
(a)Install a new gasket and the drain plug after draining the engine oil.
Torque: 25 N
m (255 kgf
cm,18 ft
lbf)
7.REMOVE ENGINE COVER SUB±ASSY NO.1
(a)Remove the 2 nuts and the engine cover No. 1.
8.REMOVE FAN AND GENERATOR V BELT (See page 14±105) SST 09249±63010
9.REMOVE GENERATOR ASSY (See page 19±20)
10.REMOVE EXHAUST PIPE ASSY FRONT (See page 15±7)
11. SEPARATE VANE PUMP ASSY
(a) Remove the 2 through bolts and separate the vane pump.
12. SEPARATE RETURN TUBE SUB±ASSY
(a) Remove 3 bolts and separate the return tube as shownin the illustration.
