ENGINE MECHANICAL PARTIAL ENGINE ASSY(1CD±FTV)
14±295
AVENSIS REPAIR MANUAL (RM1018E)
106.REMOVE CRANKSHAFT POSITION SENSOR
(a)Remove the bolt and the crankshaft position sensor.
107.REMOVE CAMSHAFT POSITION SENSOR
(a)Remove the bolt and the camshaft position sensor.
108.REMOVE ENGINE COOLANT TEMPERATURE SENSOR
109.REPLACE PARTIAL ENGINE ASSY
110.INSTALL ENGINE COOLANT TEMPERATURE SENSOR
Torque: 20 N
m (204 kgf
cm,15 ft
lbf)
111.INSTALL CAMSHAFT POSITION SENSOR Torque: 8.8 N
m (90 kgf
cm,78 in.
lbf)
112.INSTALL CRANKSHAFT POSITION SENSOR Torque: 8.8 N
m (90 kgf
cm,78 in.
lbf)
113.INSTALL FUEL FILTER TO INJECTION PUMP FUEL PIPE Torque:
8.8 N
m (90 kgf
cm,78 ft
lbf) for M6 and Nut
21 N
m (209 kgf
cm,15 ft
lbf) for M8
114.INSTALL OIL COOLER PIPE
(a)Install 2 new gaskets and the oil cooler pipe with the union bolt. Torque: 59 N
m (600 kgf
cm,43 ft
lbf)
115.INSTALL THERMOSTAT (See page 16±50)
116.INSTALL WATER INLET (See page 16±50)
117. INSTALL COMPRESSOR MOUNTING BRACKET NO.1
Torque: 42 N
m (428 kgf
cm, 31 ft
lbf)
118. INSTALL INJECTION OR SUPPLY PUMP ASSY Torque: 21 N
m (214 kgf
cm, 15 ft
lbf)
119. INSTALL OIL LEVEL GAGE GUIDE
(a) Install a new O±ring to the oil level gage guide.
(b) Apply engine oil to the O±ring.
(c) Push in the oil level gage guide end into the guide hole of the No. 1 oil pan.
(d) Install the oil level gage guide with the bolt. Torque: 18 N
m (184 kgf
cm, 13 ft
lbf)
(e) Apply engine oil to the O±ring on the oil level gage.
(f) Install the oil level gage.
120. INSTALL TIMING BELT NO.3 COVER Torque: 7.4 N
m (75 kgf
cm, 65 in.
lbf)
121.INSTALL INJECTION PUMP DRIVE PULLEY (See page 11±69)
SST 09960±10010 (09962±01000, 09963±01000)
122. INSTALL INTAKE MANIFOLD
(a) Install a new gasket and the intake manifold with the 8 bolts and 2 nuts\
. Torque: 21 N
m (214 kgf
cm, 15 ft
lbf)
(b) Install the wiring harness clamp bracket with the 2 bolts.
Torque: 3.9 to 6.9 N
m (40 to 70 kgf
cm, 35 to 61 in.
lbf)

A61175
AA
B
A79147
Fulcrum
Length
30 cm
SST
14±296
±
ENGINE MECHANICAL PARTIAL ENGINE ASSY(1CD±FTV)
AVENSIS REPAIR MANUAL (RM1018E)

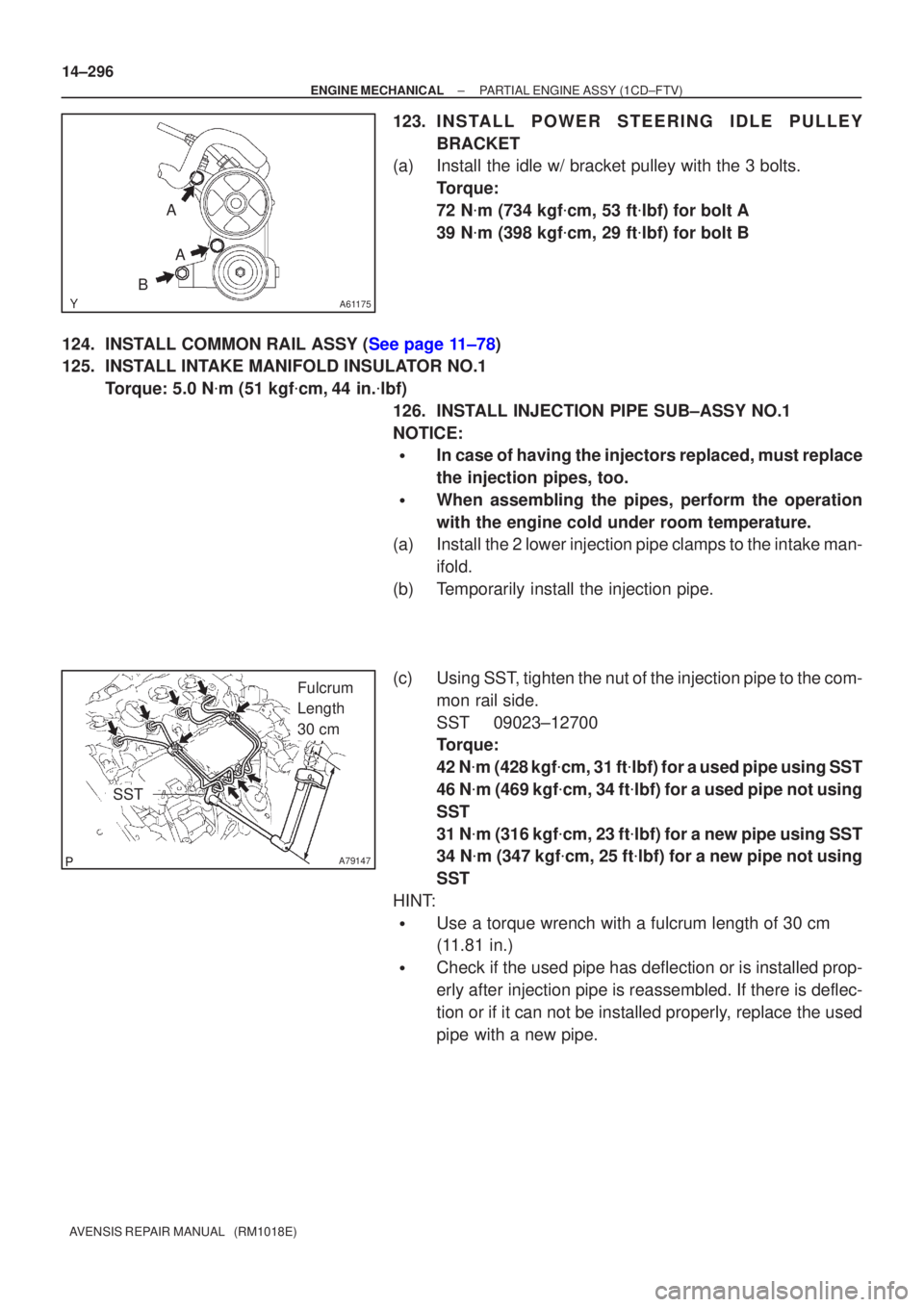

123.INSTALL POWER STEERING IDLE PULLEY BRACKET
(a)Install the idle w/ bracket pulley with the 3 bolts.
Torque:
72 N
m (734 kgf
cm, 53 ft
lbf) for bolt A
39 N
m (398 kgf
cm, 29 ft
lbf) for bolt B
124.INSTALL COMMON RAIL ASSY (See page 11±78)
125. INSTALL INTAKE MANIFOLD INSULATOR NO.1 Torque: 5.0 N
m (51 kgf
cm, 44 in.
lbf)
126. INSTALL INJECTION PIPE SUB±ASSY NO.1
NOTICE:

In case of having the injectors replaced, must replace
the injection pipes, too.

When assembling the pipes, perform the operation
with the engine cold under room temperature.
(a) Install the 2 lower injection pipe clamps to the intake man-
ifold.
(b) Temporarily install the injection pipe.
(c) Using SST, tighten the nut of the injection pipe to the com- mon rail side.
SST 09023±12700
Torque:
42 N
m (428 kgf
cm, 31 ft
lbf) for a used pipe using SST
46 N
m (469 kgf
cm, 34 ft
lbf) for a used pipe not using
SST
31 N
m (316 kgf
cm, 23 ft
lbf) for a new pipe using SST
34 N
m (347 kgf
cm, 25 ft
lbf) for a new pipe not using
SST
HINT:

Use a torque wrench with a fulcrum length of 30 cm
(11.81 in.)

Check if the used pipe has deflection or is installed prop-
erly after injection pipe is reassembled. If there is deflec-
tion or if it can not be installed properly, replace the used
pipe with a new pipe.

± ENGINE MECHANICALPARTIAL ENGINE ASSY (1CD±FTV)
14±297
AVENSIS REPAIR MANUAL (RM1018E)

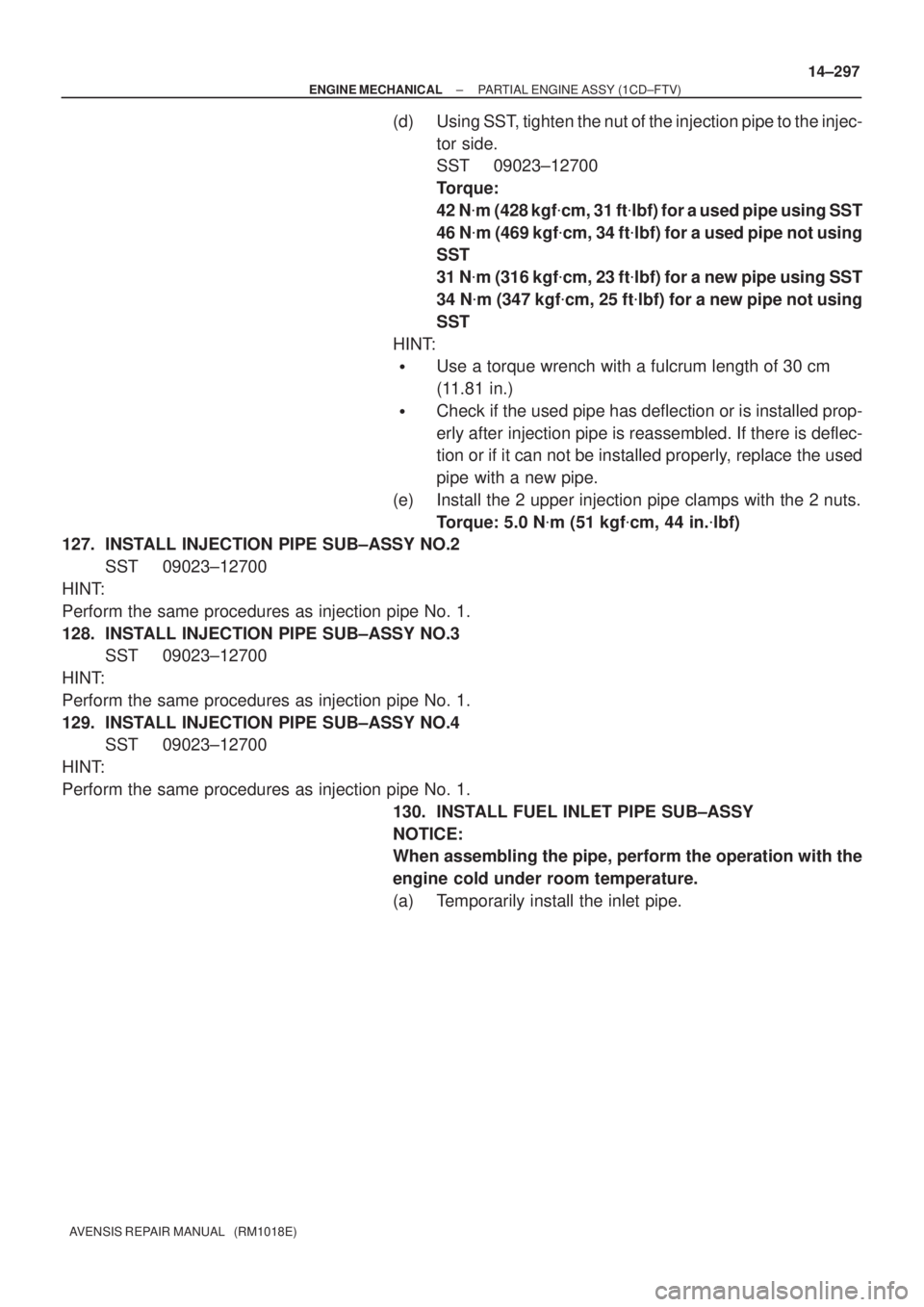

(d) Using SST, tighten the nut of the injection pipe to the injec-
tor side.
SST 09023±12700
Torque:
42 N
m (428 kgf
cm, 31 ft
lbf) for a used pipe using SST
46 N
m (469 kgf
cm, 34 ft
lbf) for a used pipe not using
SST
31 N
m (316 kgf
cm, 23 ft
lbf) for a new pipe using SST
34 N
m (347 kgf
cm, 25 ft
lbf) for a new pipe not using
SST
HINT:

Use a torque wrench with a fulcrum length of 30 cm
(11.81 in.)

Check if the used pipe has deflection or is installed prop-
erly after injection pipe is reassembled. If there is deflec-
tion or if it can not be installed properly, replace the used
pipe with a new pipe.
(e) Install the 2 upper injection pipe clamps with the 2 nuts.
Torque: 5.0 N
m (51 kgf
cm, 44 in.
lbf)
127. INSTALL INJECTION PIPE SUB±ASSY NO.2
SST 09023±12700
HINT:
Perform the same procedures as injection pipe No. 1.
128. INSTALL INJECTION PIPE SUB±ASSY NO.3
SST 09023±12700
HINT:
Perform the same procedures as injection pipe No. 1.
129. INSTALL INJECTION PIPE SUB±ASSY NO.4
SST 09023±12700
HINT:
Perform the same procedures as injection pipe No. 1.
130. INSTALL FUEL INLET PIPE SUB±ASSY
NOTICE:
When assembling the pipe, perform the operation with the
engine cold under room temperature.
(a) Temporarily install the inlet pipe.

A79149
Fulcrum
Length
30 cm
SST
A81587
14±298
± ENGINE MECHANICALPARTIAL ENGINE ASSY (1CD±FTV)
AVENSIS REPAIR MANUAL (RM1018E)

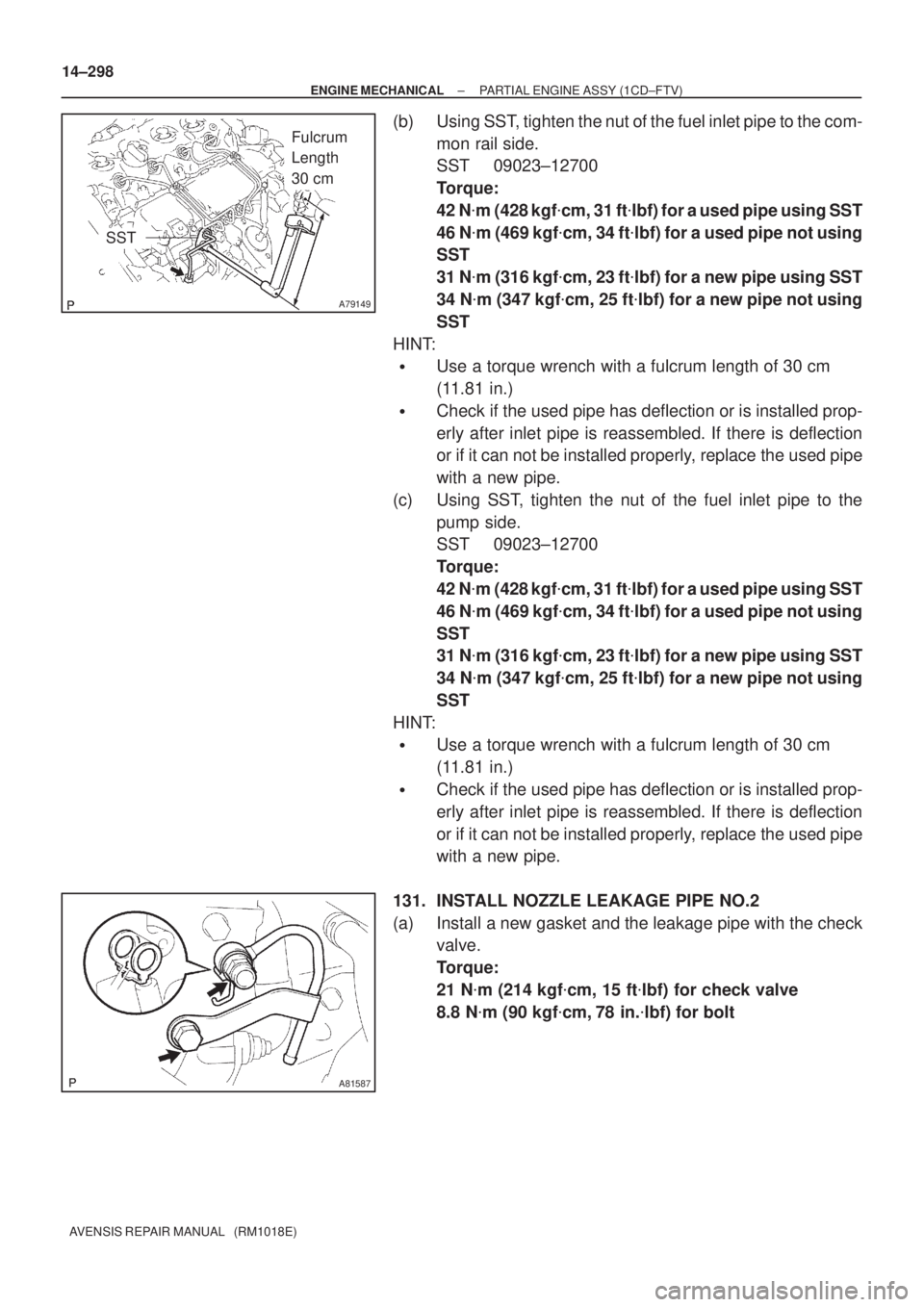

(b) Using SST, tighten the nut of the fuel inlet pipe to the com-
mon rail side.
SST 09023±12700
Torque:
42 N
m (428 kgf
cm, 31 ft
lbf) for a used pipe using SST
46 N
m (469 kgf
cm, 34 ft
lbf) for a used pipe not using
SST
31 N
m (316 kgf
cm, 23 ft
lbf) for a new pipe using SST
34 N
m (347 kgf
cm, 25 ft
lbf) for a new pipe not using
SST
HINT:

Use a torque wrench with a fulcrum length of 30 cm
(11.81 in.)

Check if the used pipe has deflection or is installed prop-
erly after inlet pipe is reassembled. If there is deflection
or if it can not be installed properly, replace the used pipe
with a new pipe.
(c) Using SST, tighten the nut of the fuel inlet pipe to the
pump side.
SST 09023±12700
Torque:
42 N
m (428 kgf
cm, 31 ft
lbf) for a used pipe using SST
46 N
m (469 kgf
cm, 34 ft
lbf) for a used pipe not using
SST
31 N
m (316 kgf
cm, 23 ft
lbf) for a new pipe using SST
34 N
m (347 kgf
cm, 25 ft
lbf) for a new pipe not using
SST
HINT:

Use a torque wrench with a fulcrum length of 30 cm
(11.81 in.)

Check if the used pipe has deflection or is installed prop-
erly after inlet pipe is reassembled. If there is deflection
or if it can not be installed properly, replace the used pipe
with a new pipe.
131. INSTALL NOZZLE LEAKAGE PIPE NO.2
(a) Install a new gasket and the leakage pipe with the check
valve.
Torque:
21 N
m (214 kgf
cm, 15 ft
lbf) for check valve
8.8 N
m (90 kgf
cm, 78 in.
lbf) for bolt

A79196
New O±Ring
New O±Ring
A79182
Collar
Groove
±
ENGINE MECHANICAL PARTIAL ENGINE ASSY(1CD±FTV)
14±299
AVENSIS REPAIR MANUAL (RM1018E)

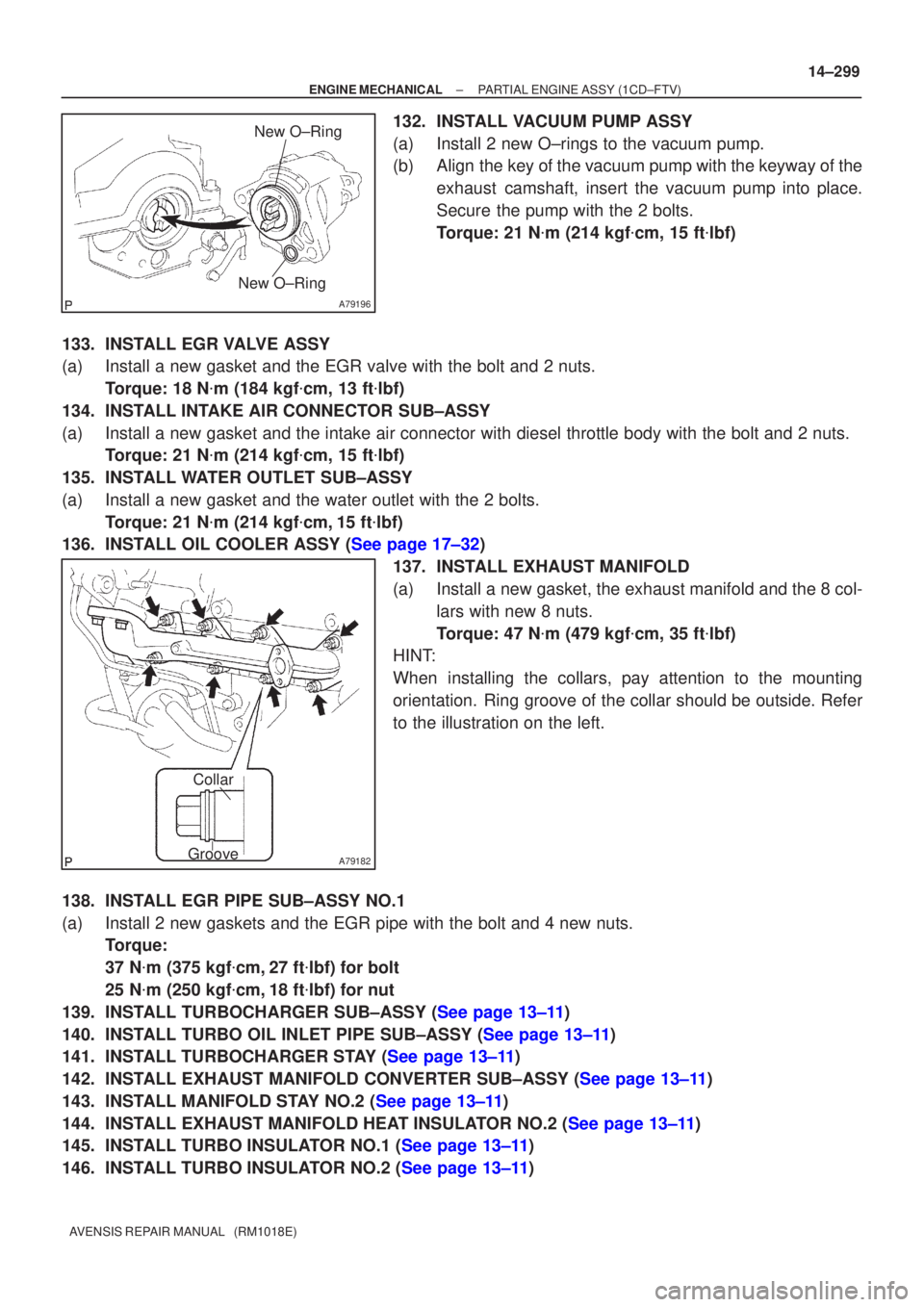

132.INSTALL VACUUM PUMP ASSY
(a)Install 2 new O±rings to the vacuum pump.
(b)Align the key of the vacuum pump with the keyway of the
exhaust camshaft, insert the vacuum pump into place.
Secure the pump with the 2 bolts.
Torque: 21 N
m (214 kgf
cm, 15 ft
lbf)
133.INSTALL EGR VALVE ASSY
(a)Install a new gasket and the EGR valve with the bolt and 2 nuts. Torque: 18 N
m (184 kgf
cm, 13 ft
lbf)
134.INSTALL INTAKE AIR CONNECTOR SUB±ASSY
(a)Install a new gasket and the intake air connector with diesel throttle b\
ody with the bolt and 2 nuts. Torque: 21 N
m (214 kgf
cm, 15 ft
lbf)
135.INSTALL WATER OUTLET SUB±ASSY
(a)Install a new gasket and the water outlet with the 2 bolts. Torque: 21 N
m (214 kgf
cm,15 ft
lbf)
136.INSTALL OIL COOLER ASSY (See page 17±32)
137.INSTALL EXHAUST MANIFOLD
(a)Install a new gasket, the exhaust manifold and the 8 col-lars with new 8 nuts.
Torque: 47 N
m (479 kgf
cm, 35 ft
lbf)
HINT:
When installing the collars, pay attention to the mounting
orientation. Ring groove of the collar should be outside. Refer
to the illustration on the left.
138.INSTALL EGR PIPE SUB±ASSY NO.1
(a)Install 2 new gaskets and the EGR pipe with the bolt and 4 new nuts. Torque:
37 N
m (375 kgf
cm,27 ft
lbf) for bolt
25 N
m (250 kgf
cm,18 ft
lbf) for nut
139.INSTALL TURBOCHARGER SUB±ASSY (See page 13±11)
140.INSTALL TURBO OIL INLET PIPE SUB±ASSY (See page 13±11)
141.INSTALL TURBOCHARGER STAY (See page 13±11)
142.INSTALL EXHAUST MANIFOLD CONVERTER SUB±ASSY (See page 13±11)
143.INSTALL MANIFOLD STAY NO.2 (See page 13±11)
144.INSTALL EXHAUST MANIFOLD HEAT INSULATOR NO.2 (See page 13±11)
145.INSTALL TURBO INSULATOR NO.1 (See page 13±11)
146.INSTALL TURBO INSULATOR NO.2 (See page 13±11)

A61186
SST
A57108
Adhesive
14±300
±
ENGINE MECHANICAL PARTIAL ENGINE ASSY (1CD±FTV)
AVENSIS REPAIR MANUAL (RM1018E)

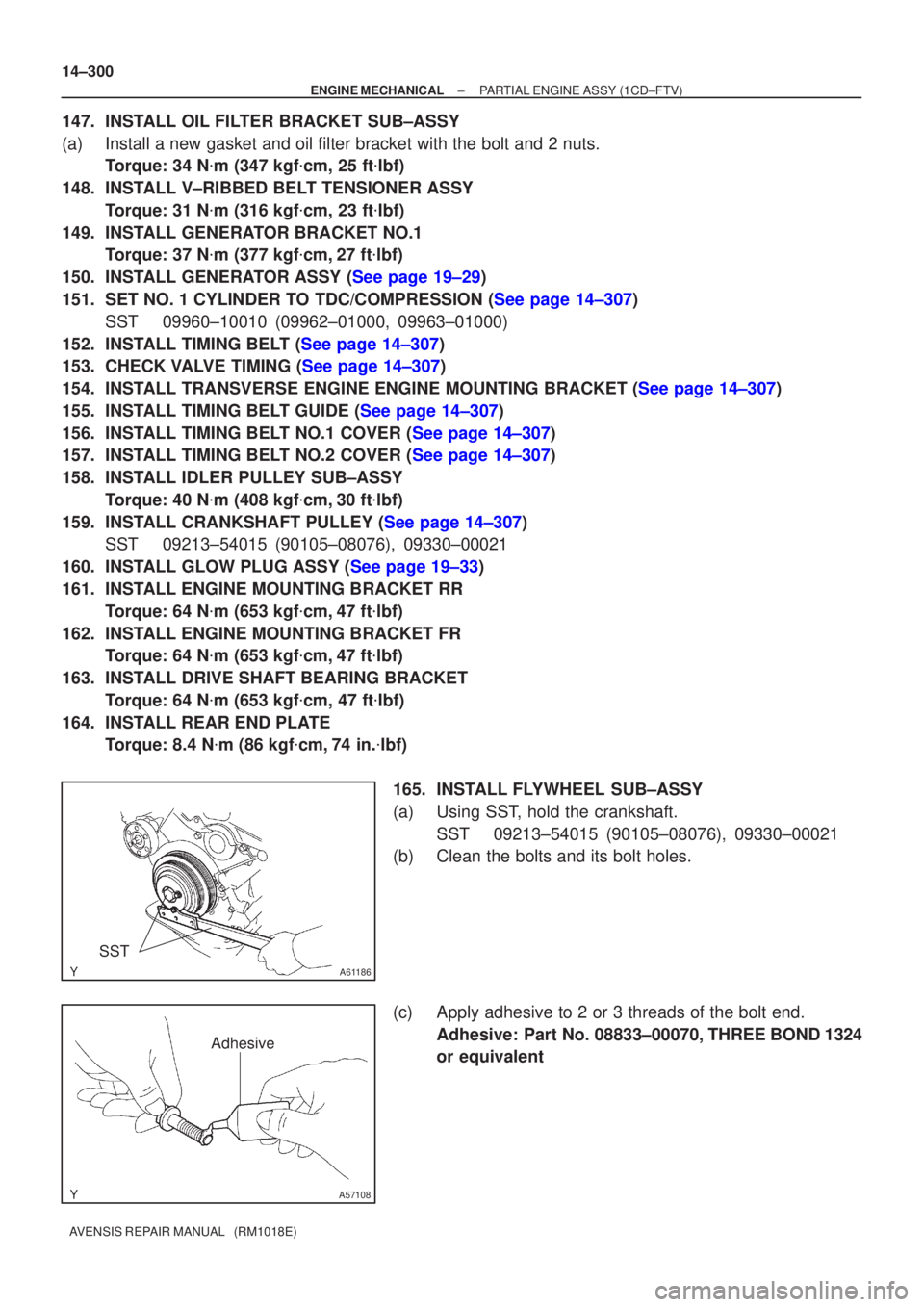

147. INSTALL OIL FILTER BRACKET SUB±ASSY
(a) Install a new gasket and oil filter bracket with the bolt and 2 nuts. Torque: 34 N
m (347 kgf
cm, 25 ft
lbf)
148. INSTALL V±RIBBED BELT TENSIONER ASSY Torque: 31 N
m (316 kgf
cm, 23 ft
lbf)
149. INSTALL GENERATOR BRACKET NO.1 Torque: 37 N
m (377 kgf
cm, 27 ft
lbf)
150.INSTALL GENERATOR ASSY (See page 19±29)
151.SET NO. 1 CYLINDER TO TDC/COMPRESSION (See page 14±307) SST 09960±10010 (09962±01000, 09963±01000)
152.INSTALL TIMING BELT (See page 14±307)
153.CHECK VALVE TIMING (See page 14±307)
154.INSTALL TRANSVERSE ENGINE ENGINE MOUNTING BRACKET (See page 14±307)
155.INSTALL TIMING BELT GUIDE (See page 14±307)
156.INSTALL TIMING BELT NO.1 COVER (See page 14±307)
157.INSTALL TIMING BELT NO.2 COVER (See page 14±307)
158. INSTALL IDLER PULLEY SUB±ASSY Torque: 40 N
m (408 kgf
cm, 30 ft
lbf)
159.INSTALL CRANKSHAFT PULLEY (See page 14±307) SST 09213±54015 (90105±08076), 09330±00021
160.INSTALL GLOW PLUG ASSY (See page 19±33)
161. INSTALL ENGINE MOUNTING BRACKET RR Torque: 64 N
m (653 kgf
cm, 47 ft
lbf)
162. INSTALL ENGINE MOUNTING BRACKET FR Torque: 64 N
m (653 kgf
cm, 47 ft
lbf)
163. INSTALL DRIVE SHAFT BEARING BRACKET Torque: 64 N
m (653 kgf
cm, 47 ft
lbf)
164. INSTALL REAR END PLATE Torque: 8.4 N
m (86 kgf
cm, 74 in.
lbf)
165. INSTALL FLYWHEEL SUB±ASSY
(a) Using SST, hold the crankshaft. SST 09213±54015 (90105±08076), 09330±00021
(b) Clean the bolts and its bolt holes.
(c) Apply adhesive to 2 or 3 threads of the bolt end.
Adhesive: Part No. 08833±00070, THREE BOND 1324
or equivalent

A79183
2
1
3
4
5
6
7
8
A79180
A62711
A59792
±
ENGINE MECHANICAL PARTIAL ENGINE ASSY(1CD±FTV)
14±301
AVENSIS REPAIR MANUAL (RM1018E)

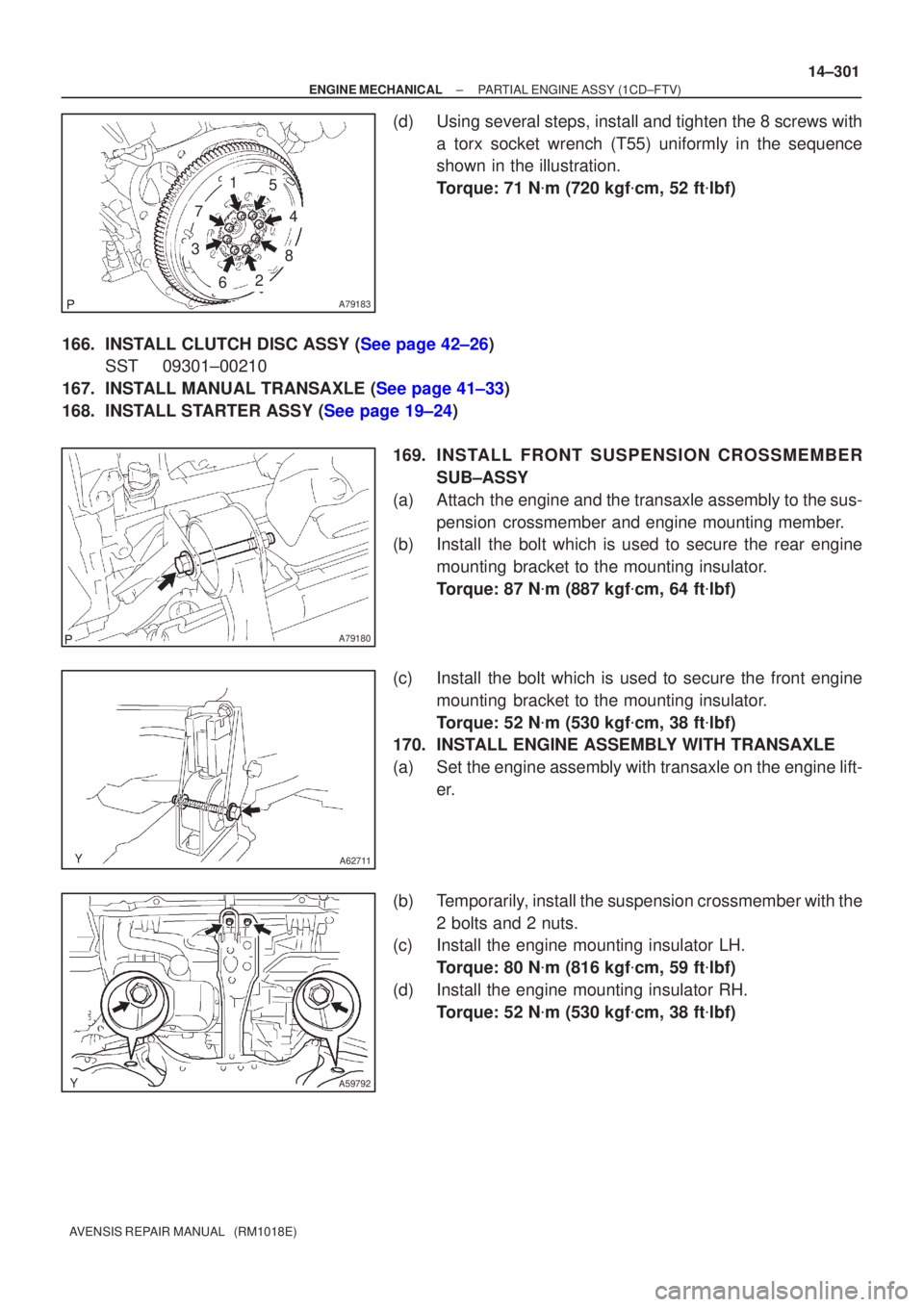

(d)Using several steps, install and tighten the 8 screws with
a torx socket wrench (T55) uniformly in the sequence
shown in the illustration.
Torque: 71 N
m (720 kgf
cm, 52 ft
lbf)
166.INSTALL CLUTCH DISC ASSY (See page 42±26) SST 09301±00210
167.INSTALL MANUAL TRANSAXLE (See page 41±33)
168.INSTALL STARTER ASSY (See page 19±24)
169. INS TALL FRO NT SUSPENSION CROSSMEMBER
SUB±ASSY
(a) Attach the engine and the transaxle assembly to the sus- pension crossmember and engine mounting member.
(b) Install the bolt which is used to secure the rear engine
mounting bracket to the mounting insulator.
Torque: 87 N
m (887 kgf
cm, 64 ft
lbf)
(c) Install the bolt which is used to secure the front engine mounting bracket to the mounting insulator.
Torque: 52 N
m (530 kgf
cm, 38 ft
lbf)
170. INSTALL ENGINE ASSEMBLY WITH TRANSAXLE
(a) Set the engine assembly with transaxle on the engine lift-
er.
(b) Temporarily, install the suspension crossmember with the 2 bolts and 2 nuts.
(c) Install the engine mounting insulator LH.
Torque: 80 N
m (816 kgf
cm, 59 ft
lbf)
(d) Install the engine mounting insulator RH. Torque: 52 N
m (530 kgf
cm, 38 ft
lbf)

A59792
BB
AA
A59793
AA
BBBBB
B
14±302
±
ENGINE MECHANICAL PARTIAL ENGINE ASSY(1CD±FTV)
AVENSIS REPAIR MANUAL (RM1018E)

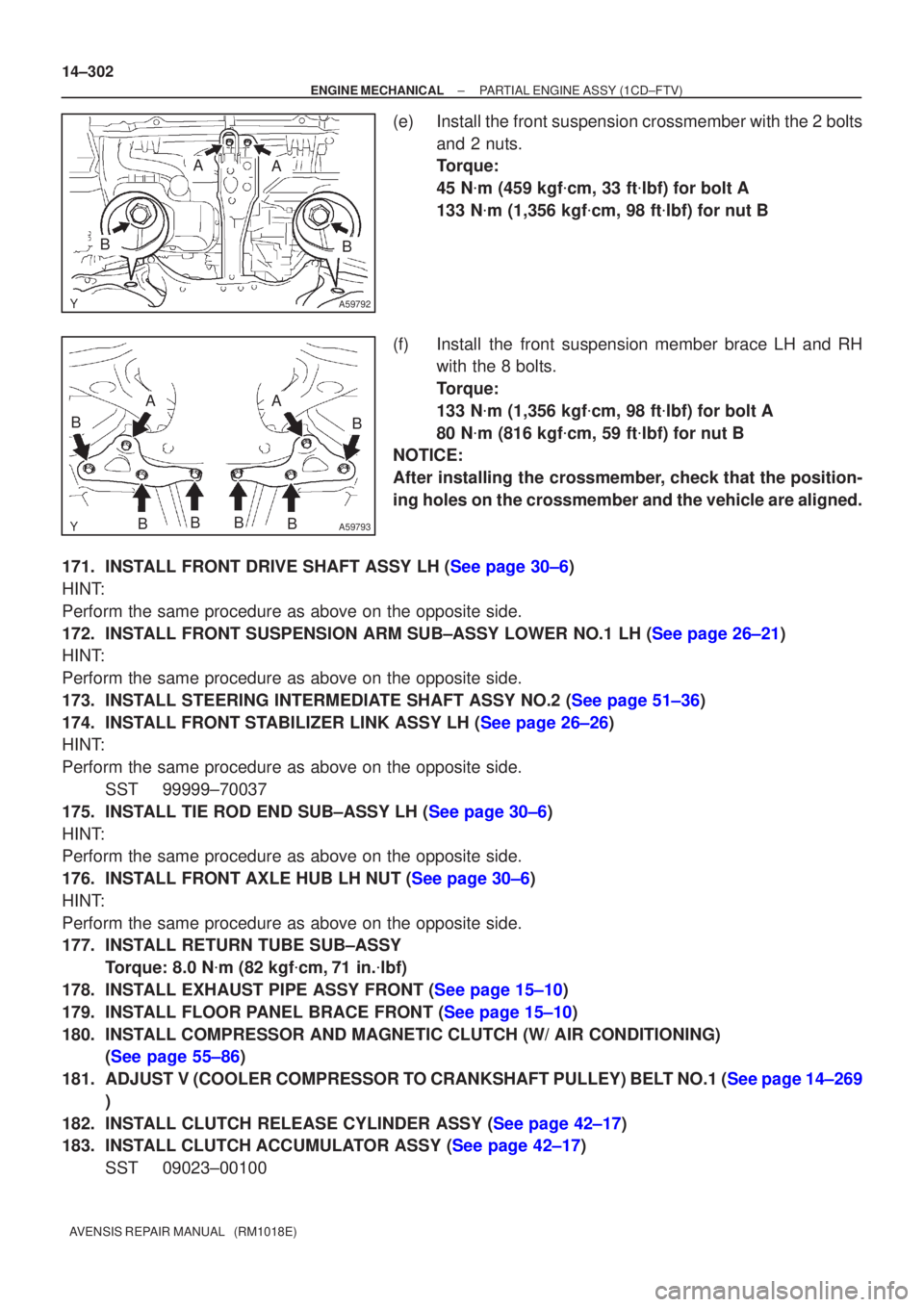

(e)Install the front suspension crossmember with the 2 bolts and 2 nuts.
Torque:
45 N
m (459 kgf
cm, 33 ft
lbf) for bolt A
133 N
m (1,356 kgf
cm, 98 ft
lbf) for nut B
(f)Install the front suspension member brace LH and RH with the 8 bolts.
Torque:
133 N
m (1,356 kgf
cm, 98 ft
lbf) for bolt A
80 N
m (816 kgf
cm, 59 ft
lbf) for nut B
NOTICE:
After installing the crossmember, check that the position-
ing holes on the crossmember and the vehicle are aligned.
171.INSTALL FRONT DRIVE SHAFT ASSY LH (See page 30±6)
HINT:
Perform the same procedure as above on the opposite side.
172.INSTALL FRONT SUSPENSION ARM SUB±ASSY LOWER NO.1 LH (See page 26±21)
HINT:
Perform the same procedure as above on the opposite side.
173.INSTALL STEERING INTERMEDIATE SHAFT ASSY NO.2 (See page 51±36)
174.INSTALL FRONT STABILIZER LINK ASSY LH (See page 26±26)
HINT:
Perform the same procedure as above on the opposite side. SST 99999±70037
175.INSTALL TIE ROD END SUB±ASSY LH (See page 30±6)
HINT:
Perform the same procedure as above on the opposite side.
176.INSTALL FRONT AXLE HUB LH NUT (See page 30±6)
HINT:
Perform the same procedure as above on the opposite side.
177. INSTALL RETURN TUBE SUB±ASSY Torque: 8.0 N
m (82 kgf
cm, 71 in.
lbf)
178.INSTALL EXHAUST PIPE ASSY FRONT (See page 15±10)
179.INSTALL FLOOR PANEL BRACE FRONT (See page 15±10)
180. INSTALL COMPRESSOR AND MAGNETIC CLUTCH (W/ AIR CONDITIONING) (See page 55±86)
181.ADJUST V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY) BELT NO.1 (See page 14±269 )
182.INSTALL CLUTCH RELEASE CYLINDER ASSY (See page 42±17)
183.INSTALL CLUTCH ACCUMULATOR ASSY (See page 42±17) SST 09023±00100

A64328
2 to 7 mm0 to 2 mm
A78274
Upward
90

Clamp
Bolt
A64328
2 to 7 mm 0 to 4 mm
A64007
Front
90

Clamp
Bolt
±
ENGINE MECHANICAL PARTIAL ENGINE ASSY(1CD±FTV)
14±303
AVENSIS REPAIR MANUAL (RM1018E)

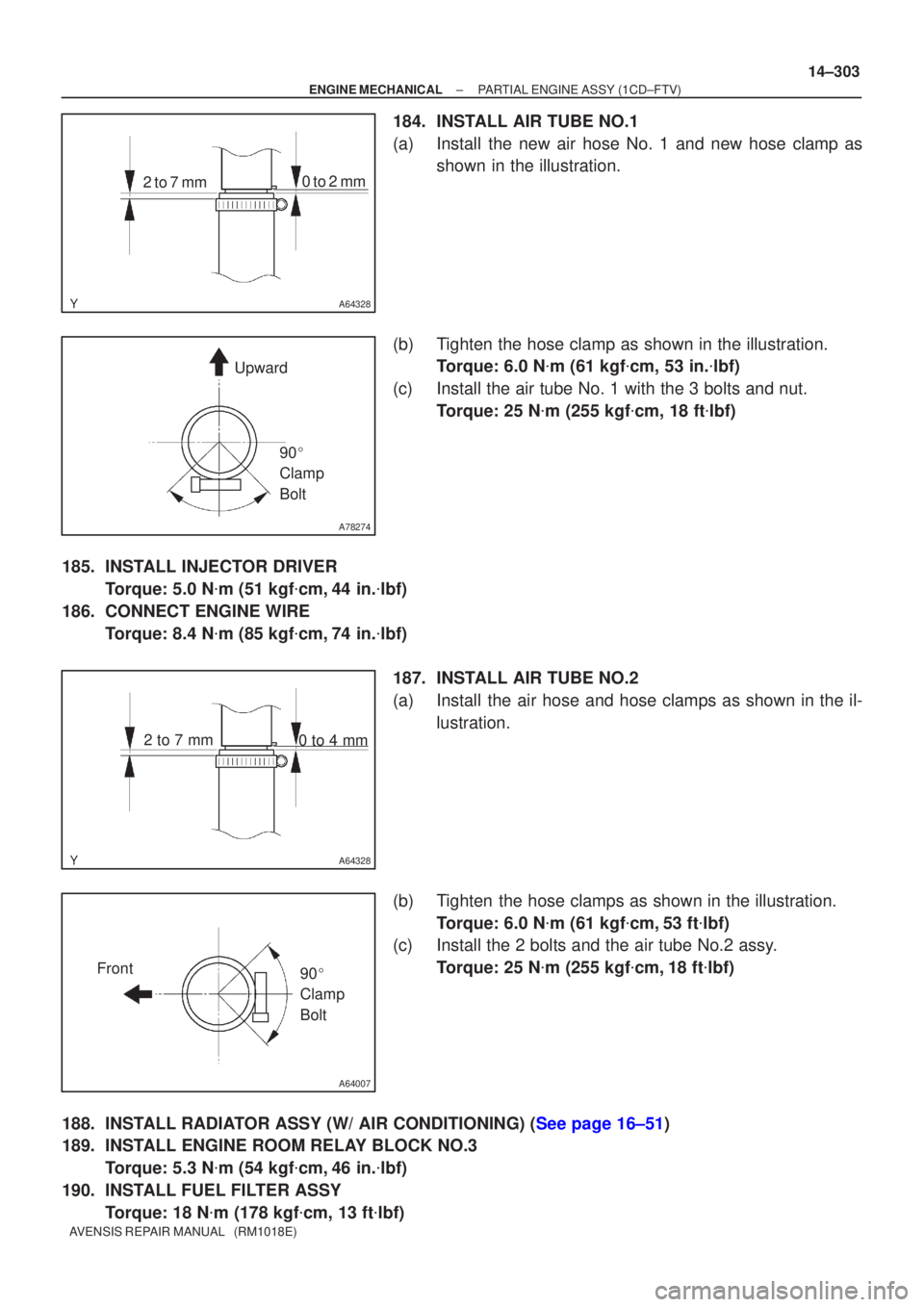

184.INSTALL AIR TUBE NO.1
(a)Install the new air hose No. 1 and new hose clamp as
shown in the illustration.
(b)Tighten the hose clamp as shown in the illustration. Torque: 6.0 N
m (61 kgf
cm, 53 in.
lbf)
(c)Install the air tube No. 1 with the 3 bolts and nut. Torque: 25 N
m (255 kgf
cm, 18 ft
lbf)
185.INSTALL INJECTOR DRIVER Torque: 5.0 N
m (51 kgf
cm,44 in.
lbf)
186.CONNECT ENGINE WIRE Torque: 8.4 N
m (85 kgf
cm,74 in.
lbf)
187.INSTALL AIR TUBE NO.2
(a)Install the air hose and hose clamps as shown in the il- lustration.
(b)Tighten the hose clamps as shown in the illustration. Torque: 6.0 N
m (61 kgf
cm,53 ft
lbf)
(c)Install the 2 bolts and the air tube No.2 assy.
Torque: 25 N
m (255 kgf
cm,18 ft
lbf)
188.INSTALL RADIATOR ASSY (W/ AIR CONDITIONING) (See page 16±51)
189. INSTALL ENGINE ROOM RELAY BLOCK NO.3 Torque: 5.3 N
m (54 kgf
cm, 46 in.
lbf)
190. INSTALL FUEL FILTER ASSY Torque: 18 N
m (178 kgf
cm, 13 ft
lbf)

14±304
±
ENGINE MECHANICAL PARTIAL ENGINE ASSY (1CD±FTV)
AVENSIS REPAIR MANUAL (RM1018E)

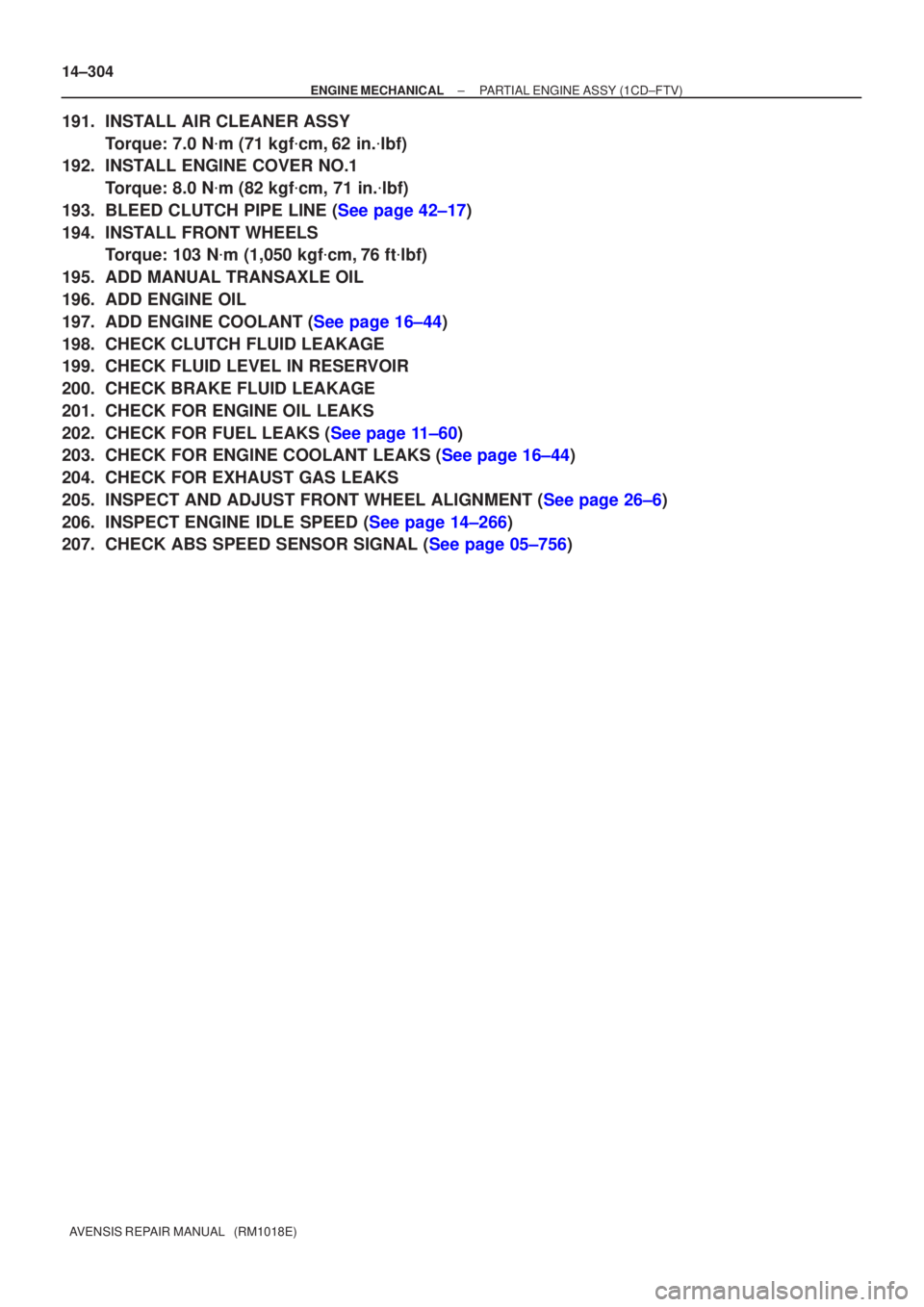

191. INSTALL AIR CLEANER ASSY Torque: 7.0 N
m (71 kgf
cm, 62 in.
lbf)
192. INSTALL ENGINE COVER NO.1
Torque: 8.0 N
m (82 kgf
cm, 71 in.
lbf)
193.BLEED CLUTCH PIPE LINE (See page 42±17)
194. INSTALL FRONT WHEELS Torque: 103 N
m (1,050 kgf
cm, 76 ft
lbf)
195. ADD MANUAL TRANSAXLE OIL
196. ADD ENGINE OIL
197.ADD ENGINE COOLANT (See page 16±44)
198. CHECK CLUTCH FLUID LEAKAGE
199. CHECK FLUID LEVEL IN RESERVOIR
200. CHECK BRAKE FLUID LEAKAGE
201. CHECK FOR ENGINE OIL LEAKS
202.CHECK FOR FUEL LEAKS (See page 11±60)
203.CHECK FOR ENGINE COOLANT LEAKS (See page 16±44)
204. CHECK FOR EXHAUST GAS LEAKS
205.INSPECT AND ADJUST FRONT WHEEL ALIGNMENT (See page 26±6)
206.INSPECT ENGINE IDLE SPEED (See page 14±266)
207.CHECK ABS SPEED SENSOR SIGNAL (See page 05±756)
