TOYOTA AVENSIS 2005 Service Repair Manual


G245265 Clips Claw
B660262 Clips
B660342 Clips
B693472 Claws
(A)(A)
71±12
±
INSTRUMENT PANEL/METER INSTRUMENT PANEL SUB±ASSY LOWER
AVENSIS REPAIR MANUAL (RM1018E)

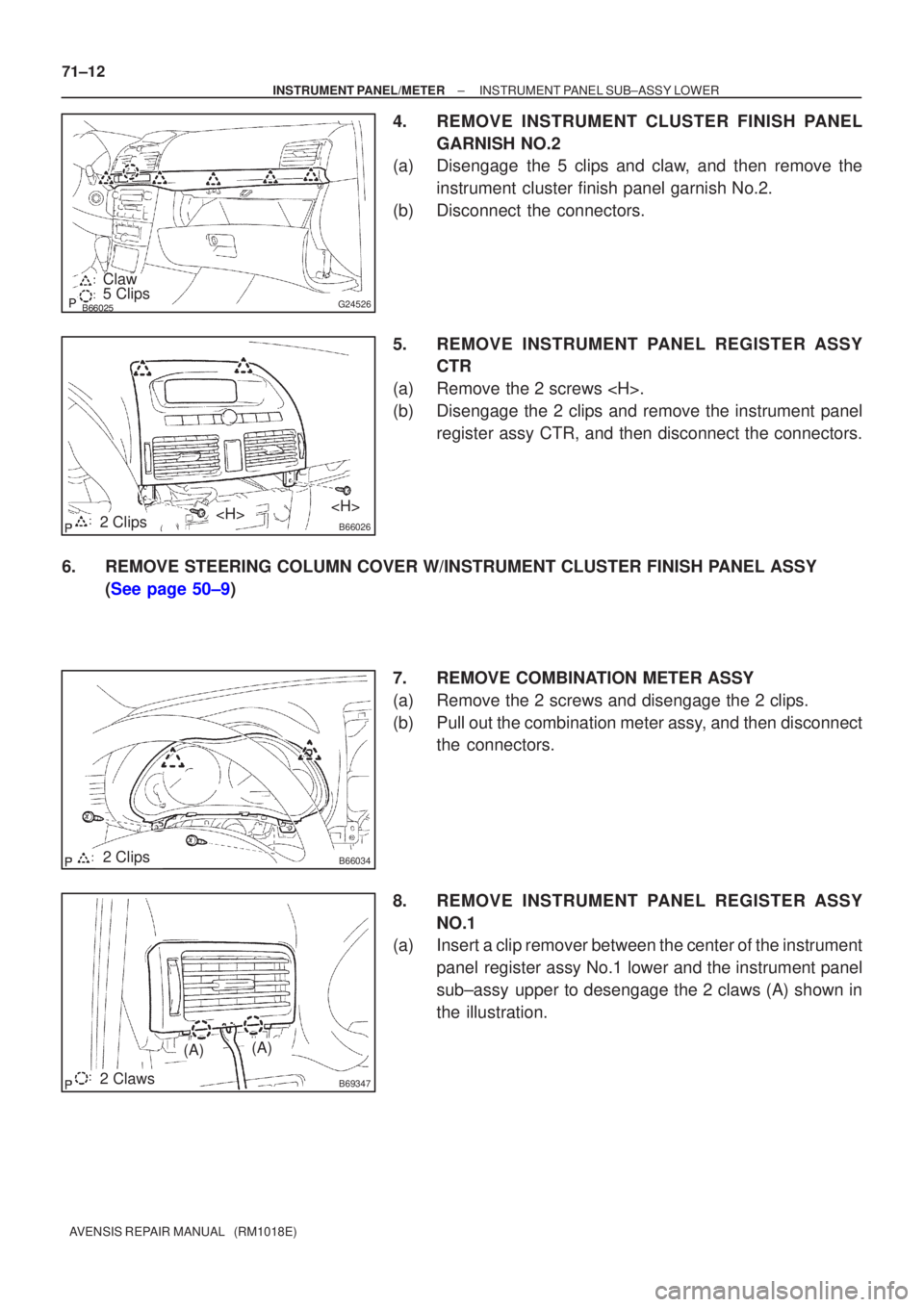

4.REMOVE INSTRUMENT CLUSTER FINISH PANEL GARNISH NO.2
(a)Disengage the 5 clips and claw, and then remove the
instrument cluster finish panel garnish No.2.
(b)Disconnect the connectors.
5.REMOVE INSTRUMENT PANEL REGISTER ASSY CTR
(a)Remove the 2 screws .
(b)Disengage the 2 clips and remove the instrument panel register assy CTR, and then disconnect the connectors.
6.REMOVE STEERING COLUMN COVER W/INSTRUMENT CLUSTER FINISH PANEL ASSY (See page 50±9)
7. REMOVE COMBINATION METER ASSY
(a) Remove the 2 screws and disengage the 2 clips.
(b) Pull out the combination meter assy, and then disconnectthe connectors.
8. REMOVE INSTRUMENT PANEL REGISTER ASSY NO.1
(a) Insert a clip remover between the center of the instrument
panel register assy No.1 lower and the instrument panel
sub±assy upper to desengage the 2 claws (A) shown in
the illustration.

B693482 Claws
(B)(B)
B660412 Clips 2 Claws
B660282 Clips
±
INSTRUMENT PANEL/METER INSTRUMENT PANEL SUB±ASSY LOWER
71±13
AVENSIS REPAIR MANUAL (RM1018E)

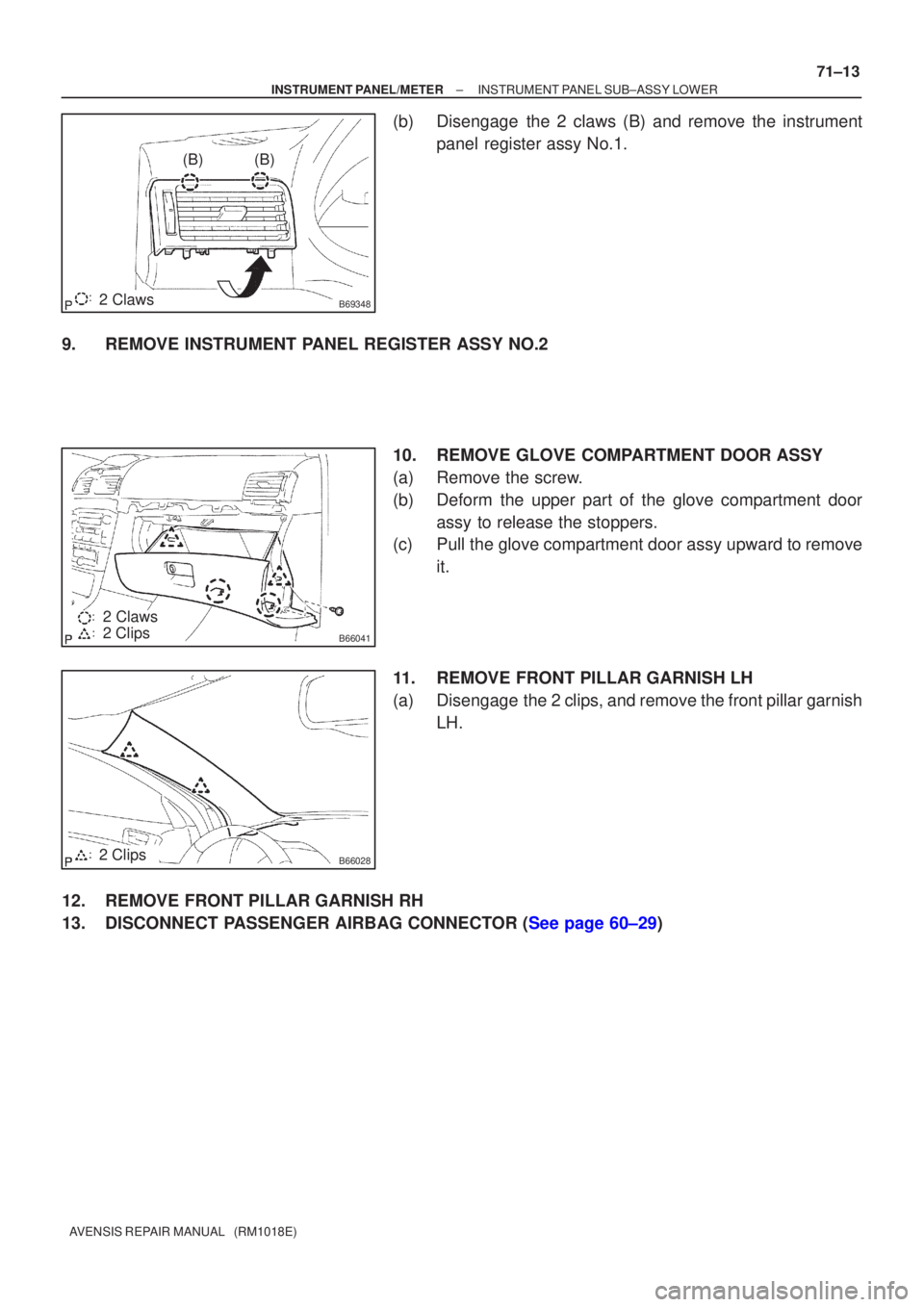

(b)Disengage the 2 claws (B) and remove the instrument
panel register assy No.1.
9.REMOVE INSTRUMENT PANEL REGISTER ASSY NO.2 10.REMOVE GLOVE COMPARTMENT DOOR ASSY
(a)Remove the screw.
(b)Deform the upper part of the glove compartment doorassy to release the stoppers.
(c)Pull the glove compartment door assy upward to remove
it.
11.REMOVE FRONT PILLAR GARNISH LH
(a)Disengage the 2 clips, and remove the front pillar garnish LH.
12.REMOVE FRONT PILLAR GARNISH RH
13.DISCONNECT PASSENGER AIRBAG CONNECTOR (See page 60±29)

B660292 Clips
3 Claws



B66022
71±14
± INSTRUMENT PANEL/METERINSTRUMENT PANEL SUB±ASSY LOWER
AVENSIS REPAIR MANUAL (RM1018E)

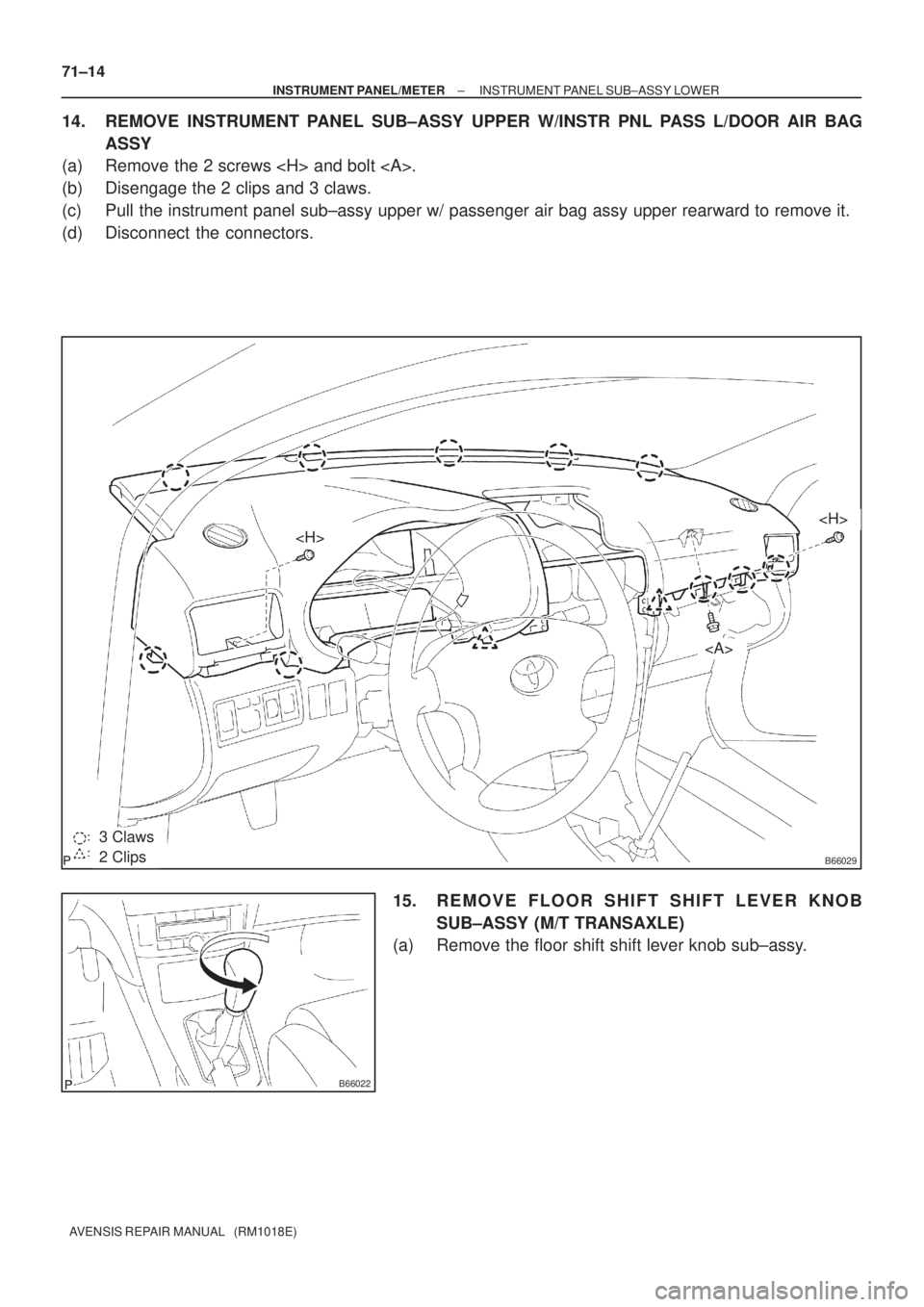

14. REMOVE INSTRUMENT PANEL SUB±ASSY UPPER W/INSTR PNL PASS L/DOOR AIR BAG
ASSY
(a) Remove the 2 screws and bolt .
(b) Disengage the 2 clips and 3 claws.
(c) Pull the instrument panel sub±assy upper w/ passenger air bag assy upper rearward to remove it.
(d) Disconnect the connectors.
15. REMOVE FLOOR SHIFT SHIFT LEVER KNOB
SUB±ASSY (M/T TRANSAXLE)
(a) Remove the floor shift shift lever knob sub±assy.

B70029: 4 Clips
A/T Transaxle:
M/T Transaxle:
B66045Claw

±
INSTRUMENT PANEL/METER INSTRUMENT PANEL SUB±ASSY LOWER
71±15
AVENSIS REPAIR MANUAL (RM1018E)

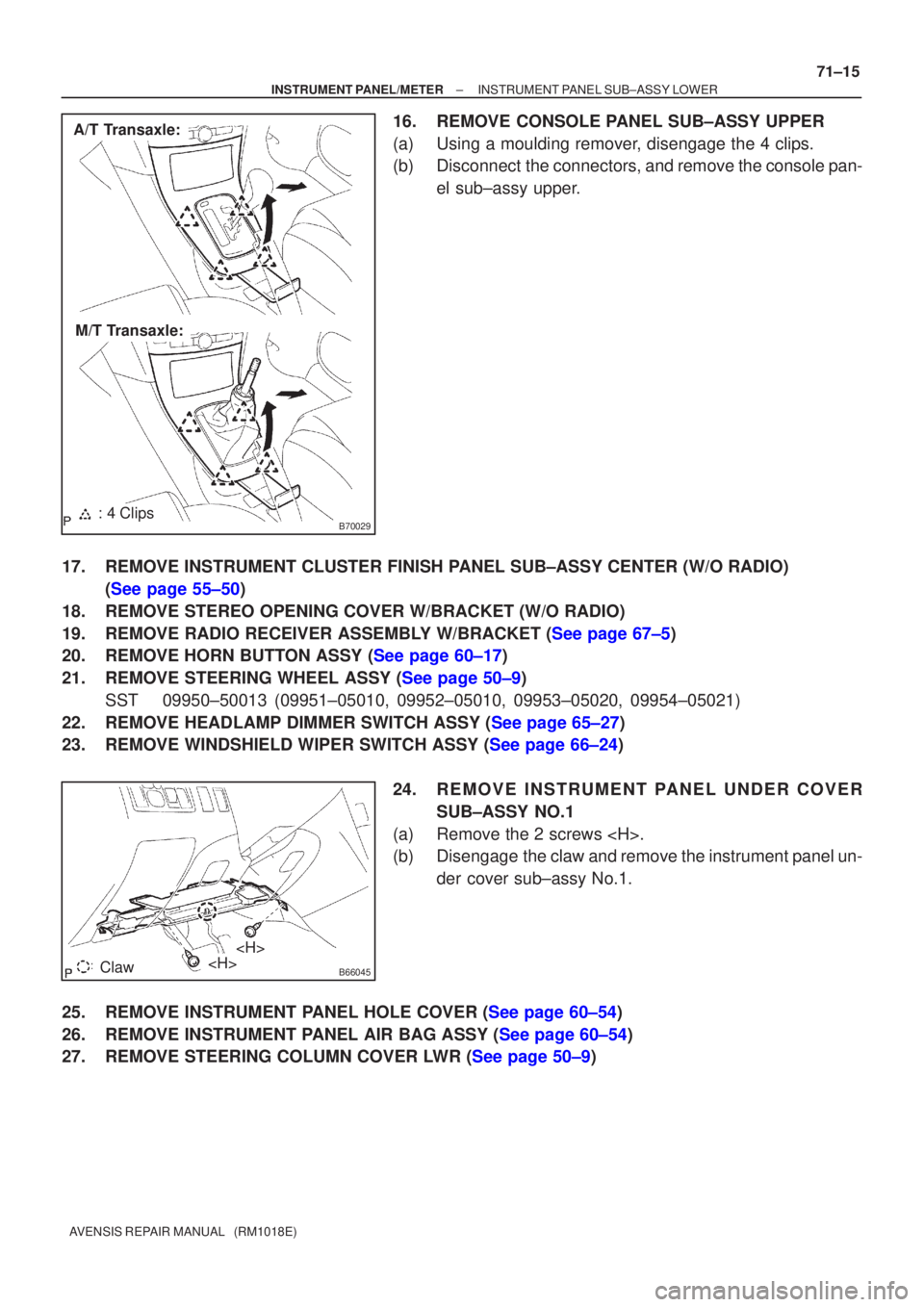

16.REMOVE CONSOLE PANEL SUB±ASSY UPPER
(a)Using a moulding remover, disengage the 4 clips.
(b)Disconnect the connectors, and remove the console pan-
el sub±assy upper.
17.REMOVE INSTRUMENT CLUSTER FINISH PANEL SUB±ASSY CENTER (W/O RADIO) (See page 55±50)
18.REMOVE STEREO OPENING COVER W/BRACKET (W/O RADIO)
19.REMOVE RADIO RECEIVER ASSEMBLY W/BRACKET (See page 67±5)
20.REMOVE HORN BUTTON ASSY (See page 60±17)
21.REMOVE STEERING WHEEL ASSY (See page 50±9) SST09950±50013 (09951±05010, 09952±05010, 09953±05020, 09954±\
05021)
22.REMOVE HEADLAMP DIMMER SWITCH ASSY (See page 65±27)
23.REMOVE WINDSHIELD WIPER SWITCH ASSY (See page 66±24)
24.REMOVE INSTRUMENT PANEL UNDER COVERSUB±ASSY NO.1
(a)Remove the 2 screws .
(b)Disengage the claw and remove the instrument panel un- der cover sub±assy No.1.
25.REMOVE INSTRUMENT PANEL HOLE COVER (See page 60±54)
26.REMOVE INSTRUMENT PANEL AIR BAG ASSY (See page 60±54)
27.REMOVE STEERING COLUMN COVER LWR (See page 50±9)

B660308 Claws
B660312 Clips
B660423 Clips
B660356 Clips

71±16
± INSTRUMENT PANEL/METERINSTRUMENT PANEL SUB±ASSY LOWER
AVENSIS REPAIR MANUAL (RM1018E)

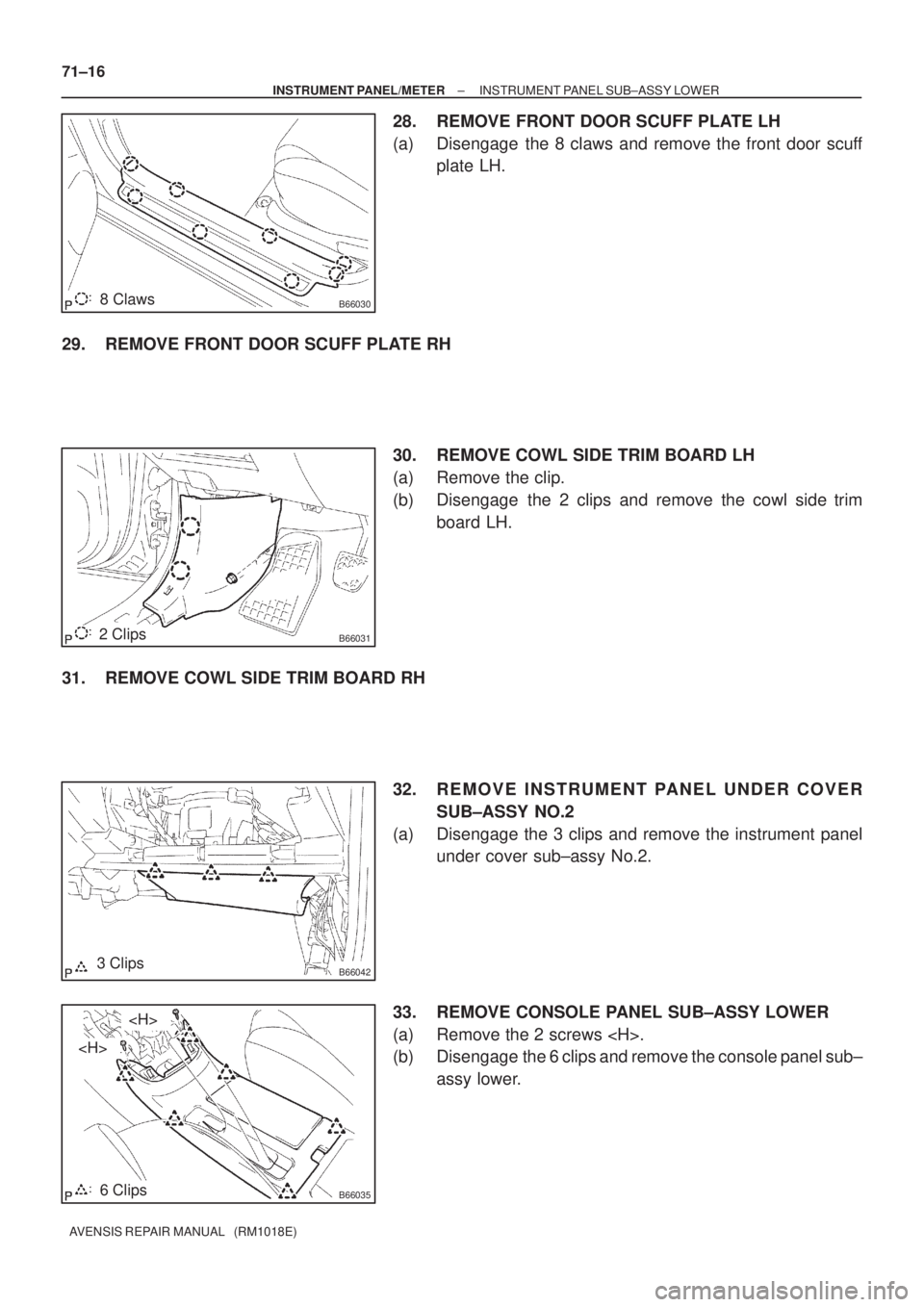

28. REMOVE FRONT DOOR SCUFF PLATE LH
(a) Disengage the 8 claws and remove the front door scuff
plate LH.
29. REMOVE FRONT DOOR SCUFF PLATE RH
30. REMOVE COWL SIDE TRIM BOARD LH
(a) Remove the clip.
(b) Disengage the 2 clips and remove the cowl side trim
board LH.
31. REMOVE COWL SIDE TRIM BOARD RH
32. R E M O V E I N S T R U M E N T PA N E L U N D E R C O V E R
SUB±ASSY NO.2
(a) Disengage the 3 clips and remove the instrument panel
under cover sub±assy No.2.
33. REMOVE CONSOLE PANEL SUB±ASSY LOWER
(a) Remove the 2 screws .
(b) Disengage the 6 clips and remove the console panel sub±
assy lower.

I35213
B66044
A/T Only:
M/T Only:





B66033
± INSTRUMENT PANEL/METERINSTRUMENT PANEL SUB±ASSY LOWER
71±17
AVENSIS REPAIR MANUAL (RM1018E)

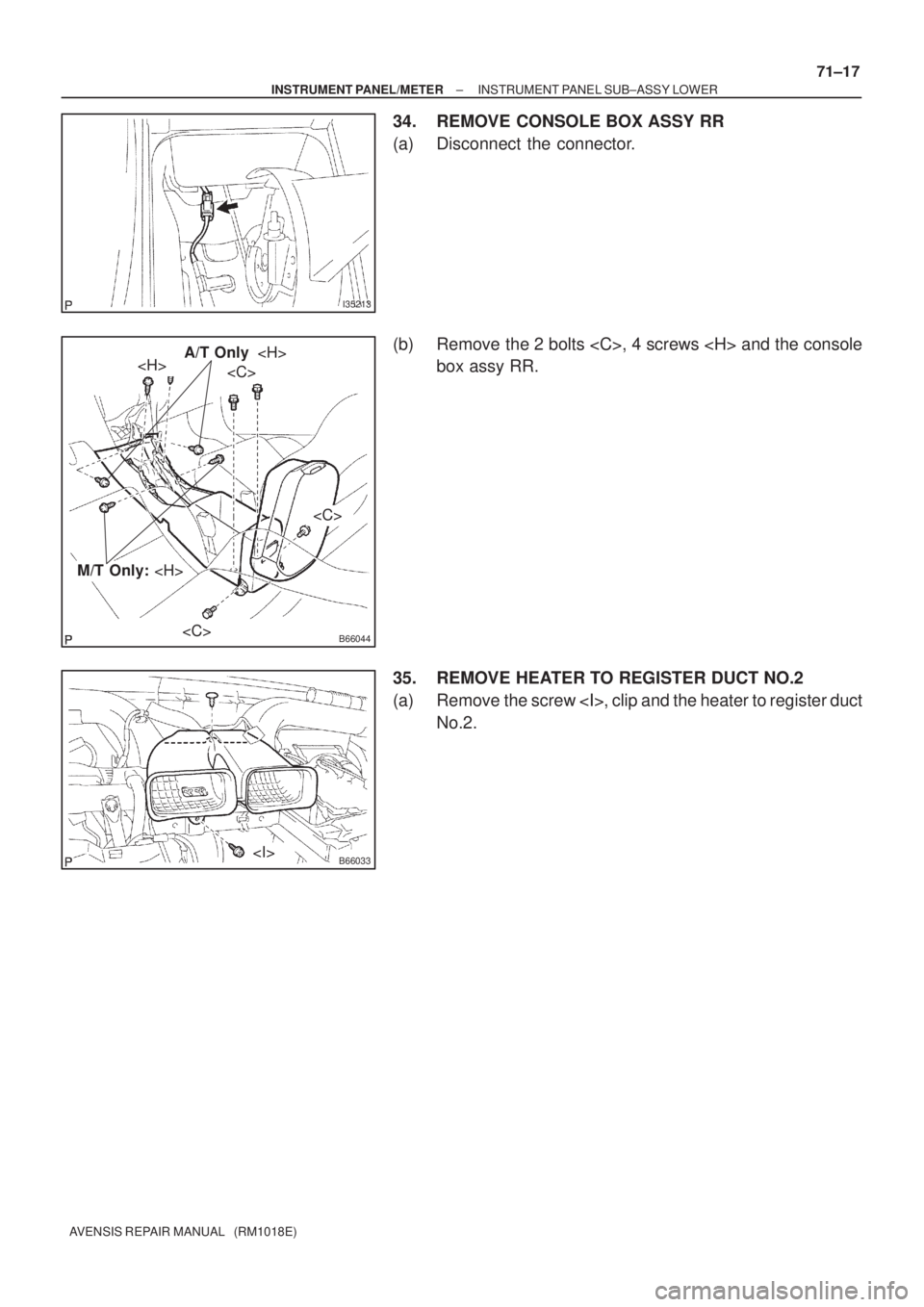

34. REMOVE CONSOLE BOX ASSY RR
(a) Disconnect the connector.
(b) Remove the 2 bolts , 4 screws and the console
box assy RR.
35. REMOVE HEATER TO REGISTER DUCT NO.2
(a) Remove the screw , clip and the heater to register duct
No.2.
